Description
Specification:
Product Name |

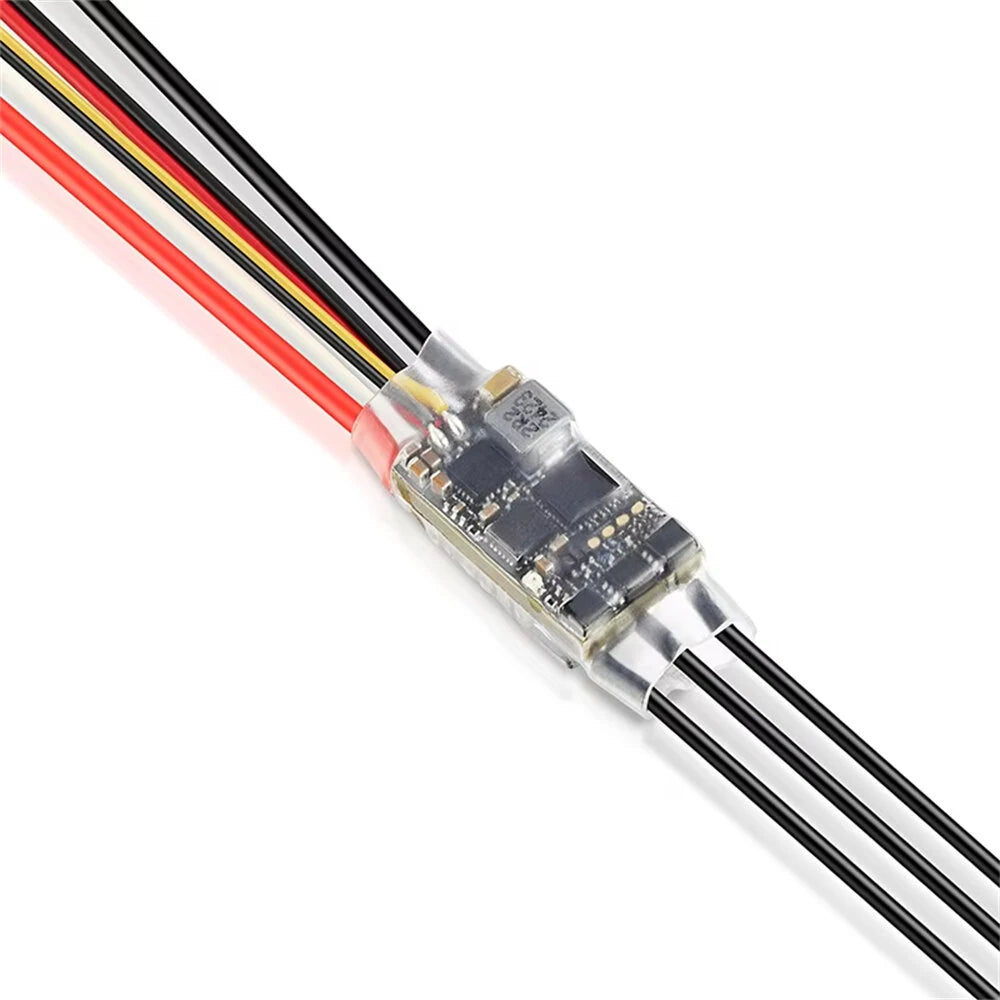

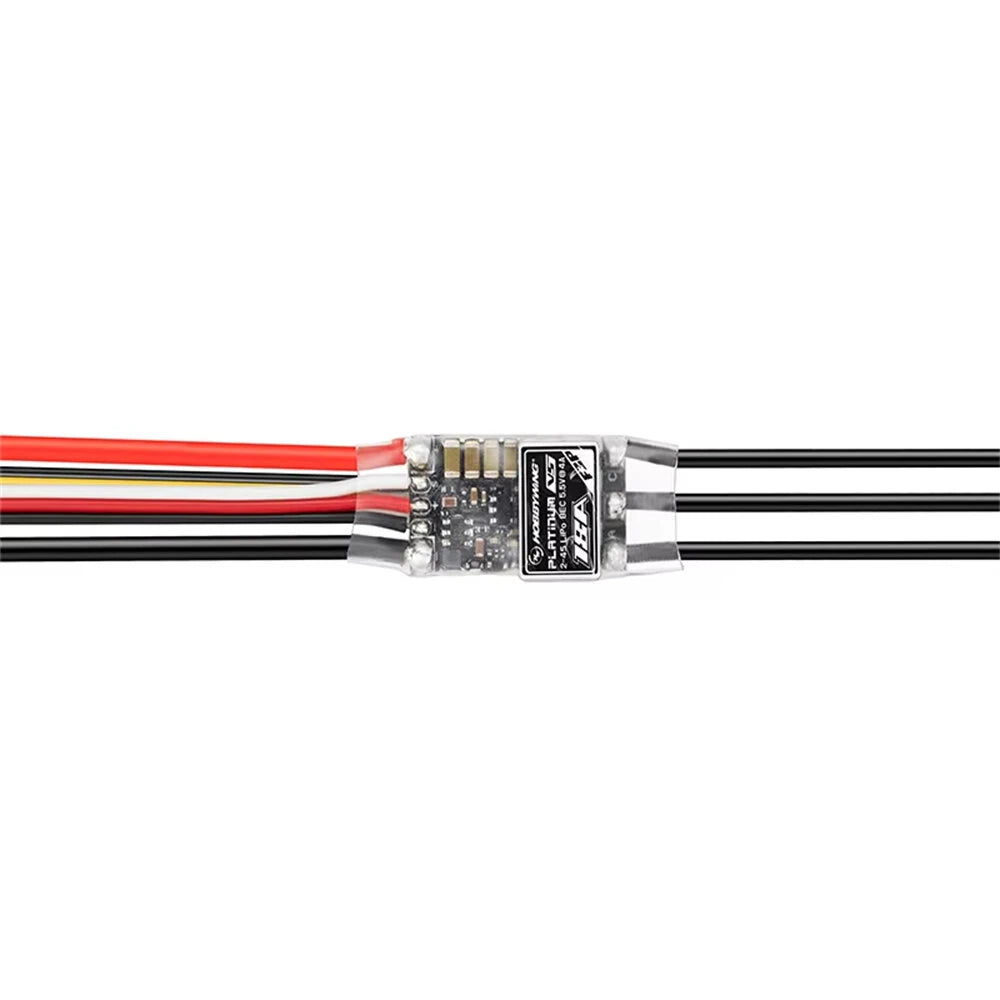

Platinum 18A V5 F3P ESC |
Product Number |
30202100 |
Type |
Brushed/Brushless: Brushless High Voltage/Regular: Regular |
Specifications |
Cont./Peak Current: 18A/30A Input Voltage: 2-4S LiPo BEC Output: Switch Mode：5.5V & Cont. 4A，Peak 6A |
Wires & Connectors |
Input Wires: Red-18AWG-100mm*1/Black-18AWG-100mm*1 Output Wires: Black-20AWG-100mm*3 Input Connectors: No Output Connectors: 2.0mm Gold Connectors (Female) |
ESC Programing via |
Transmitter: Not Supported LED Program Card: Not Supported LED Program Box: Not Supported LCD Program Box: Supported OTA Programmer: Supported Program Port: Separate Program Cable |
Firmware |
Firmware Upgrade: Supported |
Telemetry Function |
For Futaba S.Bus2；etc. |
Size & Weight |
Size: 24.6*12.8*7.5mm Weight: 11.9g (INCL wires) |
Application |
120g-320g F3P electric fixed-wing |
Package Included:
1 x HobbyWing Platinum 18A V5 ESC
