Description
Description:

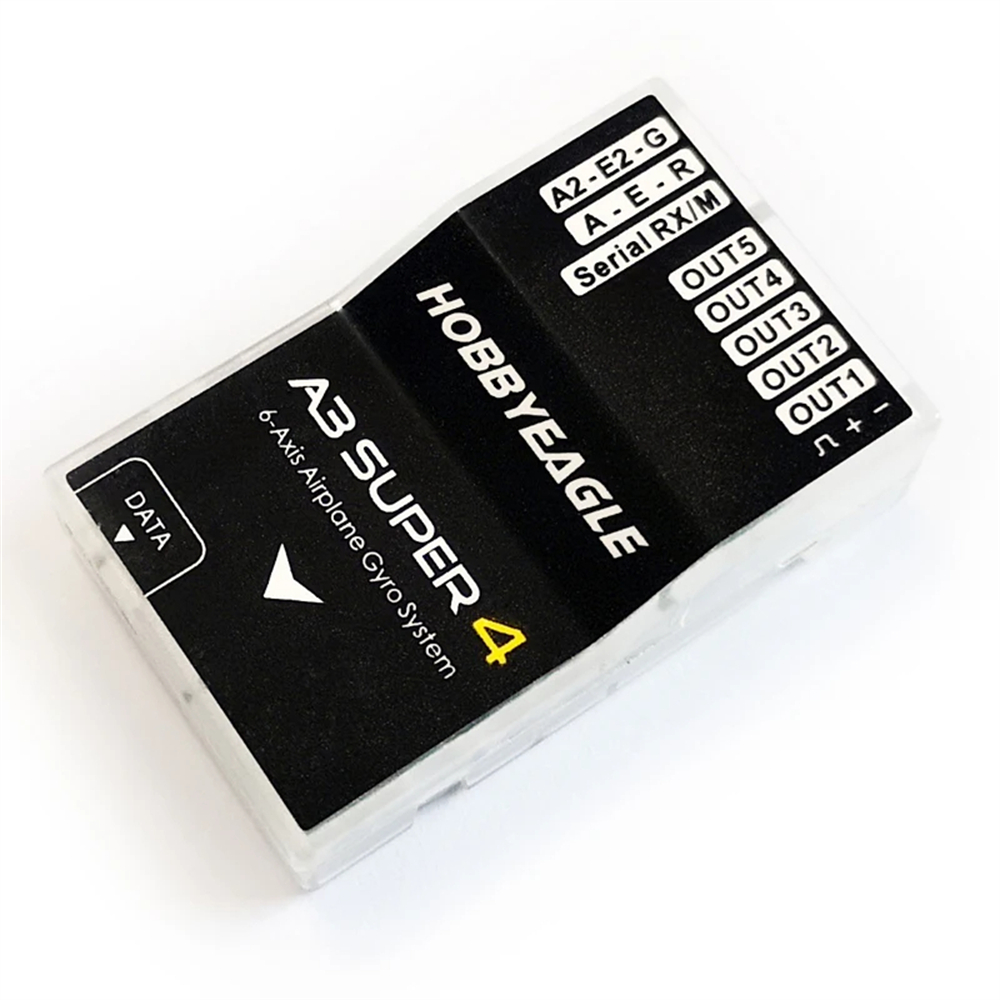

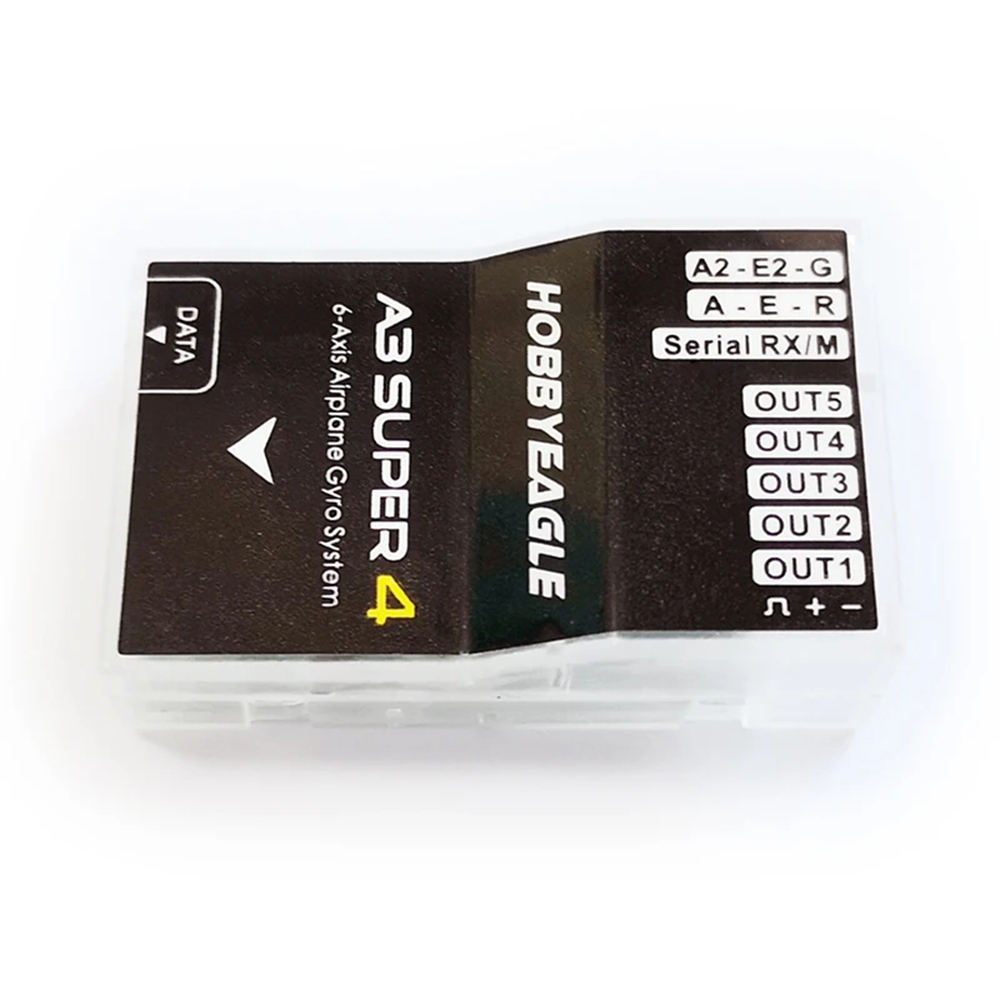

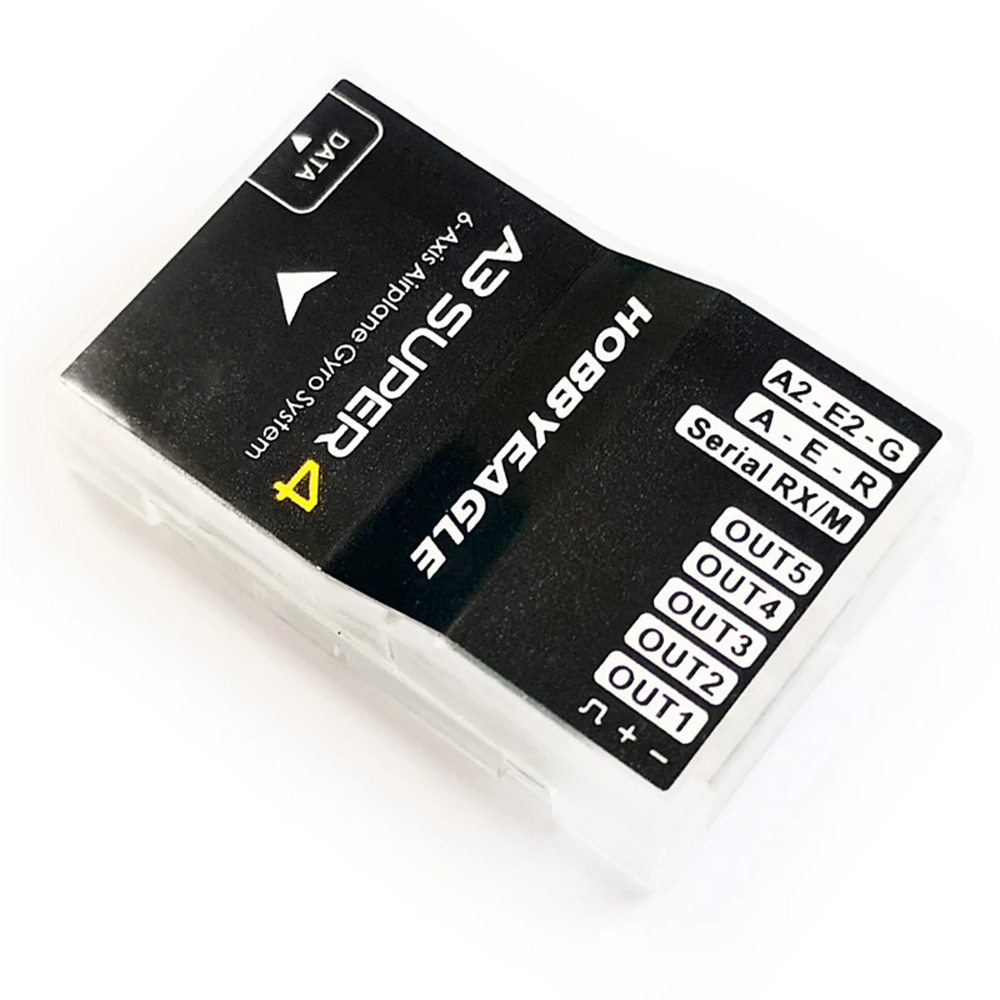

The A3 Super 4 it is a high-performance and powerful 6-axis gyroscope and balancer specially designed for fixed-wing aircraft models. On the basis of the previous generation, the hardware design is further improved, and the full support for multi-protocol digital serial receivers and the addition of customizable output interfaces make it more user-friendly and more reliable in use.
Specifications:
Brand: HobbyEagle
Model: A3 Super 4
Item Name: Fixed-wing flight control
Material: ABS
Color: Black
Main Controller: 32-bit MCU
Sensor: High-precision 6-axis MEMS Sensor
Input Voltage: DC3.6V ~ 8.4V
Working current: 20mA@5V

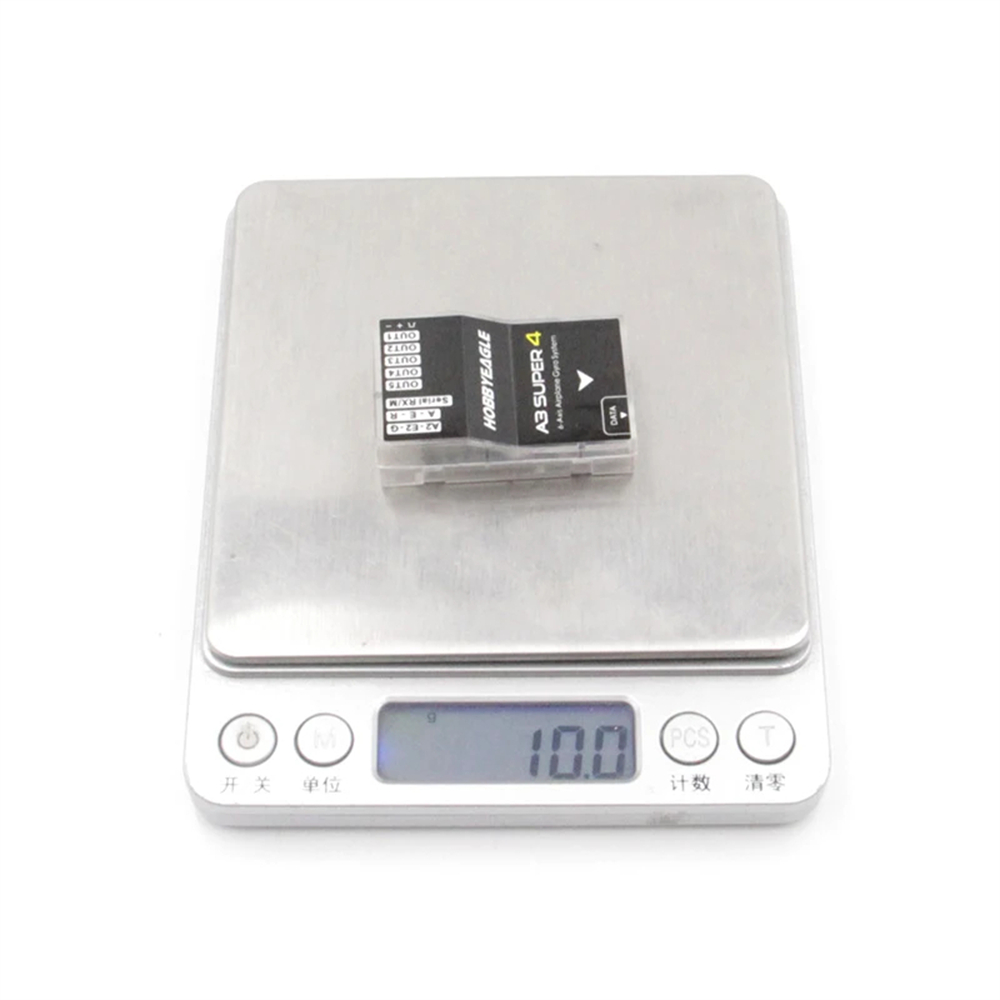

Weight: 4.8g (Excluding Wires)
Size: 30*19.5*7.5mm
Serial Receiver Protocols Supported:
PPM Receiver
for Futaba SBus (compatible with FrSky SBus, JETI SBus, RadioLink SBus, TBS SBus and WFLY WBus)
Spektrum DSM2/X 1024 Receiver
Spektrum DSM2/X 2048 Receiver
Spektrum SRXL
Multiplex SRXL / JR XBUS Mode B
Graupner SUMD
FlySky iBus
JETI EXBus
TBS/ELRS CRSF
Feature:
*32-bit processor, high-precision 6-axis MEMS sensor, Perfect hardware design and stable firmware for more reliable performance.
*6 flight modes and 6-stage mode switching, including gyro off mode, normal stabilization mode, lock mode, angle mode, balance mode and hoist mode.

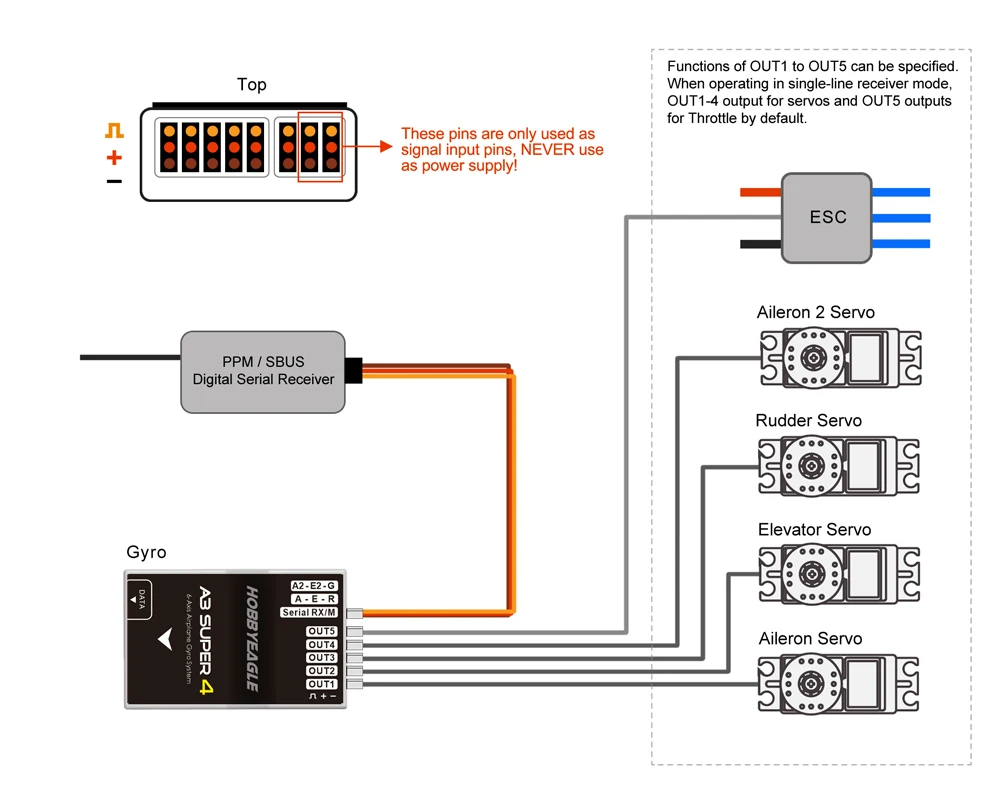

*Full support for PWM, PPM and multi-protocol digital serial receivers.

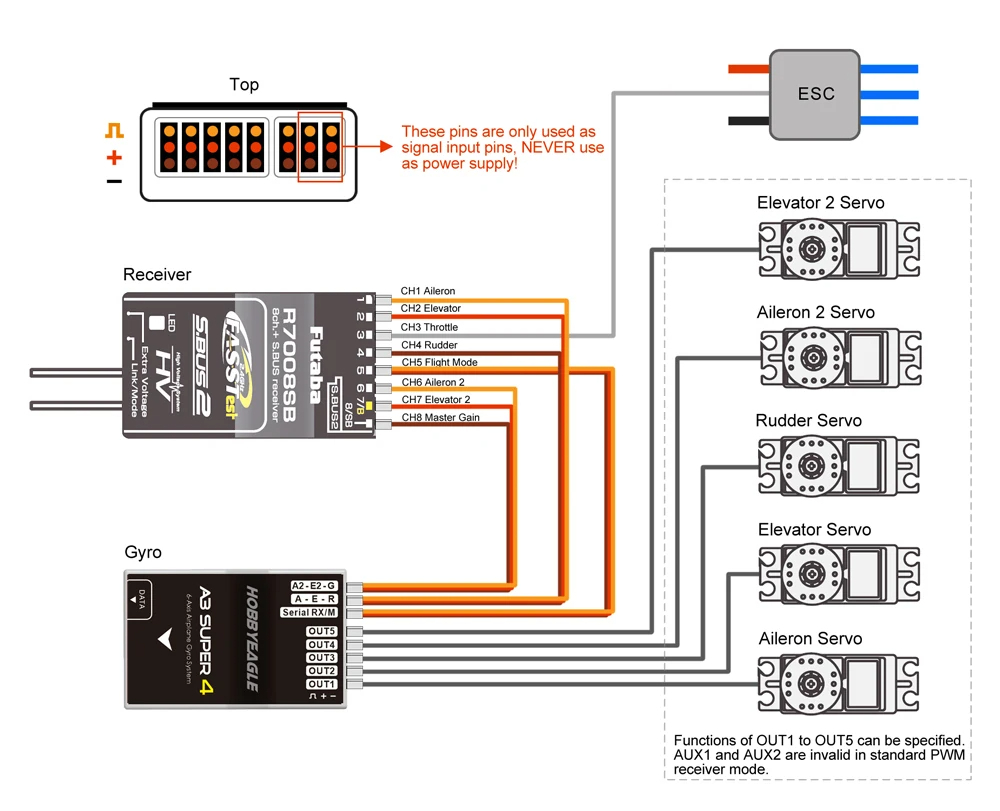

*Flexibly configurable output interface, providing 2 pass-through output channels.
*Dual ailerons, dual elevator systems, built-in flying wing (delta wing) and V-tail mixing.
*Remote overall gain adjustment.
*Firmware can be upgraded, support setting card parameter adjustment.
User Manual, Click Here
Spektrum DSM2/X Adapter Manual, Click Here
Software & Driver, Click Here
Only Program Card Version Included:

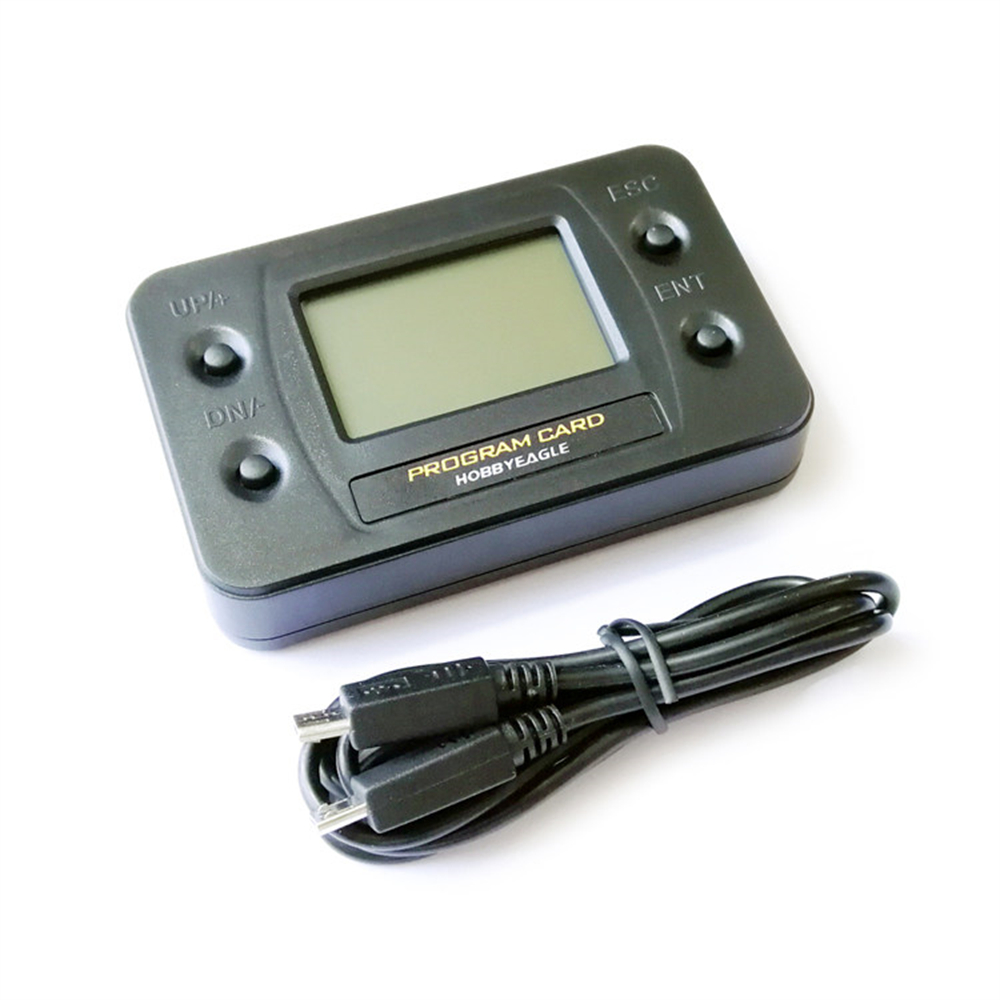

1 x Program Card
1 x Data Cable

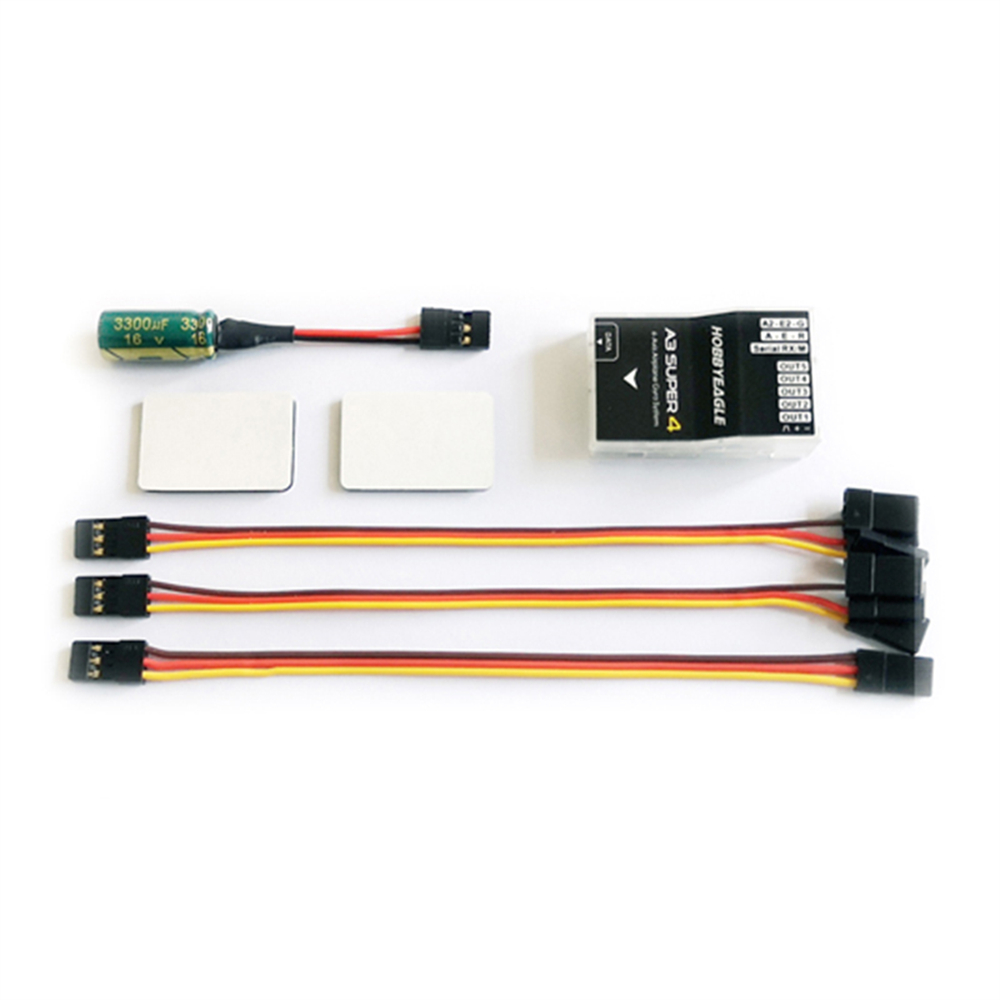

Lite Edition Included:
1 x A3 Super 4 Flight Controller
3 x Receiver Cable
2 x Double-sided Tapes

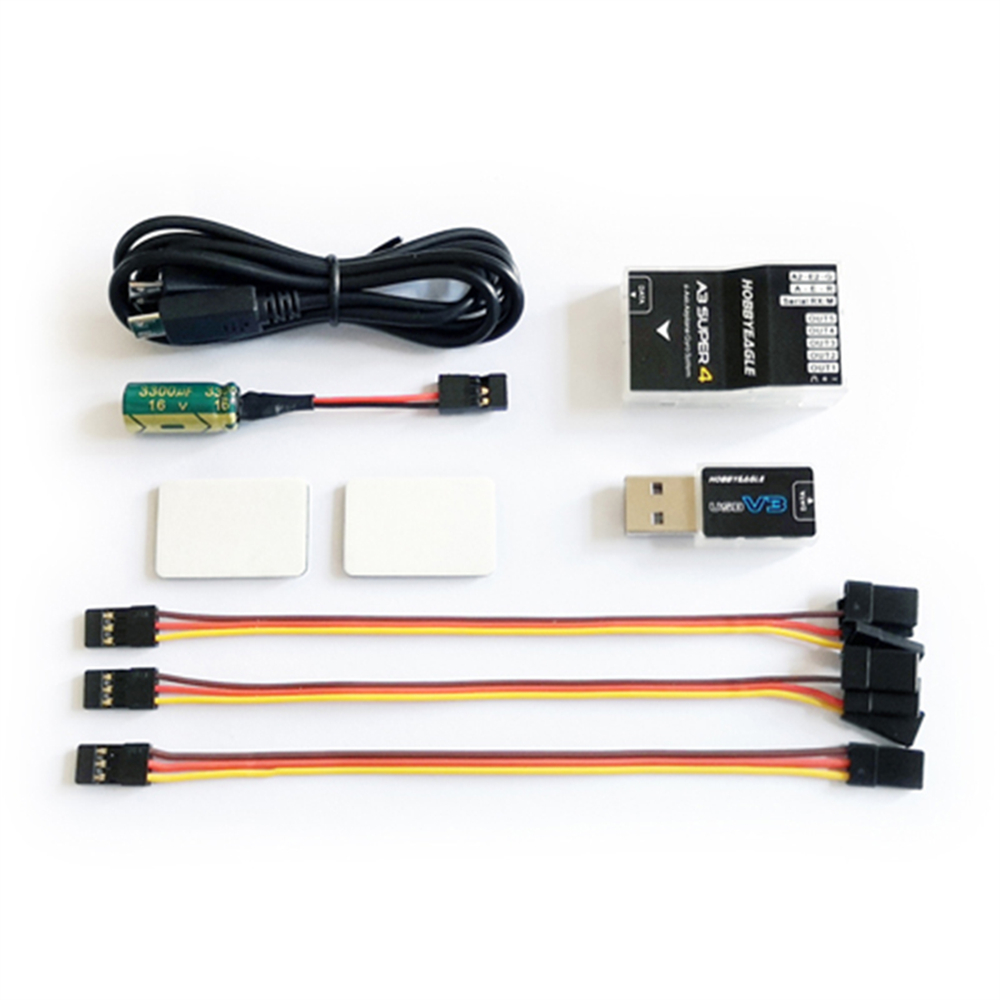

Standard Edition Included:
1 x A3 Super 4 Flight Controller
1 x Capacitor
3 x Receiver Cable
1 x Data Cable
1 x USB Adapter
2 x Double-sided Tapes

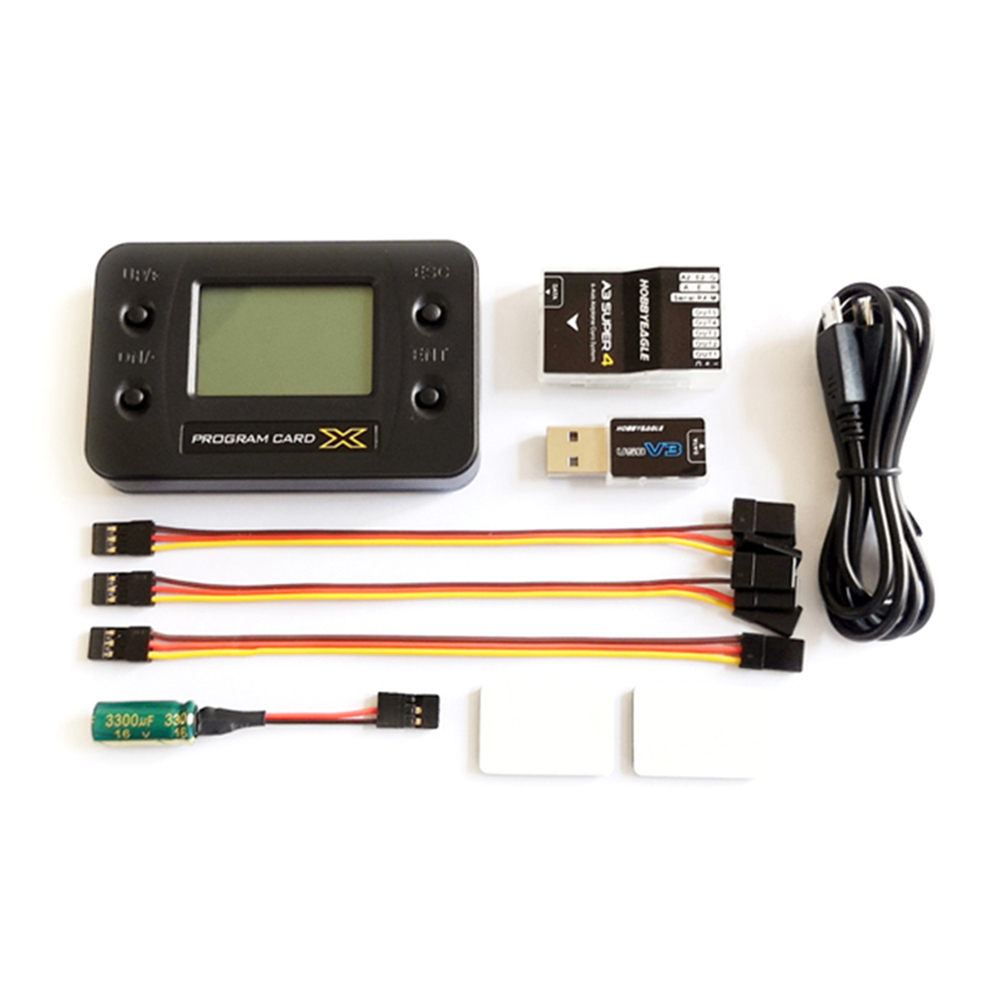

Full Set w/ Program Card Edition Included:
1 x A3 Super 4 Flight Controller
1× Program Card
1× USB Adapter
3 x Receiver Cable
1 x Data Cable
1 x Capacitor
2 x Double-sided Tapes
