Description

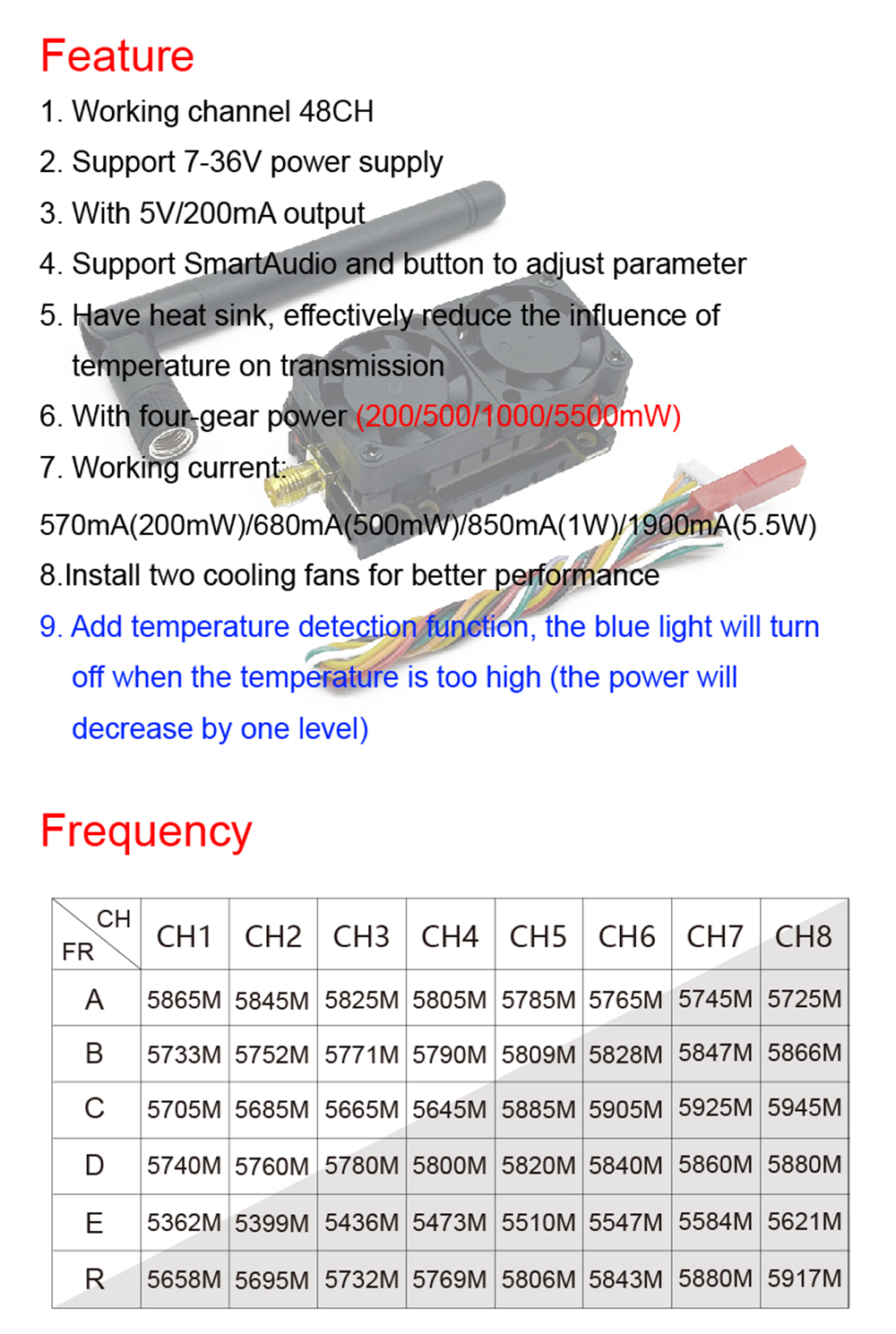

Feature:

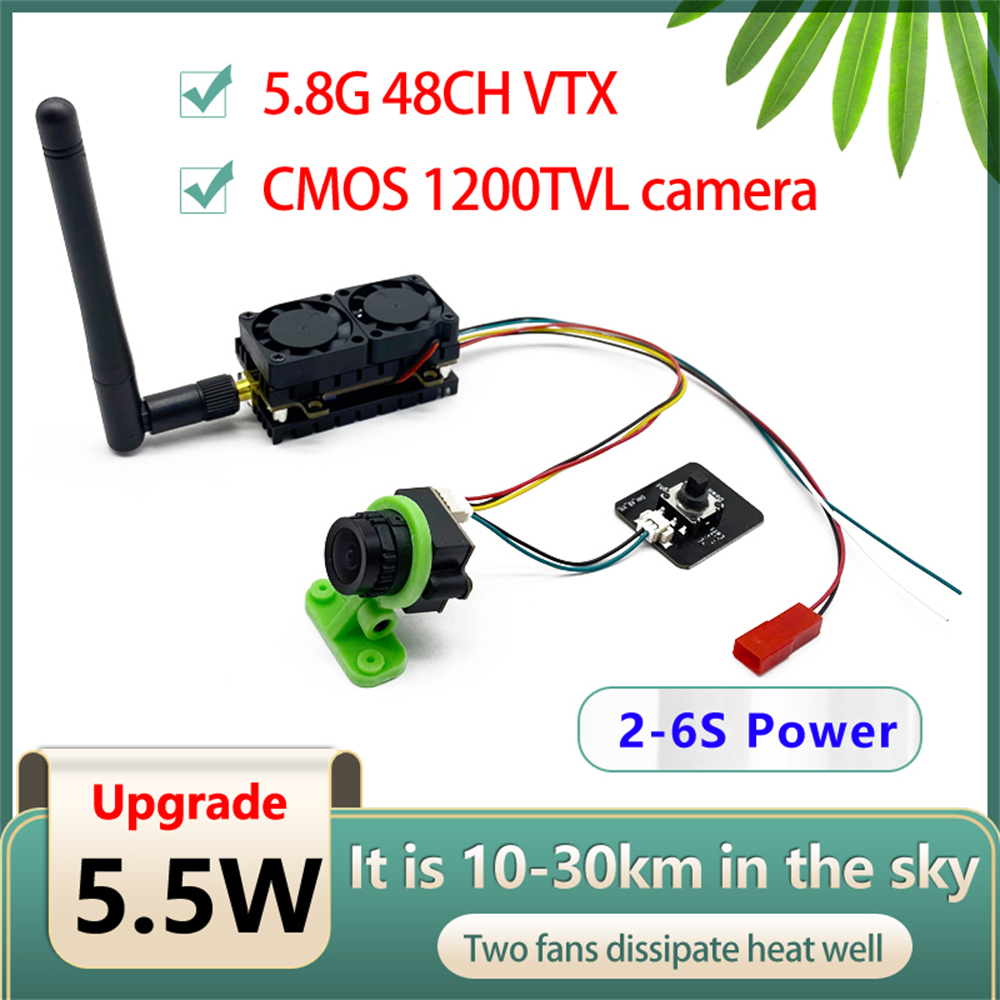

1. Working channel 48CH
2. Support 7-36V power supply
3. With 5V/200mA output

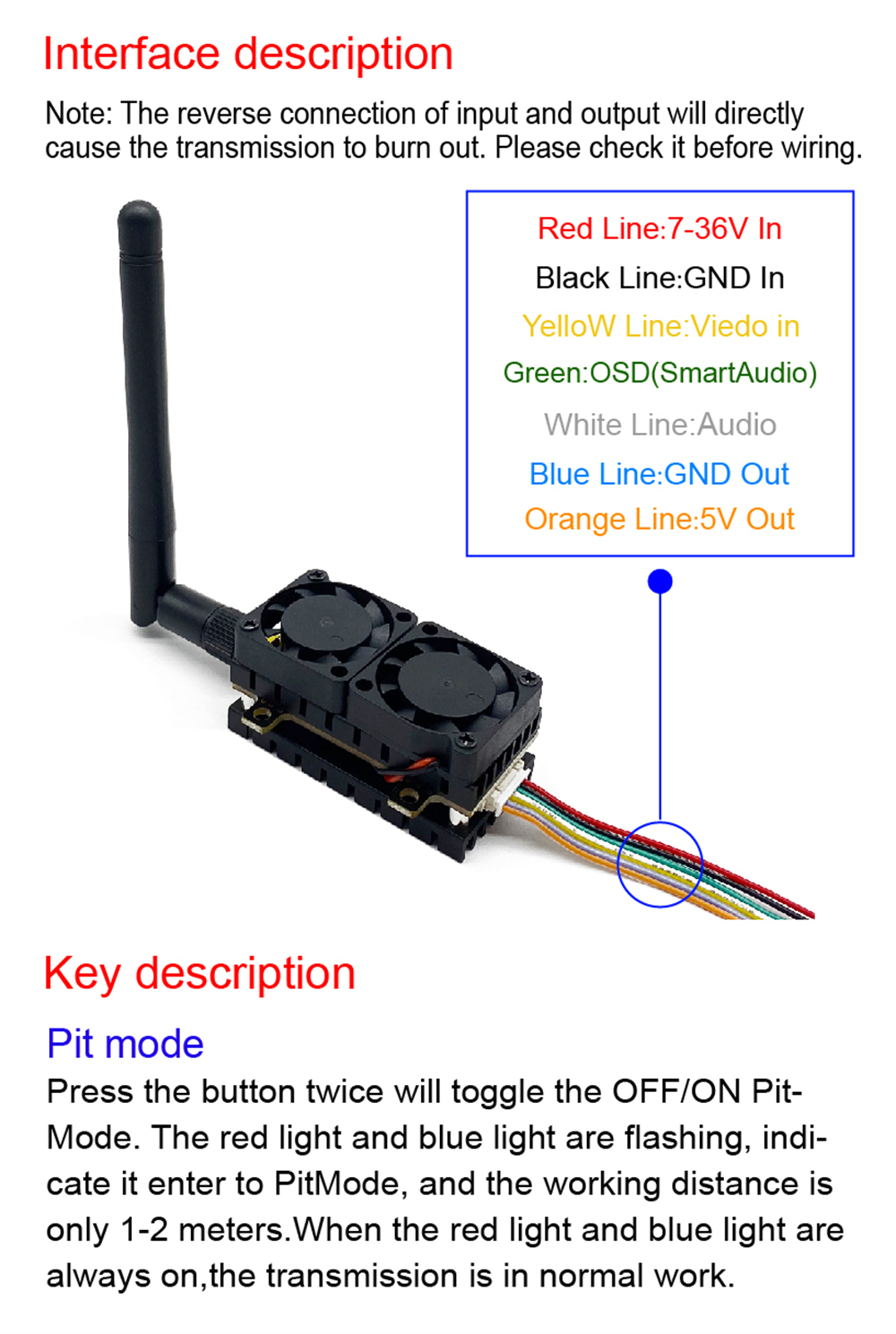

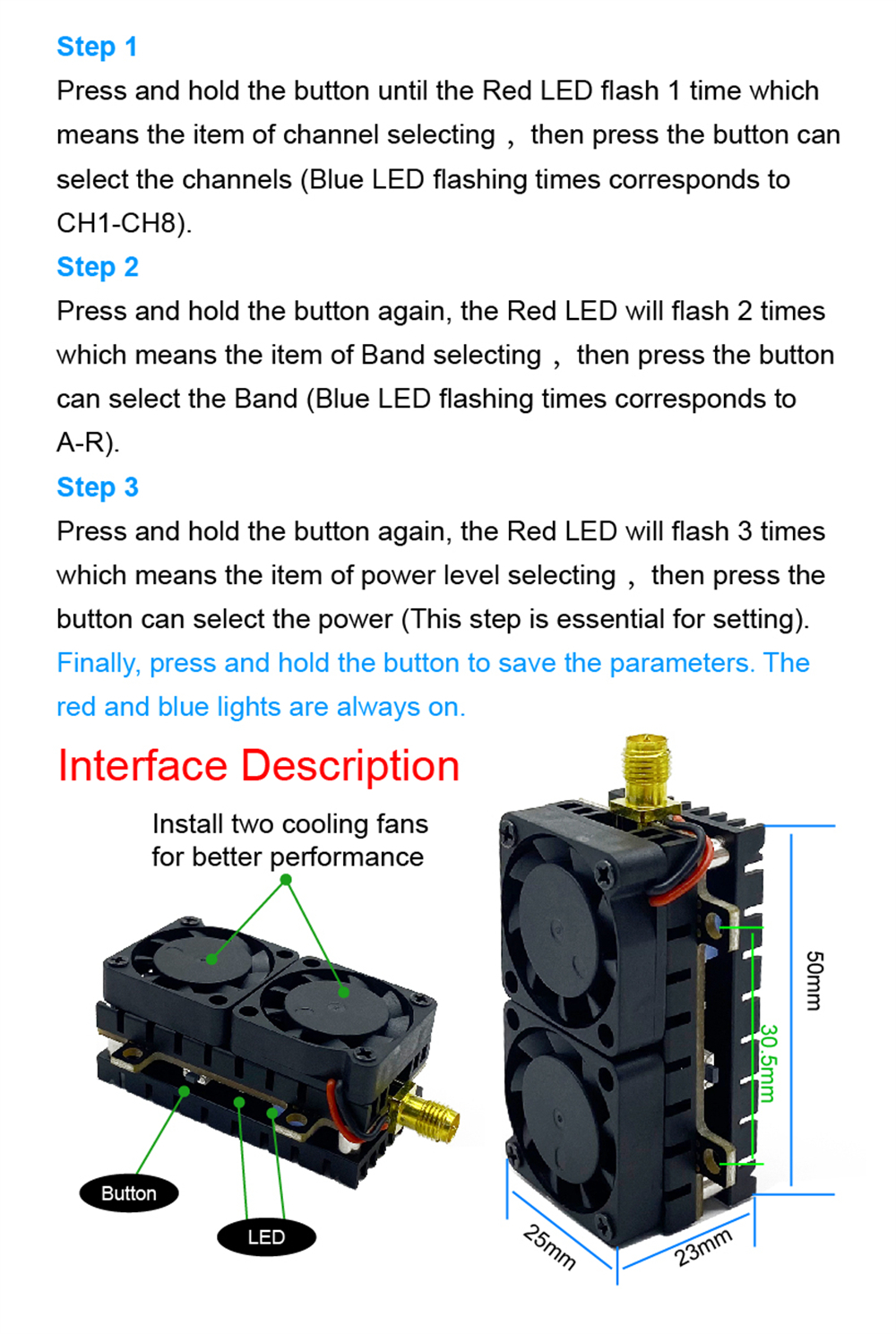

4. Support SmartAudio and button to adjust parameter
5. Have heat sink, effectively reduce the influence of temperature on transmission

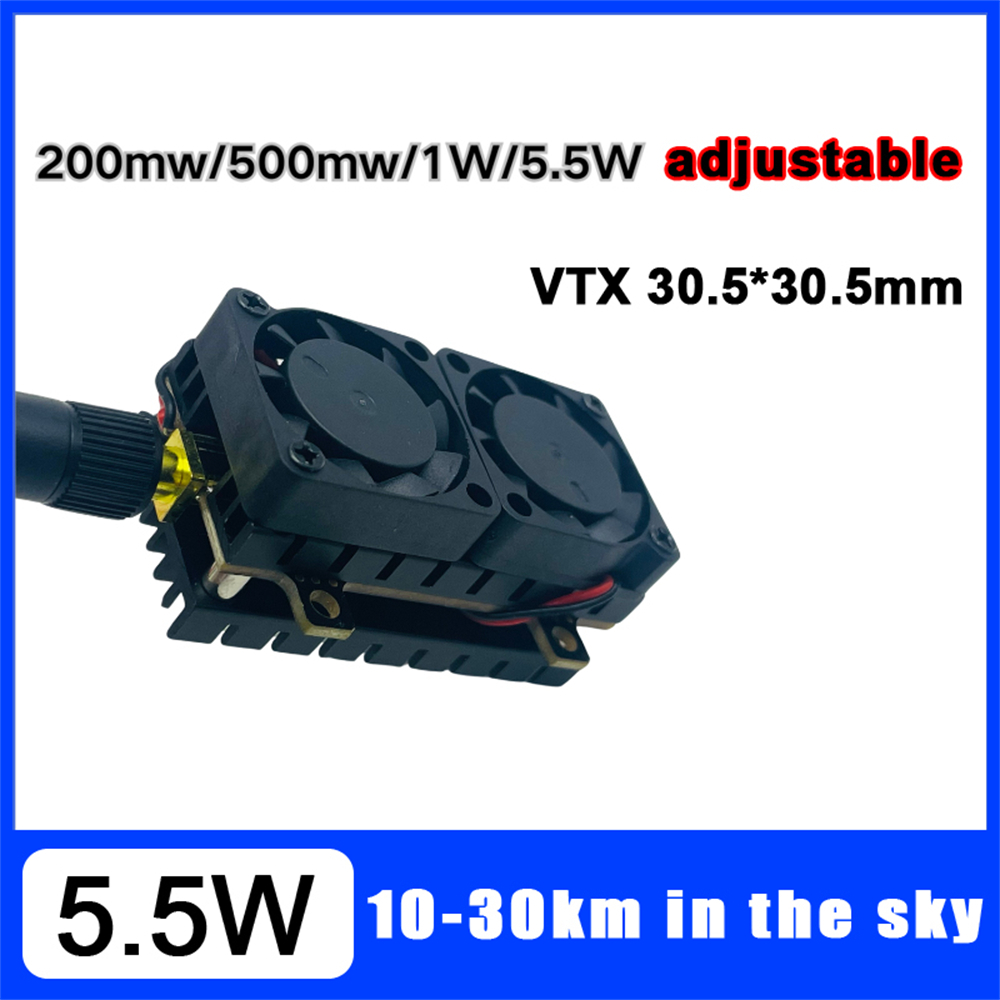

6. With four-gear power (200/500/1000/5500mW), It is 10-30KM in the sky.
7. Working current: 570mA(200mW)/680mA(500mW)/850mA(1W)/1900mA(5.5W)

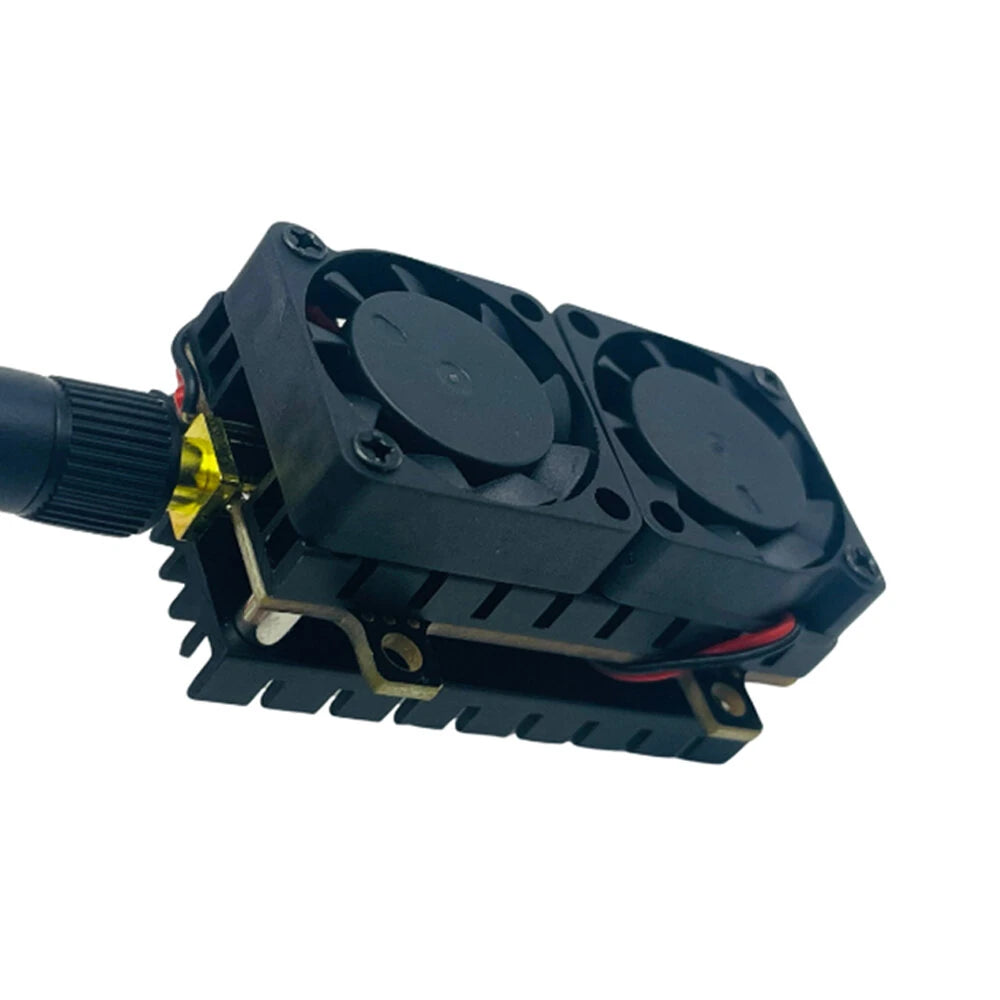

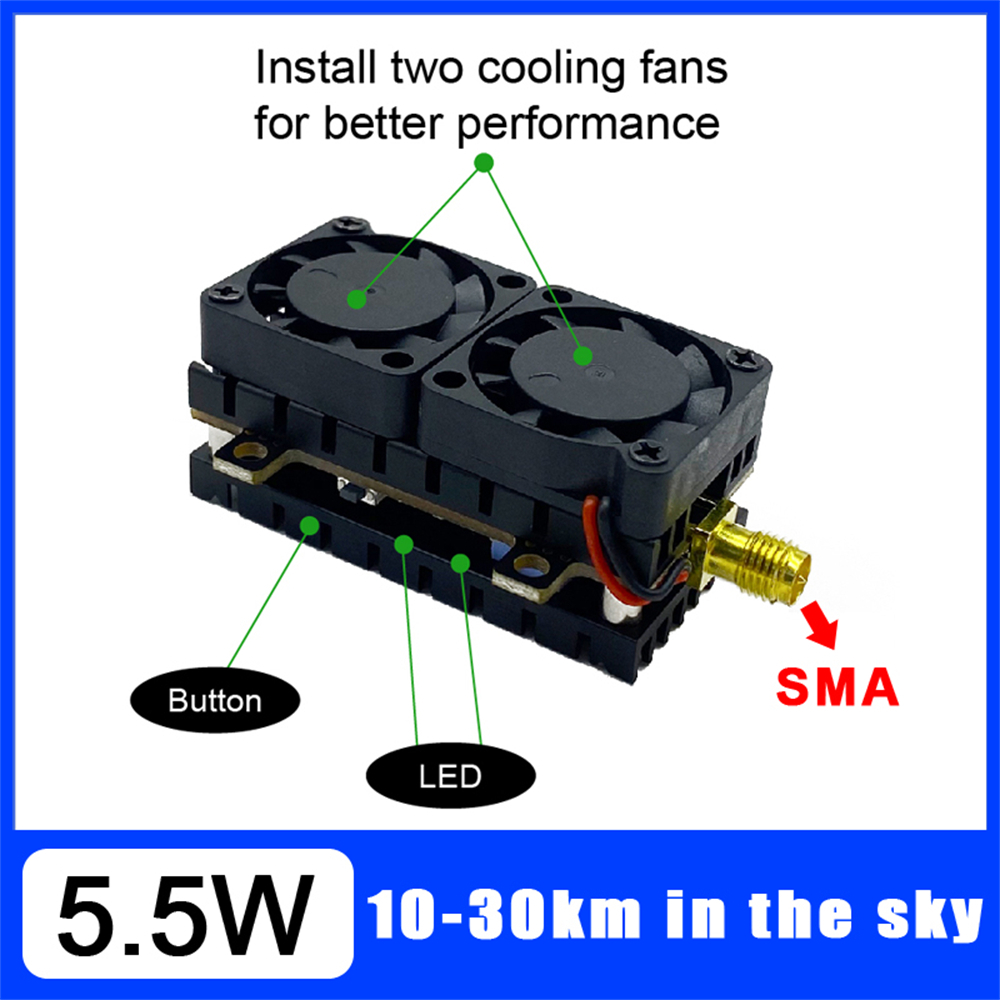

8. Install two cooling fans for better performance
9. Add temperature detection function, the blue light will turn off when the temperature is too high (the power will decrease by one level)
10.
Specification:

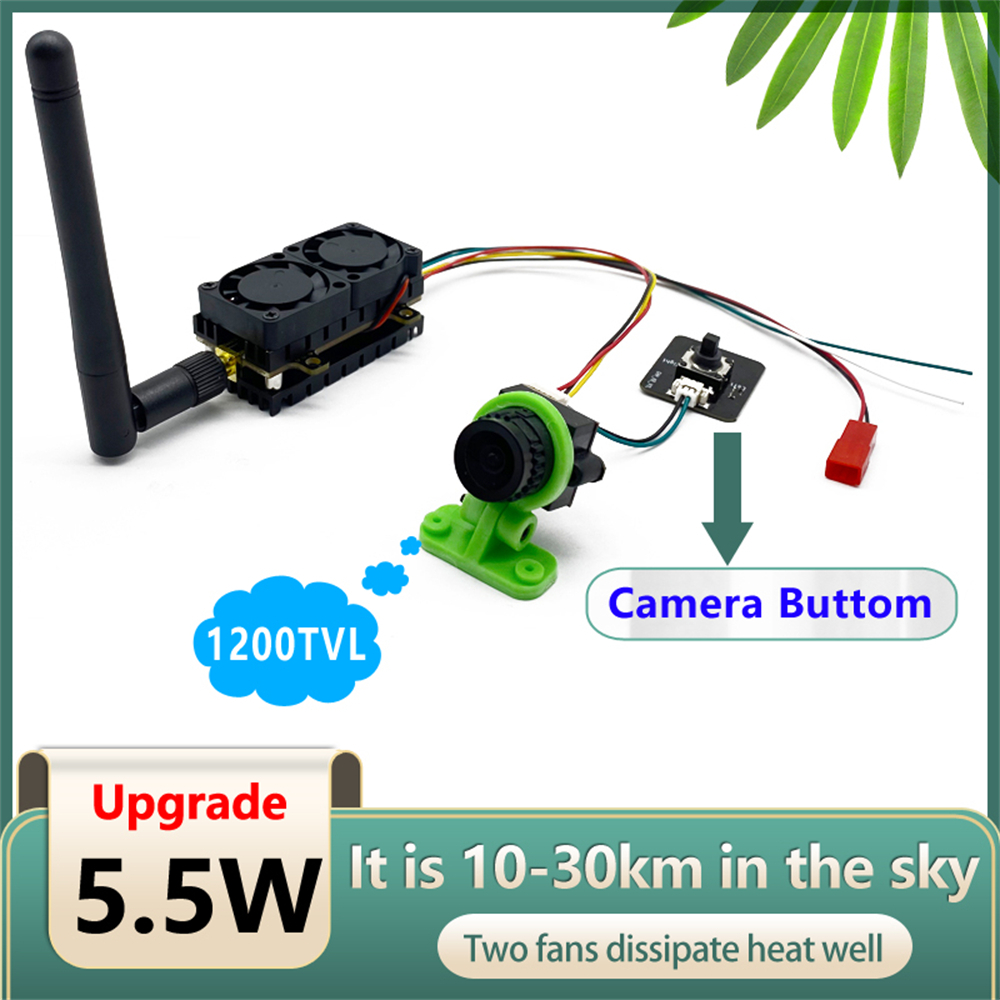

| Model: | 5.5W VTX with 1200TVL Analog Camera |
| Frequency Channels: | 5.8GHZ 48CH |
| Power Levels: | 200mW/500mW/1000mW/5500mW adjustable via button |
| Input Voltage: | 7-36V |
| Output: | 5V/200mA |
| Current Draw: | 570mA (200mW) / 1900mA (5.5W at 12V) |
| Cooling System: | Dual cooling fans with heat sink integration |

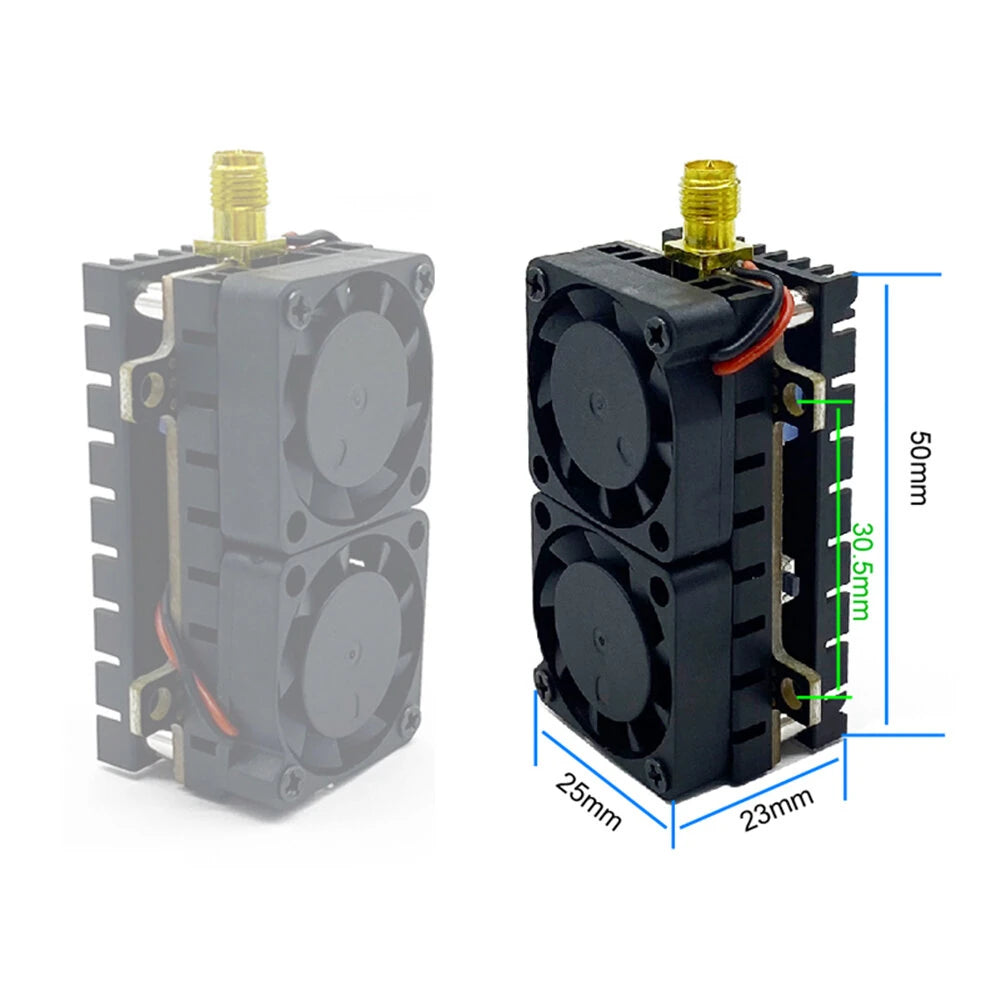

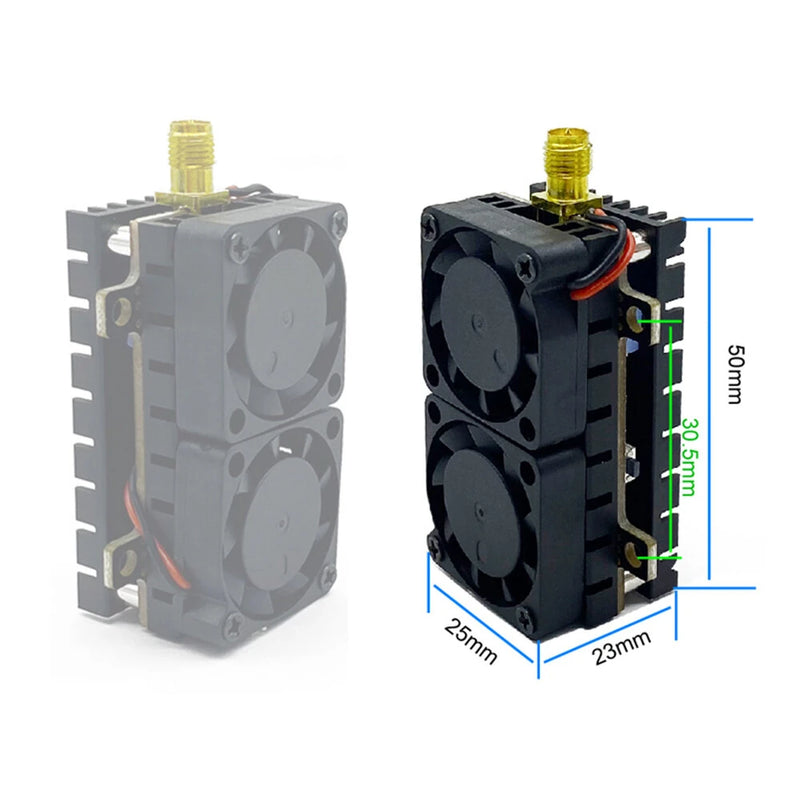

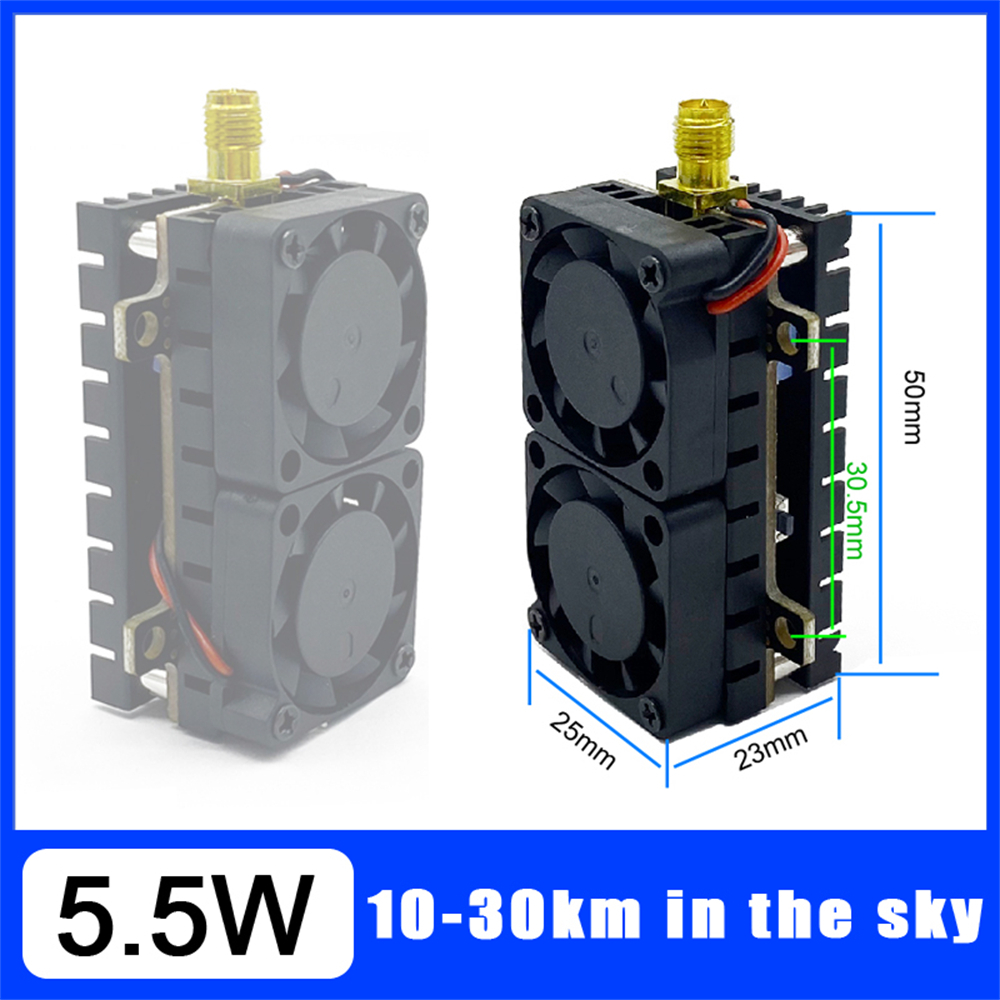

| VTX Dimensions: | 25mm*23mm*50mm |
| Weight: |

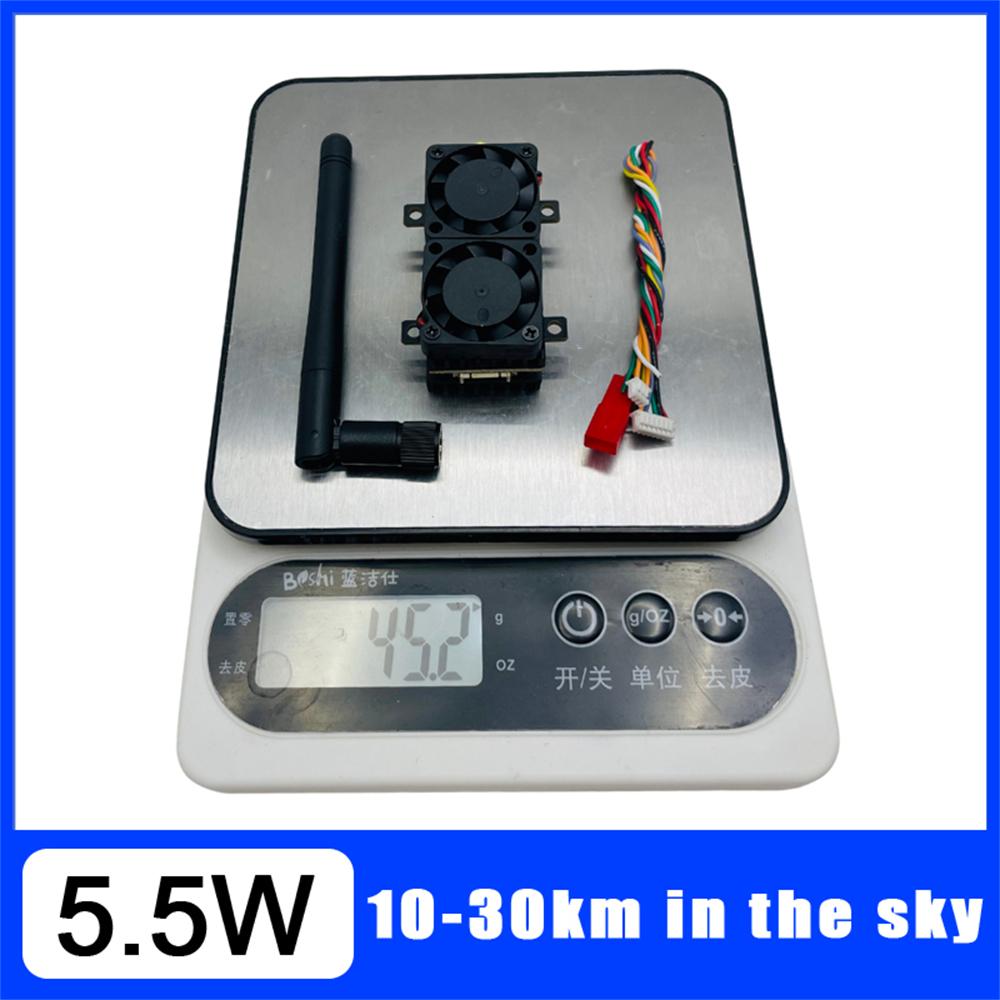

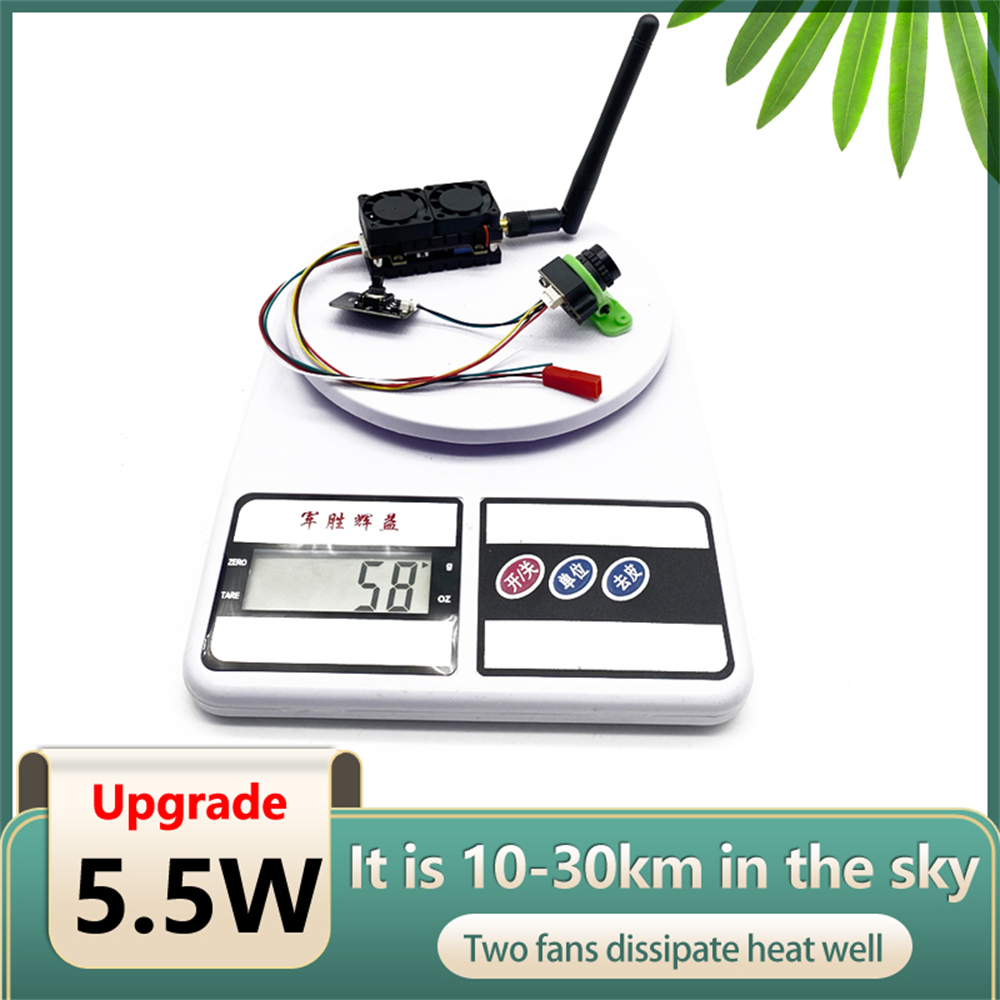

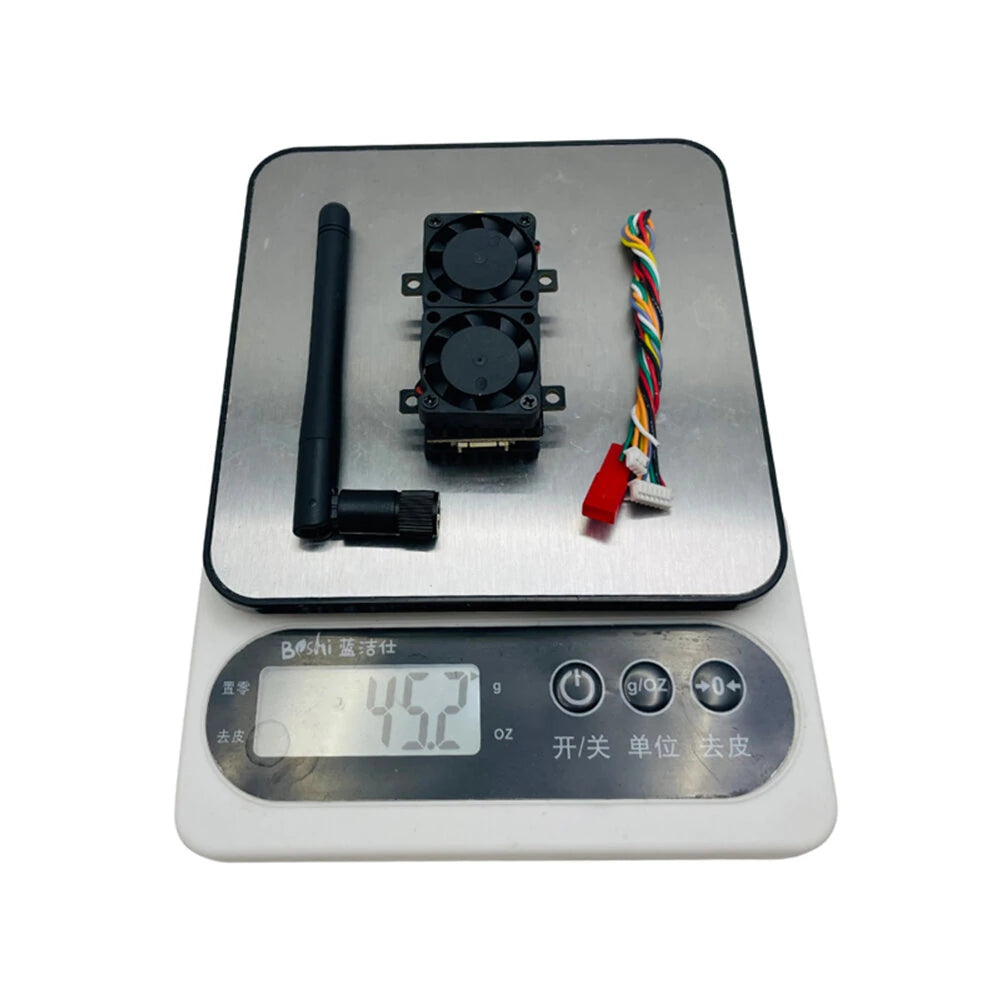

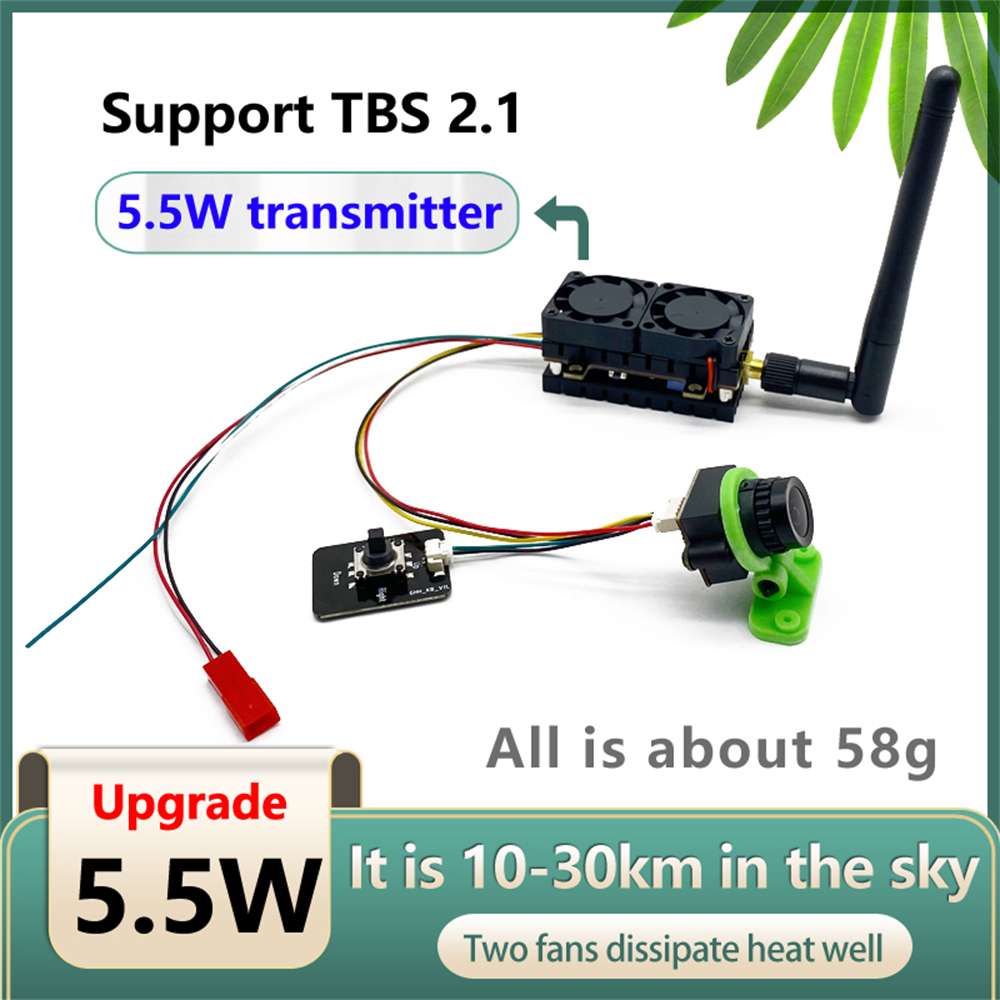

VTX:45.2g VTX + Camera: 58g |

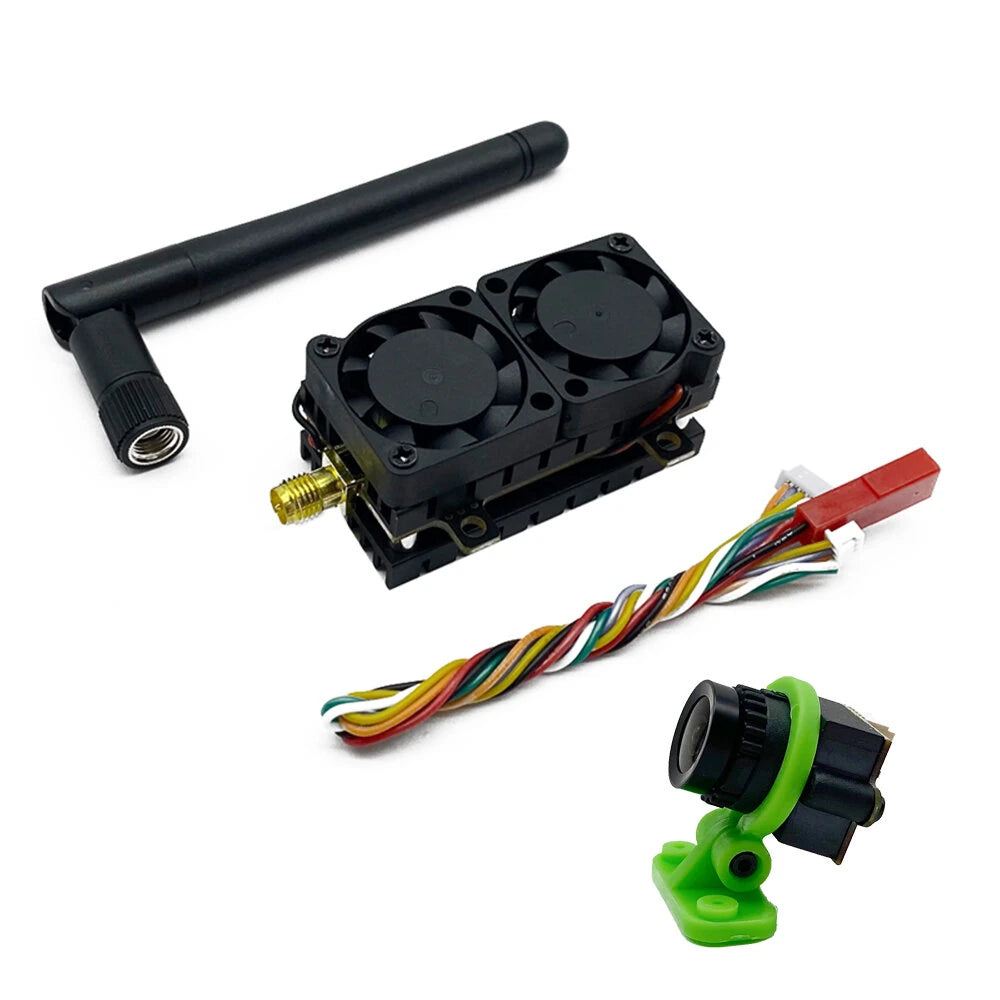

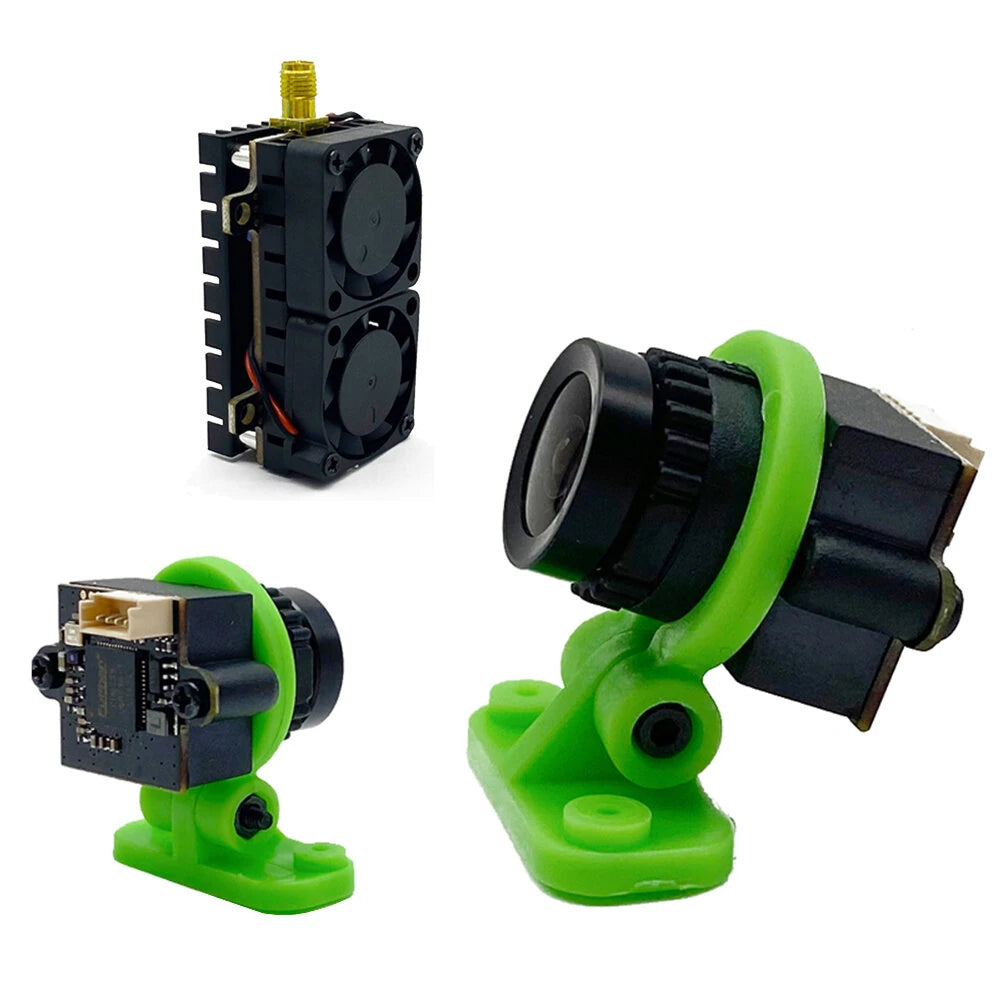

Package included:

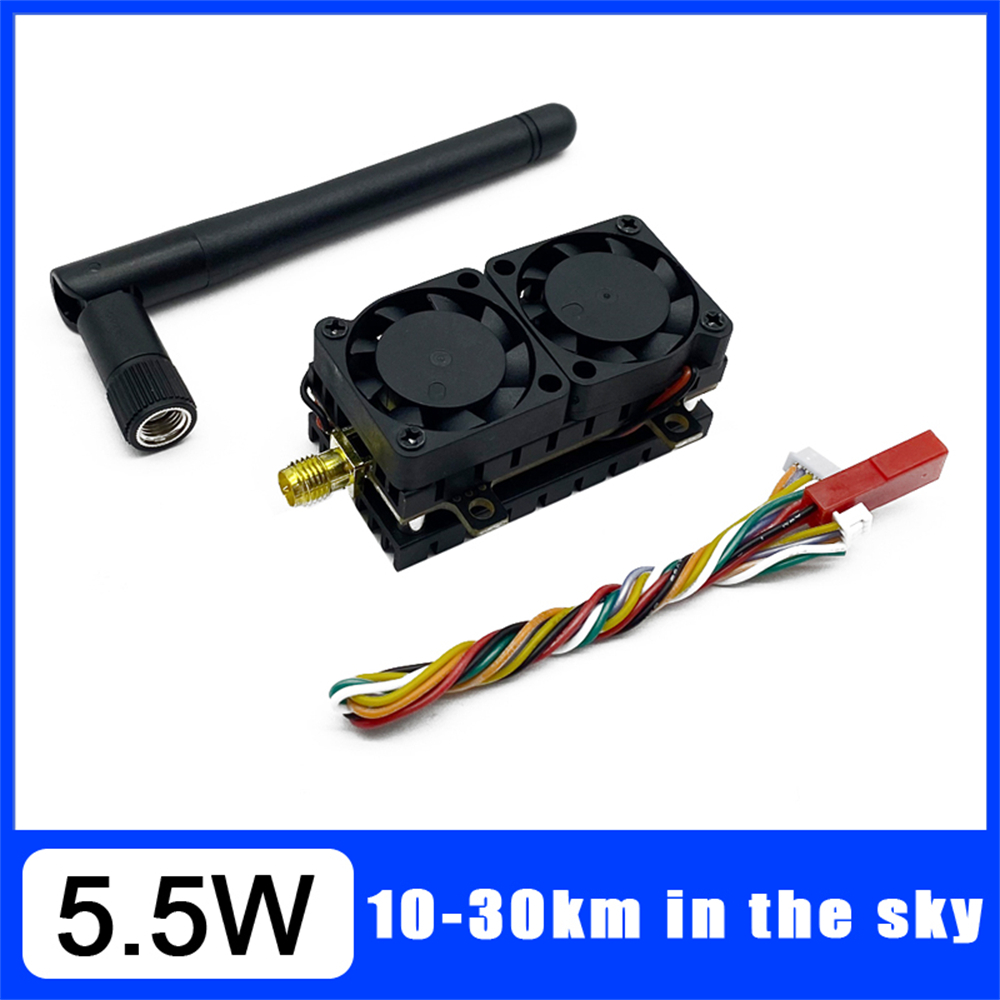

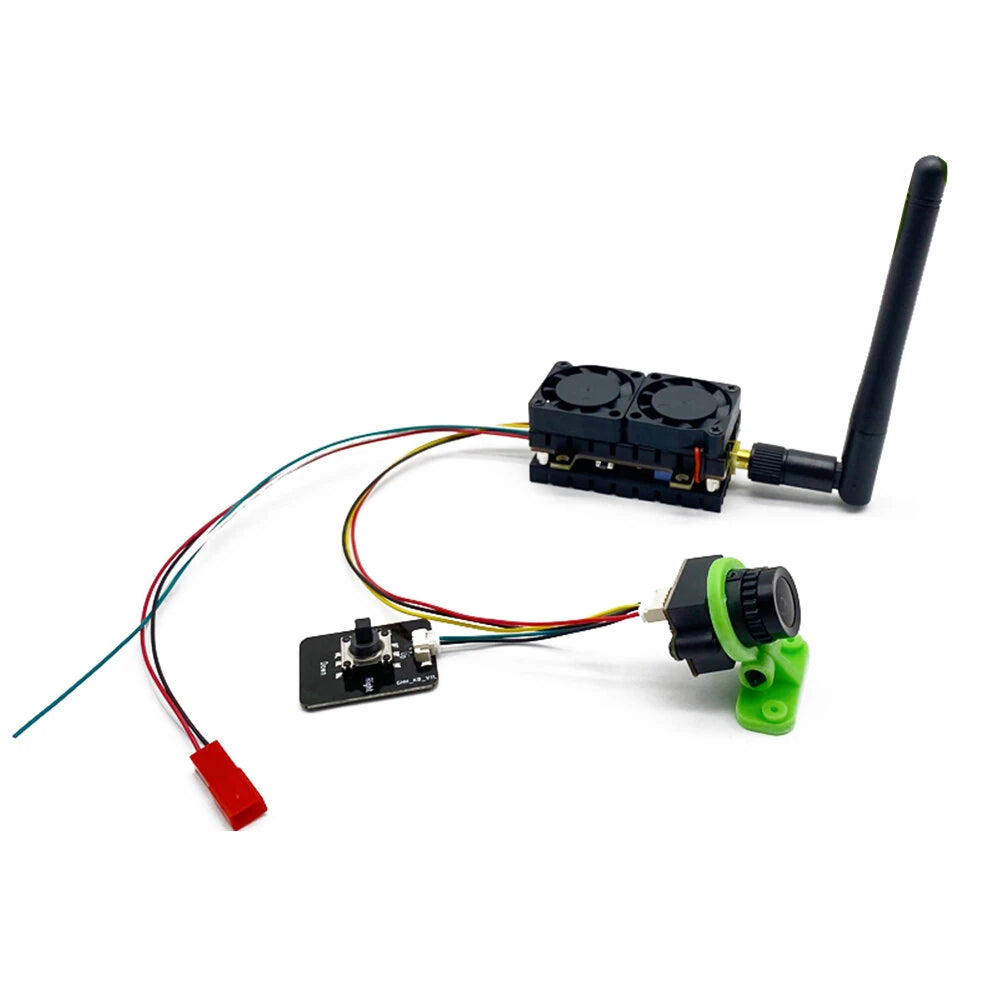

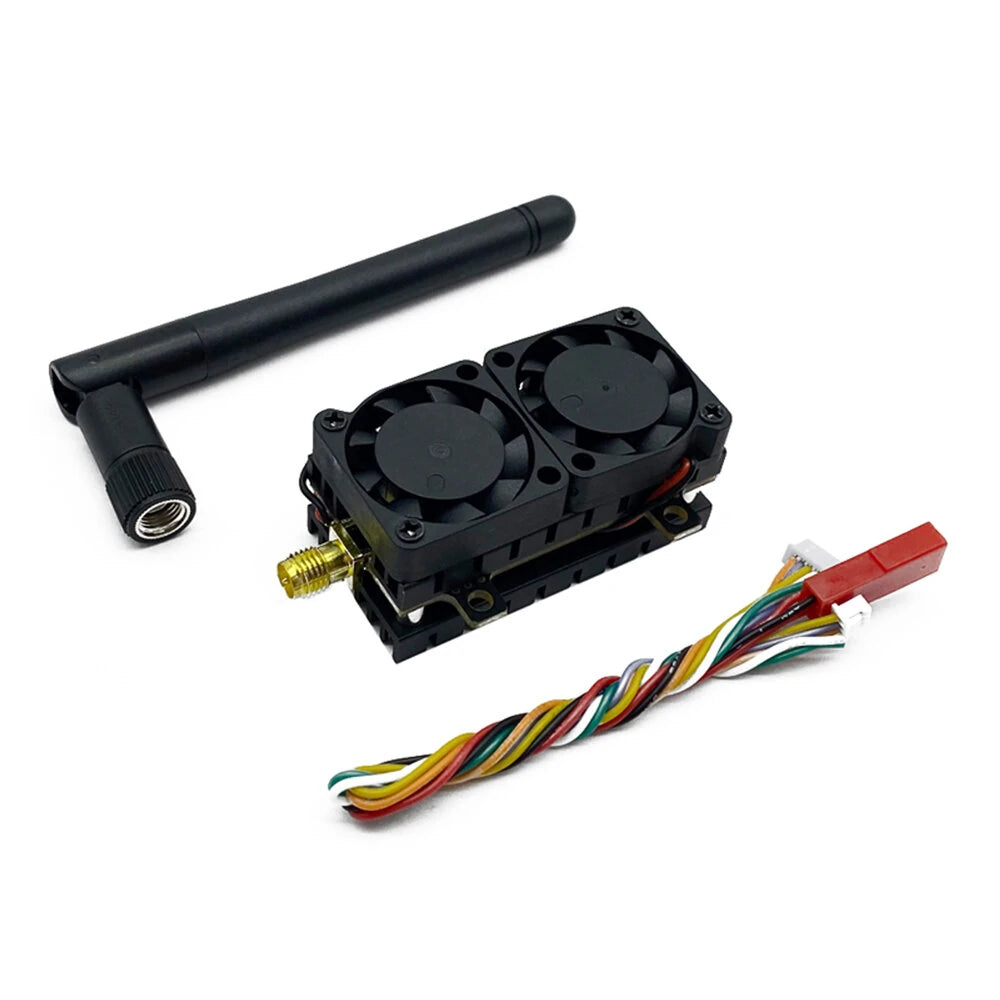

1 x 5.5W VTX

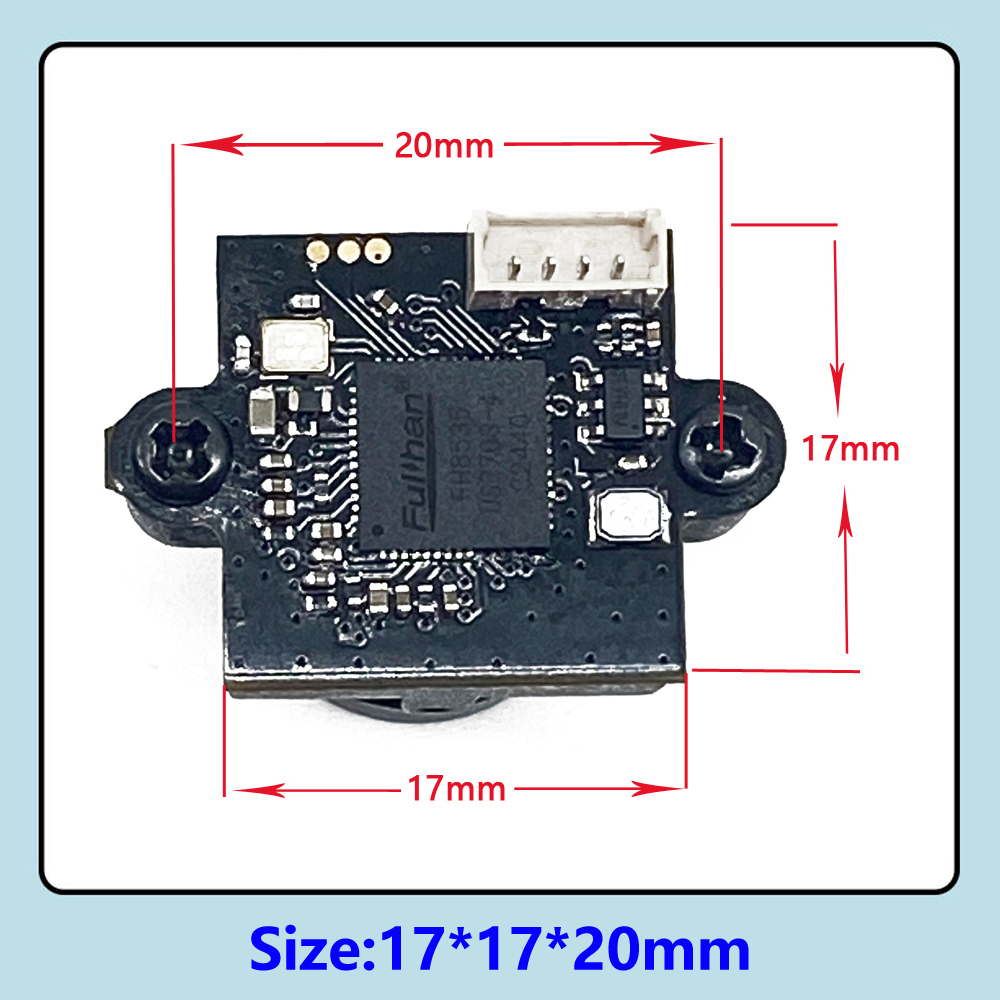

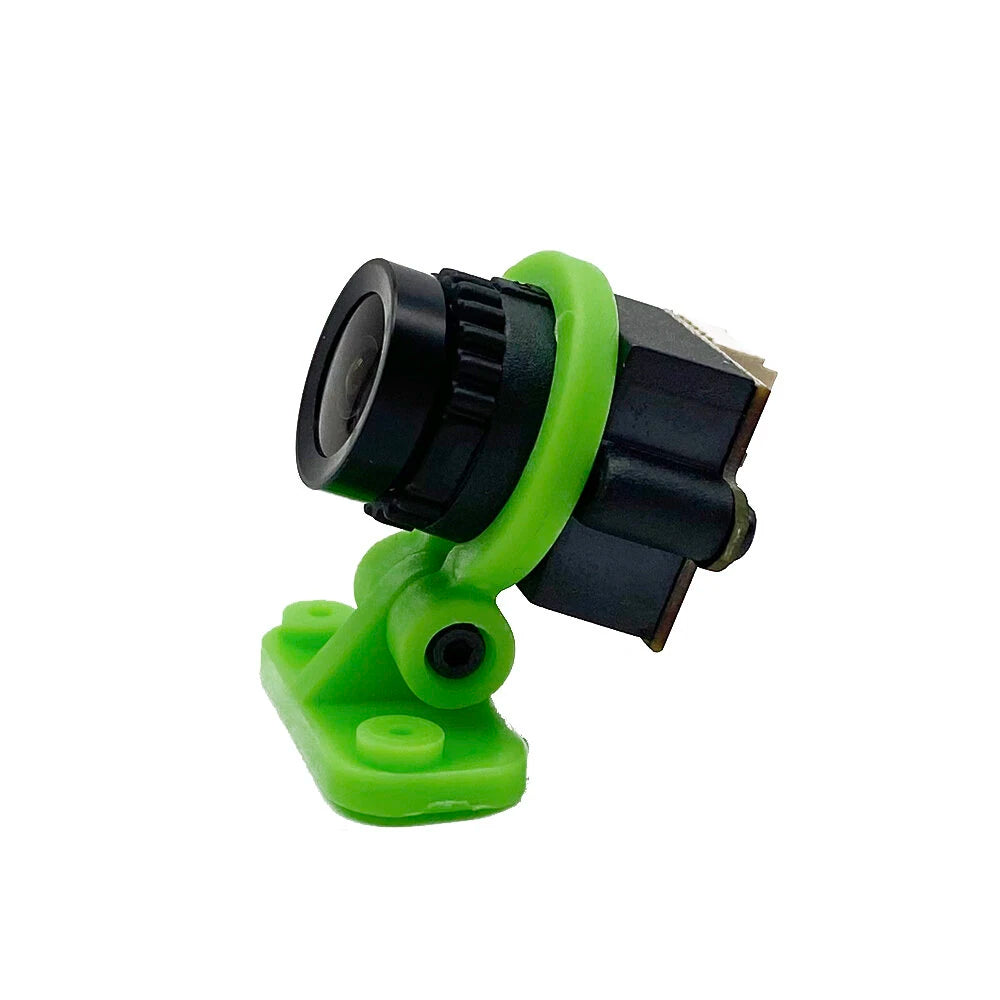

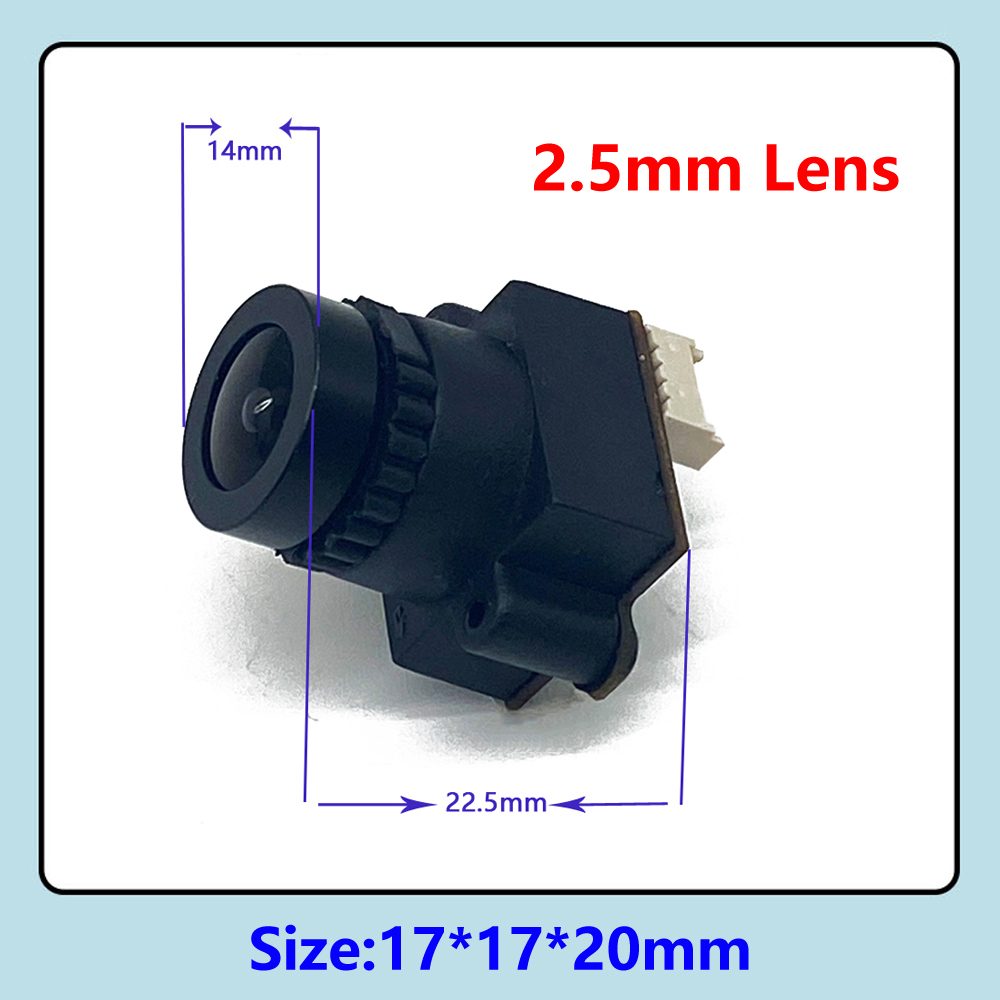

1 x 1200TVL Analog Camera
