Description
Specification:
Input Voltage: |
DC 7-36V |
Working Frequency: |
1220MHz-1470GMHz |
Available Channels: |
8-CH |
Maximum Output Power: |
4.5W |
WMaximum Size: |
37mm*30mm*8mm |
Mounting Hole: |
20x20*M2 |
Frequency： |
1220/1240/1258/1280/1320/1360/1400/1470(MHz) |
Output Power： |
25mW /800mW /4.5W |
S/N(Fo±3MHz)： |
>70dBc |
Antenna Port： |
50 Ohms |
Input Format： |
NTSC or PAL |
Operating Temperature： |
-10℃~+60℃ |
Weight: |
61g |
Advantage:
* 4.5W high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights.
* 3 power levels adjustable PIT/25mW/800mW/4.5W.

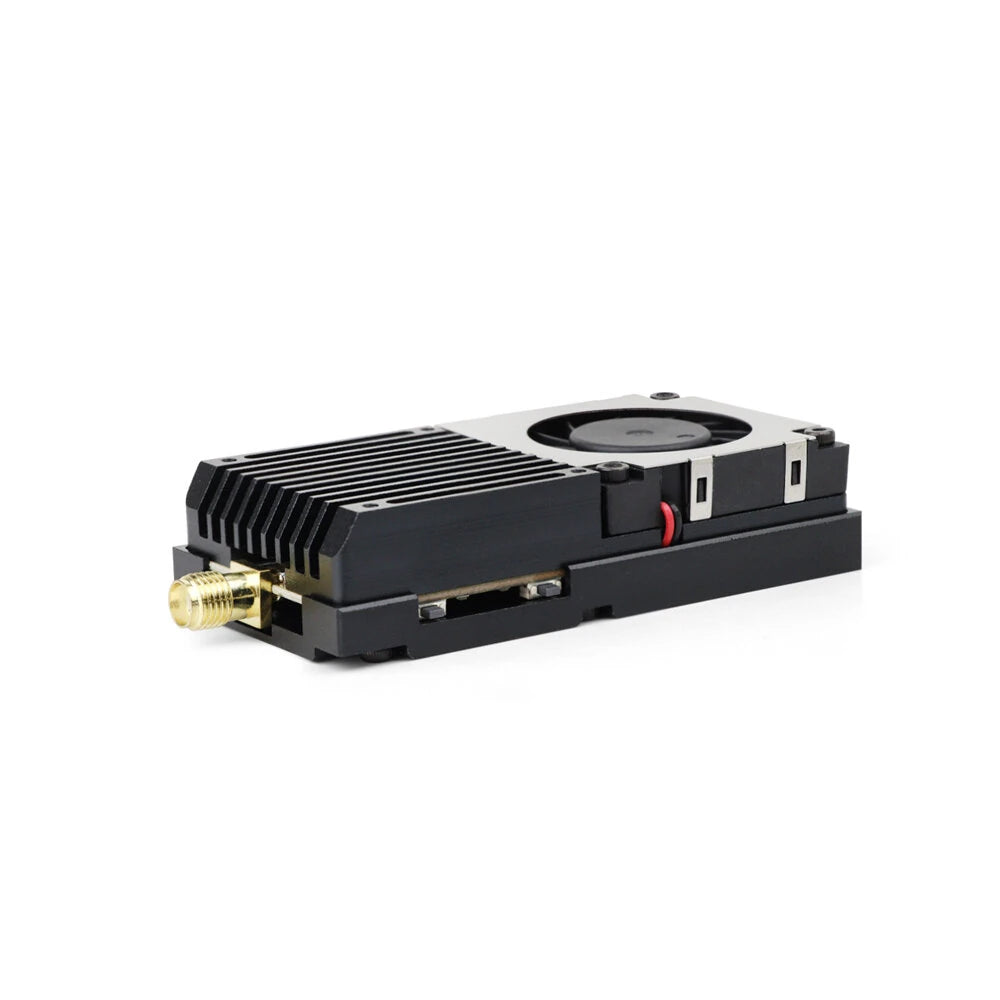

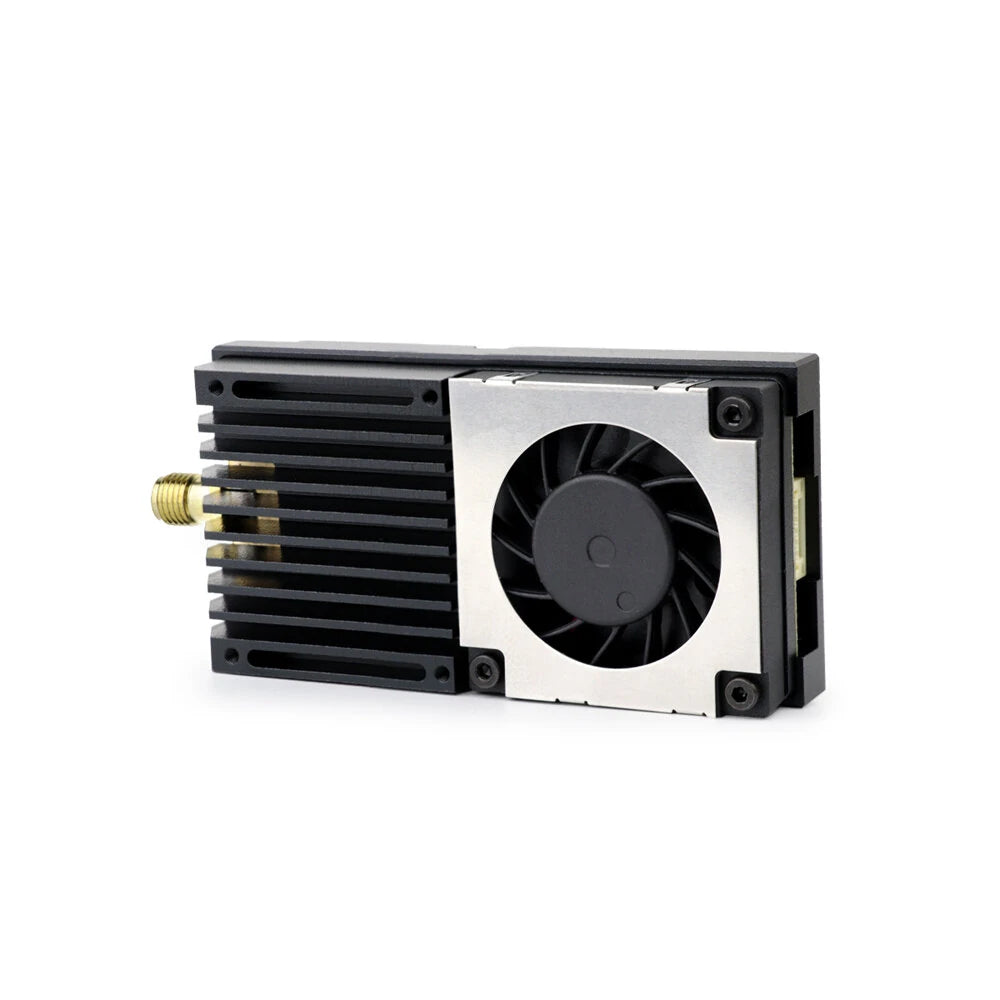

* CNC integrated upper and lower shell covering structure, with built-in cooling fan, has strong heat dissipation effect and maintains stable performance.
* Dual-function buttons make parameter adjustment easier, and 2 sets of LED indicators display power/frequency group/frequency points at a glance.
* Supports IRC Tramp protocol OSD parameter adjustment.
* Supports 2-8s (DC 7-36V) wide voltage input.

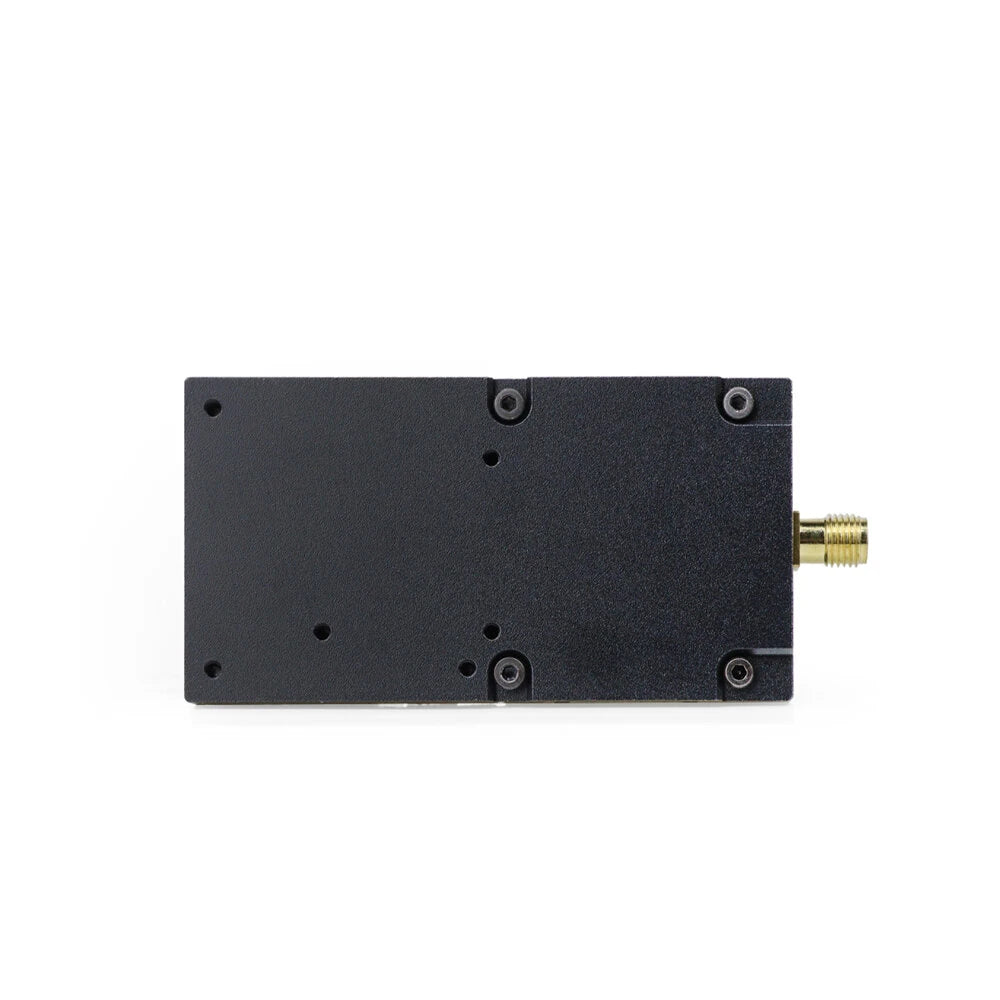

* Supports 20X20 M2 hole installation.
Function Description:
* IRC tramp 'PIT/25mW /800mW /4.5W'
* Press and hold the channel selection button for 1 second to switch CH 1-8 cycle.
* Press and hold the power selection button for 1 second to switch the power to 25mW/800mW/4.5W cycles.
* Press and hold the power selection button for more than 2 seconds to switch between entering PITMODE and exiting PITMODE
* When using this product, please comply with local regulations and install the antenna before use.

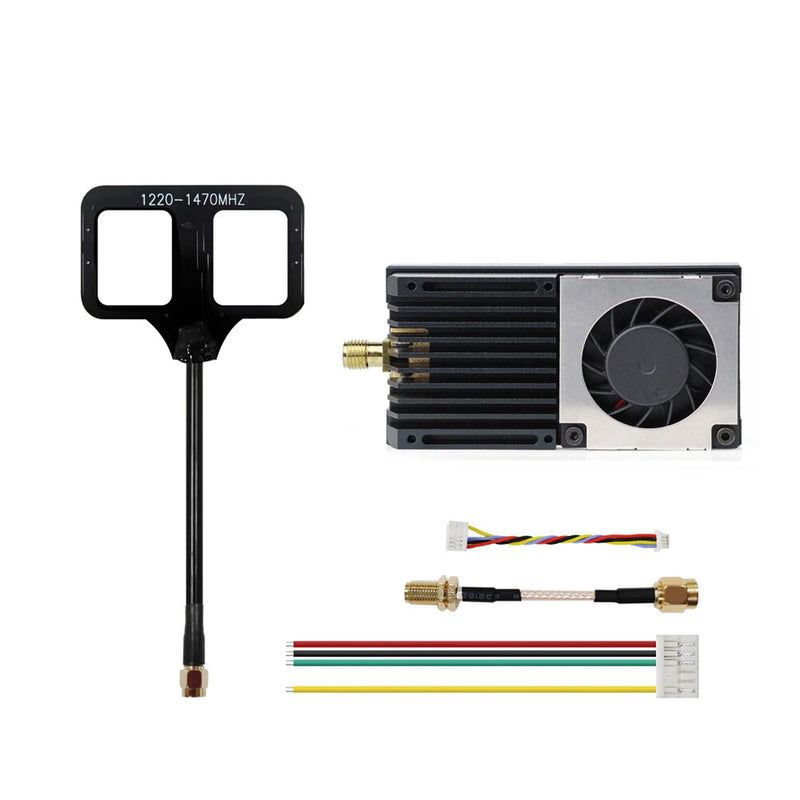

Package included:
1 x 1.2G 4.5W VTX
1 x SMA 100mm Adapter
1 x 1220-1470MHz Flat Antenna 165mm SMA
1 x GH1.25 6Pin 100mm Single-ended Cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm Double-ended Cable
