Description
Product Introduction:

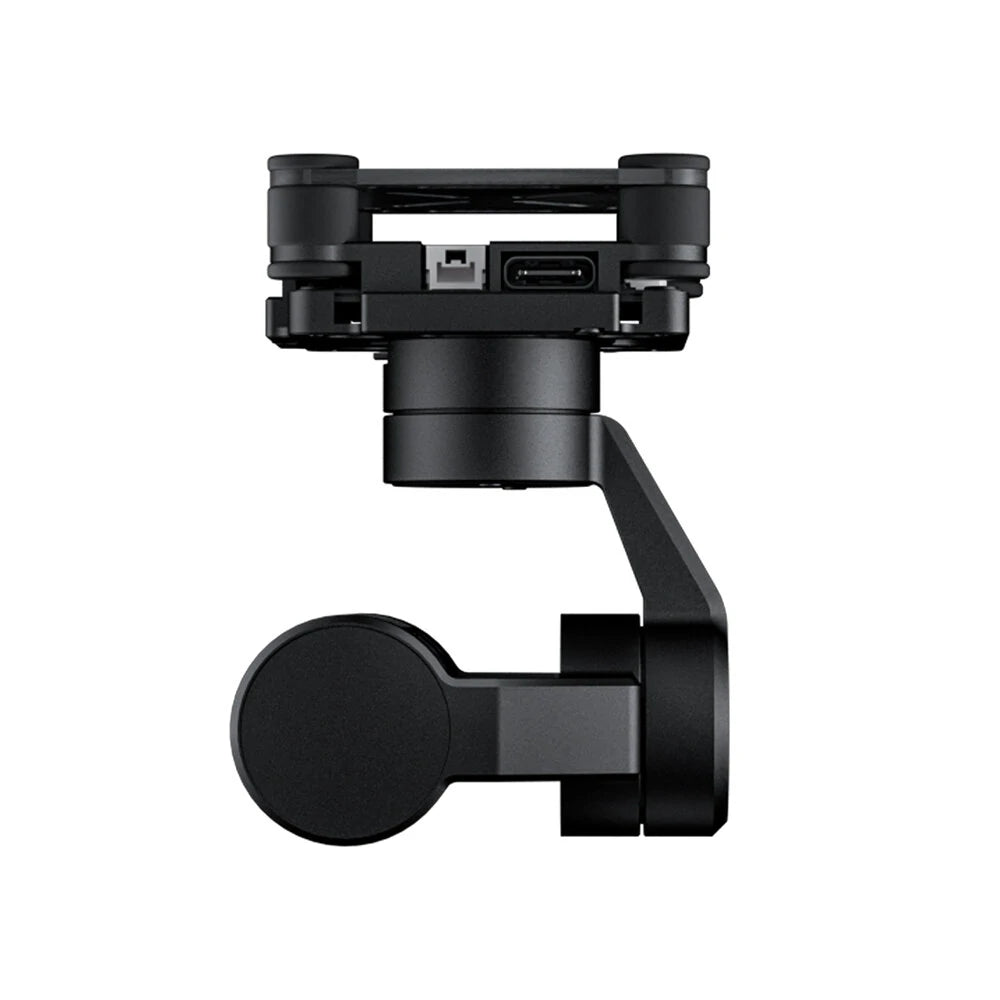

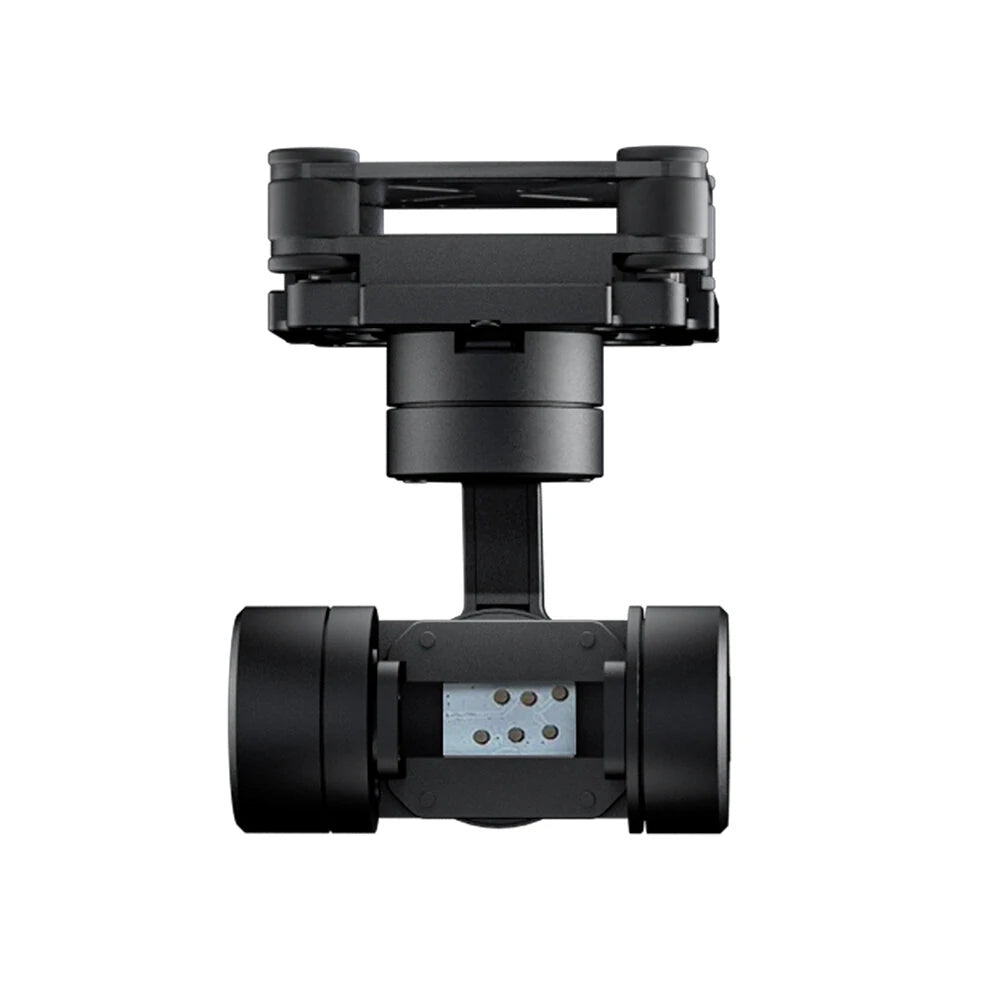

- G-port is a 3-axls gimbal component developed by HEQ for FPV enthusiasts and fixed-wing drone hobbyists.
- G-port boasts high stability and supports both upright and inverted installations.
- It is compatible with DJI 03 or CADDX, supports three inputs: mavlink, sbus, and pwm.
- It is adaptable to various flight platforms.This allows users to quickly assemble their personalized gimbal camera.
Tips:This gimbal cannot support DJI 03 Unit and Caddx camera at the same time. Please contact us to determine which model needs to be adapted before purchasing.
Specifications:
| Axess: | Mechanical three-axls |
| Gimbal Angles: |
Pitch:-135° to 45° Yaw: -135° to 135° Roll: -45° to 45° |
| Supported Control Modes: | sbus、pwm、mavlink |
| Supported Camera Types: | DJI O3/ CADDX |
| Supply voltag: | 12-18V |
| Dimensions: | 48.5x49x67.5 mm |
| Weight: | 67g |
If you need to know more about gimbal head tracking for DJI O4/ O4 Pro, please click Here to learn more.
Firmware Version 202506 Update Details:
- Resolved the issue where the gimbal would freeze when the control was limited to the left/right in lock-head mode.
- Corrected the inversion of control direction when the camera is mounted in an upward position under lock-head mode.
- Fixed the gimbal jittering that occurred at certain positions during directional control.
- Rectified the sudden return-to-center issue during gimbal operation.
Firmware Download Instructions:
- The latest firmware is now available for download on HEQ official website: HEQ AVTech Download Center.
- Navigate to the download path: HEQ AVTech Download Center → Micro Cloud Cameras → G-Port 3-Axis Gimbal Assembly, and select the most recent firmware for download.
Please review the update notes carefully and follow the provided guidelines to ensure a smooth update process. Should you encounter1 any issues during the update, please don't hesitate to reach out to our technical support team for assistance.
Package Included:
1x G-Port 3-Axls Gimbal Component
