Save R 628.51
Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
R 2,061.69 R 2,690.20
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:

Brand Name: Happymodel

Model:  X12 ELRS Pro

Item Name: X12 ELRS Pro AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX

Betaflight firmware target:

betaflight_4.4.0_STM32F411

VTX antenna: U.FL

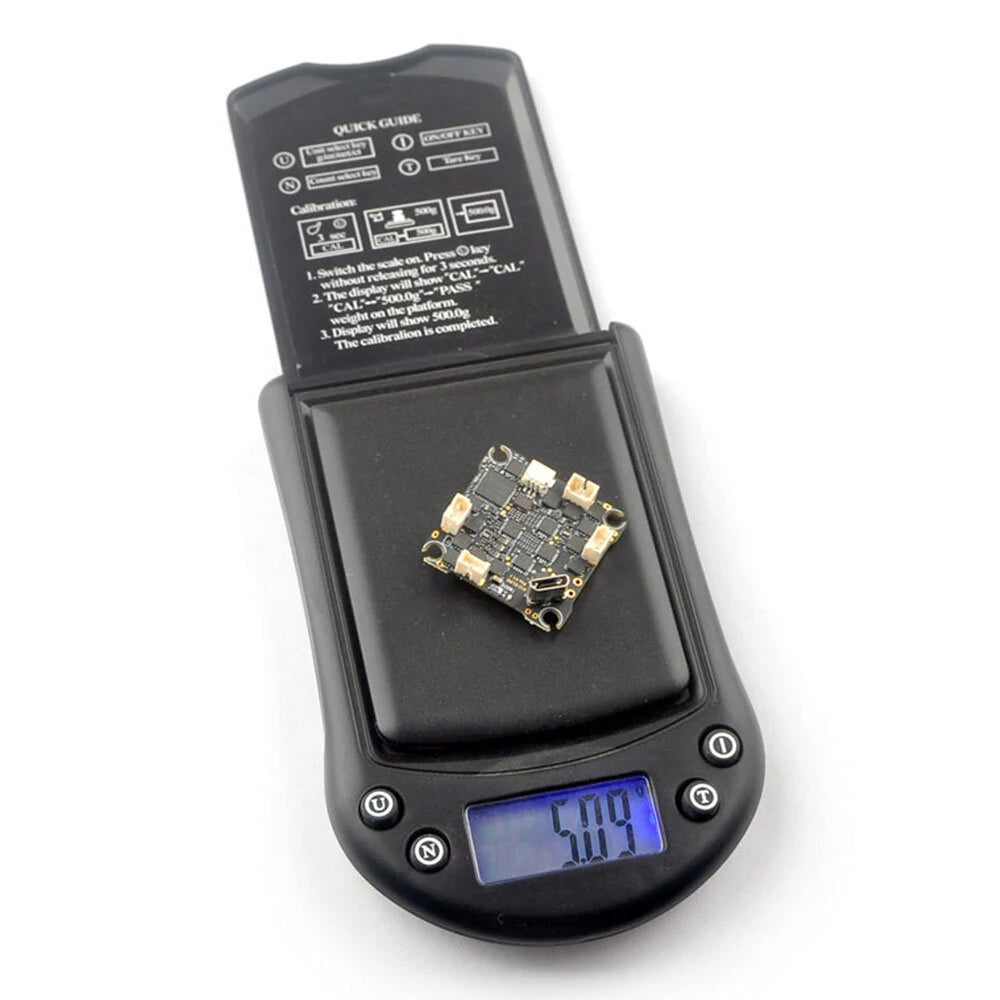

Weight: 5.1g

Size: 30x30x8mm













Flight controller

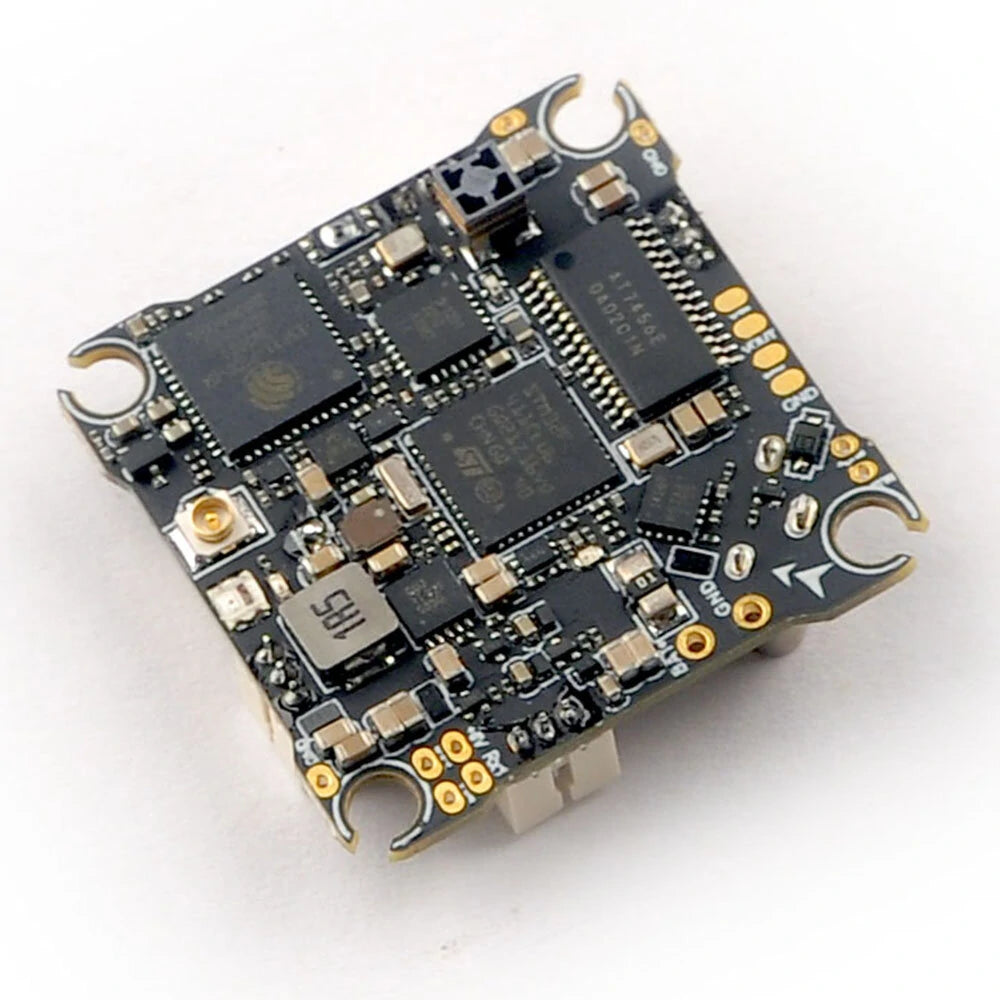

X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor: ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110

Built-in current meter sensor , current meter scale 470





Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300

Recommend ESC Startup power value to min1100/max1200







Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol: Serial_based CRSF

Compatible with ExpressLRS V3.x.x TX Module

Could flash single ELRS receiver firmware by Wifi

ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx









Onboard 5.8g OPENVTX

Firmware version: OPENVTX

MSP VTX

PIT Mode support

Channels:40ch

Transmitting Power: 0/RCE/25mw/100mw/400mw

Power supply: DC 5V

Current (5v): <650ma (400mw)

Antenna connector: U.FL

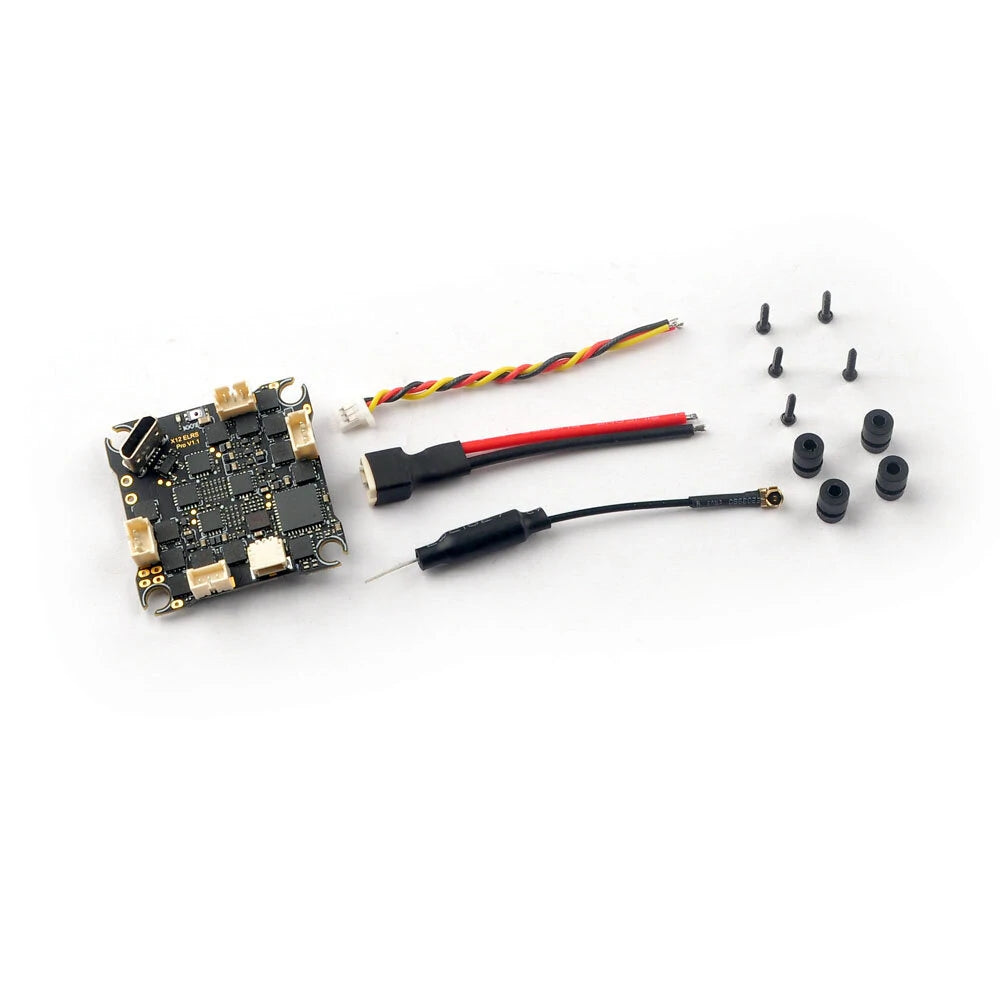

Package Inlcuded:

1x  X12 ELRS Pro v1.1 5IN1 AIO Flight Controller

1x Antenna

1x Connection Cable

1x Plug Connector Cable

1x bag of Screws
