Receiver: ELRS 2.4GHz
Price:
R 6,273.33
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Description:

The M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop comes out now . It comes with the new HDZERO AIO15 2S 5-IN-1 flight controller. The new Happymodel RS1102 KV13500 motor with HQPROP 45mm propellers, bring a smooth and powerful FPV experience.



Features:

- Equipment with the New HDZERO AIO15 5-IN-1 flight controller

- 2S battery support Powerful and Smooth freestyle flying experience

- UART ExpressLRS receiver support stable control link

- Lighter but powerful for backyard FPV

- HDZERO lighter and good quality Camera



Parameters:

- 80mm wheelbase

- 45mm propellers

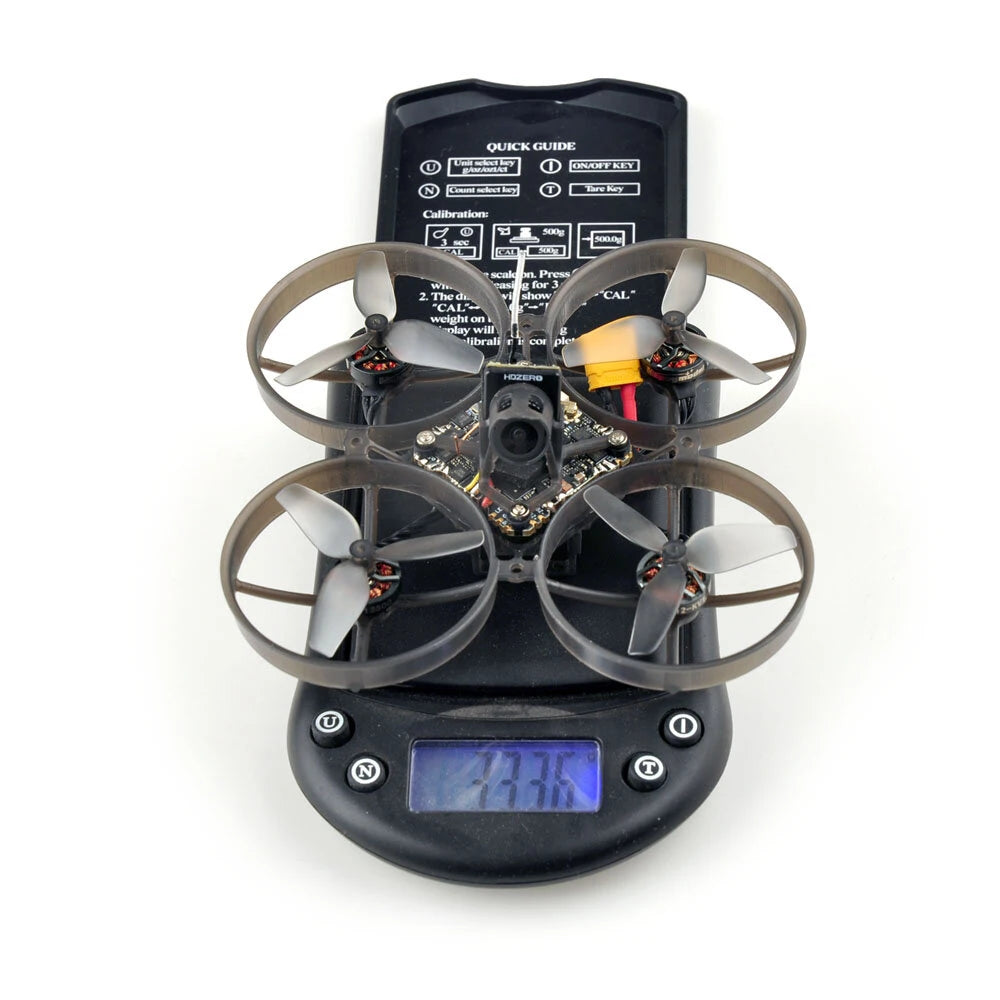

- Weight only 33.5gram

- RS1102 KV13500 high speed motors

- Recommend 2S 550mah battery(Exclude)

- 2.4G ExpressLRS ready



Specifications:

Brand: Happymodel

Model: M8

Item Name: HDZero Lux Freestyle Micro FPV whoop

Motor

Mode: RS1102 KV13500
Configu-ration: 9N12P
Stator Diamter: 11mm
Stator Length: 2mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len): Φ13.5mm*14mm
Weight(g): 2.8g
No.of Cells(Lipo): 1-2S

Propellers

Weight: 0.33g
Material: Poly Carbonate
Pitch: 0.9
Props Dia: 45mm
Hub Thickness: 5mm
Shaft: 1.5mm

Flight controller

MCU: STM32G473 (170MHz, 512K Flash)
Gyro: ICM42688
On board voltage and amperage meters
Built-in 15A(each) Blue Jay 4-in-1 ESC
Built-in 5.8G HDZero VTX
RF output: 25mw/200mW
Supported channels: R1-R8, F2/F4, L1-L8
UFL connector (ultra-lite linear antenna included)
Built-in Serial ExpressLRS 2.4GHz receiver
Built-in 5V 3A BEC
Flight controller firmware target: HDZERO_AIO15
Power supply: 2S battery (6.4v~8.7v)
Fully compatible with the popular whoop frames
Board size: 31.3×31.3mm with a 25.5×25.5 mounting hole size
Weight: 7.2g (with motor plugs)

Onboard 4in1 ESC

PowerSupply: 2S LiPo/LiPo HV
Current: 15A continuous,18A peak (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
RF Frequency: 2.4GHz
Antenna: Pre-soldered enameled copper wire 31mm length
Telemetry output Power: <12dBm

LUX camera

HDZero Lux Camera
Sensor size: 1/2 inch
Resolution: 720p60 4:3 and 16:9
FOV: D:155° H:126° V:94°(4:3)
FOV: D:145° H:126° V:70°(16:9)
WDR



Package Included:

Item Name

Qty

Happymodel M80 Frame

1

HDZERO AIO15 5-IN-1 Flight controller

1

RS1102 KV13500 brushless motor

4

HQPROP 45MMX3 tri-blade propellers(4cw+4ccw)

1

HDZERO LUX Camera

1

Canopy

1

Screw driver

1
