Description
Happymodel ExpressLRS ELRS EPW6 TCXO 2.4GHz 6CH PWM RC Receiver For FPV RC Racing Drone RC Airplane
Specifications:
Brand: Happymodel
Item: EPW6 TCXO 2.4GHz PWM receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL

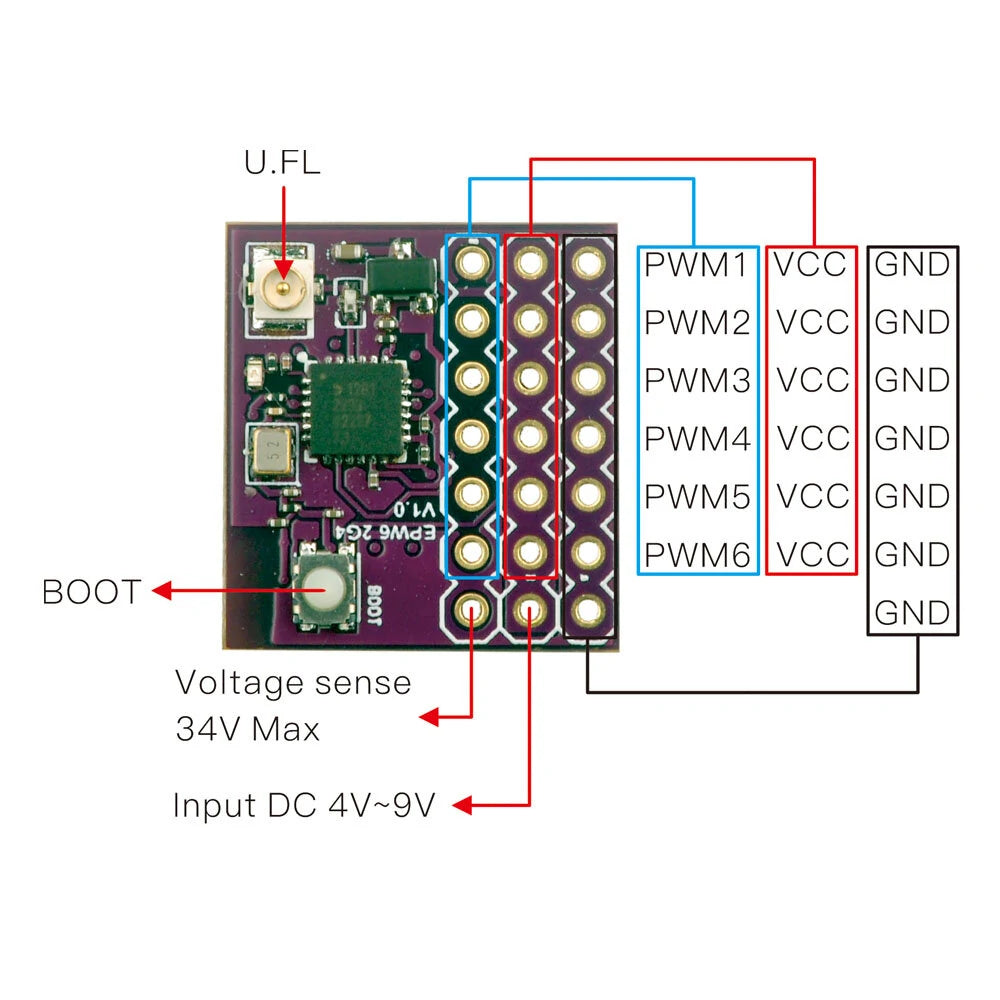

6x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5v~8.4v
PCB size: 19mm x 17.5mm

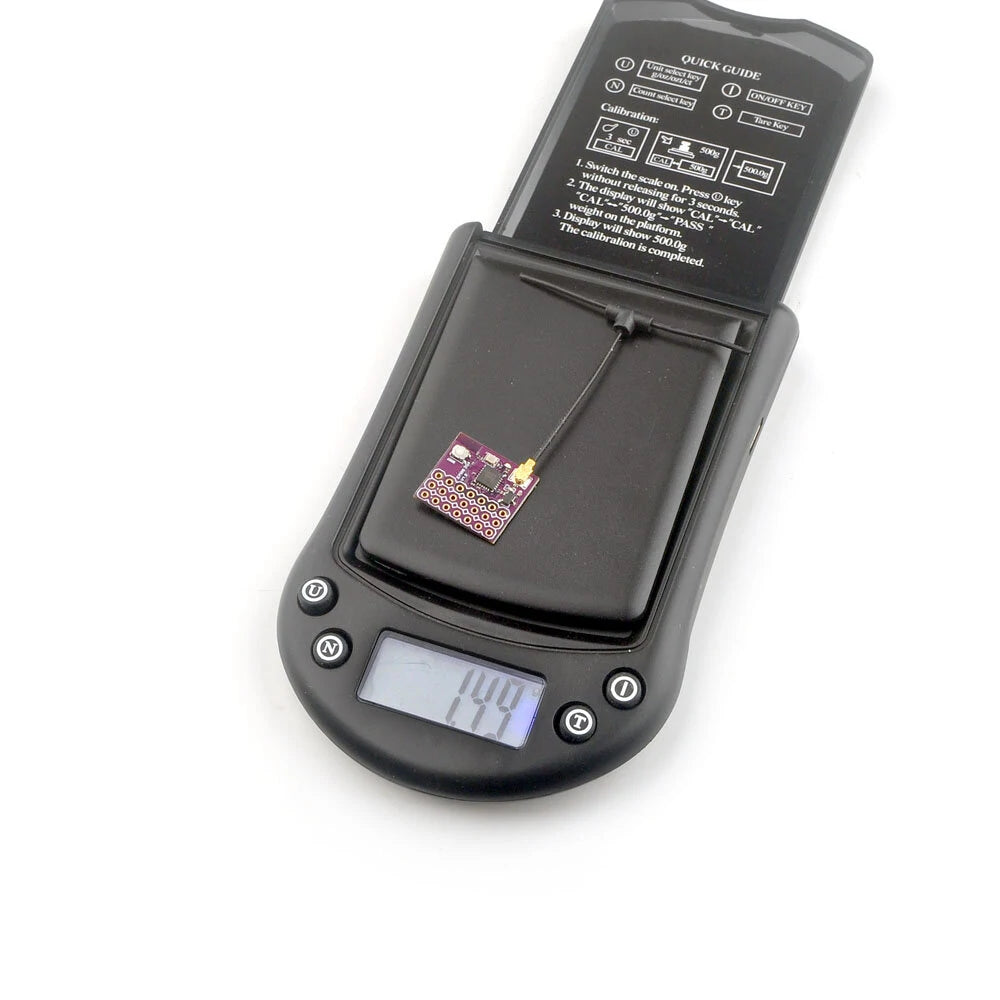

Weight: 1.49g / antenna
Firmware:
Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
PWM receiver via 1~6 PWM outputs
Target option2: HappyModel_EP_2400_RX
CRSF Serial receiver via TX and RX
Firmware update via WIFI
Package Included:
1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
2 x 2.4GHz Antenna
3 x 7pin 2.54mm
