Model: CrazyG473 V1.0 AIO
Price:
R 1,979.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Note:

1. Onboard VTX can only work when battery was plug. And low power of vtx when disarmed was actived. So the vtx is very lower nearly 0 power out when drone was not armed, you can change power level value.

2. Visit https://app.betaflight.com and click “select your device” then choose can’t find my USB device, then connect comport and betaflight configurator.

3. Due to firmware target is not available in current betaflight official ,you can download hex file from the belowing link:Firmware download CRAZYG473 4.6.0 betaflight firmwareDefault factory dump file Dump file for CRAZYG473 Betaflight4.6.0


Specification:

Brand: Happymodel

Model: CrazyG473 V1.0 AIO 5-IN-1 Flight Controller

Item

Parameter

FC

MCU: STM32G473CEU6

Gyro: ICM42688P

Blackbox memory: 16MB

Sensor: Voltage & Current

BEC: 5V, Max. 2A

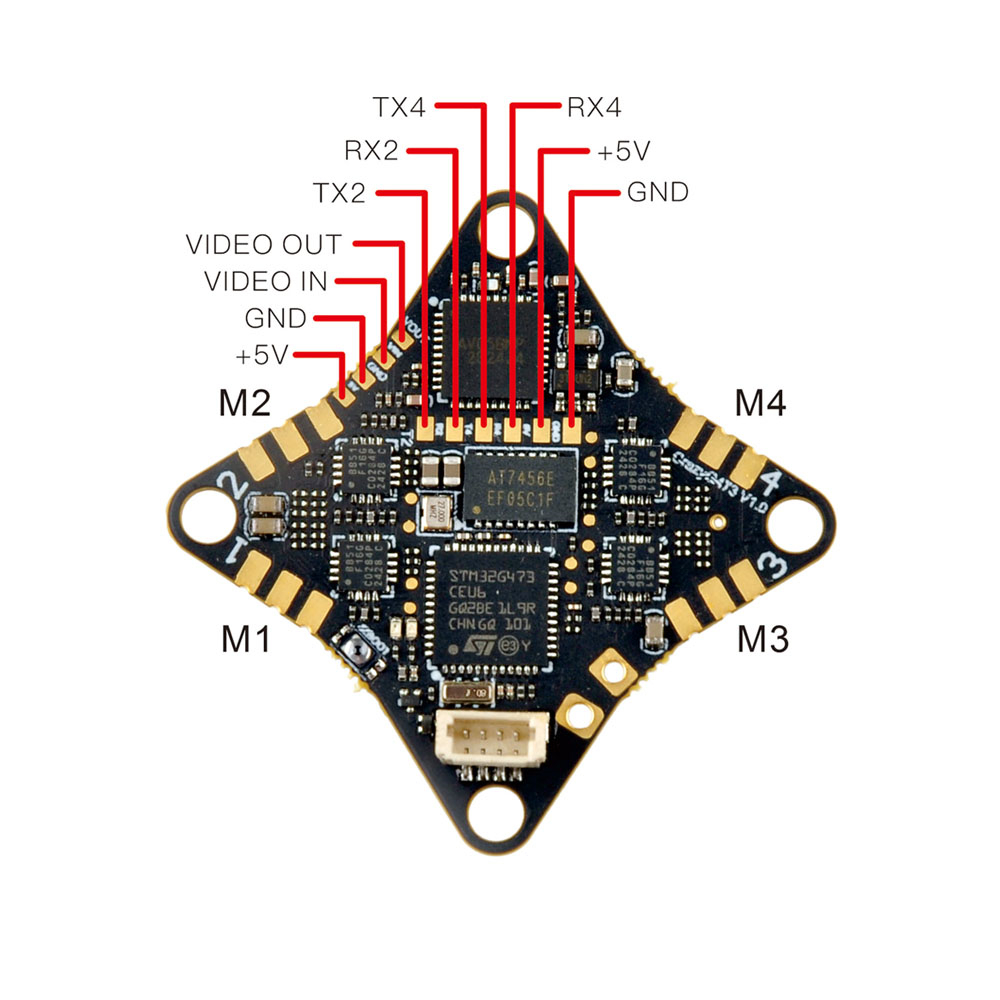

UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)

BetaFlight OSD: AT7456E

ESC: 5A continuous

RX: Serial ELRS 2.4GHz

RX antenna: Enameled copper wire 31mm length

Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX

OPENVTX: 5.8GHz 48 channels, Max. 400mW

FC firmware target: CRAZYBEEG473

USB port: SH1.0-4Pin

Battery connector: A30

Mounting hole size: 25.5mm x 25.5mm

Weight: 83g without pigtail and vtx antenna

ESC

Power input: 1S Only

Current: 5A continuous, 6A peak

ESC firmware: V0.21.hex Bluejay

Firmware target: A_X_5_96KHz

Digital signal protocol: DShot300, DShot600

VTX

- OPENVTX Firmware

- Support firmware upgrade by openvtx configurator

Output power: PIT/10/25/100/400

Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

Channel SEL: SmartAudio2.1

Modulation type: FM

Operating temperature: -10℃~+80℃

Antenna port: IPEX1/U.FL




Package Included:

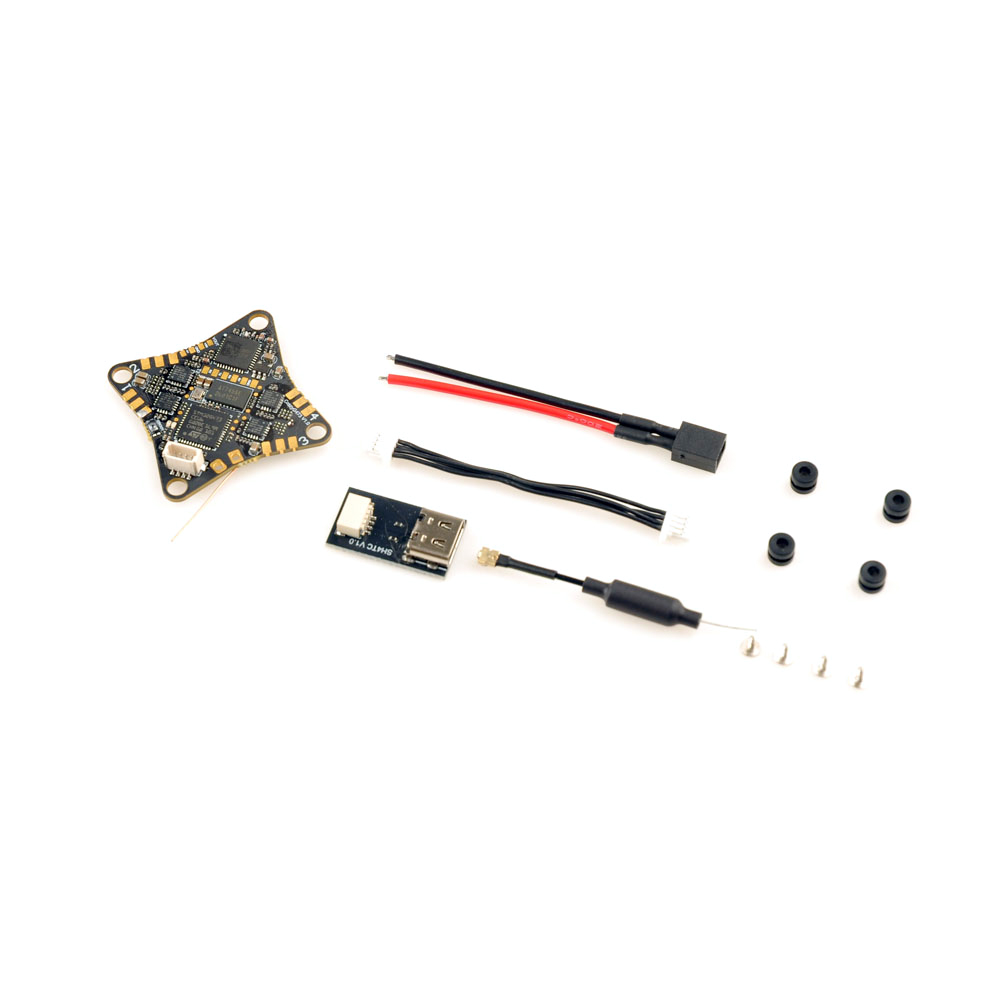

1 x CrazyG473 V1.0 AIO
