Description
Specifications:
Brand: GXservo
Motor: Core
Neutral Point: 1500μs
PWM Voltage: 3.3V-5.0V
Feedback Angle: No
Cycle: 20ms
Default Direction: CCW
Remote control Angle: 90°
Quiescent Current: 50mAh
Blocking Current: 1.8A
Output Gear: Futabas 25T
Shell Material: Half Aluminum Shell
Connector Wire Length: 260MM
Operating Speed: 4.8V/0.11'/60°
Stall Torque: 4.8V10 kg.cm
Potentiometer: Mechanics
Voltage Range: 4.8V/6.0V
Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V
Operating Temperature: -10℃-50℃
Dead band: 4μs
Yes / no Lock: Lock
500-2500μs Angle: 180° / PWM
Rated Current: 1.0A
Weight / Dimensions: 50g / 40*20*28.3mm
Gear Material: All Metal Gear
Bearing: 2BB
Line Definition: Brown-/Red+/Orange s
Features:

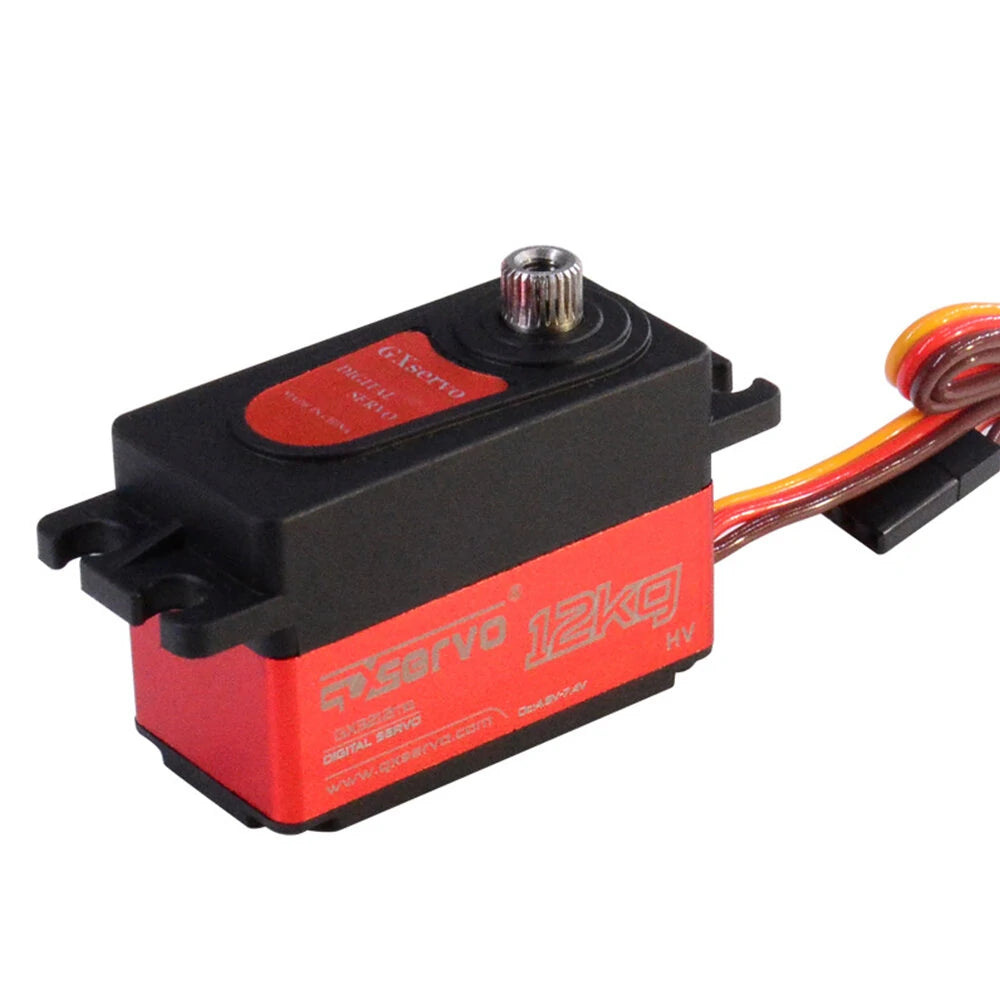

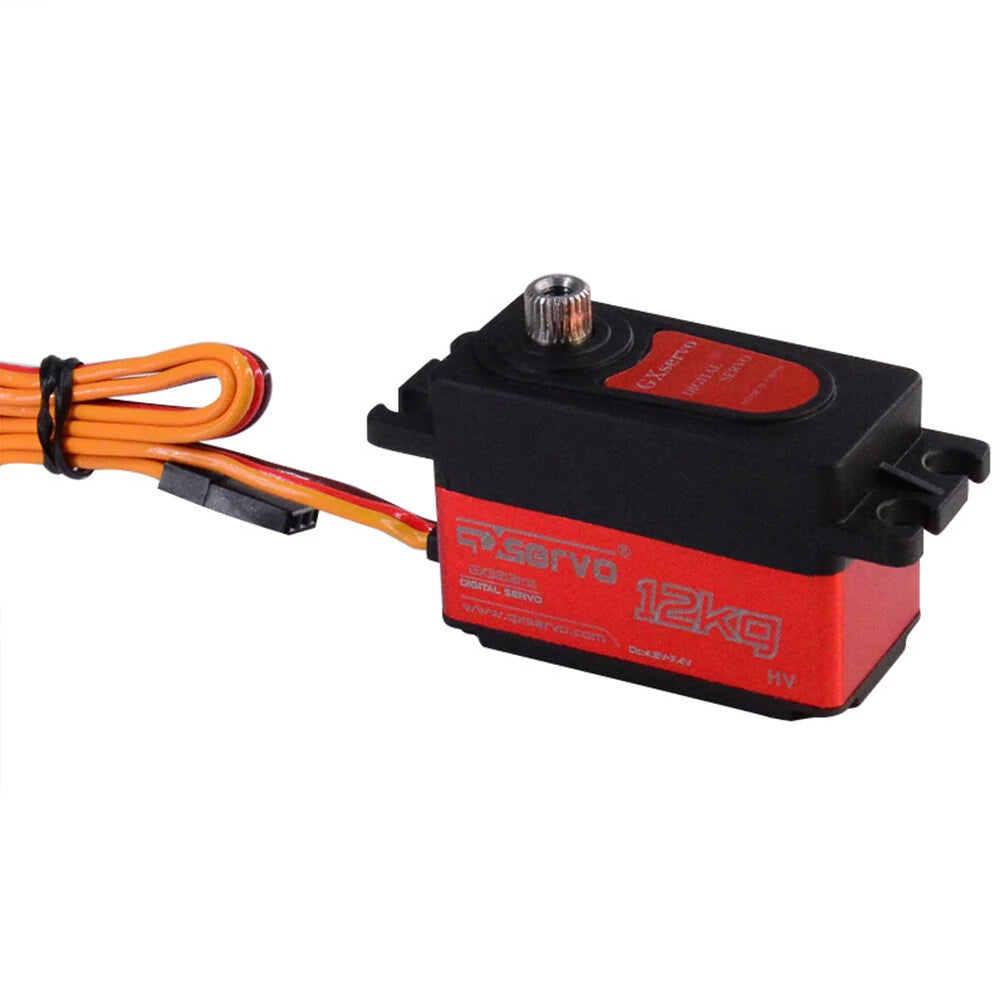

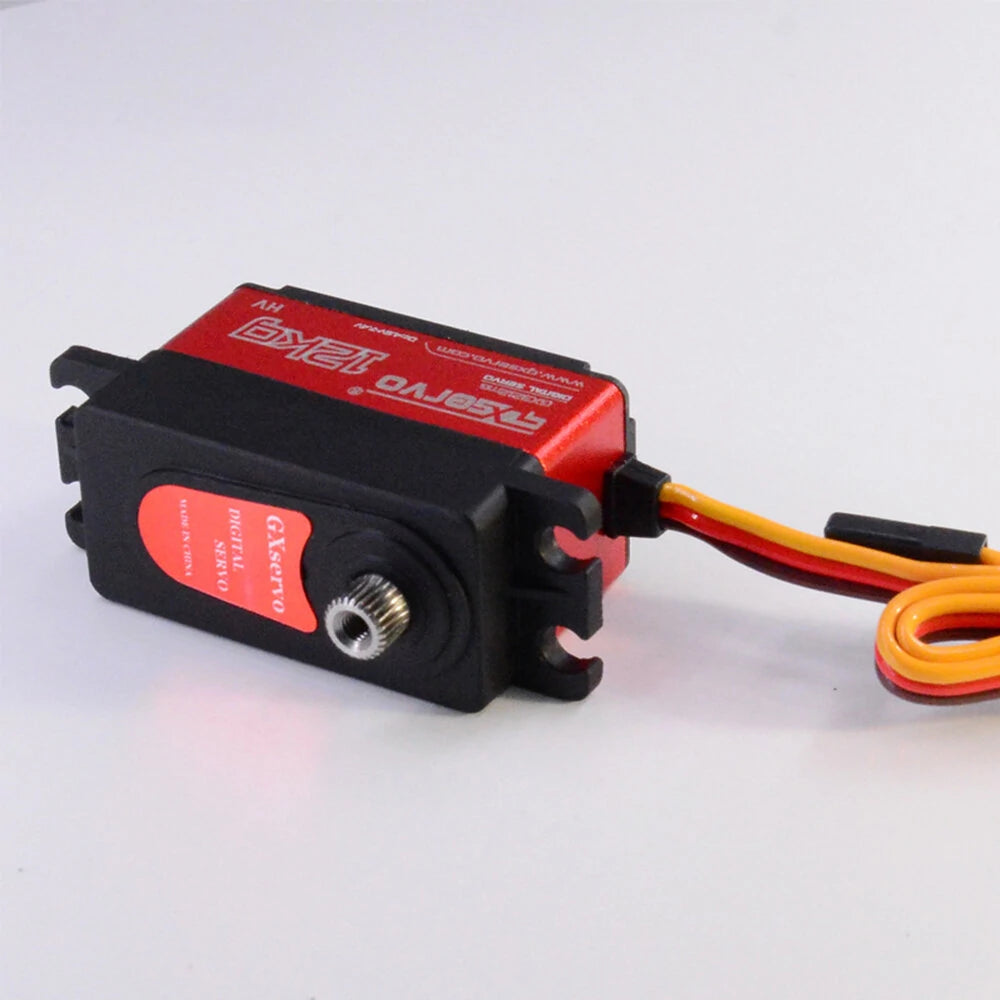

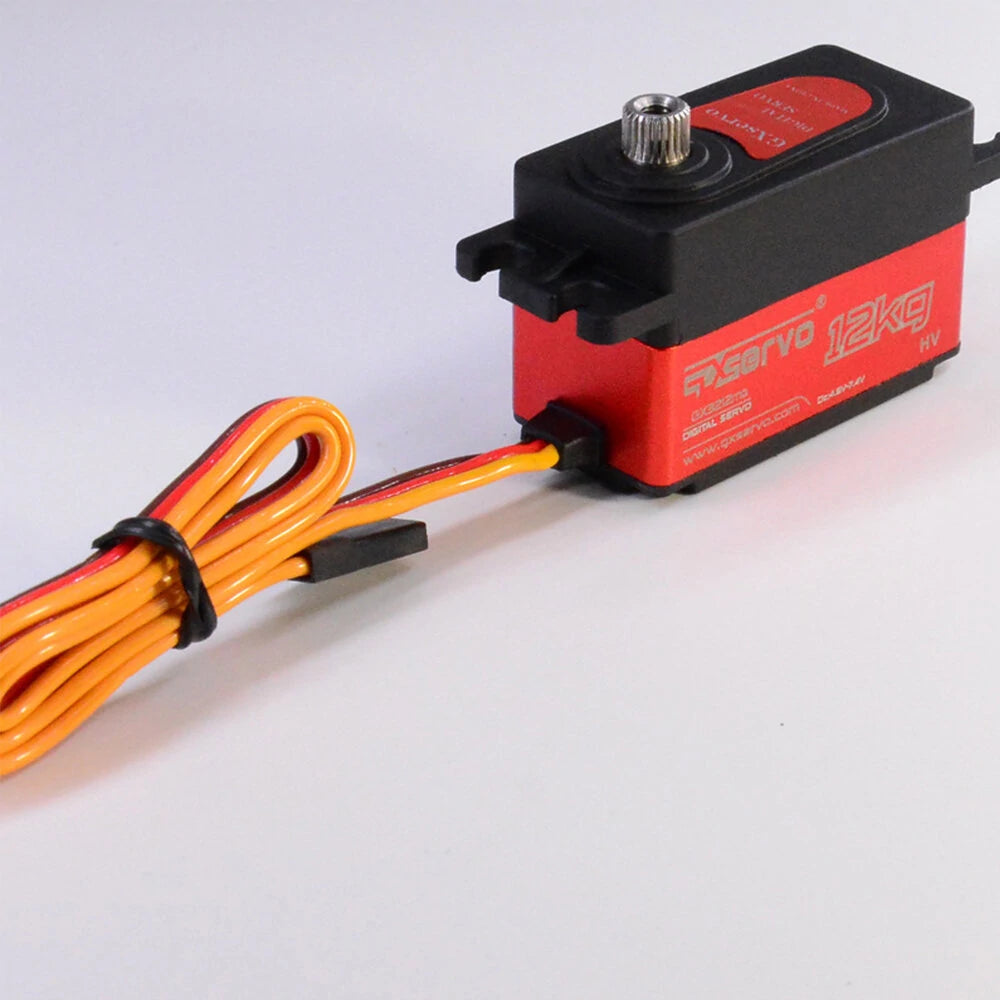

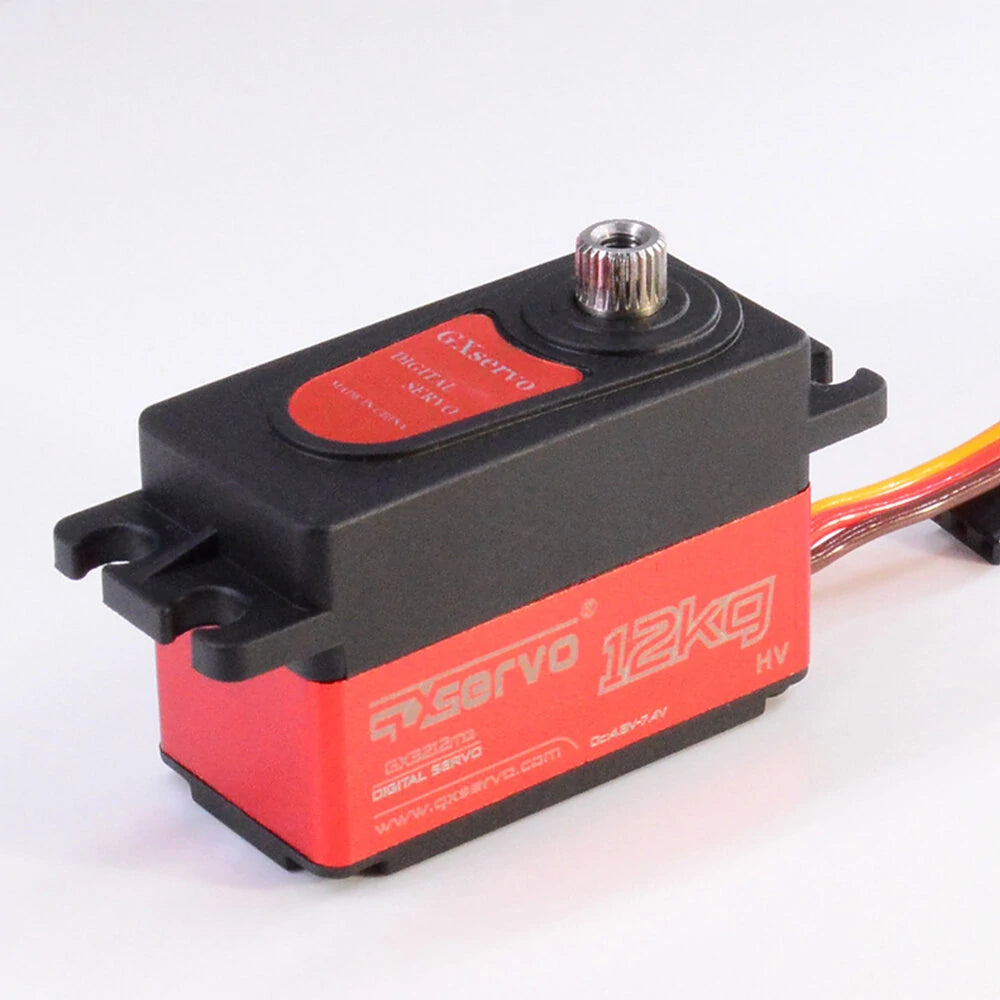

The GXservo Digital Servo is a compact and lightweight device that is easy to carry and store.
It is engineered from top-grade aluminum alloy material for strength, durability, and resistance against rust and corrosion.
The servo includes a Mechanics Potentiometer, ensuring smooth operation.
This device operates at an optimal voltage range of 4.8V/6.0V and signal frequency of 330Hz, delivering high performance.
It comes with an output gear of Futabas 25T, making it ideal for RC car drift models like 1:8, 1:10, 1:12 Tamiya Sakuras carFix-wing, robot arm, and Arduinos.
Package Included:
1x Servo
