Description
Specifications:
| Product Name | Sinewave Parallel Inverter |
| Model | GMI-300W |
| Maximum input Power | 300W |
| MPPT Voltage Range | 24V-40V |
| Operation Voltage Range | 18V-50V |
| Input Voltage | 50V |
| Startup Voltage | 18V |
| Rated Output Power | 280W |
| Maximum Qutput Power | 300W |
| Rated Output Voltage | 120VAC, 230VAC |
| Nominal Output Current | 120V:2.33A/230V:1.21A |
| Cooling Mode | Natural Corvection - No Fans |
| Operating Ambient Temperature | -40℃ to +65℃ |
| Storage Temperature Ranges | -40℃ to +85℃ |
| Waterproof Grade | IP55 |
| Size | 35 *76*233mm/1.38*2.99*9.17in |
| Weight | 500g/1.10lb |
Features.

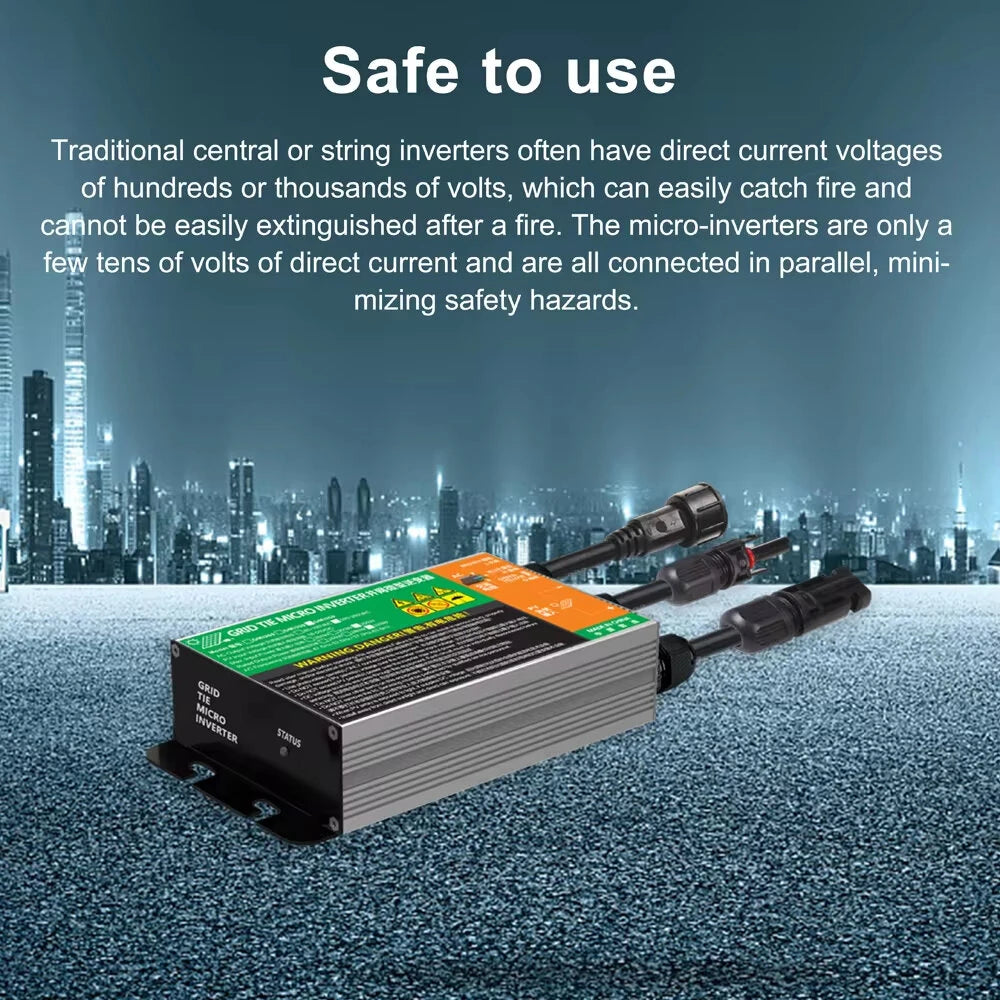

1.Safety Use: Traditional central or string inverters typically have direct current voltages of hundreds or thousands of volts, which are easily caught fire and cannot be easily extinguished after a fire. Micro inverters are just a few tens of volts of direct current and are all connected in parallel, reducing safety risks.

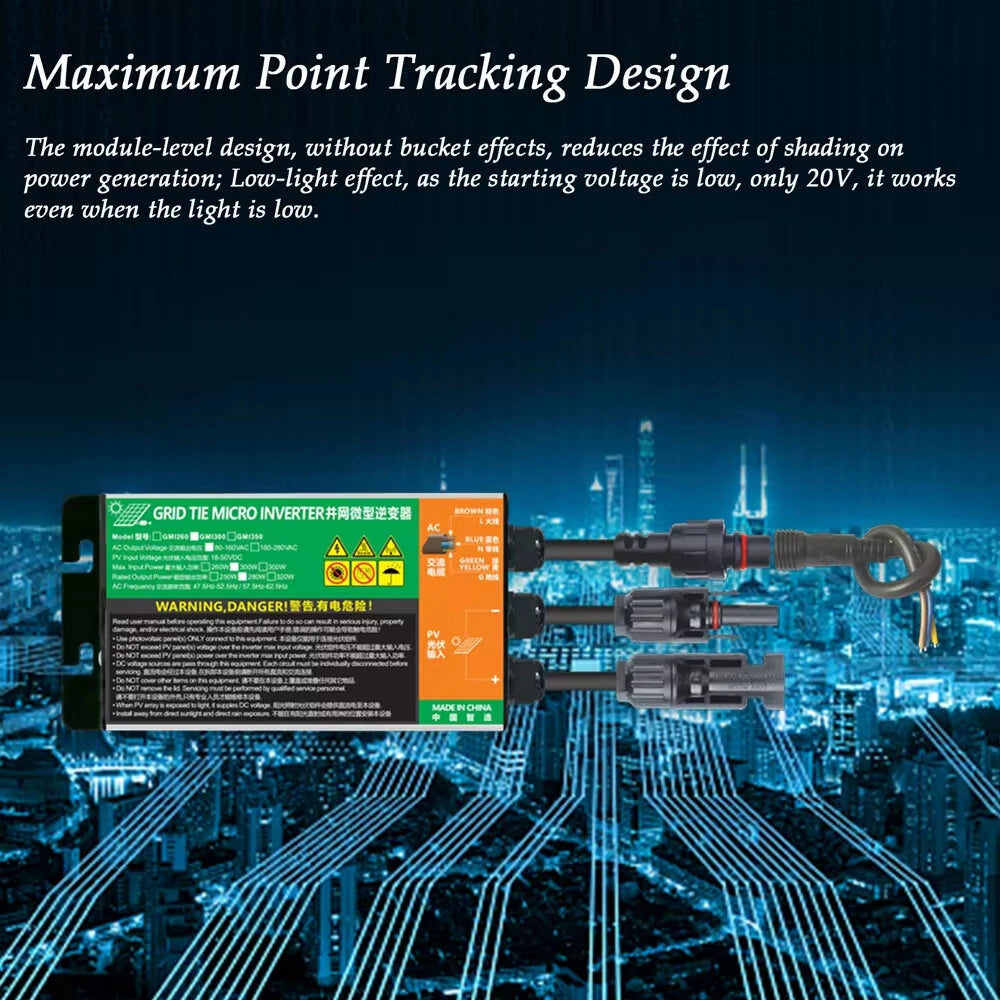

2.Maximum Point Tracking Design: Module-level design, no bucket effects, reduces the shading effect on power generation; low light effect, as the starting voltage is low (only 18V), it works even when the light is low.3.Convenience & Aesthetics: No need to build a separate distribution room, microinverters can be installed directly behind the module or on a bracket, and due to the parallel structure, subsequent size increases can be installed directly without changing the previous configuration.4.High Power: One microinverter connected to one solar module can produce a maximum output of 350W.5.High -Efficiency Conversion: It captures the MPPT in real time, with a built-in efficiency of up to 95%.6.Multiple protections: Support islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.7.Environmentally friendly materials: IP55 waterproof and dustproof, recyclable materials, cleaning energy, saving electricity costs.8.Intelligent parallel connection: The AC output of the inverter can be connected to a socket, plug and play.9.Easy to install: No wiring, low cost, and easy to install.
Package includes:
1 x Sinewave Parallel Inverter
1 x AC Cable
1 x User Manual
