Description
Notice: The product will be shipped from about February 15, 2025.
Description:

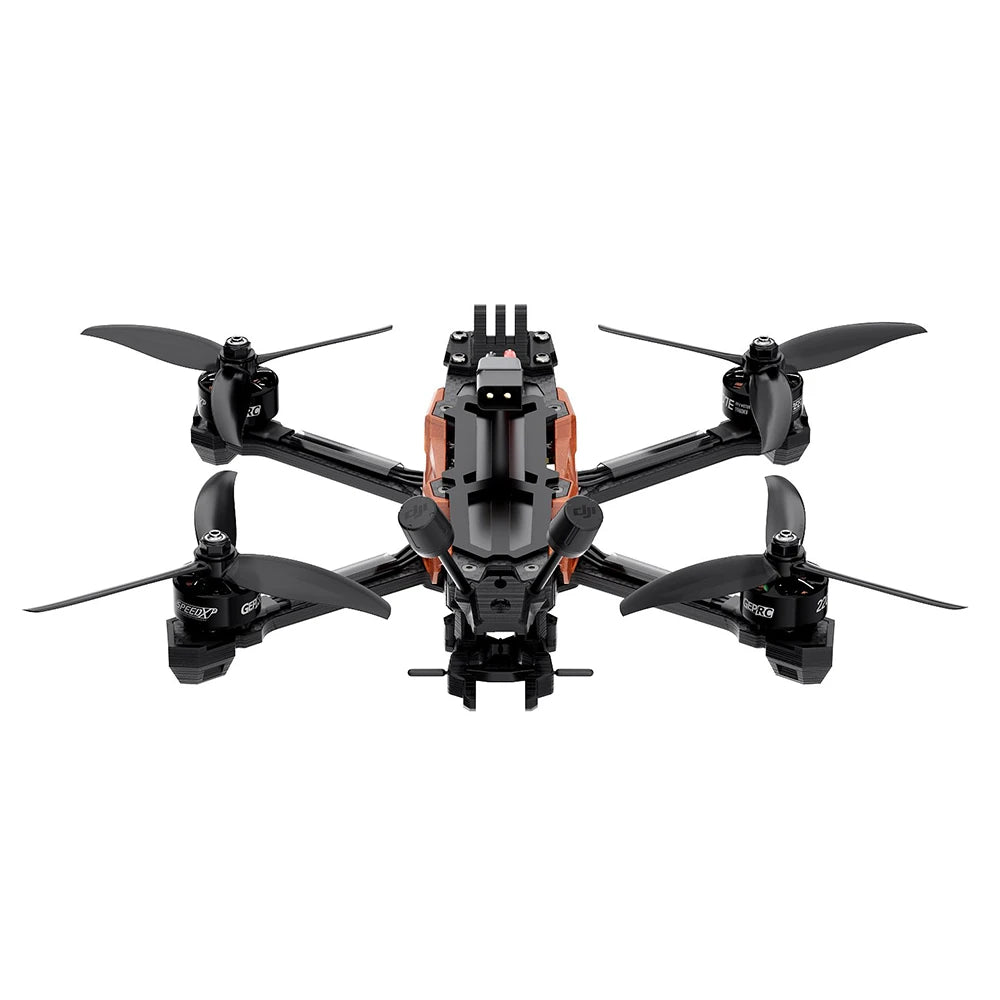

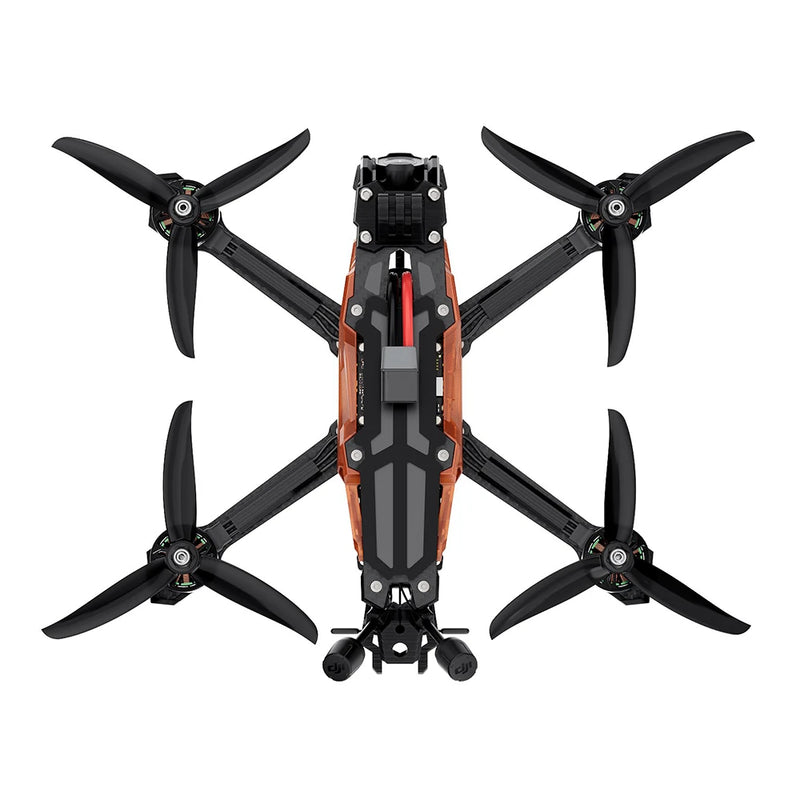

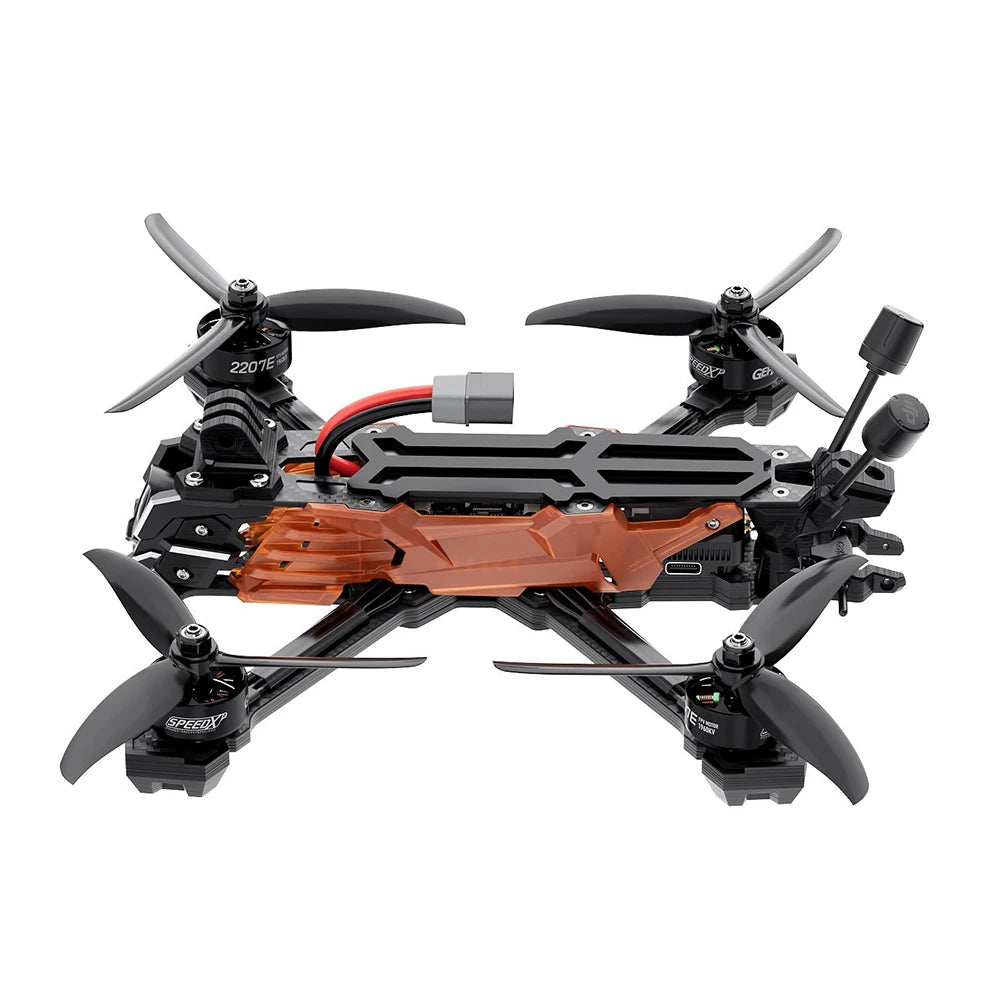

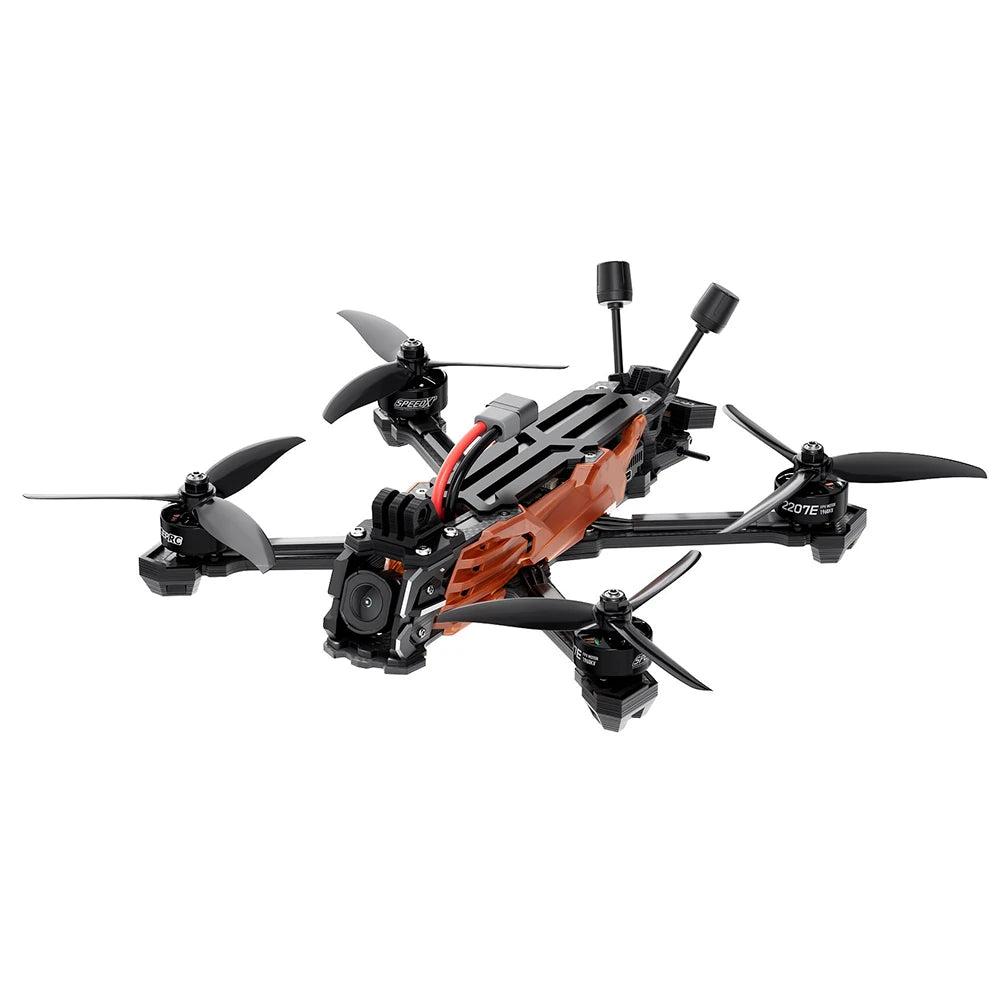

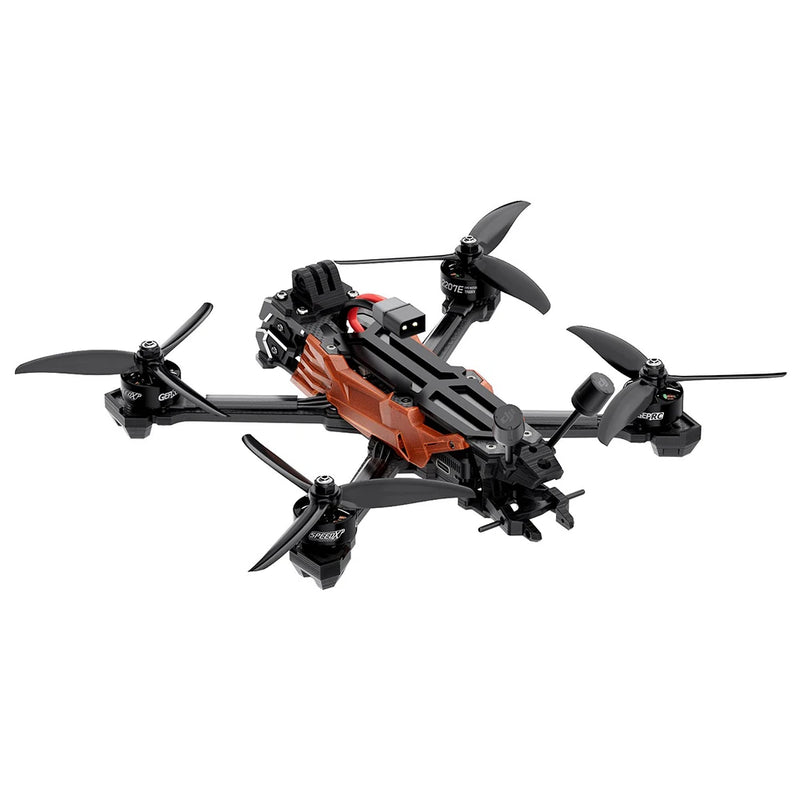

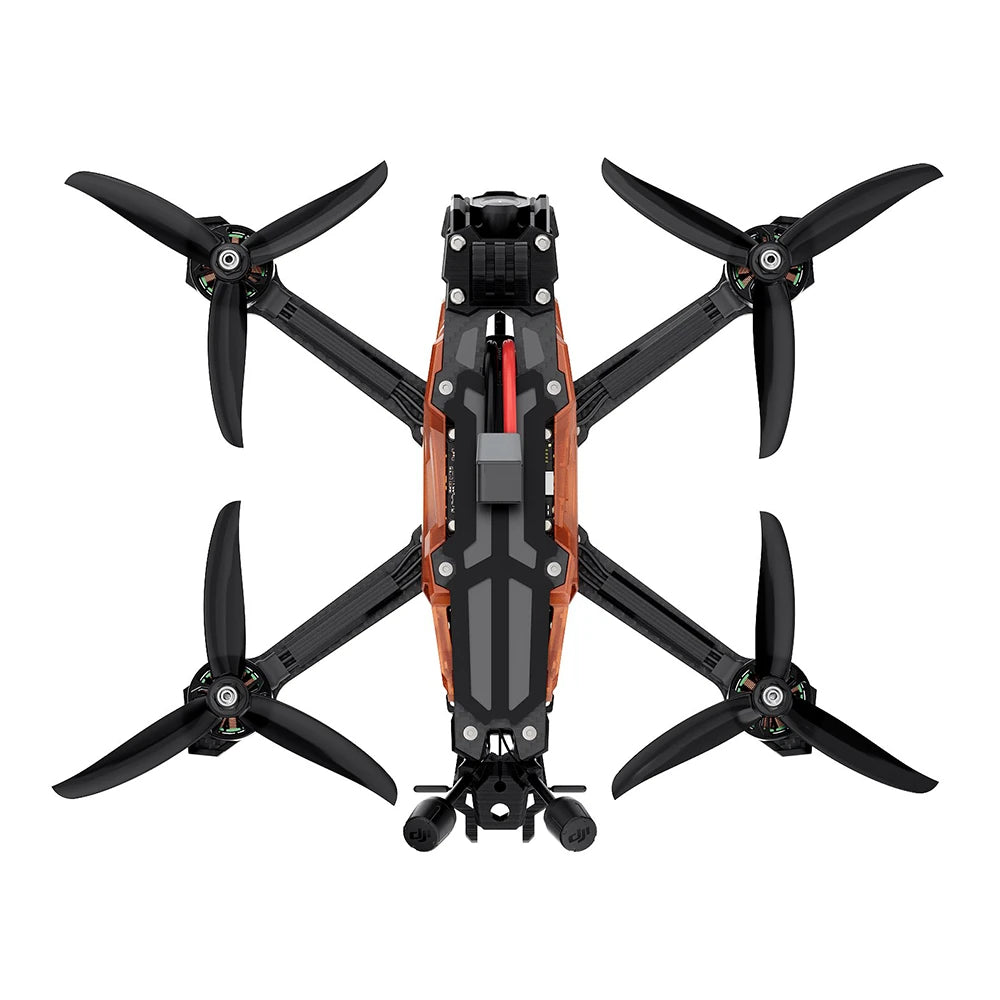

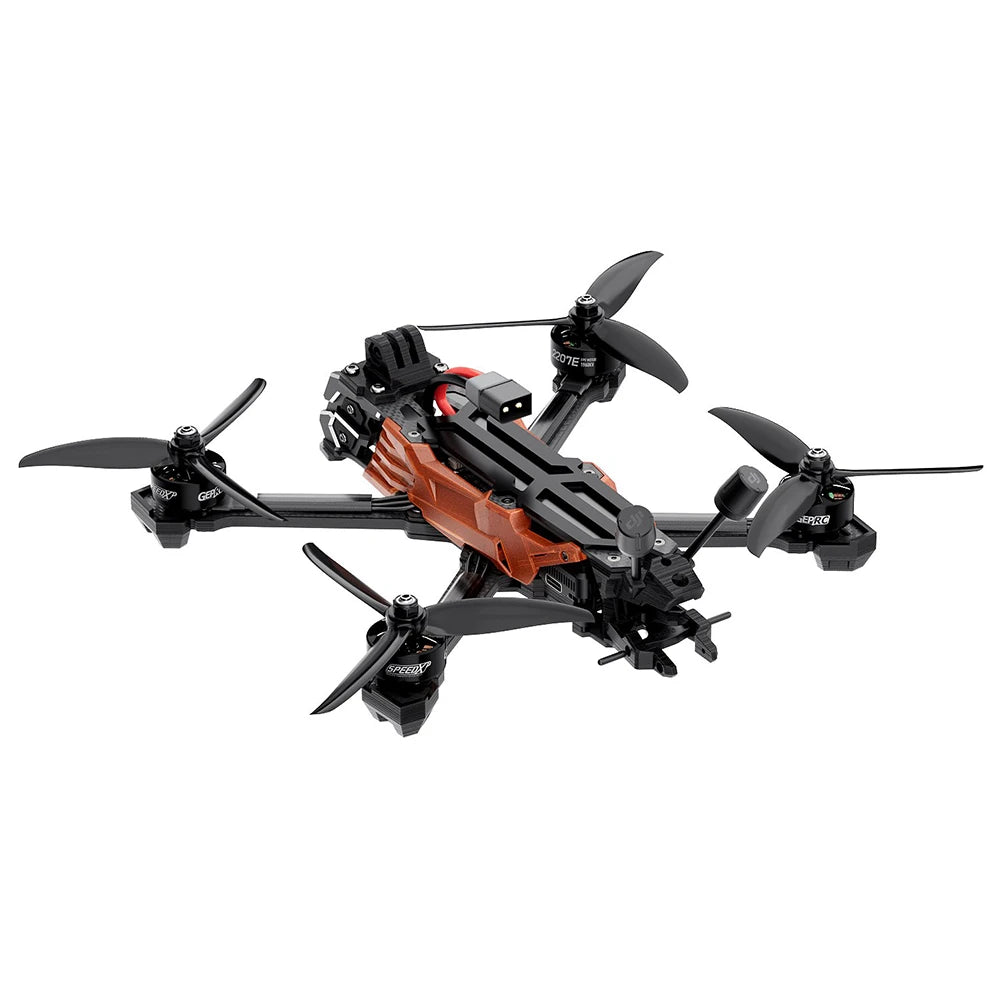

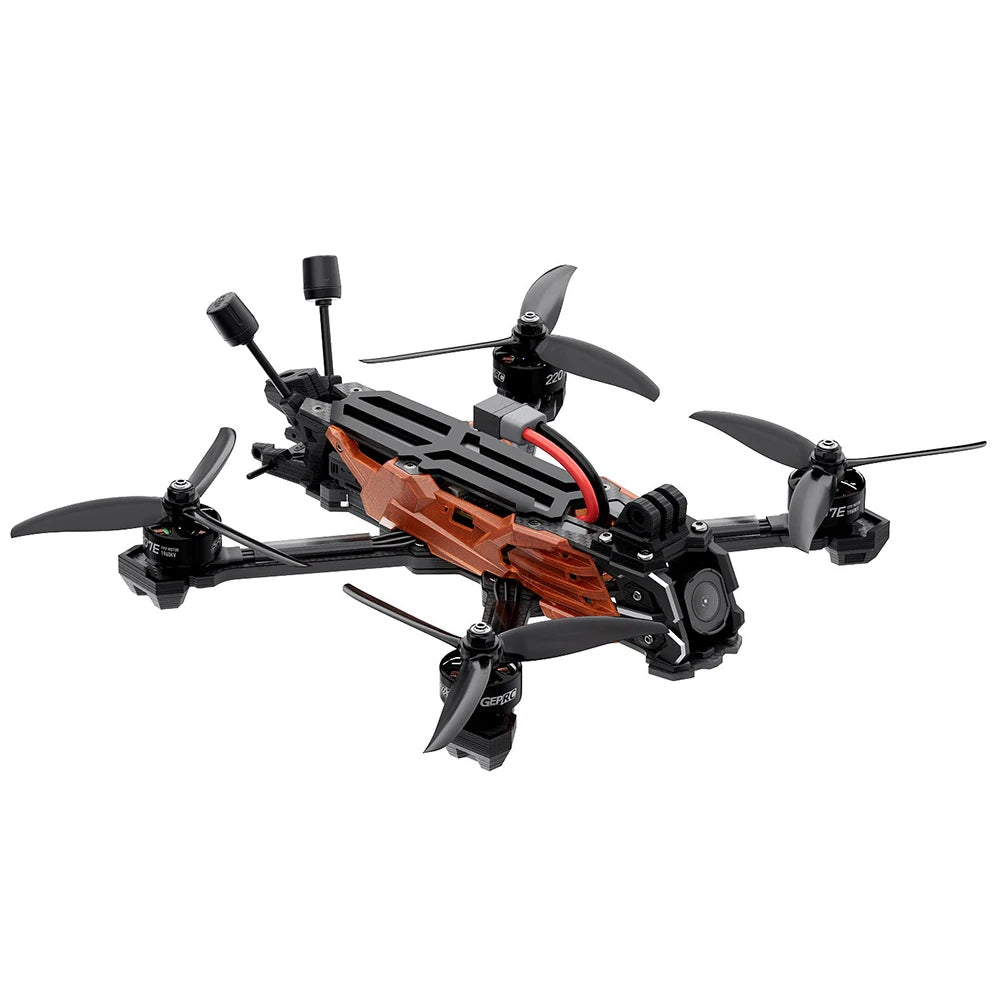

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a boldd, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.
Available in two models, Wide X and DC, to suit different flight needs.
Feature:
- DJI O4 Air Unit Pro features a larger CMOS sensor for improved image clarity and enhanced light sensitivity.
- CNC aluminum lens housing for a durabl, boldd design.
- GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
- Front lip design provides extra lens protection for confident flying.
- Wider 5mm carbon fiber arms for increased durability and a sleek build.
Specifications:
Brand: GEPRC
Model: Vapor X5
GPS: Geprc GEP M10 GPS
Model: |
Vapor X5 O4 Pro |
Vapor D5 O4 Pro |
Model for Frame: |
Vapor X5 Frame |
Vapor D5 Frame |
Wheelbase: |
230 mm |
238mm |
Top Plate: |
2.0 mm |
|
Middle Plate: |
2.0 mm |
|
Bottom Plate: |
2.5 mm |
|
Arm Thickness: |
5.0 mm |
|
FC: |
GEP-F722-HD v2 |
|
MCU: |
STM32F722 |
|
Gyro: |
ICM42688-P(SPI) |
|
Barometer: |
YES |
|
OSD: |
Betaflight OSD w/AT7456E |
|
ESC: |
TAKER H60_BLS 60A 4IN1 ESC |
|
VTX: |
DJI O4 Air Unit Pro |
|
Camera: |
O4 Pro Camera |
|
Antenna: |
O4 Pro Original Antenna |
|
Connector: |
XT60 |
|
Optional GPS: |
GEP-M10 GPS |
|
5-inch Motor: |
GEPRC SPEEDX2 2207E 1960KV |
|
5-inch Propeller: |
GEMFAN 5136 |
|
PNP Version Weight: |
409g±5g |
428±5g |
Receiver: |
PNP/GEPRC ELRS24/TBS Nano RX |
|
Recommended Battery: |
6S LiPo1300mAh – 1800mAh |
|
Flight Time: |
14-19min |
|
Package Included:
1 x Vapor X5 O4 Pro
2 x GEMFAN 5136
2 x Battery Anti-Slip Pads
1 x Spare Screw Pack
1 x Vapor Side Panel
2 x M20*250mm Battery Straps
1 x L-Shaped Screwdriver 1.5mm
1 x L-Shaped Screwdriver 2.0mm
1 x GPro Mount
The Spare Screws Include:
6 x M3*10mm Round Head Screws
6 x M3*8mm Round Head Screws
2 x M3*6mm Flat Head Screws
1 x M5*28mm Thin Head Screw
1 x M5 Flange Nut
4 x M3 Rivet Nuts
