Summary:

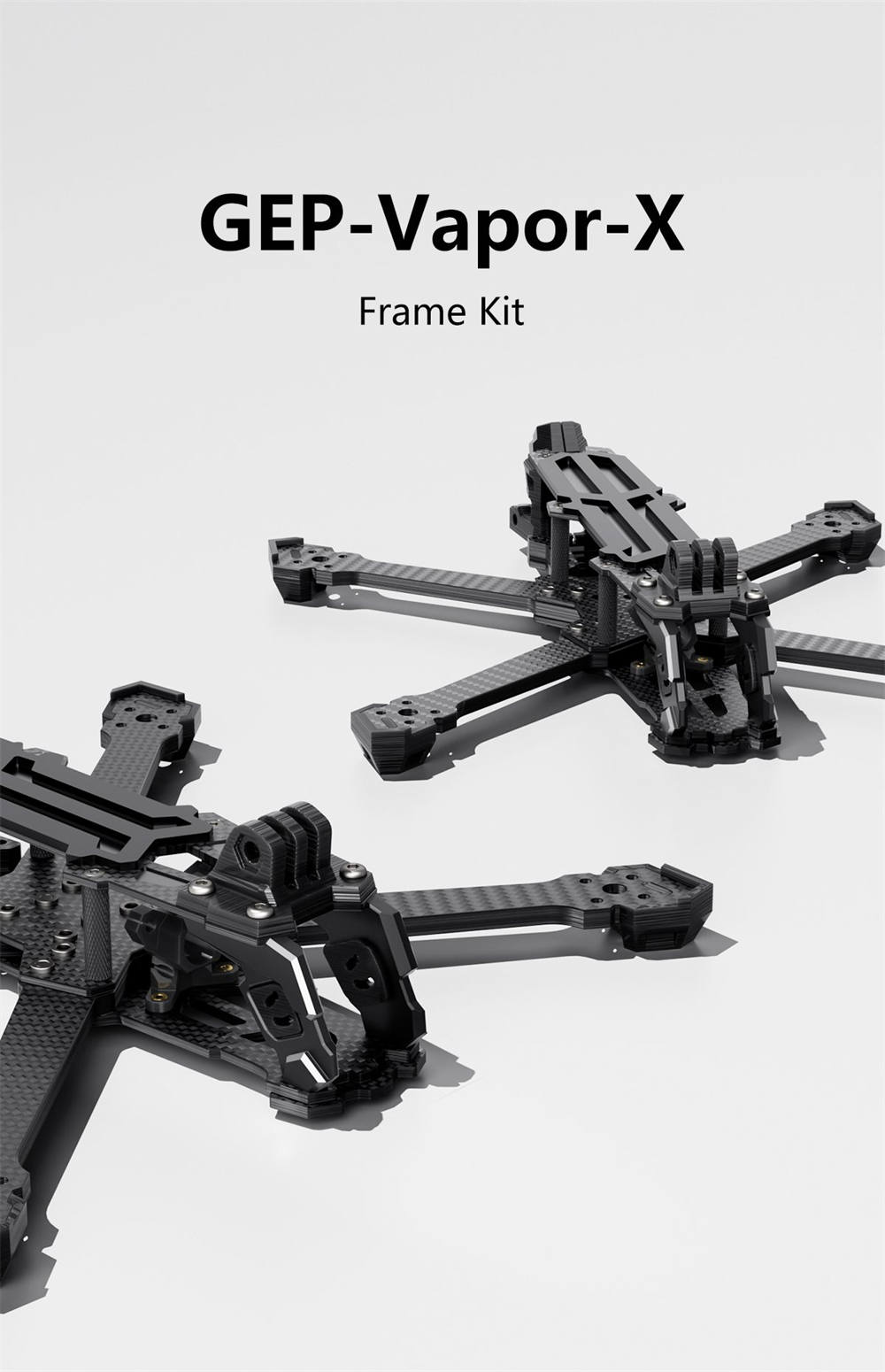

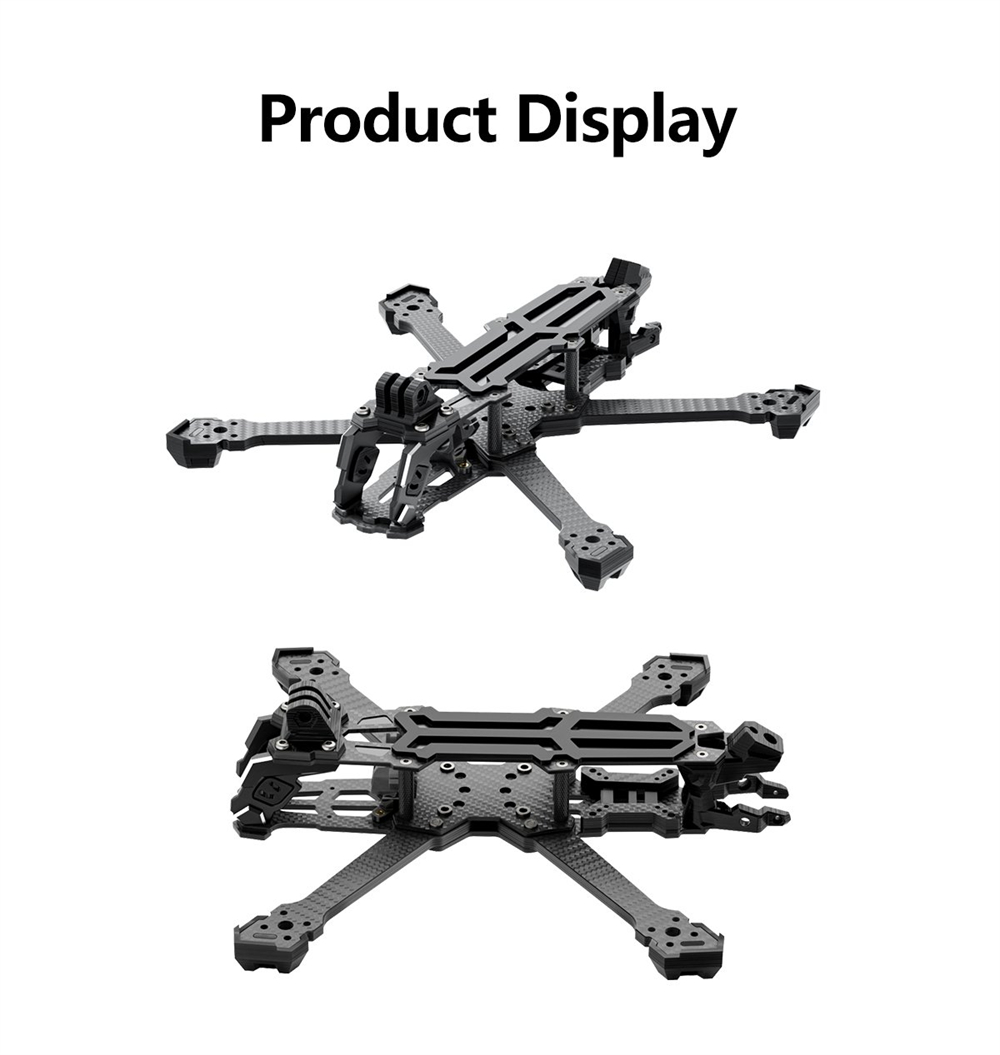

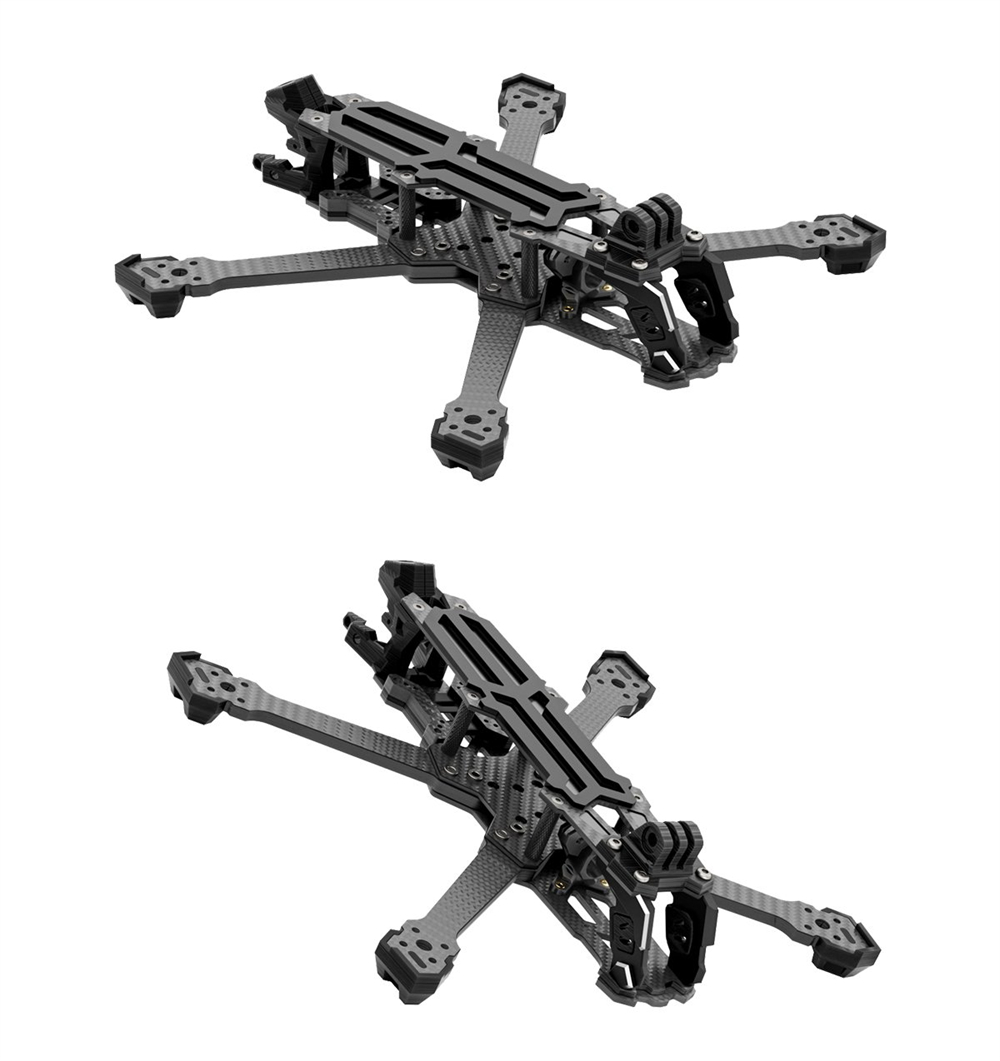

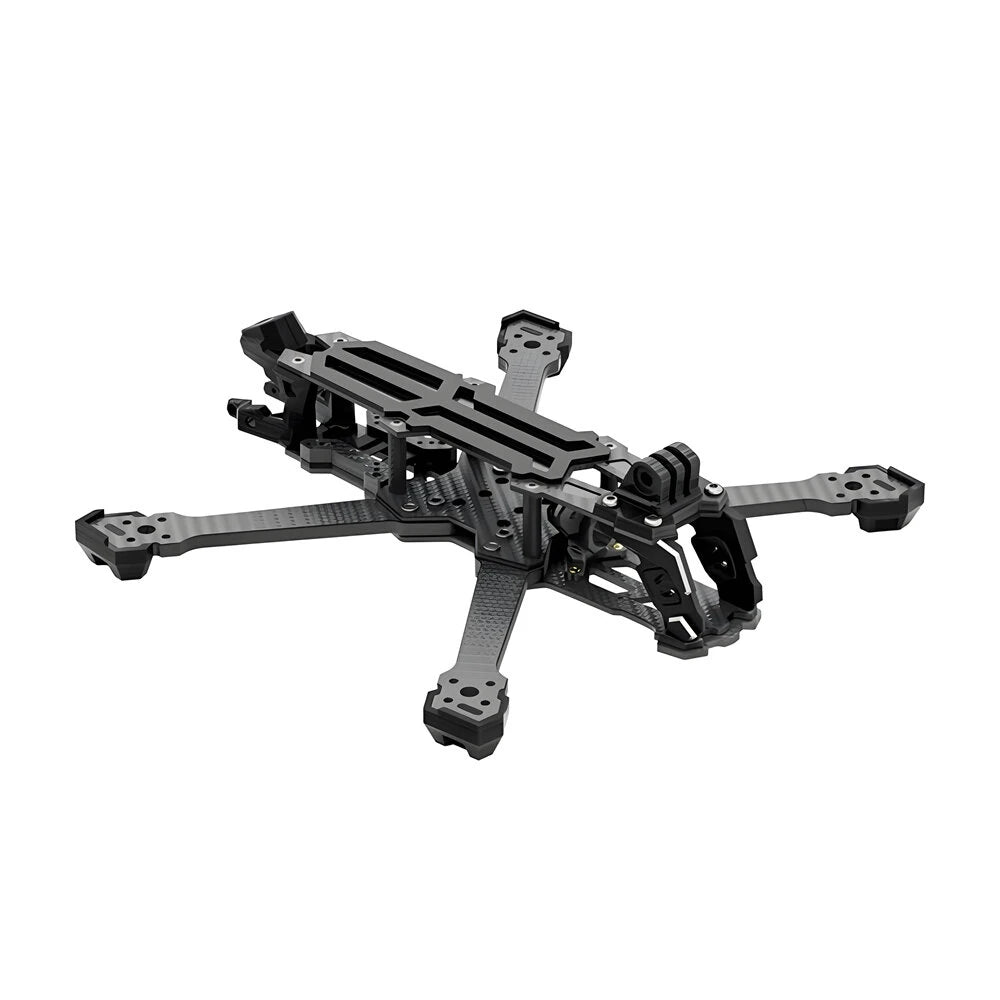

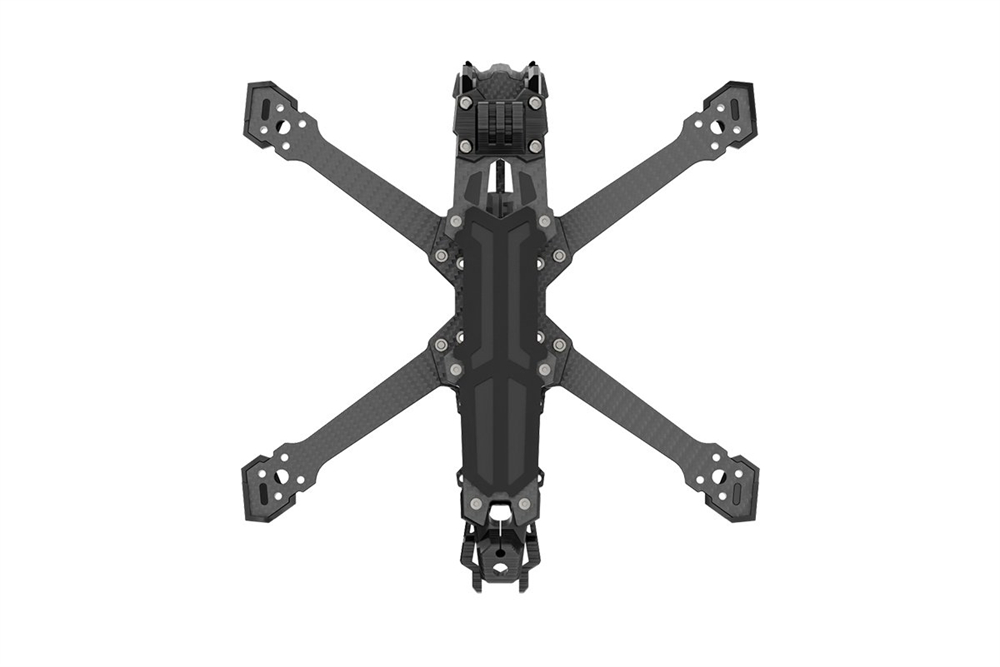

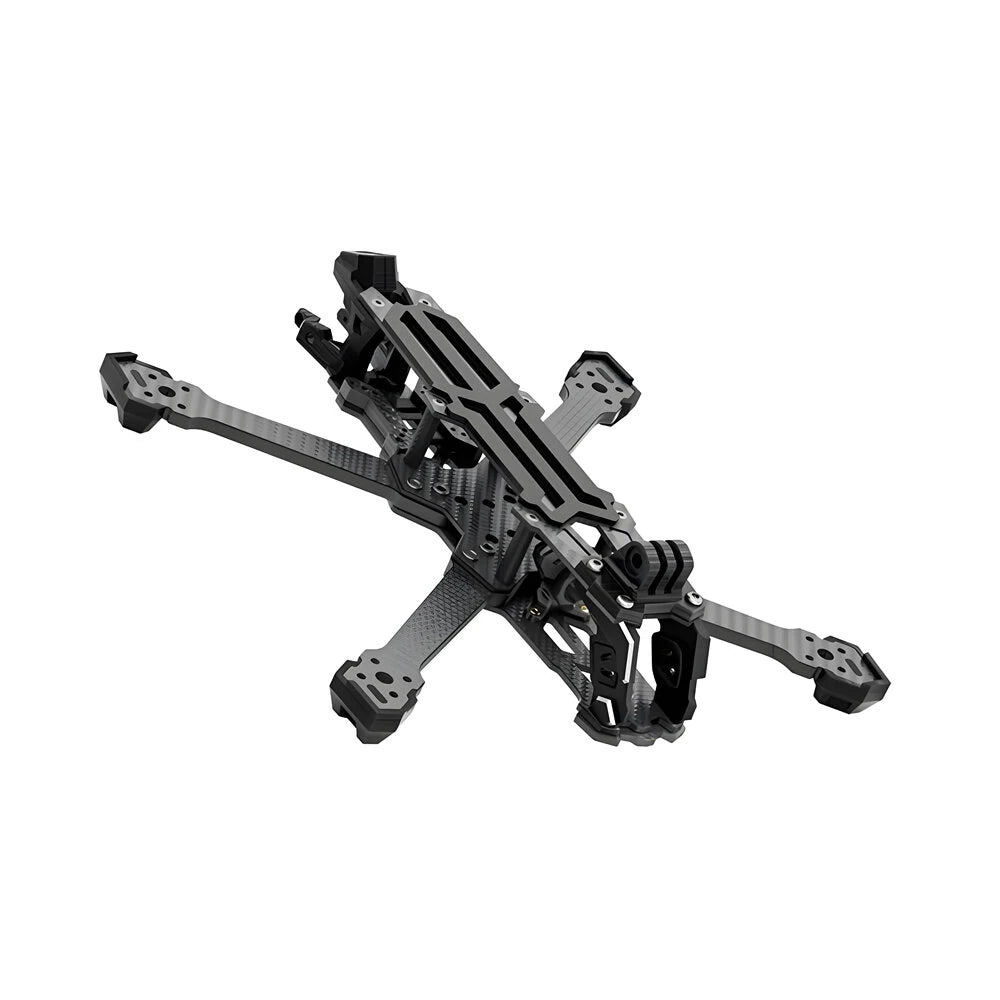

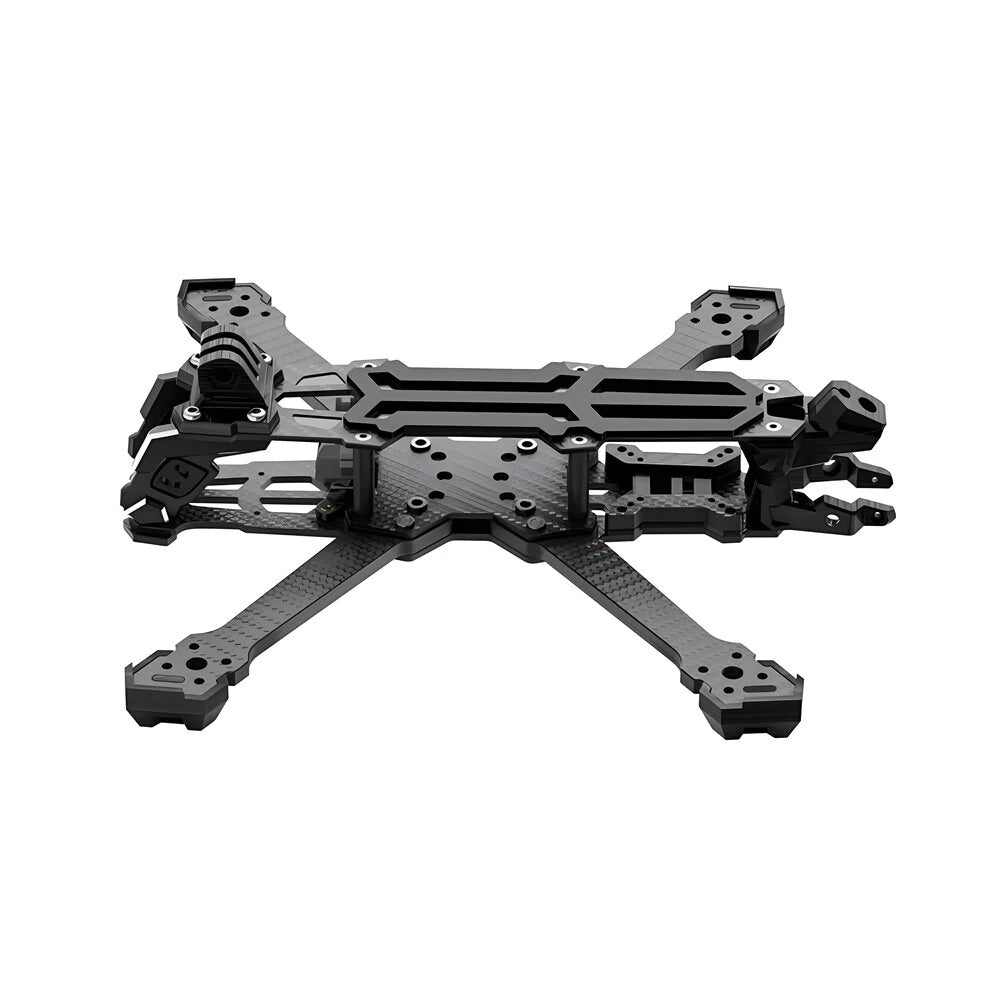

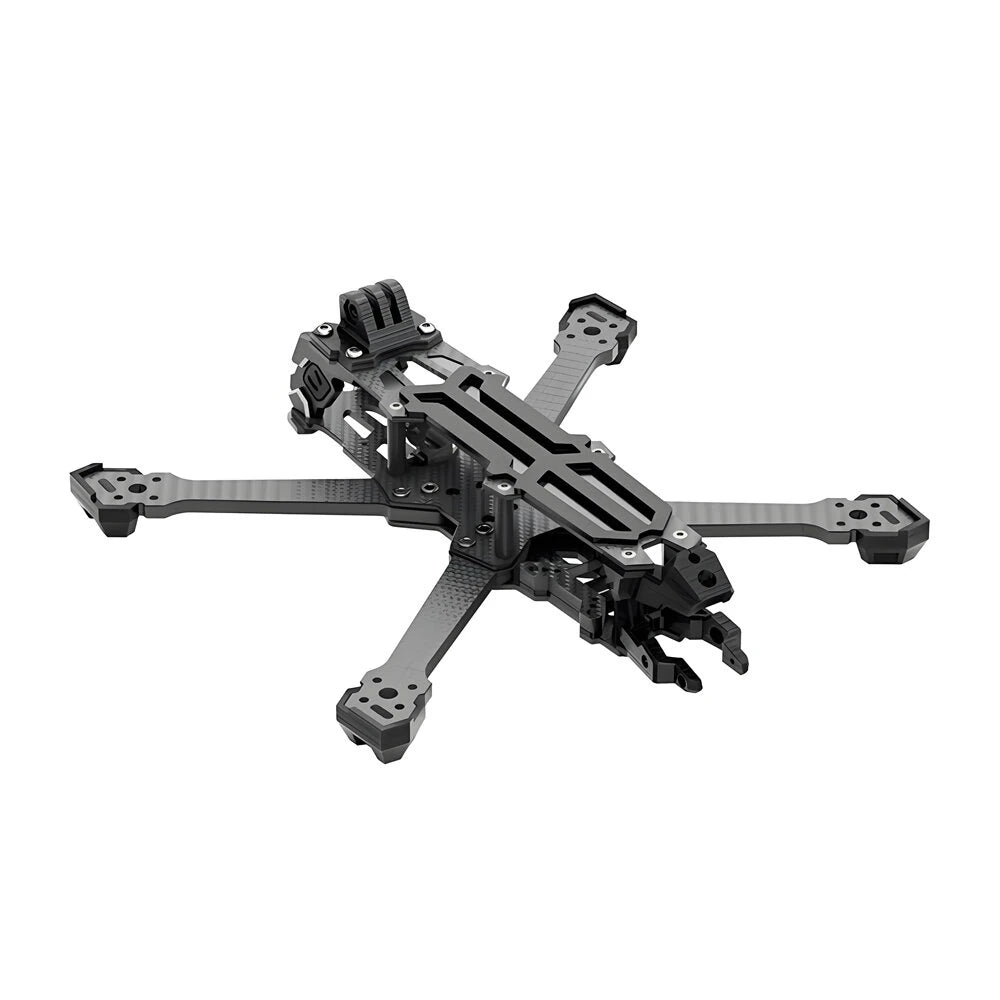

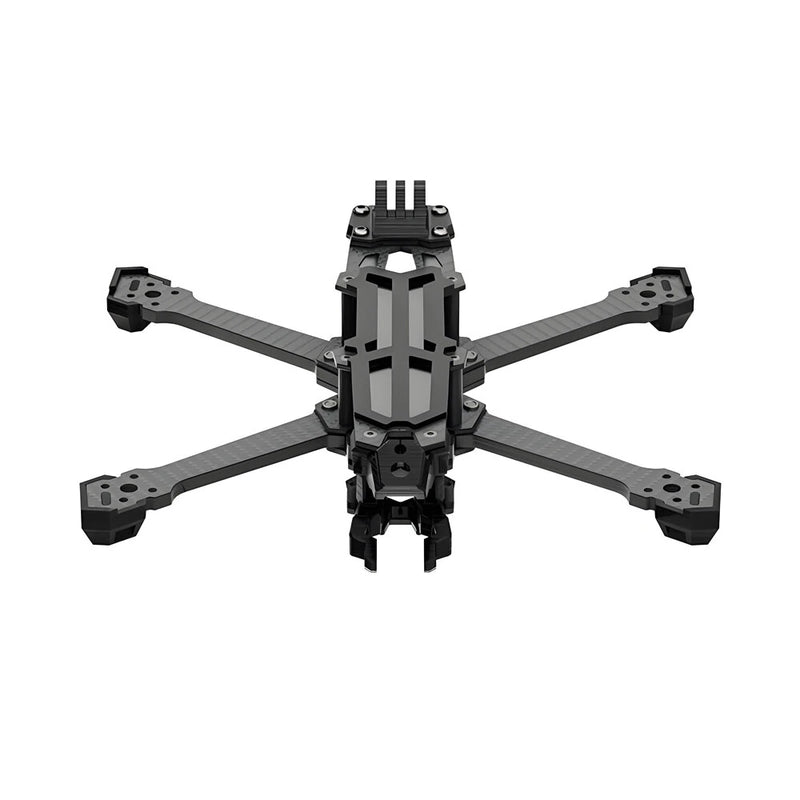

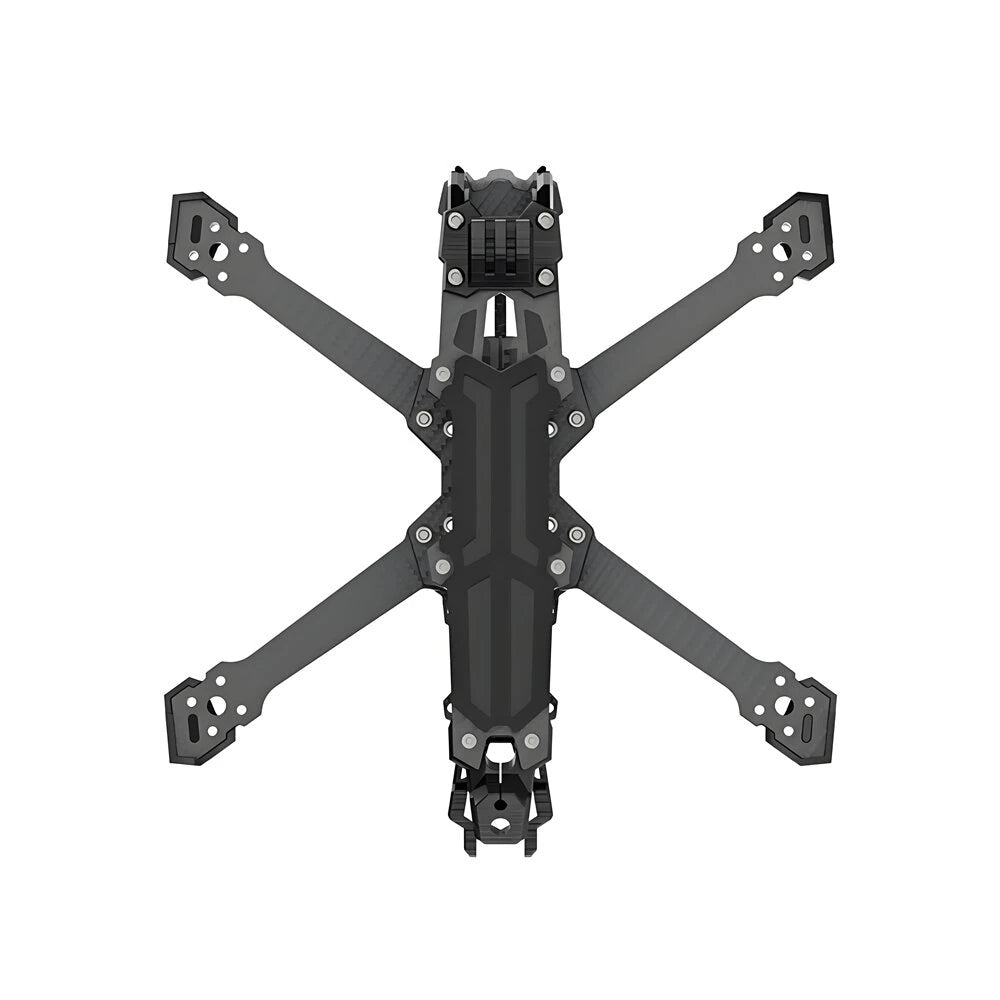

The GEP-Vapor-X frame is expertly crafted for freestyle flying. Its wide X-frame design boosts stability and maneuverability, offering an ideal balance of style and durability for exceptional flight performance.



Features:

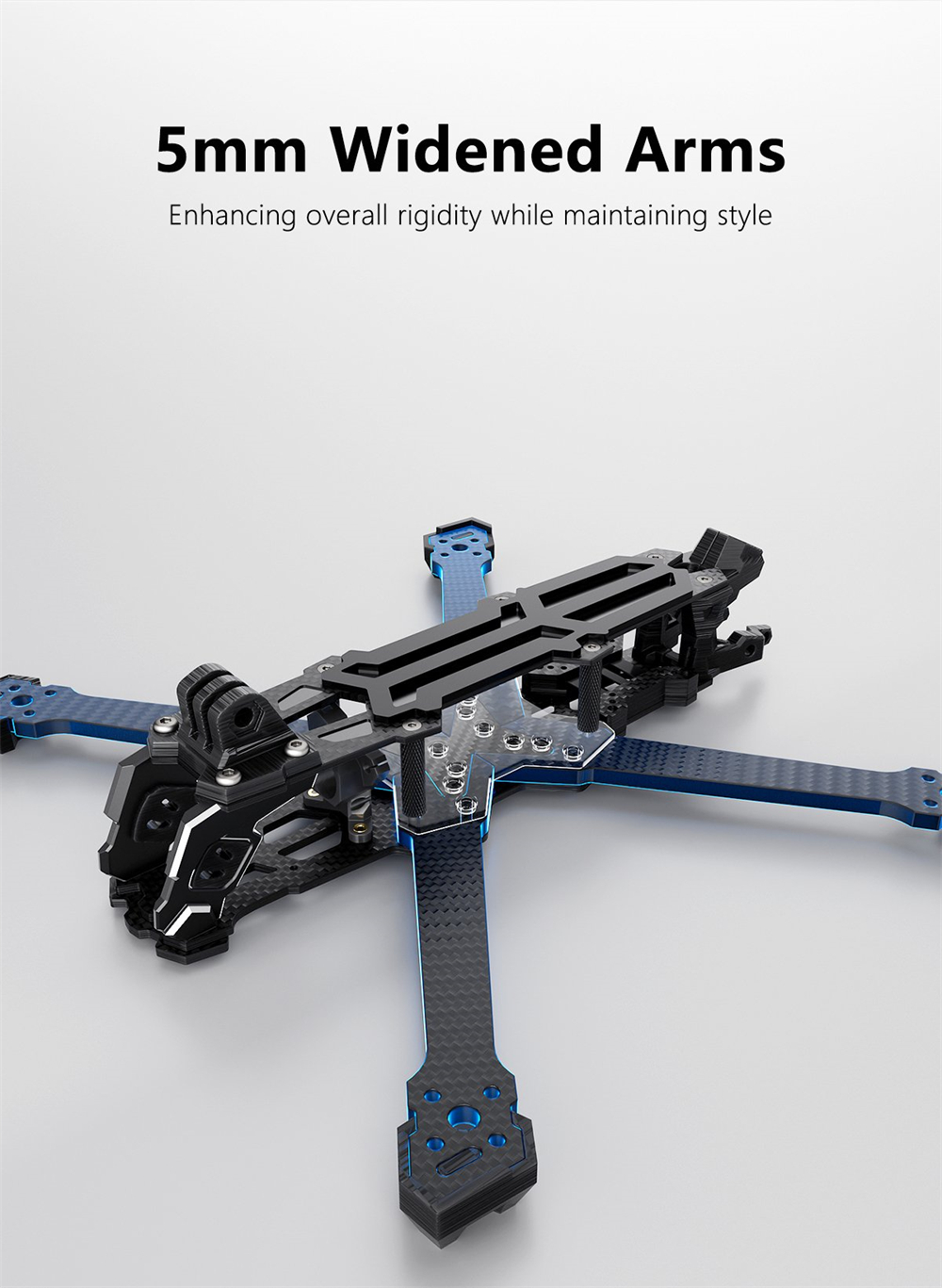

1. The 5mm wide carbon fiber arms ensure overall rigidity.

2. The camera side panels and front guard offer double protection for enhanced durability.

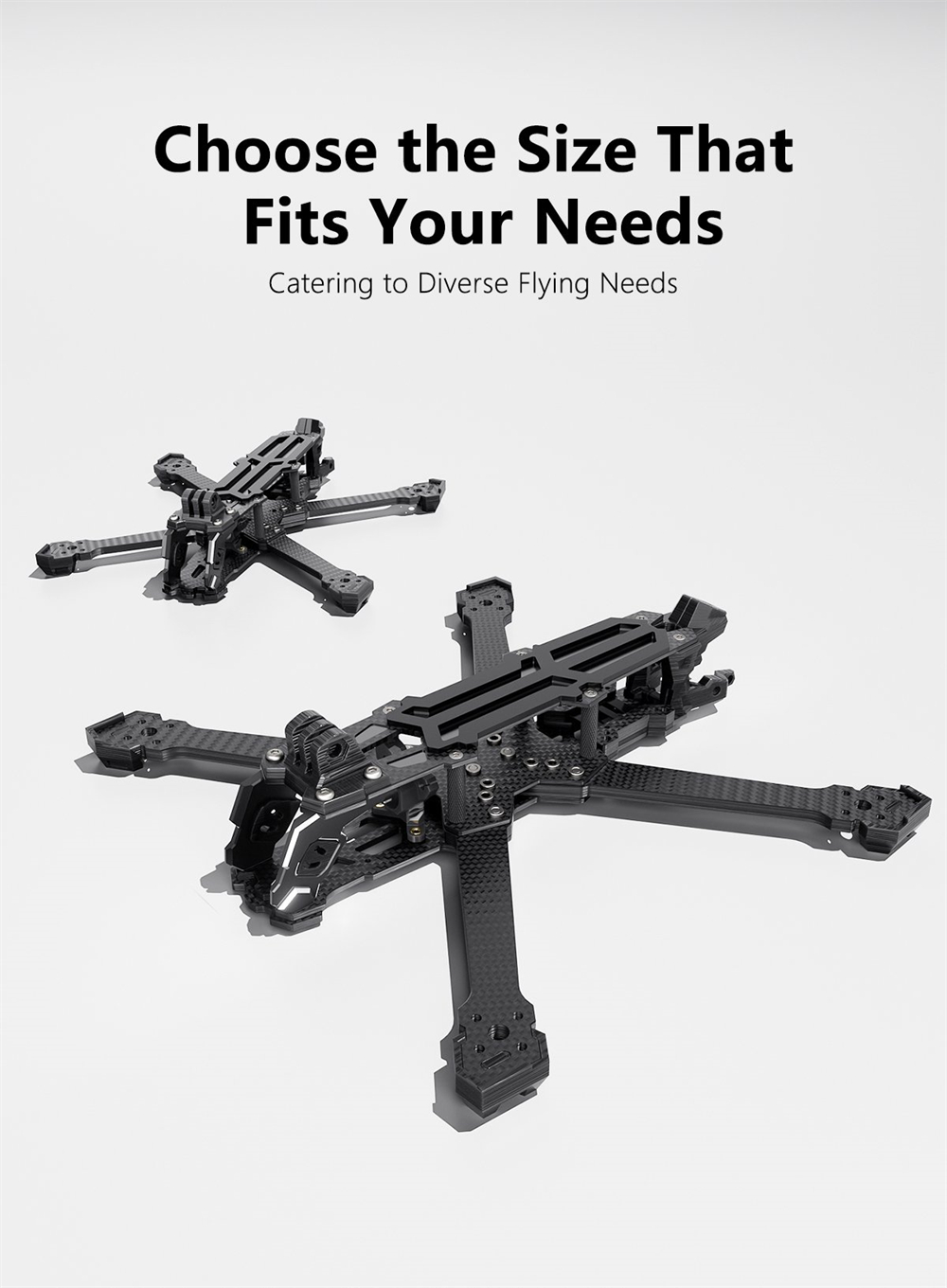

3. Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

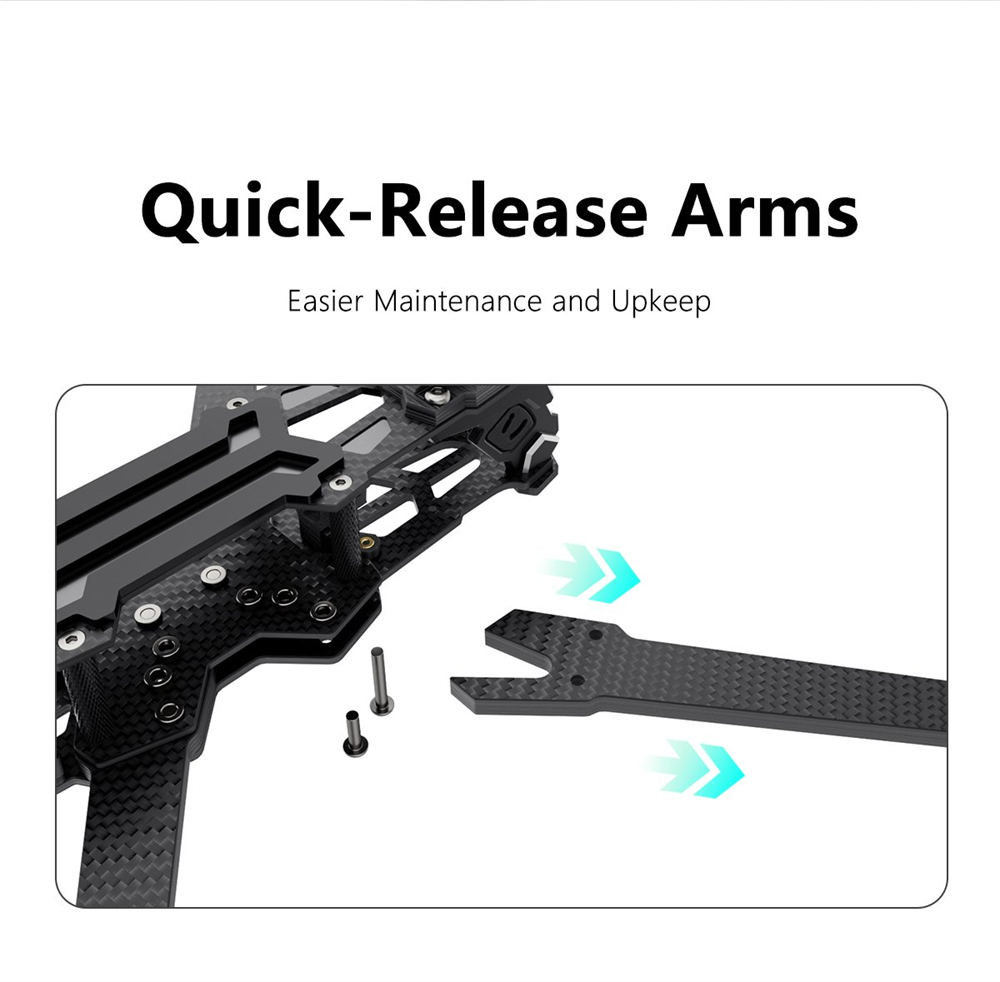

4. The quick-release design makes maintenance and assembly a breez.

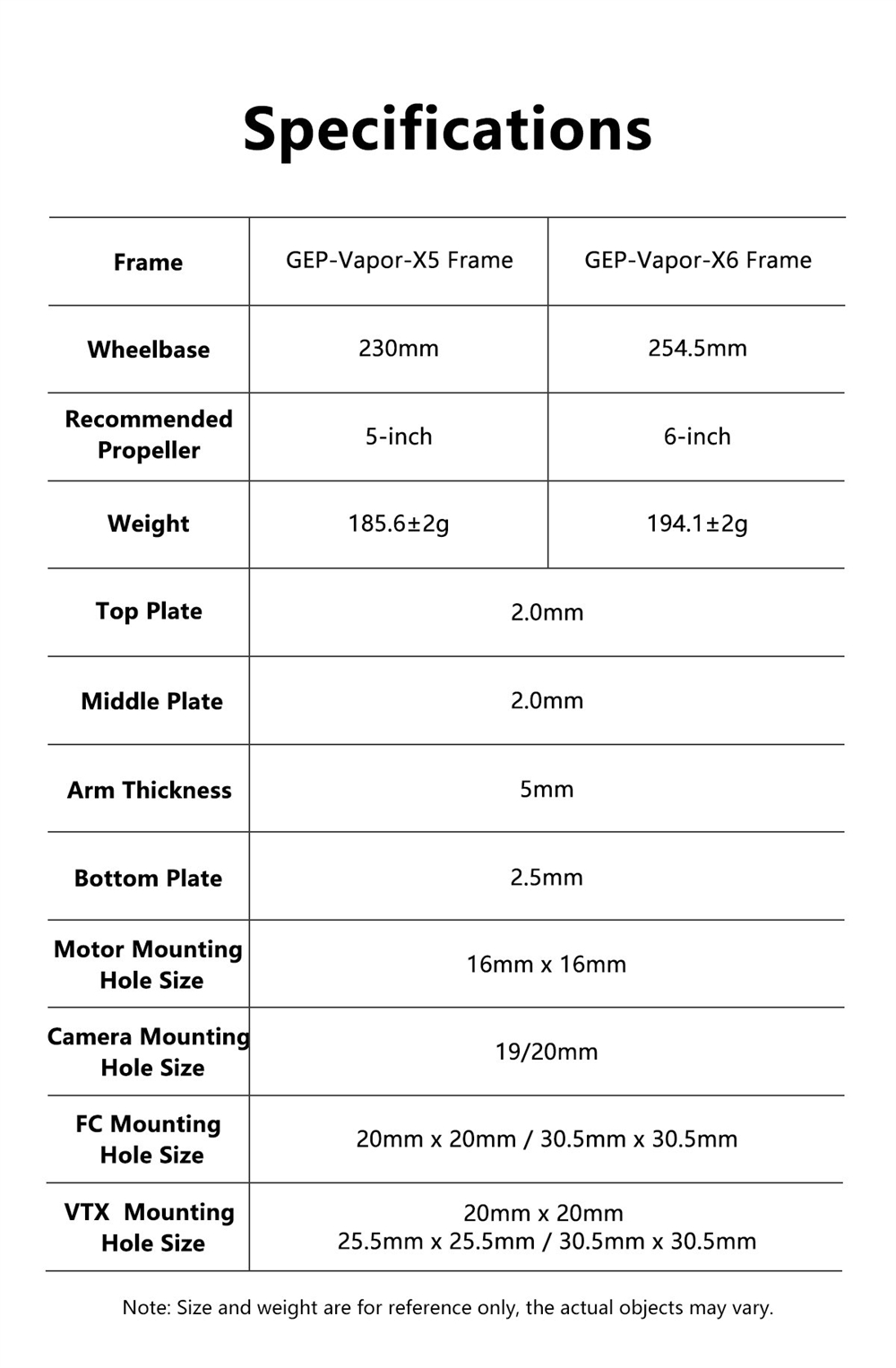

Specification:

Brand: GEPRC

Model: Vapor-X

Item Name: 5 Inch/ 6 Inch Frame Kit

Model	GEP-Vapor-X5	GEP-Vapor-X6
Frame	GEP-Vapor-X5 Frame	GEP-Vapor-X6 Frame
Wheelbase	230mm	254.5mm
Recommended Propeller	5-inch	6-inch
Weight	185.6±2g	194.1±2g
Top Plate	2.0mm
Middle Plate	2.0mm
Arm Thickness	5mm
Bottom Plate	2.5mm
Motor Mounting Hole Size	16mm × 16mm
Camera Mounting Hole Size	19/20mm
FC Mounting Hole Size	20mm × 20mm / 30.5mm × 30.5mm
VTX Mounting Hole Size	20mm × 20mm25.5mm × 25.5mm / 30.5mm × 30.5mm

 Note: Size and weight are for reference only, the actual objects may vary.



The following Parts are Compatible: ( Not Included):FC & ESC Stack: TAKER F722 60A ESC StackBrushless Motor: GEPRC SPEEDX2 2207E 1960 KV / GEPRC SPEEDX2 2407E 1750KVVTX: DJI O3 Air Unit / Runcam Link / MATEN 5.8G 1.6W VTX

Camera: DJI O3 Air Unit / Runcam Link / caddx h1 camera

Propeller: GEMFAN 5136 / HQ 6X3.5X3

Lipo Battery:  6S 1550mAh – 2200mAh

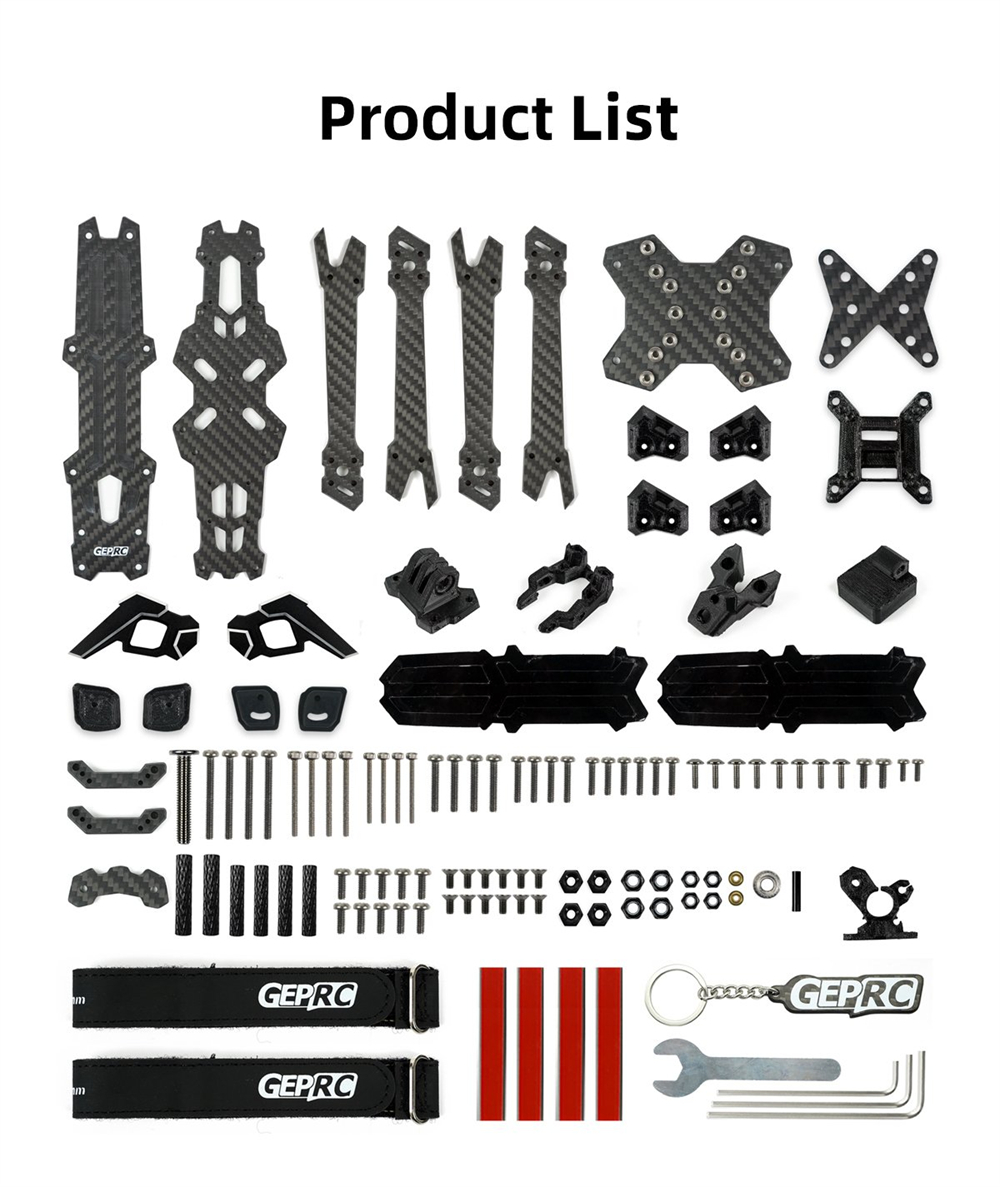

Package Included:

1 x GEP-Vapor-X5/GEP-Vapor-X6 Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench

OR

1x GEP-Vapor-X5/GEP-Vapor-X6 Arm
