Description
Features:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
8. 9V@2.5A + 5V@3A dual independent BEC
Specifications:
Brand: GEPRC

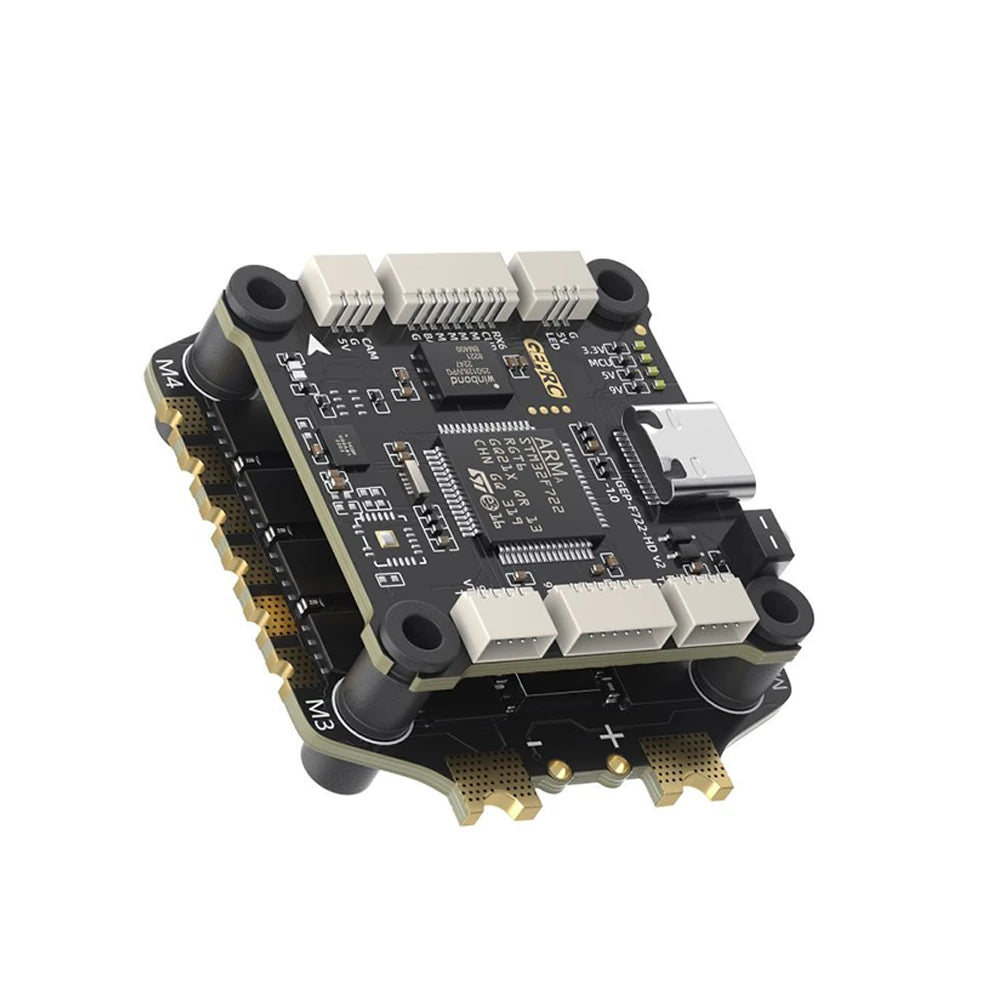

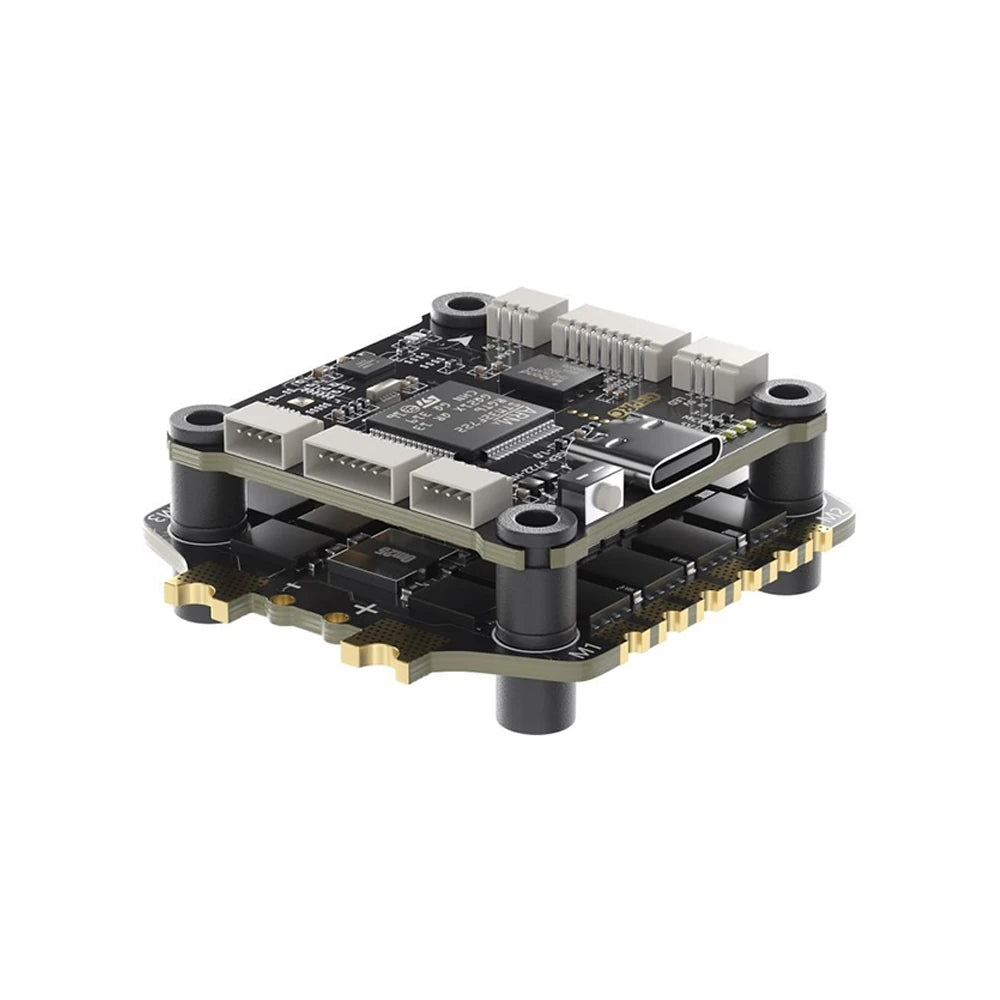

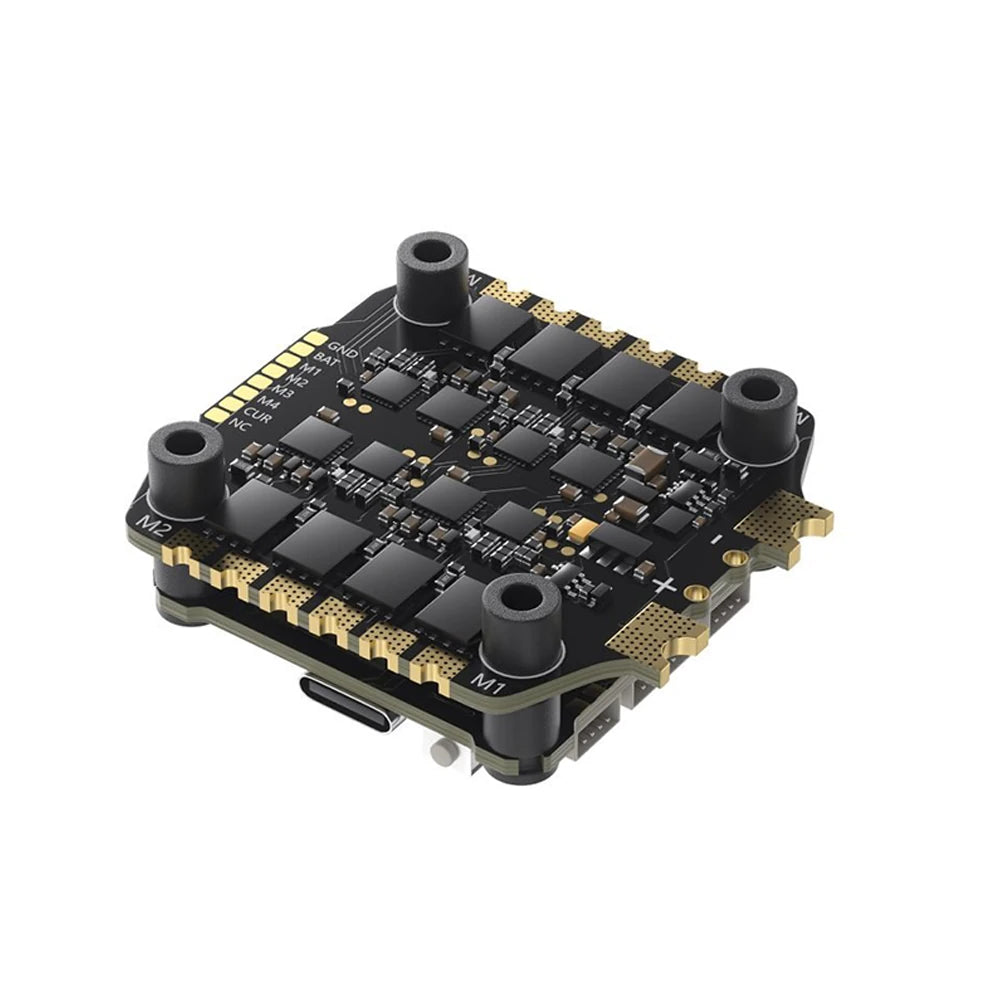

Model: TAKER F722 60A / 80A ESC Stack
Optional Version: 60A / 80A ESC
|

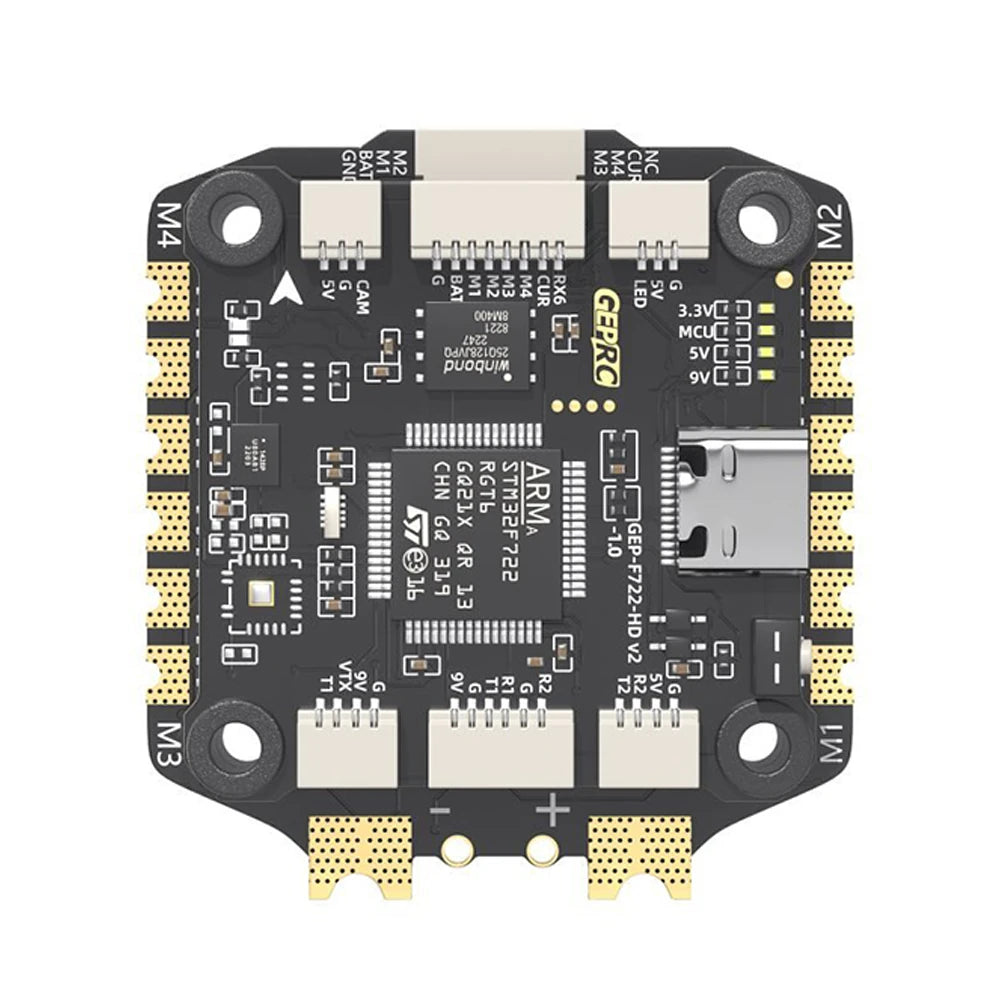

F722 HD V2 Flight Controller |
MCU: STM32F722 IMU: ICM42688-P(SPI) Air Unit Connection: Direct plugging into DJI Air Unit Black Box: 16M onboard USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,9V@2.5A dual BEC Firmware Target: GEPRCF722 Size: 36.85×36.85mm, Mounting Hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle. Input Voltage: 3-6S LiPo UART: 5 Power Filter: Integrated LC filter Weight: 8.1g |
| 60A ESC ( Optional Version) |

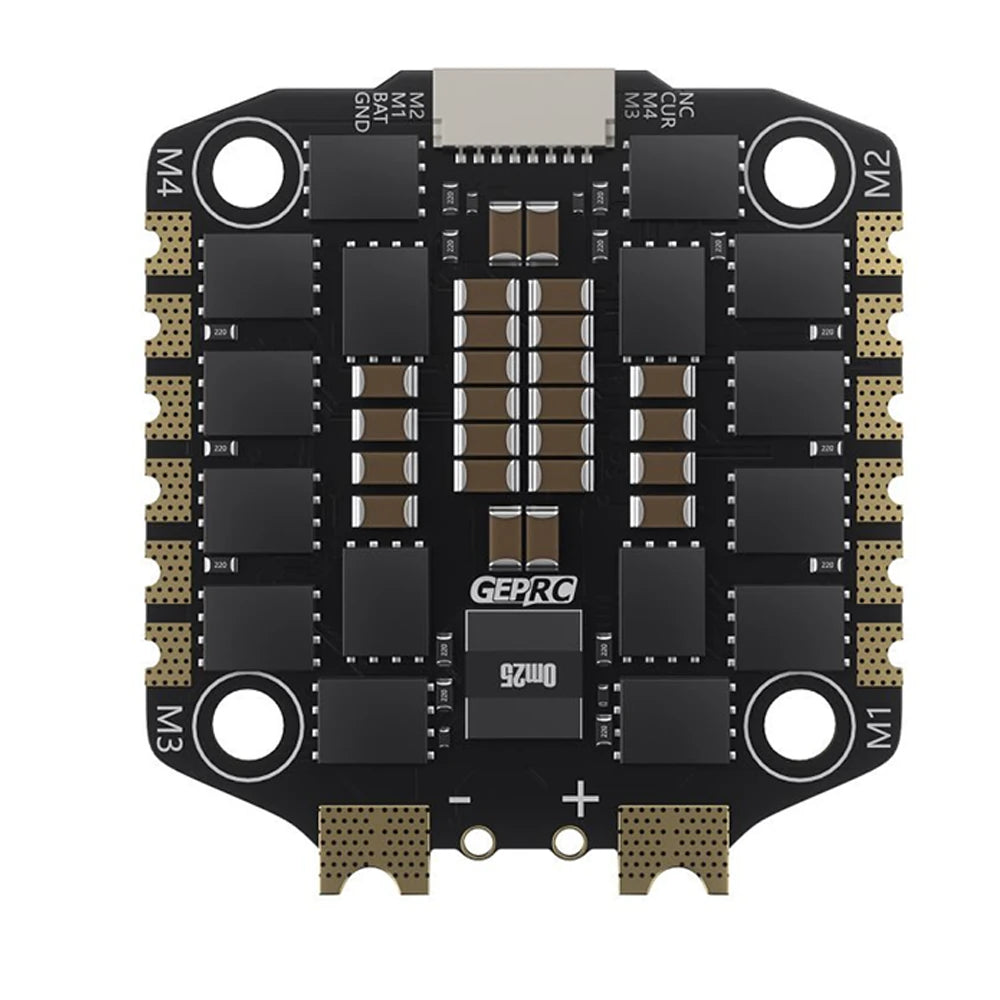

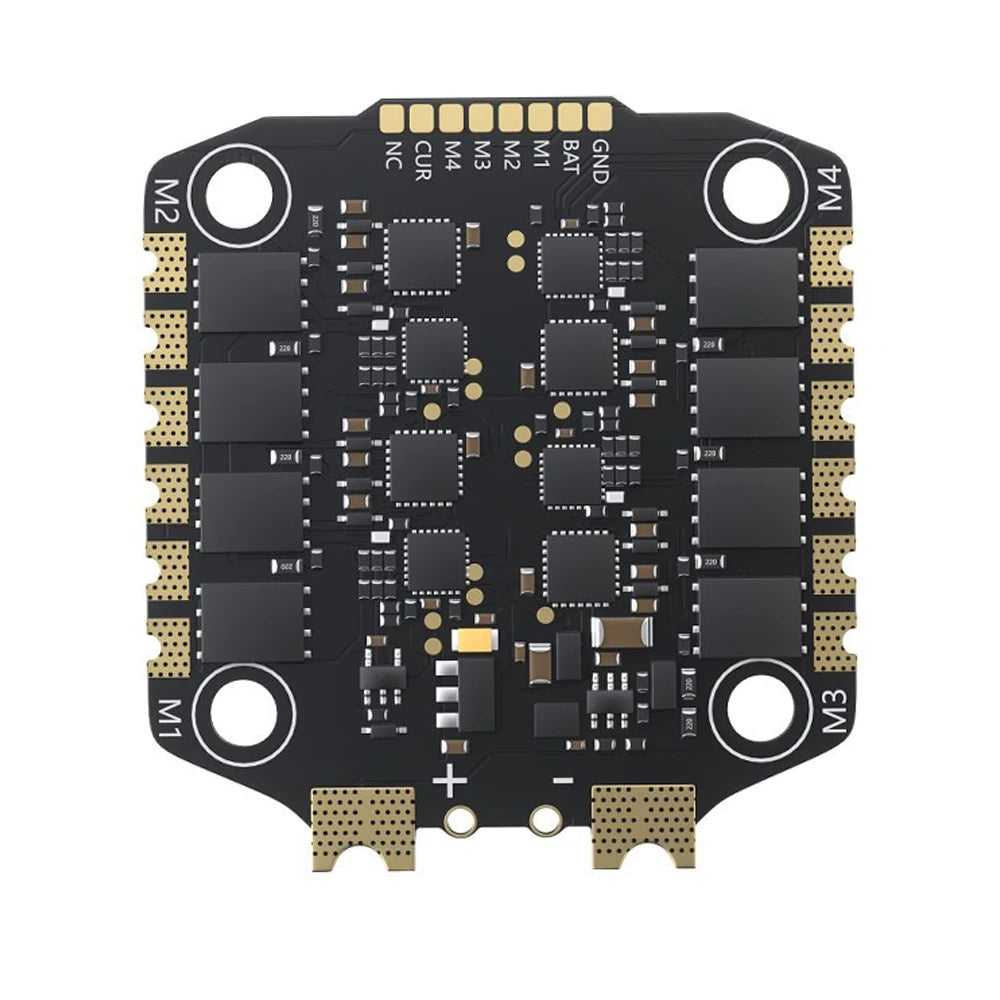

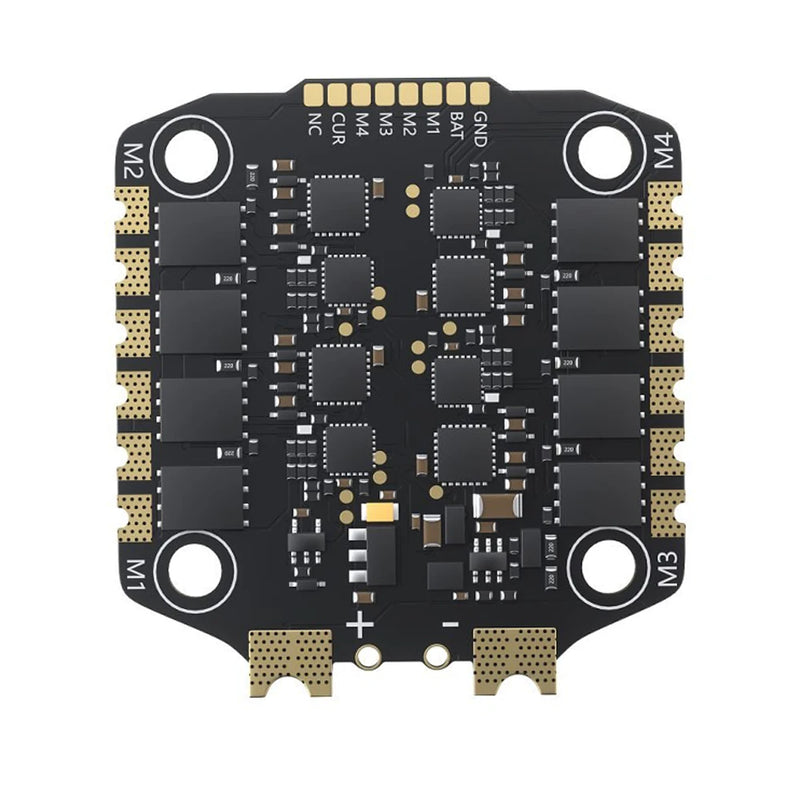

Model: TAKER H60_BLS 60A 4IN1 ESC Input Voltage: 3-6S Lipo Ammeter: Support Continue Current: 60A Burst Current: 65A（5 second） Support Protocol: Dshot 150/300/600 Size: 42×45.7mm,hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 14.9g Target: B_X_30 |

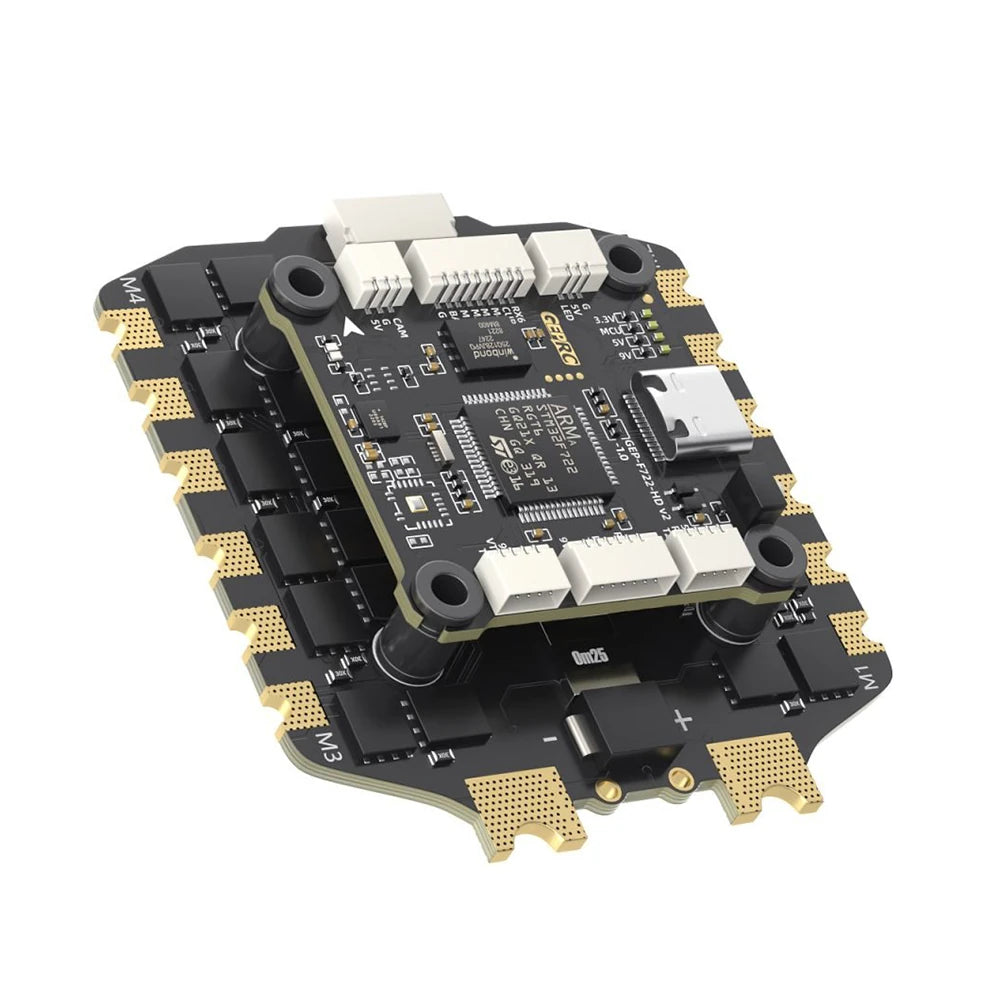

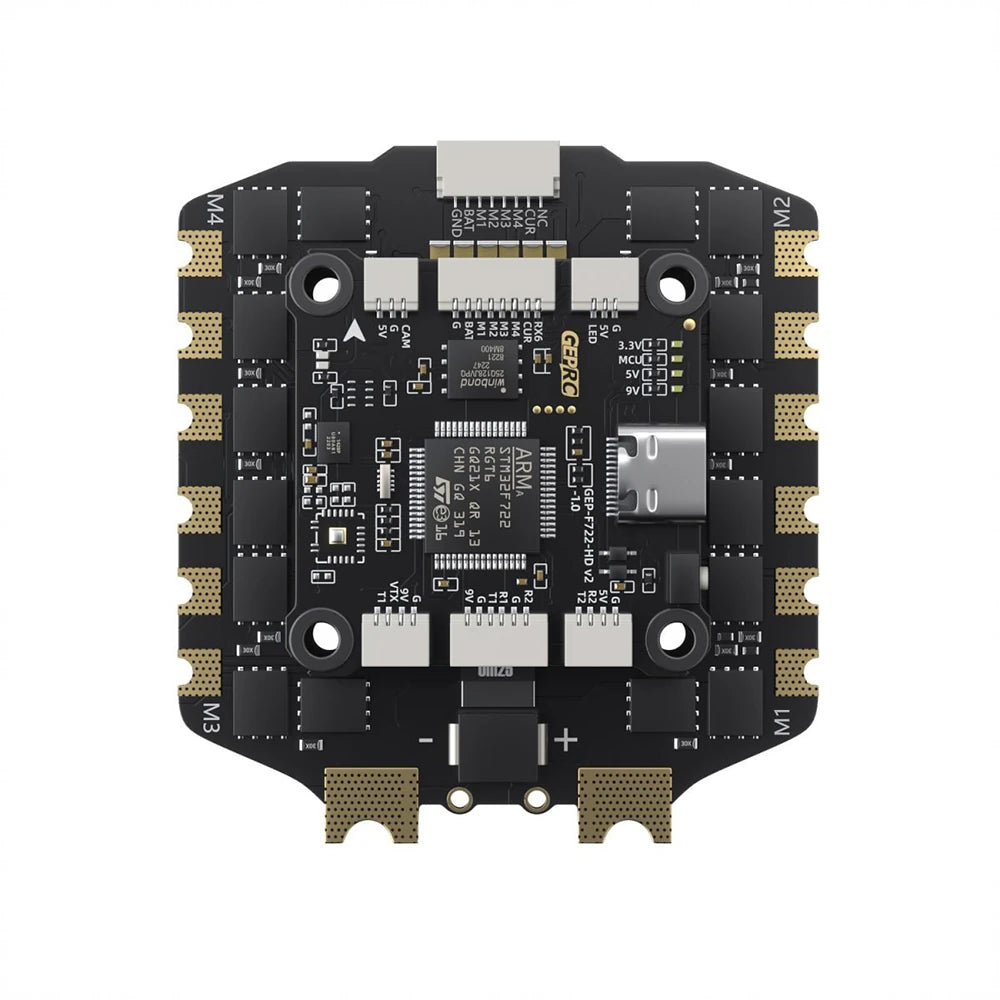

| 80A ESC ( Optional Version) |
Input Voltage: 3-6S Lipo Ammeter: Support Continue Current: 80A Burst Current: 85A (5 second) Support Protocol: Dshot 150/300/600 Size: 56.3x61.1mm, Mounting hole: 30.5×30.5mm,φ4mm hole, becomes φ3mm after using the silicone shock-absorbing ring. Weight: 28.1g Target: B_X_30 |
Package included:
1 x Flight Controller
1 x ESC ( 60A or 80A Optional)
1 x Capacitor
1 x Adapter Cable for
1 x Adapter Cable for
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
