Description

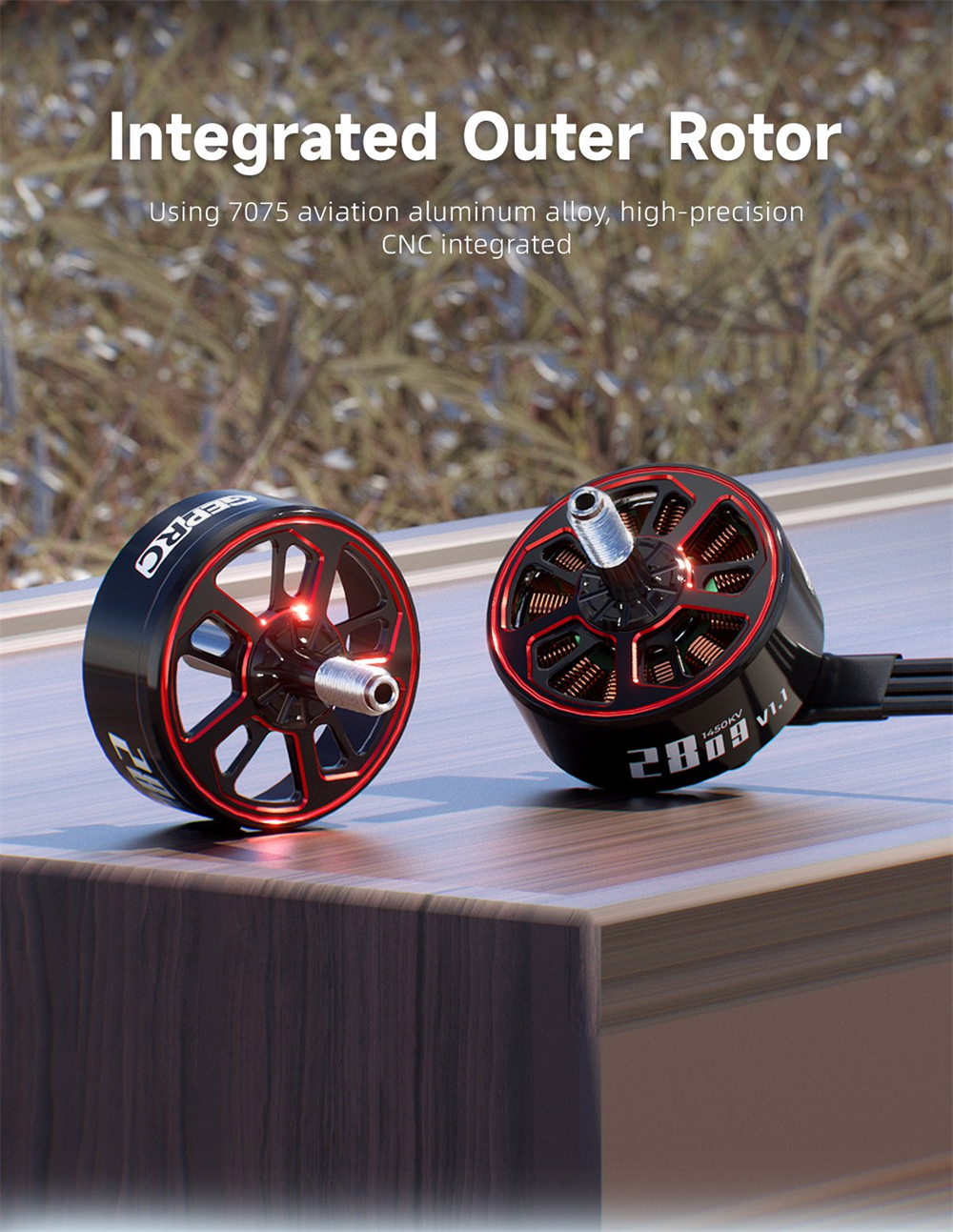

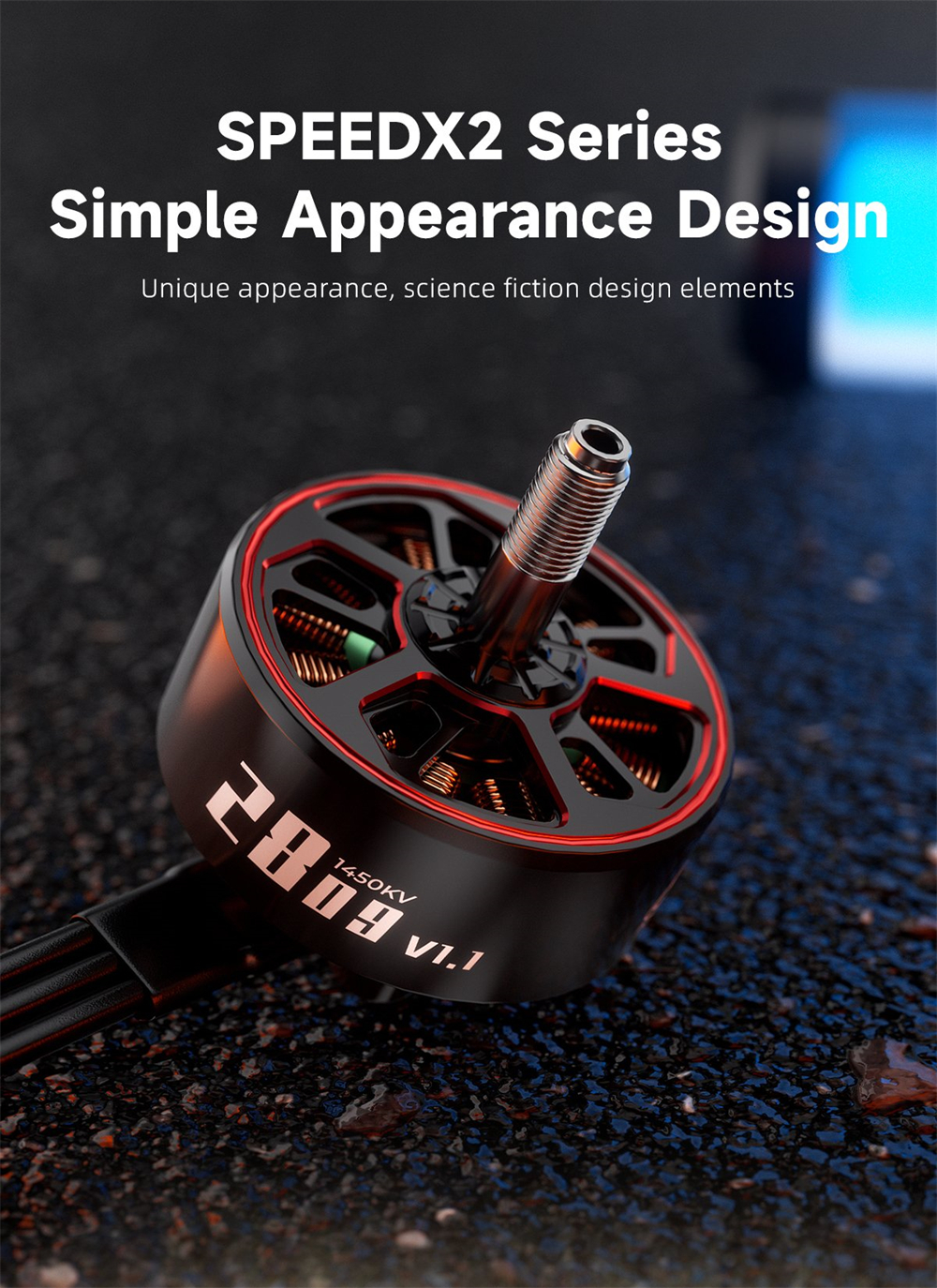

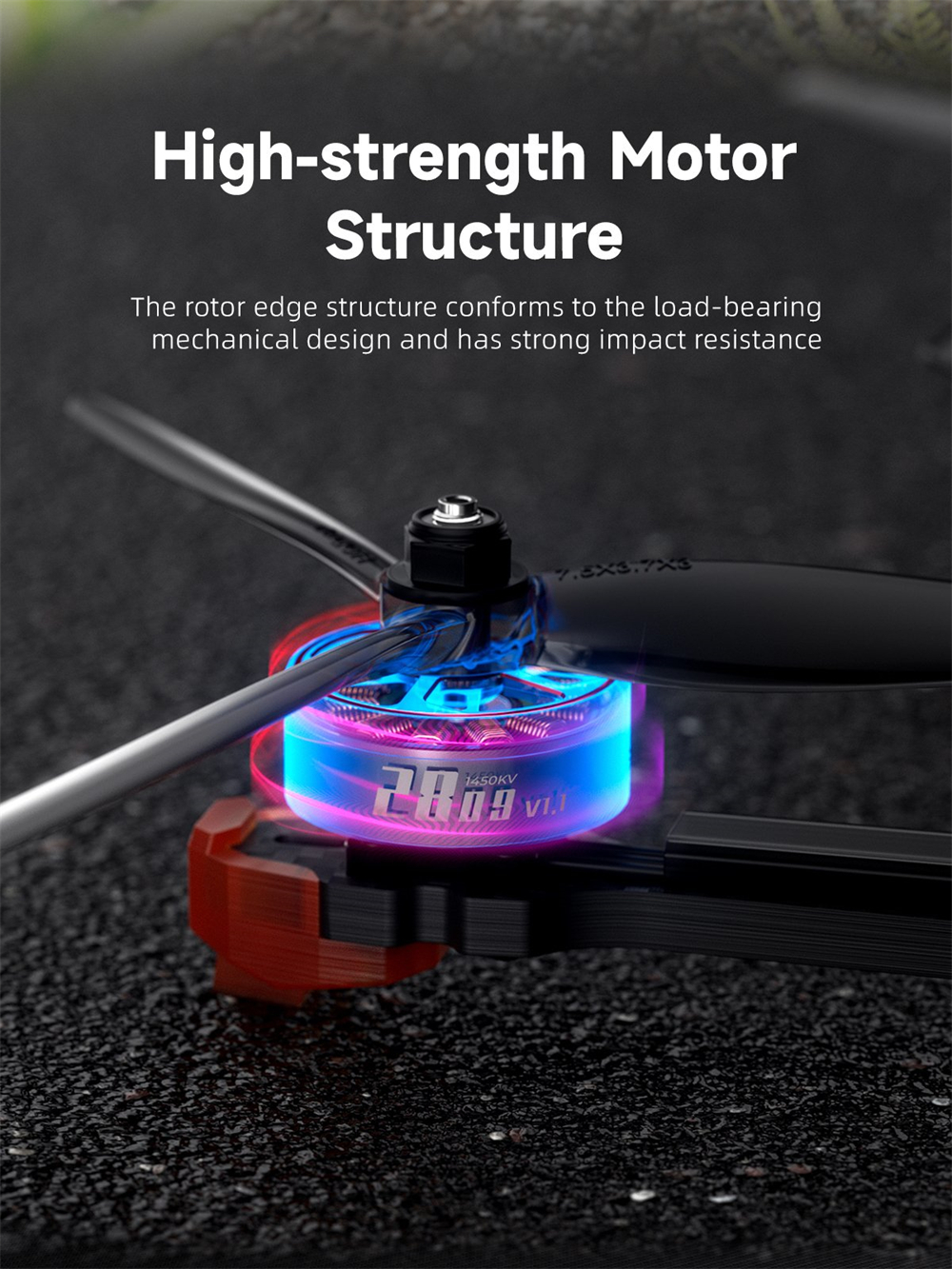

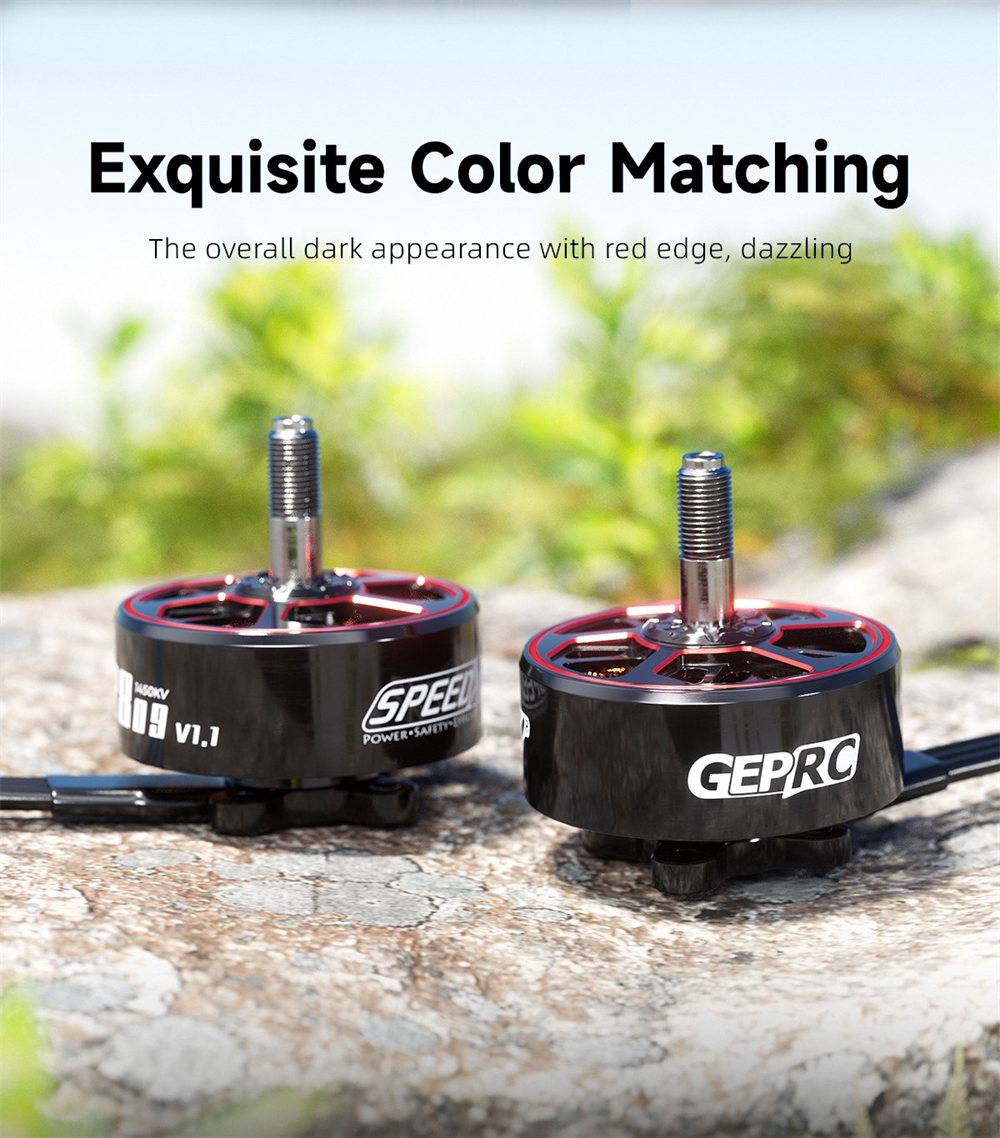

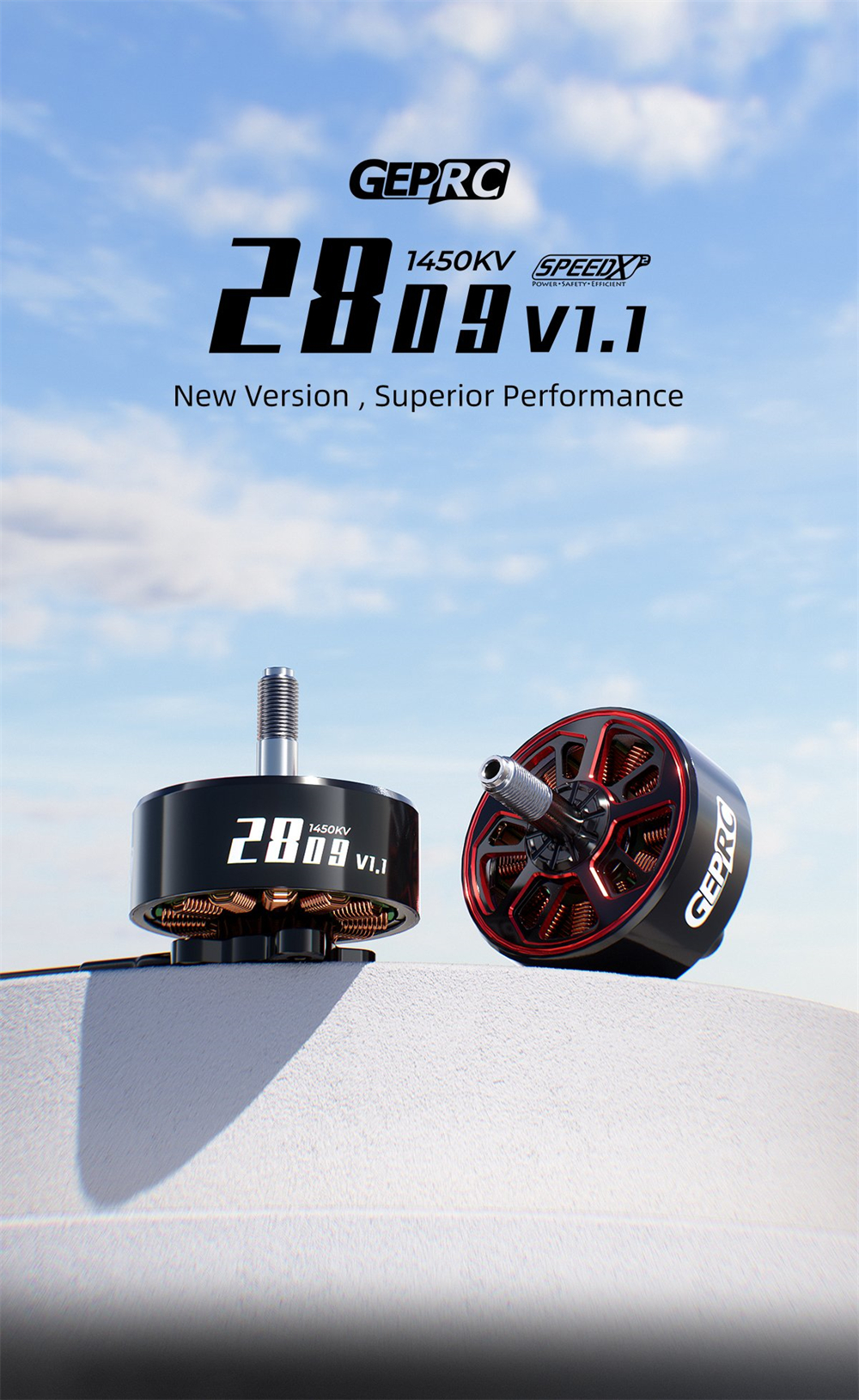

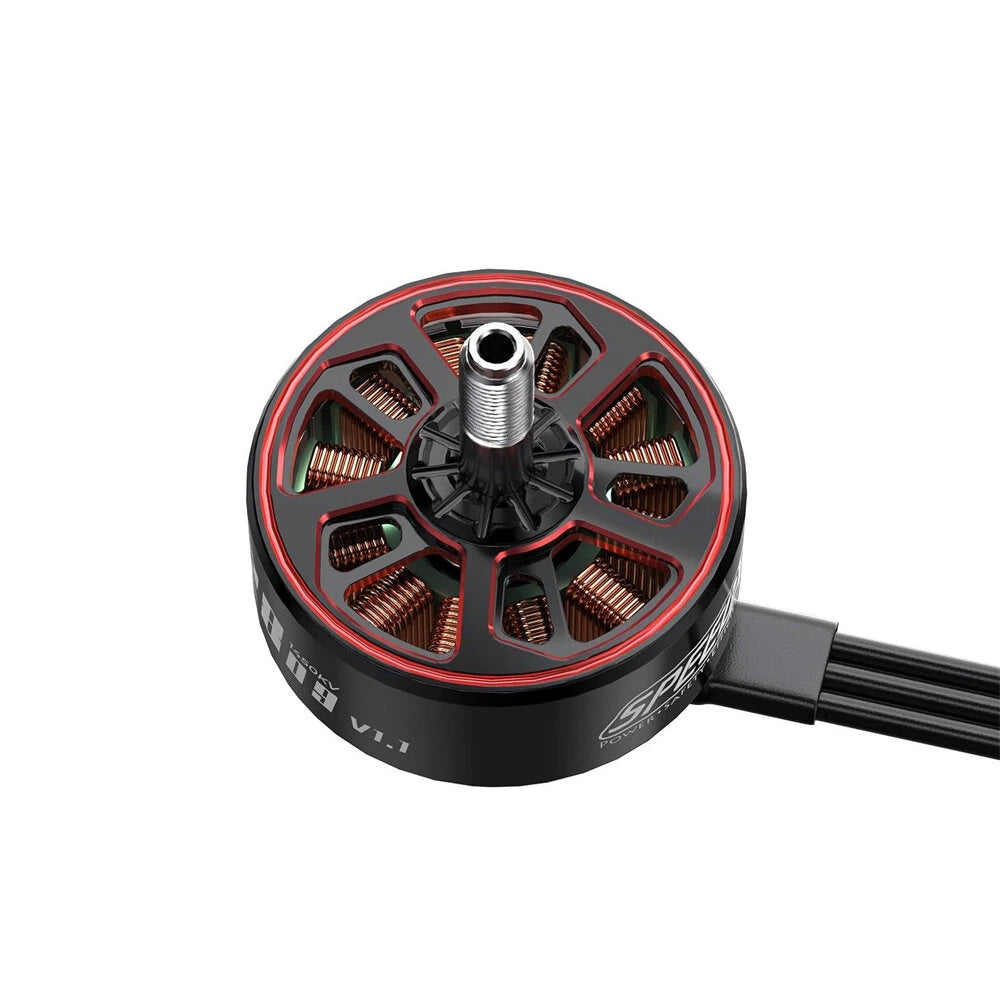

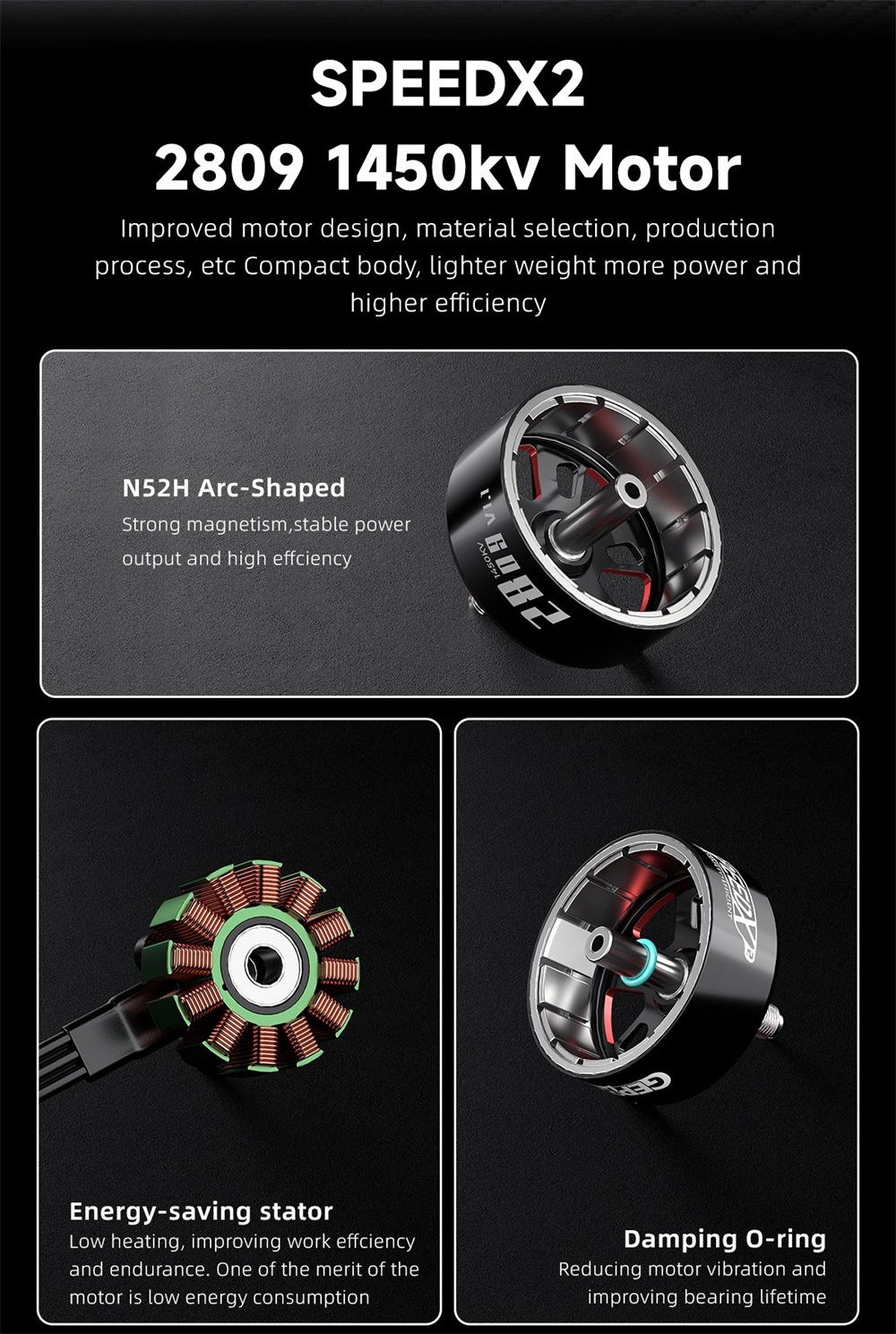

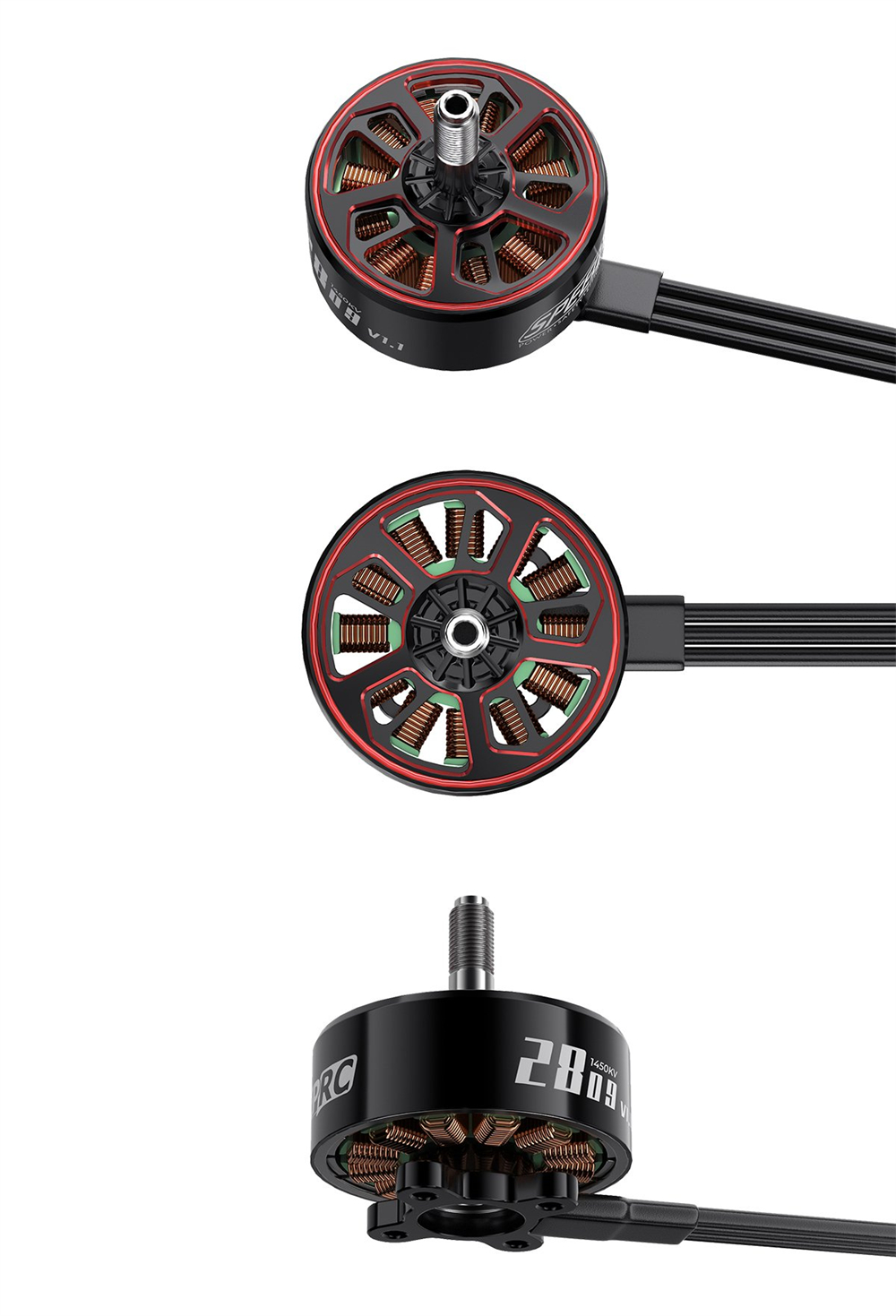

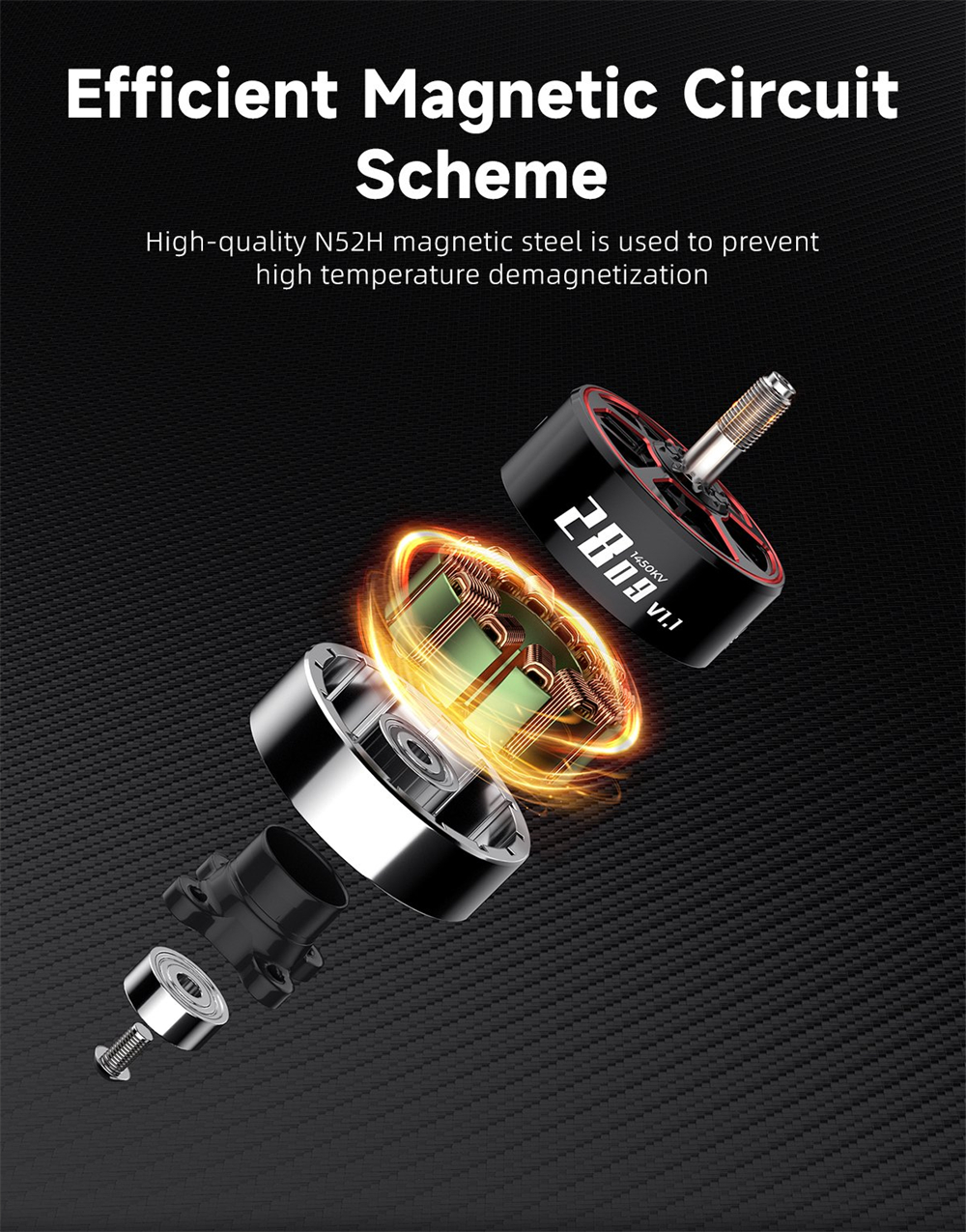

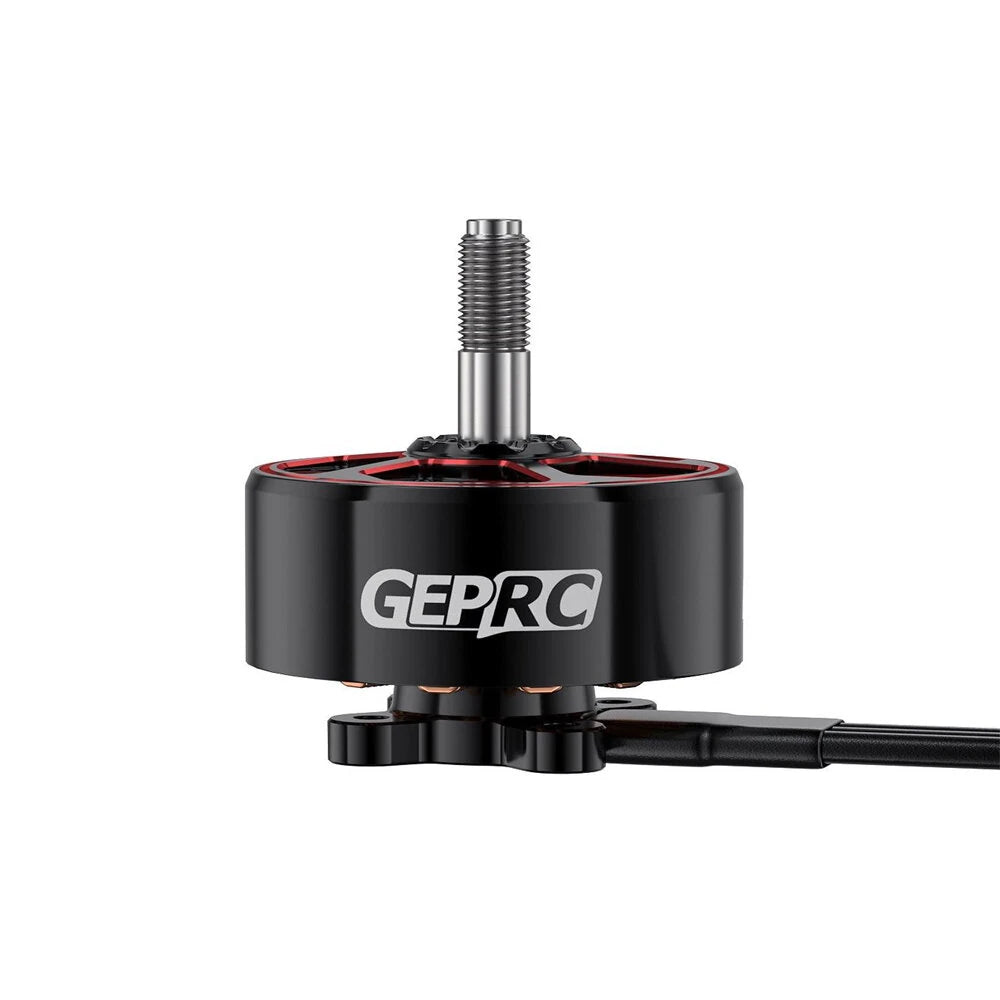

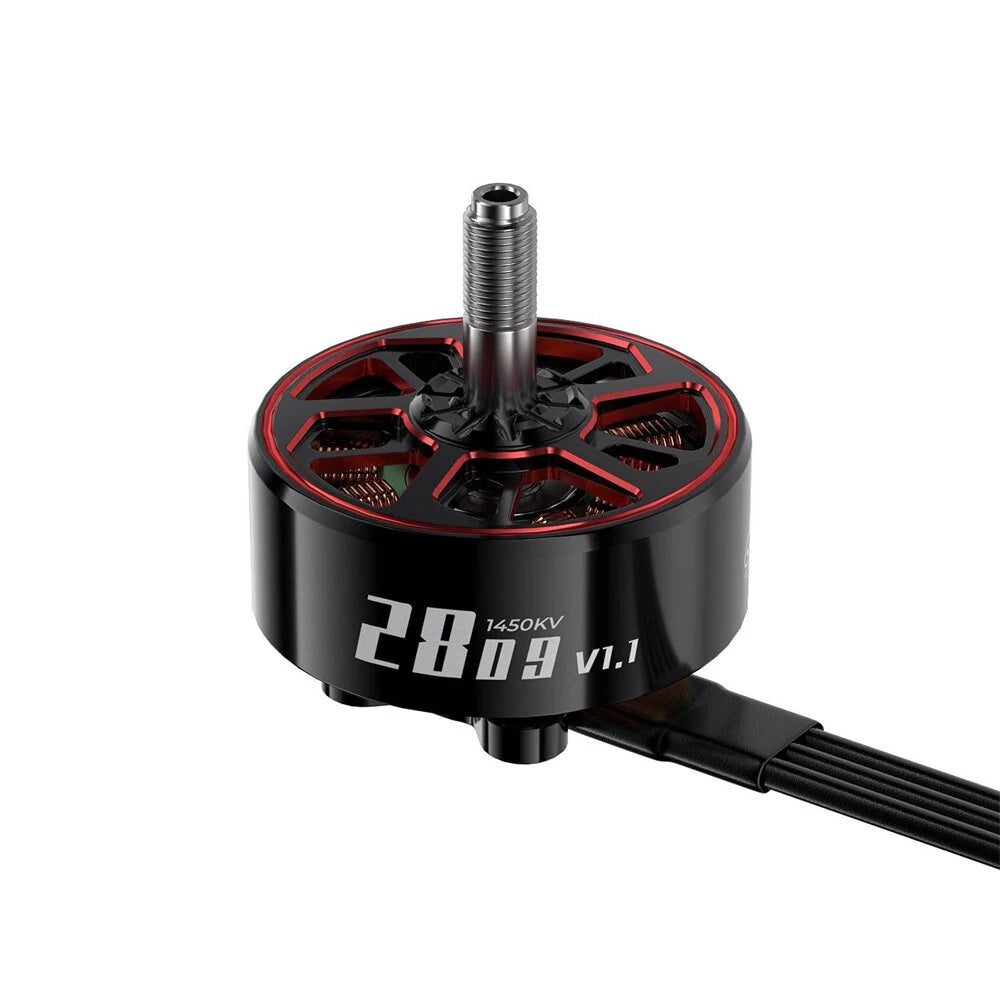

Description:The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasak silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.Feature:1. CNC-machined from 7075 aerospace aluminum.2. Clean black finish with red trim.3. Reinforced rotor edges for better impact resistance.4. N52H magnets reduce the risk of heat-related demagnetization.Specification:Brand: GEPRCModel: SPEEDX2 2809 V1.1Product: Brushless MotorKV: 1280KV / 1450KV (Optional)

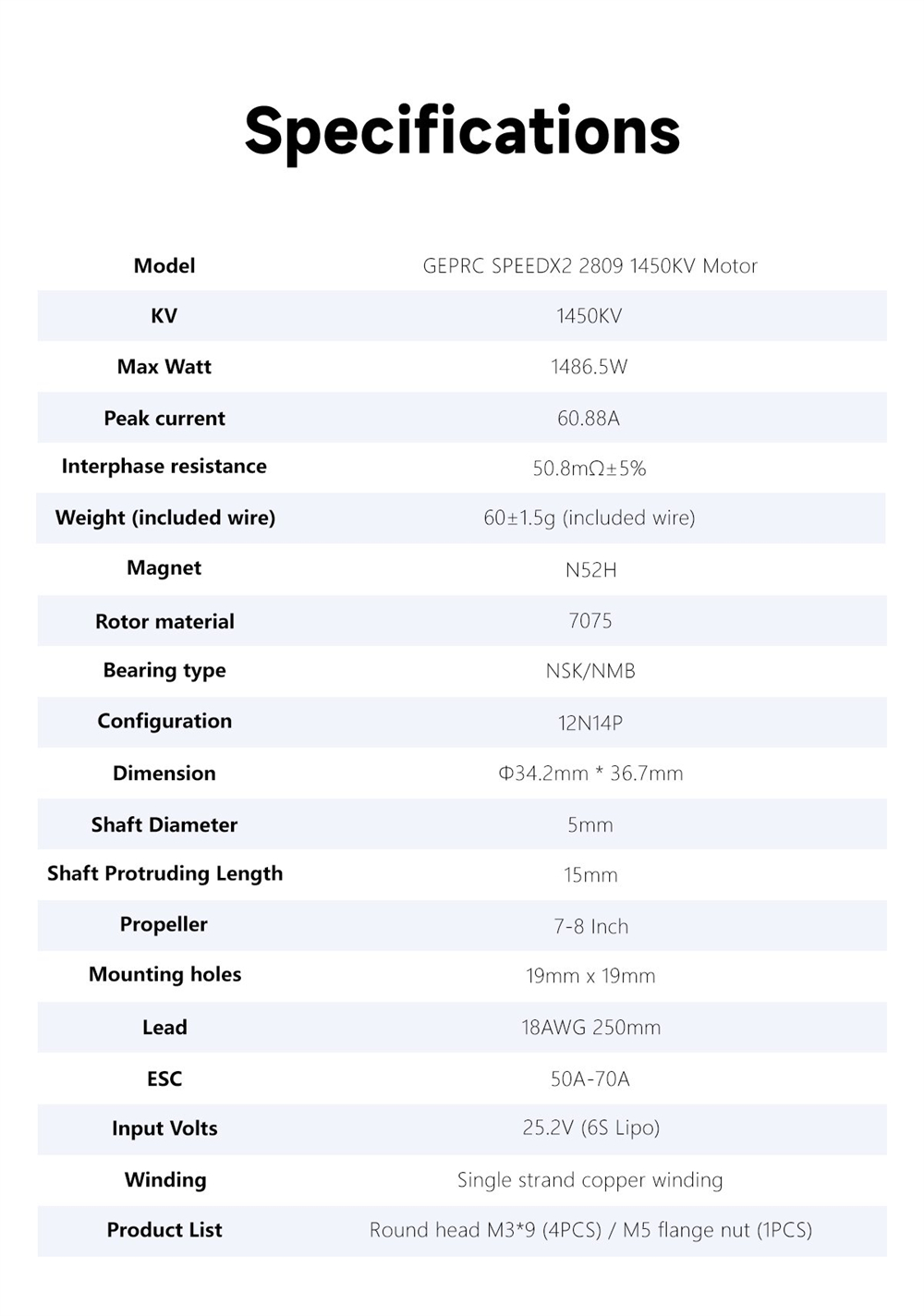

| Item Name | GEPRC SPEEDX2 2809 1450KV Motor | GEPRC SPEEDX2 2809 1280KV Motor |
| KV: | 1450KV | 1280KV |
| Magnets: | N52H | N52H |
| Rotor Material: | 7075 | 7075 |
| Stator Diameter: | 28mm | 28mm |
| Stator Height: | 9mm | 9mm |
| Shaft Diameter: | Φ5mm | Φ5mm |

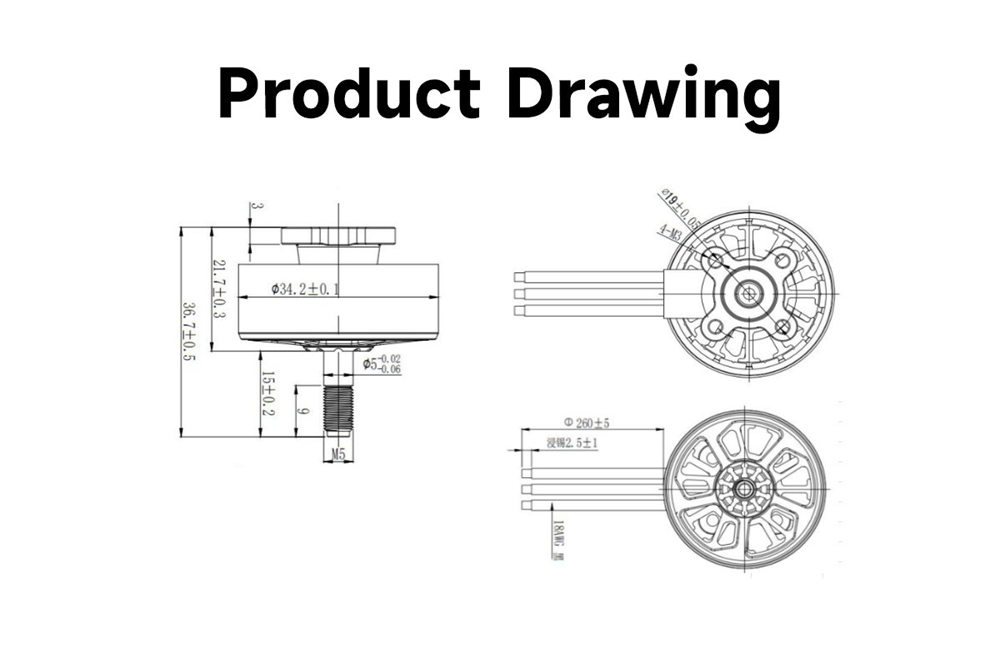

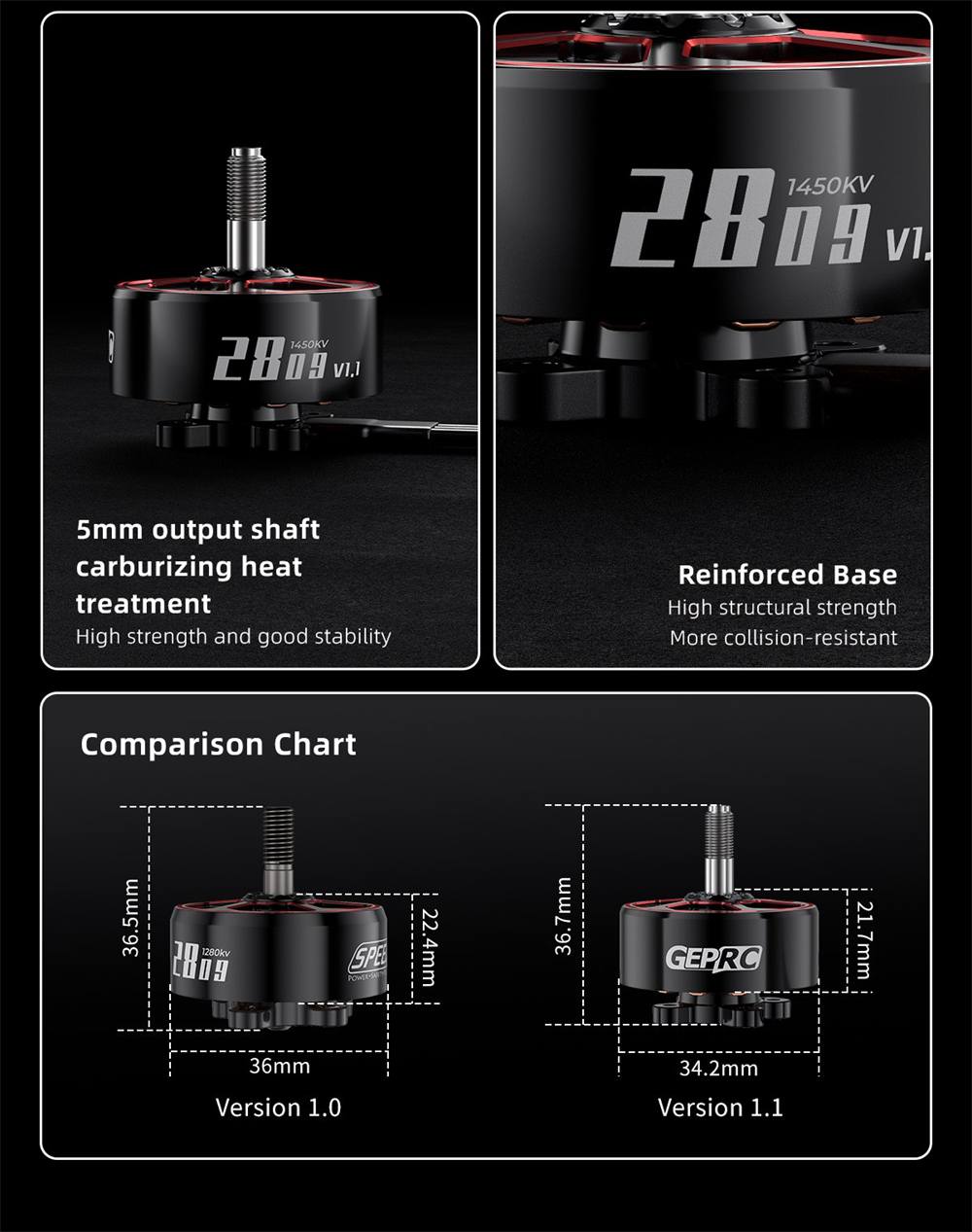

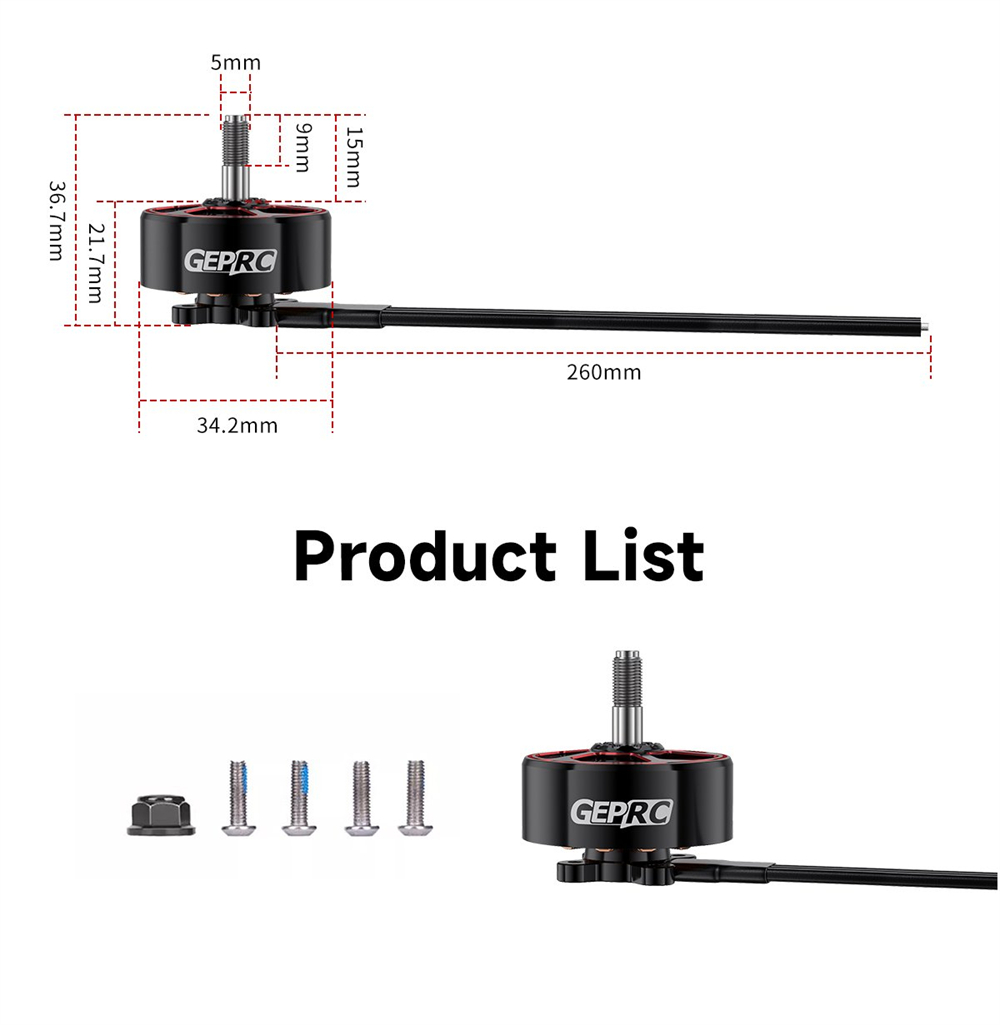

| Dimensions: | Φ34.2mm × 36.7mm | Φ34.2mm * 36.7mm |

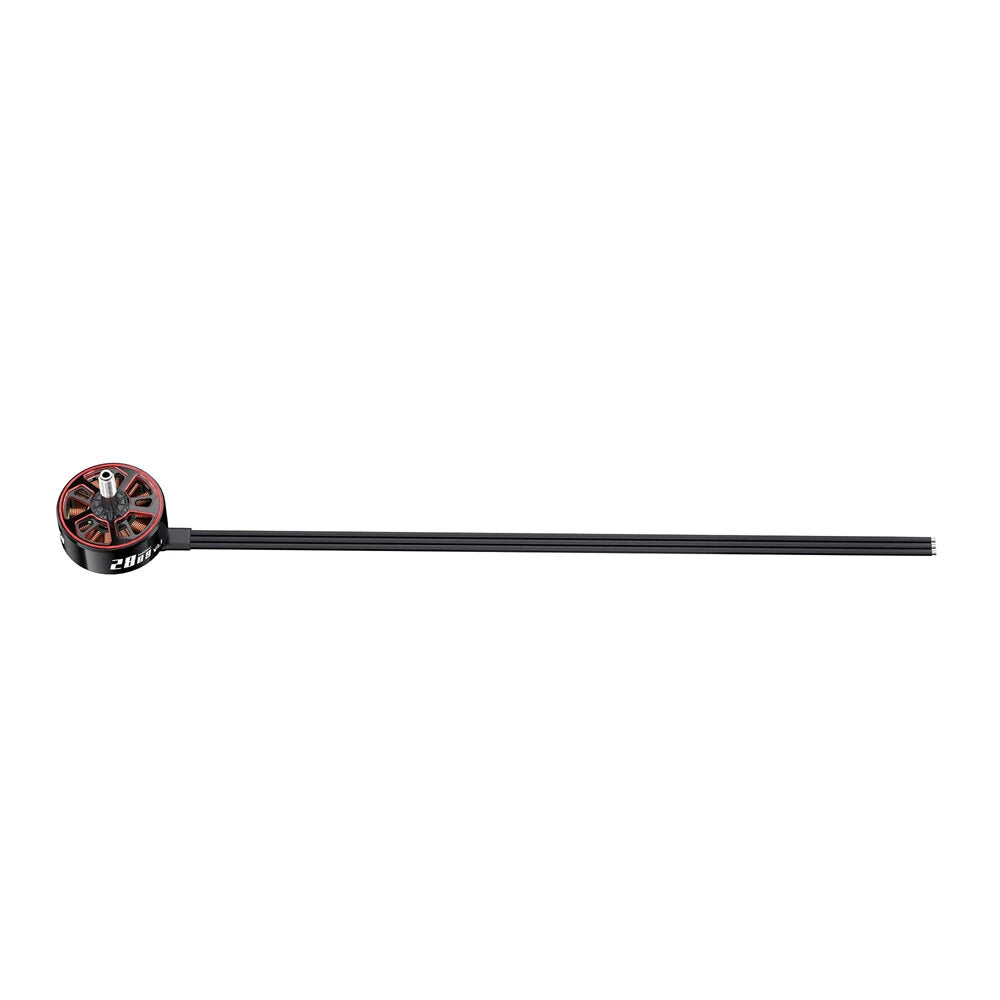

| Wire: | 18AWG, 250mm | 18AWG, 250mm |
| Input Voltage: | 25.2V 6S (Lipo) | 25.2V 6S (Lipo) |

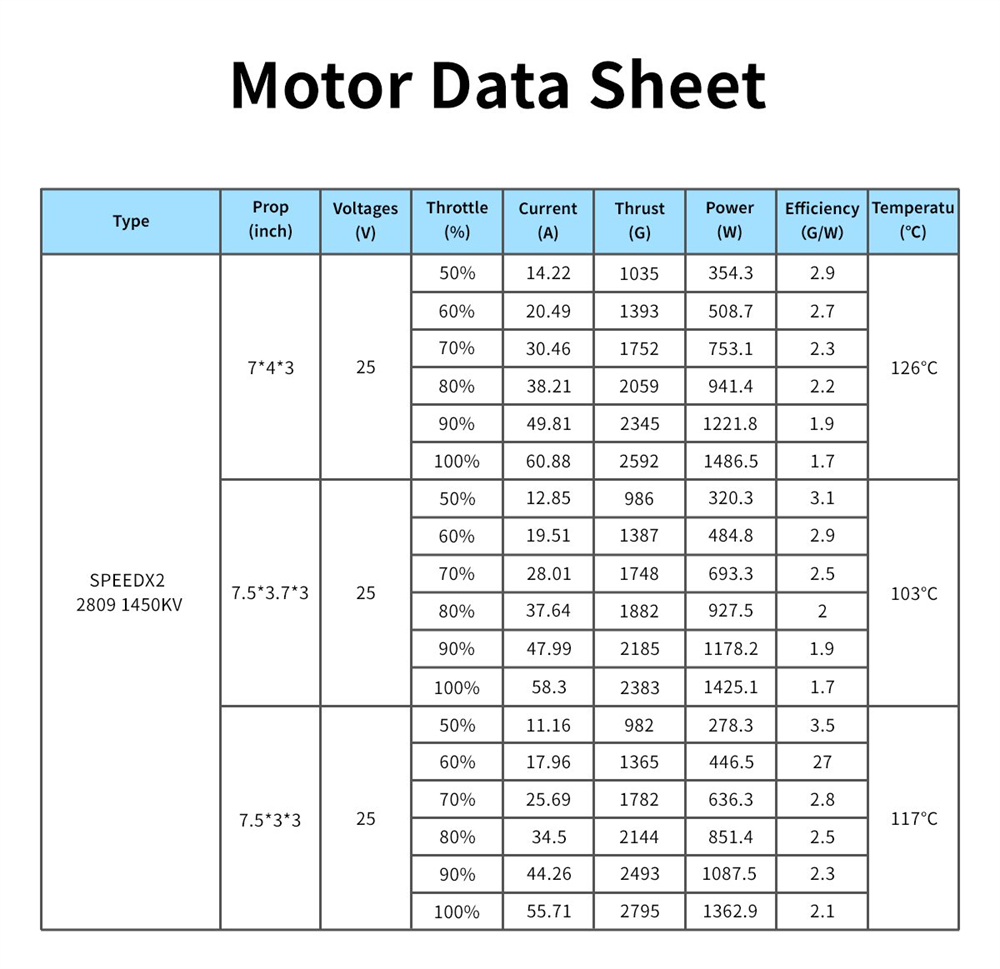

| Max Power (W): | ≤1455.2W | ≤1486.5W |
| Max Current (A): | 60.88A | 59.06A |

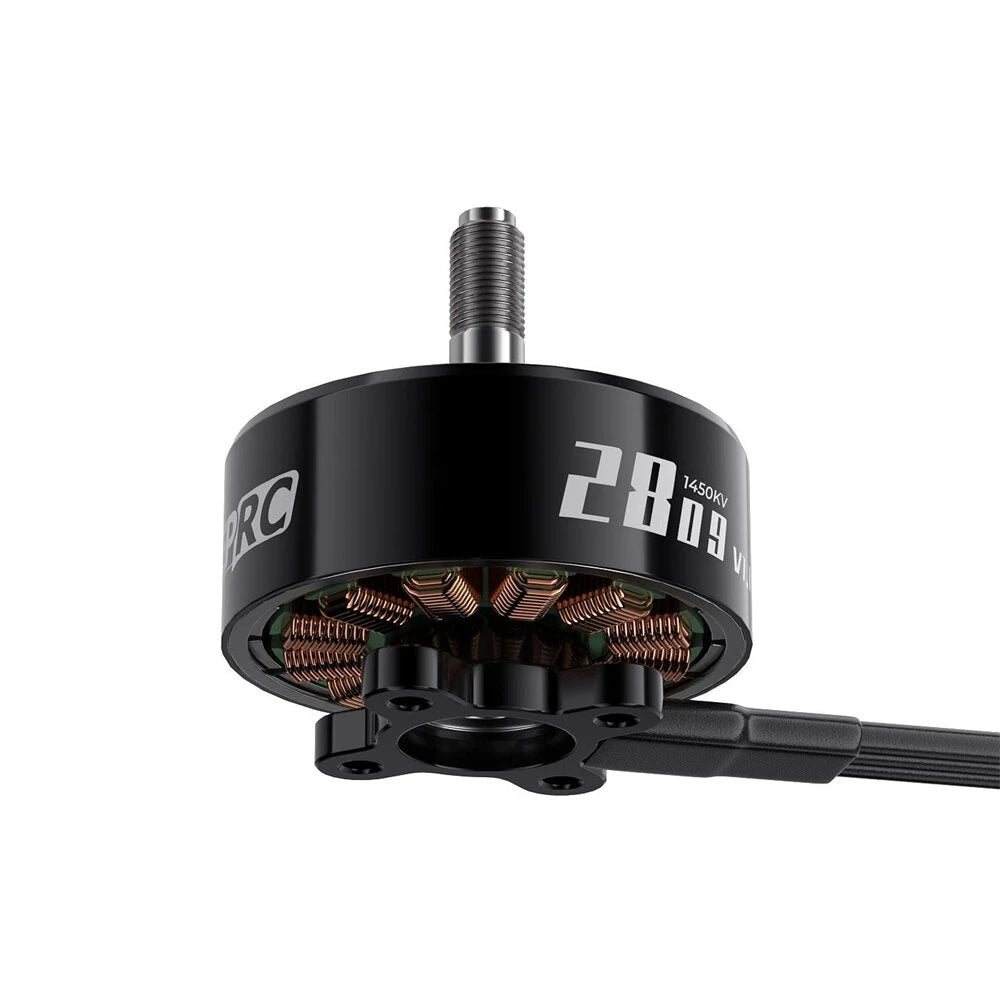

| Mounting Pattern: | 19×19mm (M3) | 19×19mm (M3) |
| Color: | Reddish black | Reddish black |
| Weight: | 60.1g (with wire) | 60.1g (with wire) |
| Compatible Models: | 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds | 7–8 inch long-range FPV drones / 7–8 inch X8 builds |
Package Included:1 x GEPRC SPEEDX2 2809 1280KV/1450KV motor4 x M3*9 half-round head screws1 x M5 anti-slip nut
