Description
Description:

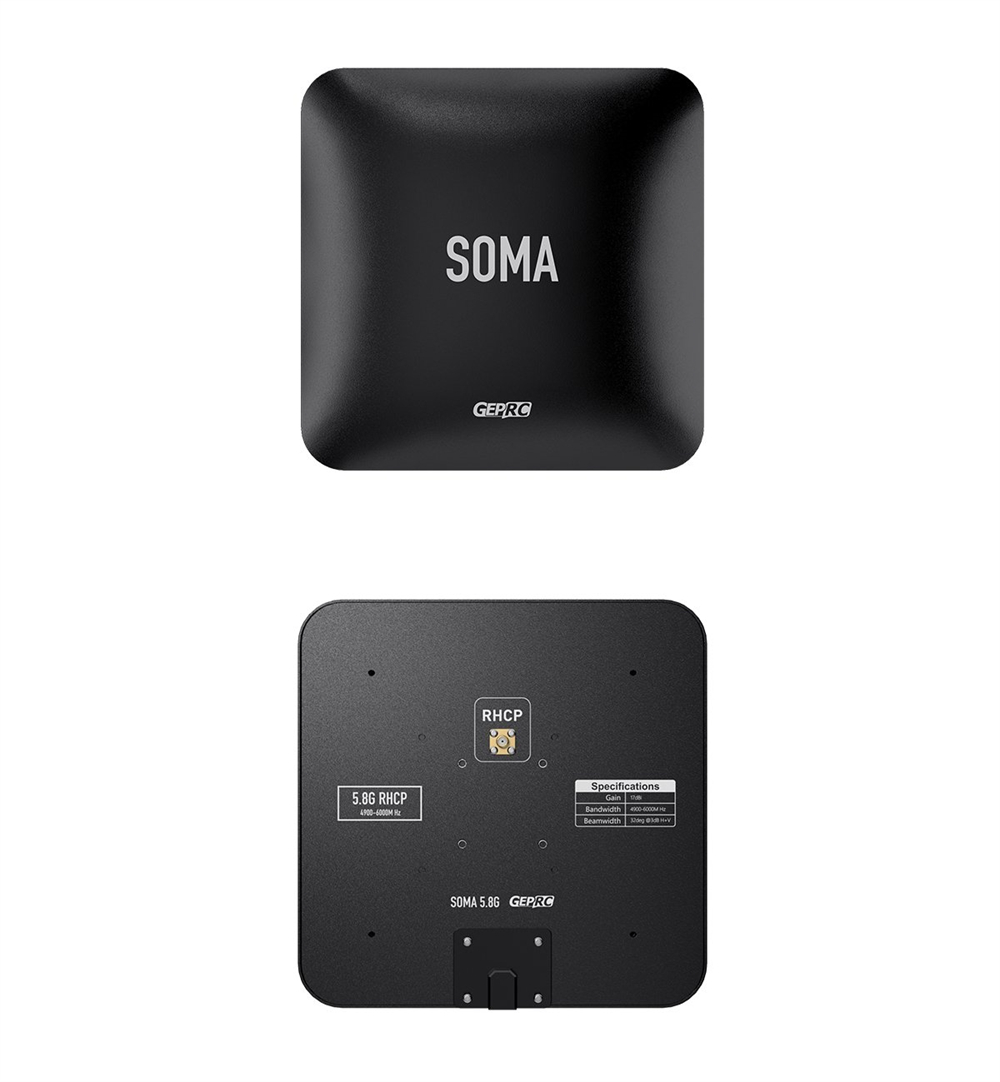

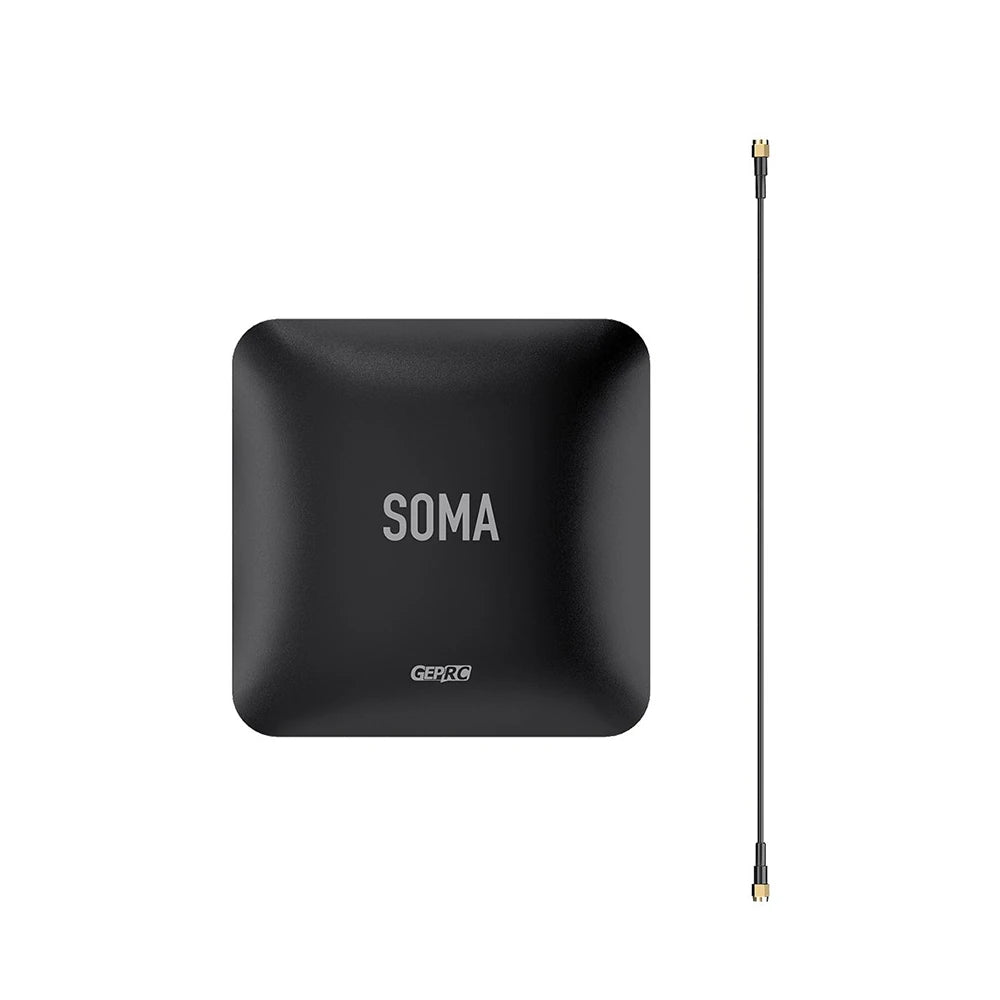

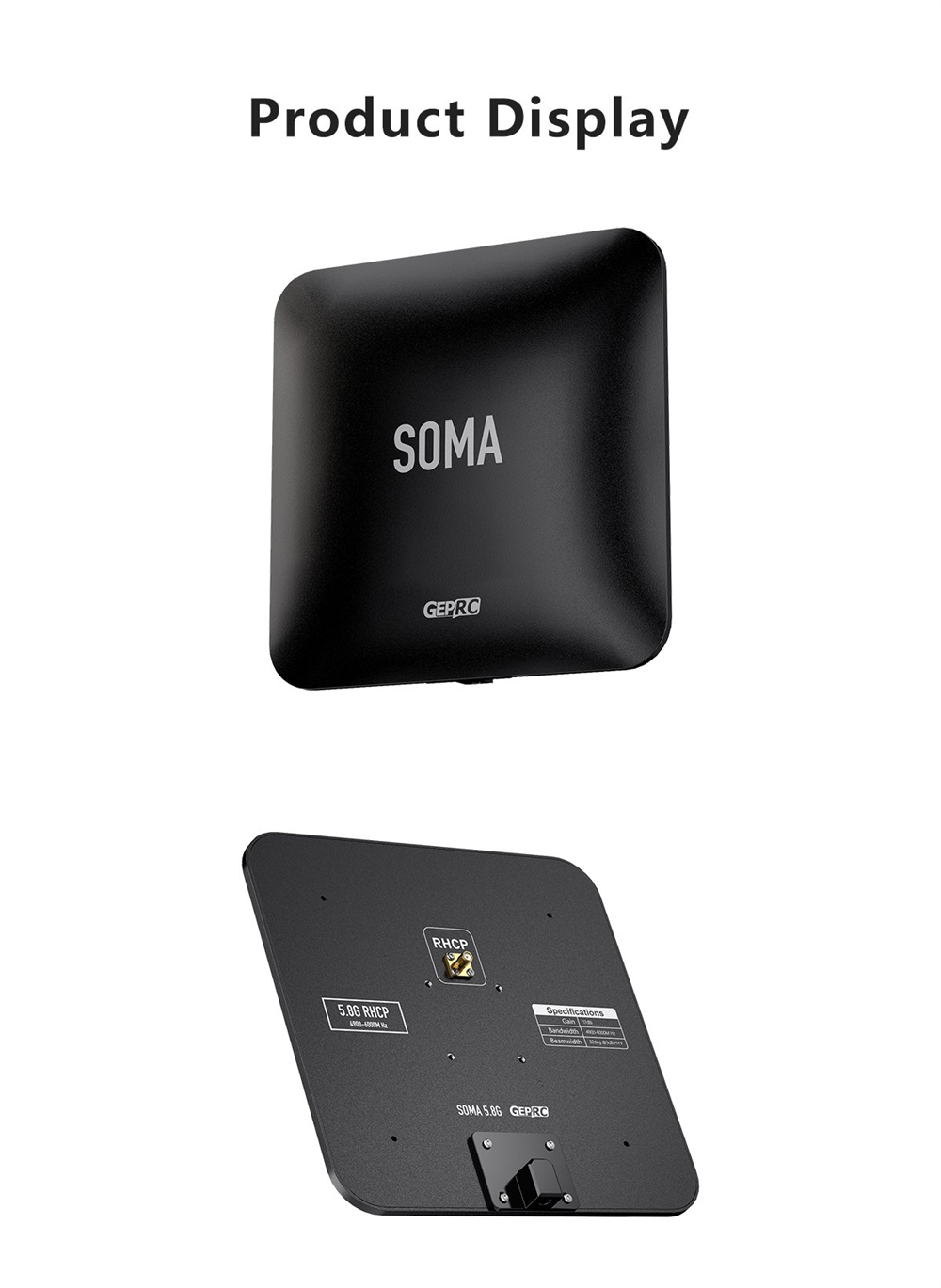

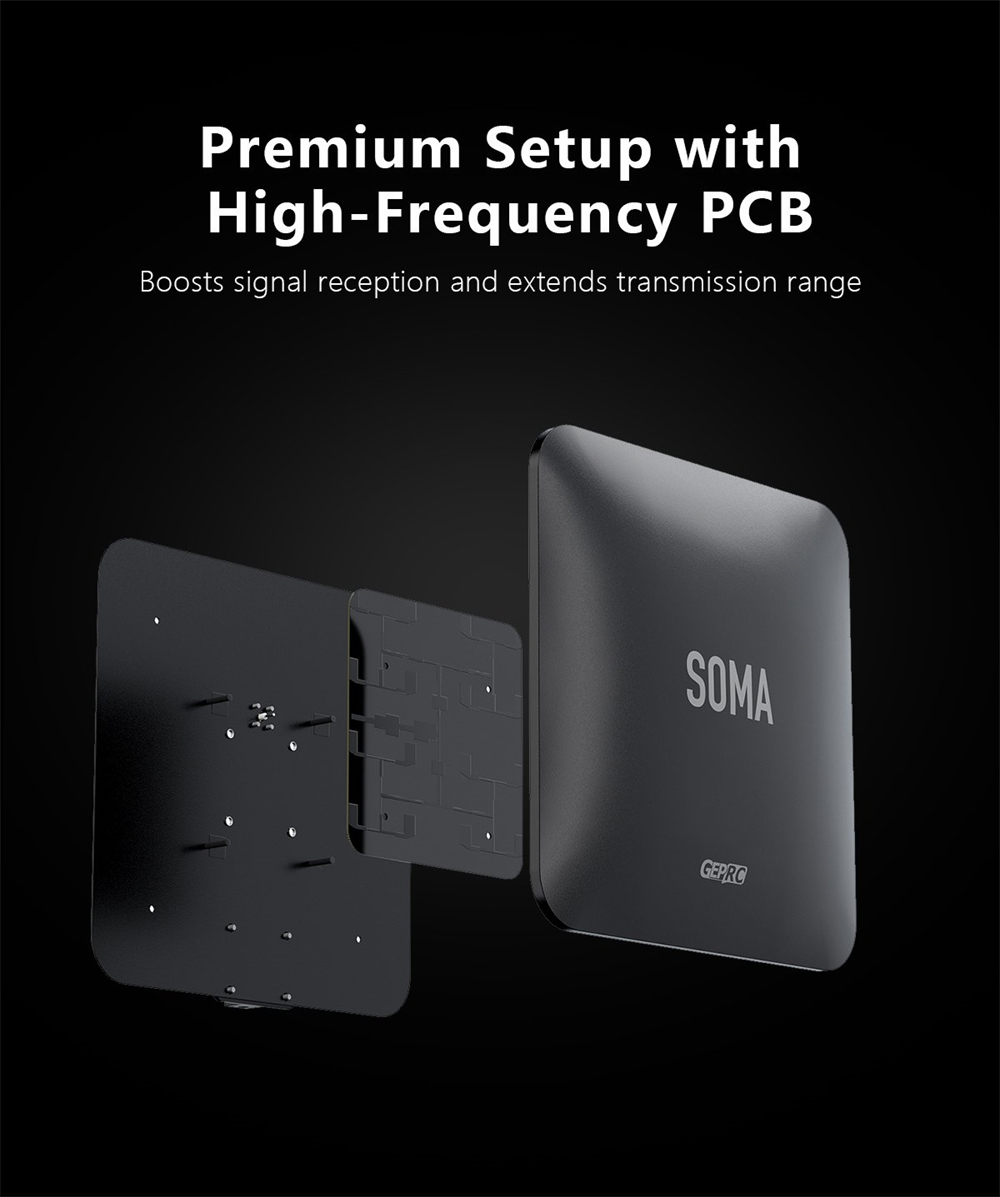

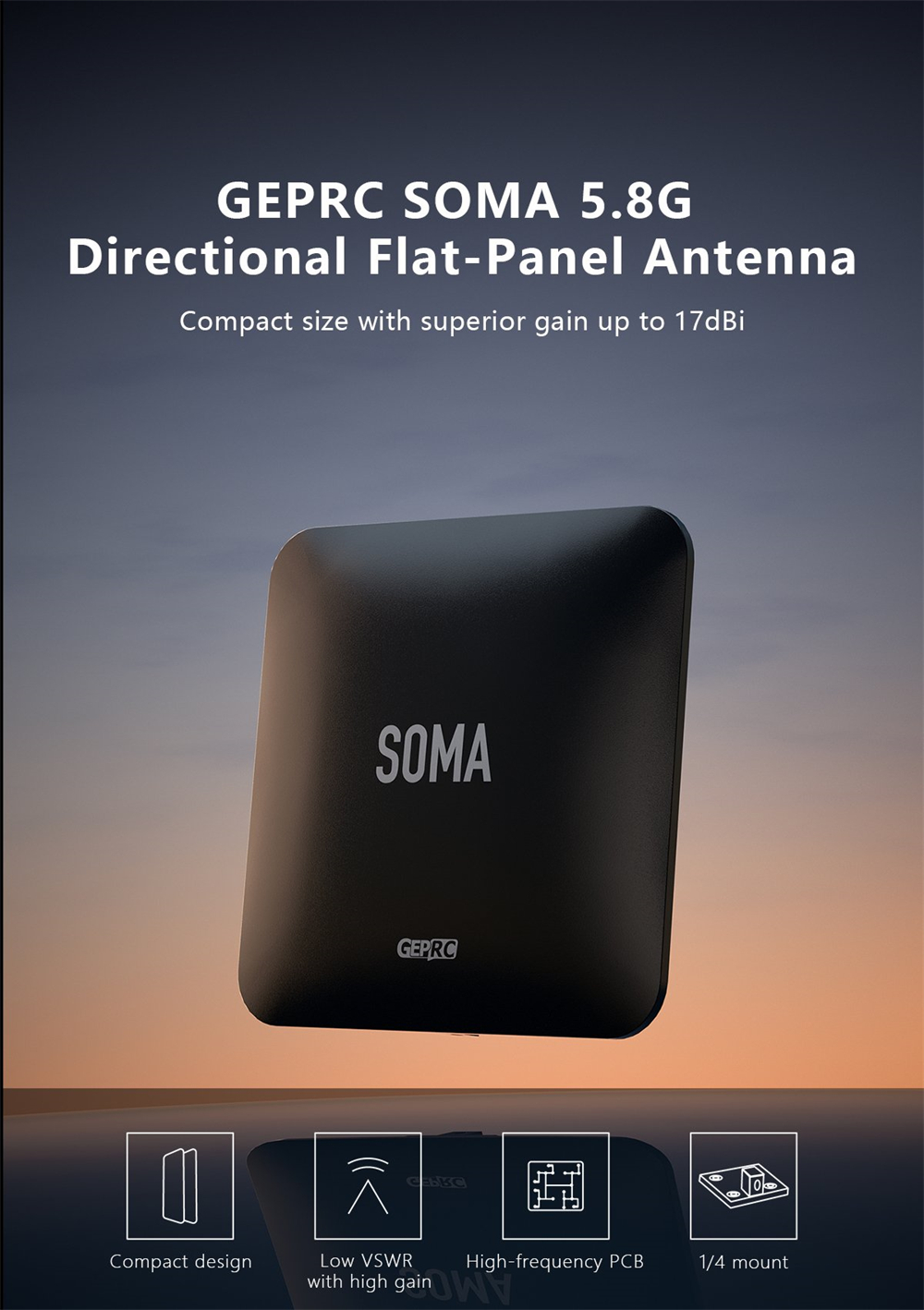

The GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.

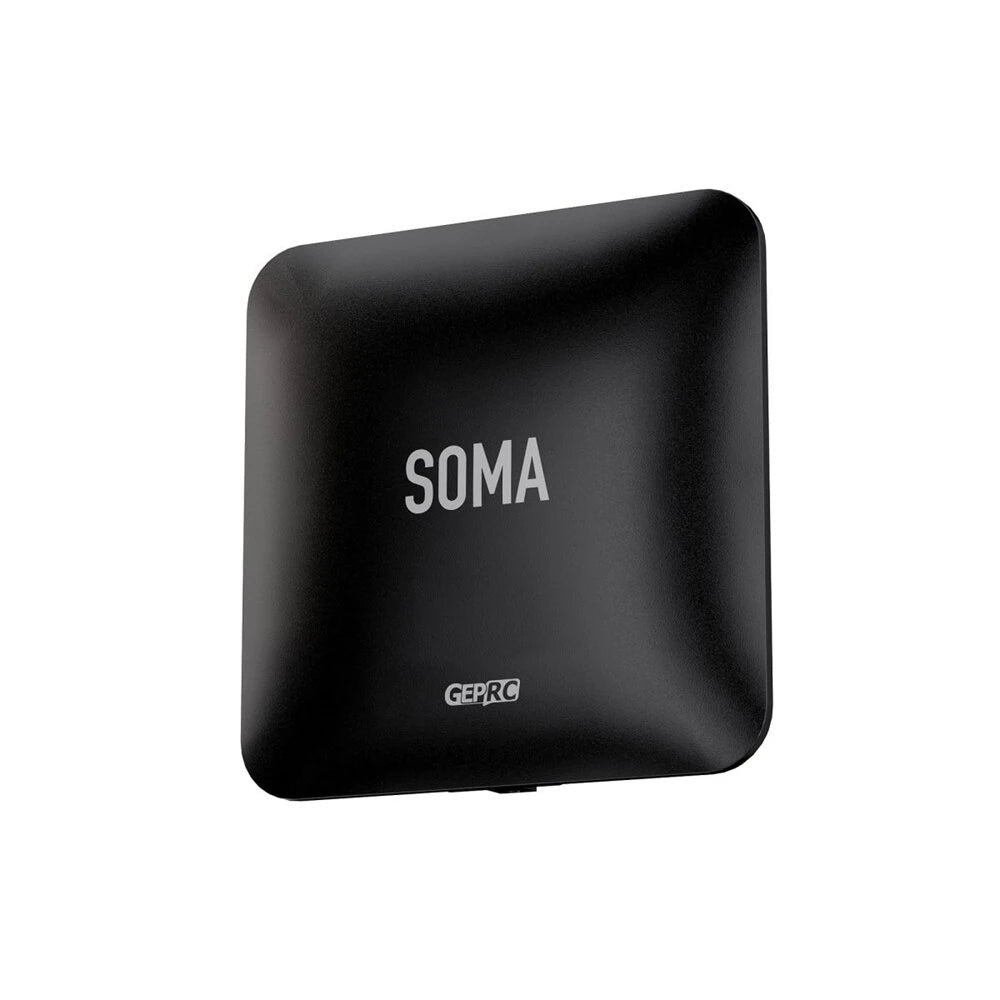

It's compatible with various brackets and is built with a durablee 1/4 aluminum allloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity
Features:

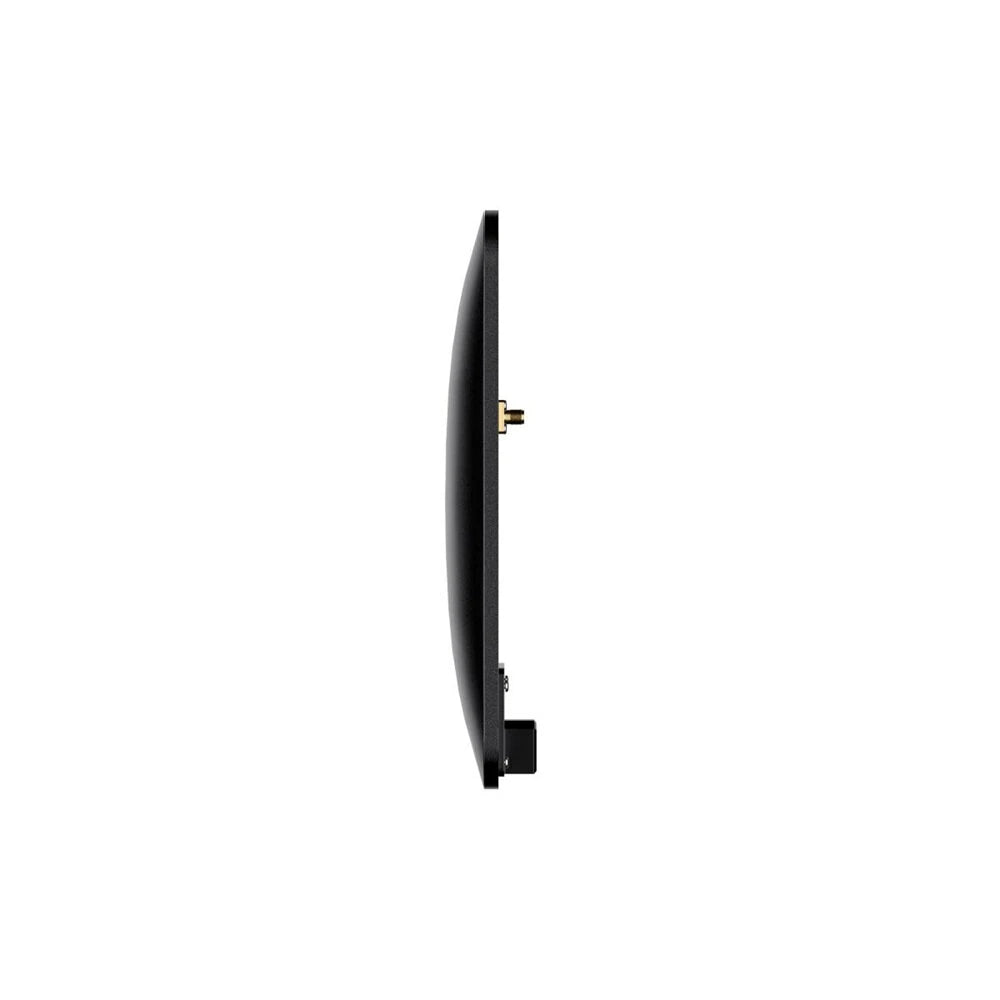

- Smooth, ultrathinn design.
- Low VSWR, high gain directional antenna, up to 17dBi.

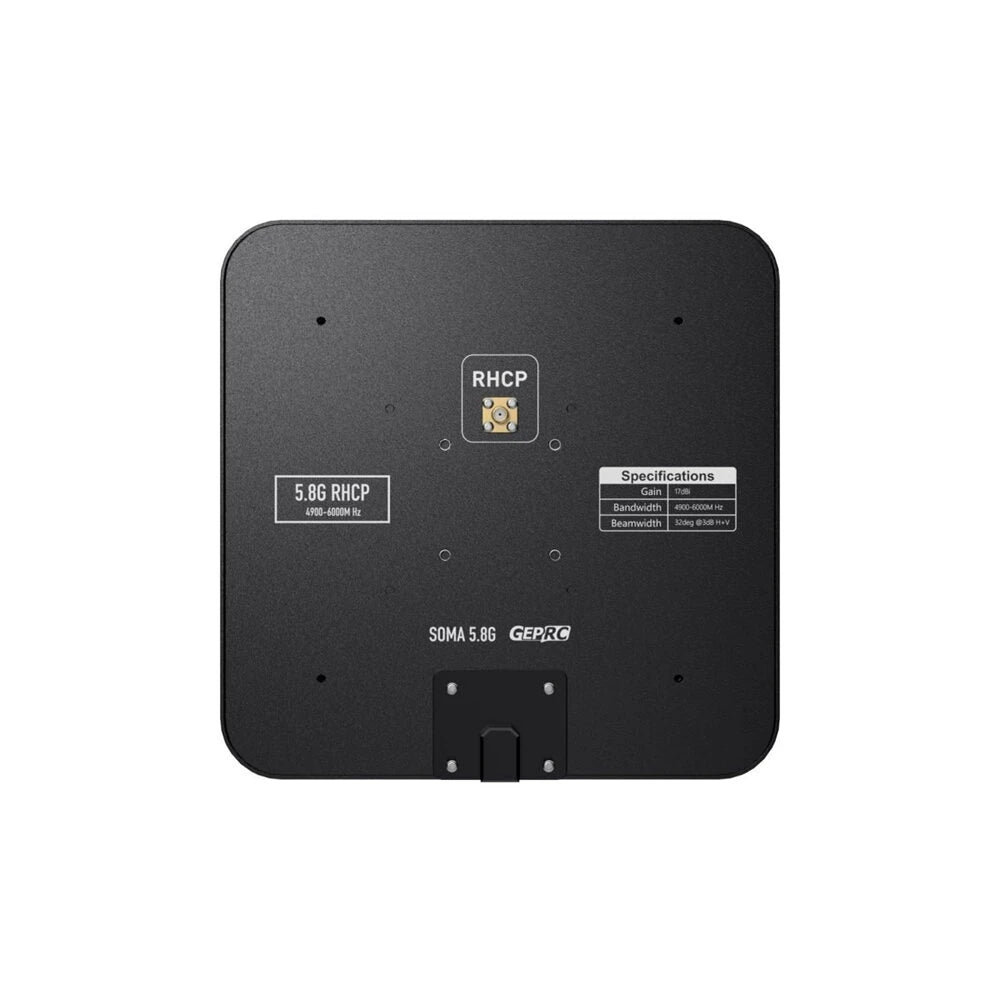

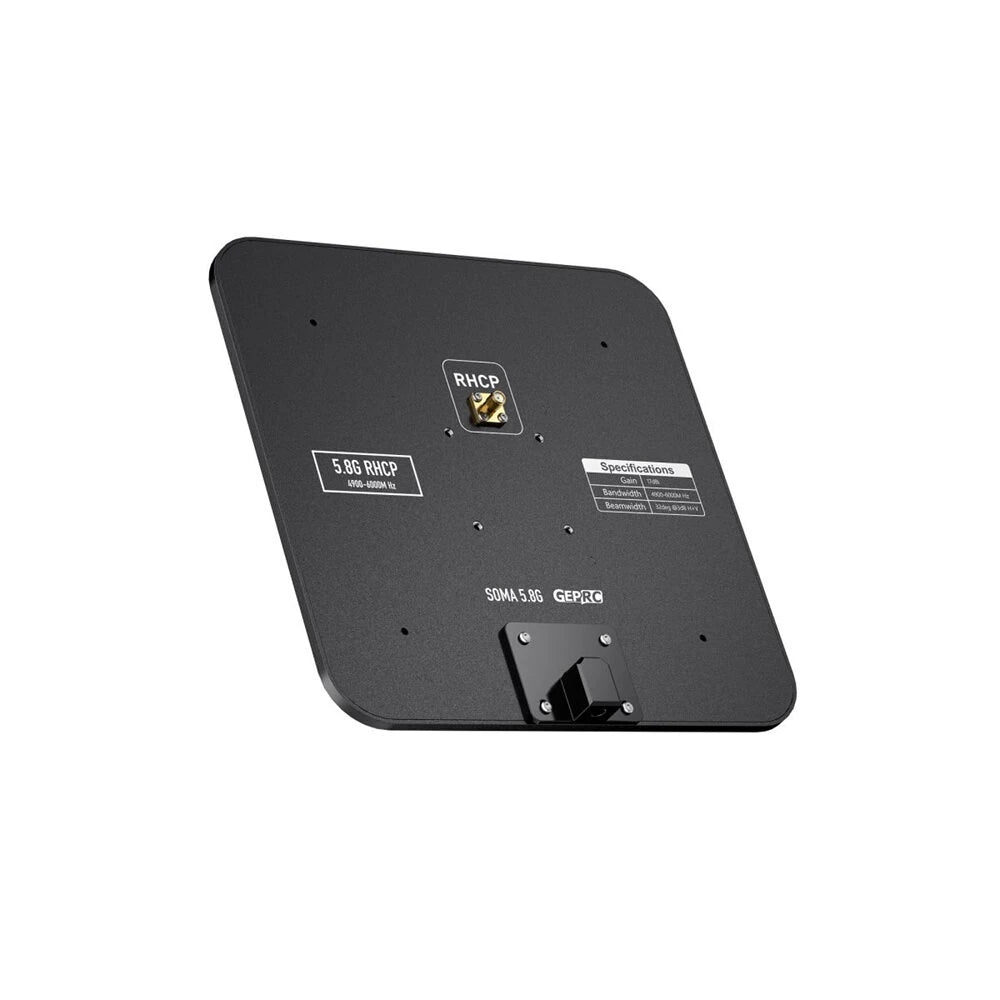

- 1/4 aluminum allloyy base, compatible with various brackets.
- High-quality SMA connector for lower impedance and better transmission efficiency.
- Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards.

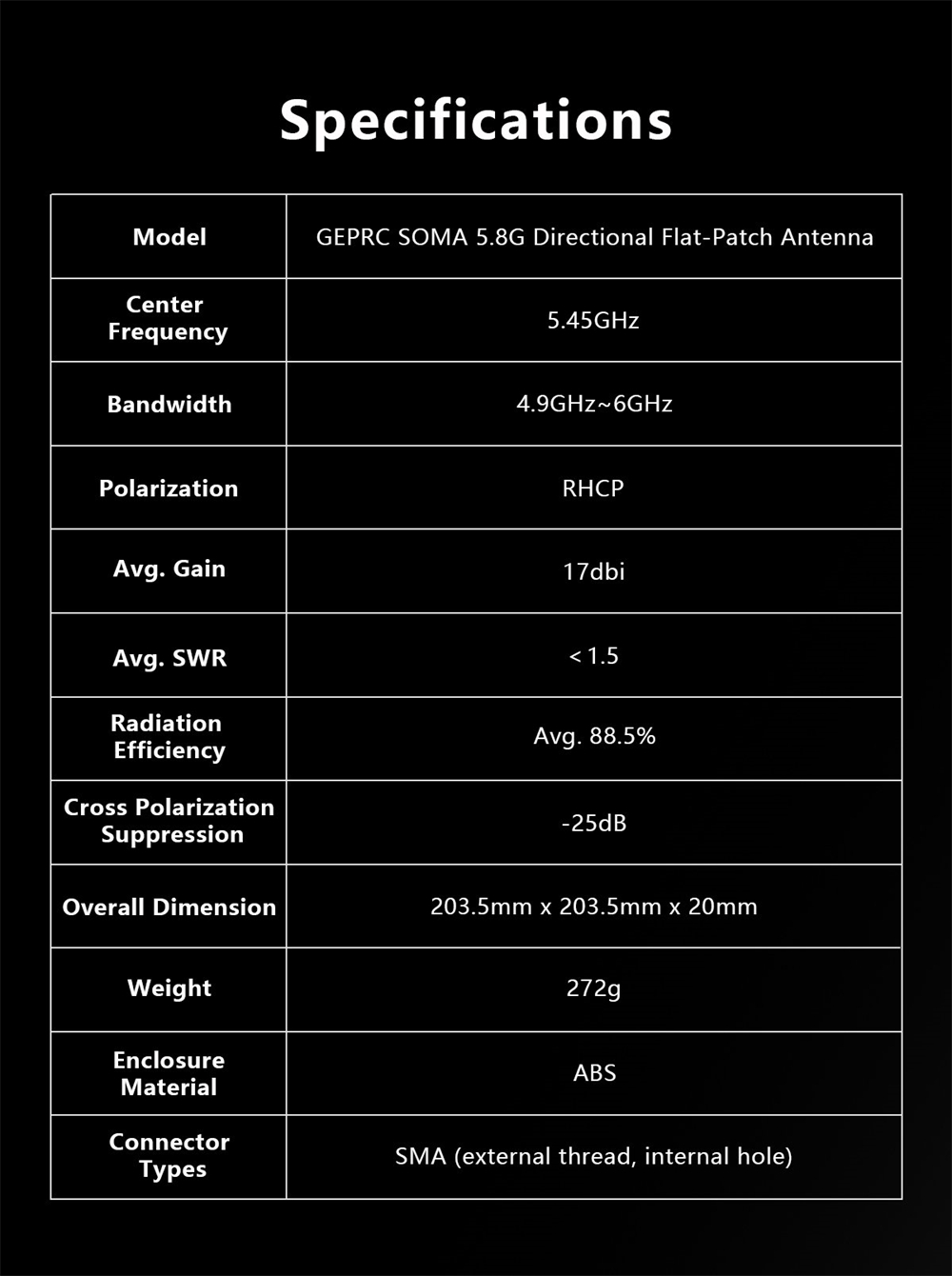

Specifications:
| Brand: | GEPRC |
| Model: | SOMA 5.8G Directional Patch Antenna |
| Center Frequency: | 5.45GHz |
| Bandwidth: | 4.9GHz~6GHz |
| Polarization: | RHCP |
| Gain: | 17dBi |
| Axial Ratio: | ≤3 |

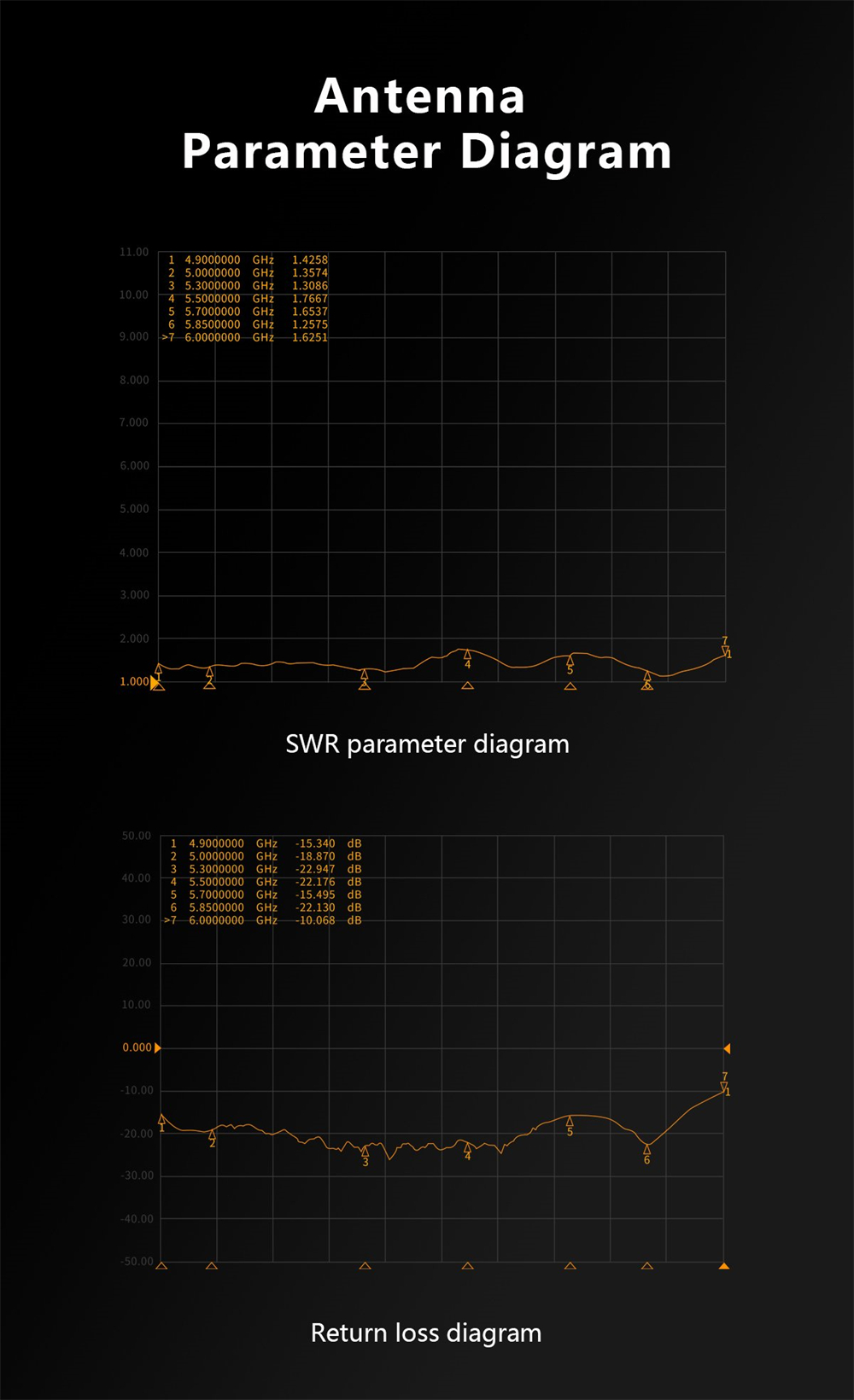

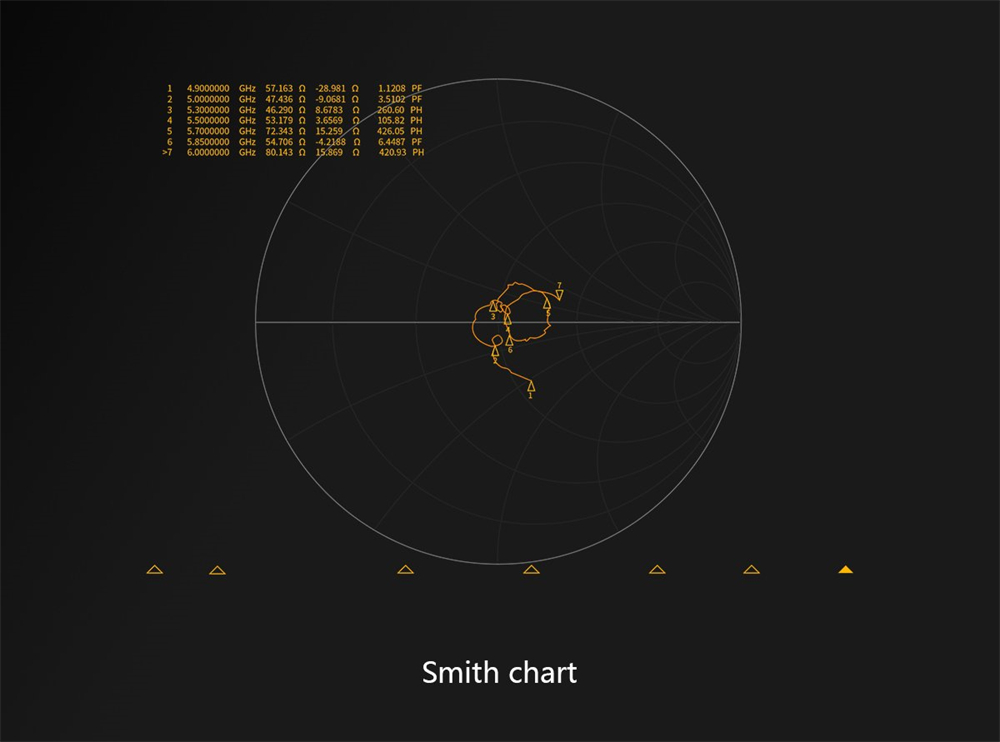

| SWR: | ≤1.5 |
| Radiation Efficiency: | 88.5% |
| Cross polarization suppression: | -25dB |
| Enclosure Material: | ABS |
| Connector Type: | SMA (external thread, internal hole） |

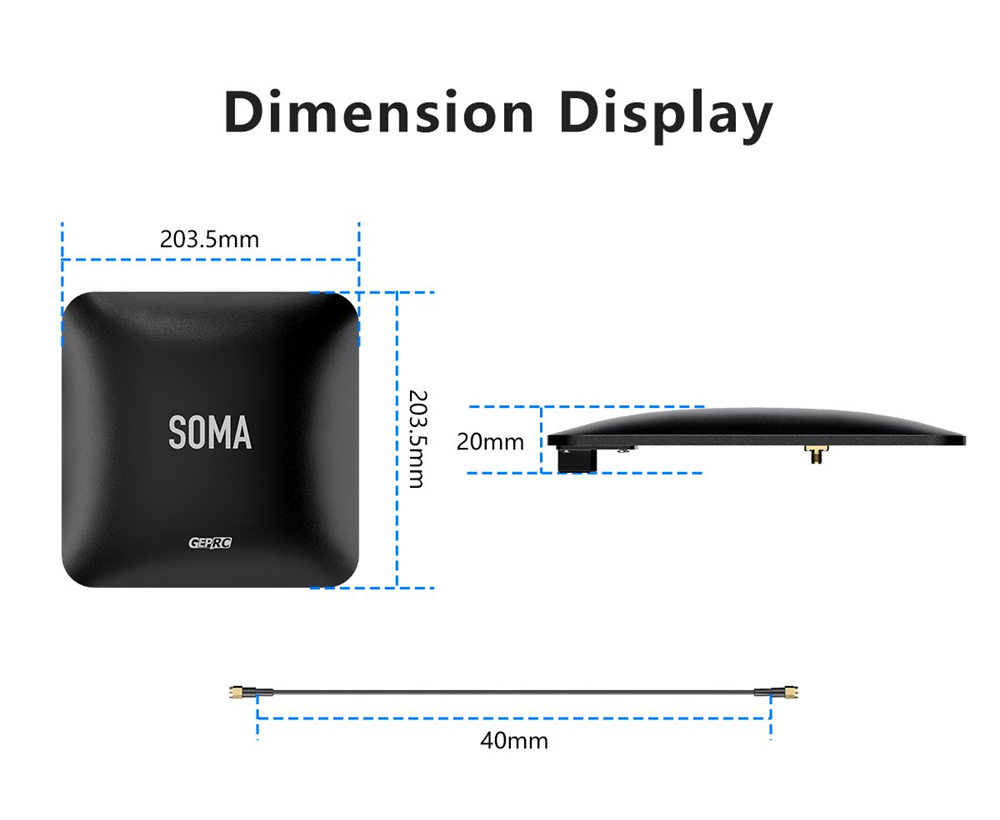

| Overall Dimension: | 203.5mm x 203.5mm x 20mm |
| Antenna Weight: | 272g |
Package included:
1 x SOMA 5.8G Directional Patch Antenna
