Description
Descriptions:

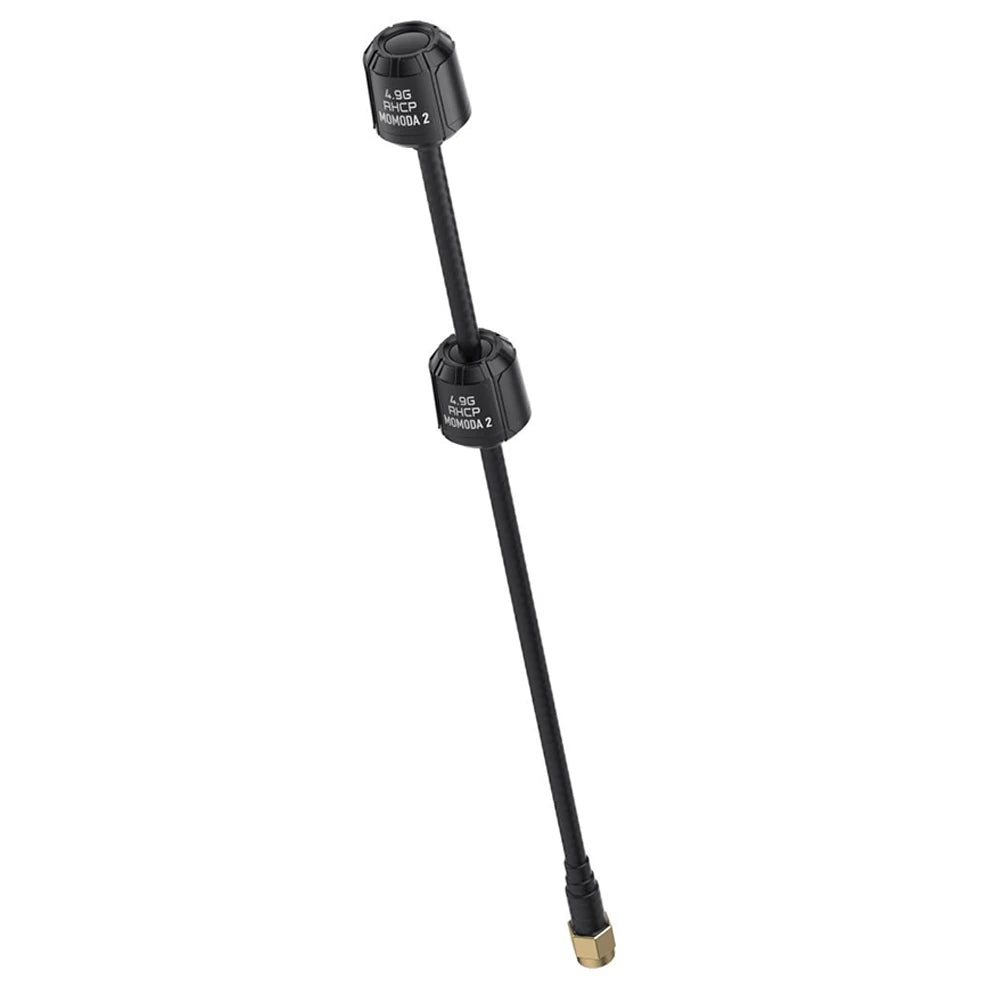

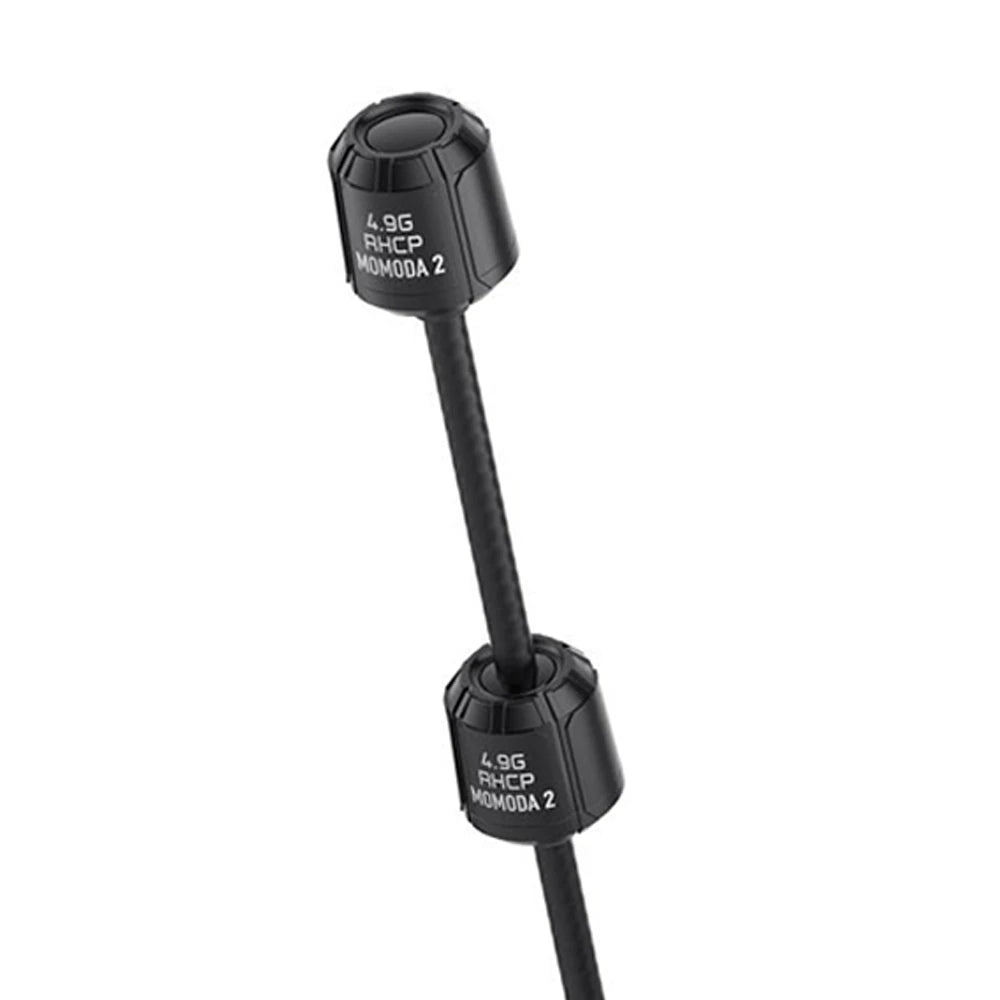

The GEPRC Momoda2 4.9G DUAL antenna features a dual RF solution with a gain of up to 3.65dBi, providing comprehensive signal coverage and effectively reducing FPV image instability caused by signal dead spots. This antenna is ideal for video transmission solution within the 4.9GHz-5.3GHz frequency band.

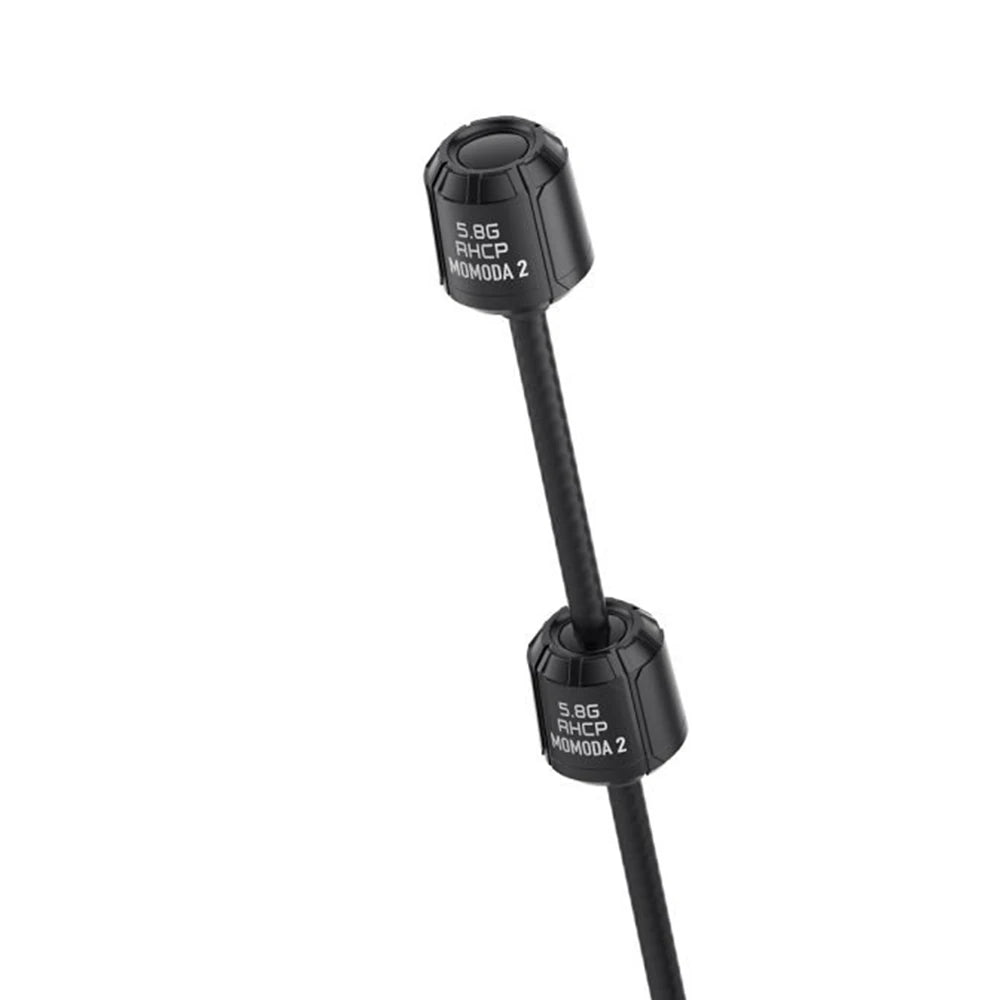

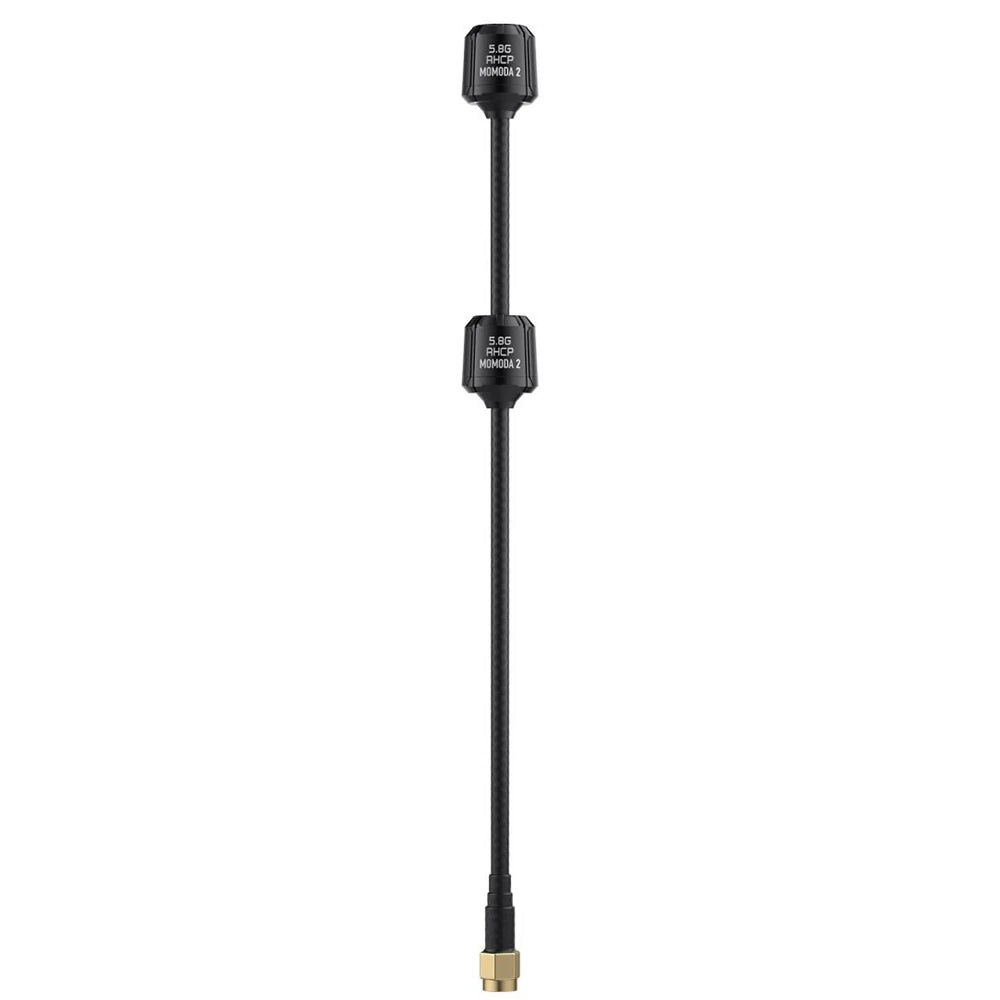

The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance.
Specifications:
Product Name |
Specification |
GEPRC Momoda2 4.9G DUAL antenna |
Model: GEPRC Momoda2 4.9G DUAL antenna Center Frequency: 5.1GHz Bandwidth: 4.9GHz~5.3GHz Polarization: RHCP Gain: 3.65dbi Axial Ratio: ≤3 SWR: ≤1.45 Radiation Efficiency: 85% Cross Polarization Suppression: -25dB Length: 170mm Antenna Design: FPC+PCB Antenna Weight: 16.6g Enclosure Material: ABS Connector Type: SMA |
GEPRC Momoda2 5.8G DUAL antenna |
Model: GEPRC Momoda2 5.8G DUAL antenna Center Frequency: 5.65GHz Bandwidth: 5.3GHz～6GHz Polarization: RHCP Gain: 3.8dbi Axial Ratio: ≤3 VSWR: ≤1.43 Radiation Efficiency: 85% Cross Polarization Suppression: -25dB Length: 170mm+57mm Design Compostion: FPC+PCB Weight: 16.6g Enclosure Material: ABS Connector Type: SMA |
The Features for GEPRC Momoda2 4.9G DUAL antenna:
1. Stylish mechanical design with visual appeal.
2. Compact dual RF solution with ultra-high gain.
3. Superior signal coverage with no dead zones.
4. Each antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.
The Features for GEPRC Momoda2 5.8G DUAL antenna:
1. Enhanced gain with dual-core RF technology.
2. Ultra-low VSWR for improved transmission efficiency.
3. Adopts premium antenna interface.
4. Ultrasonic welding for tight and secure assembly.
5. Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards.
Package included:
1x Momoda2 4.9G/ 5.8G DUAL antenna
