Description
Note:
- The WTFPV series is VTX-free and requires user integration.
- Dimensions and weight are for reference only; actual product may vary.
- Compatible only with DJI O4 Pro VTX; VR silicone is not compatible with DJI O3 or analog cameras.
Description:

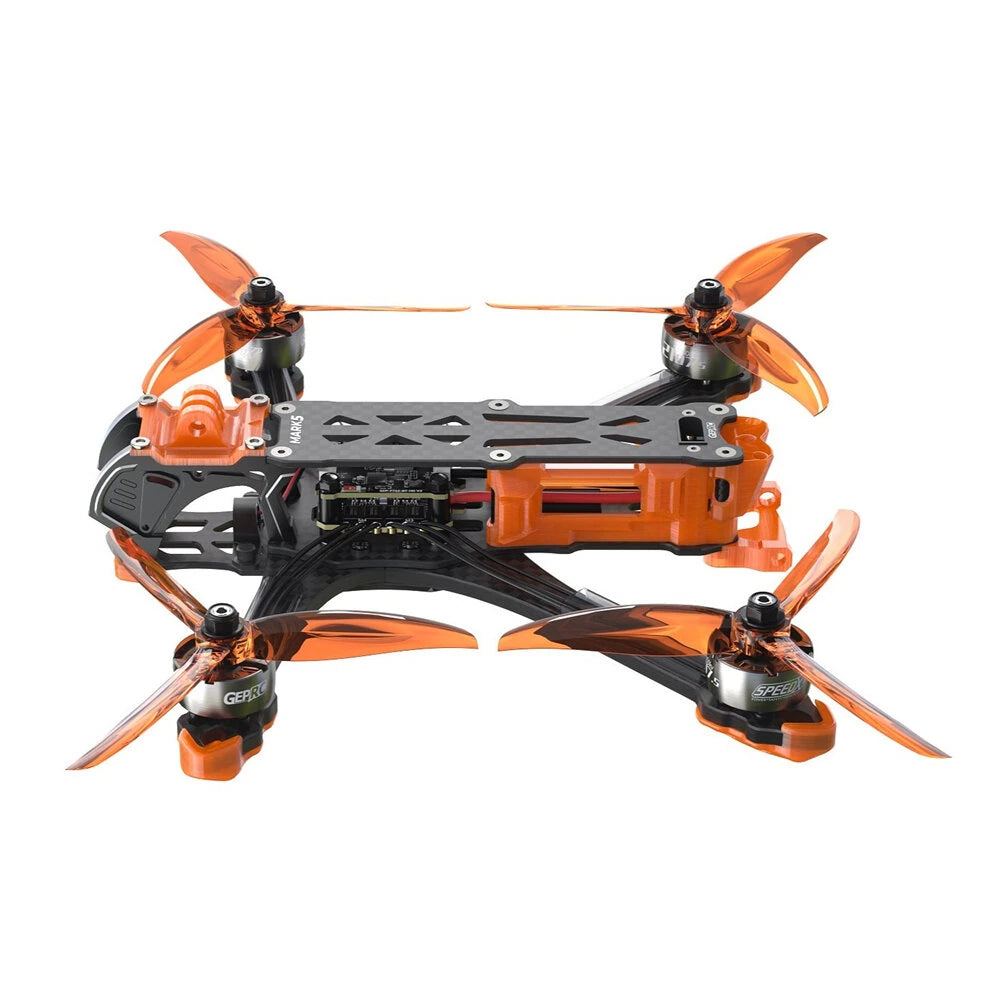

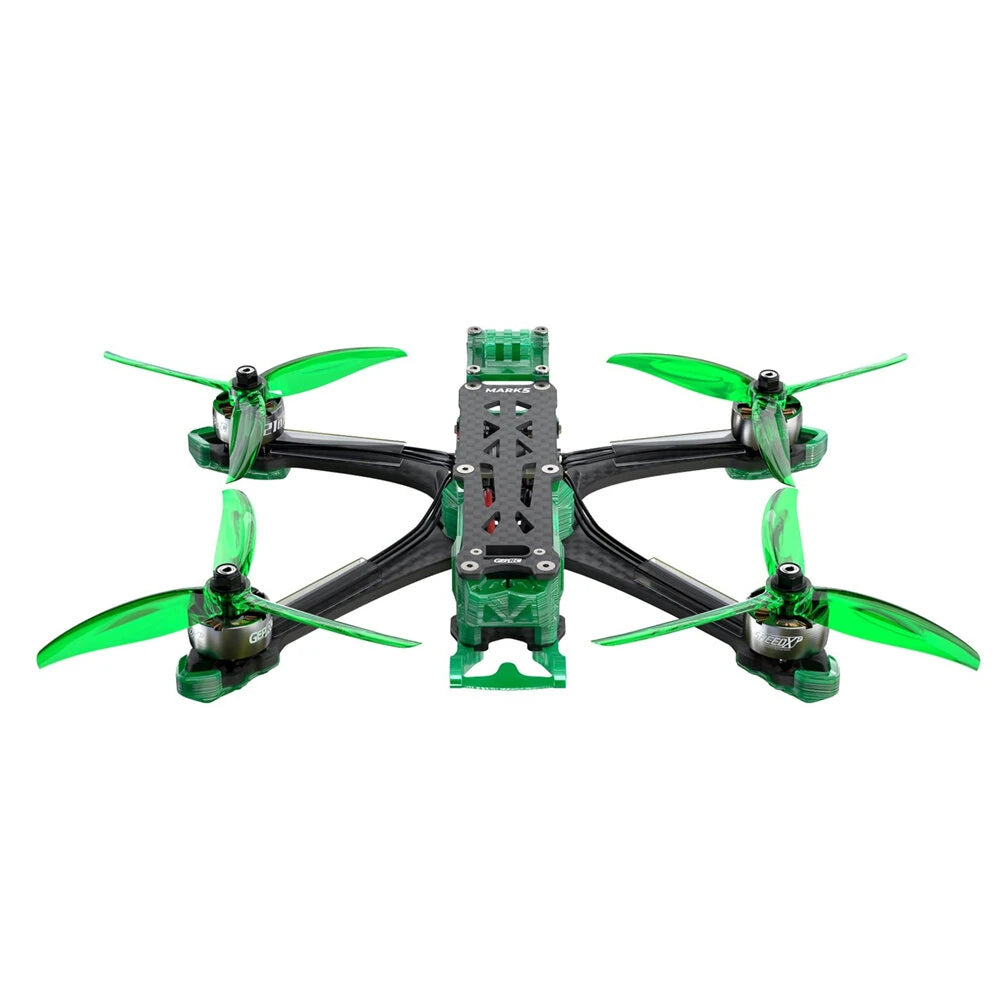

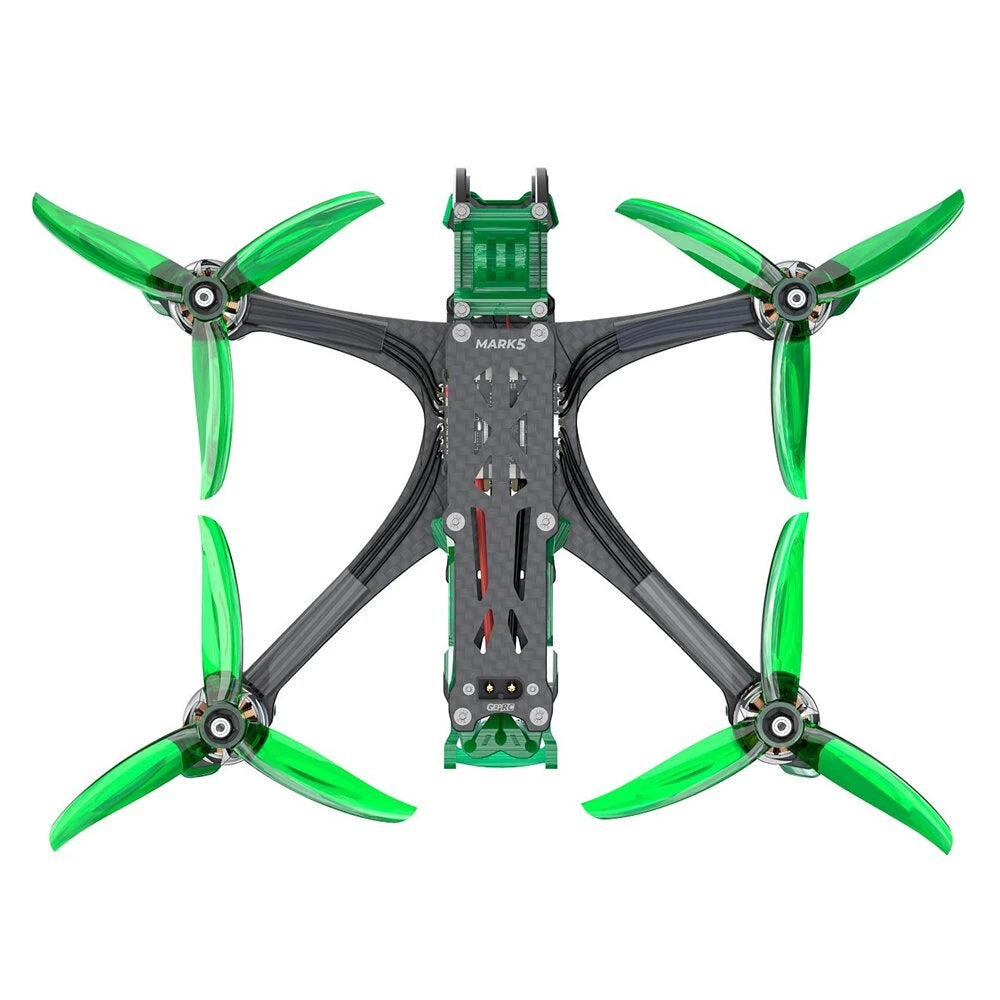

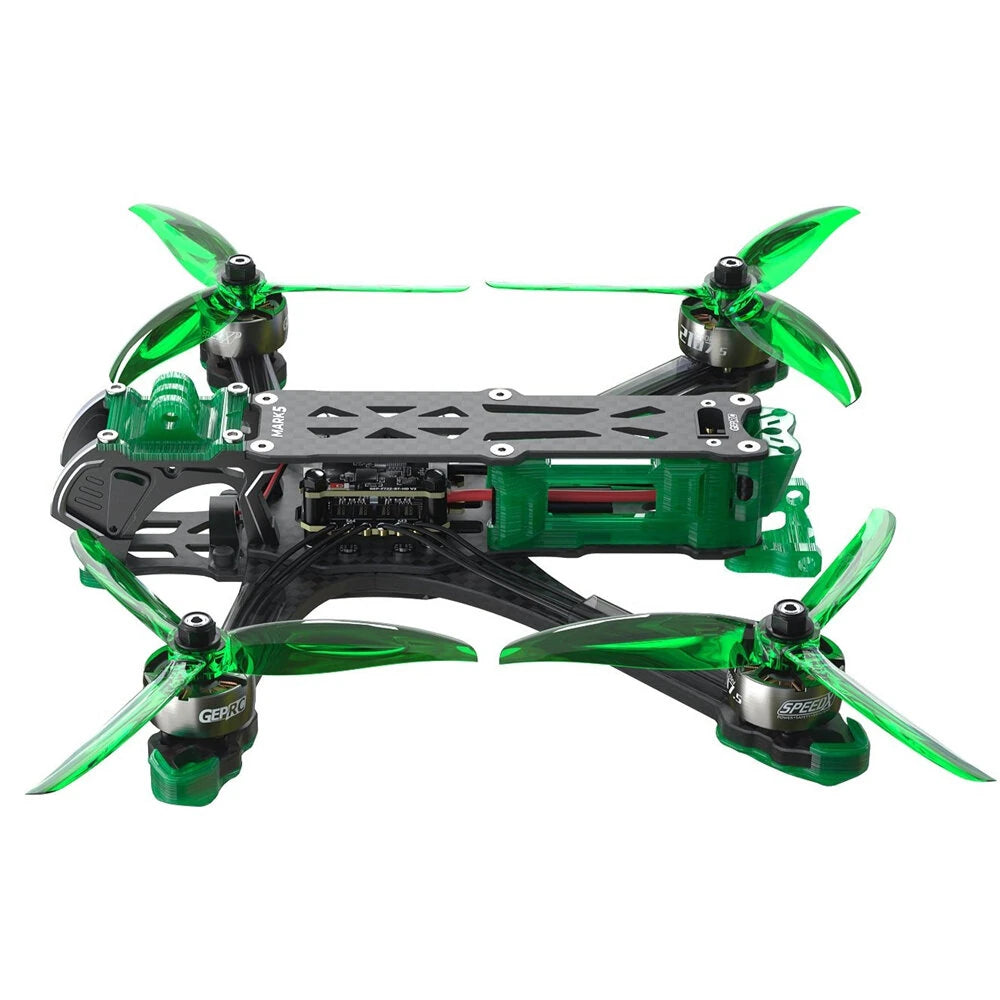

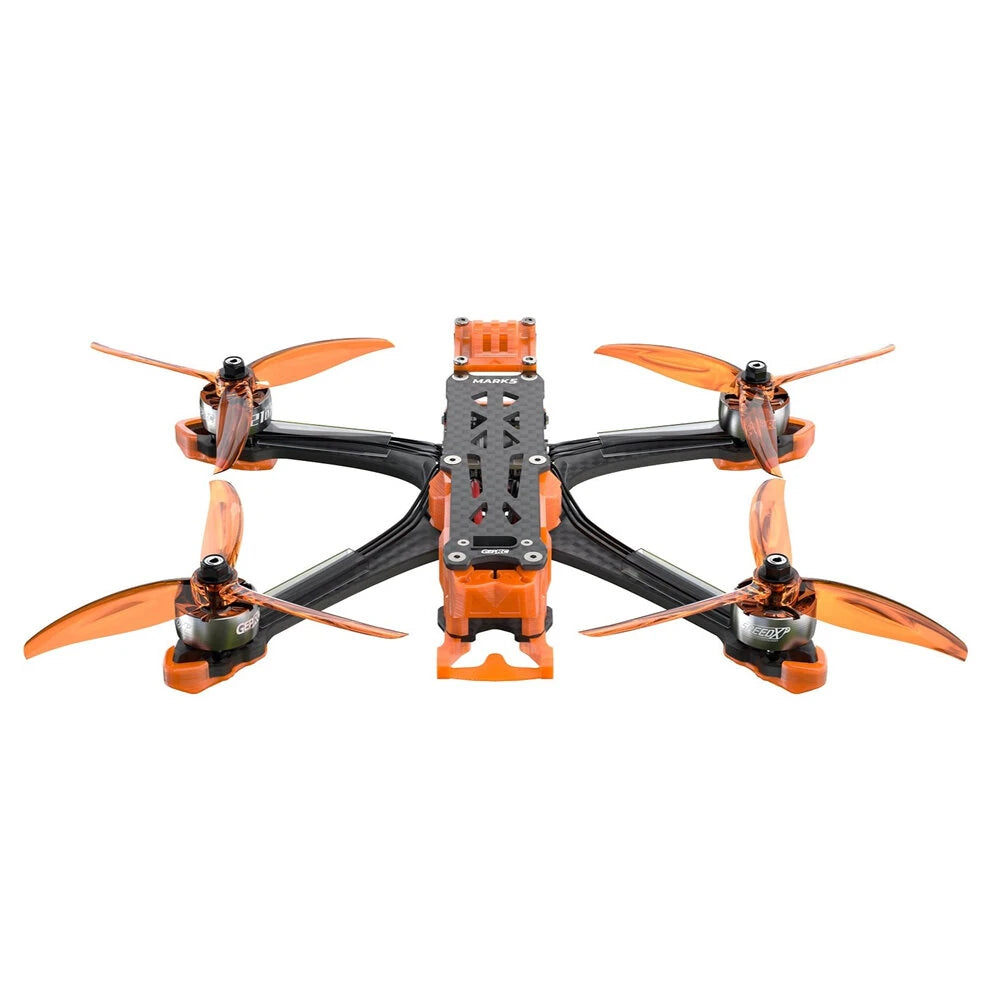

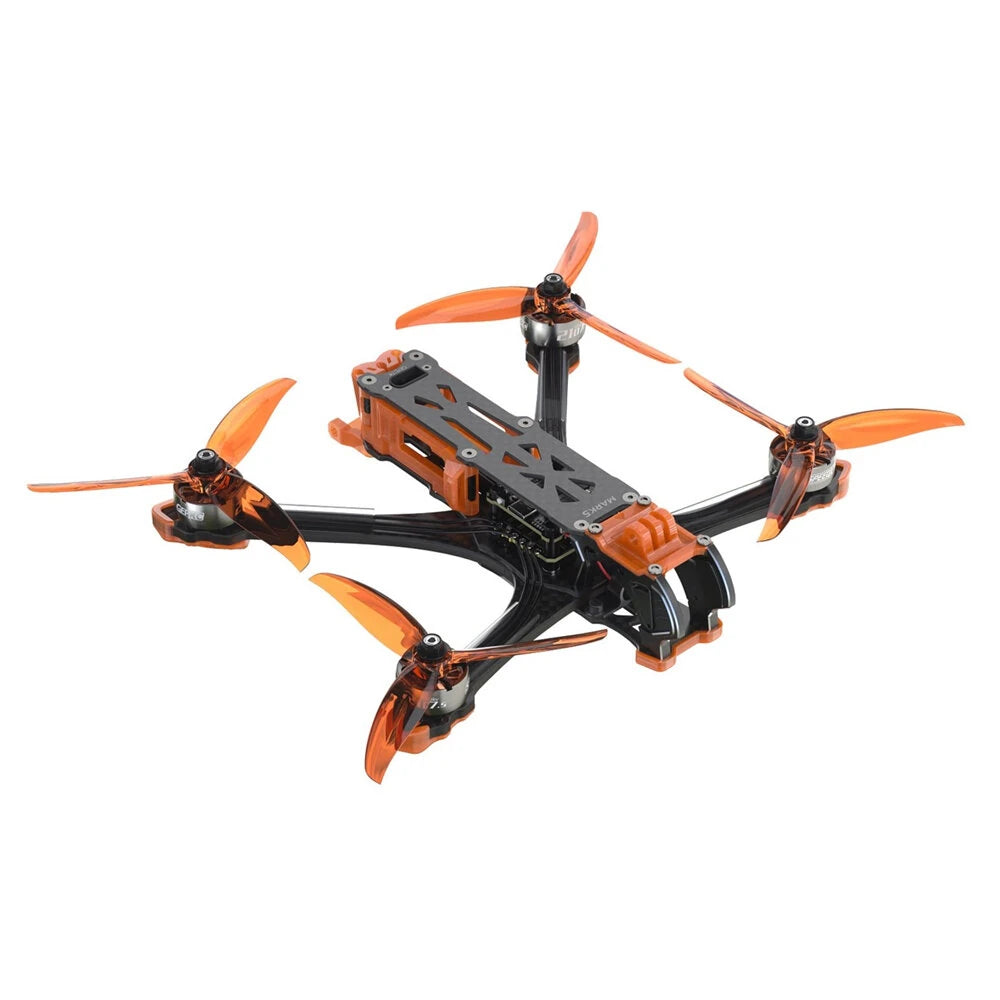

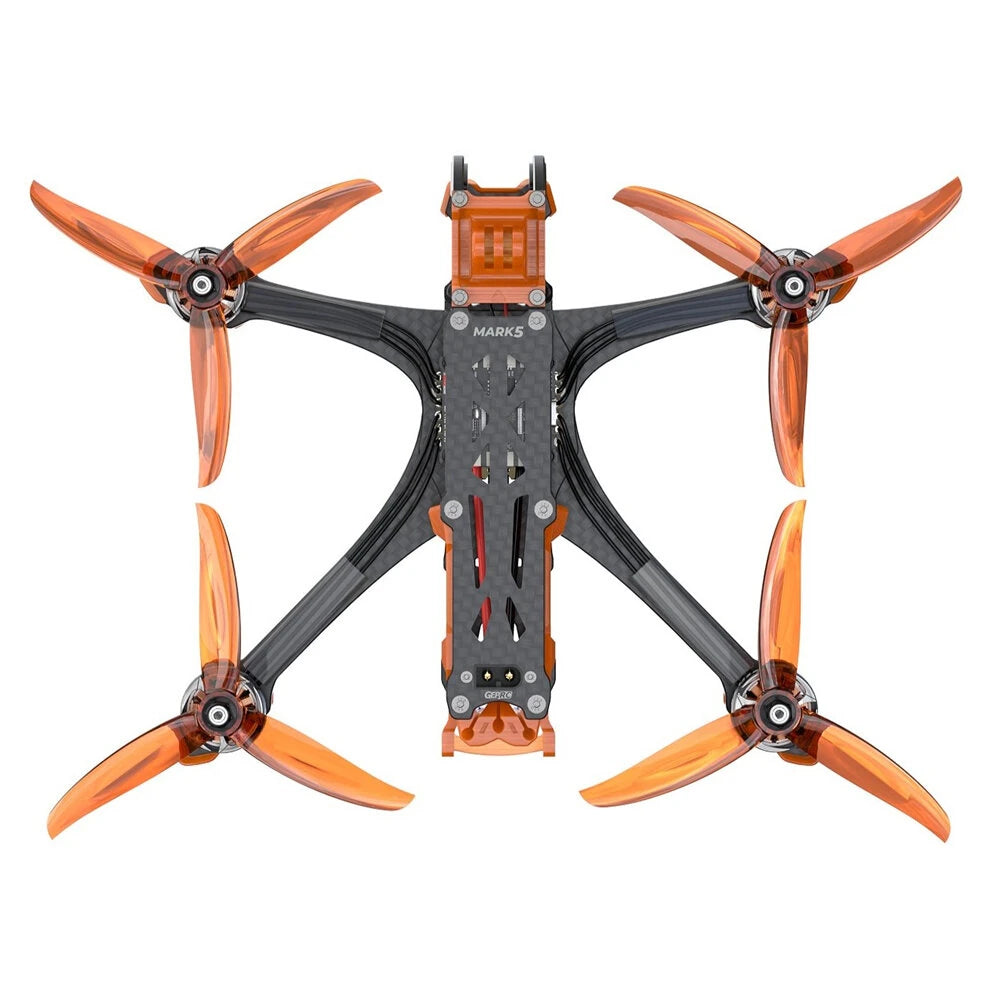

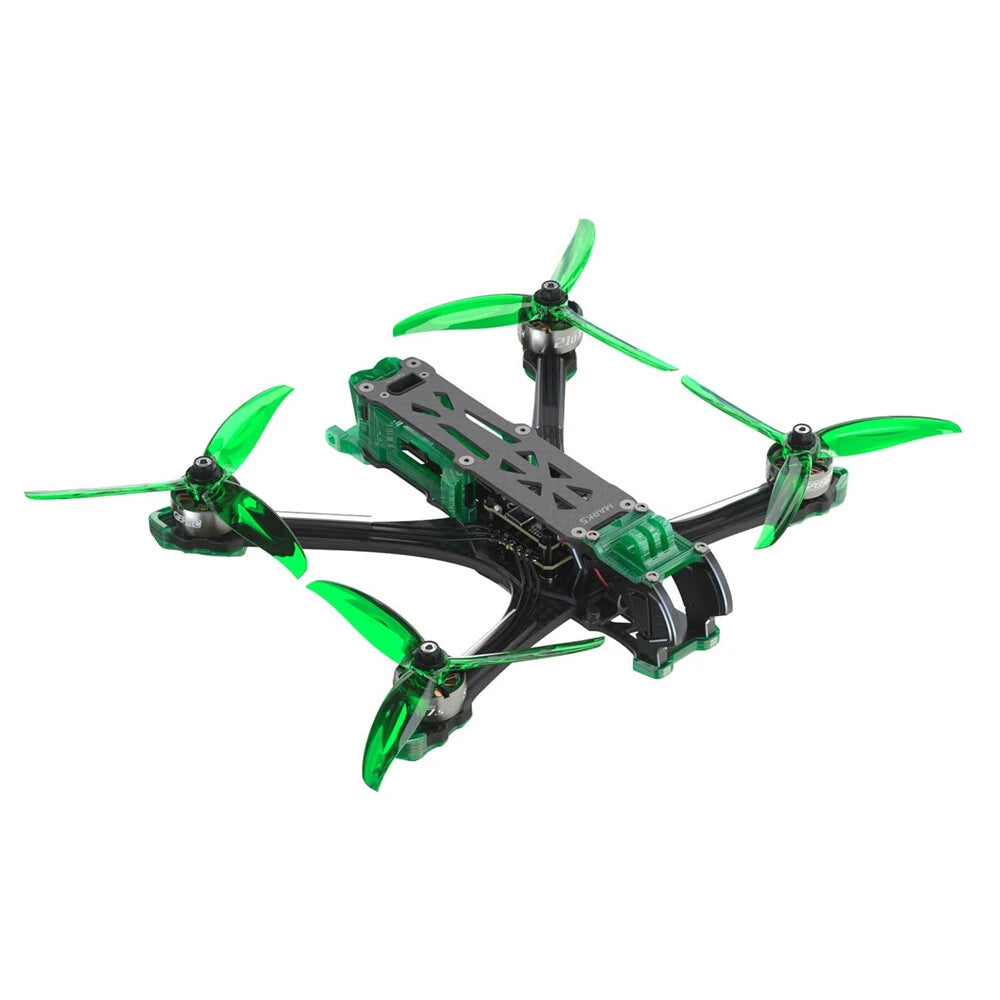

The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations.These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.
Feature:
1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.
2. DC and wide X frames, fit for a variety of flying situations.
3. Two TPU camera mounts, compatible with all action cameras.
4. Quick-release arms with just two screws for easy swapping.
5. 3K carbon fiber frame that is lighter, stronger, and more durabl.
6. Separate capacitor and buzzer compartment for stable, jitter-free operation.
7. Vibration-dampening frame for stable electronics performance.
Specfication:
Brand: GEPRC
Model: MARK5
Item Name: 5 Inch 6S DC WTFPV FPV
Model: |
MARK5 O4 Pro DC WTFPV FPV |
Wheelbase: |
230mm |
Weight: |
392.8g ± 5g |
VTX: |
None |
Camera: |
None |
Antenna: |
None |
Motor: |
SPEEDX2 2107.5 1960KV |
Propeller: |
Genfan 5136 |
FC: |
GEP-F722-BT-HD V3 |
MCU: |
STM32F722 |
IMU: |
ICM42688-P(SPI) |
OSD: |
BetaFlight OSD w / AT7456E chip |
ESC: |
GEP-BL32 50A 96K 4IN1 ESC |
Power Connector: |
XT60 |
Receiver: |
PNP / ELRS 2.4G / TBS NanoRX |
Recommended Battery(Not included): |
LiPo 6S 1050mAh-1550mAh |
Printouts Color: |
emerald green/coral orange (optional) |
Package Included:
1 x GEPRC MARK5 WTFPV FPV
1 x Gemfan 5136 (2CW 2CCW）
1 x 15*250mm Straps
2 x 20*250mm Straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare Screw Pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench
Spare Screws Include:
1 x M5 flanged nylon nut
2 x M2 stainless rivet nut
1 x M5*25 Stainless round-head hex screw
4 x M3*10 button-head hex socket screw
4 x M3*8 button-head hex socket screw
2 x m3*8 countersunk hex socket screw
2 x m3*5 countersunk hex socket screw
