Note:

- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

- Comes unassembled. Need build by buyers.

- Compatible only with O4 Pro VTX; VR silicone is not compatible with 03 or analog cameras.



Description:

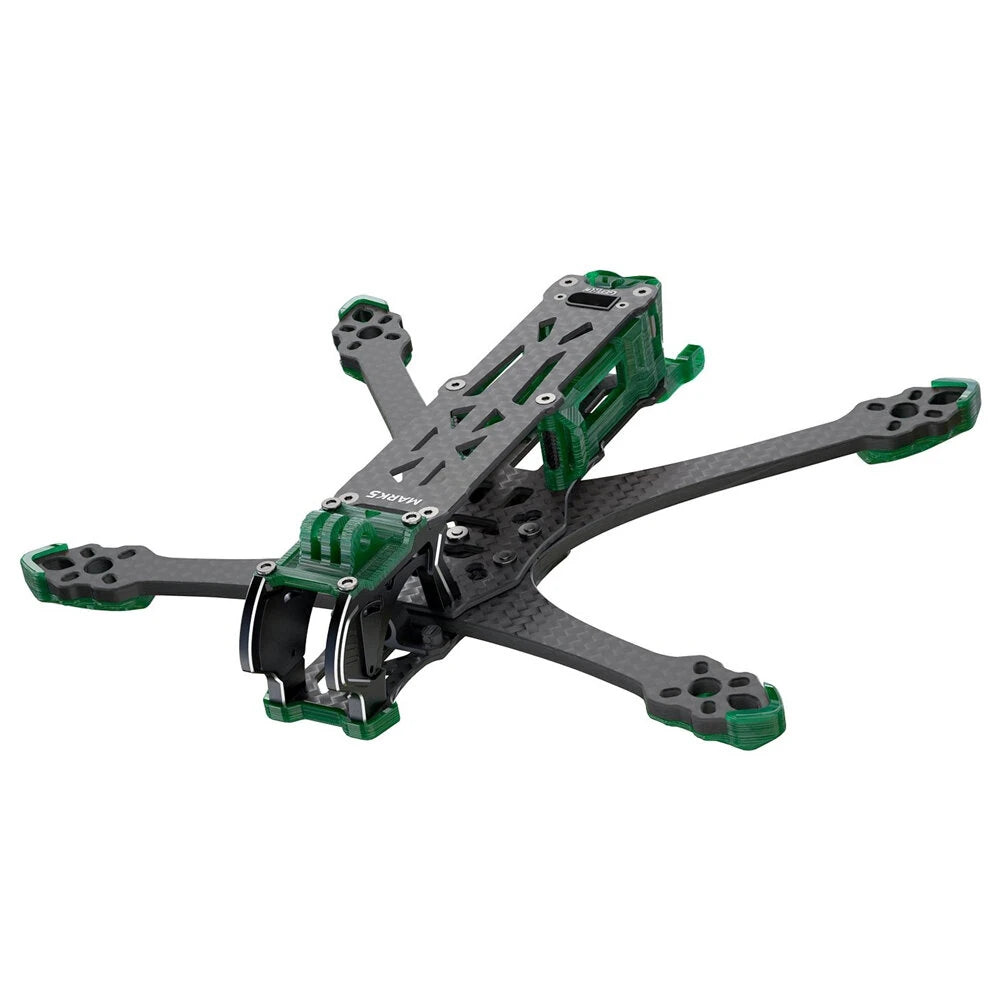

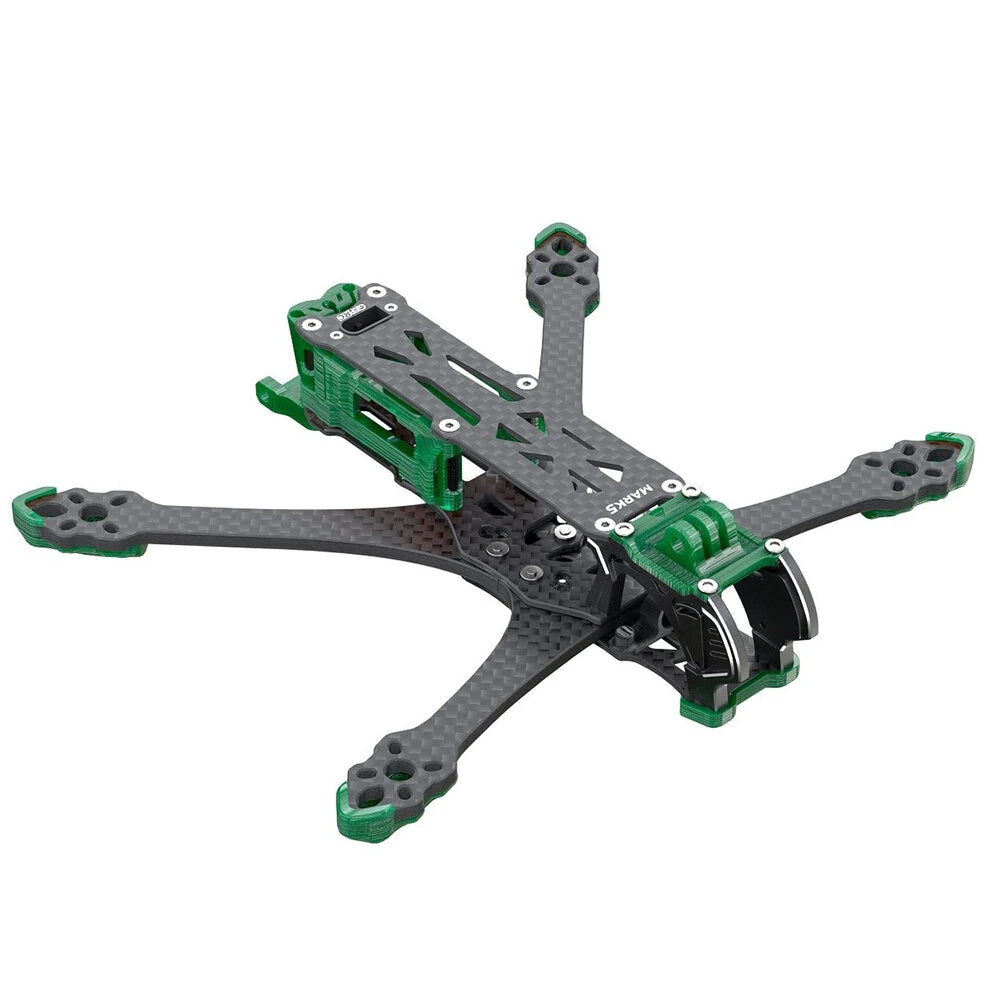

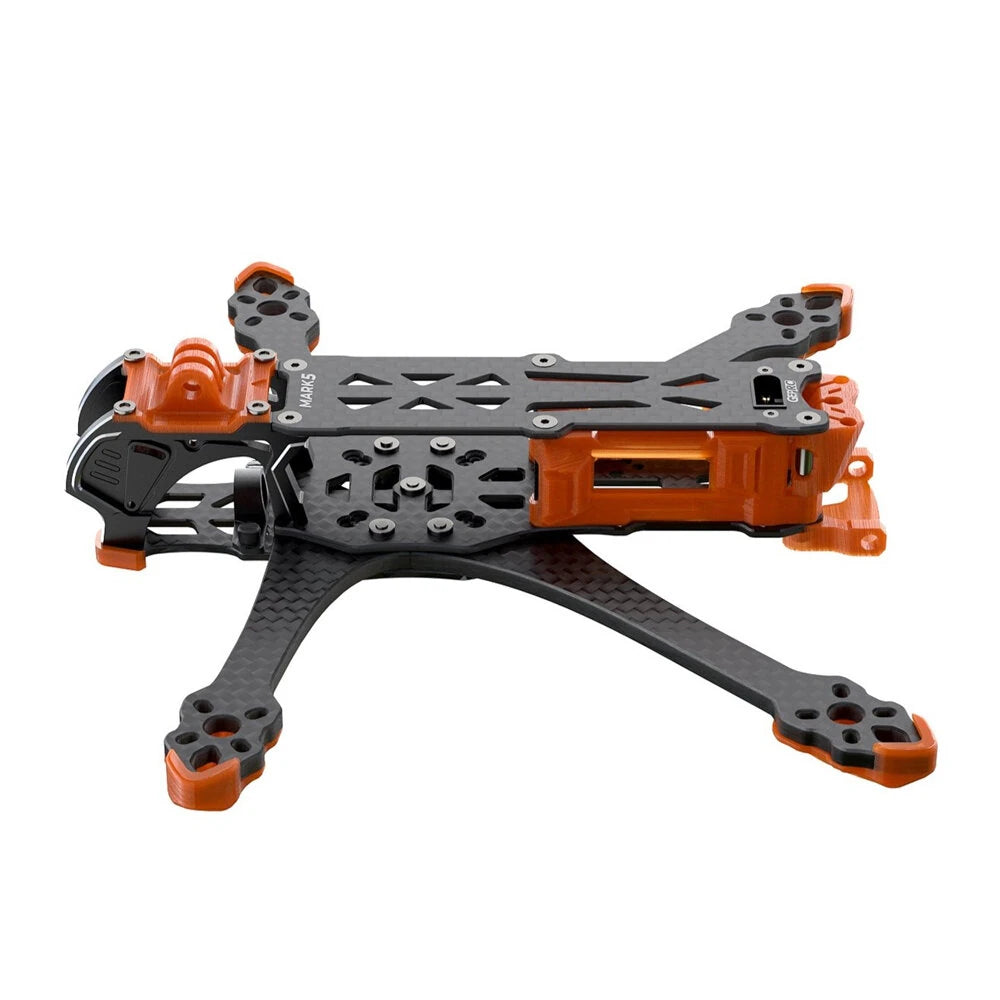

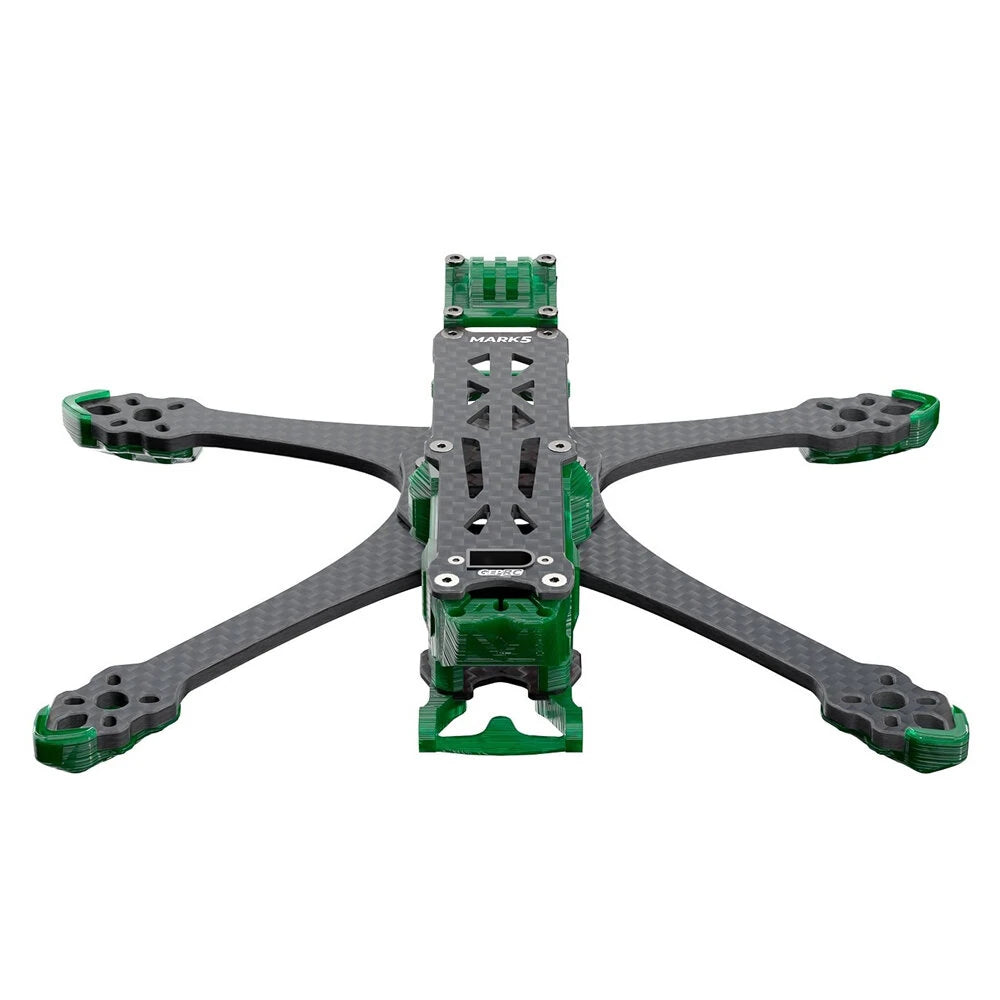

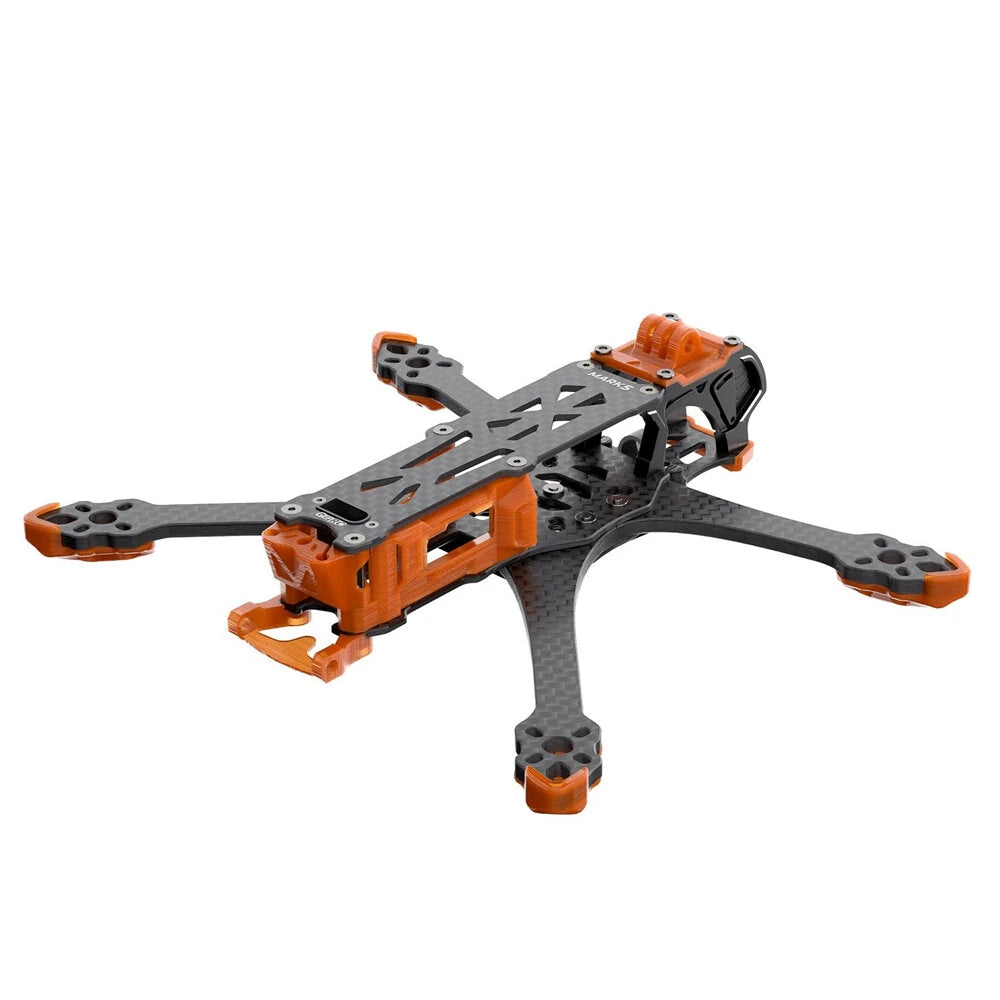

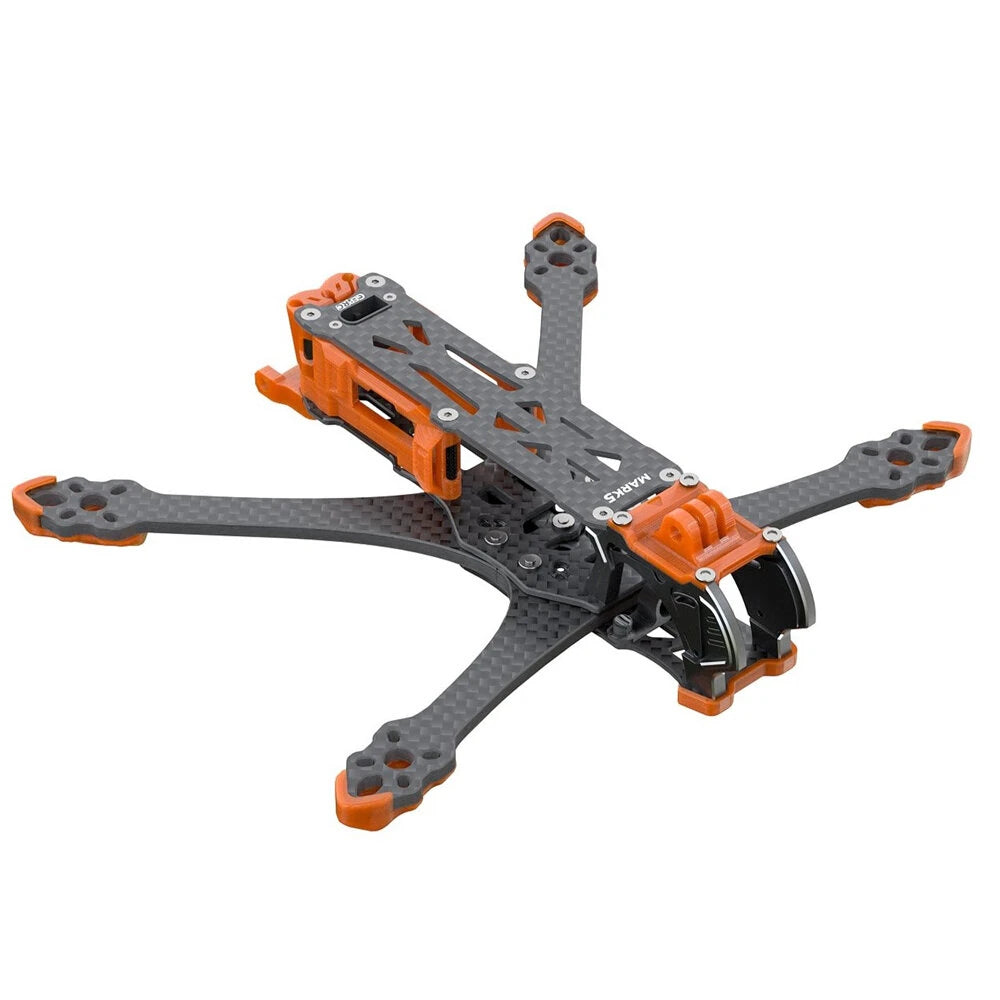

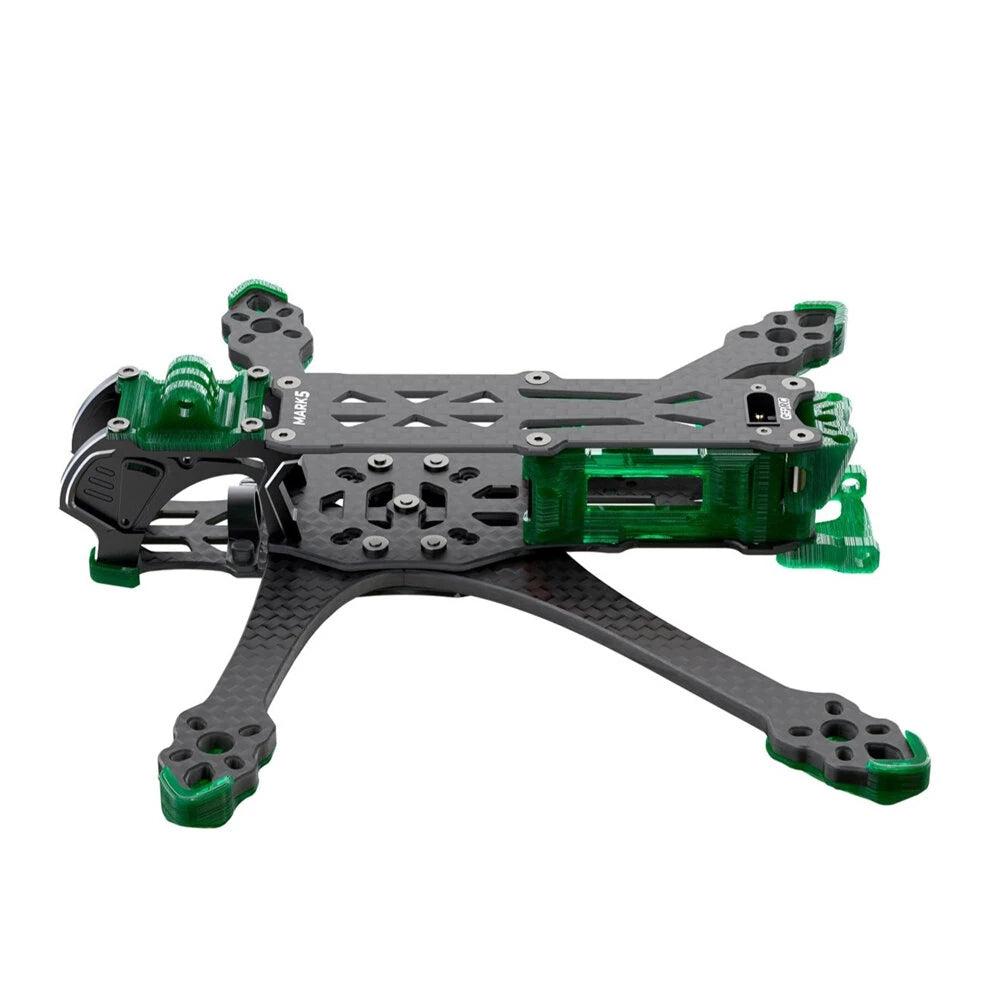

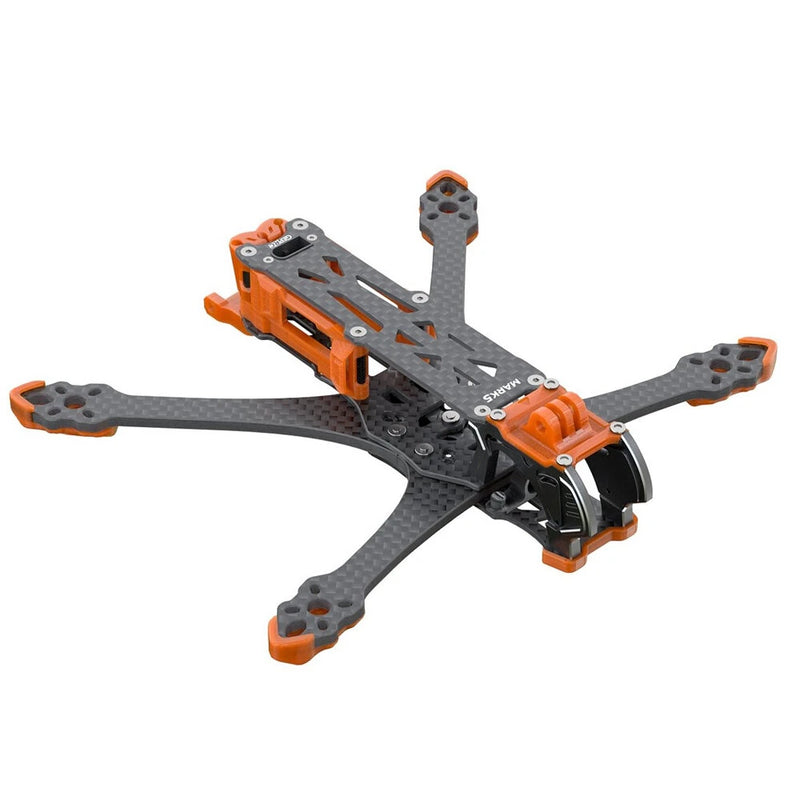

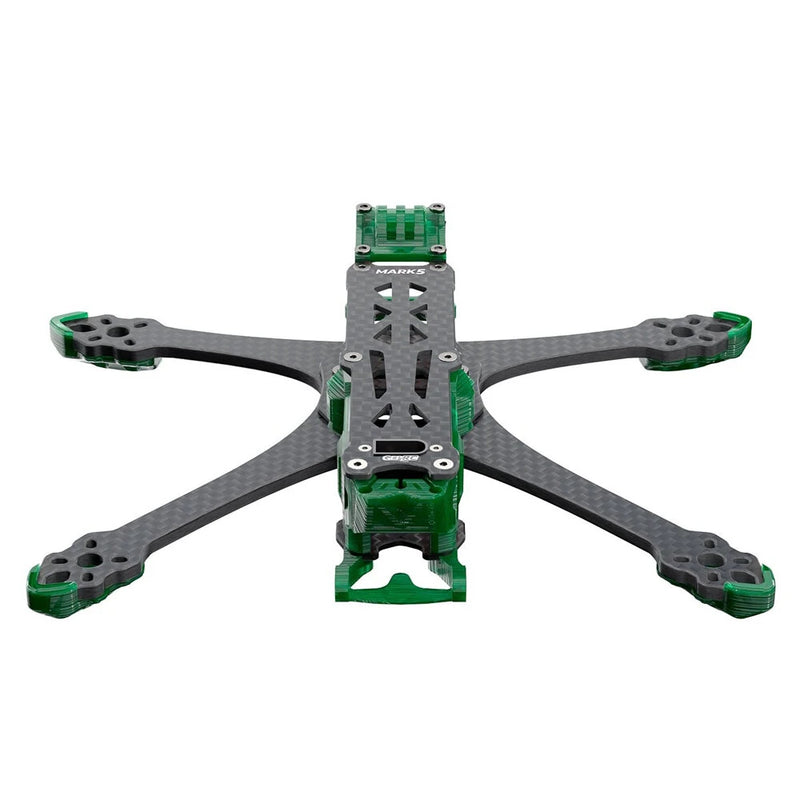

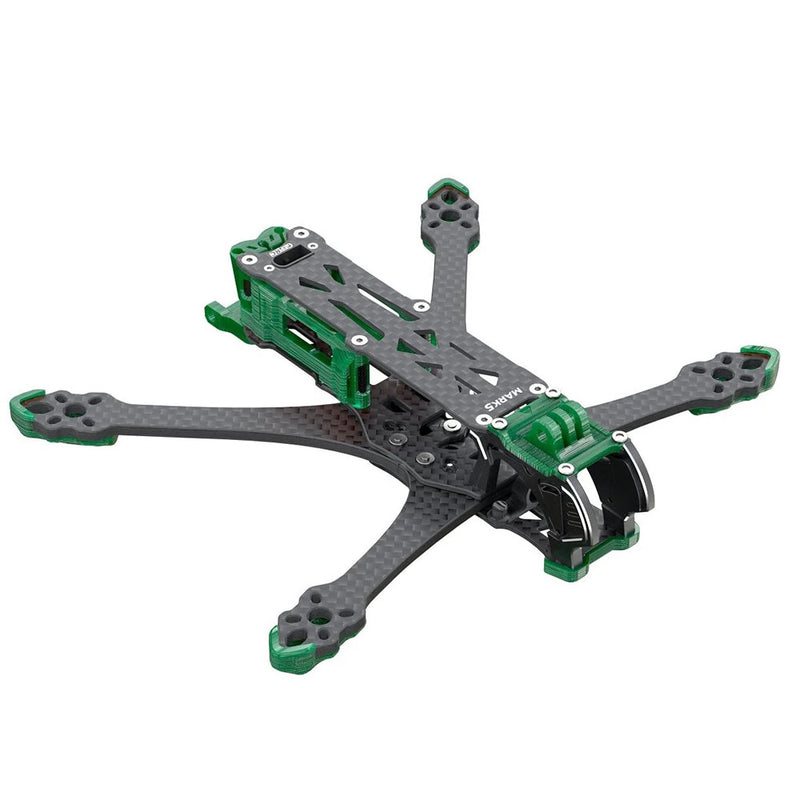

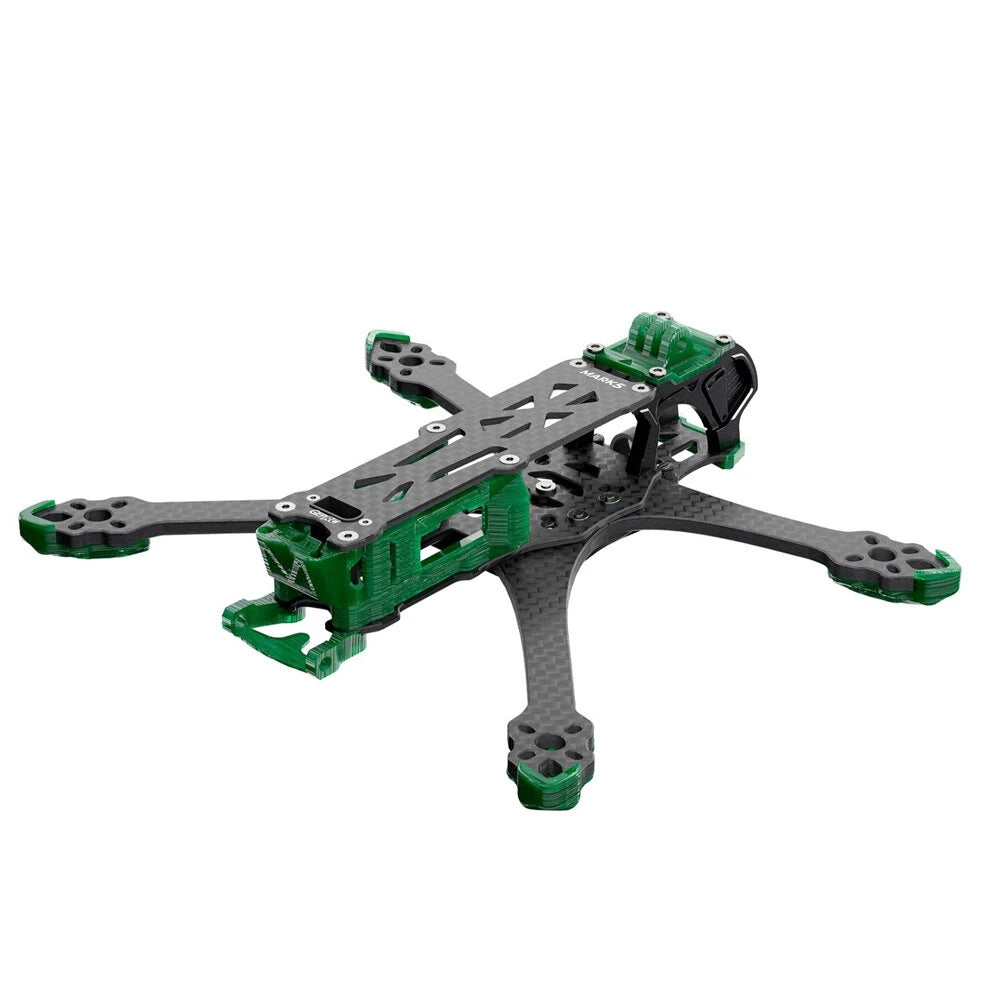

The GEPRC MARK5 frame is designed specifically for the DJI O4 Air Unit Pro.

It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.



Features:

- Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

- DC and wide X shapes, fit for a variety of flying situations.

- Two TPU camera mounts, compatible with all action cameras.

- Quick-release arms with just two screws for easy swapping.

- 3K carbon fiber frame that is lighter, stronger, and more durabl.



Specification:

Brand: GEPRC

Model: MARK5

Item Name: 5 Inch 6S Frame Kit

Type: DC

Model:	MARK5 Wide X Frame	MARK5 DC Frame
Wheelbase:	225mm	230mm
Weight:	165.1g ± 10g	197.0g ± 10g

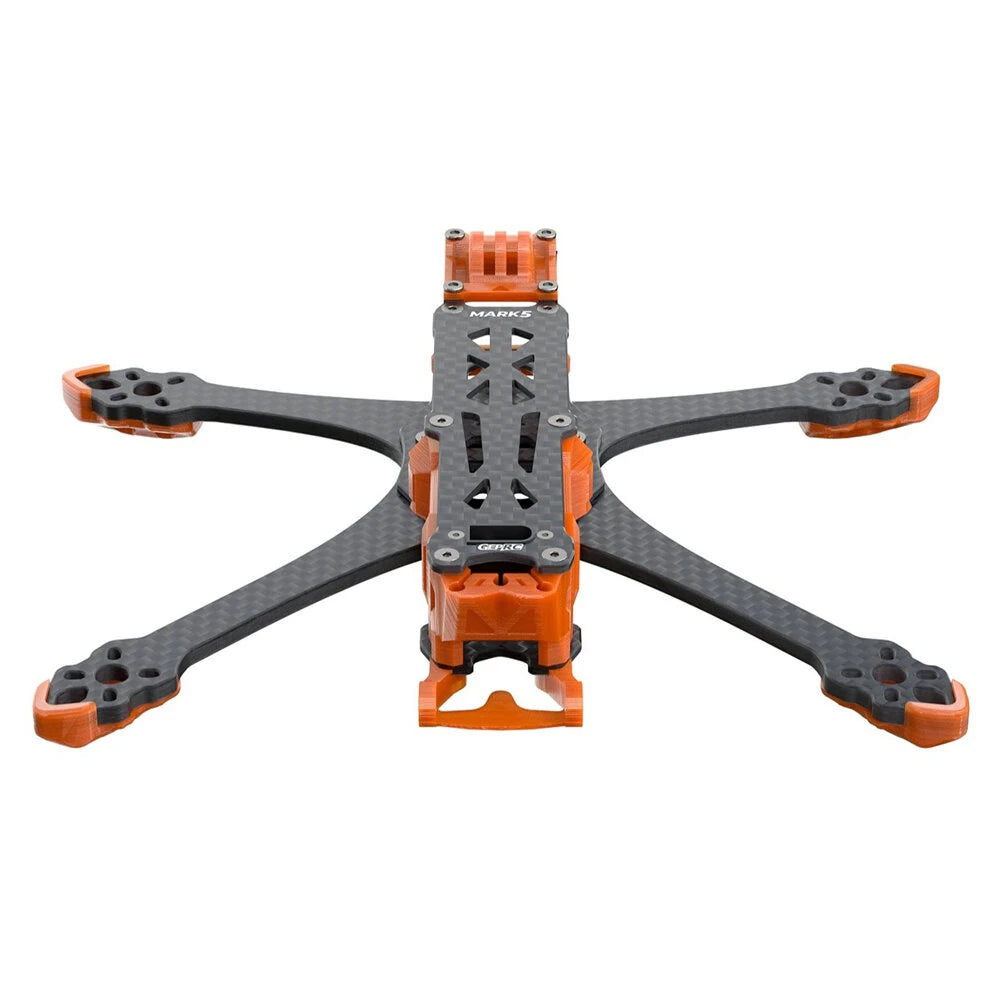

Color:	Emerald green/coral orange
Top Plate Thickness:	2.5mm
Arm Thickness:	5.0mm
Bottom Plate Thickness:	2.5mm
FC Mounting Pattern:	30.5mm * 30.5mm
VTX Mounting Pattern:	20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
Motor Mounting Pattern:	16mm * 16mm / 19mm * 19mm
Camera Mounting Pattern:	20mm
Recommended Propeller:	5 Inch



Recommand Parts (Not Included):

FC&ESC: Geprc F722 BT 50A V3 StackCamera&VTX: DJI O4 Air Unit PROMotor: SPEEDX2 2107.5 1960KVPropellers: GEMFAN 5136Battery: LiPo 6S 1050mAh-1550mAh

Package Included:

1 x Frame Kit

1 x 15*250mm heavy-duty straps

2 x Battery anti-slip pads

1 x 3D printouts pack

2 x 20*250mm rubber anti-slip straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2mm

1 x L-shaped screwdriver 3mm

1 x M8 wench

1 x Screw pack
