GEPRC LINKFLOW 868/915MHz 2W ELRS Open-Source 2000mW High Power TCXO TX Module With Moxon Antenna for FPV Racer Drones

Description:

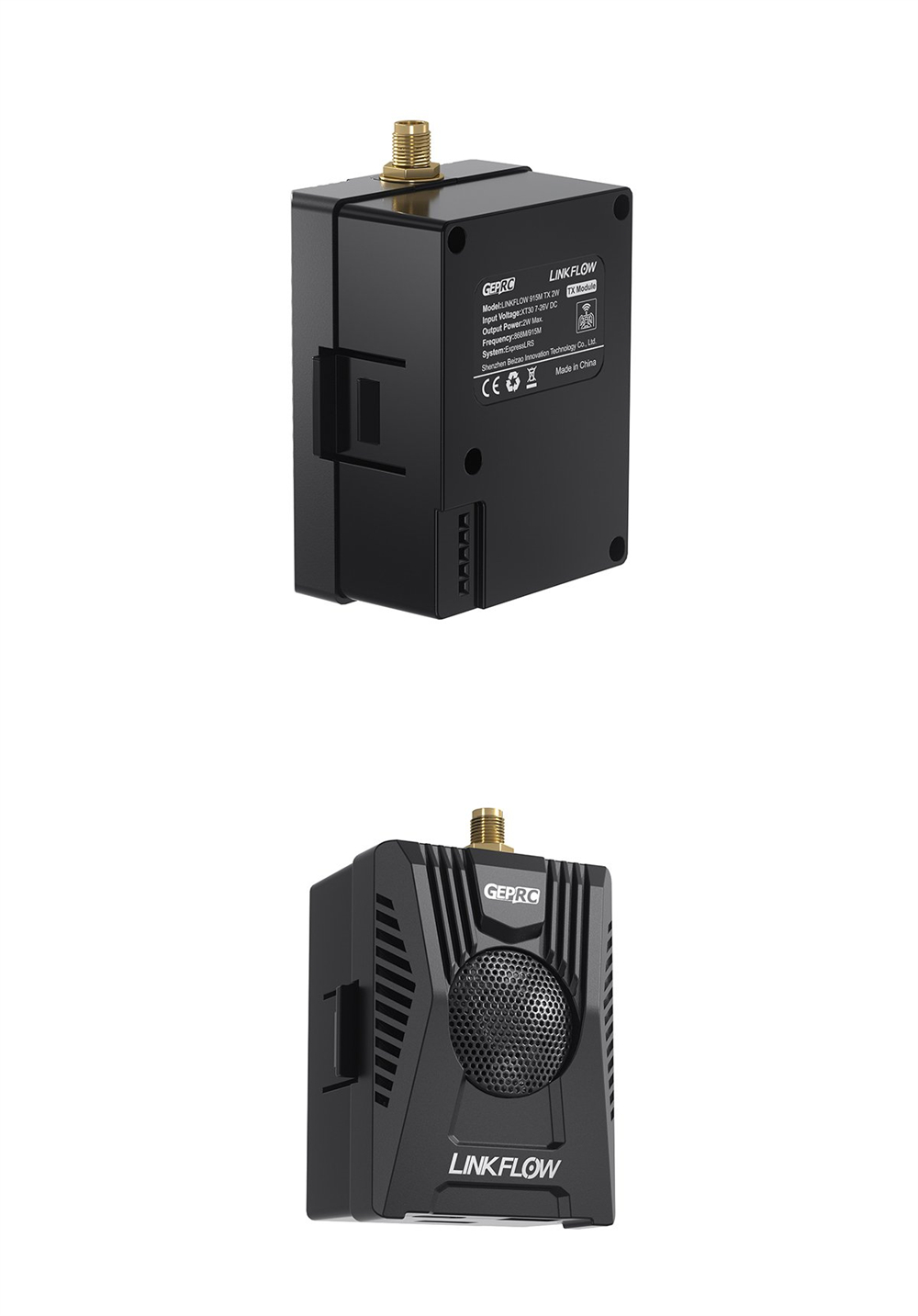

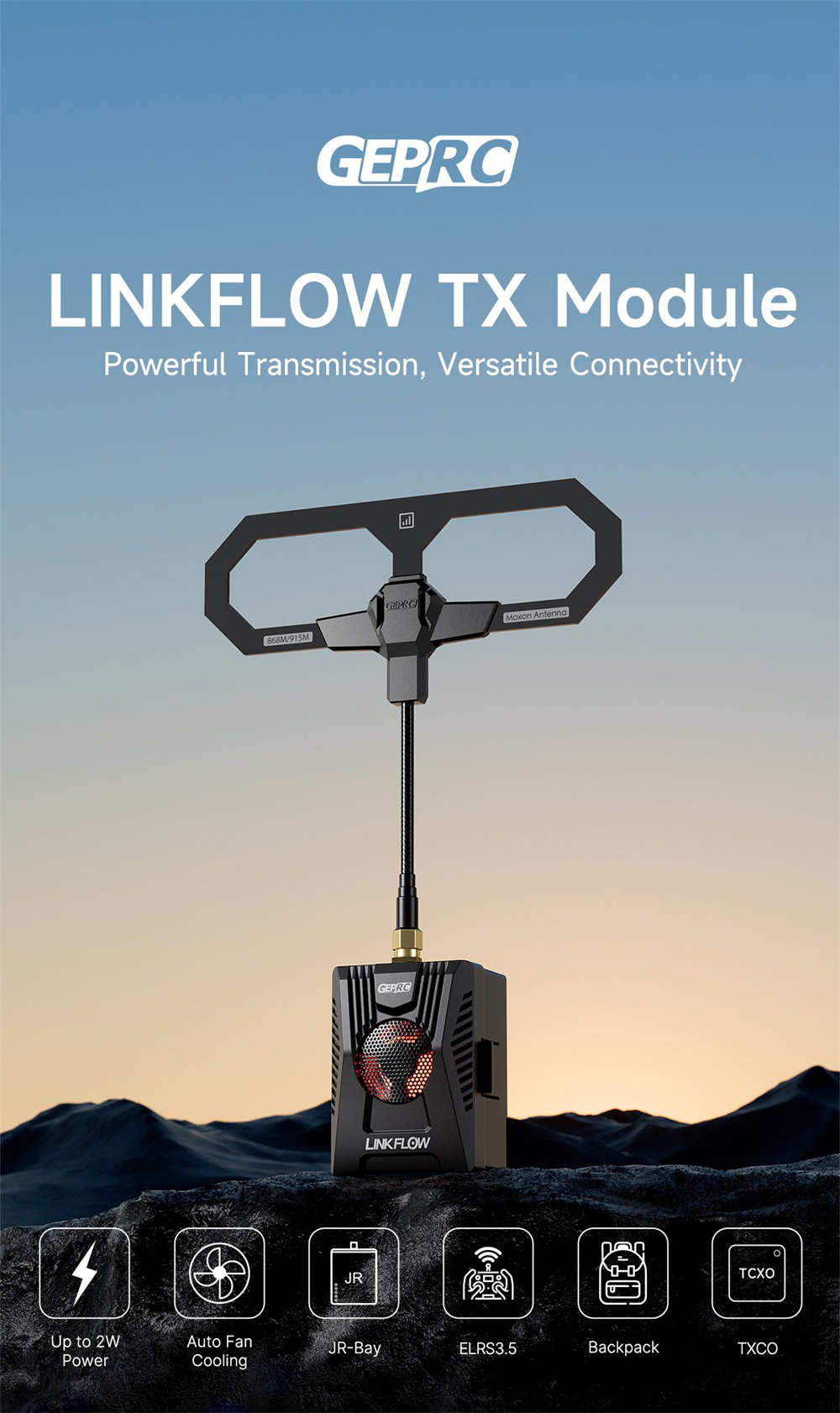

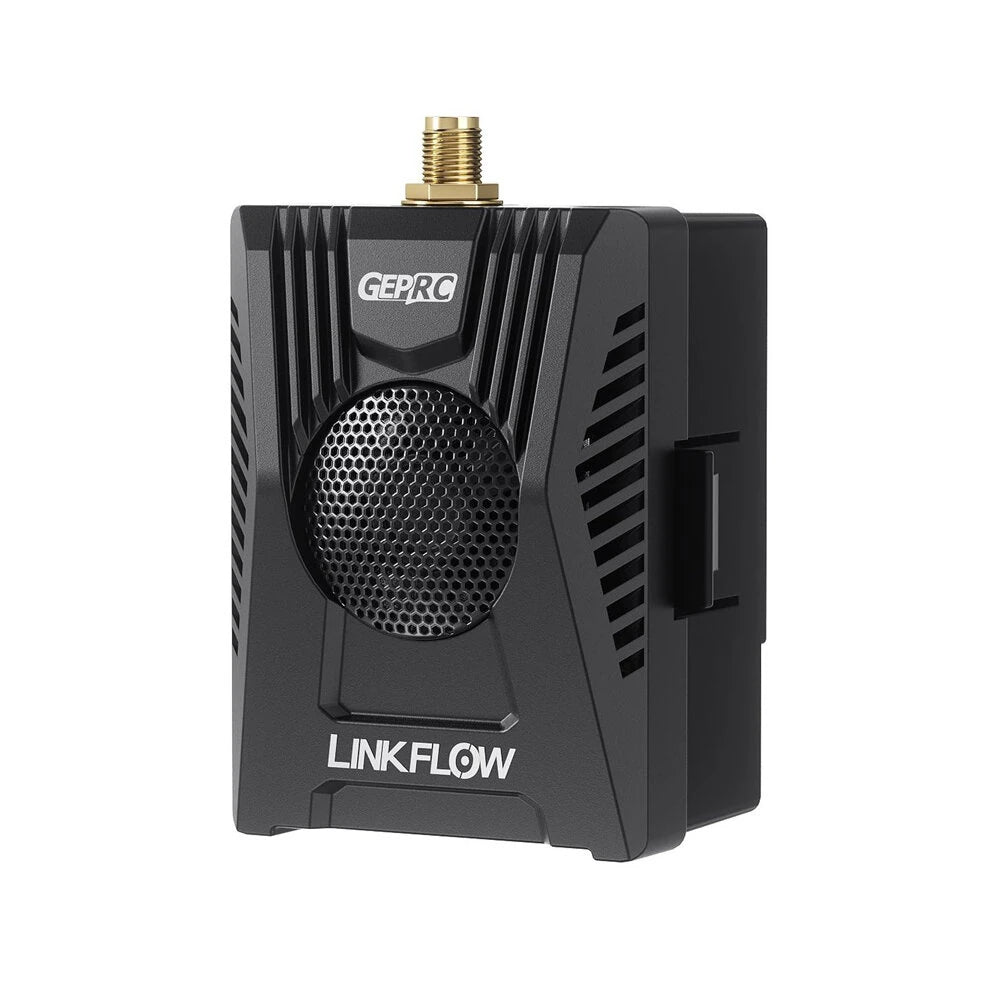

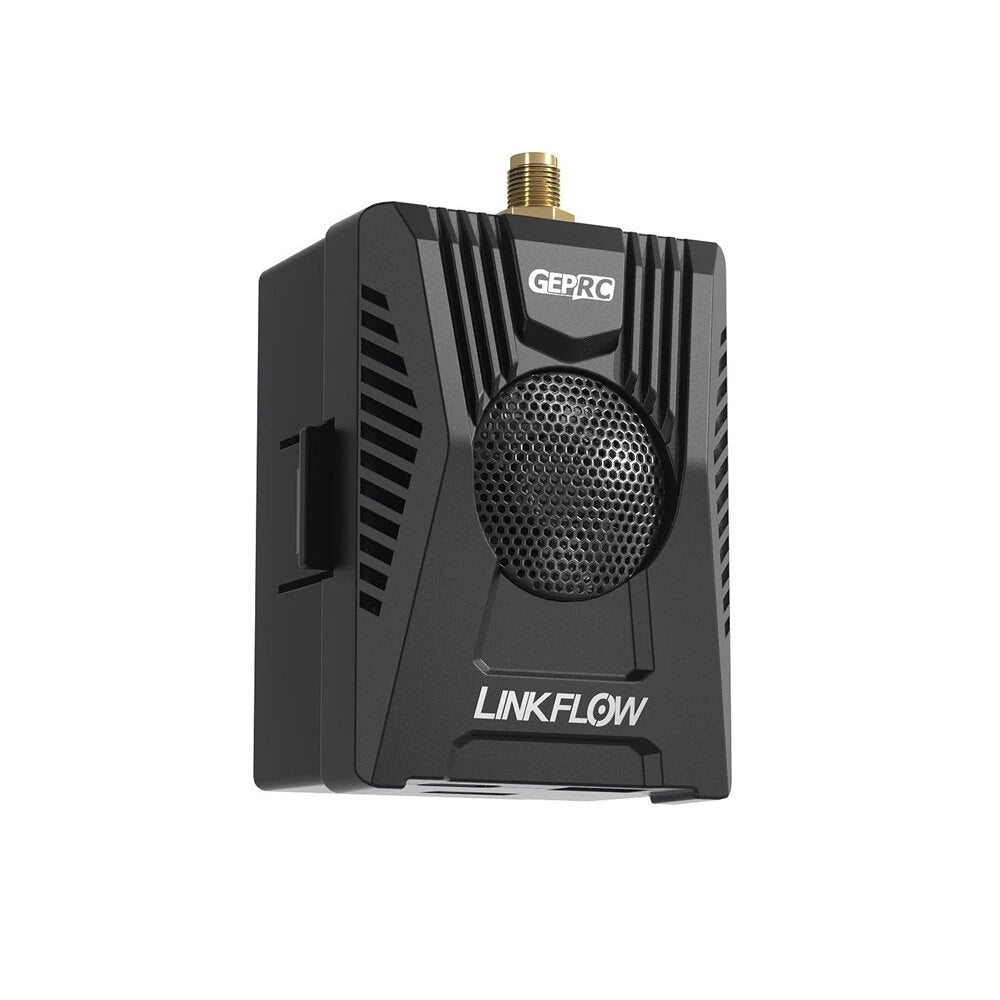

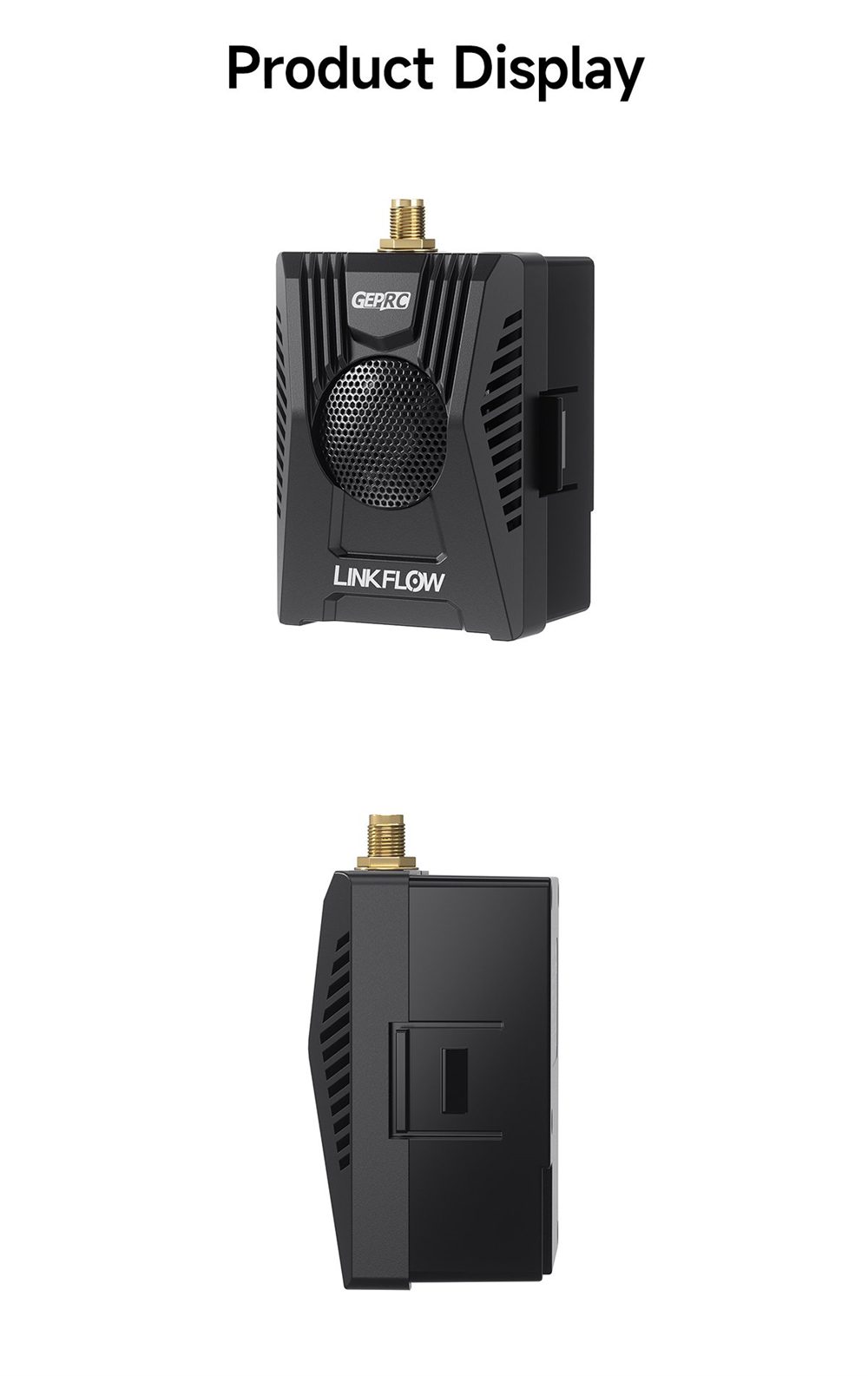

The LINKFLOW 915M TX Module is GEPRC's next-gen product based on the ExpressLRS open-source project. Built on ExpressLRS 3.5 with a standard JR-bay design, it operates on the 868/915MHz frequency band and offers up to 2000mW output power. The built-in fan provides active cooling to lower the operating temperature. A TCXO (temperature-compensated crystal oscillator) ensures stable performance despite temperature fluctuations.

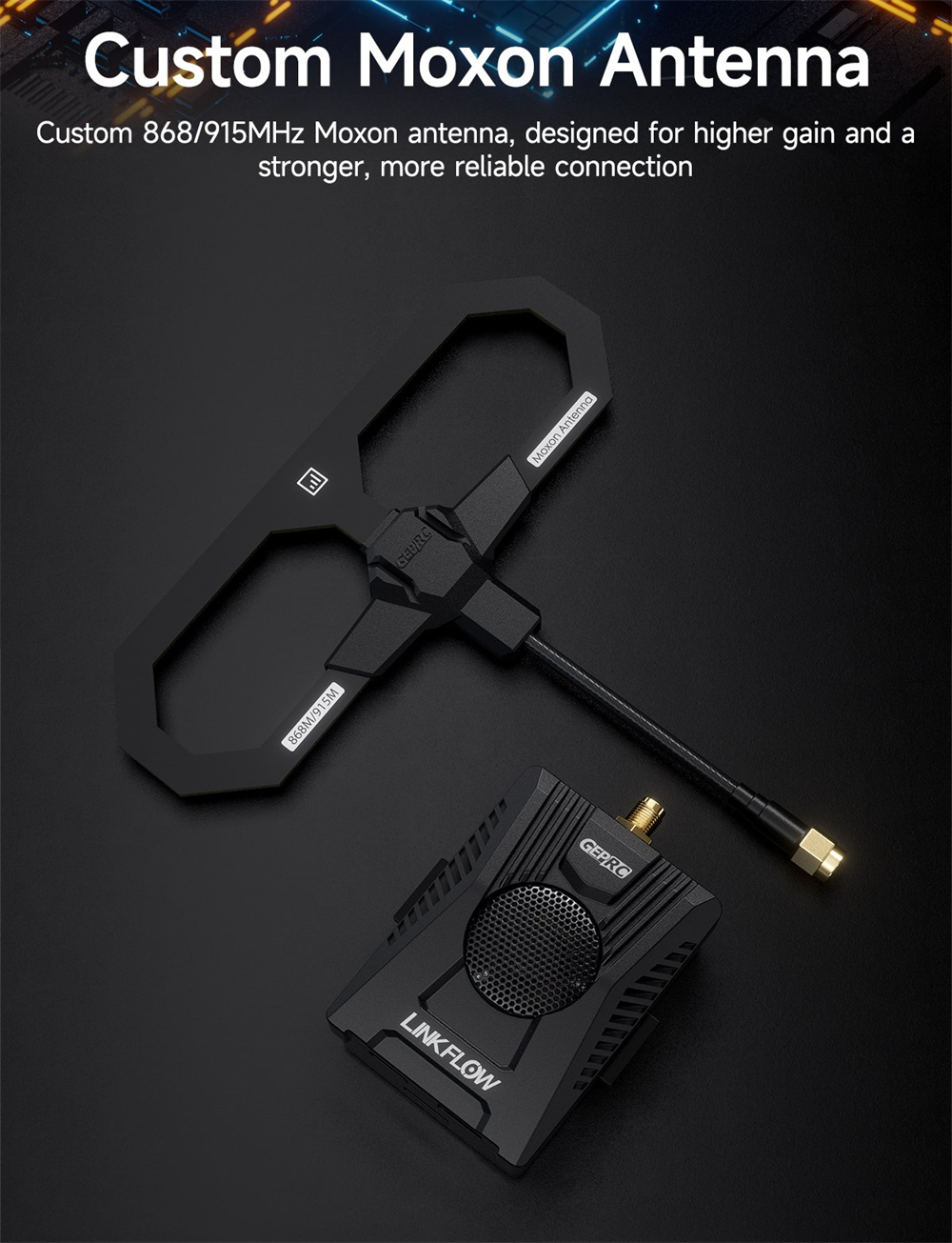

The custom high-gain Moxon antenna improves signal transmission, while the integrated backpack chip enables seamless peripheral connectivity. It also features a UART port for relay or high-power receiver setups.

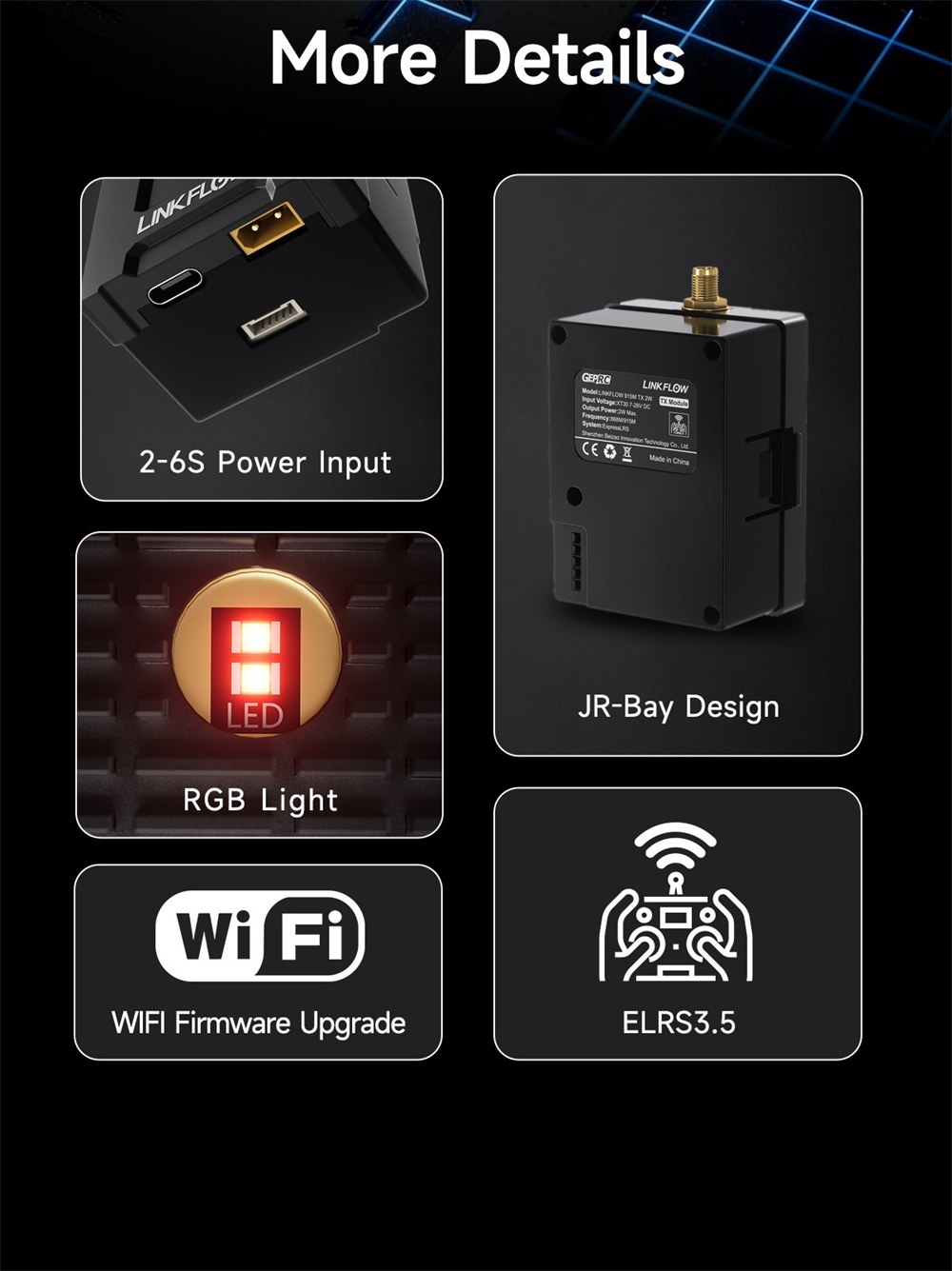

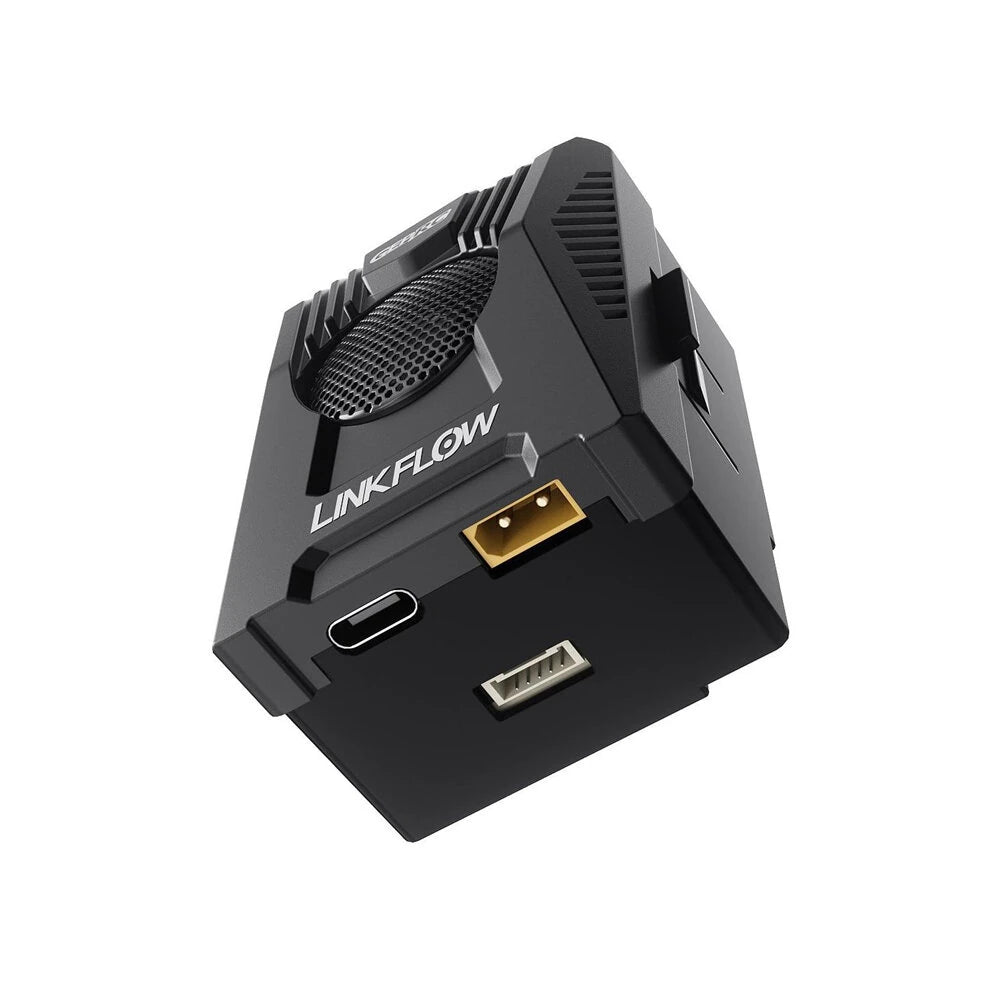

The LINKFLOW 915M TX Module comes with an RGB status indicator, an XT30 connector for 2-6S battery power, and supports USB and WiFi firmware updates.

Feature:
1. Next-gen ExpressLRS TX module that features a standard JR bay design;
2. Supports 868/915MHz with up to 2000mW output power;

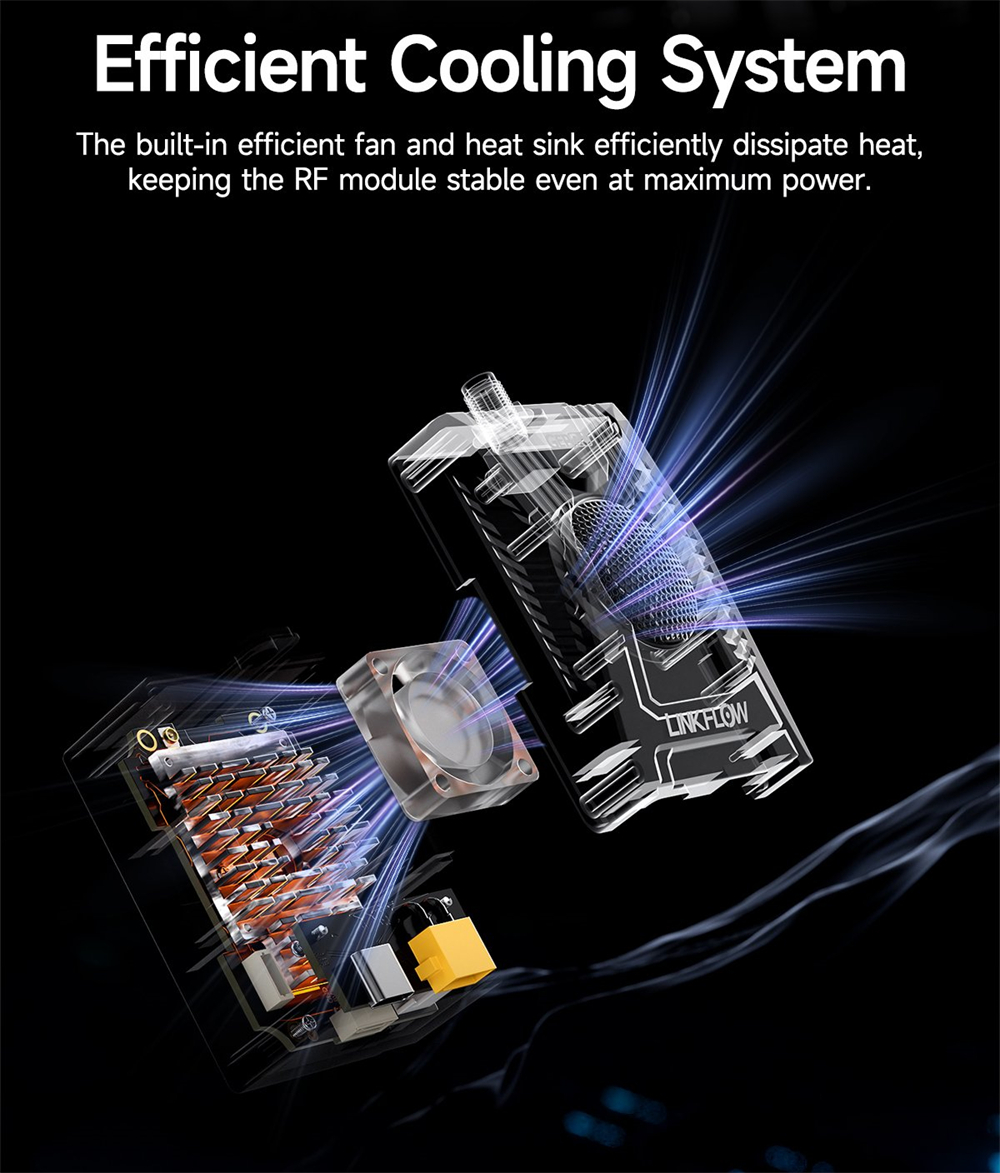

3. Active cooling with a built-in high-speed fan;
4. Equipped with a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures;

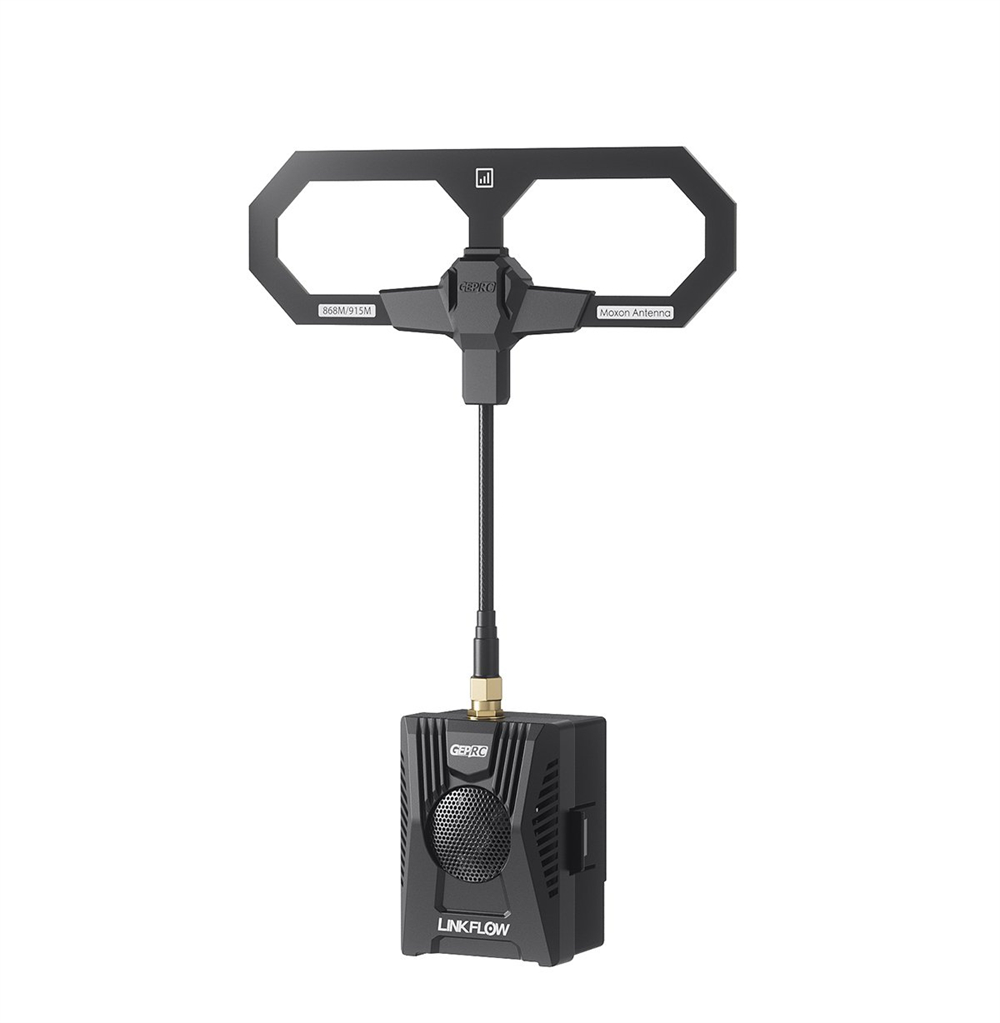

5. Custom Moxon antenna for enhanced signal transmission;
6. Integrated backpack chip enables direct peripheral connectivity;

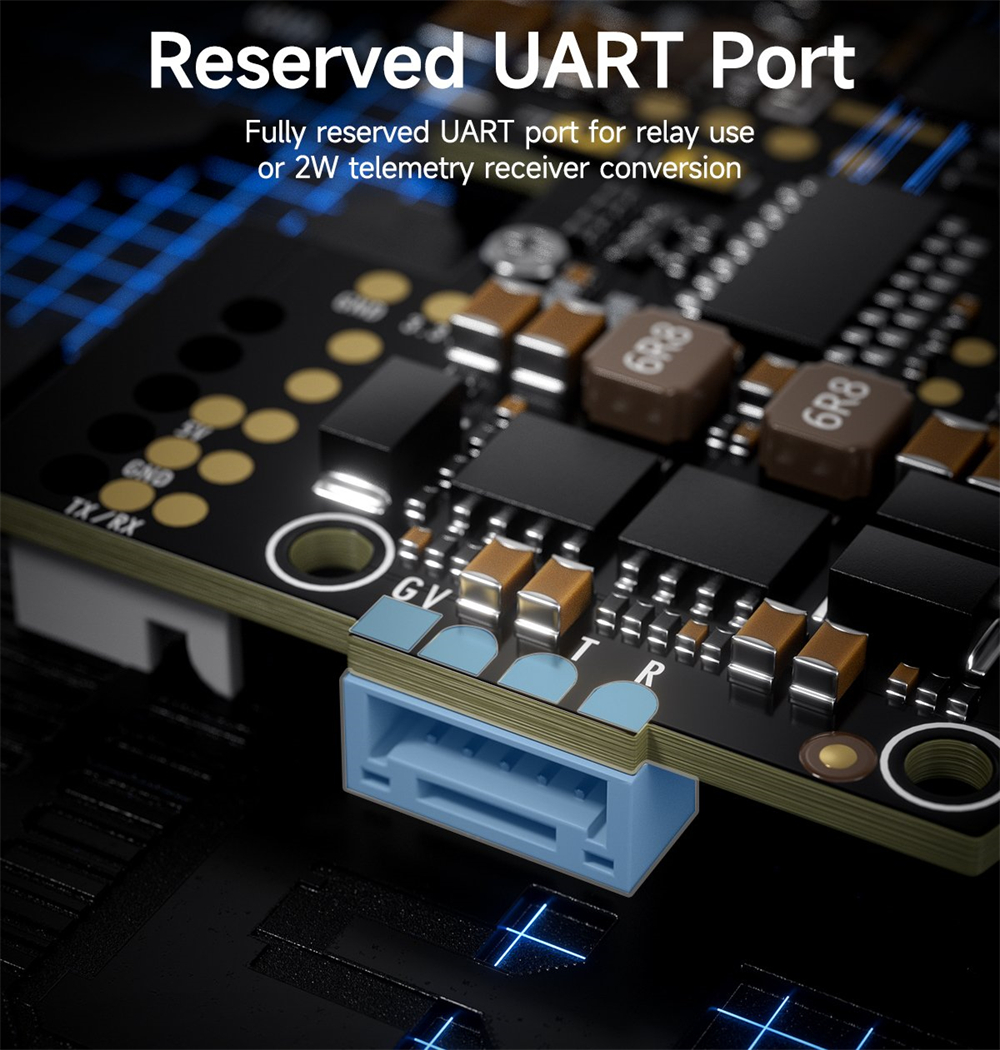

7. Dedicated UART port for relay setups or high-power receivers;
8. Runs on external 2-6S power;
9. RGB status indicator;
10. Easy firmware updates via USB or WiFi.

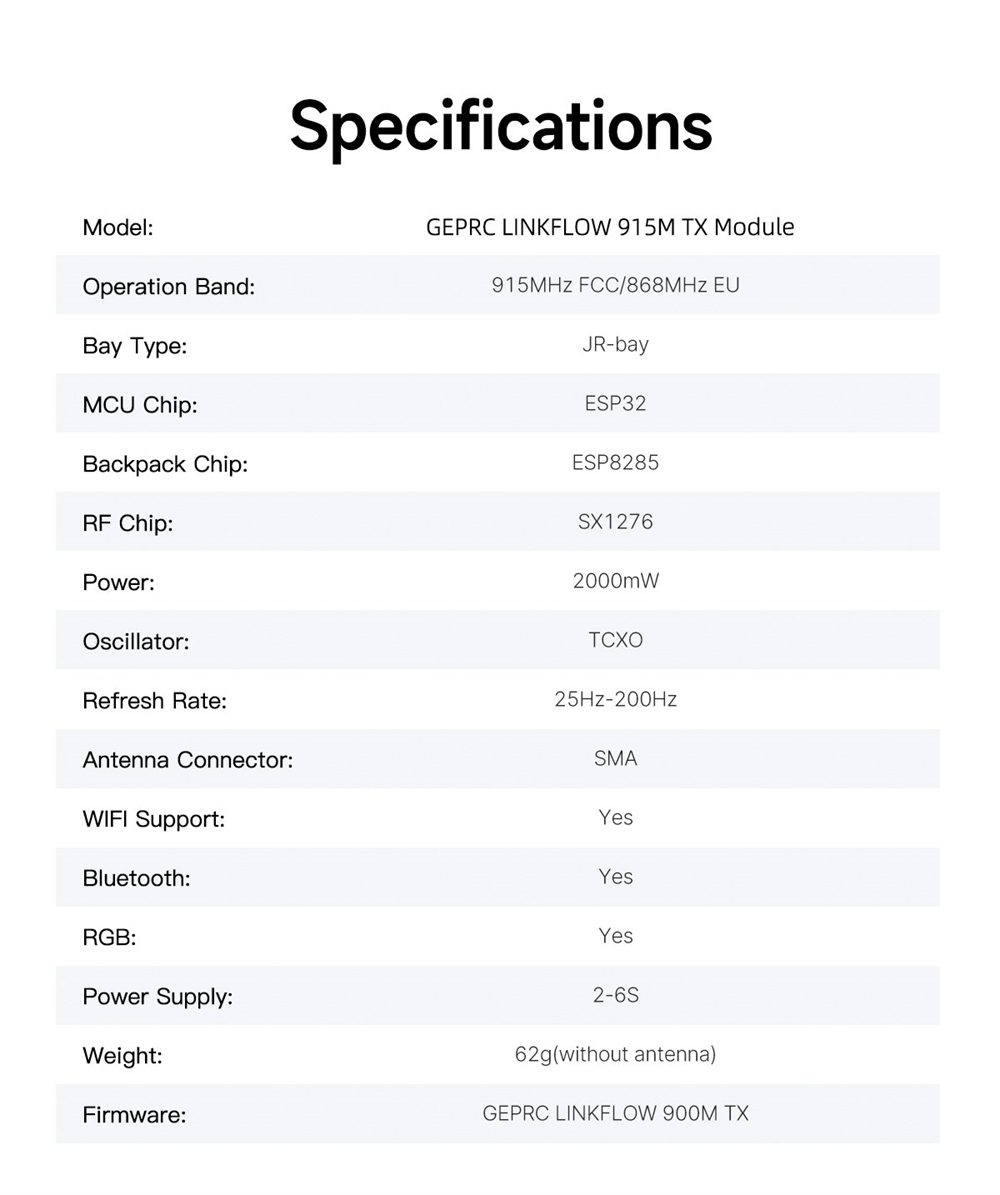

Specification:
Brand: GEPRC

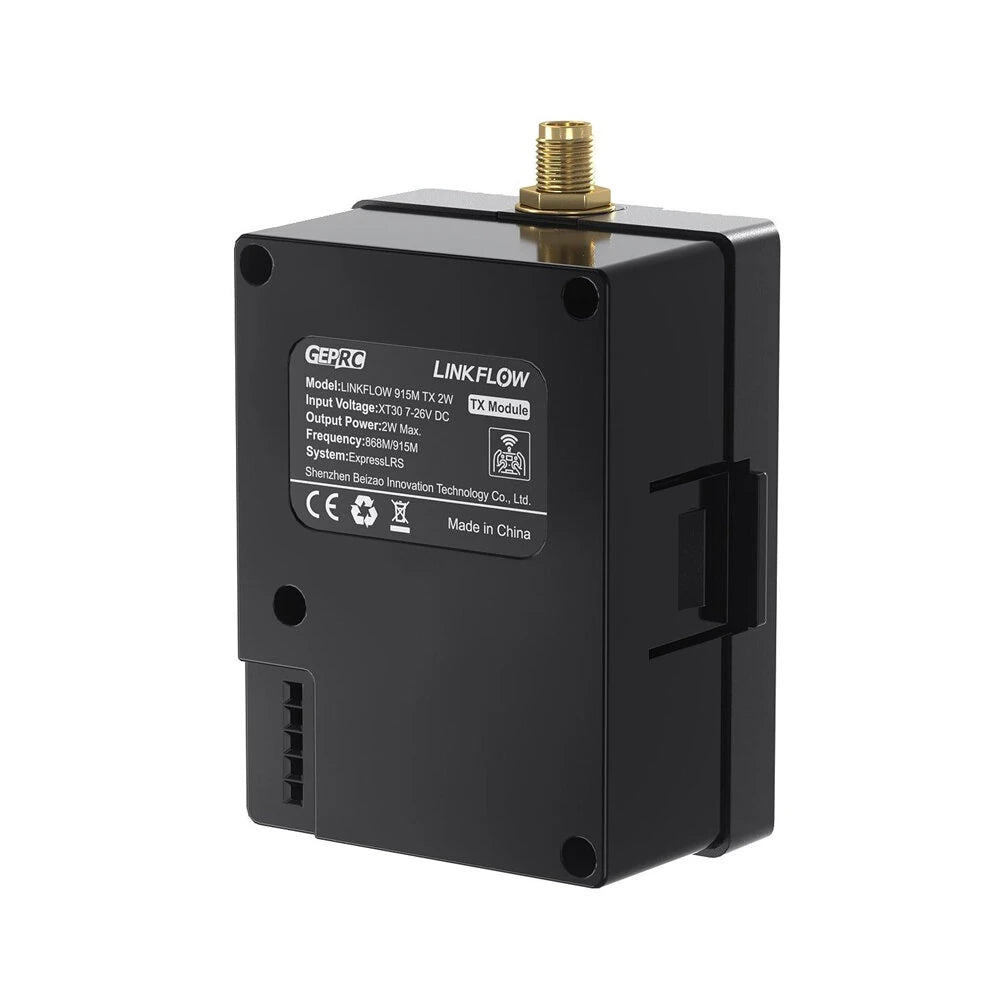

Model: LINKFLOW 915M TX Module
Operation Band: 915MHz FCC/868MHz EU
Module Type: JR-Bay
Main Chip: ESP32
Backpack Chip: ESP8285
RF Chip: SX1276
Power: 2000mW
Oscillator: TCXO
Refresh Rate: 25 Hz-200 Hz
Antenna Connector: SMA
WIFI Support: Yes
Bluetooth: Yes
RGB: Yes
Power Supply: 2-6S
Weight: 62g(without antenna)
Firmware: GEPRC LINKFLOW 900M TX

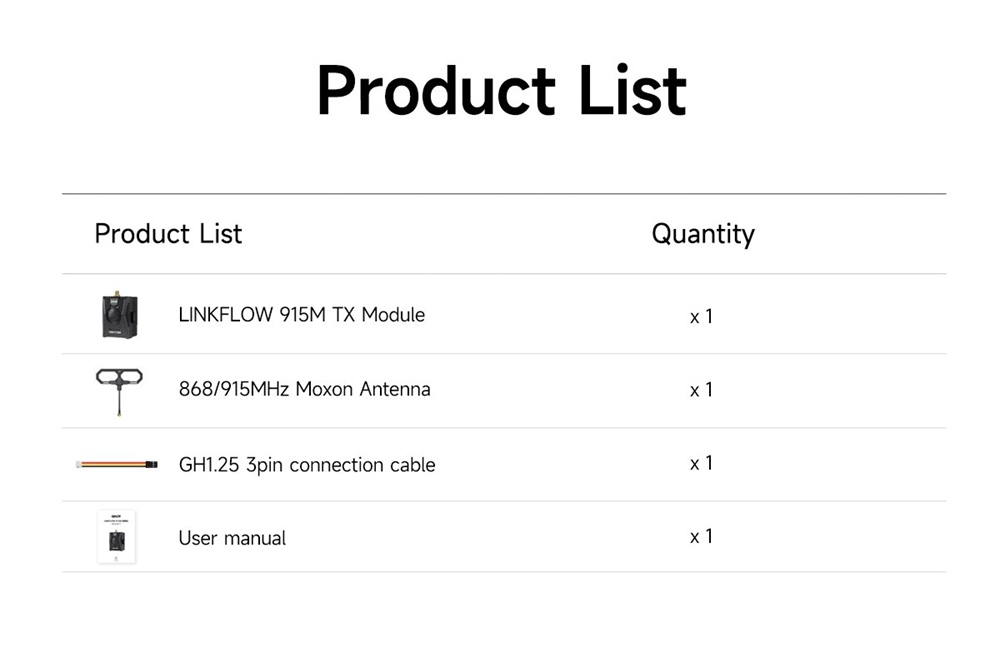

Package included:
1 x LINKFLOW 915M TX Module
1 x 868/915MHz Moxon Antenna
1 x GH1.25 3pin connection cable
1 x User manual
