Description
Description:

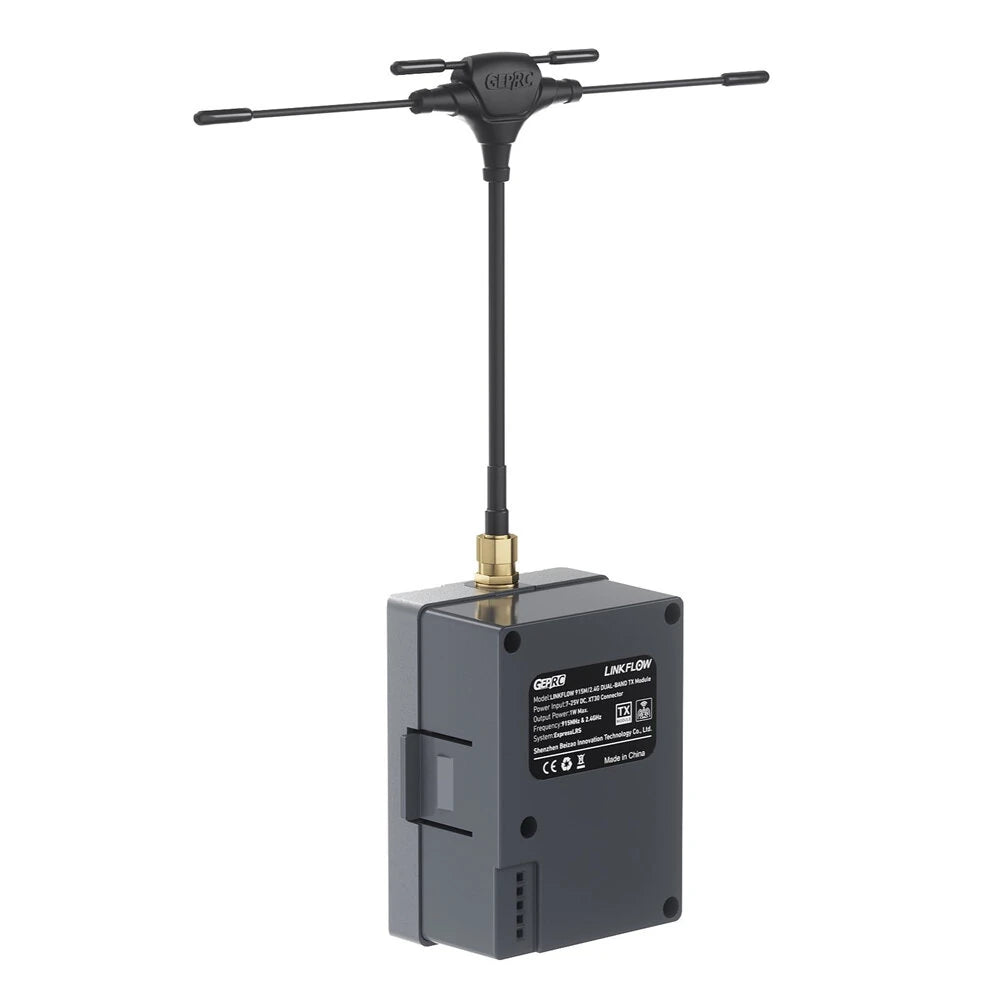

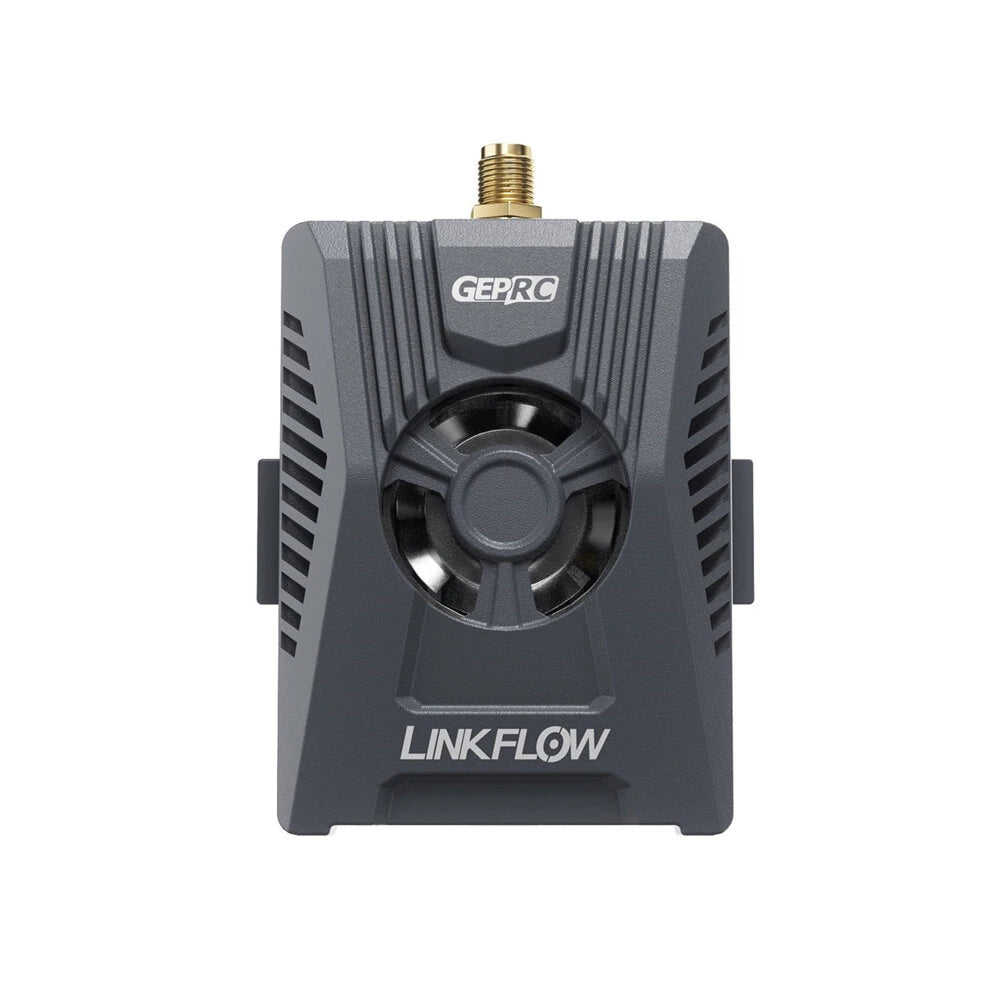

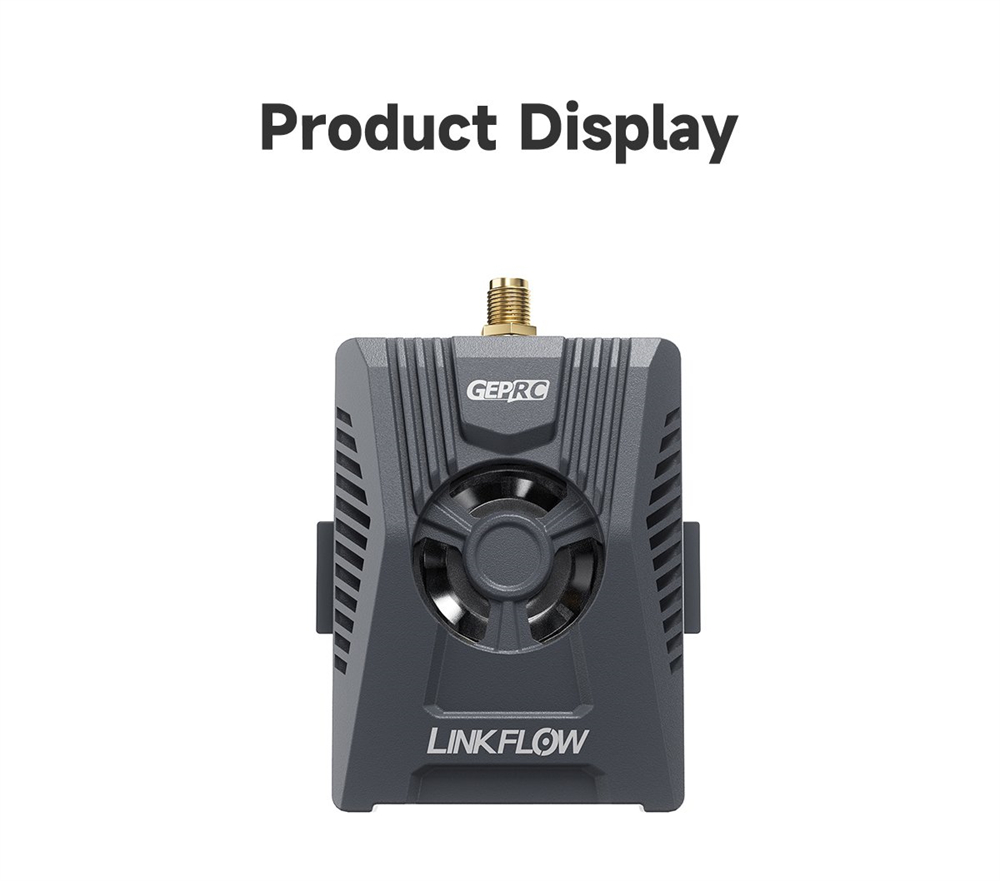

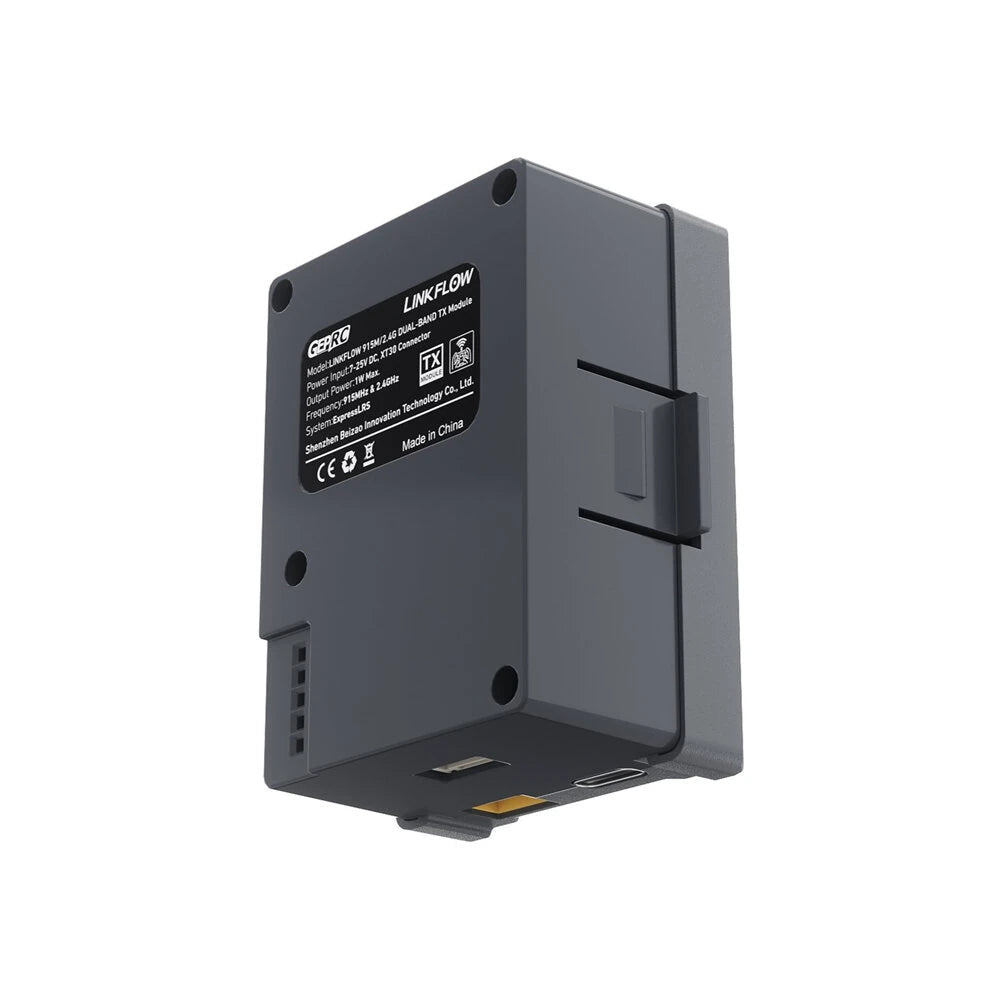

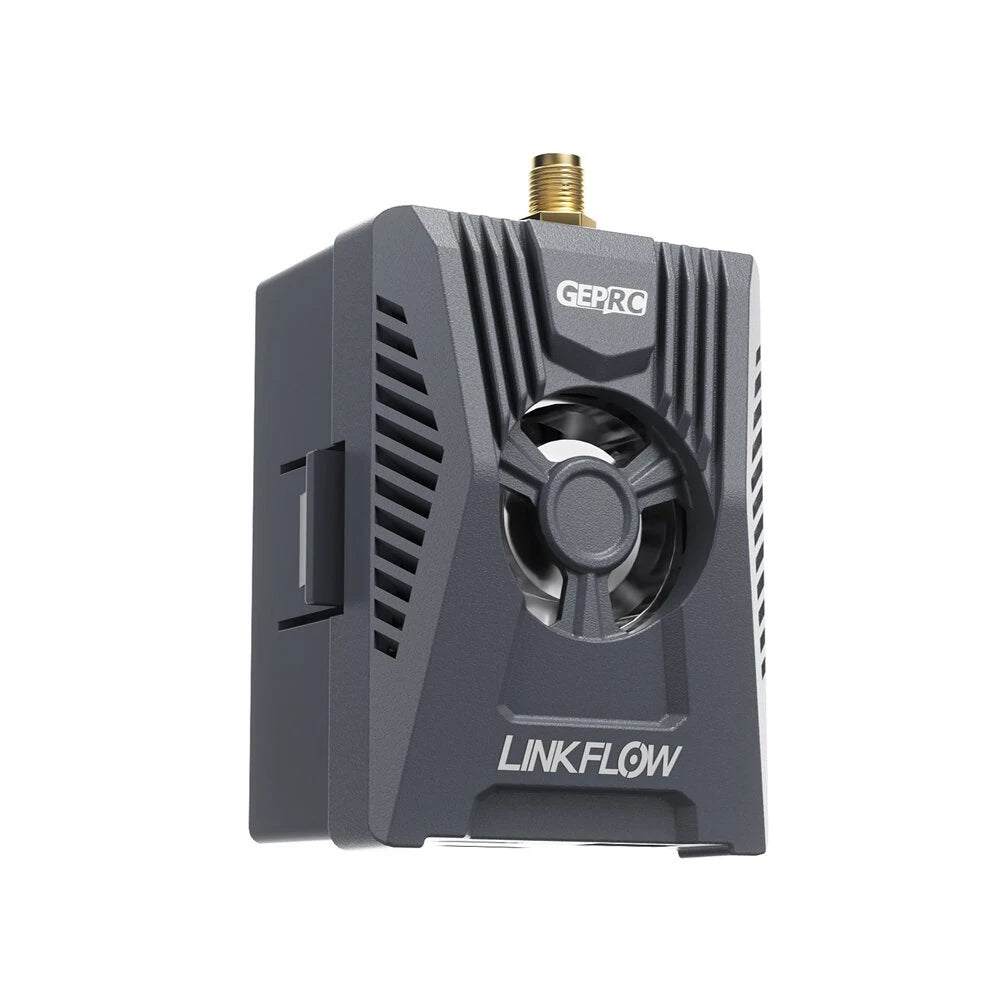

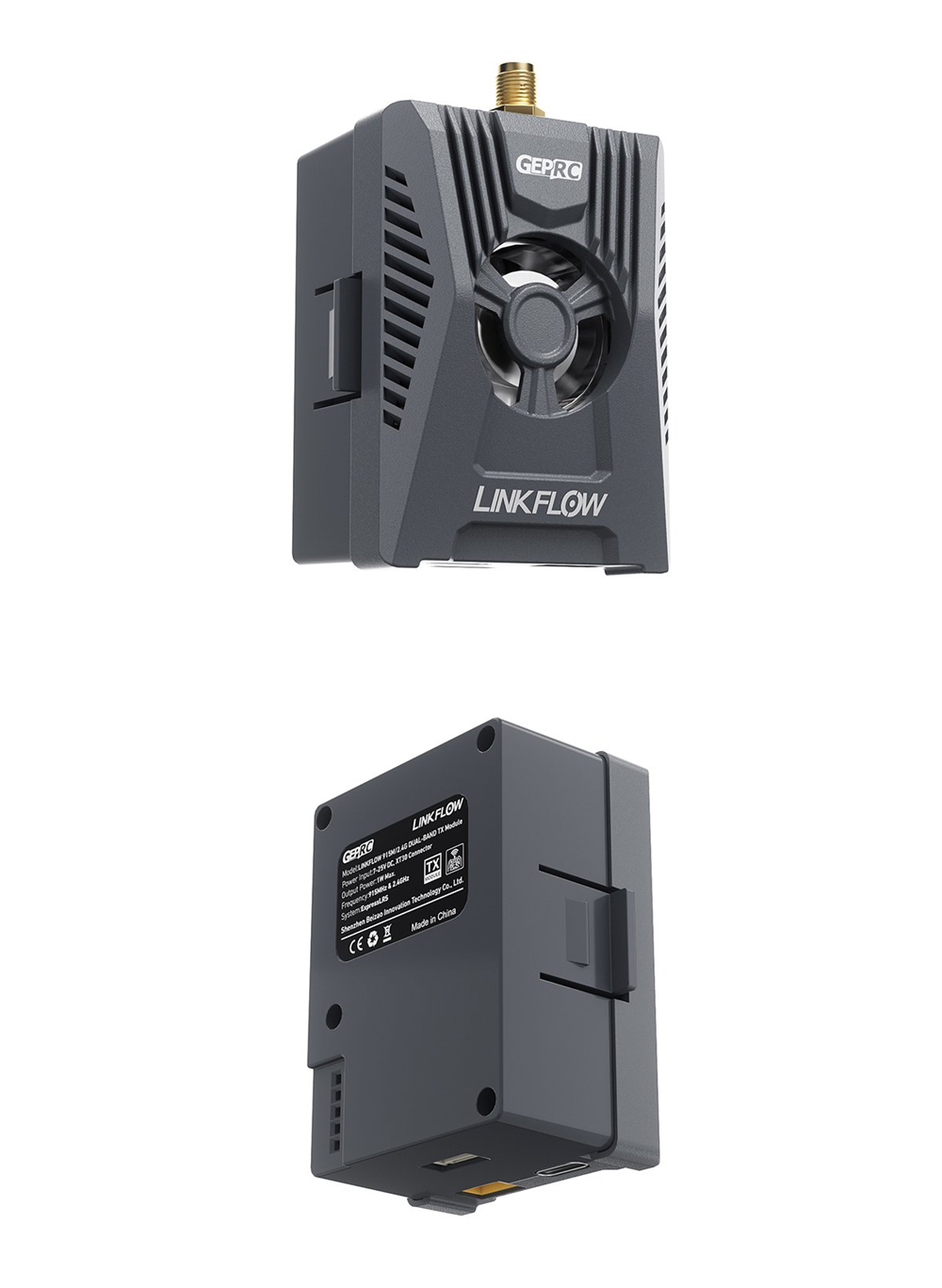

Developed by the GEPRC team based on the open-source ExpressLRS project, the next-generation LINKFLOW 915M/2.4G DUAL-BAND TX Module is officially released.

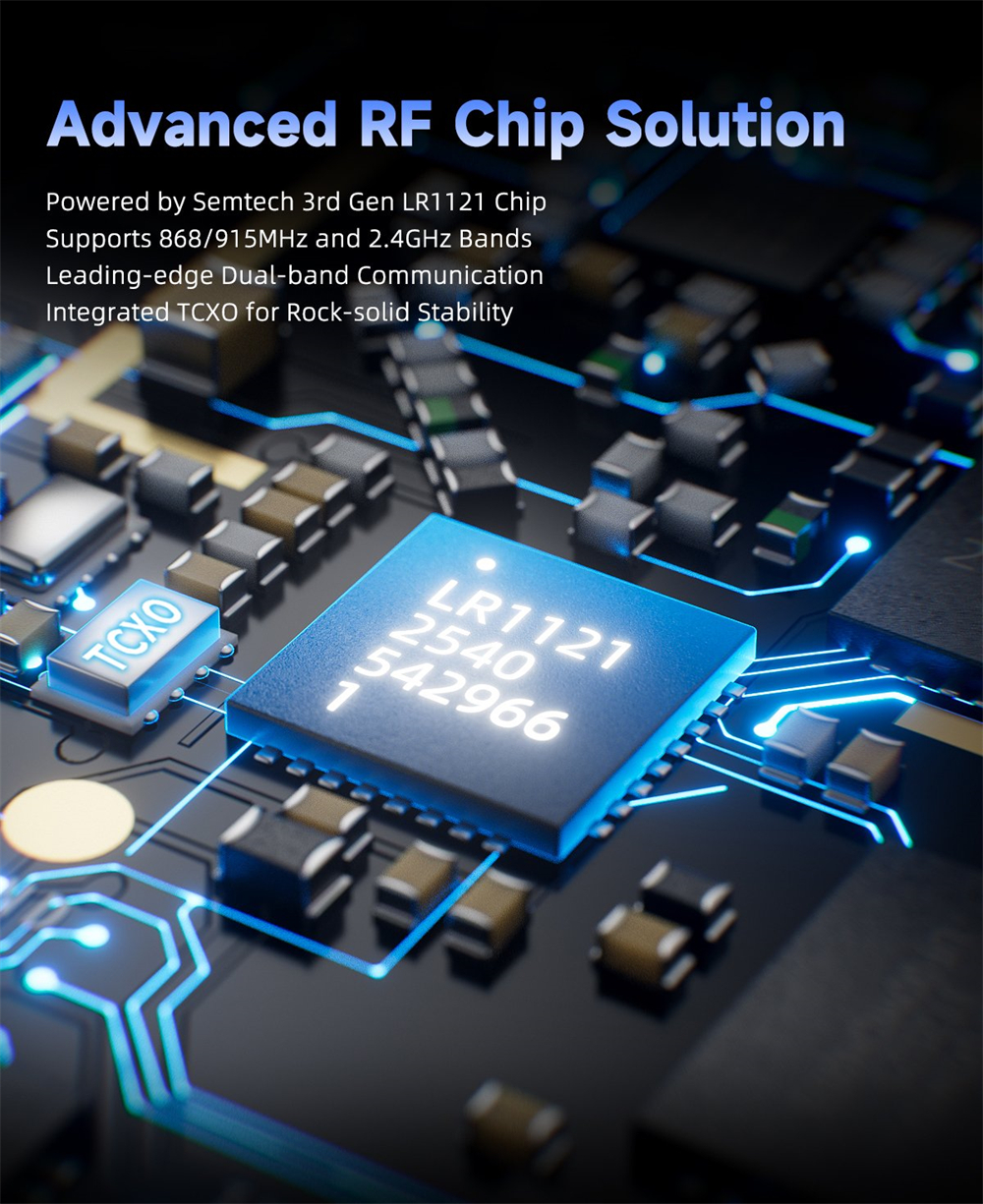

It features a standard JR bay form factor and is built around the Semtech third-generation LR1121 RF chip, supporting 868/915MHz and 2.4GHz frequency bands to deliver advanced dual-band communication performance.

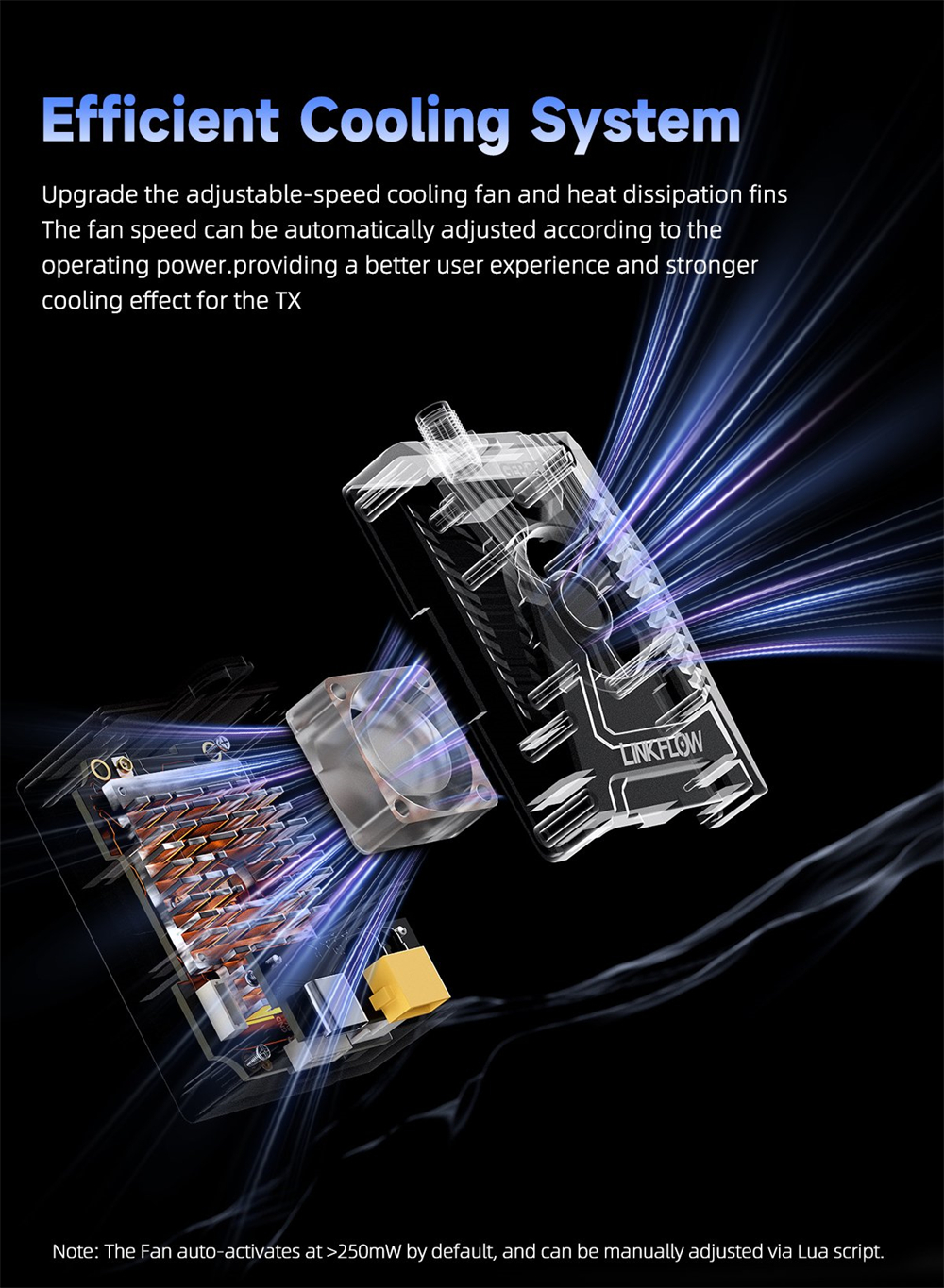

With a maximum output power of up to 1000mW, combined with an adjustable-speed cooling fan for efficient heat dissipation, the module effectively reduces operating temperature during high-power transmission.
A TCXO is used to minimize frequency drift caused by temperature changes, ensuring long-term system stability and reliable performance.

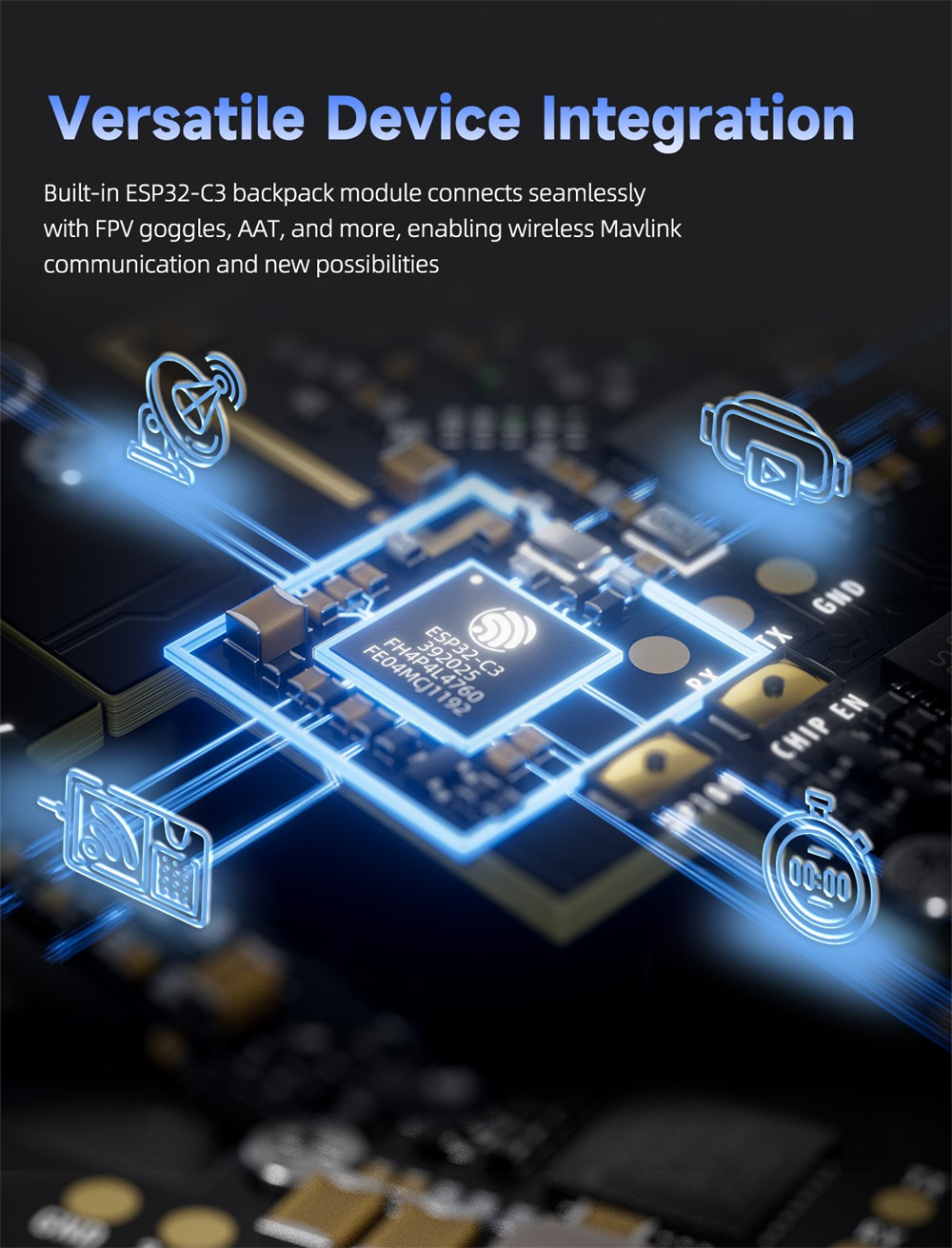

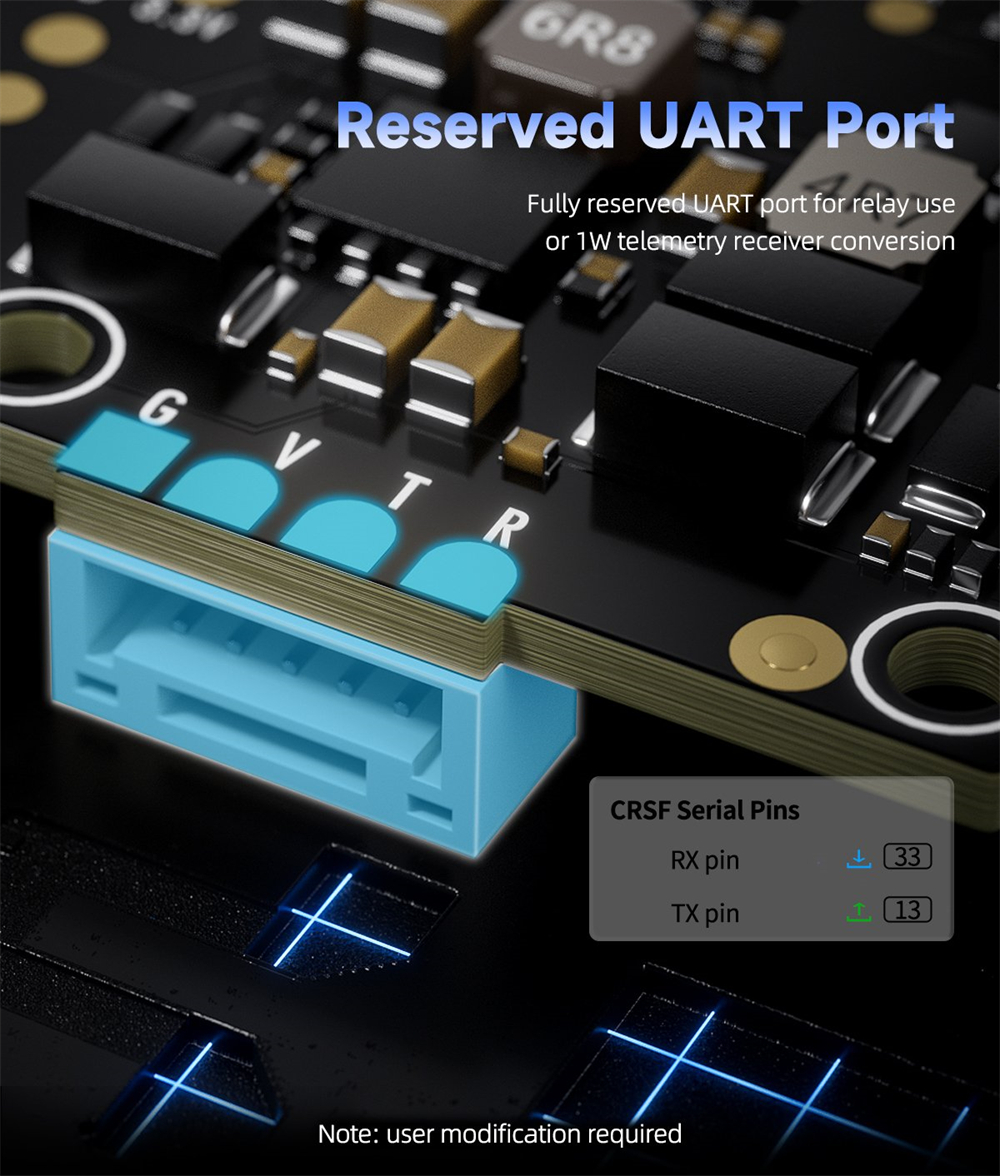

The module integrates a backpack chip, enabling linkage with various peripherals and expanding functional possibilities. A reserved UART port is also provided, allowing the module to be used as a communication repeater or configured as a high-power receiver.

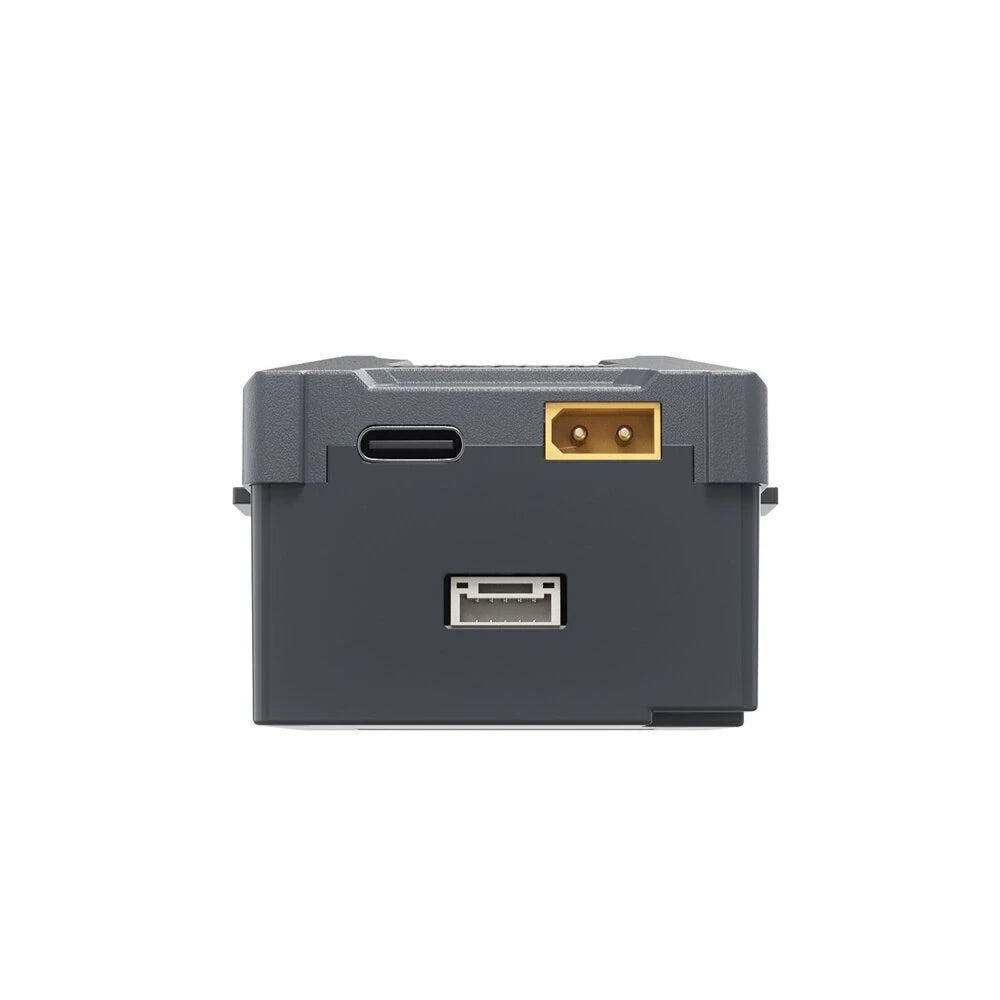

In addition, the LINKFLOW 915M/2.4G DUAL-BAND TX Module features RGB LEDs for system status indication, an XT30 power input supporting 2–6S, and supports firmware upgrades via USB and WiFi, offering flexible and user-friendly operation.
Feature:
- Next-gen ExpressLRS TX module that features a standard JR bay design
- Built on Semtech's third-generation LR1121 RF chip
- Supports 868M/915M, 2.4G operating mode
- Up to 1000mW output power
- Active cooling with a built-in high-speed fan
- Equipped with a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures
- Integrated backpack chip for enhanced peripheral interaction
- Reserved UART port for repeater use or high-power receiver configuration
- Supports 2–6S external battery input
- RGB LEDs for system status indication
- Easy firmware updates via USB or WiFi

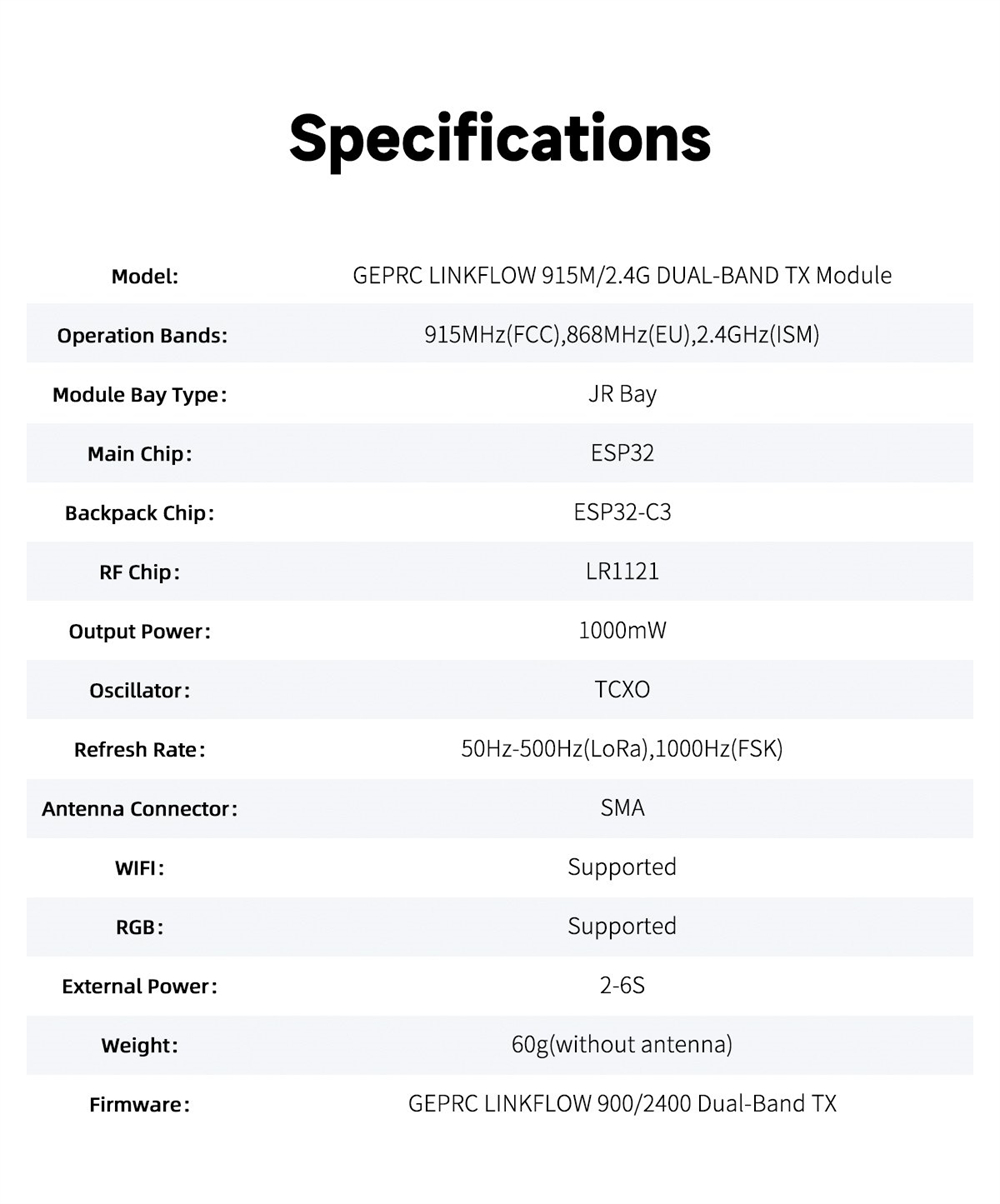

Specification:
Brand: GEPRC
Model: LINKFLOW 915M/2.4G DUAL-BAND TX Module
Operation Bands: 915MHz(FCC), 868MHz(EU), 2.4GHz(ISM)
Module Bay Type: JR Bay
Main Chip: ESP32
Backpack Chip: ESP32-C3
RF Chip: LR1121
Output Power: 1000mW
Oscillator: TCXO
Refresh Rate: 50Hz-500Hz(LoRa),1000Hz(FSK)
Antenna Connector: SMA
Wi-Fi: Supported
RGB Indicator: Supported
External Power: 2-6S
Weight: 60g(without antenna)
Firmware: GEPRC LINKFLOW 900/2400 Dual-Band TX

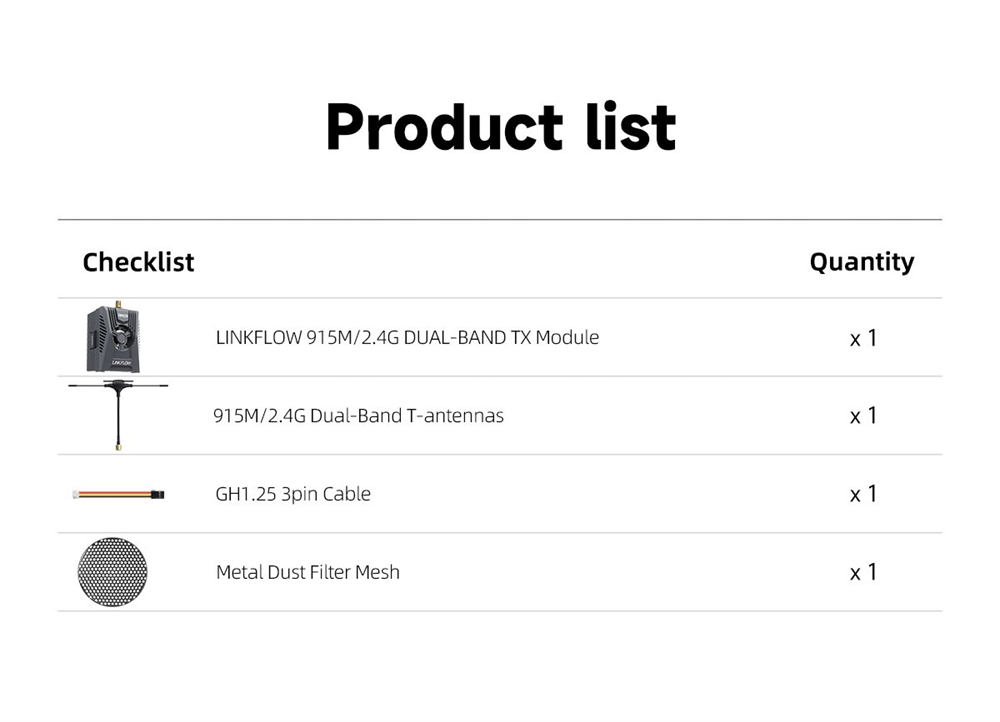

Package included:
1* Geprc LINKFLOW 915M/2.4G DUAL-BAND TX Module

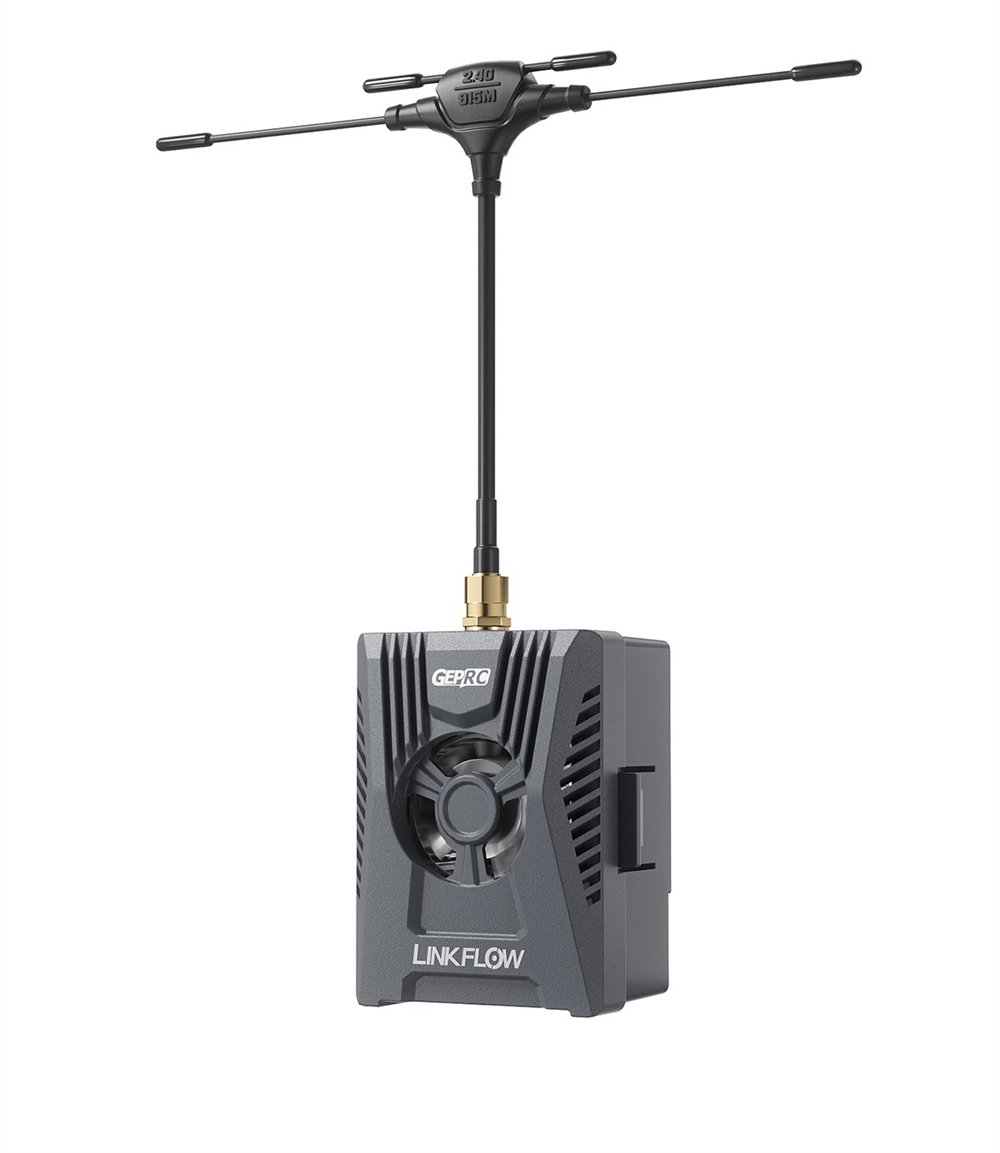

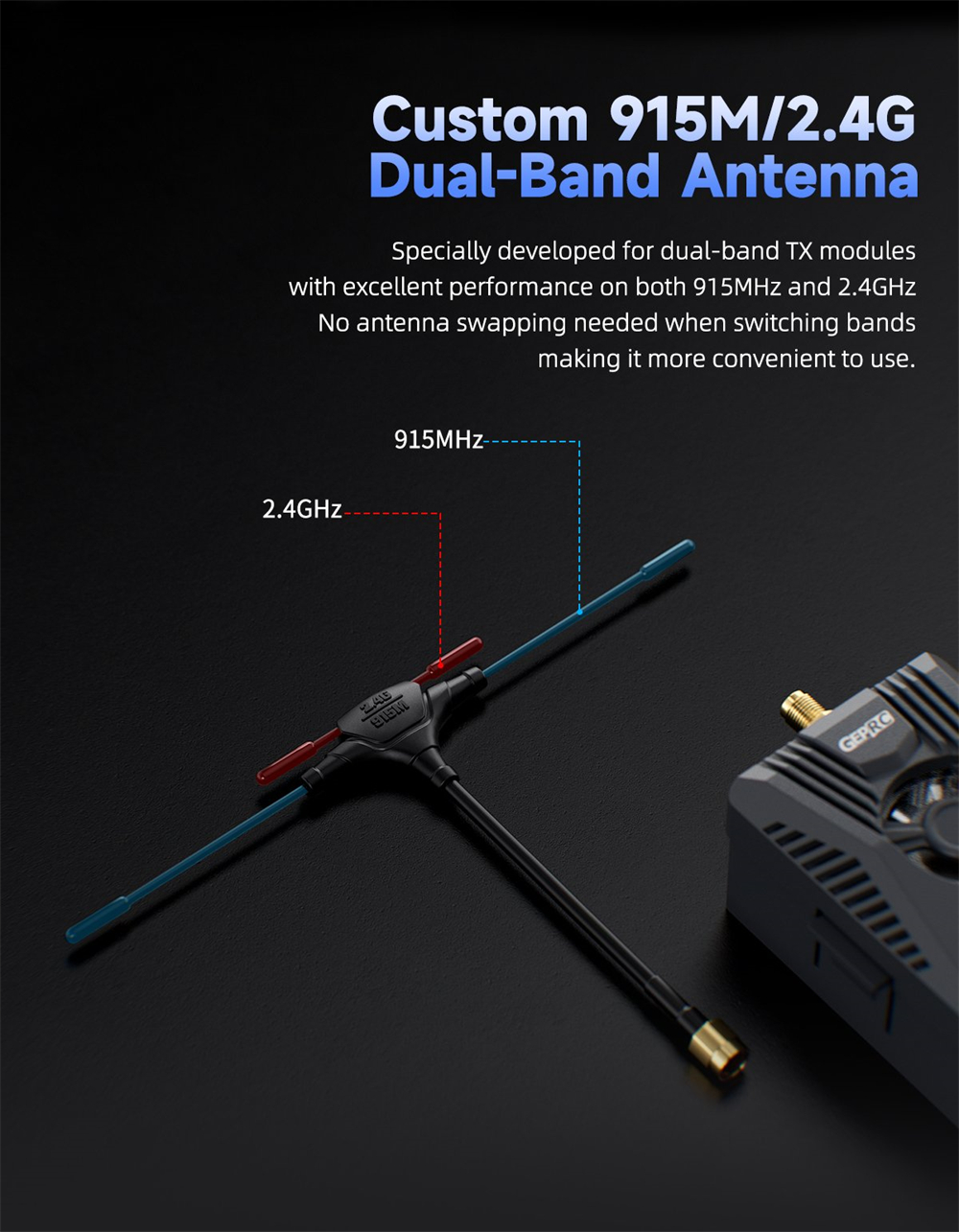

1* 915M/2.4G Dual-Band T-antennas
1* GH1.25 3pin Cable
1* Metal Dust Filter Mesh
1* User manual
