Description

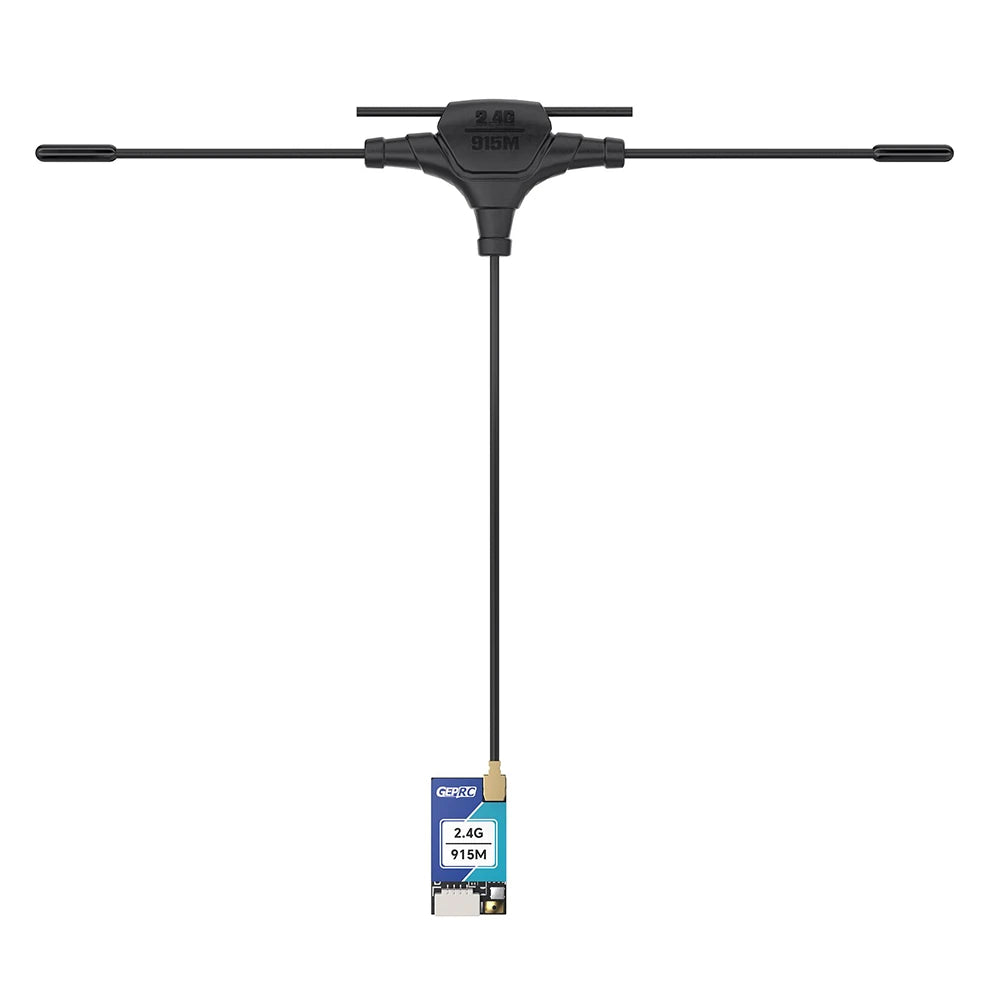

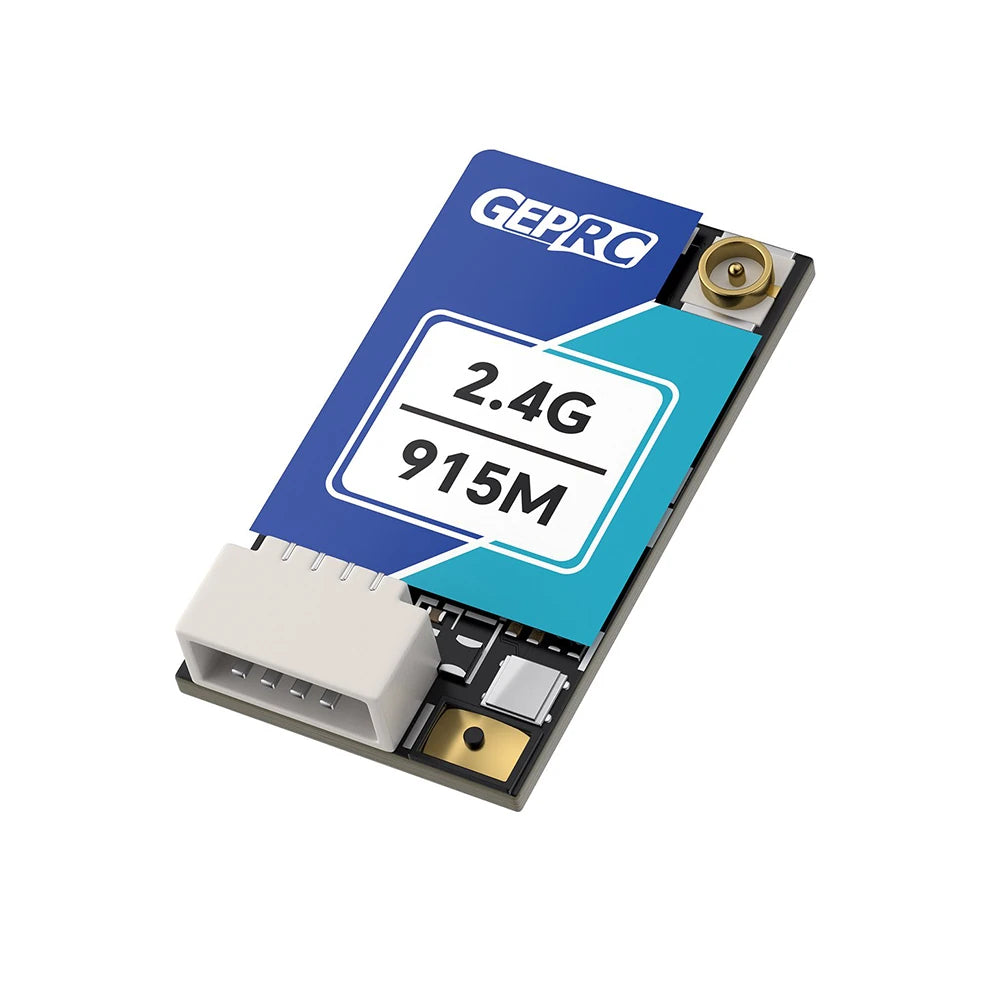

GEPRC ELRS Nano 915M/2.4G Dual-Band ExpressLRS Open-Source T-Antenna Receiver for FPV Racer Drones
Description:
The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a new Dual-Band system developed from the ExpressLRS open-source project. It is designed based on Semtech's third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for Dual-Band transmission.
The ELRS Nano 915M/2.4G Dual-Band Receiver features dual LR1121 chips, allowing easy switching between 915M , 2.4G when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.
The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.
Specifications:
Brand: GEPRC
Model: ELRS Nano 915M/2.4G Dual-Band Receiver

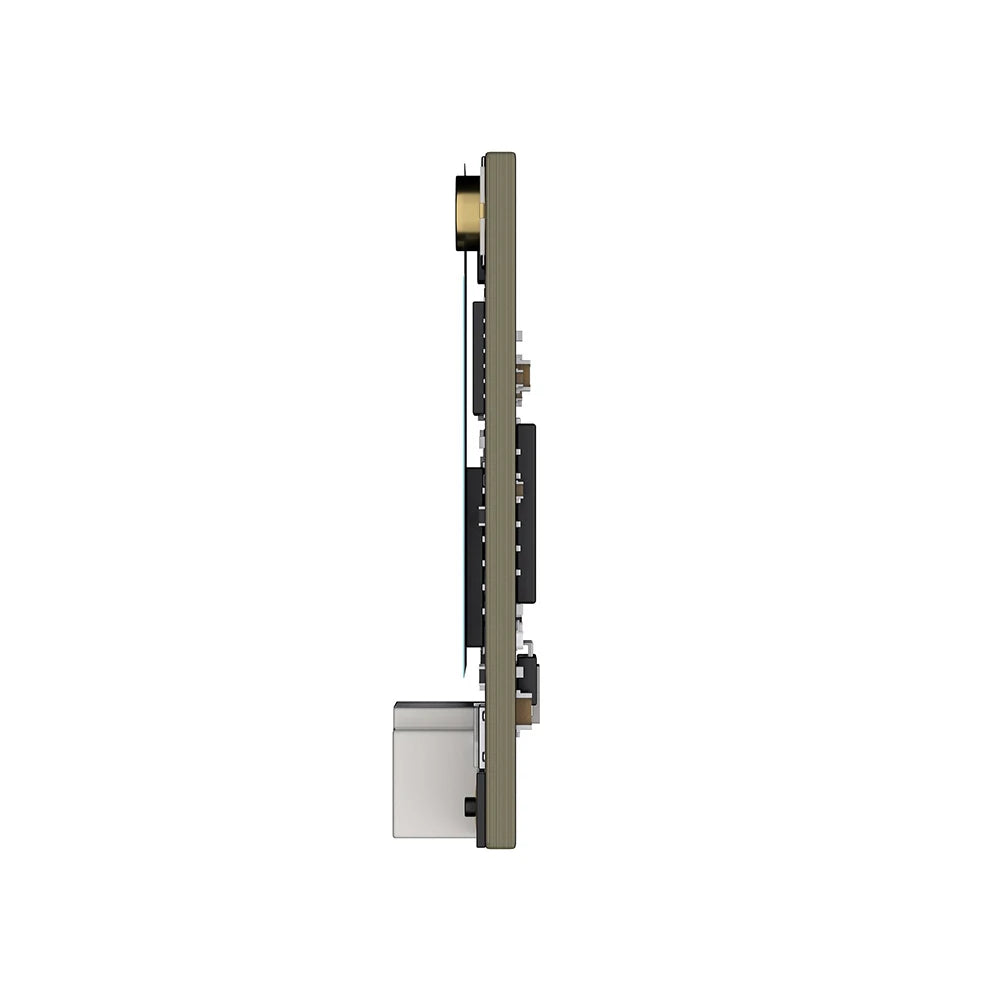

Dimension: 11.1×20.4×5.2mm
Weight: 0.95g (only receiver)

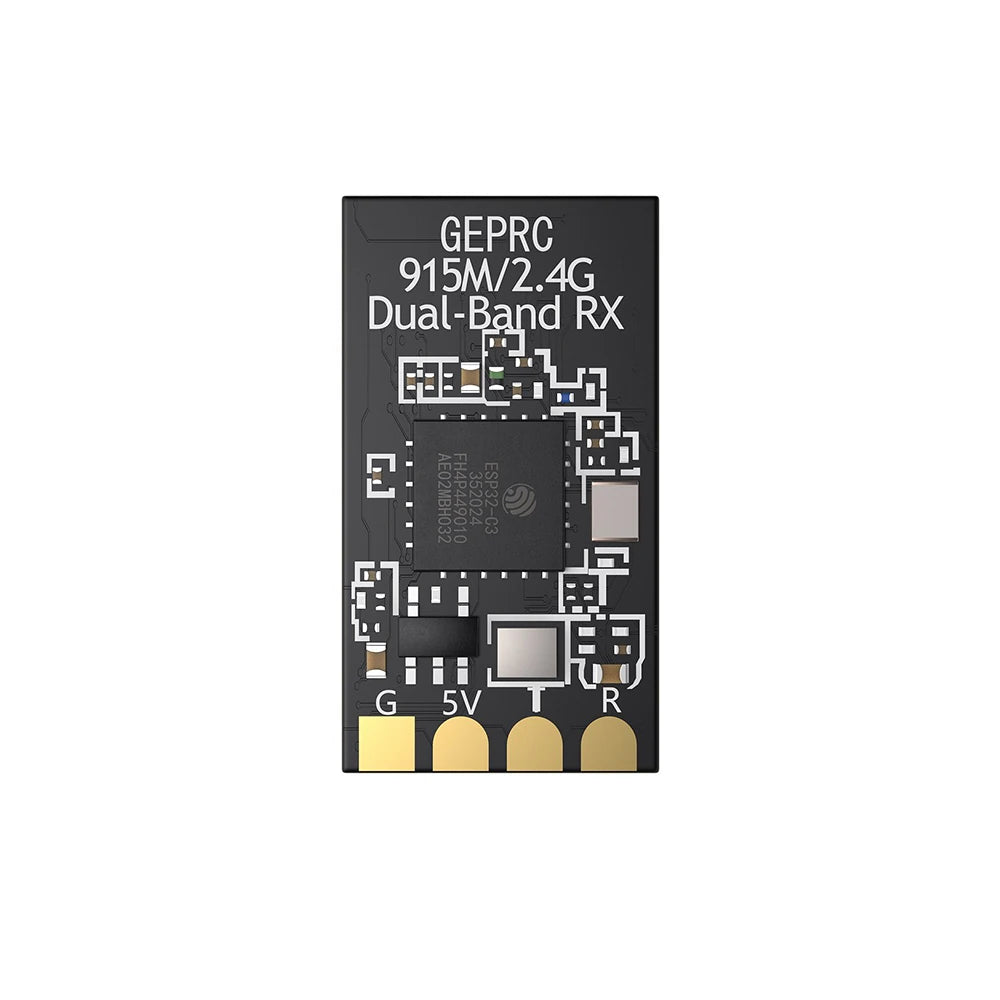

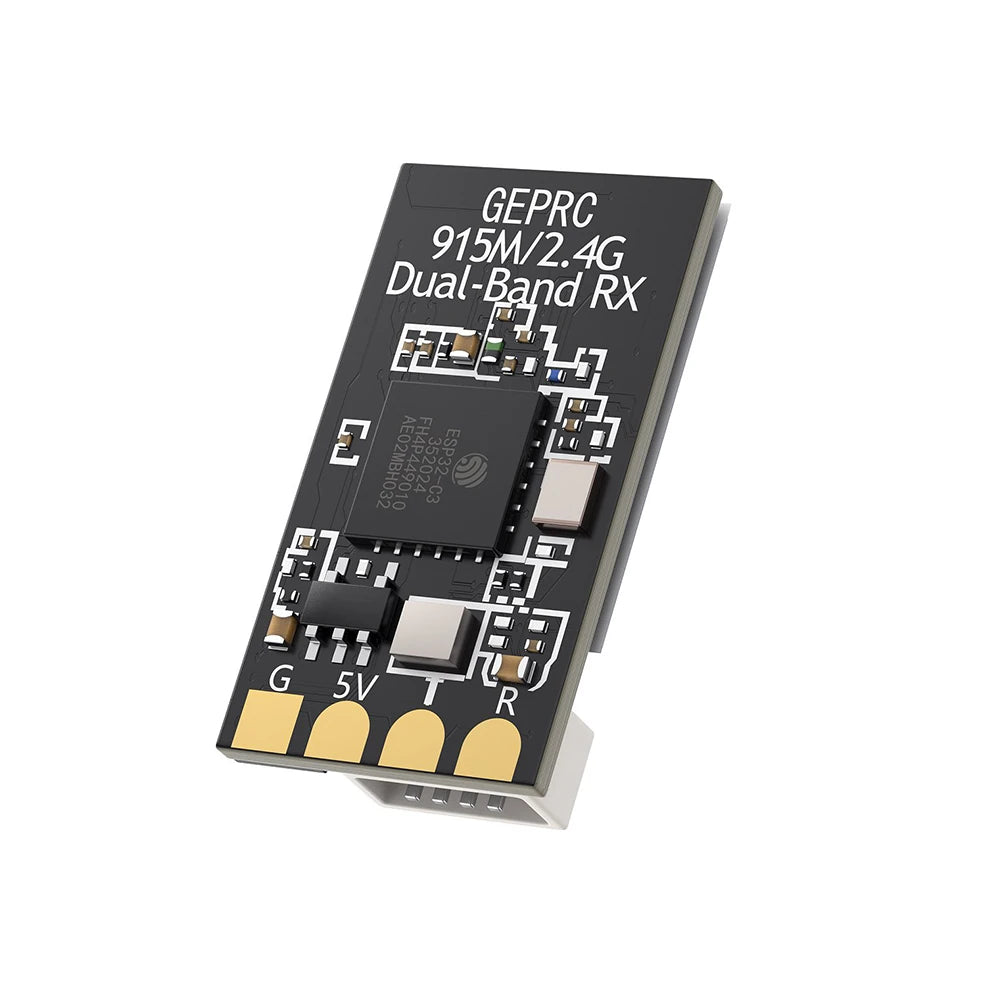

Chips: ESP32-C3, LR1121
Crystal Oscillator: TCXO
Frequency Bands: 915MHz(FCC),868MHz(EU),2.4GHz(ISM)
Refresh Rate: 25Hz-1000Hz
Operating Voltage: 5V
Antenna Connector: ipex1
TLM Power: 100mW
Firmware: GEPRC 900/2400 Single Dual-Band RX
Feature:
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 11.1×20.4×5.2mm and weighing just 0.95g
- Supports 915M, 2.4G operating mode
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- TLM up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Package included:
1 x GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver
1 x 915M/2.4G Dual-Band T-antennas
1 x Heat Shrink Tube
1 x 4-pin Silicone Connect Cable
1 x User Manual
