Description
Description:

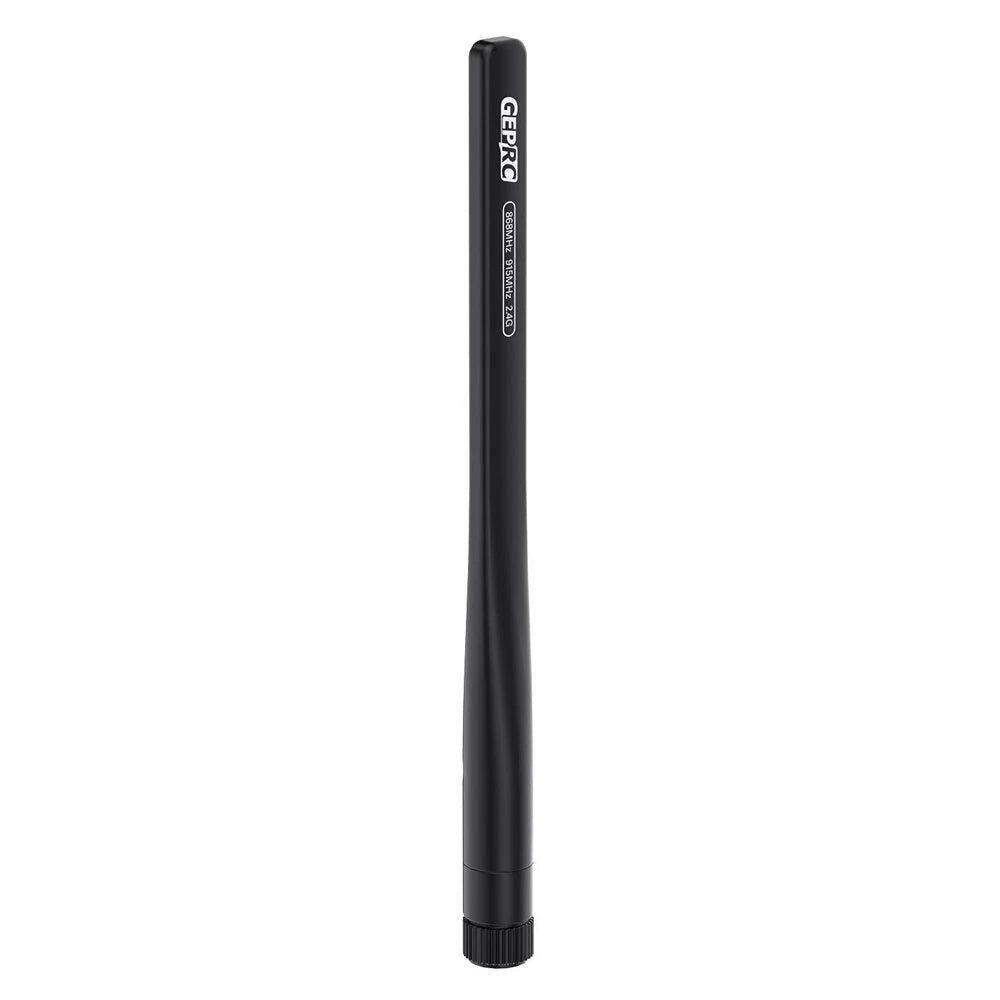

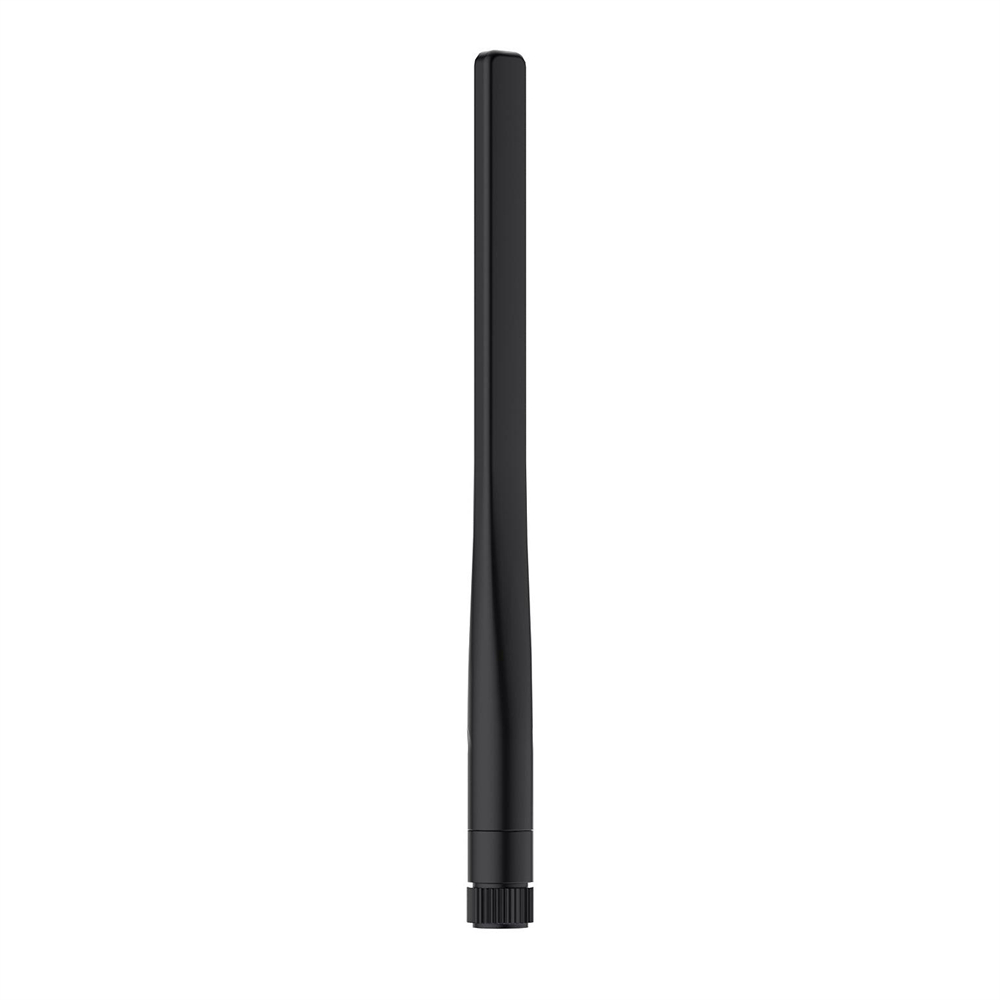

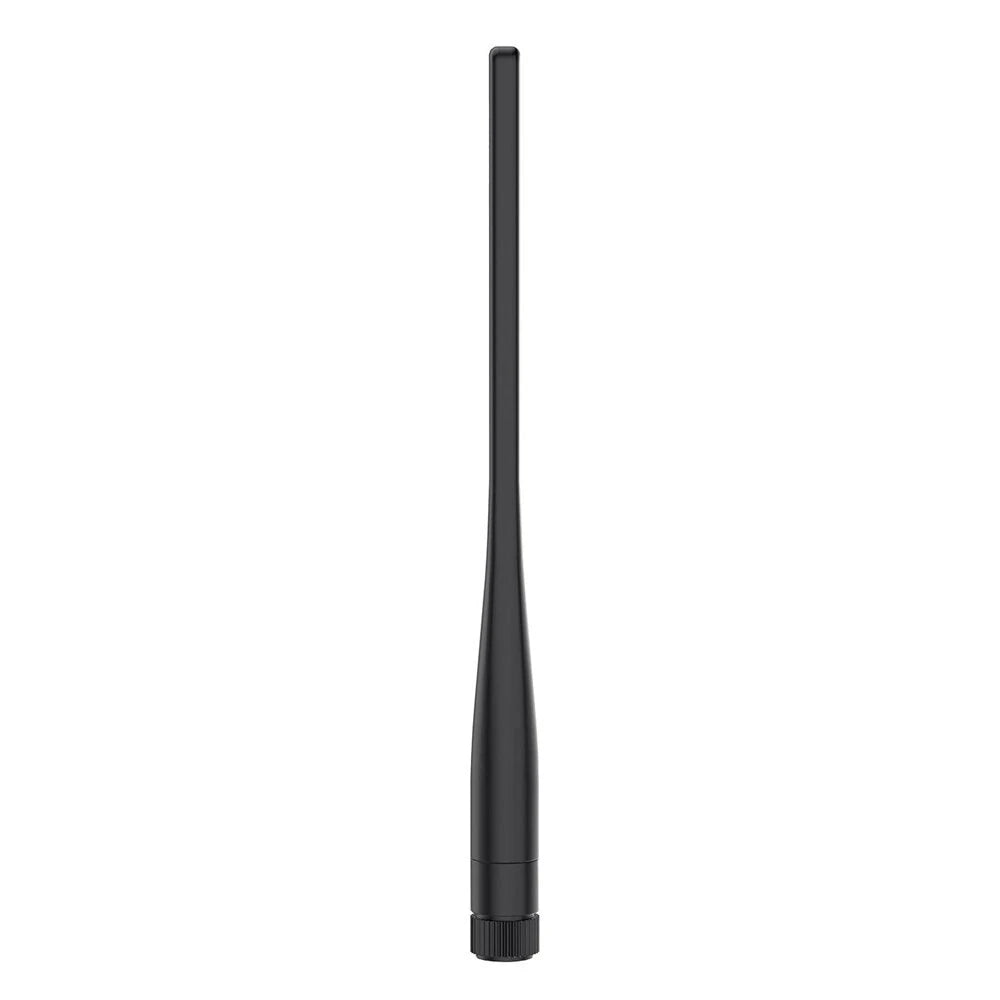

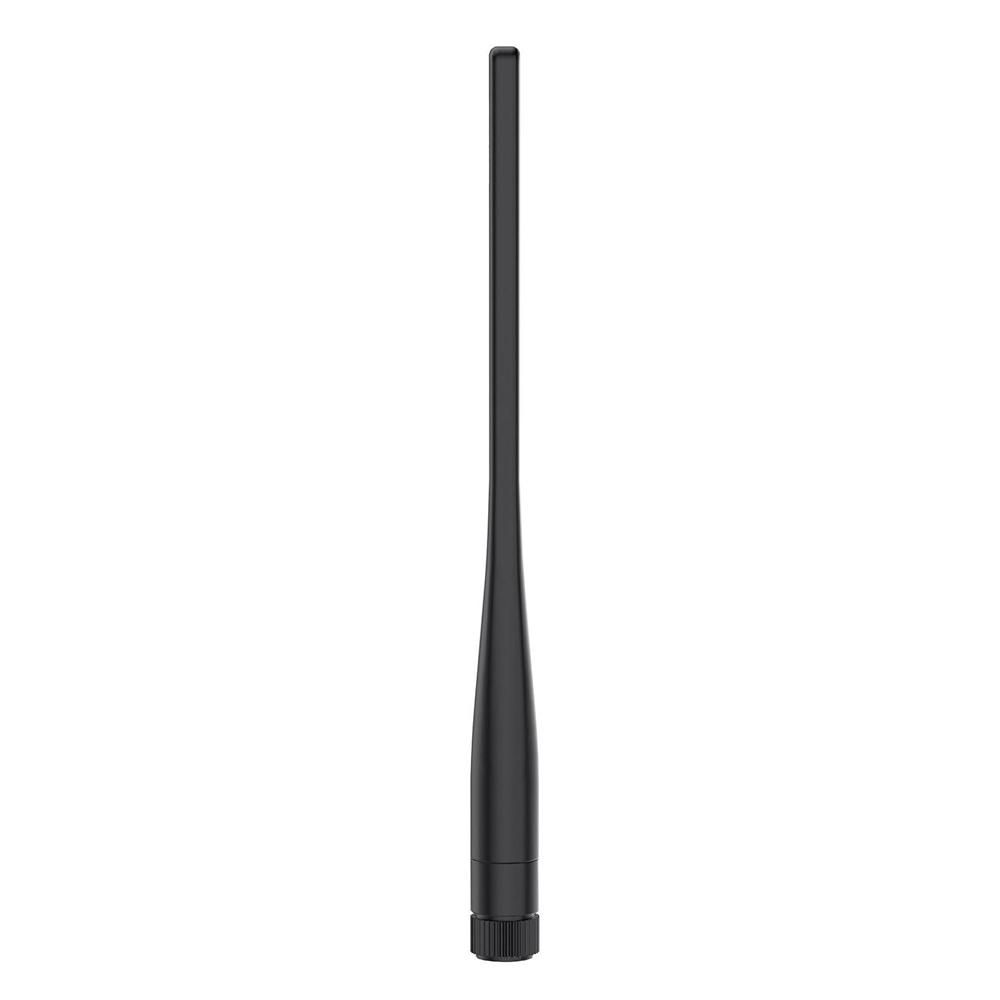

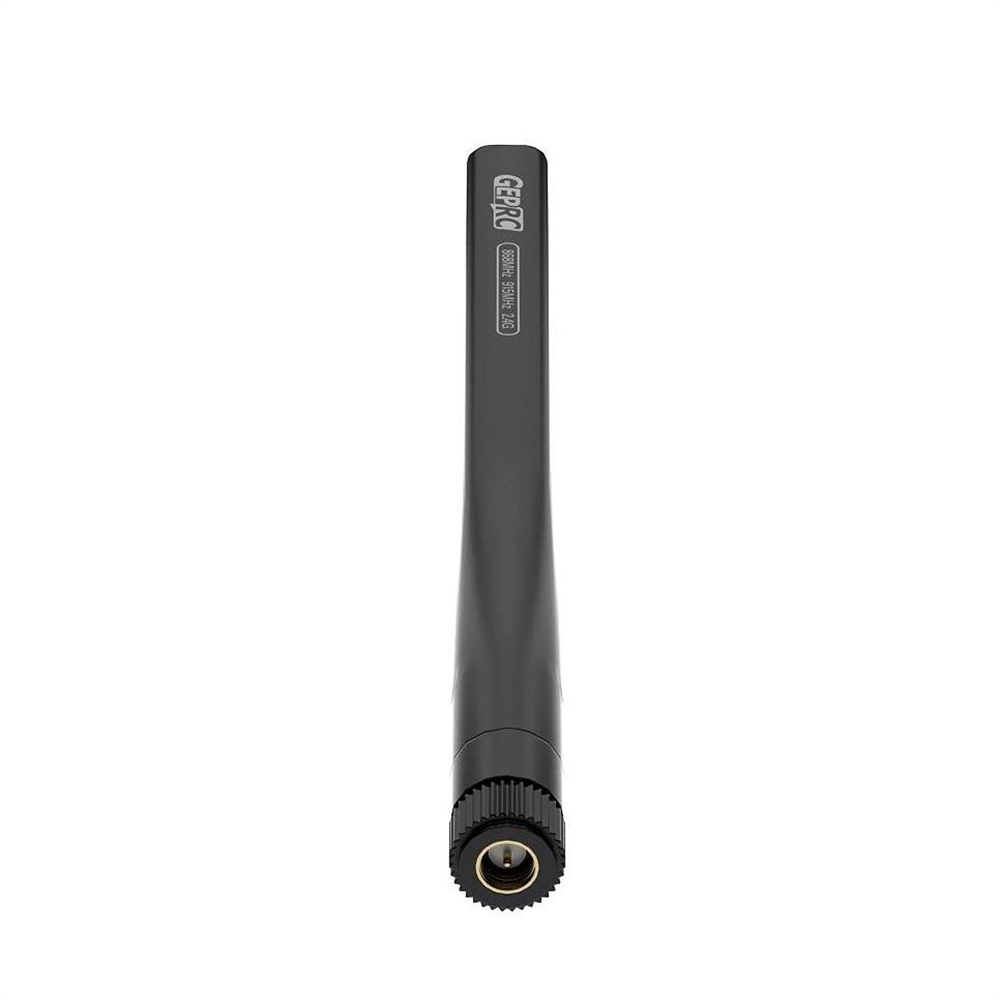

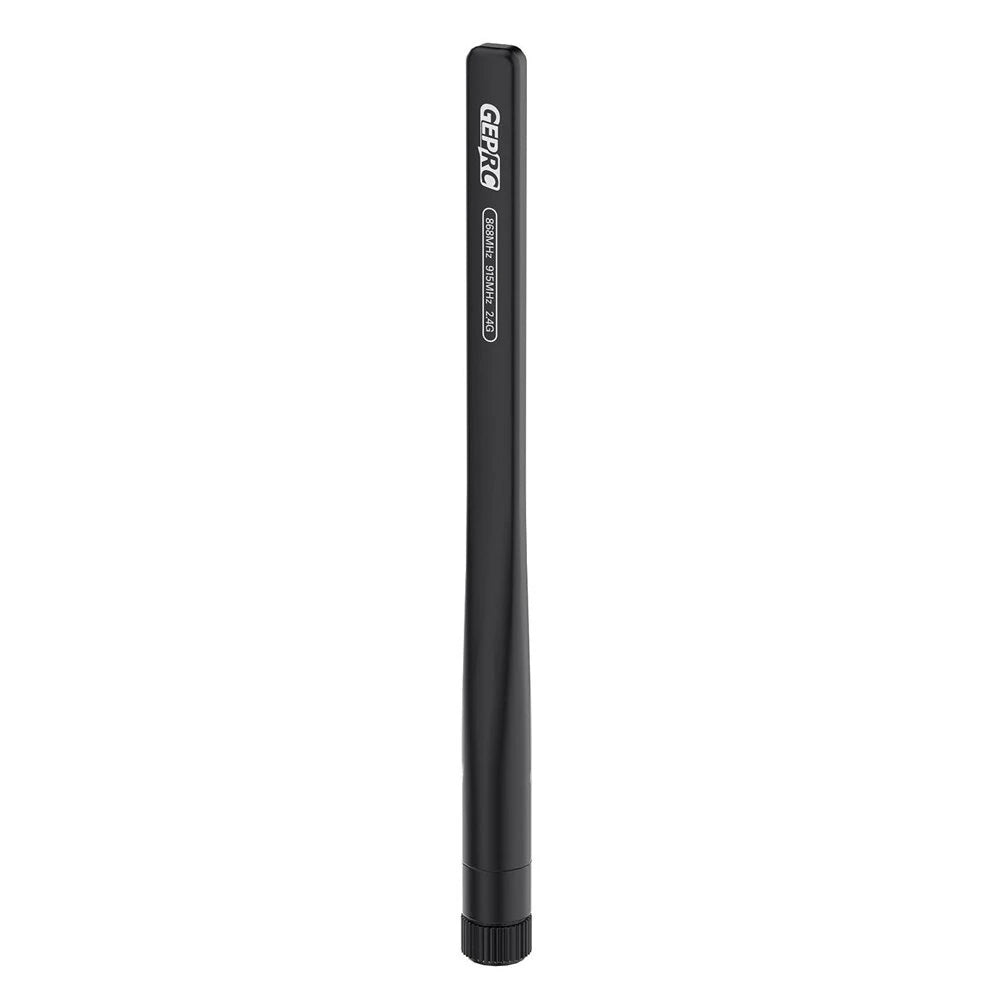

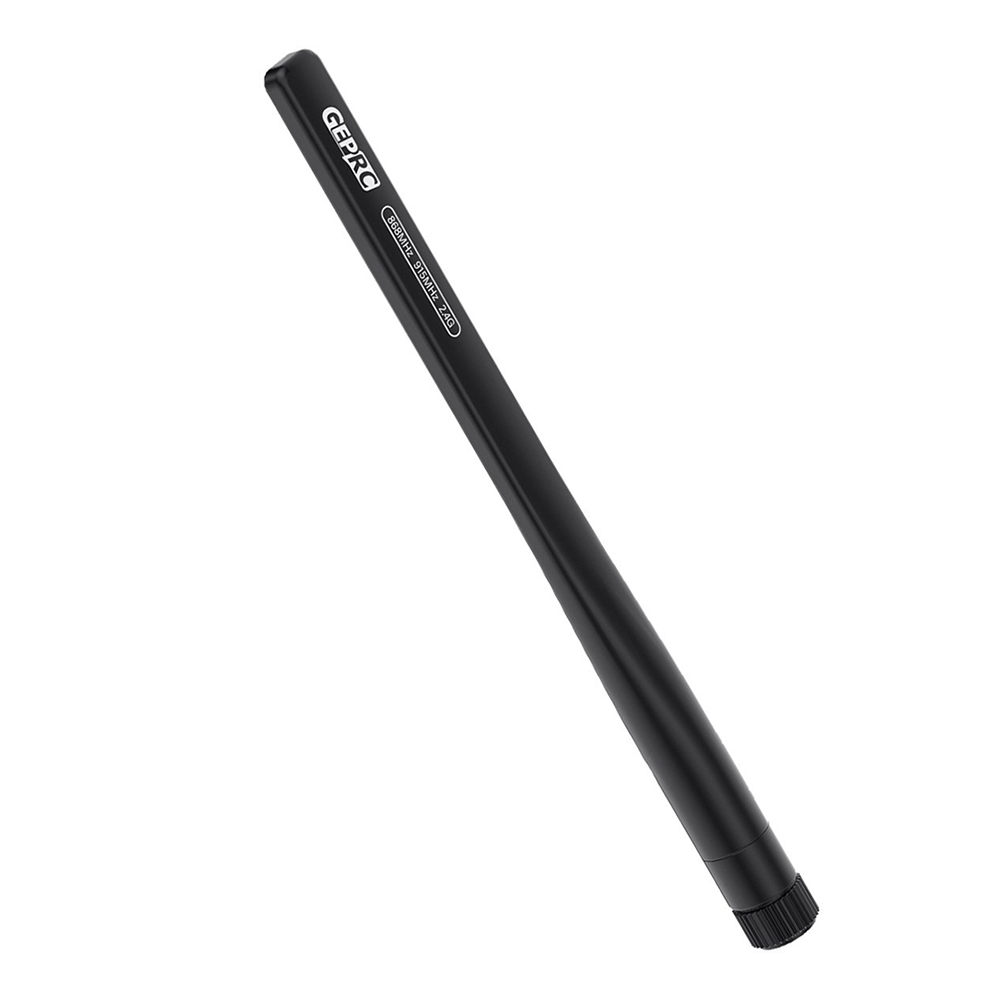

The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarization for omnidirectional signal reception. It maintains strong connectivity during dynamic flight maneuvers. With excellent cross-polarization suppression, it performs well in high-interference environments, minimizing signal disruption.mso-font-kerning:1.0000pt;'>
mso-font-kerning:1.0000pt;'>
Feature:
1. Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz.
2. Optimized for stronger signal reception at a vertical angle
3. Low-drag oval shape with an injection-molded ABS shell
4. High-quality SMA connector minimizes signal loss
5. Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standardsmso-font-kerning:1.0000pt;'>
mso-font-kerning:1.0000pt;'>
Specification:
Brand: |
GEPRC |
||
Model: |
868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna |
||
Center Frequency |
868MHz |
915MHz |
2.4Gz |
Bandwidth |
860-870MHz |
900-930MHz |
2400-2500MHz |
Avgg. Gain |
2.8dbi |
2.82dbi |
2.97dbi |
Avgg.VSWR |
<1.5 |
<1.5 |
<1.5 |
Avgg. Radiation Efficiency |
avgg. 59% |
avgg. 61% |
avgg. 68% |
Cross-Polarization Suppression |
-25dB |
||
Length |
172mm |
||
Antenna Type |
PCB |
||
Weight |
11.2g |
||
Housing Material |
ABS |
||
Connector |
SMA |
||
mso-font-kerning:1.0000pt;'>
Package included:
mso-font-kerning:1.0000pt;'>1 x GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antennamso-font-kerning:1.0000pt;'>
