Description
Overview:

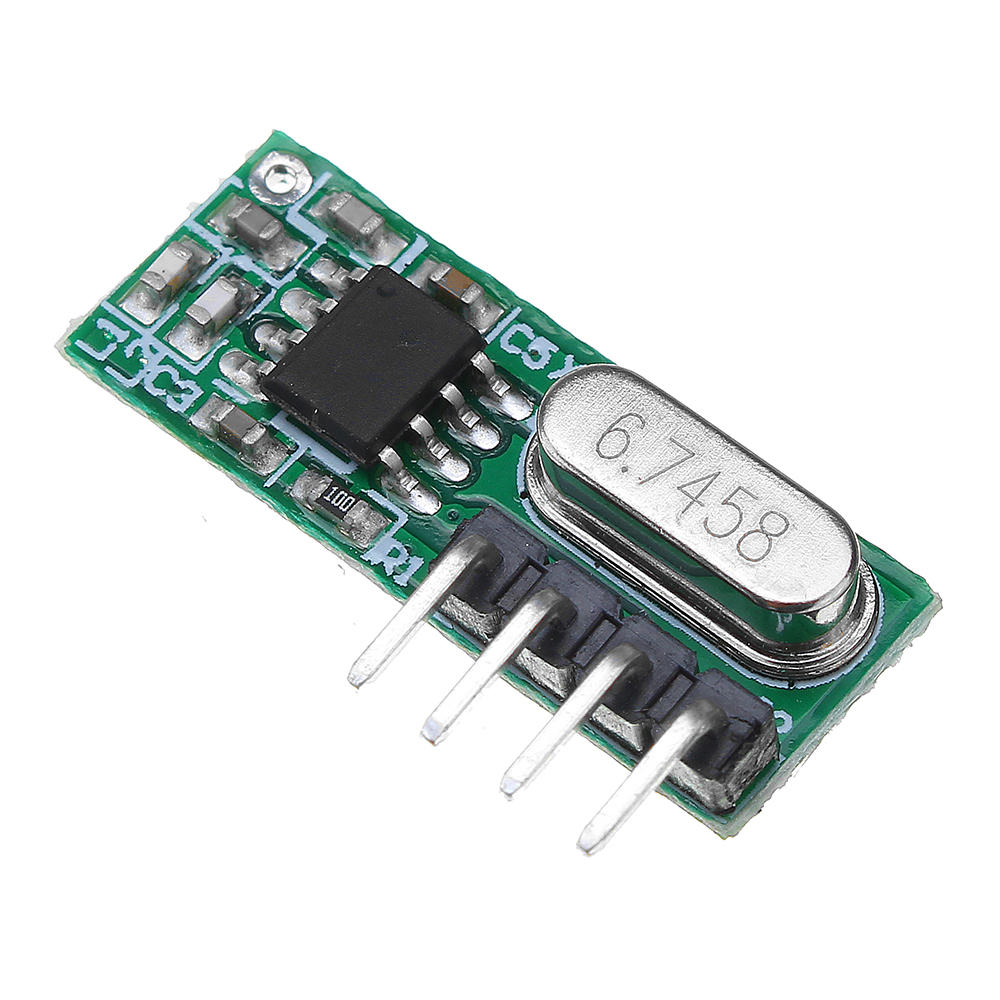

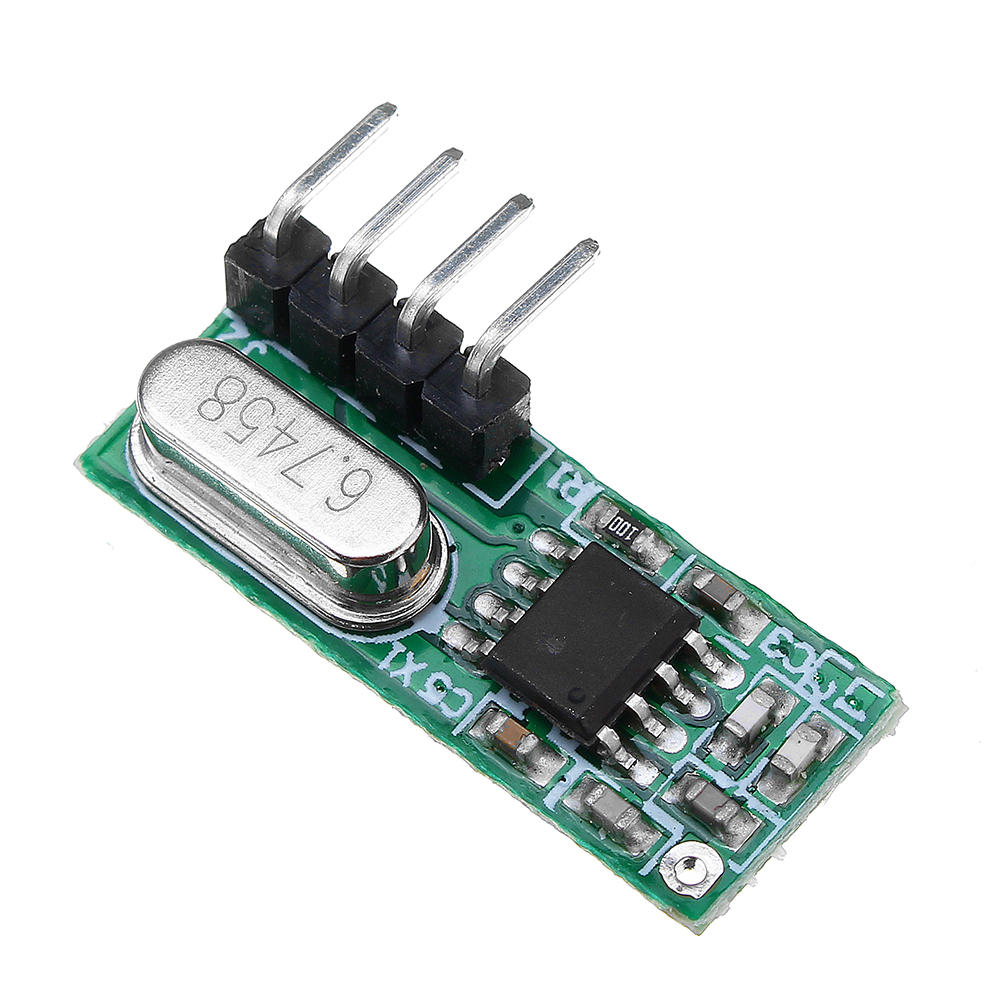

The RX500A is a highly integrated, ultra-low power monolithic ASK/OOK RF receiver module that is an upgrade to the module RX480A/RX480S.Operating voltage range of 2.0V ~ 5.5V and very high sensitivity of -108dBm, and ultra-low operating current of 2mA, making it ideal for a variety of low-power equipment and so on.
Features:
- Perfectly compatible with various super regenerative receiver modules
- Complete monolithic UHF receiver
- Standard CMOS interface controls and decodes data output
- RF antenna radiation is very low
- The most economical peripheral device design
- High integration, simple external, stable and reliable
Specifications:
Frequency range: 433.92 MHz
Operating voltage: 2.0V - 5.5V
Low power mode: 3.5mA (433.92MHz, Full Operation)
Receiver sensitivity: -108 dBm @ 433.92MHz
Data rate: up to 5kpbs
Applications:
Remote control fan/Remote light/Remote control door/Remote keyboard/Remote RFID/Smart home controller/Remote control toys/Wireless encryption device receiver/Short-distance remote control
Package Included:
1 x Wireless Receiver Module
