Description
Description:

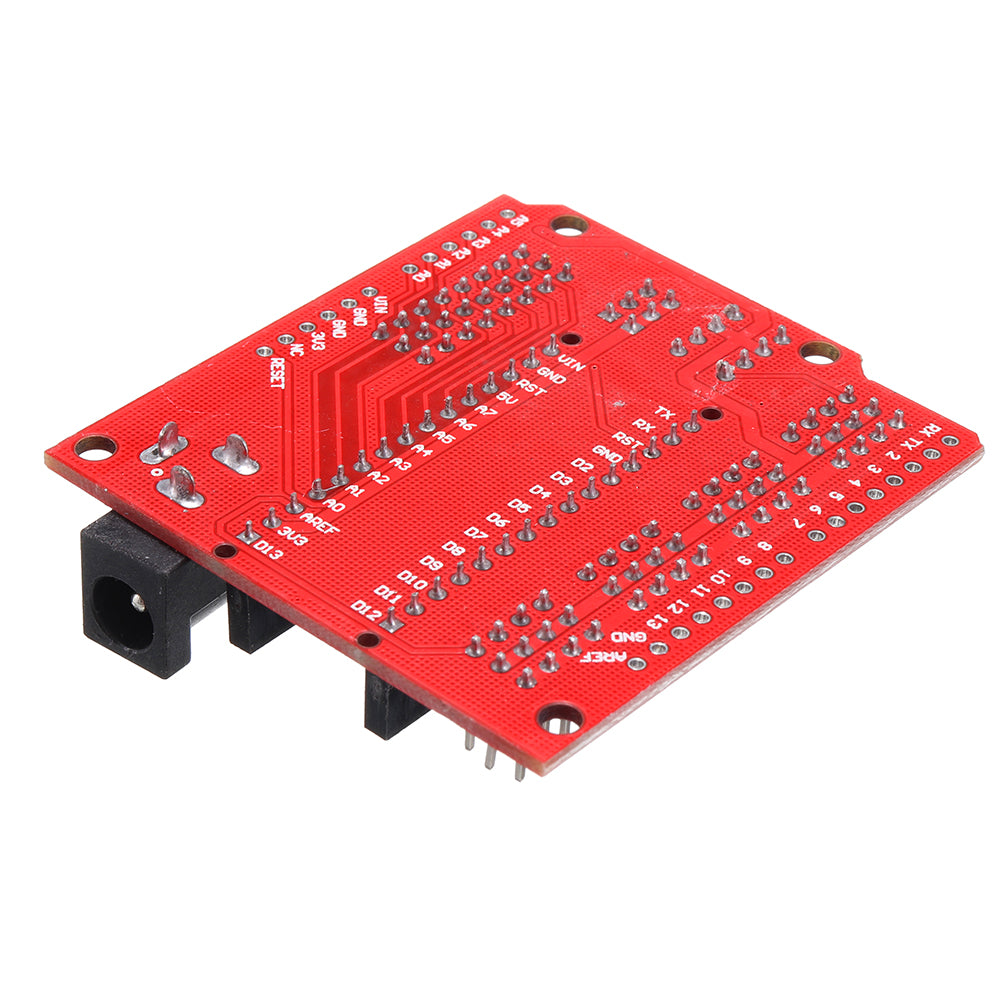

Funduino Nano Expansion Board
This Nano Mult-Function expansion board is designed specially for Nano, solve the problem of wiring confusing when a variety of sensors connected.
Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.
Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.
ATmega328P Nano V3 Improved Version
Microcontroller ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Note:
This version is not included the USB cable.
Had change the USB chip, improve the download speed and stability of WIN7/WIN8
Package included:
1 x Funduino Nano Expansion Board
1 x Compatible Improved Version Nano V3.0
