Description
Most of the products shipped do not have the FOXEER logo and LOGO! The products are equipped with anti-counterfeiting codes for inspection. Please do not place an order if you mind!
Description:
Brand:Foxeer
RC Drone Spare Parts:FPV Camera

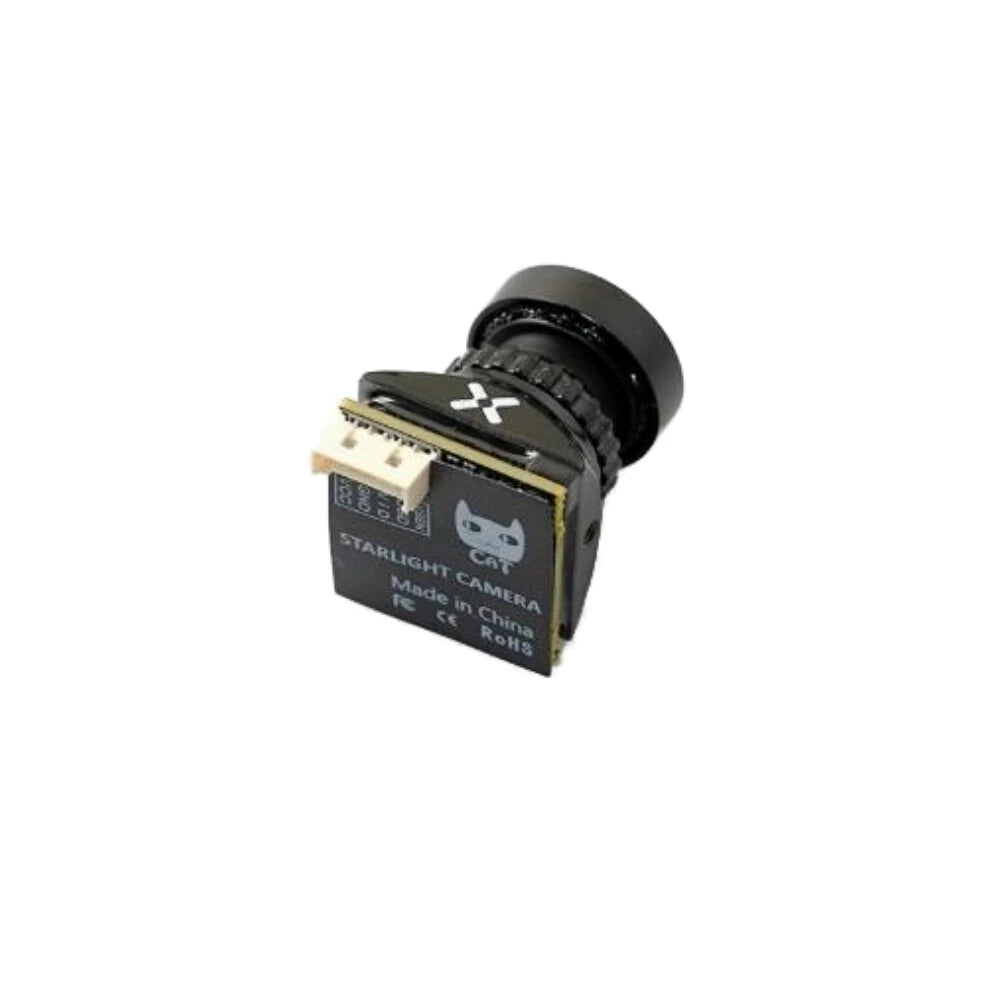

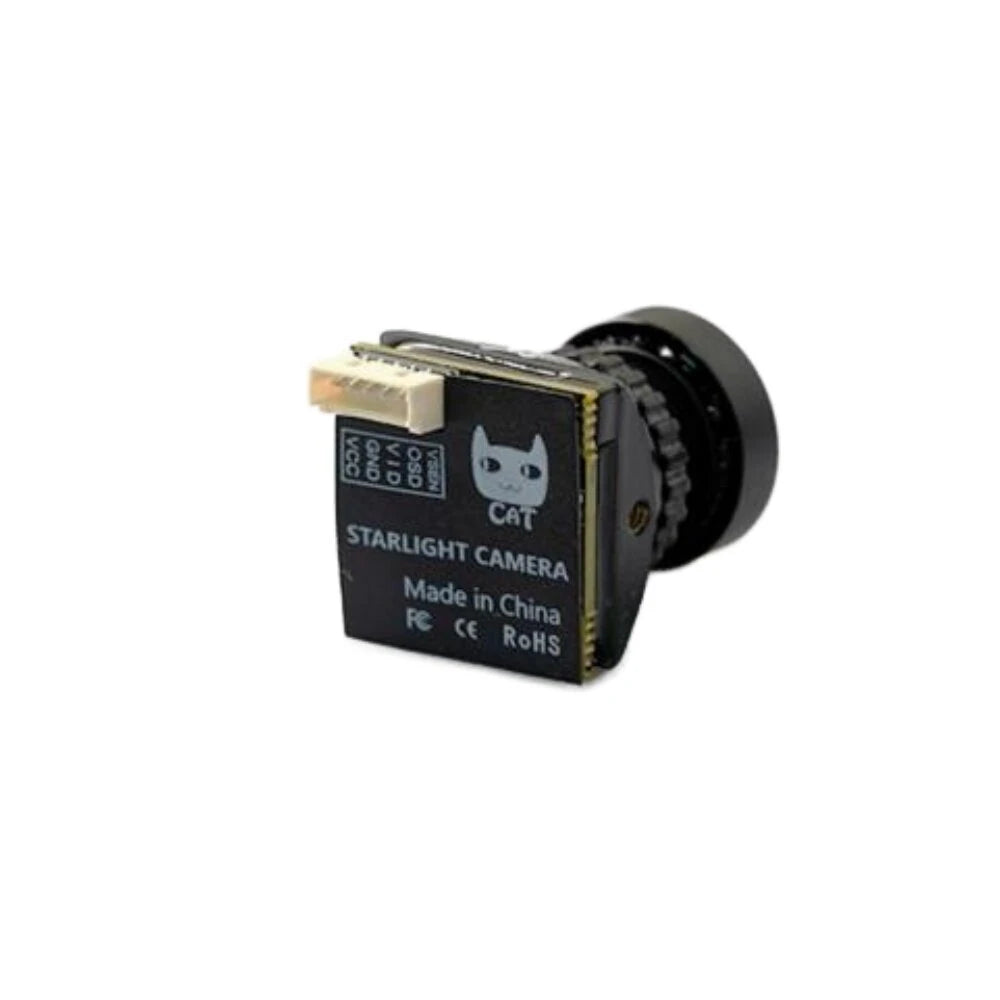

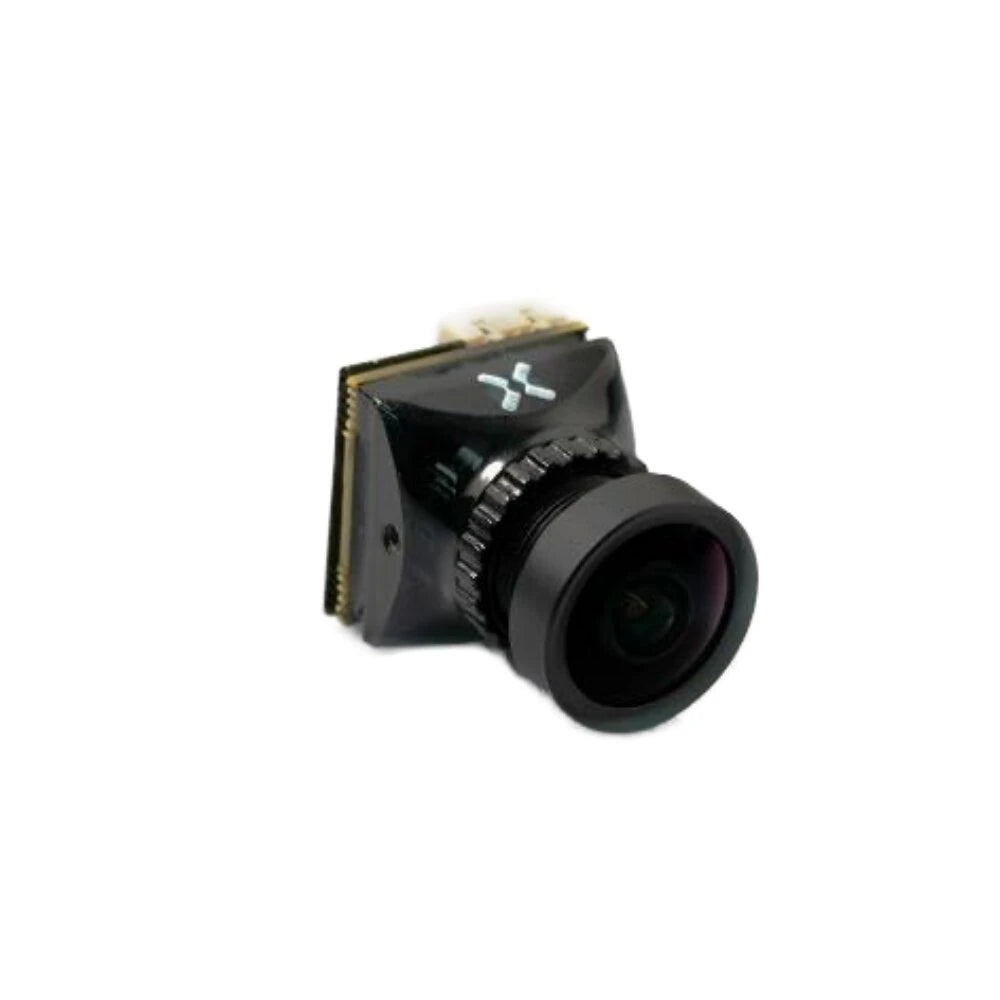

| FOXEER CAT 4 MICRO | |
| Brand | FOXEER |
| Model | HS1277 |
| Sensor Type | Sonyy 1/3' CMOS Sensor |
| Screen Ratio | 4:3(Default) / 16:9 switchable |
| TV System | PAL(Default) / NTSC switchable |
| Angle | 4:3 FOV-H 95° FOV-V 72° FOV-D 120°16:9 FOV-H 95° FOV-V 53° FOV-D 110° |
| Lens | M12 2.1mm Low Light Lens |
| Resolution | 1200 TVL |
| Shutter Speed (CCD IRISS) |
PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec |
| Video Output | CVBS |
| Low Illumination | 0.00001Lux |
| White Balance | Automatic |
| Noise Reduction | 3D noise reduction |
| Wide Dynamic Range | 100db |
| Day/Night | External/Auto/Color/Black and White |
| OSD | voltage/title/time |
| Input Voltage | DC4.6-20V |
| Current | 95mA±15%@DC12V |
| Language | ENGLISH/ PYCCKNN/ SPANISH/ ITALIAN/ FRANCAIS/ POLSKZM/ PORTUGUES/ Japanese |
| working Temperature | -10°C~+50°C RH90% MAX |
| Working Humidity | 20~80% |
| storage Temperature | -20°C~+70°C |
| Storage Humidity | 20~95% |
| Dimensions(mm) | 19×19mm |
| Weight(g) | 11.8g |
Package Included:
1 x Foxeer Cat 4 camera 1x connecting cable1 x 2pin OSD cable1 x OSD board screw
