Top Highlights:

- Wireless 2.4GHz Independent Transmission for Easy Setup and Convenience.

- Compatible with Most Servo Gimbals.

- One-Click Reset with Fail-Safe Protection for Added Security.

- Universal Compatibility with RC Models - Land, Sea, and Air Ready.

Description:

Meet SyncPilot - the slick head tracking system built by FMS and XF Robot for mid-to-close-range FPV action. It runs on its own dedicated 2.4G connection (no messy signal forwarding required), so you get plug-and-play simplicity for your FPV gear.

The system delivers universal compatibility with virtually all RC platforms - from multirotors and fixed-wing aircraft to surface vehicles. Under optimal conditions, it can achieve 1km ground operational range and 2km+ airborne range, making it the ideal solution for most mid-to-close-range FPV scenarios. Install the SyncPilot on your model and dive into head-tracking technology!

Q&A:

1. What is a Headtracker?A Headtracker is a motion-based control system that translates head movements into real-time control signals. When mounted on FPV goggles, it wirelessly transmits these signals to the gimbal, which adjusts the camera's orientation, delivering a seamless and immersive FPV experience with responsive, real-time control.

2. What other equipment is needed to use the SyncPilot Headtracker Set?You’ll need a gimbal, camera, video transmission system, and compatible FPV goggles for mounting the SyncPilot Headtracker Set.

3. Are there any other accessories available to complement the SyncPilot Headtracker?Yes! We offer several accessories to enhance your FPV experience, including the VTX Mount & Cooling Fan, FPV Servo Gimbal, and FPV Cockpits for the FMS RC Airplanes, including the 1100mm PC-21 and 80mm Hawk.

4. If the gimbal moves in the opposite direction of my head?Make sure the head tracking module is installed correctly. You can also use the head tracker software to adjust the direction and gain settings to match your preferred setup.

5. How is the head tracking module powered?The head tracking module runs on an independent battery that is charged via a Type-C port for up to 2 hours of use.

6. How is the head tracking receiver powered?The head tracking receiver requires 5V power, which can be supplied through a direct connection to UBEC, the RC receiver, or the flight controller for quick and easy setup.



Specification:

Brand	FMS
Model	SyncPilot Headtracker Set
Headtracker Module Size	45*28.2*4.2mm
Receiver Size	38*22*15mm
Transmitter Size	40*21*11.5mm
Gross Weight	80g
Package Size	135*90*55mm
Assembly Time	5min
Headtracker Module Battery	3.7V 300mAh
Operating Time on Full Charge	2h
Operating Frequency	2.4Ghz
Singal Range (Optimal Condition)	Surface 1km; Airborne 2km+
Antenna	IPEX Omnidirectional T-type Antenna | Max. Gain 3dBi
Casing Material	ABS Plastic



Item	Note
SyncPilot Headtracker Set	Includes transmitter & receiver
SyncPilot Headtracker Receiver	Includes receiver only
FPV Servo Gimbal (2-Axis)	1. 3D Printed with ABS 2. Compatible with DJI O4, O4 Pro, 03, Walksnail Avatar, RunCam and other FPV cameras 3. Including 180° 9g digital servo x1 & 280° 9g digital servo x1
VTX Mount & Cooling fan (O4 Pro)	1. 3D Printed with TPU 2. Used with DJI O4 Pro
VTX Mount & Cooling fan (03)	1. 3D Printed with TPU 2. Used with DJI 03
VTX Mount & Cooling fan (Avatar)	1. 3D Printed with TPU 2. Used with Caddx Avatar
1100mm PC-21 FPV Cockpit	Used with FMS 1100mm PC-21 RC Airplane
80mm Hawk FPV Cockpit	Used with FMS 80mm Hawk RC Airplane



Manual And Support:

Manual - SyncPilot Headtracker Set

Manual - FPV Servo Gimbla

Software & Firmware

3D Printing - FPV Servo Gimbal

3D Printing - VTX Mount

Package Included:

SyncPilot Headtracker Set Included:

1 x Headtracking Module

1 x Headtracking Transmitter

1 x SyncPilot Headtracking Receiver

1 x 5V Power Cable

1 x 3M Dual Lock™

1 x Product Manual

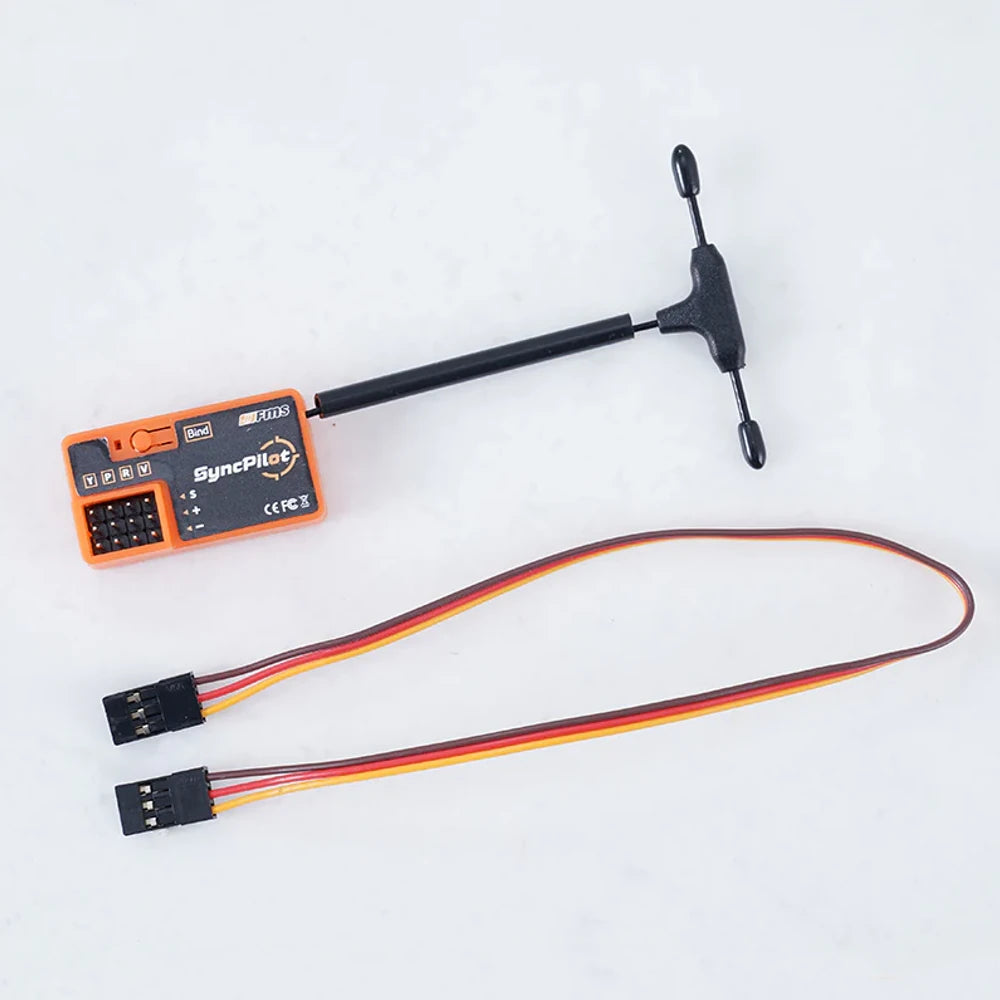

SyncPilot Headtracker Receiver Included:

1 x SyncPilot Headtracker Receiver

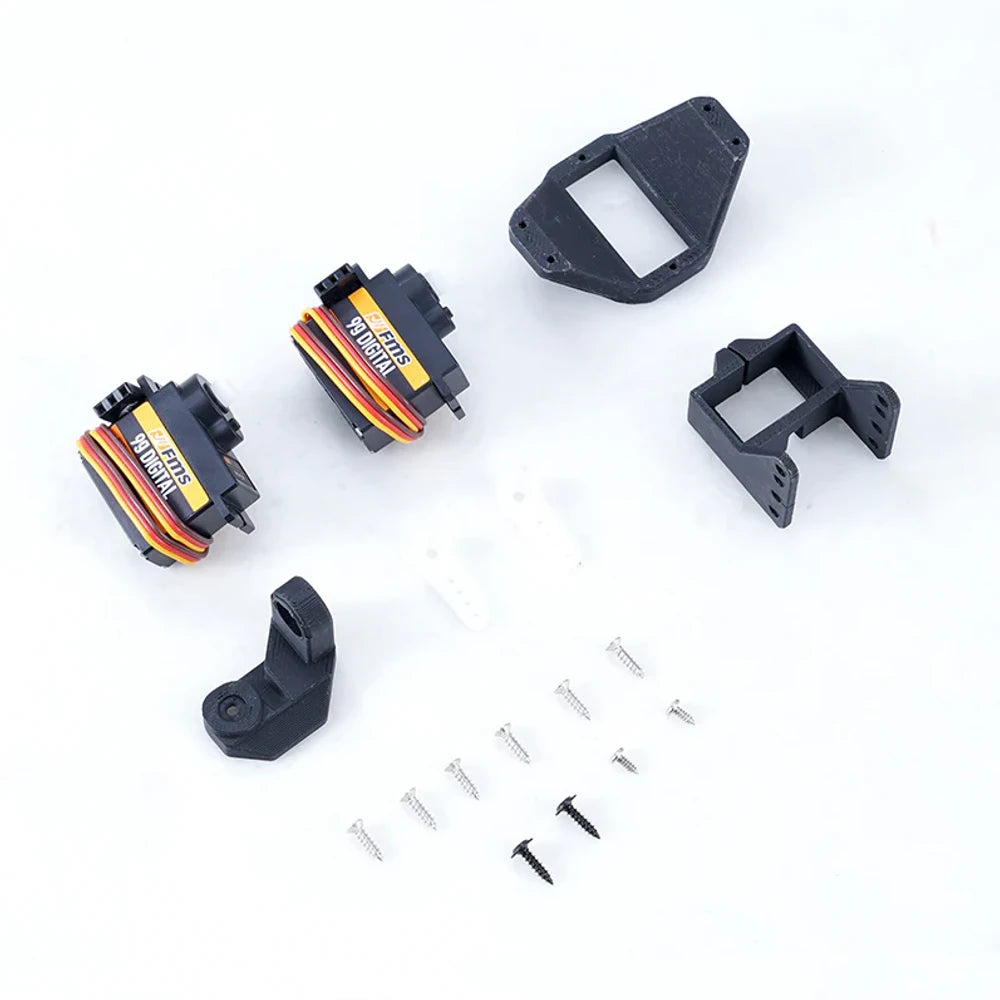

FPV Servo Gimbal (2-Axis) Included:

1 x 3D Printed with ABS

1 x 180° 9g digital servo

1 x 280° 9g digital servo

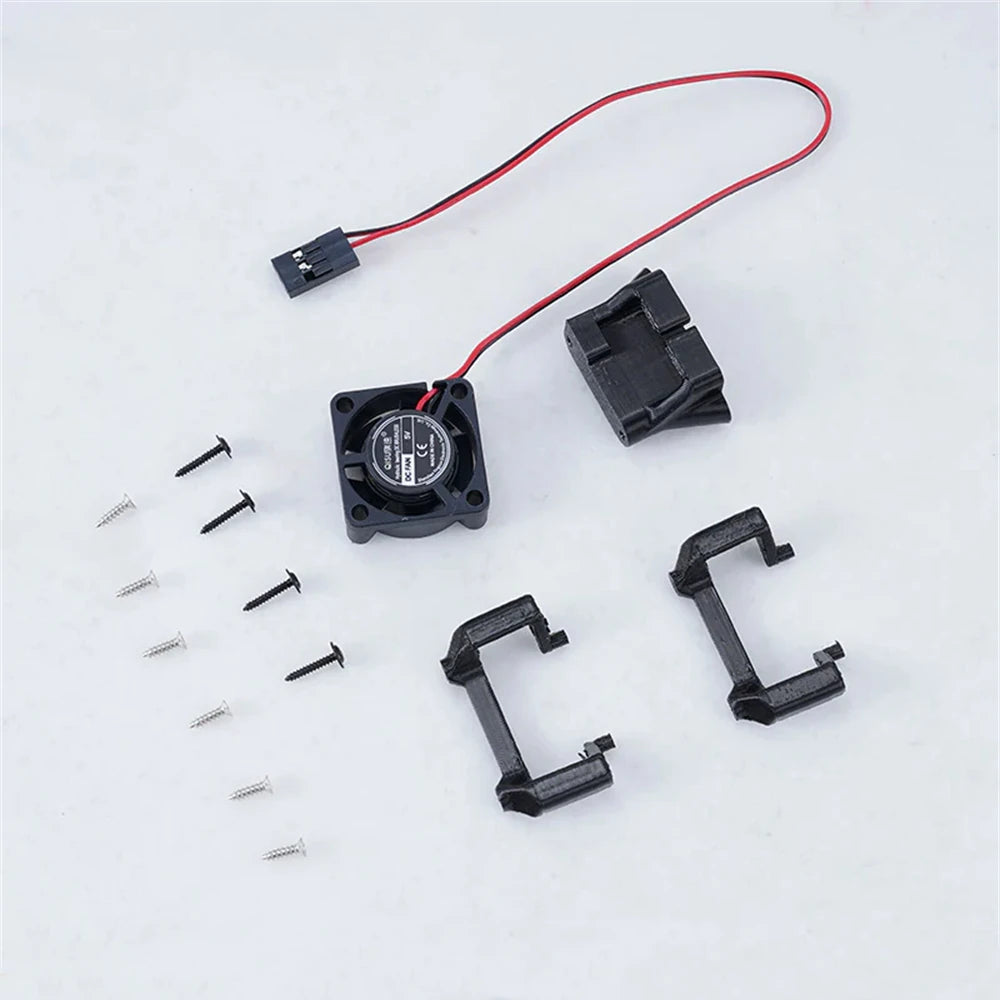

VTX Mount & Cooling fan (O4 Pro) Included:

1x 3D Printed with TPU

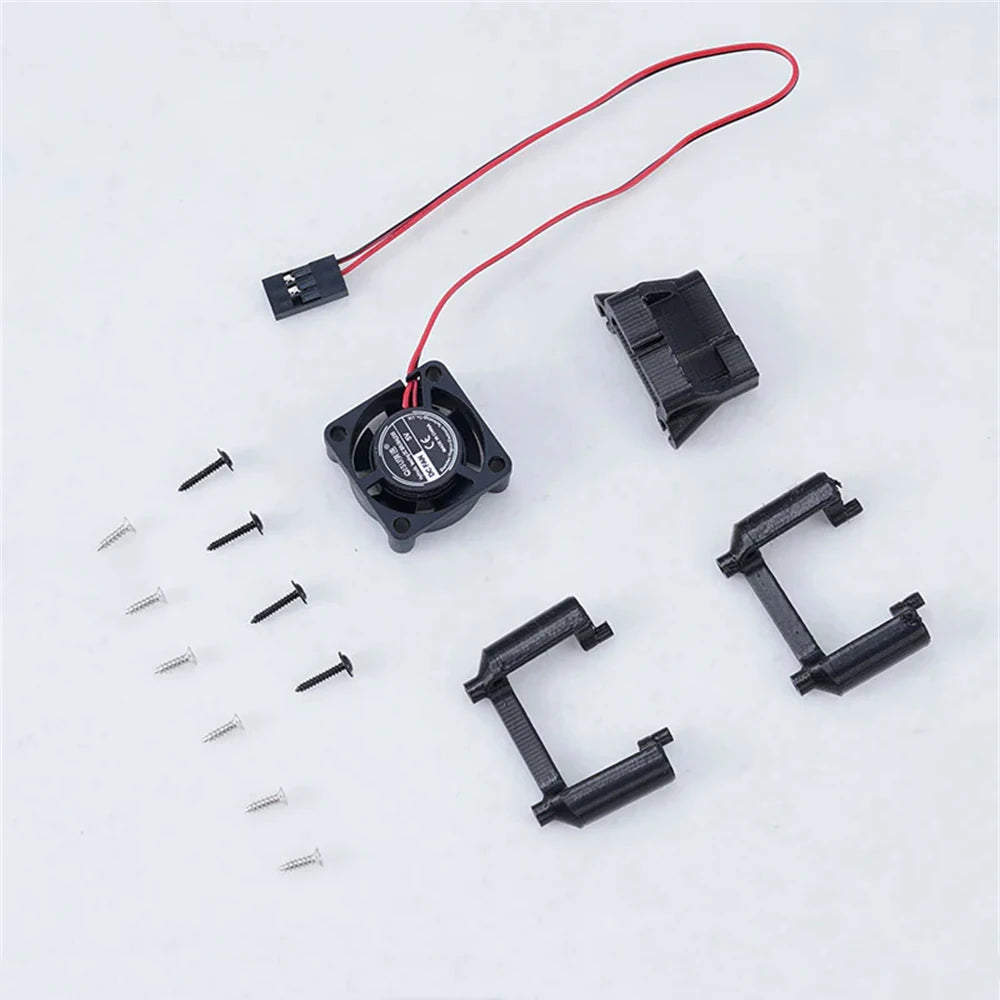

VTX Mount & Cooling fan ( 03) Included:

1x 3D Printed with TPU

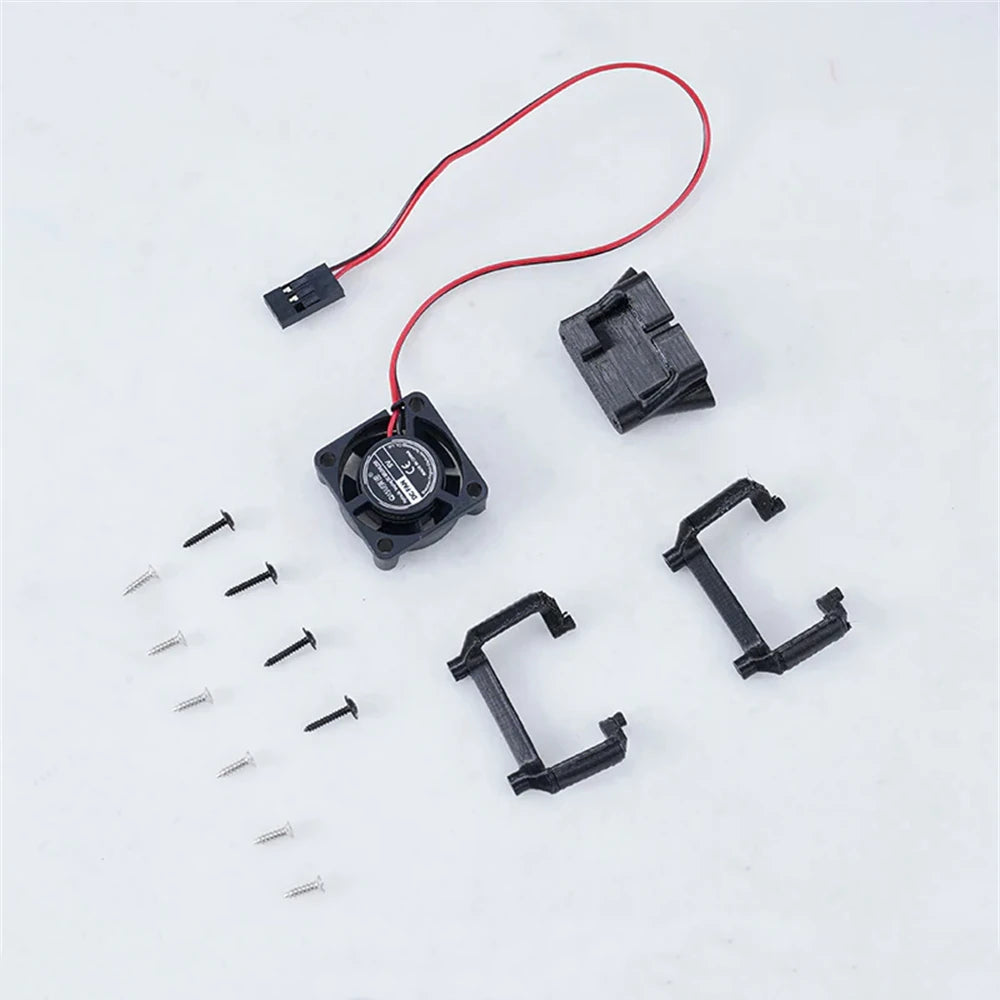

VTX Mount & Cooling fan (Avatar) Included:

1x 3D Printed with TPU

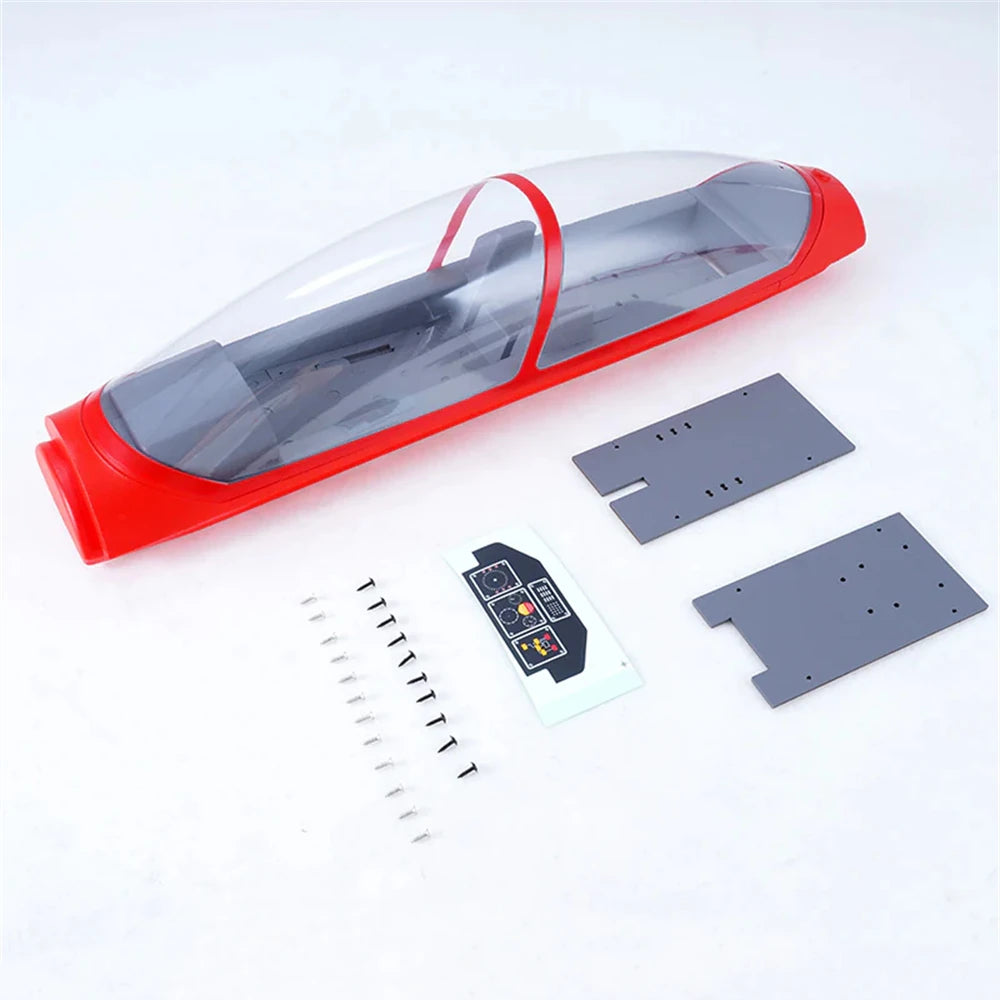

1100mm PC-21 FPV Cockpit Included:

1x Cockpit

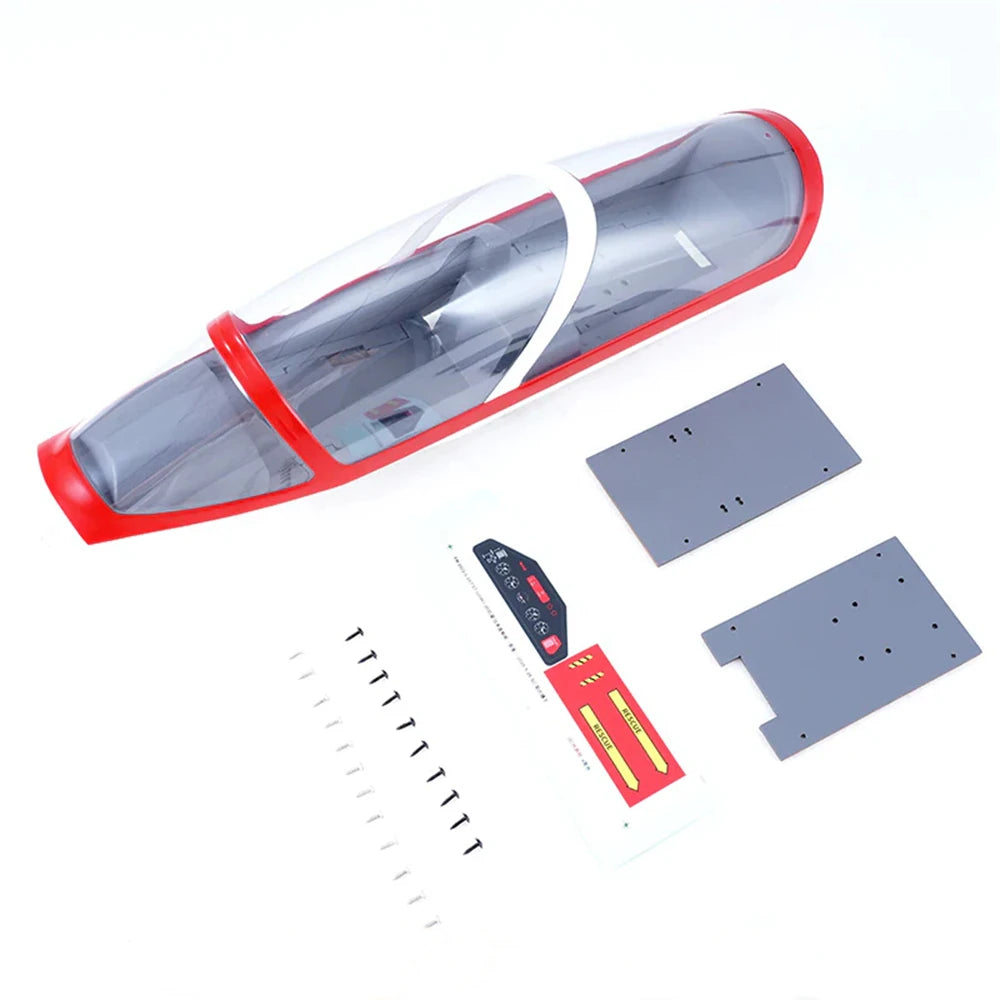

1 x 80mm Hawk FPV Cockpit  Included:

1x Cockpit
