Receiver: PR02 Receiver
Price:
R 719.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Flysky PR02 2.4GHz 16CH ELRS True Diversity Gemini Mode 250mW TCXO Receiver with Dual T-Antennas for FPV Racing Drone RC Airplane

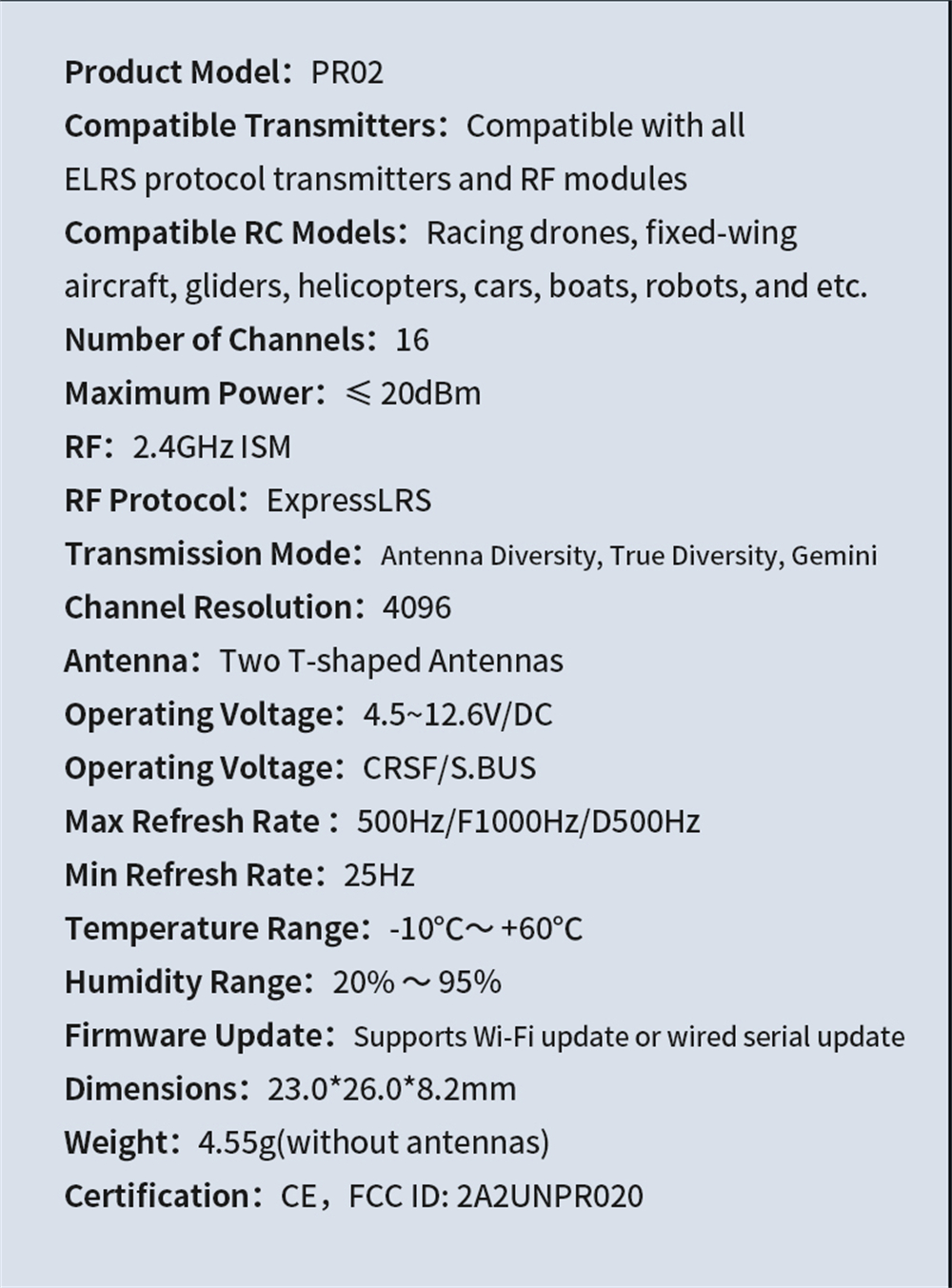

Specification:
Brand: Flysky
Product Model: PR02
Compatible Transmitters: Compatible with all ELRS protocol transmitters and RF modules
Compatible RC Models: Racing drones, fixed-wing aircraft, gliders, helicopters, cars, boats, robots, and etc.
Number of Channels: 16
Maximum Power: ≤ 20dBm
RF: 2.4GHz ISM
RF Protocol: ExpressLRS
Transmission Mode: Antenna Diversity, True Diversity, Gemini
Channel Resolution: 4096
Antenna: Two T-shaped Antennas
Operating Voltage: 4.5~12.6V/DC
Output Protocol: CRSF/S.BUS
Max Refresh Rate: 500Hz/F1000Hz/D500Hz
Min Refresh Rate: 25Hz
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%

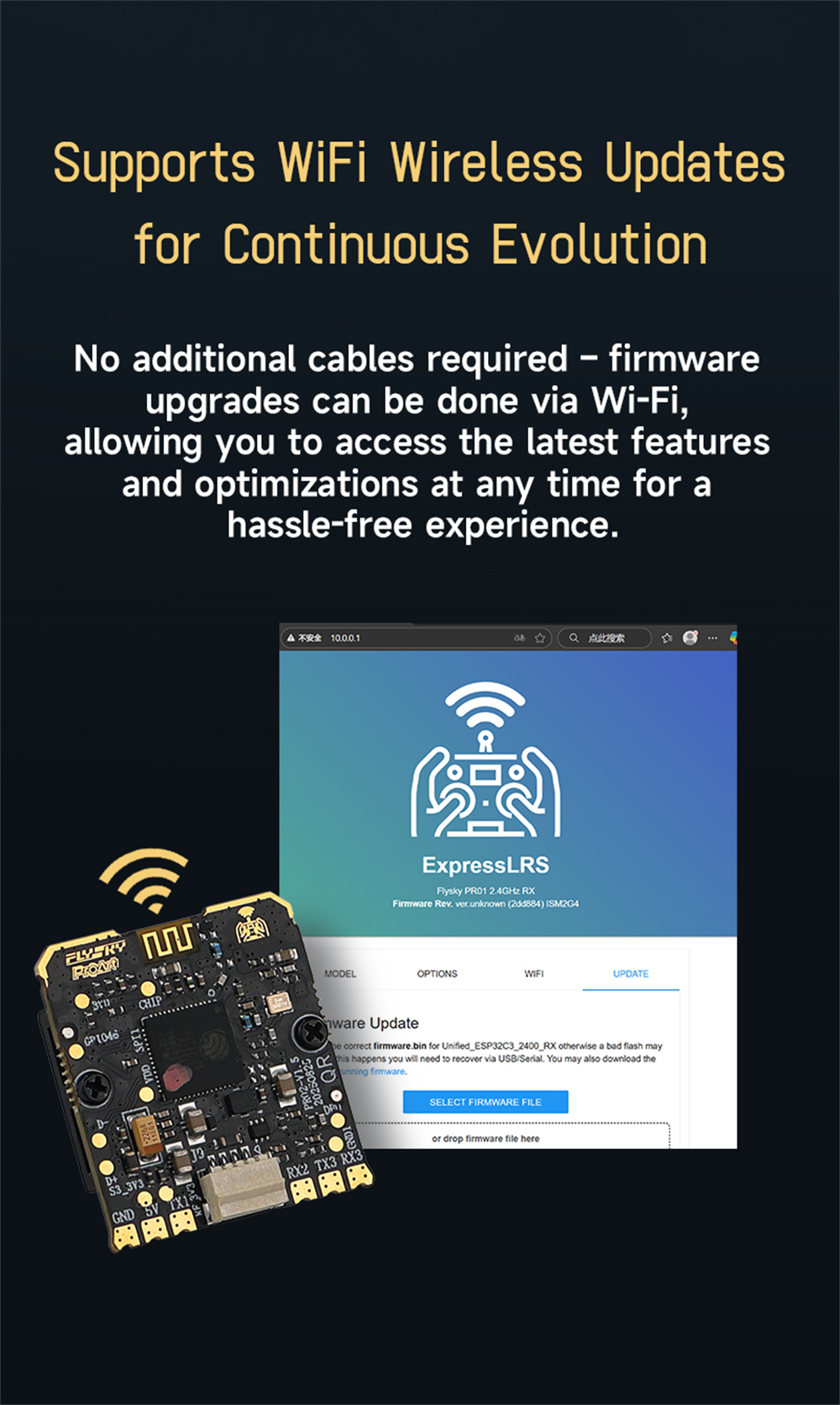

Firmware Update: Supports Wi-Fi update or wired serial update

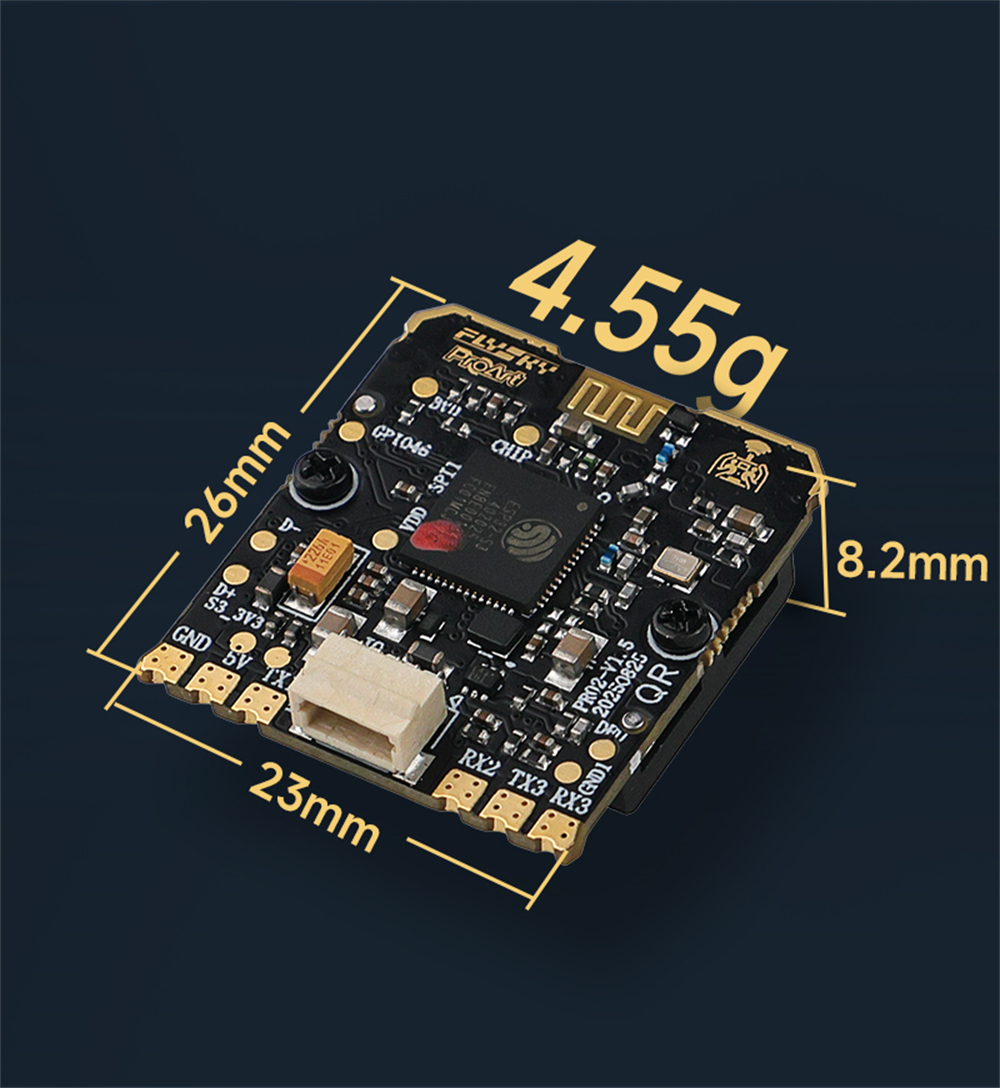

Dimensions: 23.0*26.0*8.2mm
Weight: 4.55g (without antennas)
Certification: CE, FCC ID: 2A2UNPR020

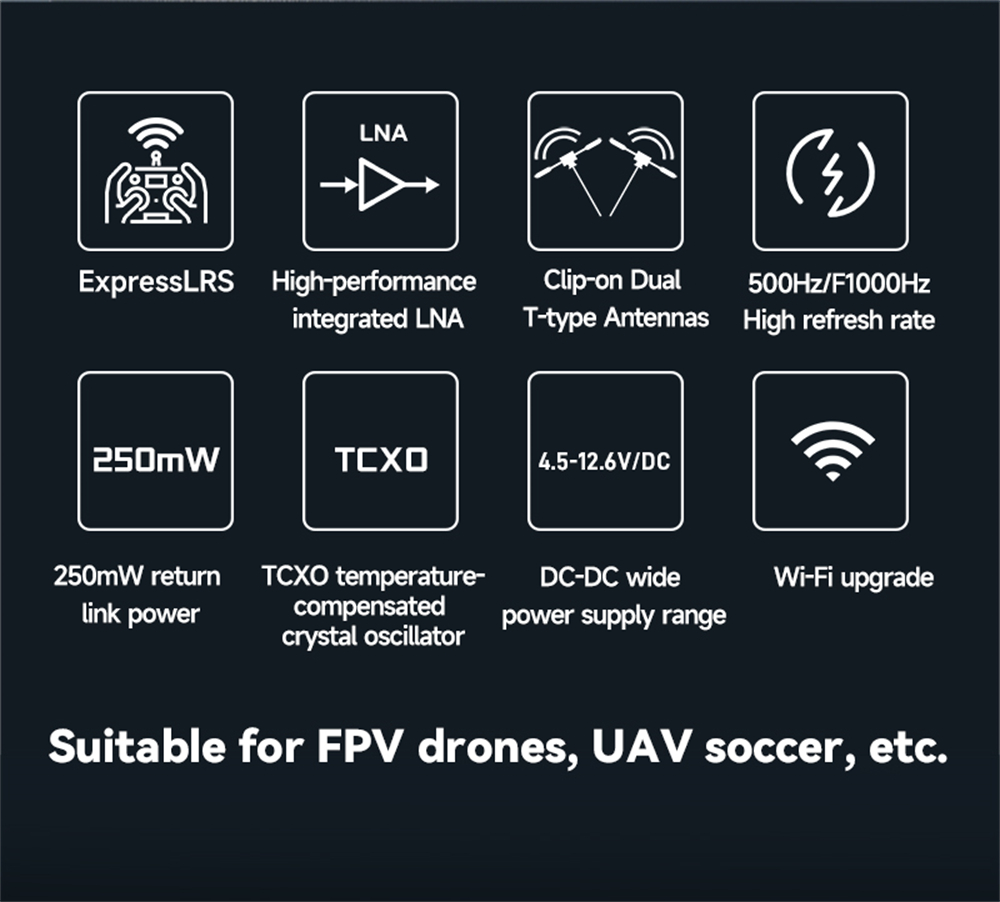

Features:

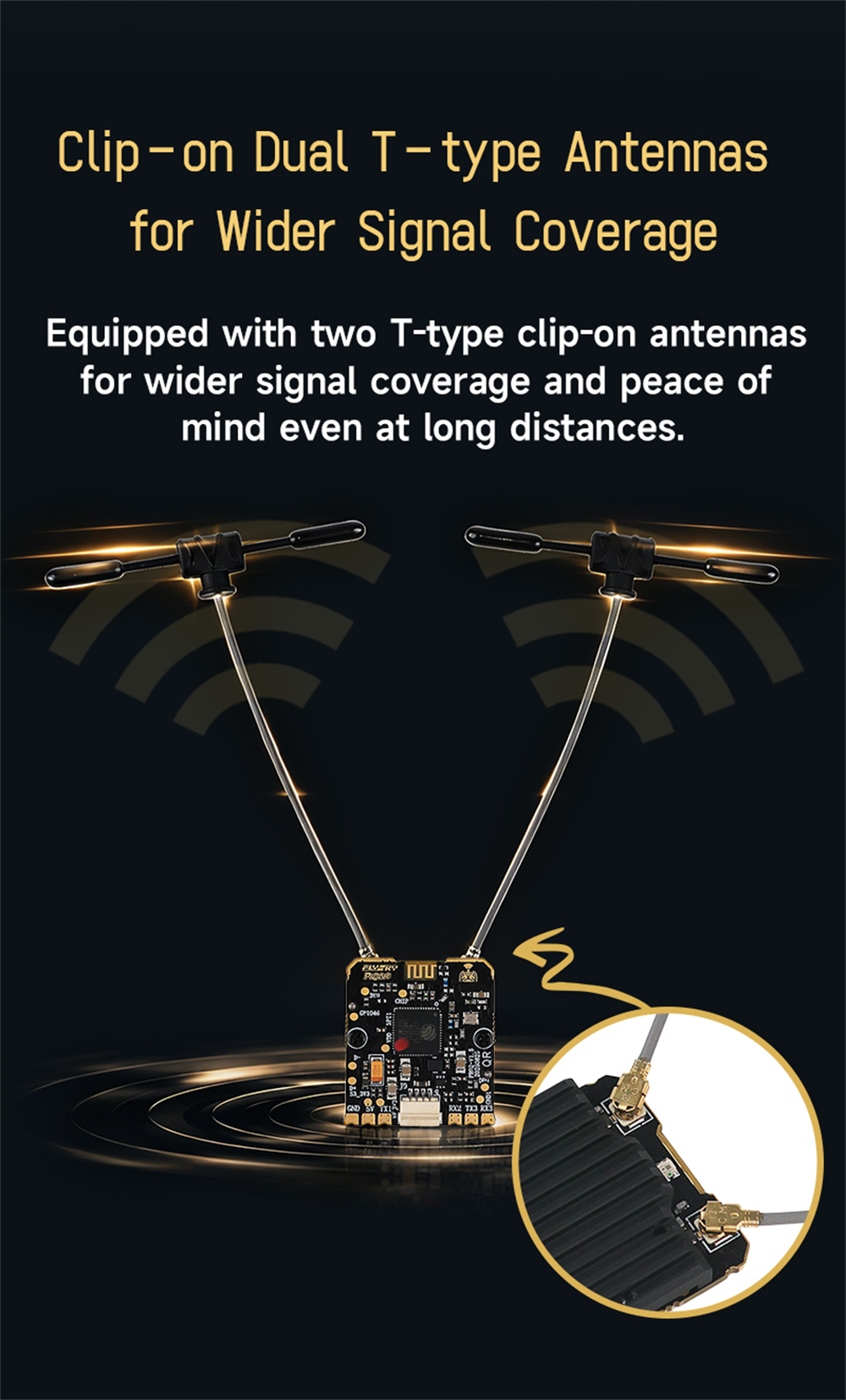

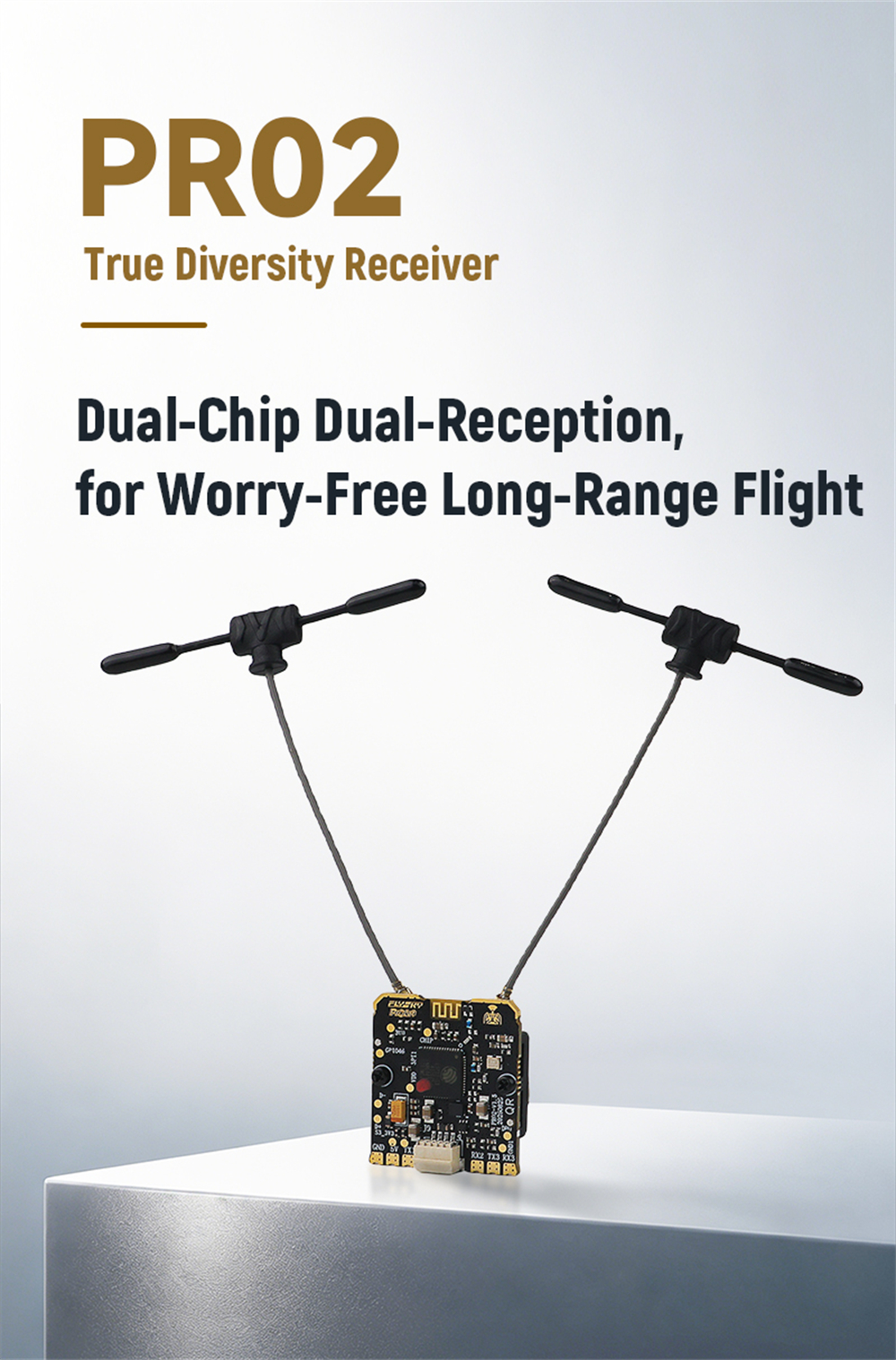

- Dual‑chip true diversity receiver with clip‑on dual T‑type antennas, giving wider signal coverage and confident long‑range FPV control for racing drones and RC toys.

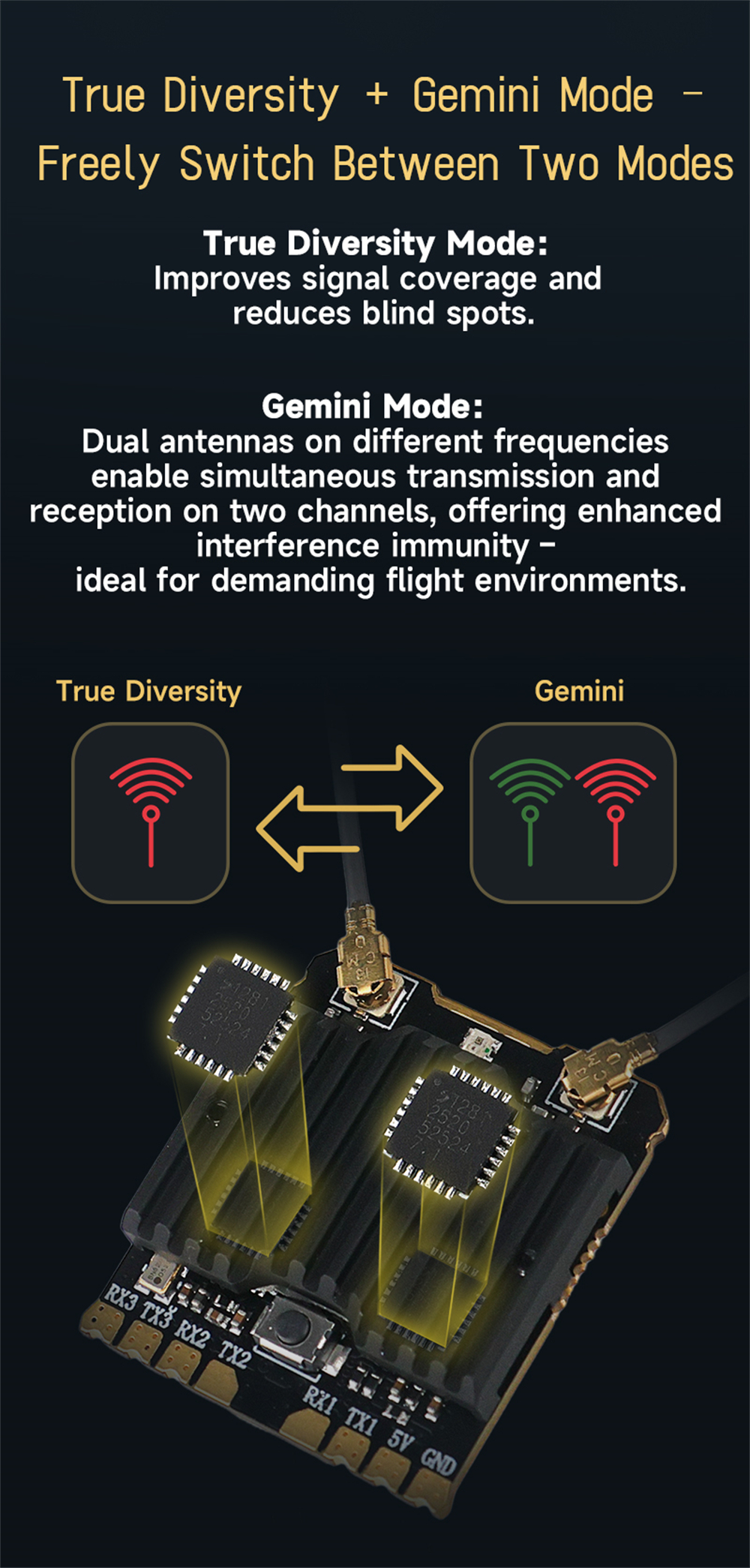

- Switchable True Diversity / Gemini modes optimize link stability and interference resistance, perfect for complex indoor arenas or outdoor playground flights.

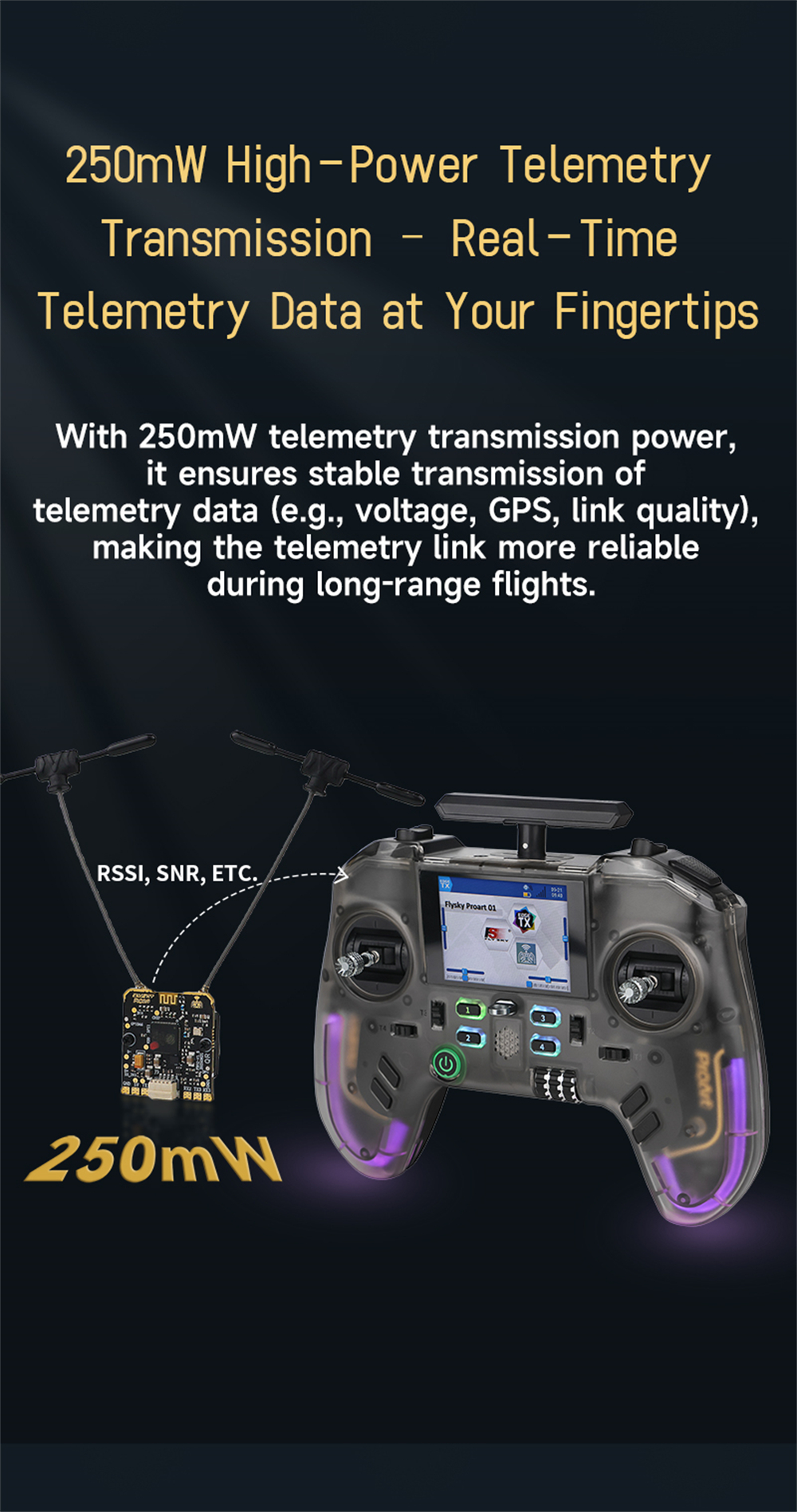

- 250mW telemetry power reliably returns real‑time voltage, GPS, RSSI and more to your radio, helping young pilots monitor model status while exploring distance.

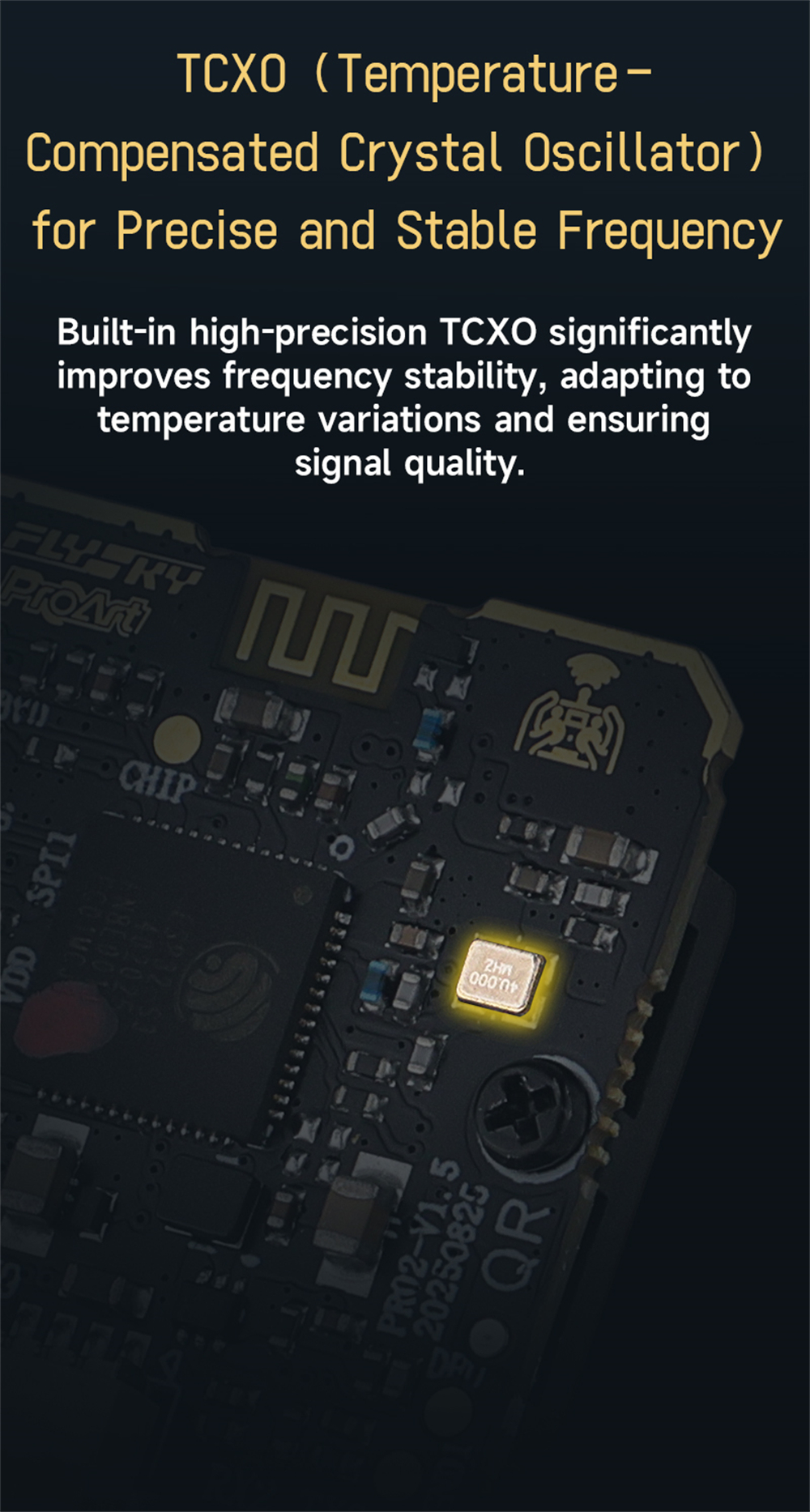

- High‑precision TCXO and up to 1000Hz refresh rate provide ultra‑responsive control inputs, making freestyle tricks, drone soccer and fast turns smoother and more accurate.

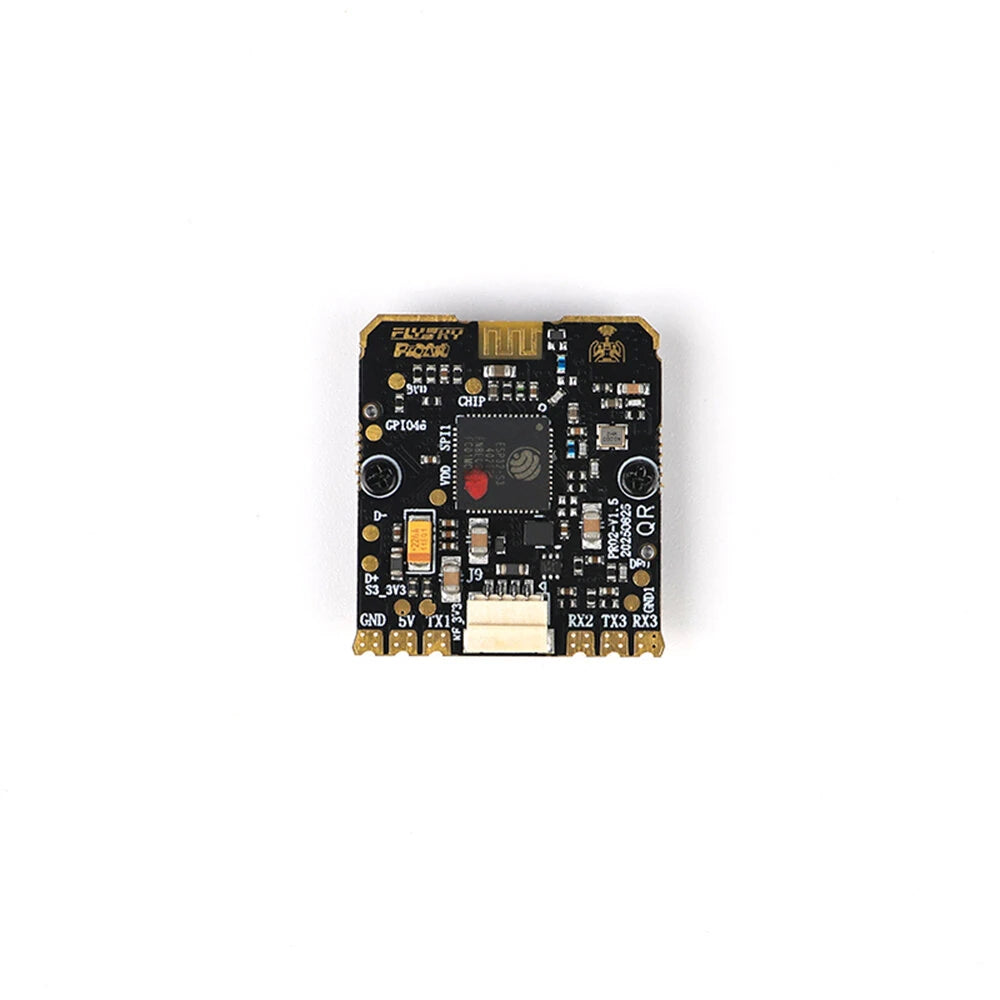

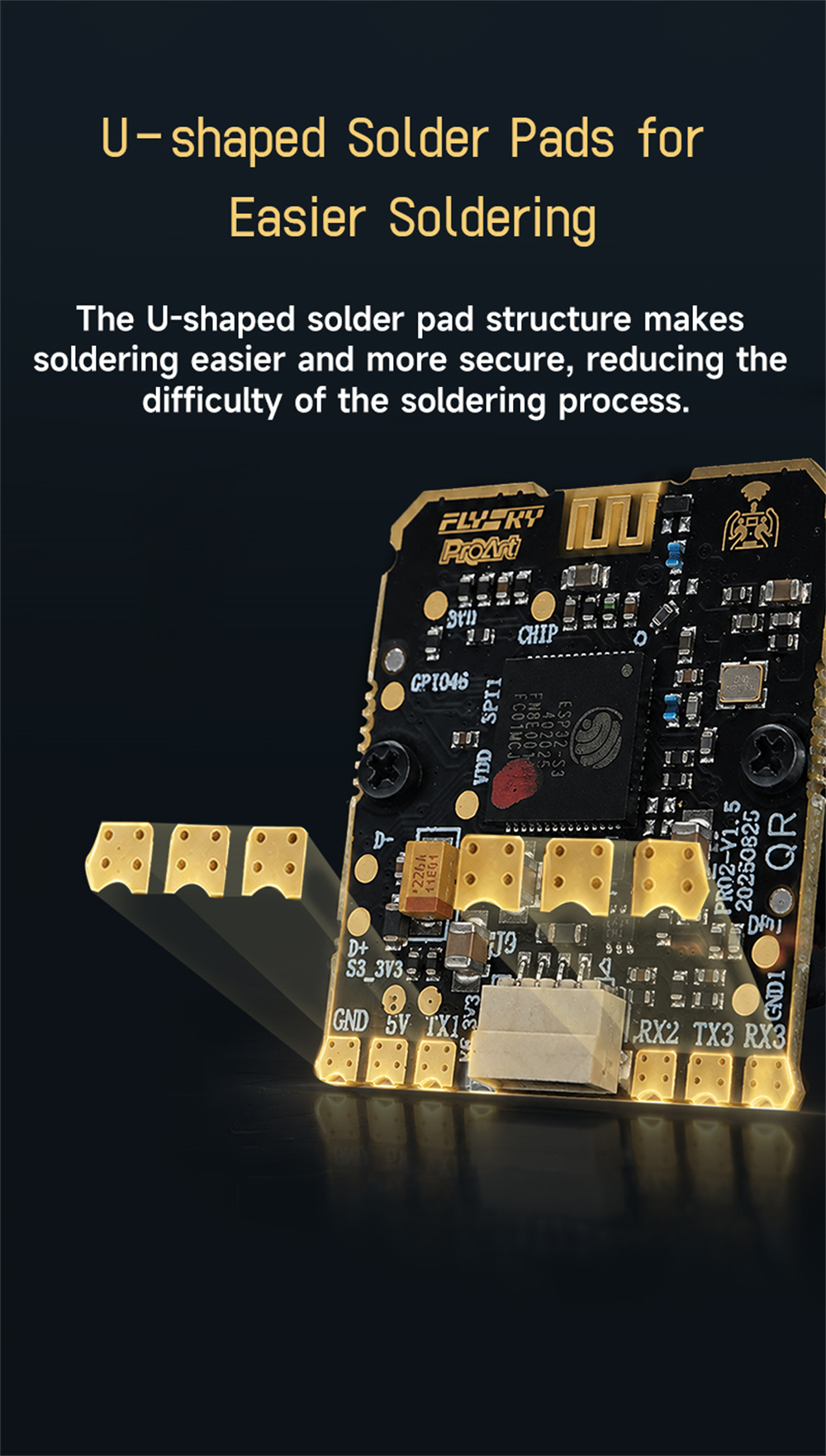

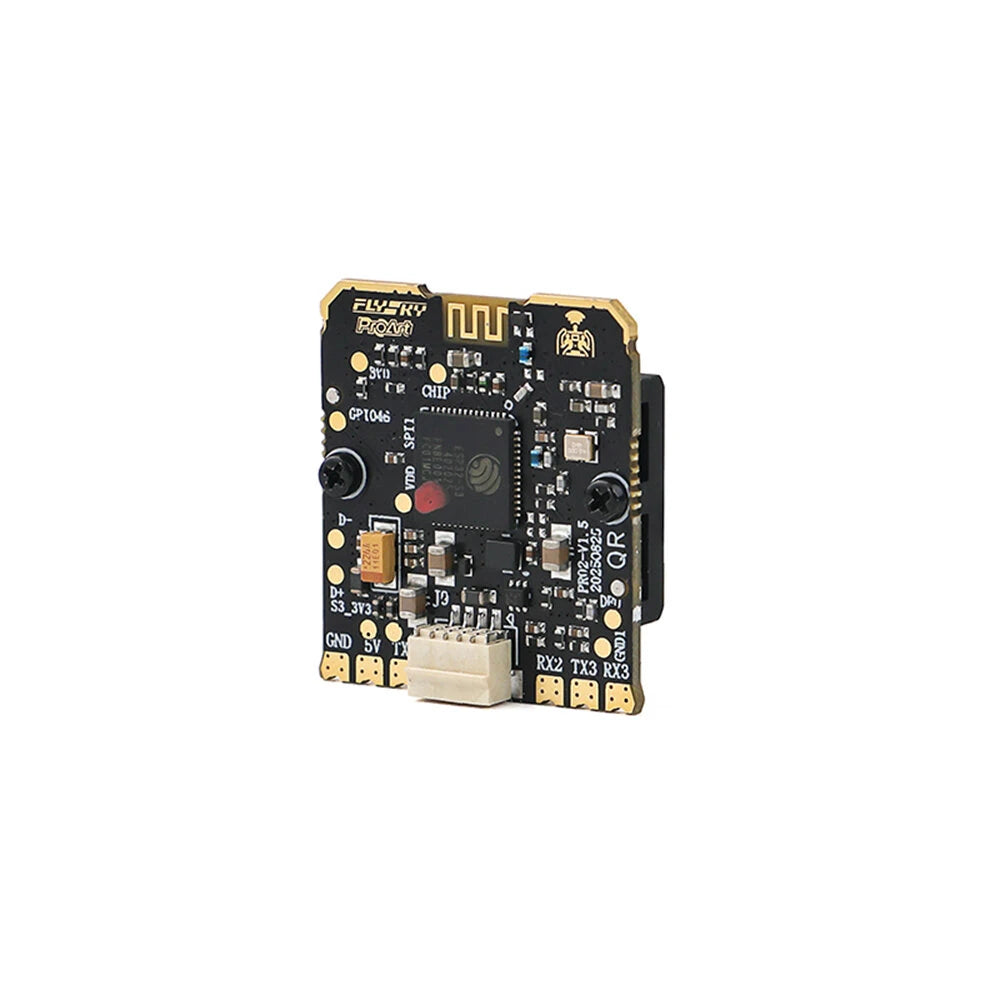

- Lightweight 4.55g board with U‑shaped solder pads, wide 4.5–12.6V input and Wi‑Fi firmware updates, easy to install and upgrade in most RC toys and DIY builds.

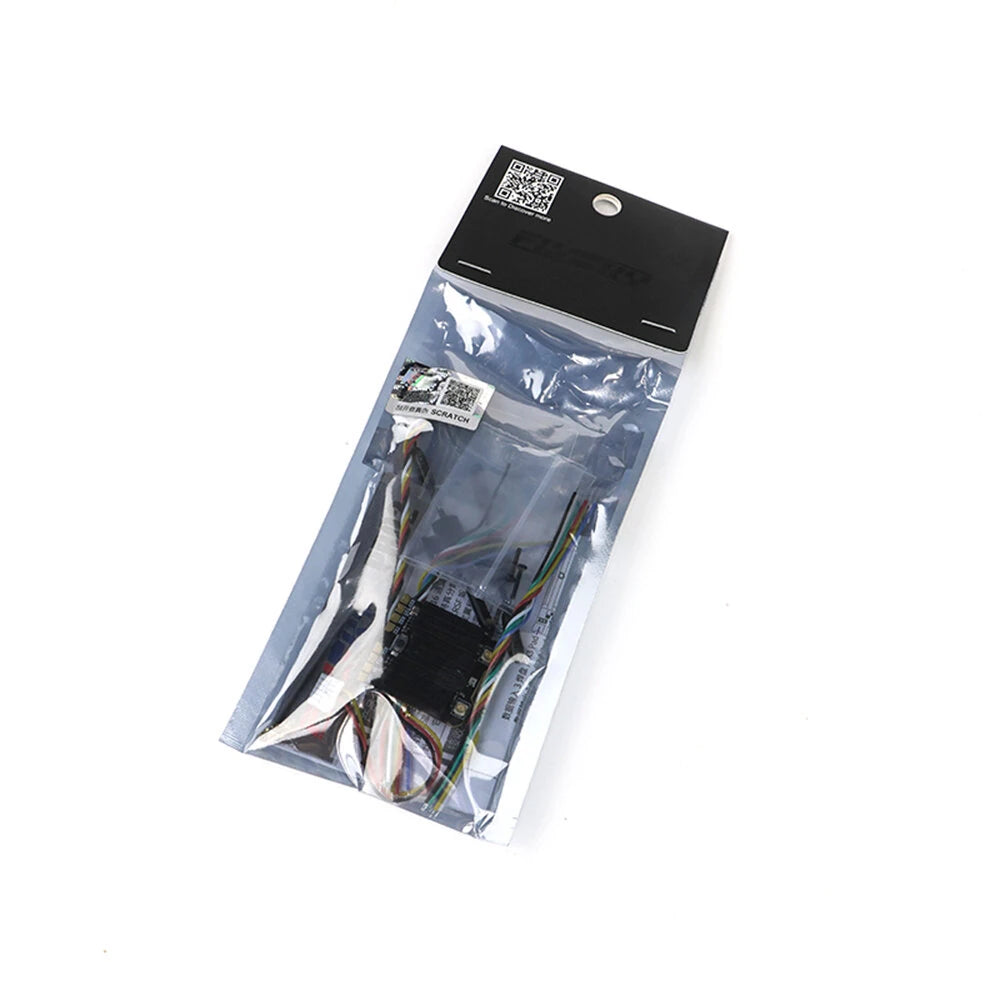

Package Included:
1 x Flysky PR02 True Diversity Receiver
