Description

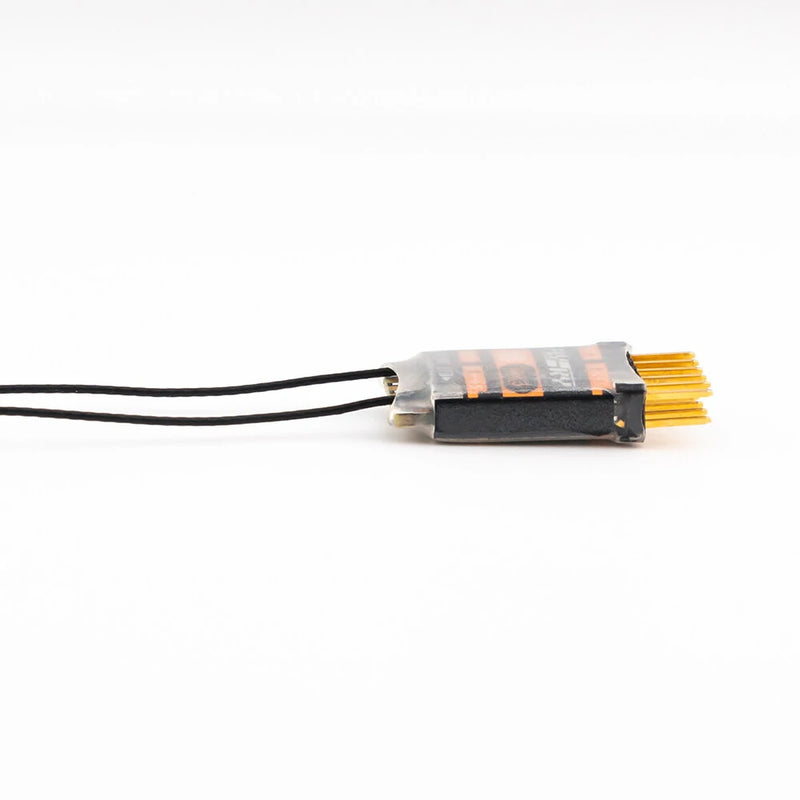

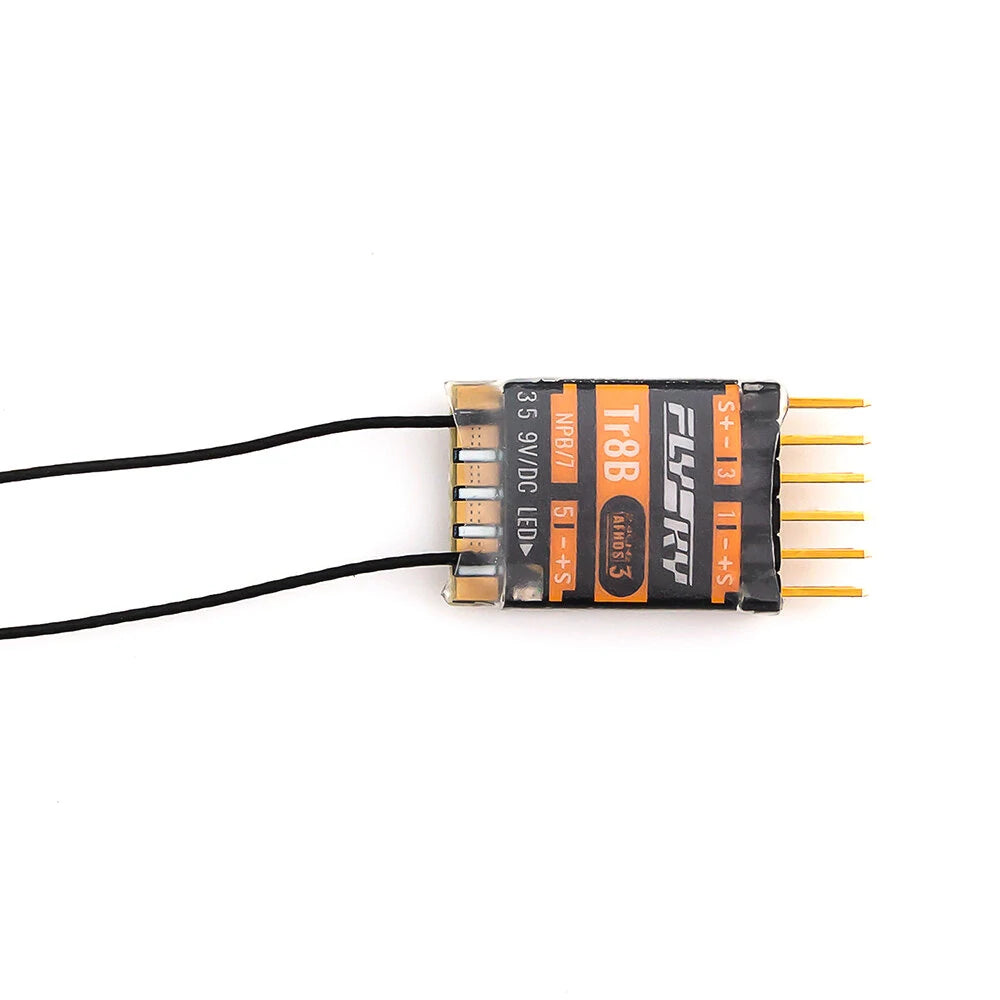

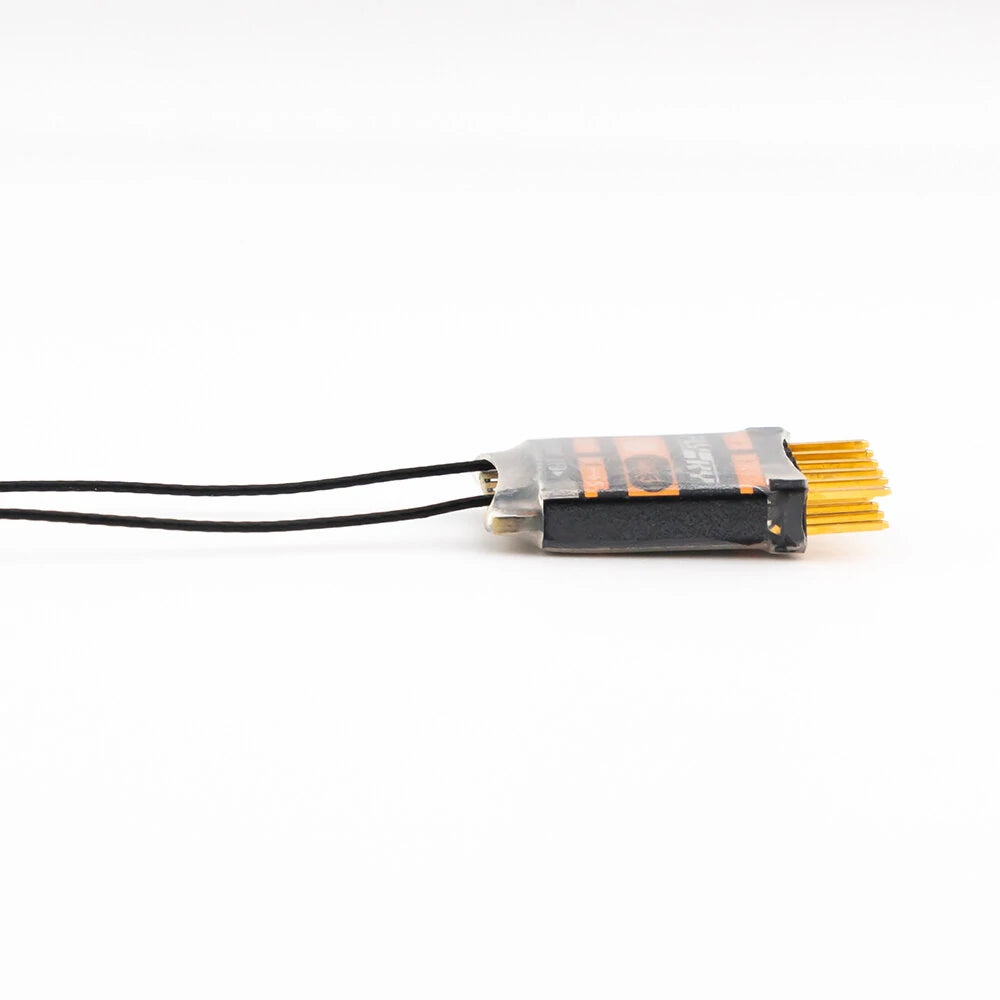

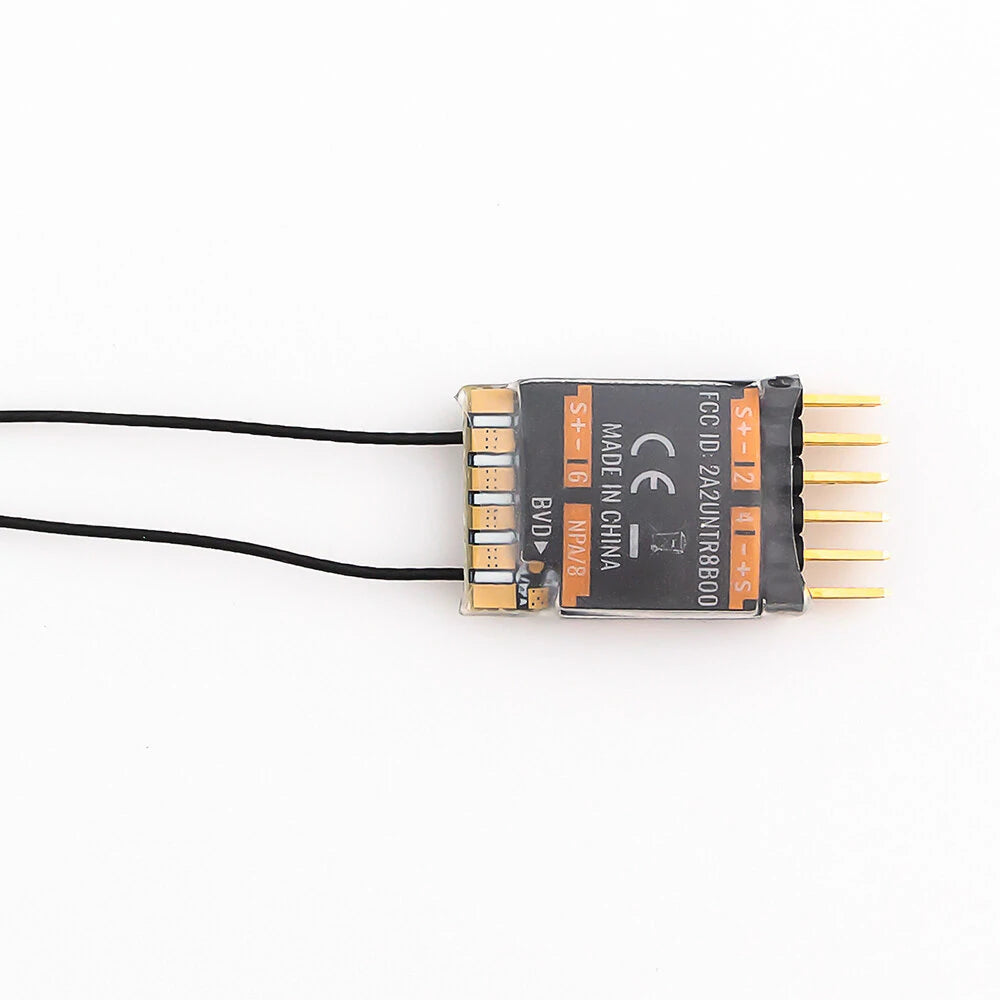

Flysky FS-TR8B 2.4GHz 8CH AFHDS 3 Micro Receiver PWM/PPM/i.BUS/S.BUS Output Support 2 Newport for FPV RC Drone Airplane Car Boat Robot
The Tr8B receiver based on AFHDS 3 protocol( third-generation automatic frequency hopping digital system) is micro receiver with 8 PWM channels. It features two button antennas, bidirectional data transmission and data returning. It supports 2 Newport function interfaces( Newport interface can be customized with the input or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc.). The receiver adapts all transmitters and RF modules with AFHDS 3 protocol. The design is also unique. We provide DIY accessories to meet special demands, in addition to meeting conventional applications.
Description:
Brand: FrSky
Model: Tr8B
Compatible Transmitters: Transmitters with AFHDS 3 protocol, such
as PL18 or NB4 series
Compatible Models : Indoor aircraft, gliders, cars, boats, fixed-wing
aircraft or robots.
PWM Channel: 8
RF: 2.4GHz ISM
2.4G Protocol: AFHDS 3
Antenna: Two antennas (ipex4)
Maximum Power: < 20dBm (e.i.r.p.) （EU）
Input Power: 3.5-9V/DC
Working Current: < 30mA（5V）
Data Output: PWM/PPM/i-BUS2/i-BUS/S.BUS
Temperature Range: -10℃ ~ +85℃
Humidity Range: 20% ~ 95%
Online Update: Yes
Distance: >1000m (Air distance without interference)
Dimensions: 19.5*14.6*3mm (Excluding pins and antennas)
Weight: 0.9g (Excluding pins and antennas)
2g (Including 4*3 pins and two antennas)
Certifications: CE, FCC ID: 2A2UNTR8B00
Flysky FS-TR8B Receiver Manual, Click here

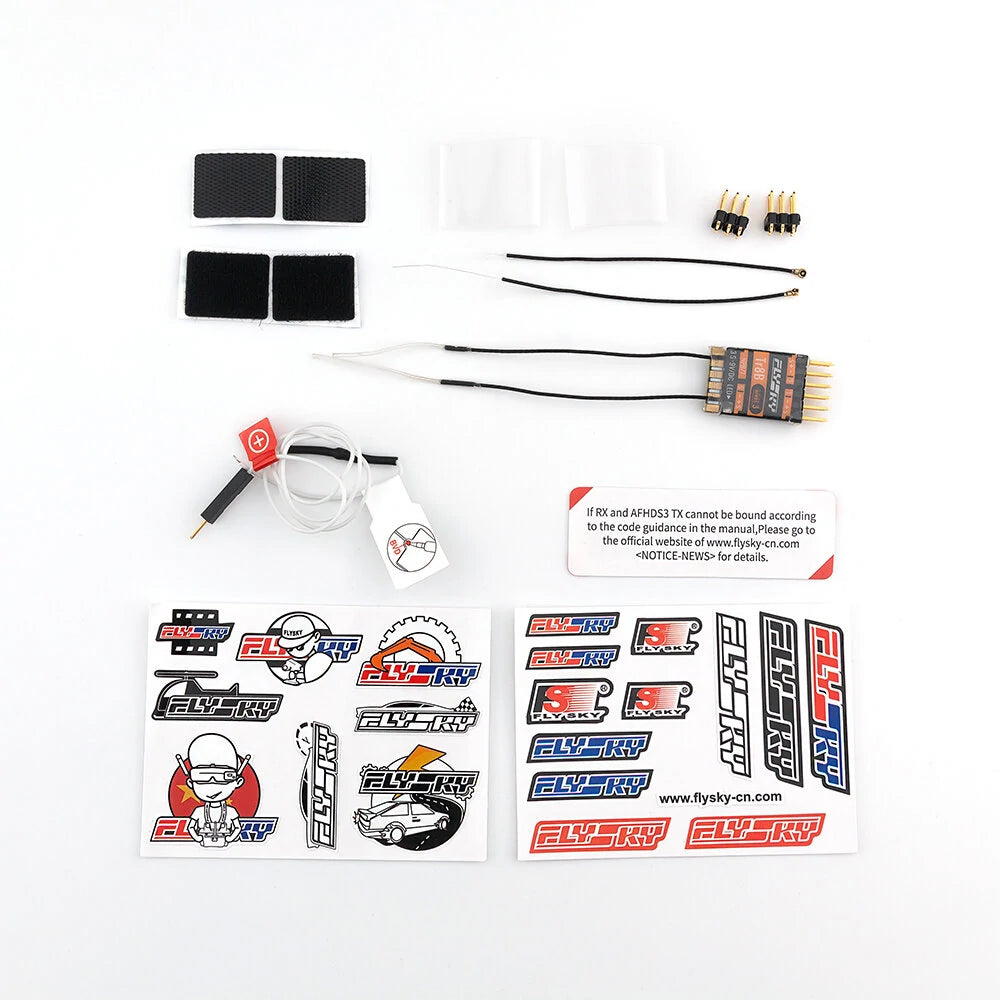

Package Included:

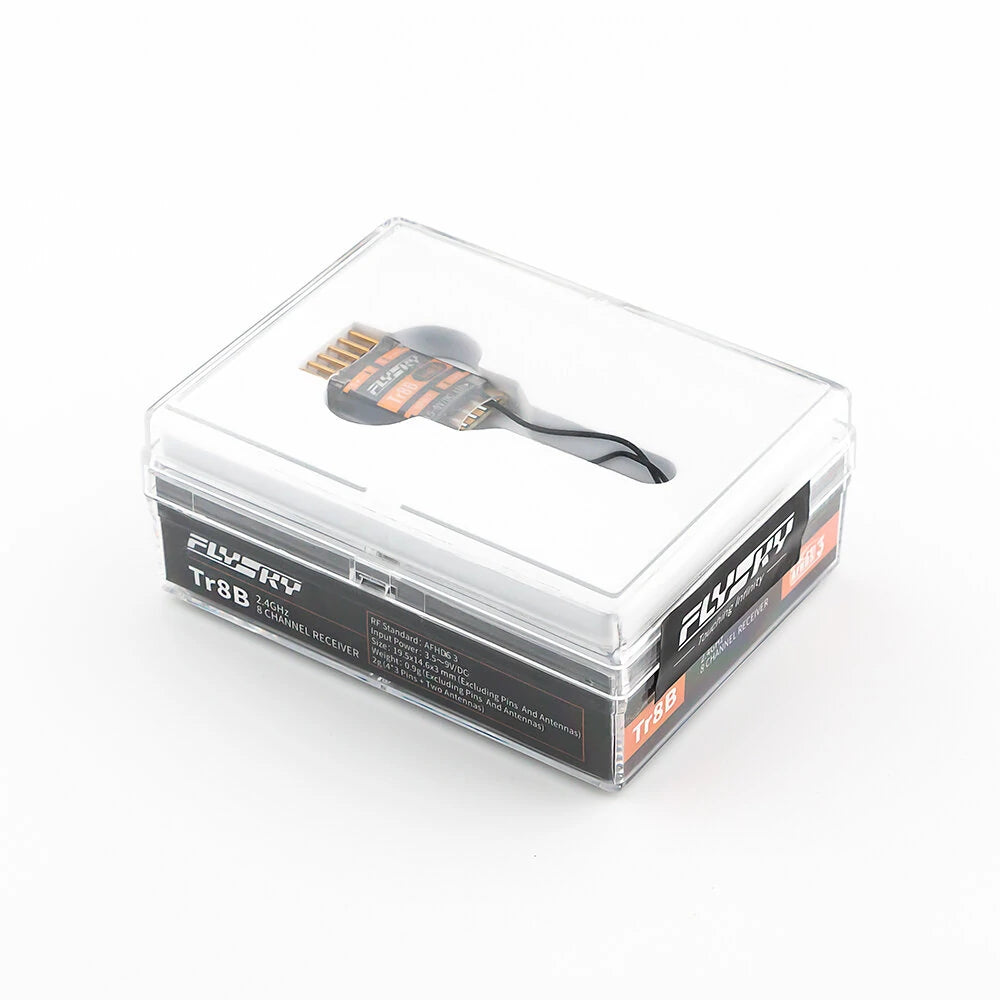

1x Flysky FS-TR8B 2.4GHz 8CH AFHDS 3 Micro Receiver
