Description
Description:
Item Brand:Flysky
Item Number:FS-R4D-ESC
Item Name:ESC speed controller
Material:Plastic and electronic parts
Color:Black
Product Size:44*30*16.7mm
Product Weight:43g(without pin header)
Compatible Models:1/10 crawler,on-road car,off-road short course truck and truck
Specification:
Compatible Transmitters:FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)
Number of Channels:4
Number of Light Interfaces:6
RF:2.4GHz ISM
2.4G Protocol:ANT
Antenna:Single External Antennas
Input Power:LiPo （2-3S）/ NiMH（5-9Cell）
BEC Output:6V/3A
Continuous/Peak Current:40A/200A
Motor Type:Brushed Motor
Applicable Motors:550, 540, 390, 370 or 280 Brushed Motor
Data Output:PWM
Resolution:4096
Temperature Range:-10℃ to +60℃
Humidity Limit:20%-95%
Distance:>150m(Ground Distance without interference)
Waterproof:PPX7
Online Update:None
Certification:CE,FCC ID: 2A2UNR4DESC
Features:

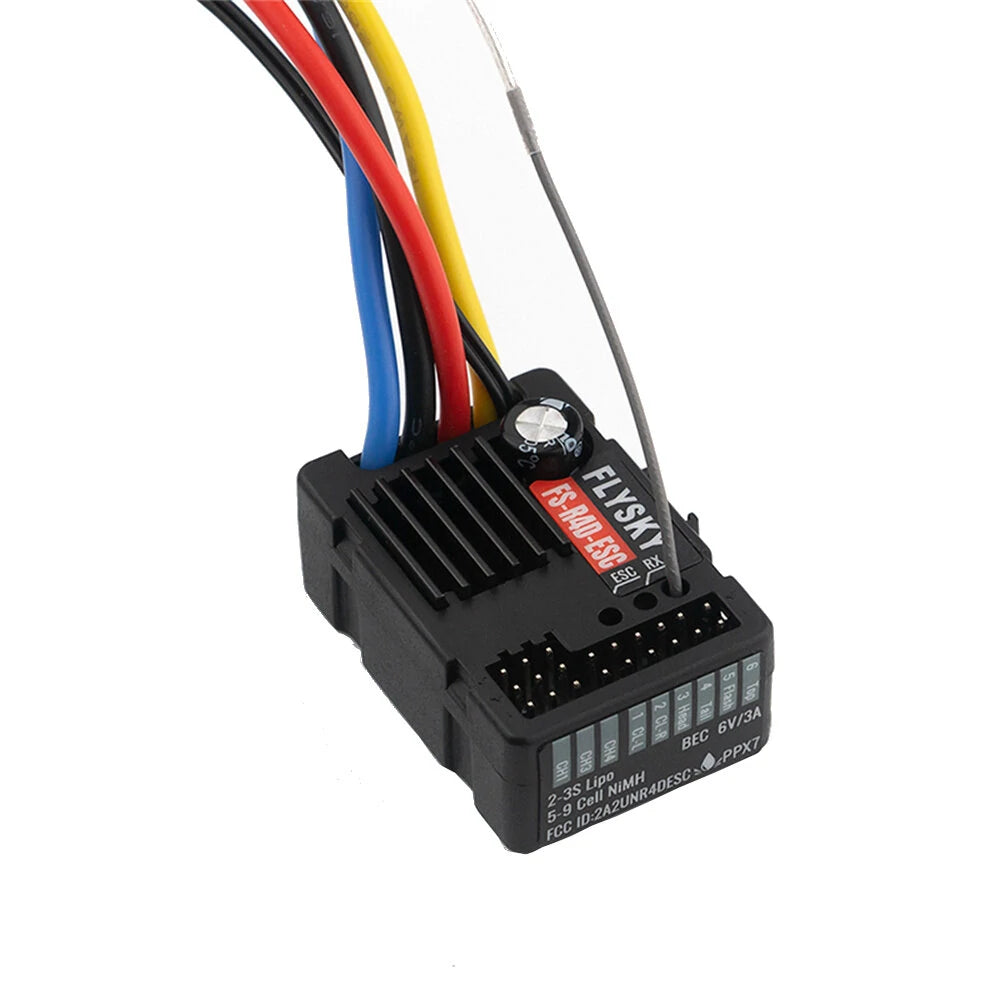

FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with Electronic Speed Control (ESC) and LED light set control. Its features are as follows:
Compact design;
External single antenna;
Output of PWM signals and car light control signals;
Two-way transmission;
Automatic binding;
ESC parameters configurable at the transmitter side;
Battery voltage protection and over-voltage protection;
Overheating protection;
Locked rotor protection;
Adaptation to a variety of vehicle models;

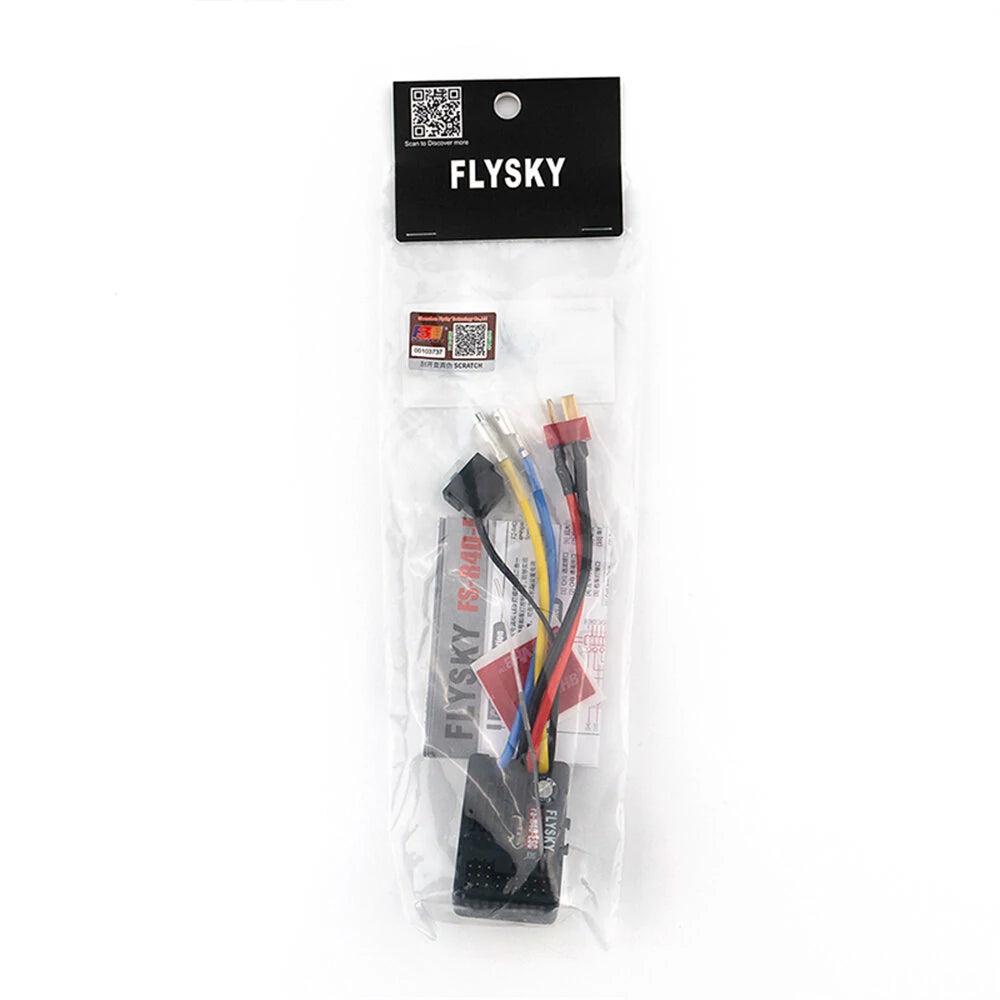

Package Included:

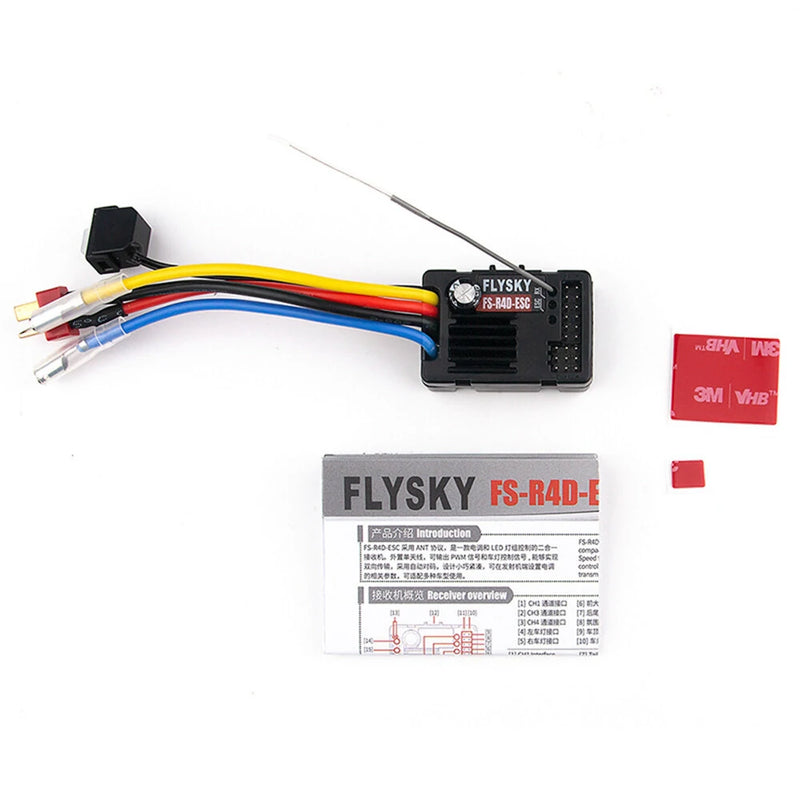

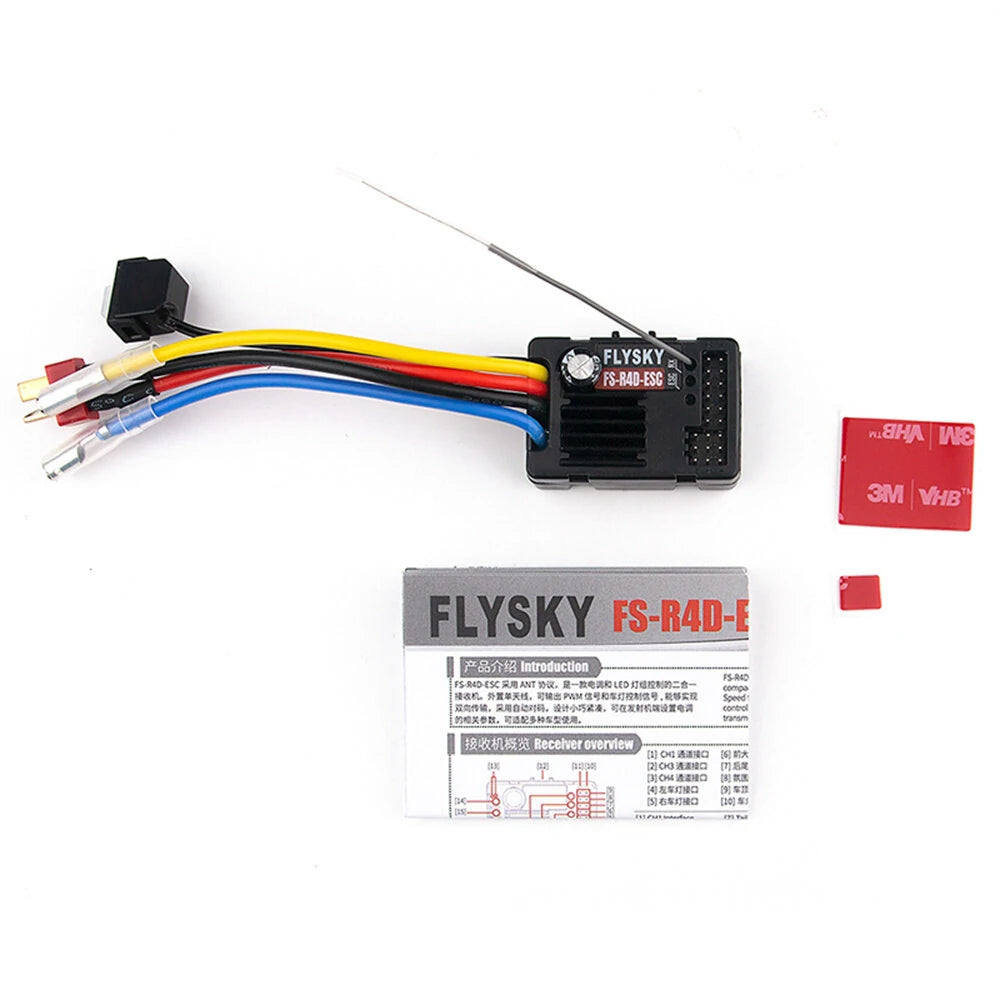

1X FS-R4D ESC
1X Manual
