Version: Full Version
Price:
R 4,130.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

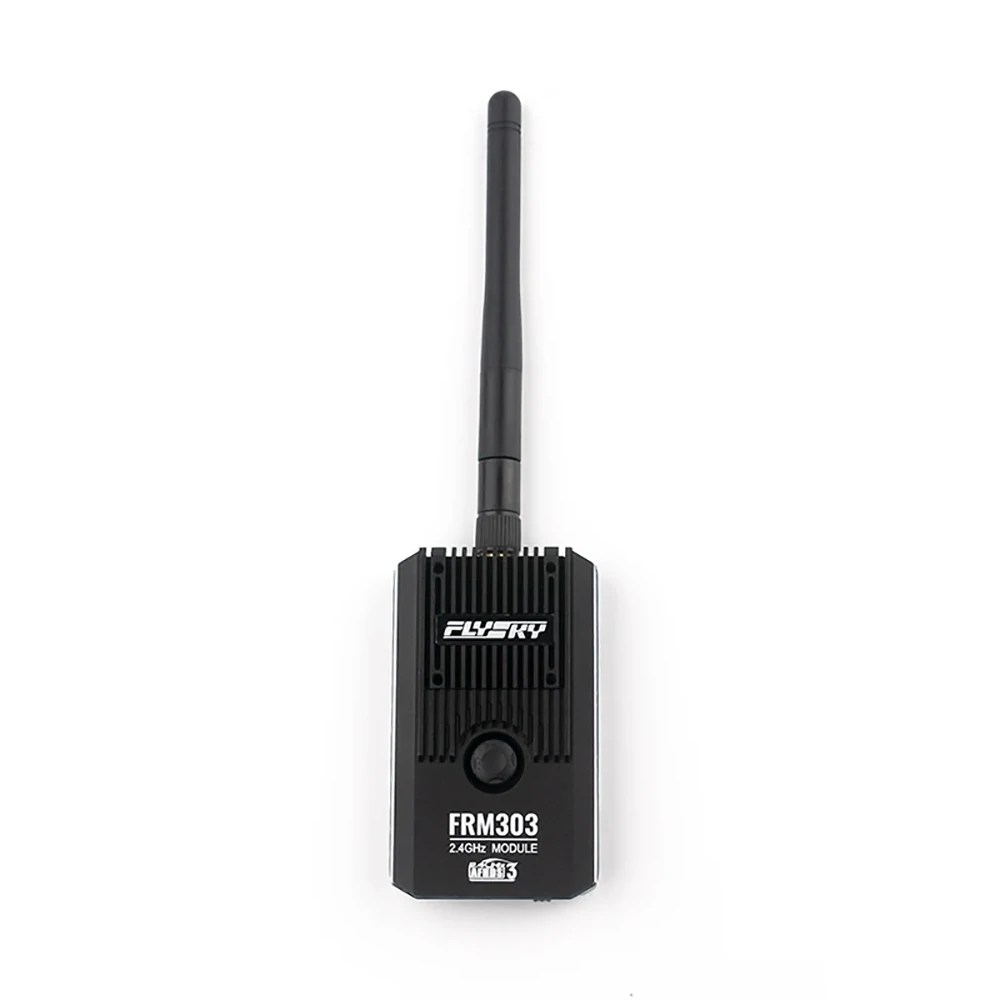

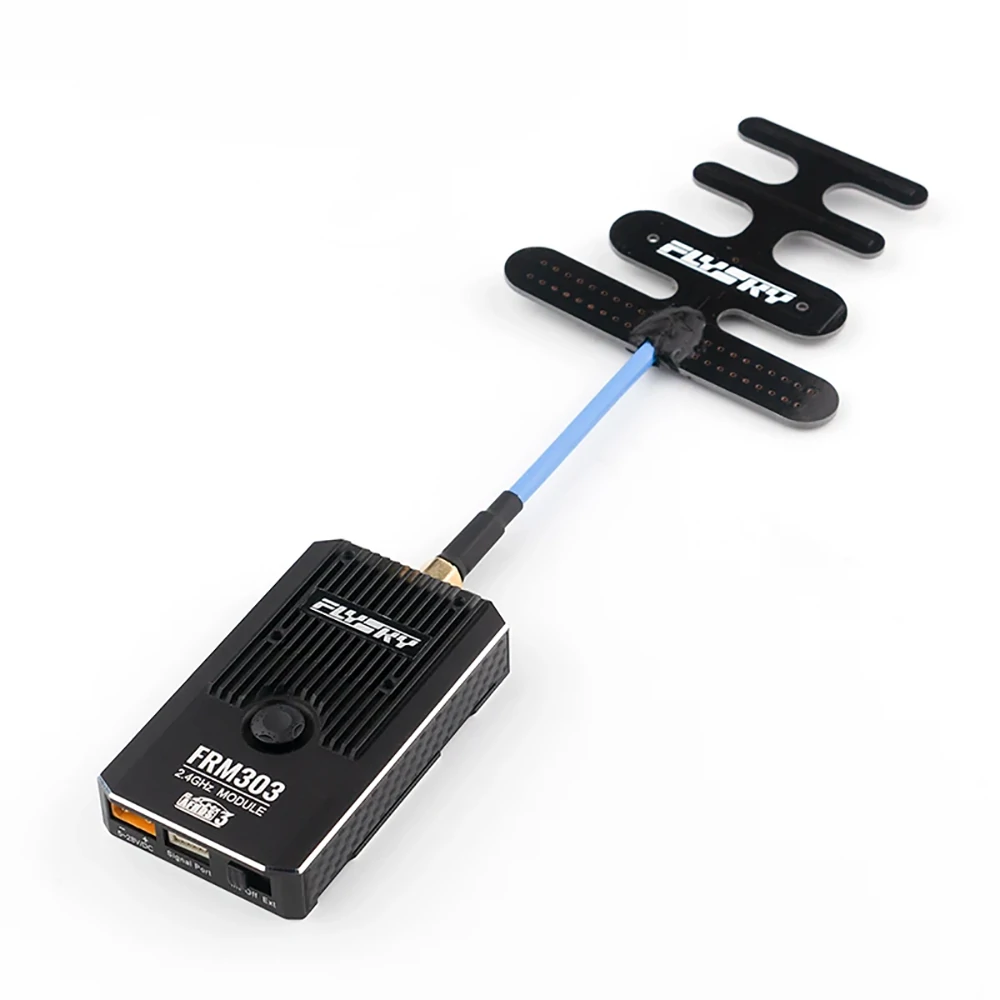

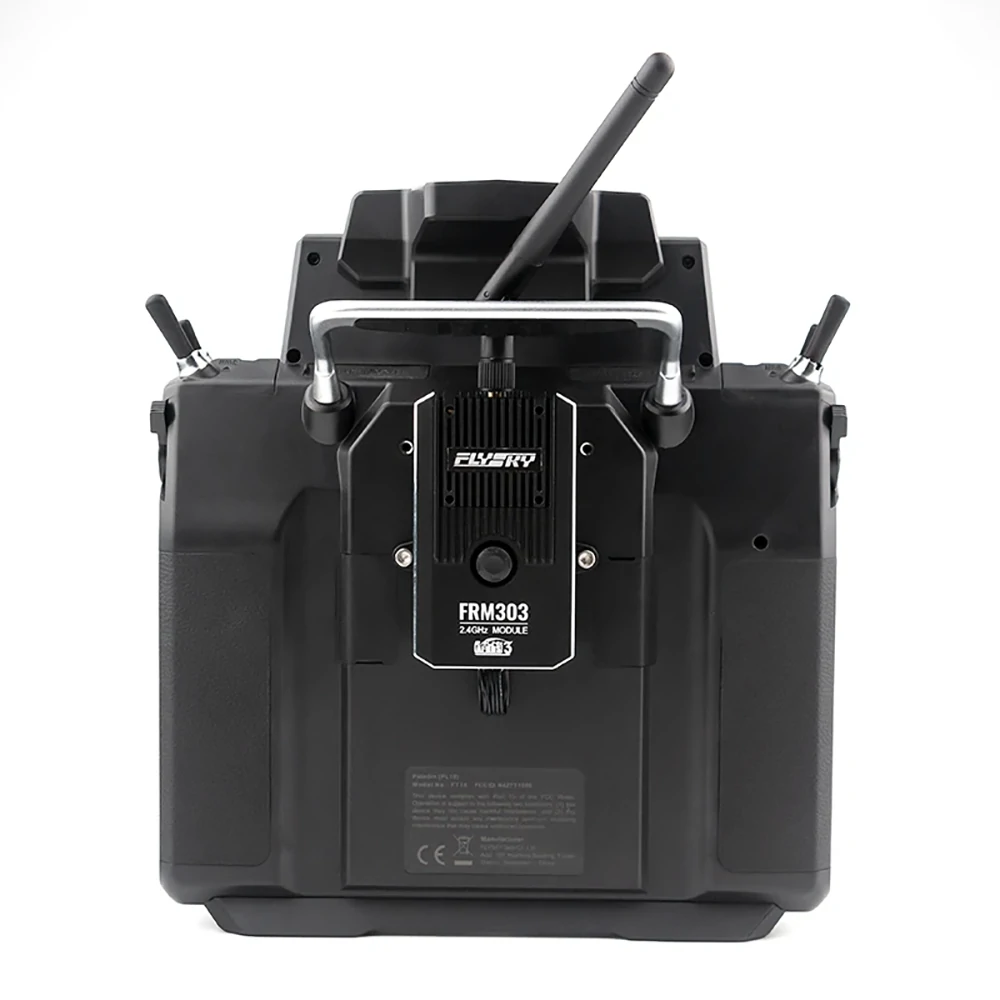

FlySky FRM303 2.4GHz 18CH AFHDS 3 Long Range Transmitter RF Module PPM/S.BUS Output for Flysky PL18 EL18 NB4/NB4 Pro Radio Controller


FRM303 is a multi-function high performance RF module in compliance with the AFHDS 3 third generation automatic frequency hopping digital system protocol. It features an external replaceable single antenna, support of bi-directional transmission, three power supply methods, support of voltage alarm function in case of external power supply, and support ofinputting PPM, S.BUS and UART signal.


Description:

Brand: FlySky

ProductName: FRM303
Adaptive Devices:
PPM: Devices that can output standard PPM signals, such as FS-TH9X, FS-ST8, FTR8B receiver.
S.BUS: Devices that can output standard S.BUS signals, such as FS-ST8, FTr8B receiver;
Closed Source Protocol-1.5M UART: PL18;
Open Source Protocol-1.5M UART: EL18;
Open source protocol-115200 UART: Devices that can output open source protocol-115200 UART signal .
AdaptiveModels: Fixed-wing aircraft, racing drones, relays, etc.
Number of Channels: 18
Resolution: 4096
RF: 2.4GHz ISM
2.4G Protocol: AFHDS 3
Maximum Power: < 20dBm (e.i.r.p.) （EU）
Distance: > 3500m (Air distance without interference)
Antenna: External sigle SMA antenna（Outer-screw-inner-pin）
Input Power:XT30 Interfac:5~28V/DC
                     Signal Interface: 5~10V/DC

                     USB Port: 4.5~5.5V/DC
WorkingCurrent: 98mA/8.4V(External power supply)
                            138mA/5.8V (Internal power supply)
                            135mA/5V(USB)
Data Interface: PPM, UART and S.BUS
TemperatureRange: -10℃ ~ +60℃
HumidityRange: 20% ~ 95%
Online Update: Yes
Dimensions: 75*44*15.5mm(Excluding antenna）
Weight: 65g(Excluding antenna and adapter）
Certifications: CE, FCC ID:2A2UNFRM30300

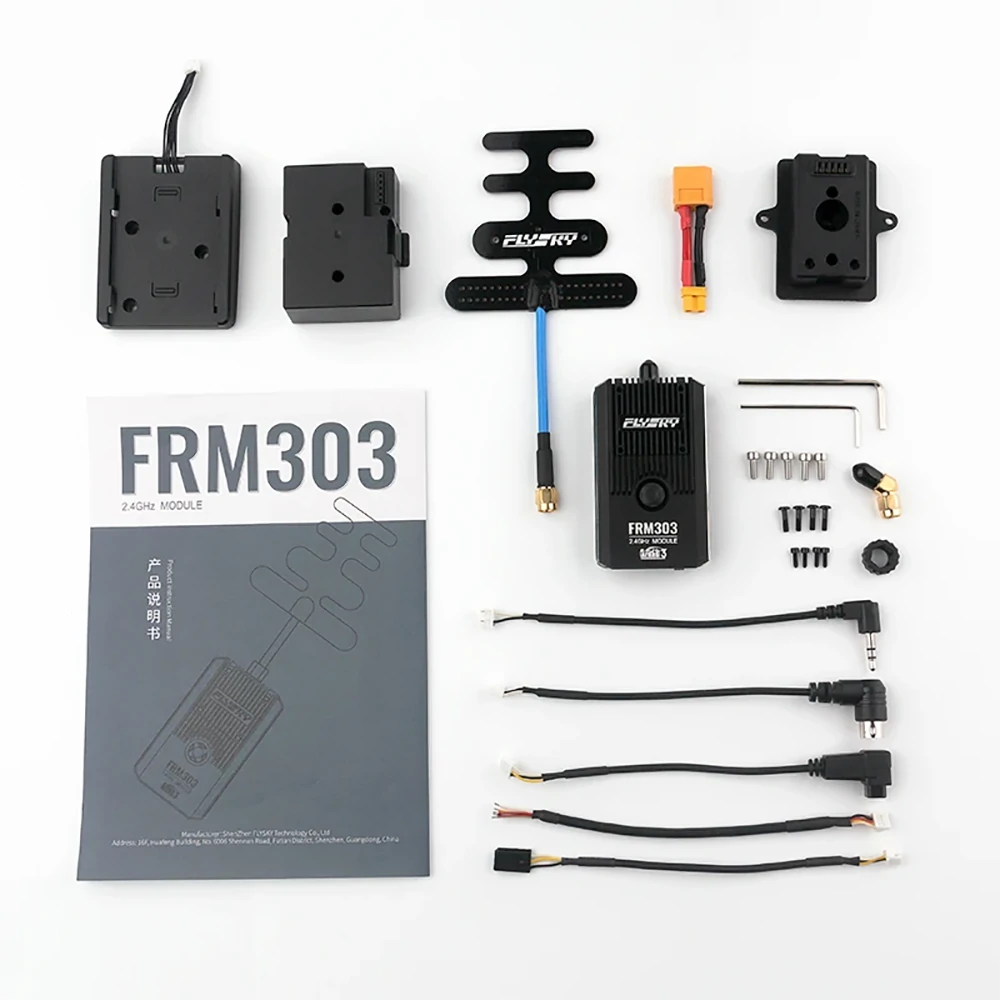

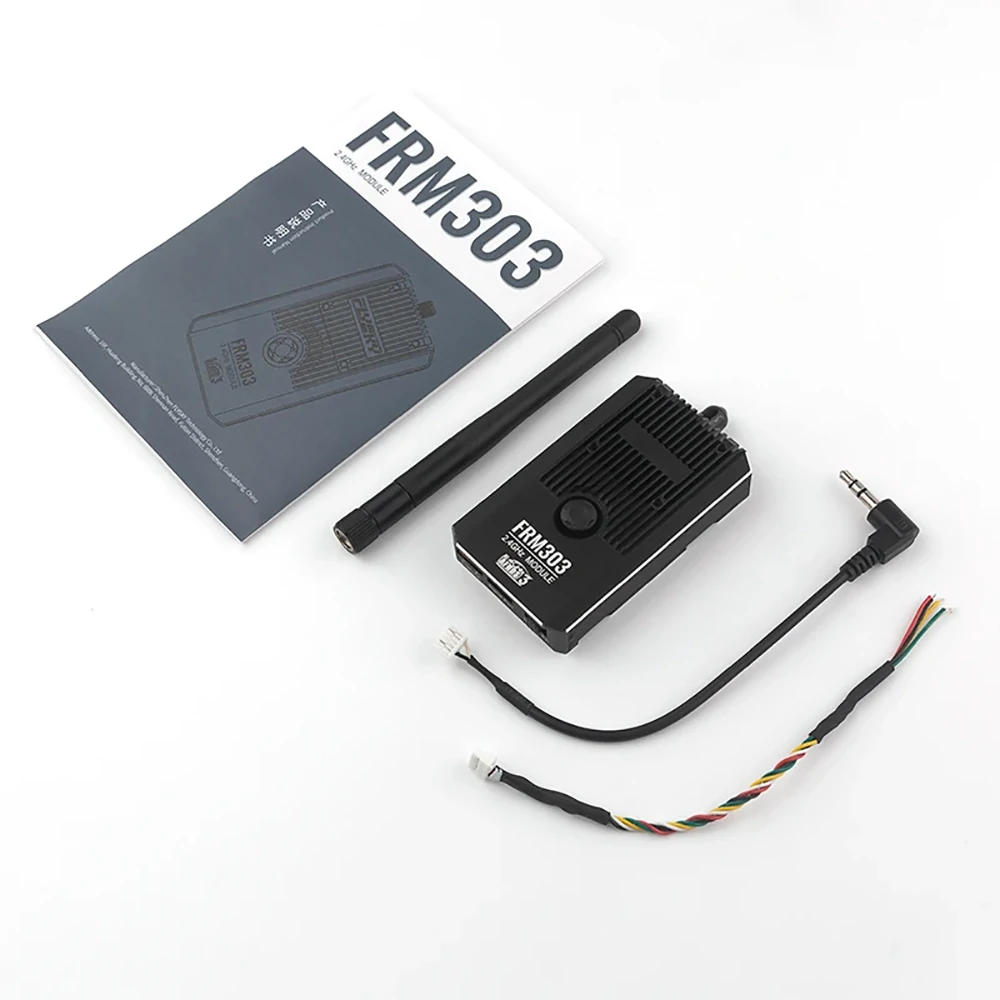

Package Included:

1x FlySky FRM303 2.4GHz Transmitter RF Module
