Description
Specification:

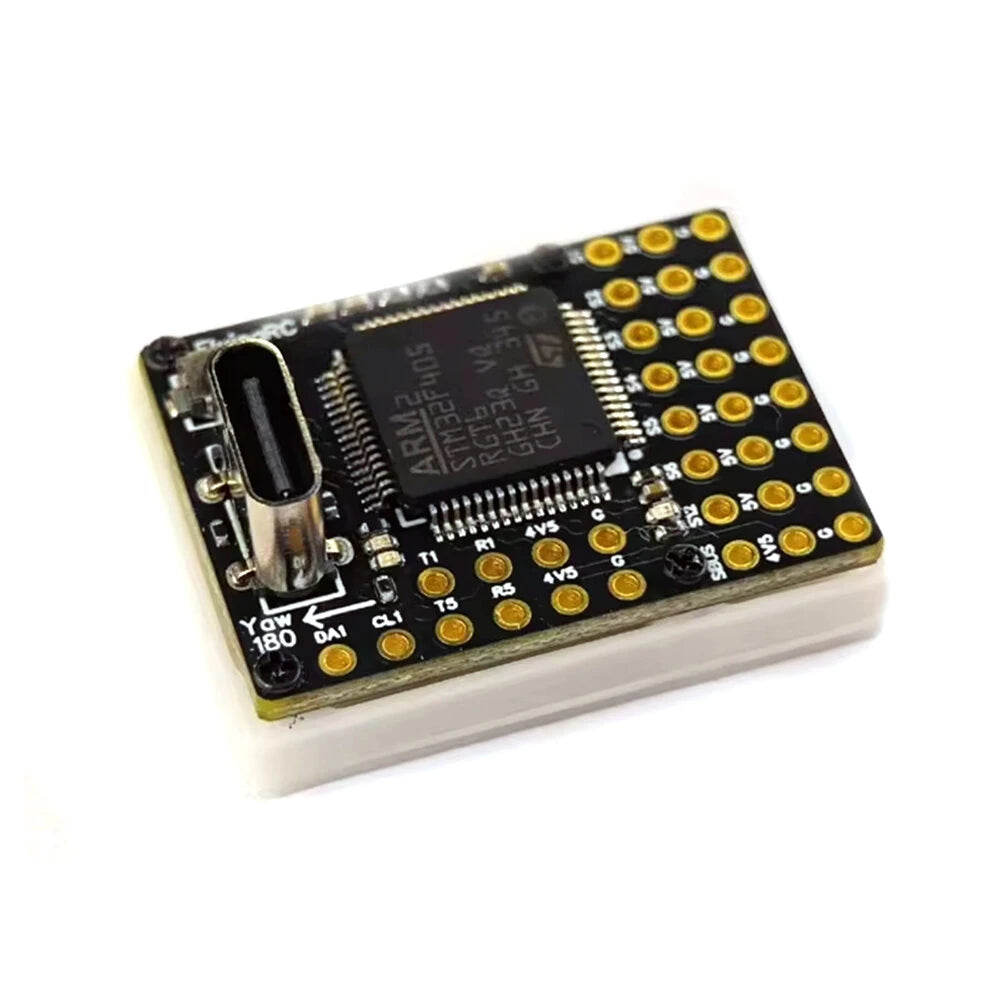

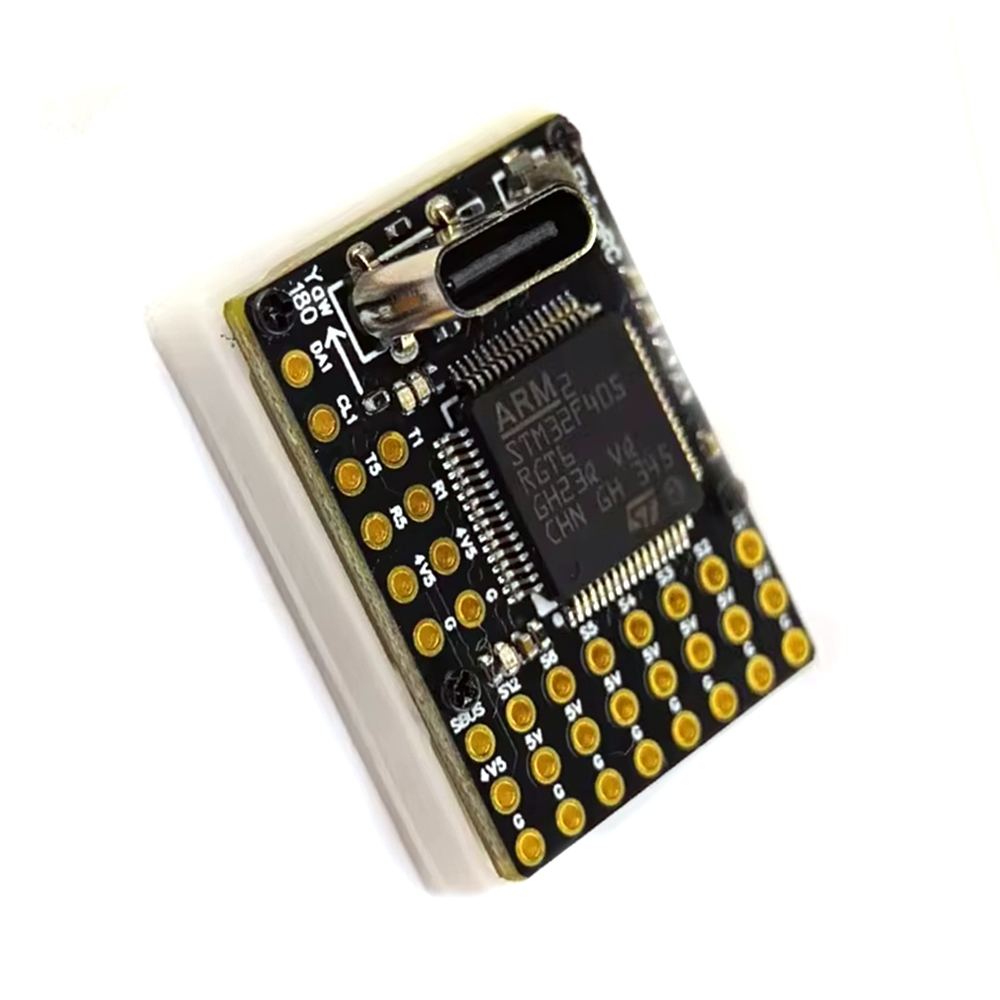

Model: FlyingRC F4Wing F405 Mini MK1 Flight Controller
Main control STM32F405RGT6, gyroscope ICM-42605, barometer SPL06-001, HD OSD, 3UARTs, 1SBUS, 6PWM, 1I2C
Current meter: external I2C current meter
Voltage meter: 2.5~30V, 1~6S LiPo
Power input: 5V
Size and weight: 27.9mm*20.3mm*11.2mm, 2.8g
Feature:
- Ultra-small Mini board: 27.9*20.3*11.2mm, only 2.8g (excluding pins, about 5.3g after soldering pins).
- Suitable for small racing drones or fixed wings
- Main control STM32F405RGT6, M4 core, 168Mhz main frequency, 1MB Flash; Performance is 5 times stronger than other similar products (using STM32F0 series).
- Gyroscope ICM42605, third generation TDKsensor, optimized for UAV applications.
- Barometer SPL06, domestic high precision barometer.
- Dual LDOs onboard, independent sensor power supply, more stable flight.
- 7 PWM outputs, 3.5 serial ports (SBUS can only be considered half a serial port).
- Type-C interface directly plugged into the flight controller, stable connection, longer lifespan, can be connected to mobile phones through dual Type-C cables, parameter tuning through mobile ground station (AP machines are not recommended to use GroundControl App).
- Contactless current meter function (can be connected to external I2C current meter), supports battery voltage output (SH1.0 2P interface), battery voltage simultaneously supplies power to the HD image transmission plug-in, supports up to 6s input.
- Supports HD image transmission plug-in (SH1.0 6P interface), high-definition OSD (DJI HD, Wolf HD, OpenIPC, etc.), does not support analog OSD.
Package incldued:
1x FlyingRC F4Wing F405 Mini MK1 Flight Controller
