Description

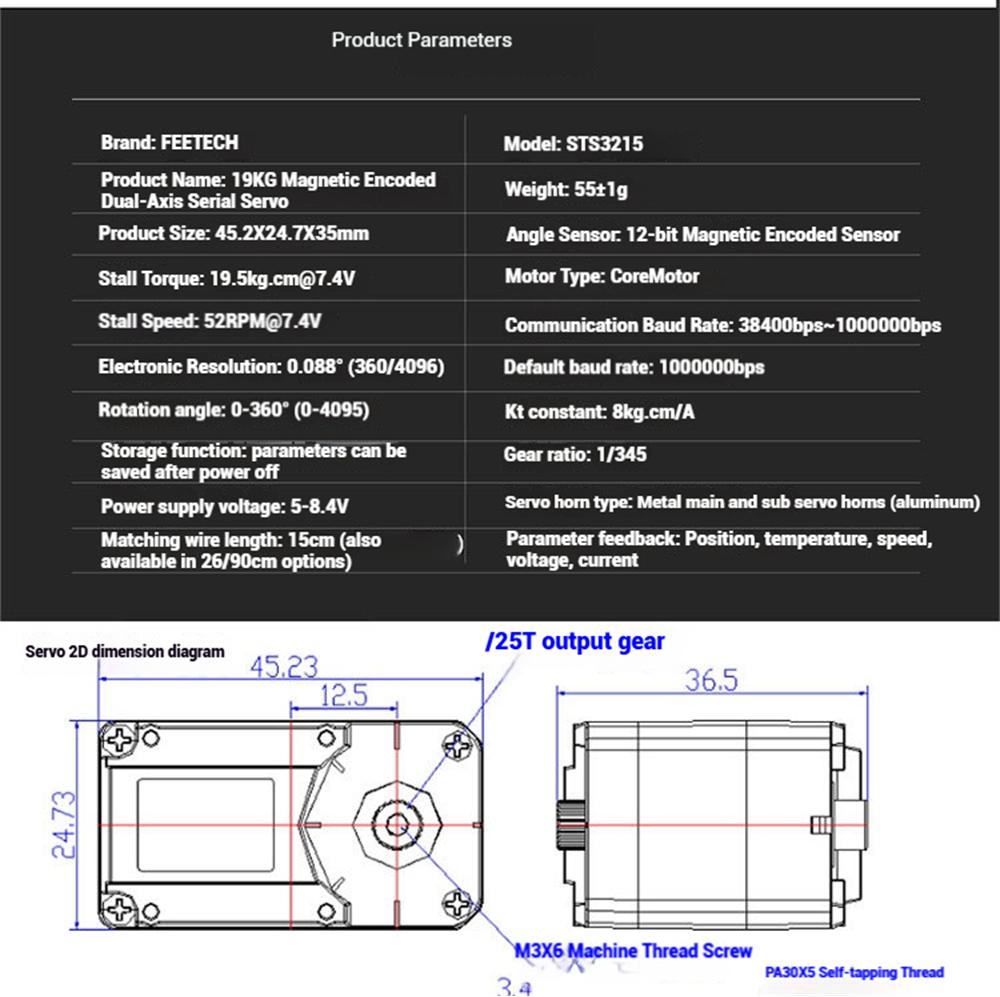

Specification:
Brand: FEETECH
Model Number: STS3215
Product Name: 19KG Magnetic Coding Dual Shaft Steering Machine
Weight: 55 ± 1g

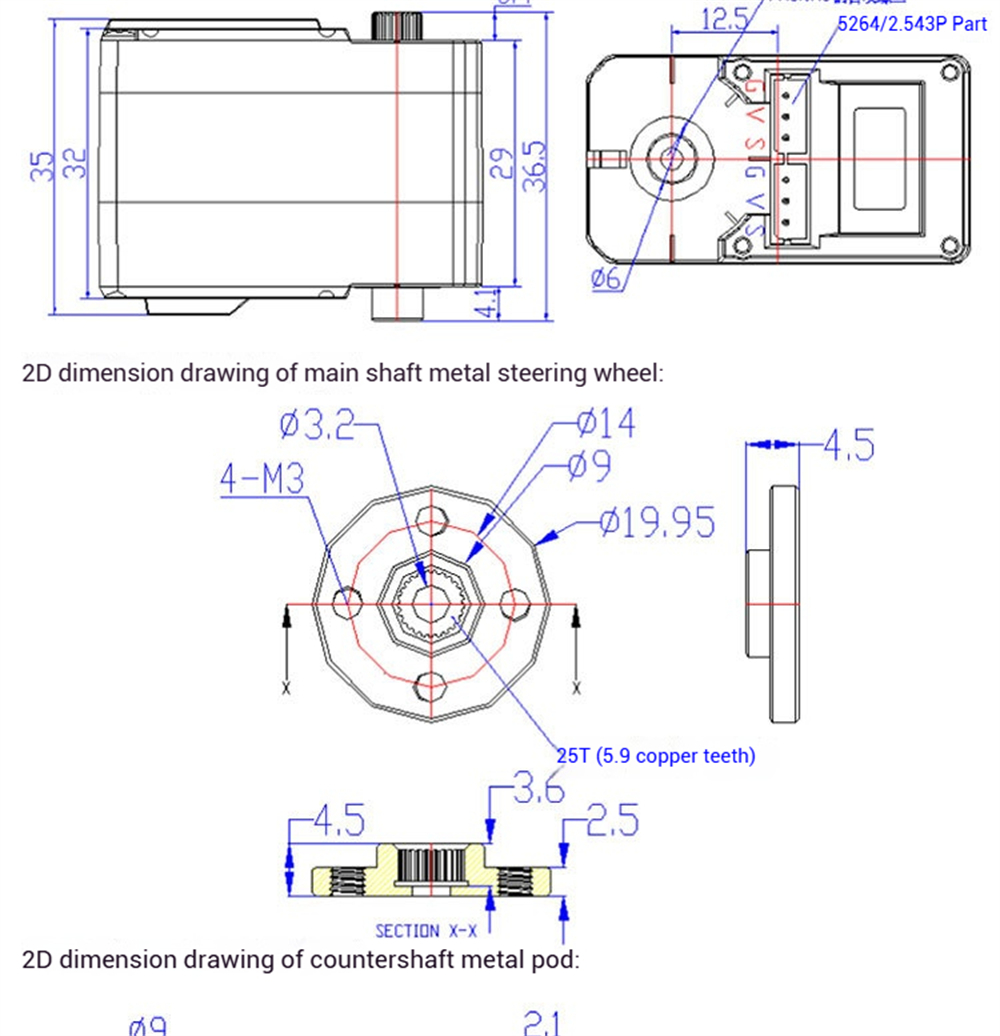

Product Dimensions: 45.2x24.7x35mm
Angle Sensor: 12-Bit Magnetic Encoder
Rated Torque: 19.5kg.cm @7.4V
Motor Type: Core Motor
Rated Speed: 52RPM @7.4V
Communication Speed: 38400bps ~ 1000000bps
Electronic Resolution: 0.088° (360/4096)
Default Baud Rate: 1000000bps
Rotation Angle: 0°-360° (0-4095)
Kt Constant: 8kg.cm/A
Storage Function: Power-Off Parameter Retention
Reduction Ratio: 1/345
Supply Voltage: 5-8.4V
Output Gear Type: 25T

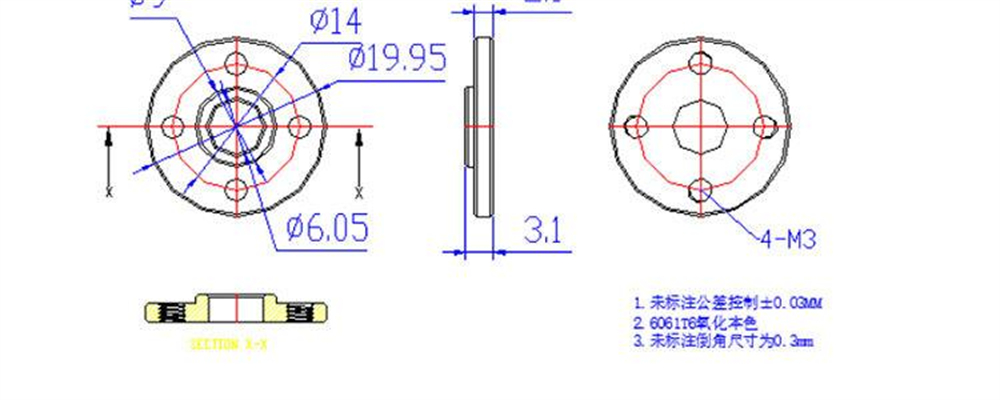

Actuator Type: Metal Main And Secondary Disk (Aluminum)
Control Cable Length: 15cm (Optional 26/90cm)
Parameters: Position, Temperature, Speed, Voltage, Current

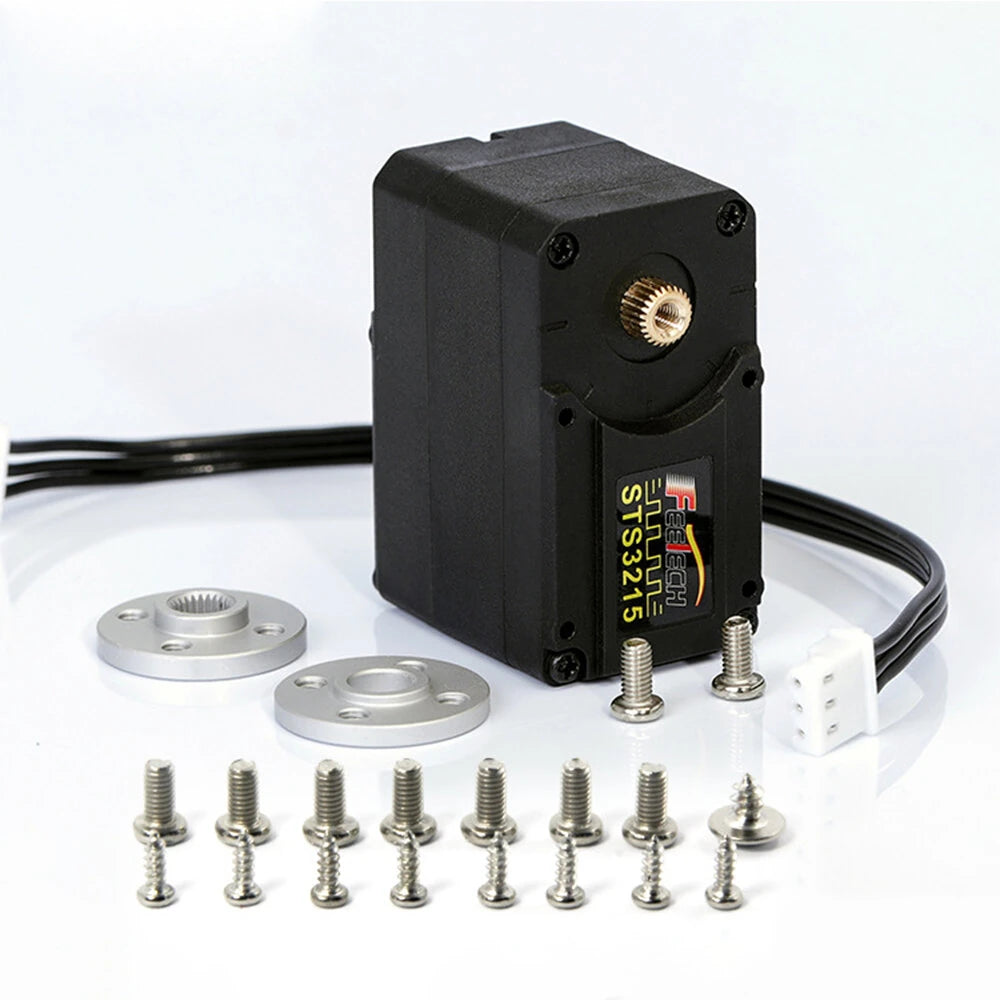

Package included:
1 x RC Servo
