Description
Description:
| Brand Name: | EWRF |

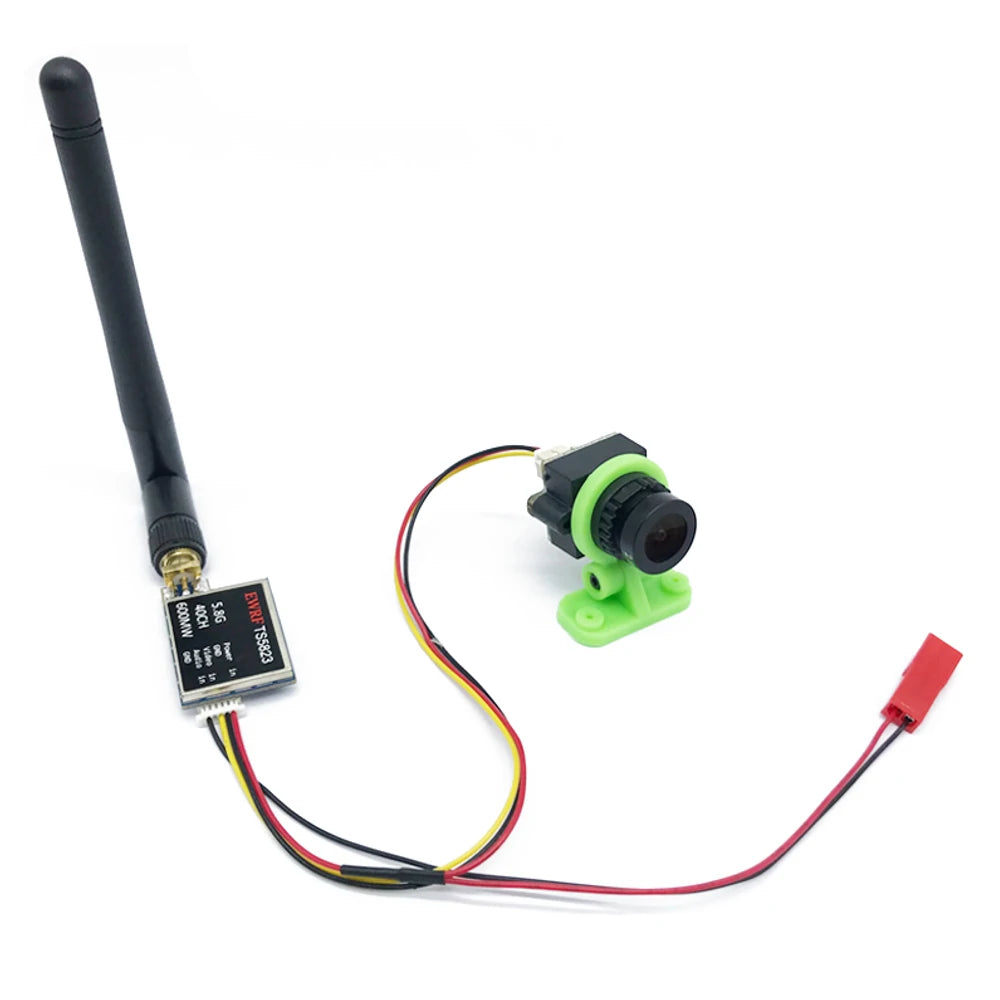

| Item Name: | FPV Transmitter + Camera Combo |

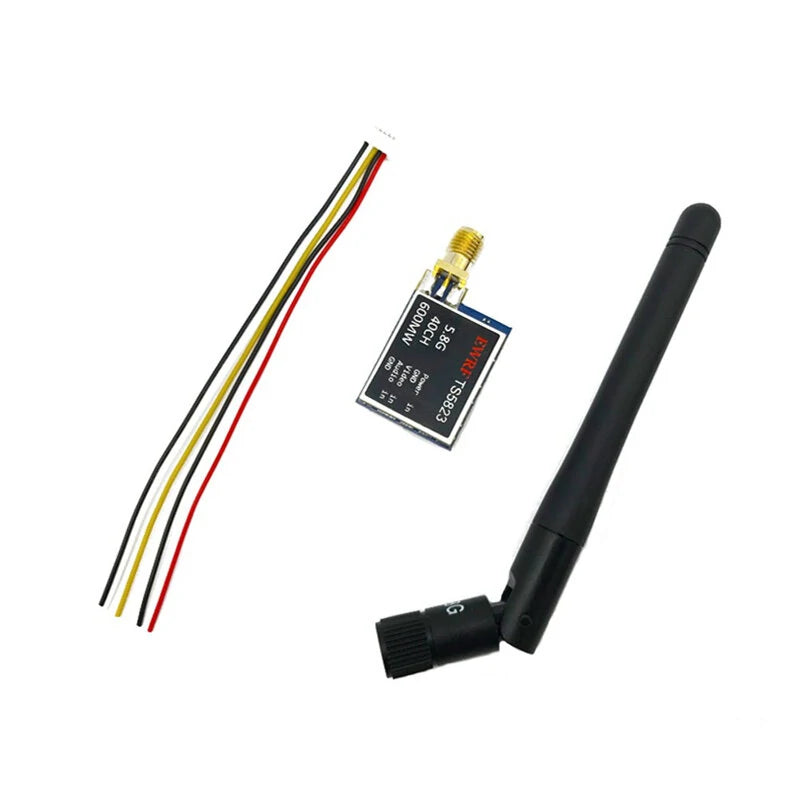

FPV Transmitter:
| Item Name: | TS5823 |
| Frequency: | 5.8G |
| Channel: | 40 |
| Transmitting Power: | 600mW/OFF(Pitmode) |
| Working Current: | 230mA (600mW version) |
| Power Supply: | DC 7-24V |
| Connector: | RP-SMA Female |
| Weight: | 5g |
| Dimension: | 30x20x8mm |

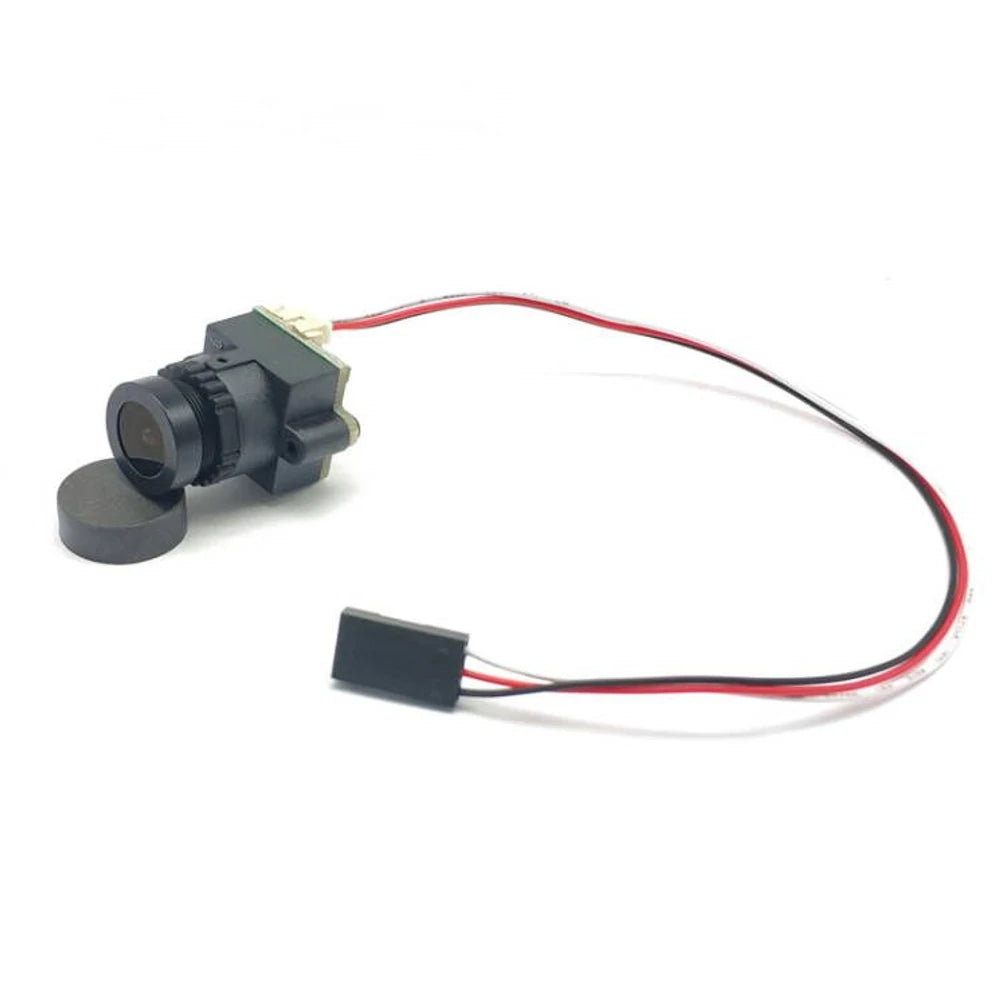

FPV Camera:
| Item Name: | Camera |
| Lens: | 2.8mm |
| FOV: | 120° |
| Image Sensor: | 1/3'' CMOS |
| Pixels(H x V): | 1280(H) x 720(V) |
| Synchronization: | Internal |
| Minimu Illumination: | 0.05LUX/F 1.2 |
| Horizontal Resolution: | 1000TVL |
| White Balance: | Automatic |
| Autonatic Gain: | Automatic |
|
Backlight Corponsation: |
Automatic |
| Digital Noise Reduction: | (2D)/YBS(2D) |
| Gamma Correction: | 0.45 |
| Electronic Shutte: | 1/50 - 1/100. 000 S, 1/60 - 1/100.000 S |
| S/N Ratio: | ≥ 50dB |
| Video Output: | 1.0 Vp- P75Ω |
| Power Supply: | DC 5-17V |
| Working Current: | 135±5mA |
| Operatio Temperature: | -40C ~ +105℃ |
| Signal System: | PAL / NTSC |

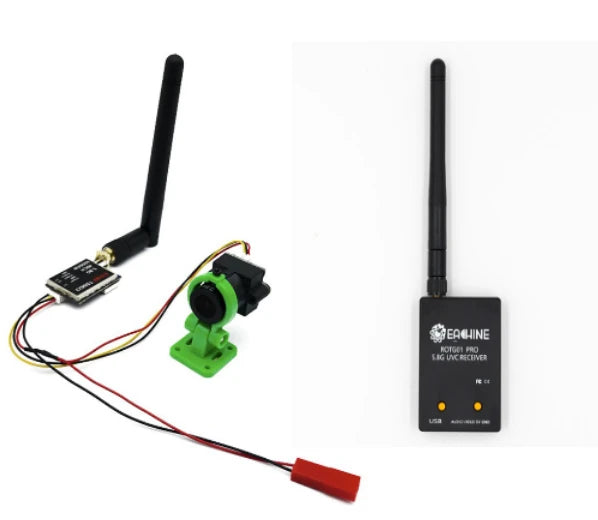

Specifications of FPV ROTG01 receiver: Click here
Features:Miniature and light weight design.
FPV transmitter with SMD digital display.With audio and video control interface.Ultra small size 1000TVL HD FPV camera,high definition, low illumination,low power consumption.
English Manual for EWRF TS5823, Click Here
Package Included:
FPV transmitter with SMD digital display.With audio and video control interface.Ultra small size 1000TVL HD FPV camera,high definition, low illumination,low power consumption.
English Manual for EWRF TS5823, Click Here
Package Included:
| 1x EWRF TS5823 FPV Transmitter |
| 1x 1000TVL Camera |
| 1x Antenna |

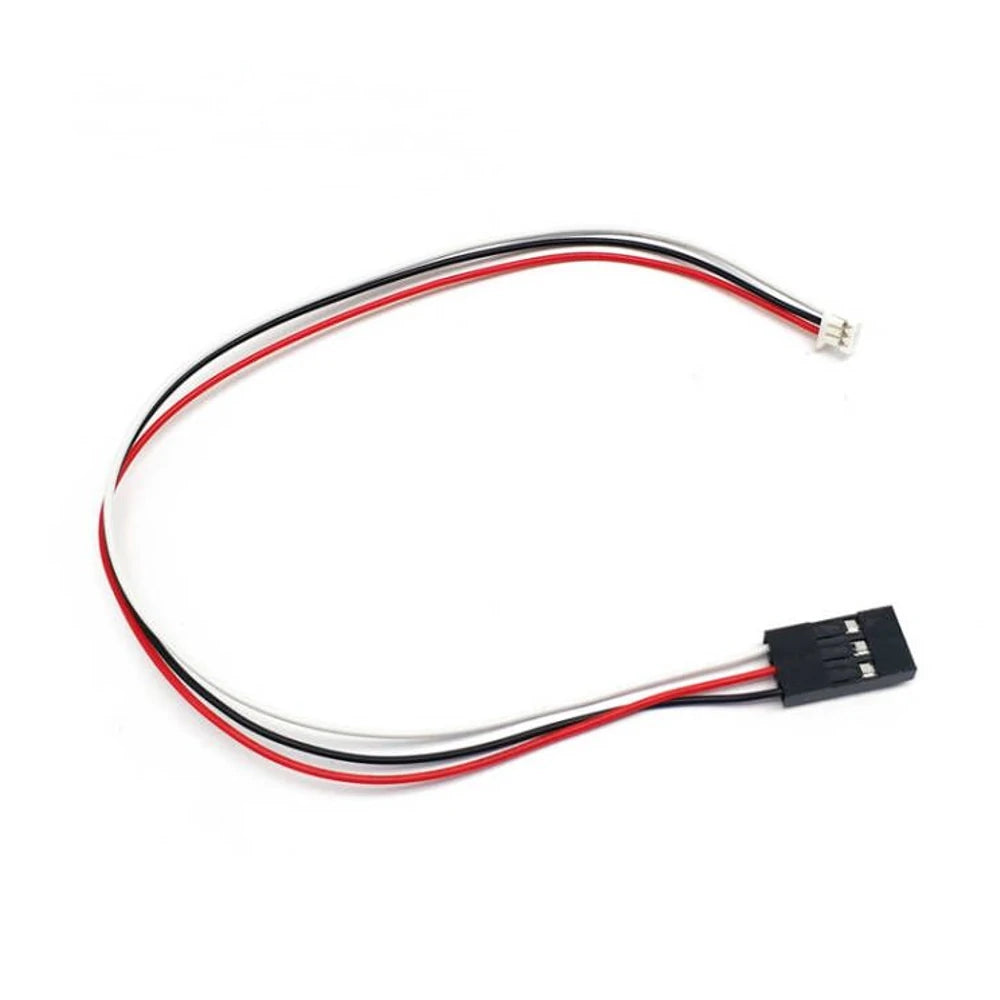

| 2x Cable |
