Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Note: The switcher is blue color instead of green.
EWRF is a brand dedicated to the production of FPV transmission equipment and RC accessories. Its products are widely used in drone racing, aerial photography, and remote-controlled modeling. The Upgraded TS5823 Pro is a high-performance 5.8GHz video transmitter designed for FPV enthusiasts who seekk the ultimate flying experience. Through continuous technological upgrades and optimizations, this product delivers stable and clear video transmission, making it a reliable choice for FPV flight.
Features
- Support 3 cameras(package includes 2 cameras)
- Plug and play
Description
| Model : | Dual Camera Combo |
| Weight : | 43.9g |
Specification:

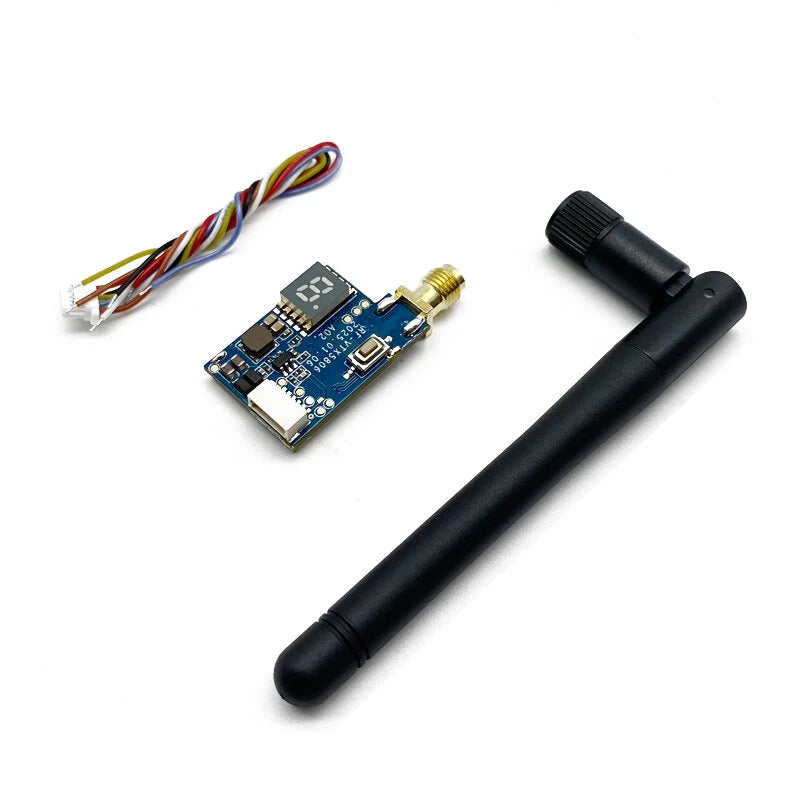

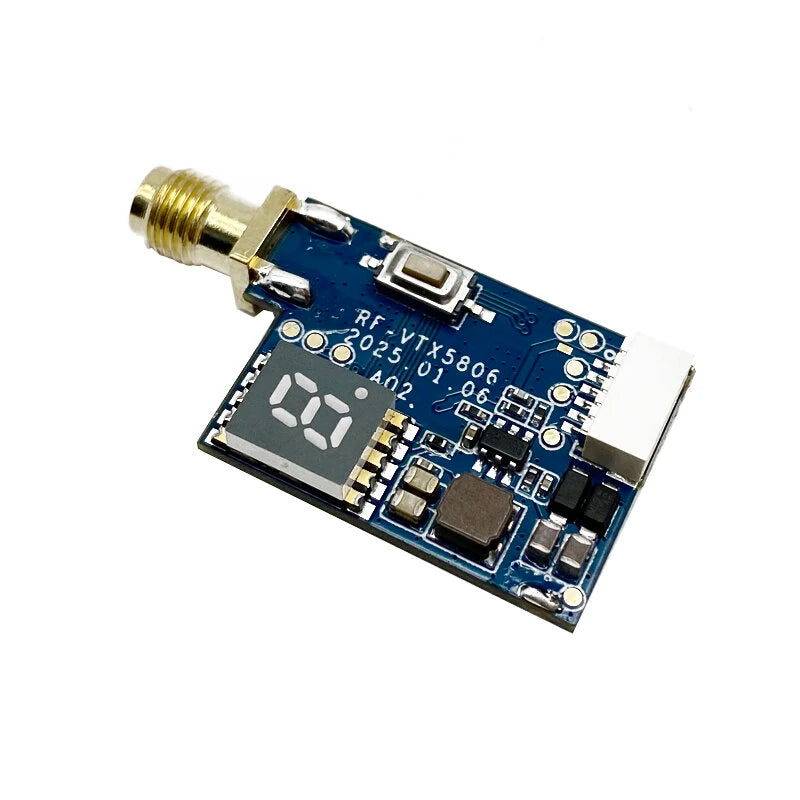

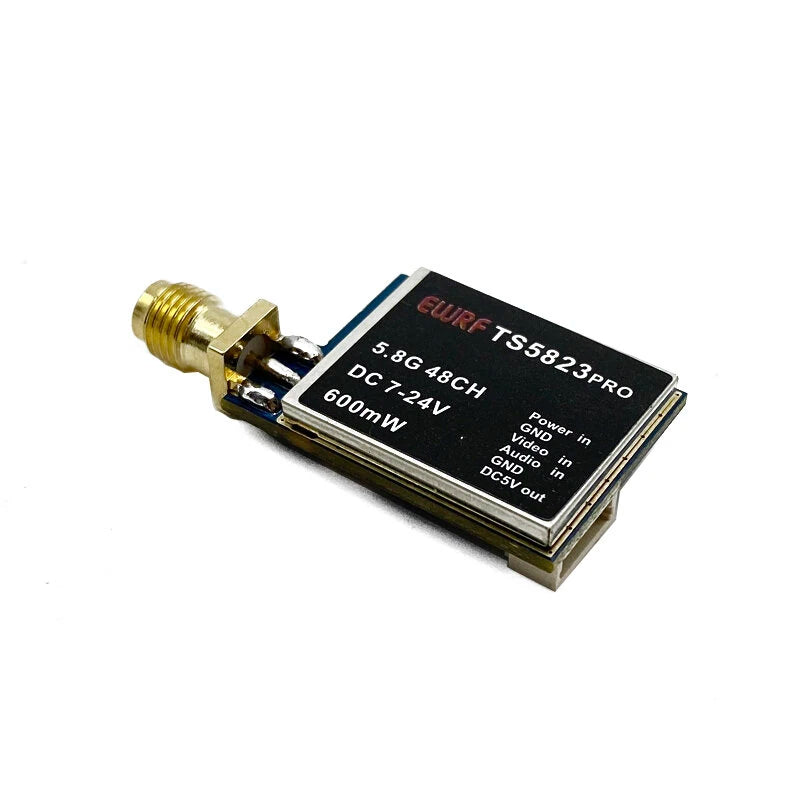

Transmitter
| Model : | TS5823 |
| Power Supply : | 7V-24V |
| VTX Power : | 600mW |
| Frequency : | 5.8Ghz |
| Channel : | 40CH |
| Antenna Connector : | RP-SMA |
| Working Current : | 230mA@600mW 12V |
| Transmission Distance : | 600mW=2km(in open area,with clover antenna) |
| Weight : | 5g |
| Dimension : | 30 x 20 x 8mm (without antenna port) |

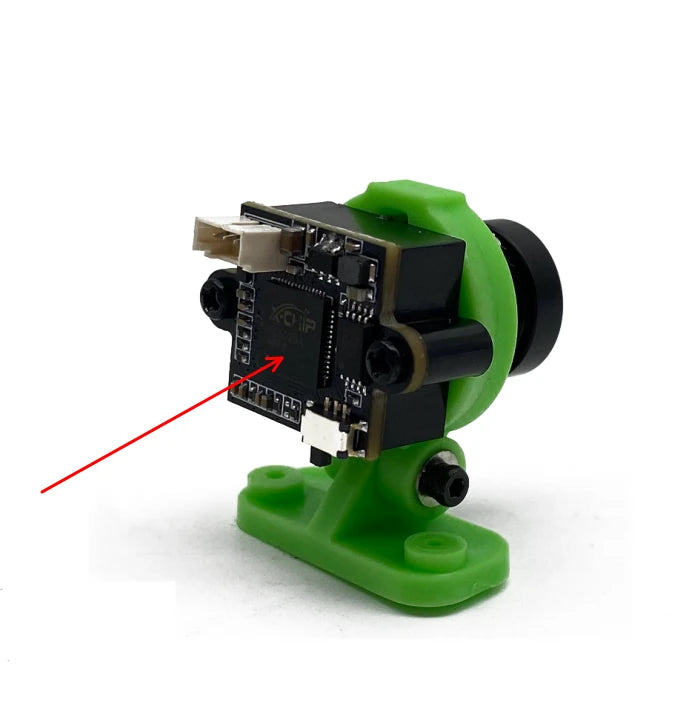

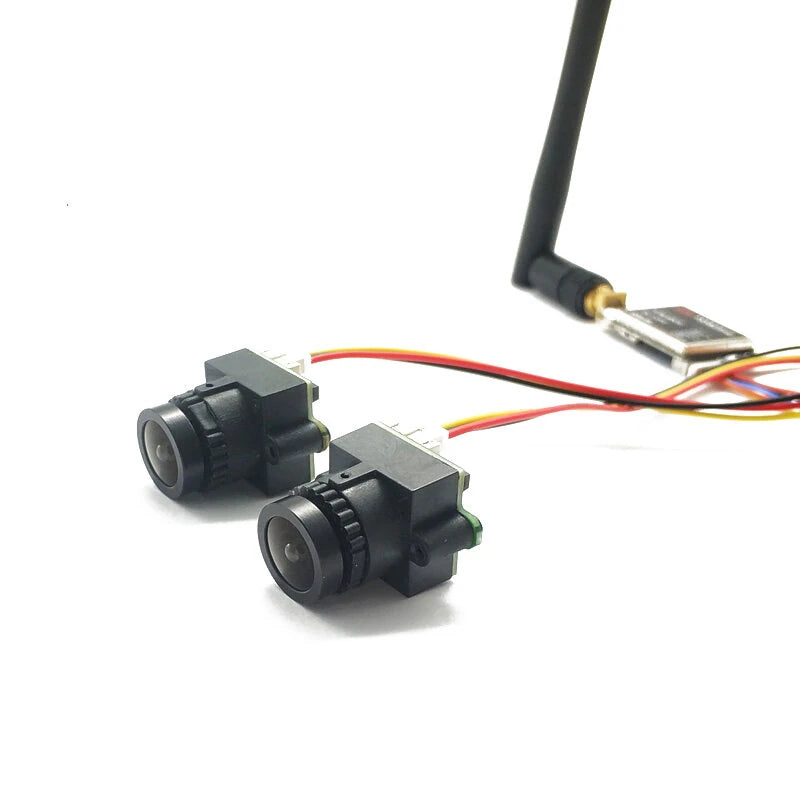

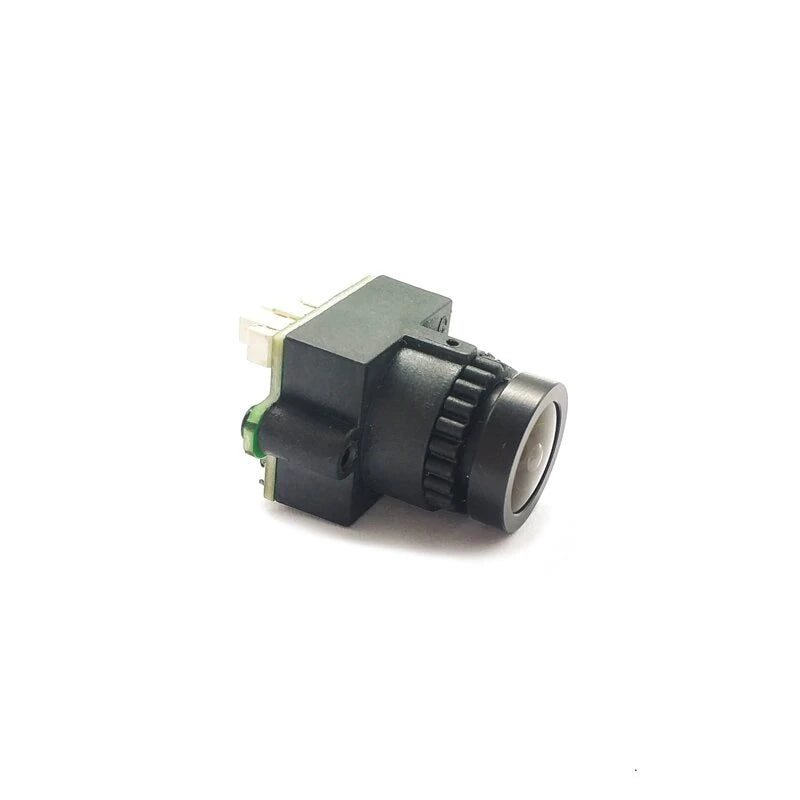

Camera
| Material : | ABS |
| Sensor : | 1/3 CMOS |
| Resolution : | 1000tvl |
| Focus : | 2.8mm |
| Format : | NTSC/PAL |
| White Balance : | Auto |
| Back Light Compensation : | ON/OFF |
| Synchronization : | Inter-sync |
| Video out : | 1.0Vp-p75Ω |
| Operating Voltage : | DC12V FPV5-17V |
| Current : | 70mA |
| Low RF interfernce and low power comsuption | |
| Applicable models : | QAV180,QAV210,QAV250... |
Specifications of FPV ROTG01 receiver: Click here

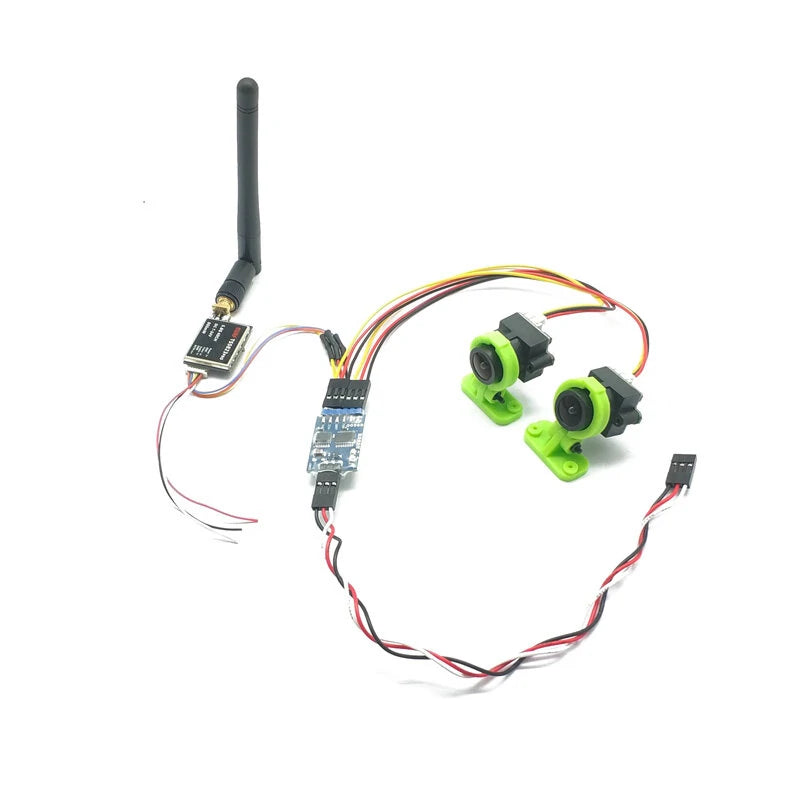

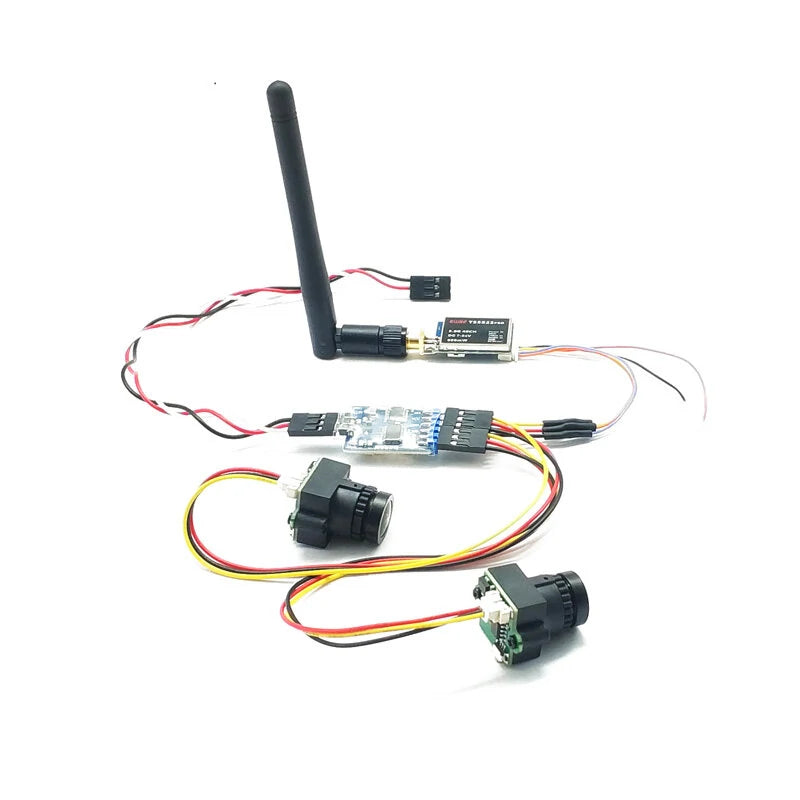

Package Included
1 x Transmittre
2 x Camera
2 x Camera Mount
1 x Switcher
1 x Cable wires set
