Description
Specification:

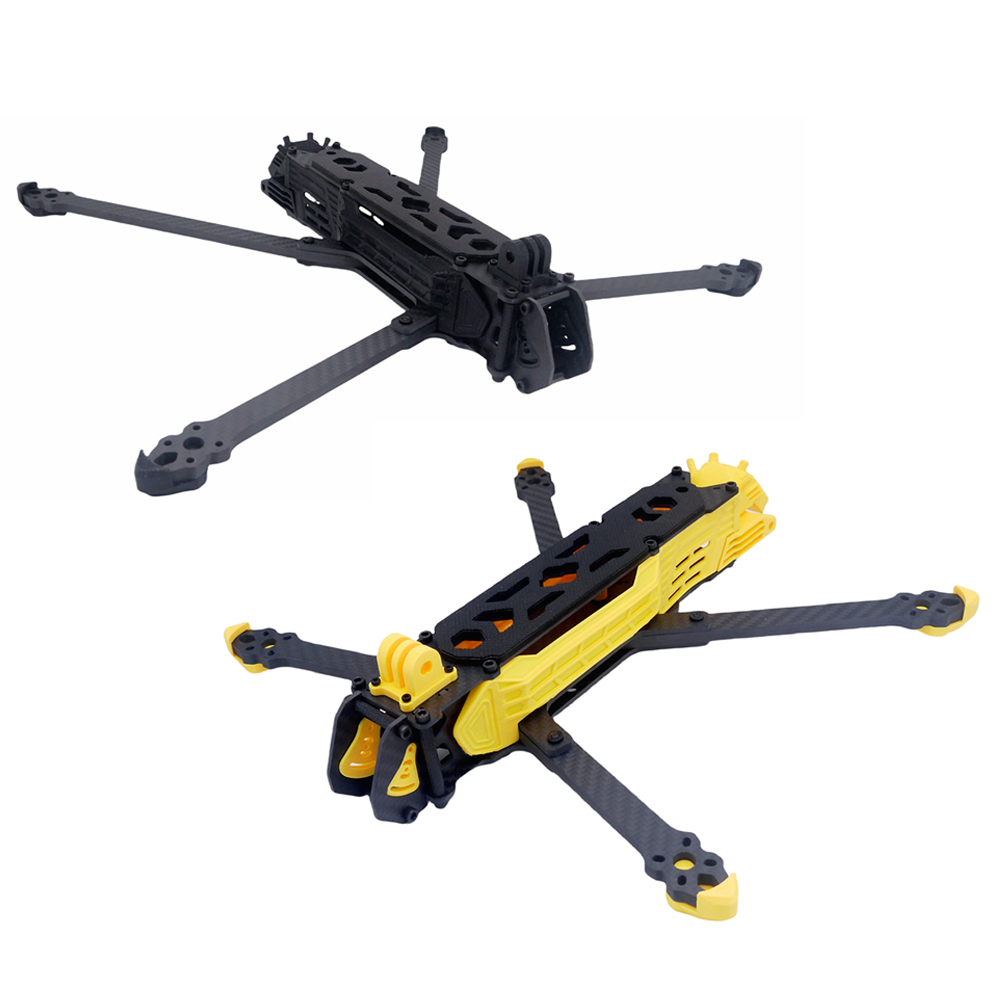

Model: Erdog Frame Kit
Inch: 7 Inch / 8 Inch / 9 Inch / 10 Inch (Optional)
Model |

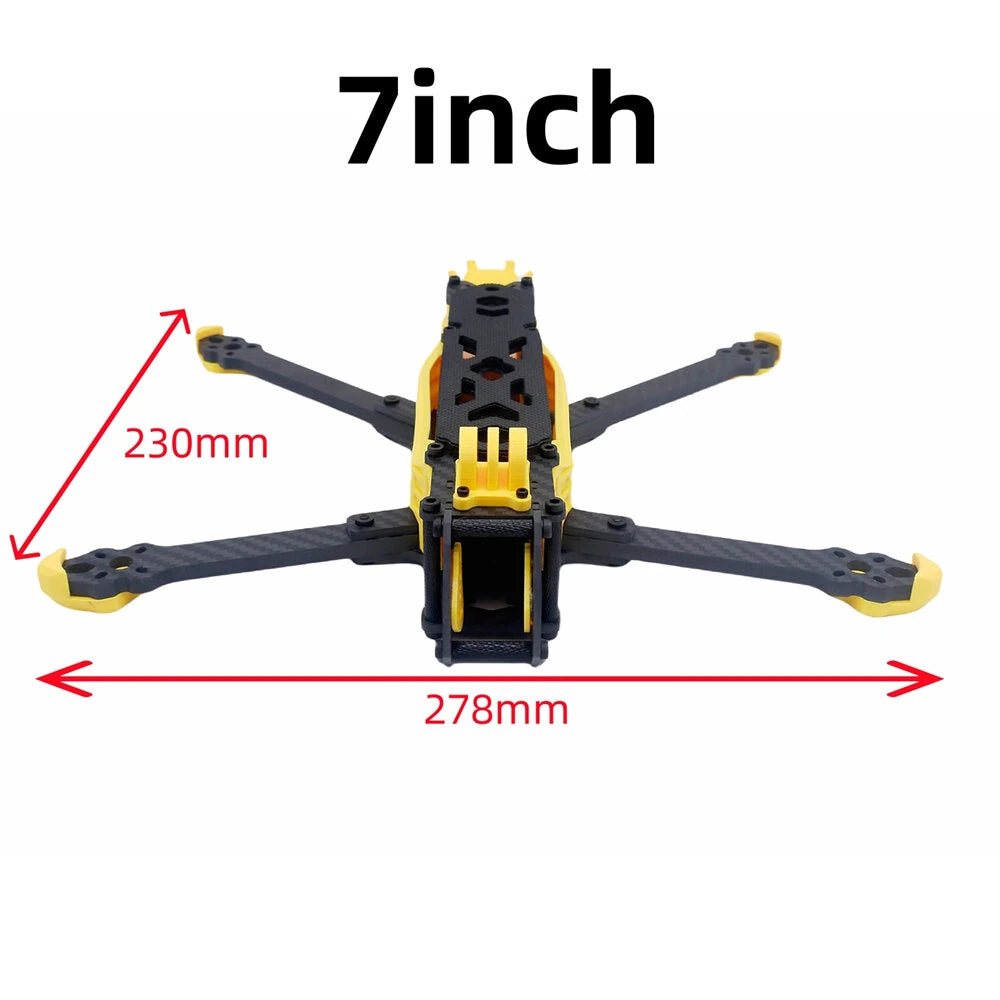

Erdog 7 inch Frame Kit |

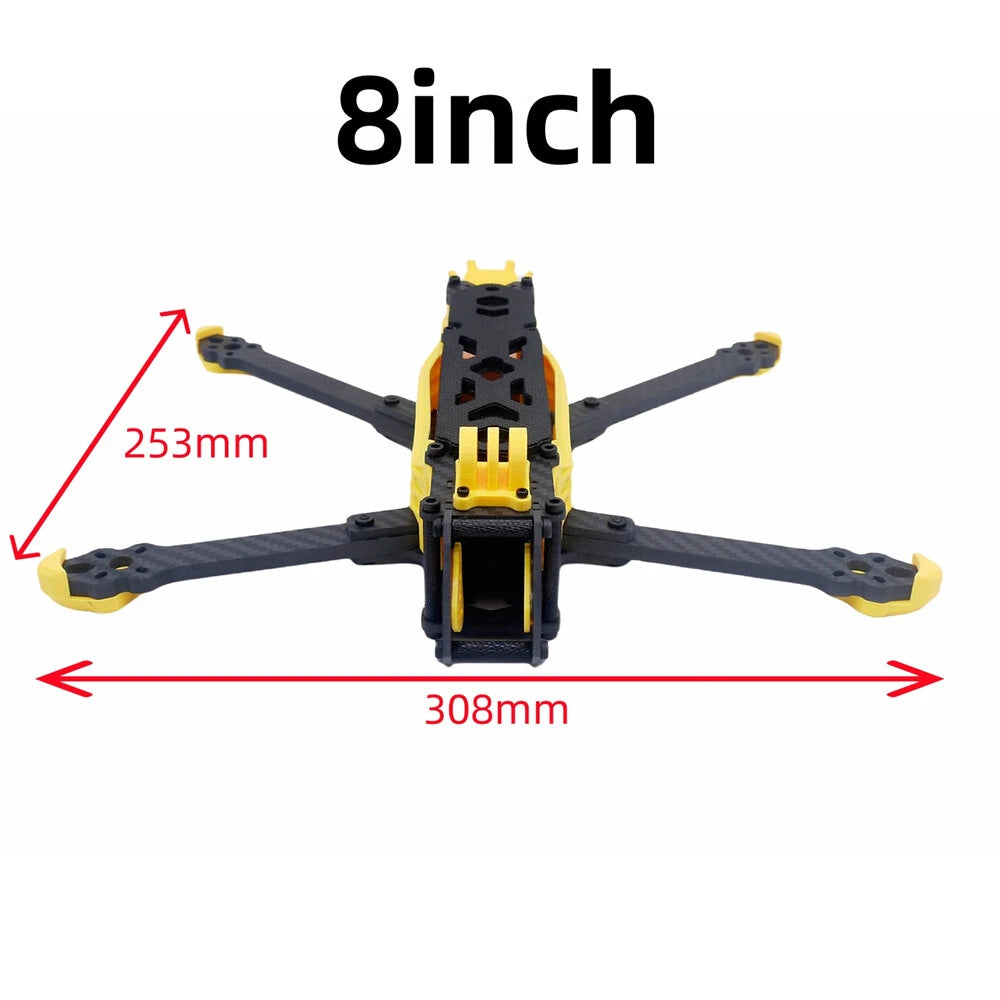

Erdog 8 inch Frame Kit |

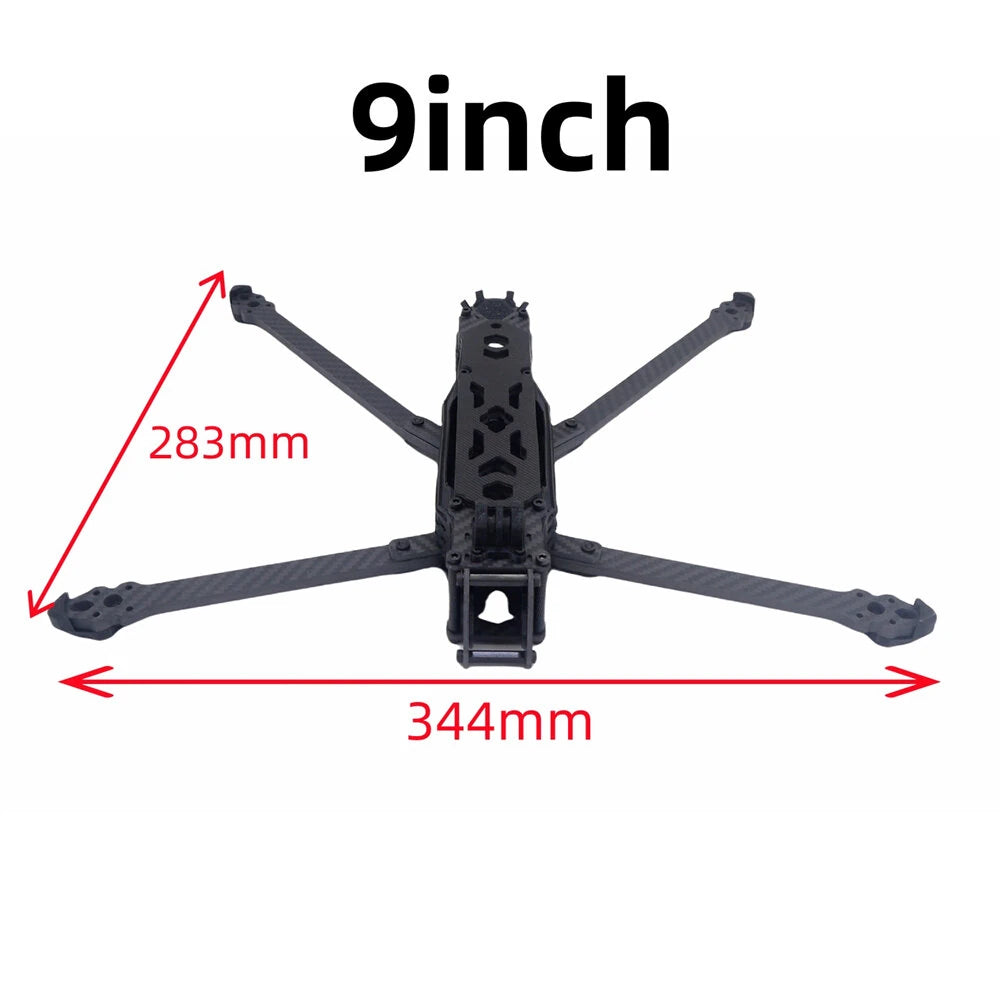

Erdog 9 inch Frame Kit |

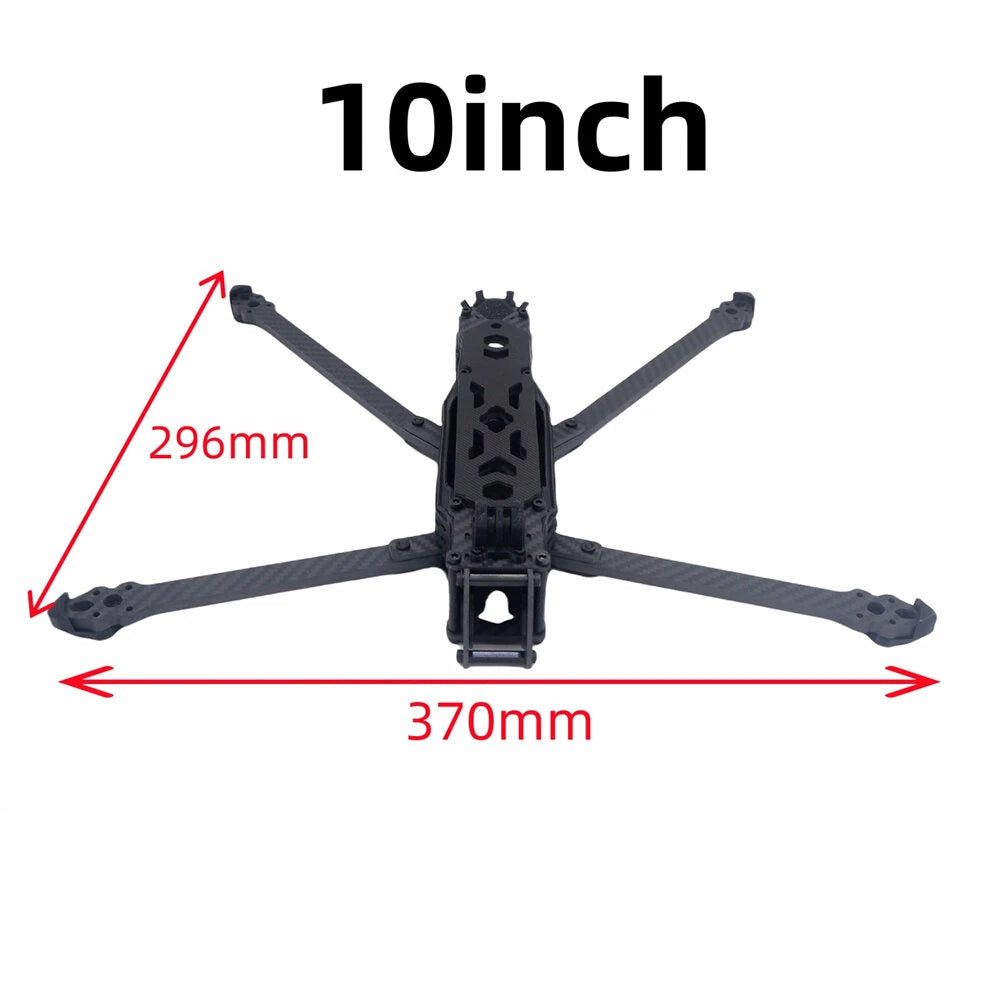

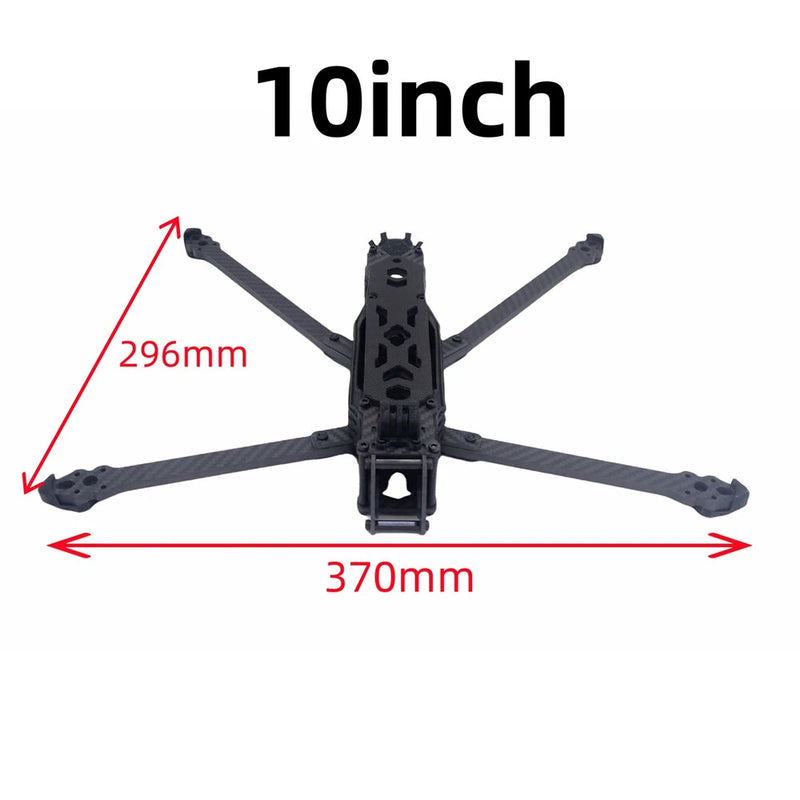

Erdog 10 inch Frame Kit |
Wheelbase: |
300mm |
340mm |
377mm |
411mm |
Weight: |
Approx.266g (including printed parts) |
Approx.275g (including printed parts) |
Approx.286g (including printed parts) |
Approx.297g (including printed parts) |
Thickness: |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 2.0mm Camera side panel 2.0mm Arm 6.0mm |
Base plate 3.0mm Upper plate 2.0mm Clamping plate 3.0mm Camera side panel 2.0mm Arm 6.0mm |
Propeller: |
7-inch propellers |
8-inch propellers |
9-inch propellers |
10-inch propellers |
Flight Controller Hole Spacing: |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
Tail Video Transmitter Hole Spacing: |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
20*20mm(M2), 25.5*25.5mm(M2), 30.5*30.5mm (M3) |
Camera Mounting Width: |
20mm/19mm |
20mm/19mm |
20mm/19mm |
20mm/19mm |
Motor Mounting Holes: |
16*16mm(M3) 19*19mm (M3) |
16*16mm(M3) 19*19mm (M3) |
16*16mm(M3) 19*19mm (M3) |
19*19mm (M3) |
Print Material: |
3D printed TPU material |
|||
Print Color: |
Black TPU/Yellow TPU |
|||
GPS Mount Compatible: |
BN220 GPS |
|||
Video Transmitter Compatible: |
Compatible withDJI O4 PRO / DJI O3 / VISTA / Analog , etc. |
|||
Print List: |
1 universal action camera base, 1 pair of side panel lens mounts, 4 motor protection mounts, 1 pair of enclosure guards, 1 universal antenna mount (compatible with dual antennas, single antenna, ELRS915/2.4G, BN220 GPS) |
|||
Package Included:
1 x Erdog Frame Kit
