Description

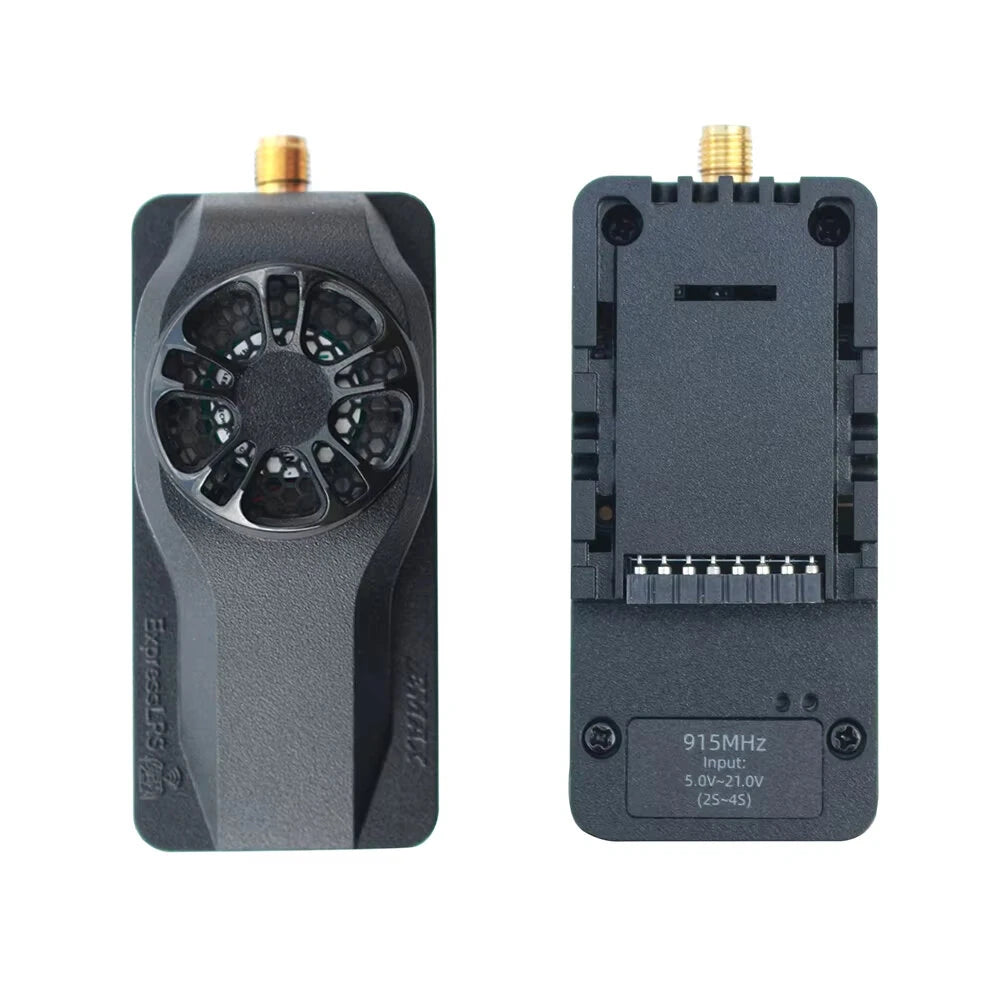

Emax Micro ELRS ExpressLRS 2.4Ghz/915Mhz Transmitter RF TX Module With Cooling Fan For FPV Racer Drone
Specification:
Model |
Aeris Link Micro ExpressLRS 2.4G |
Aeris Link Micro ExpressLRS 915M |
Aeris Link TX 2.4G |
Aeris Link TX 915M |
Size |
72*32*32mm(Without antenna) |
72*63*35mm(Without antenna) |
||
Operating Frequency |
2.4GHz ISM |
915MHz FCC/868MHz EU |
2.4GHz ISM |
915MHz FCC/868MHz EU |
Output power |
10mW(default)Support for others25mW/50mW/100mW/250mW/500mW/1000mW Power adjustment |
10mW(default)Support for others25mW/50mW/100mW/250mW/500mW/1000mW/2000mW Power adjustment |
10mW(default)Support for others25mW/50mW/100mW/250mW/500mW/1000mW Power adjustment |
10mW(default)Support for others25mW/50mW/100mW/250mW/500mW/1000mW/2000mW Power adjustment |
Maximum power |
Supports up to 1W |
Supports up to 2W |
Supports up to 1W |
Supports up to 2W |
Refresh rate |
50hz/100hz FULL/150hz/250hz/333hz FULL/500hz/D250hz/D500hz/F500hz/F1000hz |
25hz/50hz/100hz/100hz FULL/200hz |
50hz/100hz FULL/150hz/250hz/333hz FULL/500hz/D250hz/D500hz/F500hz/F1000hz |
25hz/50hz/100hz/100hz FULL/200hz |
Return packet rate |
closable,1:128/1:64/1:32/1:16/1:8/1:4/1:2 |
|||
External power supply |
XT30 interface (supports 5~21V voltage input, it is recommended to use 2S (8.4V)) |
|||
Other |
Colorful lights, fans |
Colorful lights, fans |
||
