Description
Apply Enciromental Condition:
Storage temperature range: -20°C-65°C
Operating temperature range: -10°C-55°C
Operating voltage range: 4.8V-6V
Electrical specification:
Operating speed(at no load)
0.13sec/60 (4.8v)
0.11sec/60 (6v)
Running curret(at no load)
250mA Max (4.8v)
300mA Max (6v)
Stall torque
1.8kg.cm Max (4.8v)
2.1kg.cm Max (6v)
Maximum current
0.8A Max (4.8v)
1.0A Max (6v)
Idle current
7.4mA (4.8v)
7.4mA (6v)
Mechanical specification:
Overall Dimensions: As picture
Weight: 12.3±0.5g
Connector wire gauge: JR
Connector wire length: 250±8
Flower head: 15T
Bearing: NO
Gear type: 3 metal gear+3 plastic gear
Extreme angle: 360°
Control specification:
Control system: PWM
Operating travel: 90°±8°(1000-2000μ sec)
Neutral positon: 1500μ sec
Rotating direction: Counter clockwise/Pulse Traveling 1500 to 1900μ sec
Pulse width range: 500-2500μ sec
Maximum travel: 180°±10°(500-2500μ sec)
Package Included:

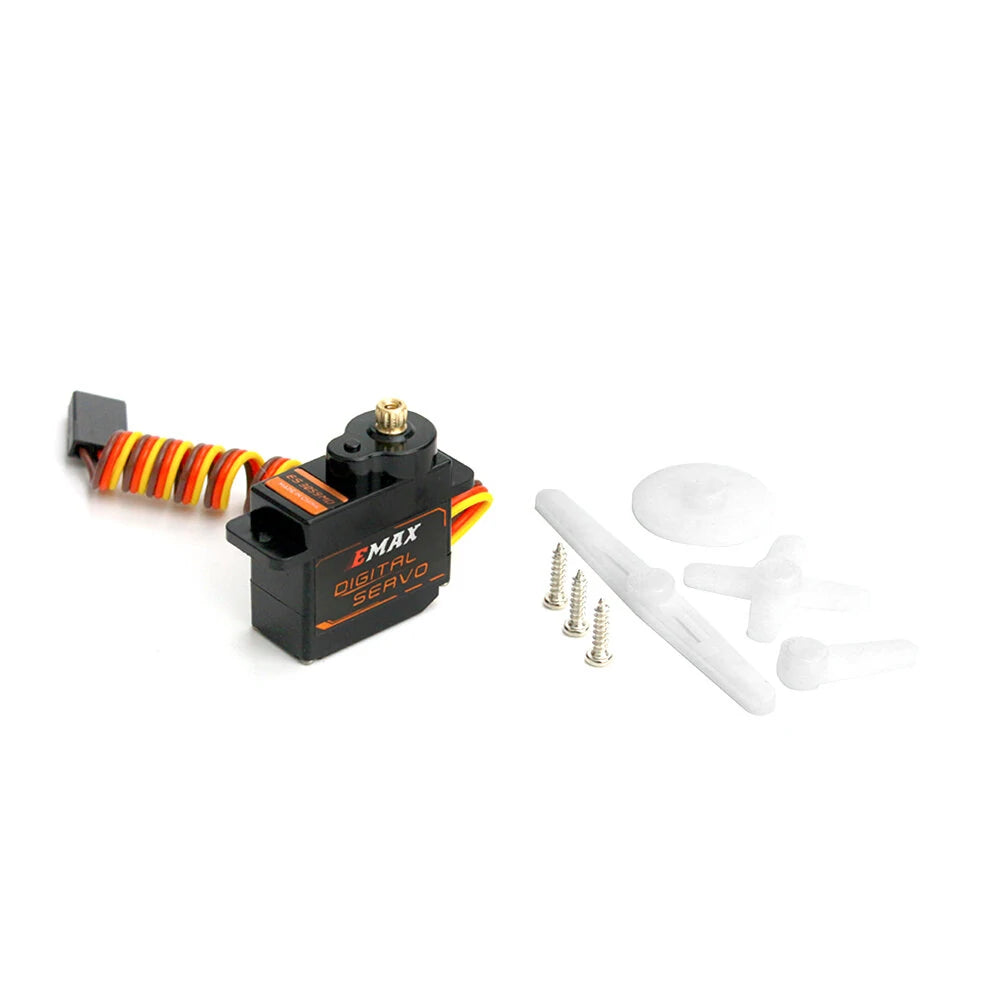

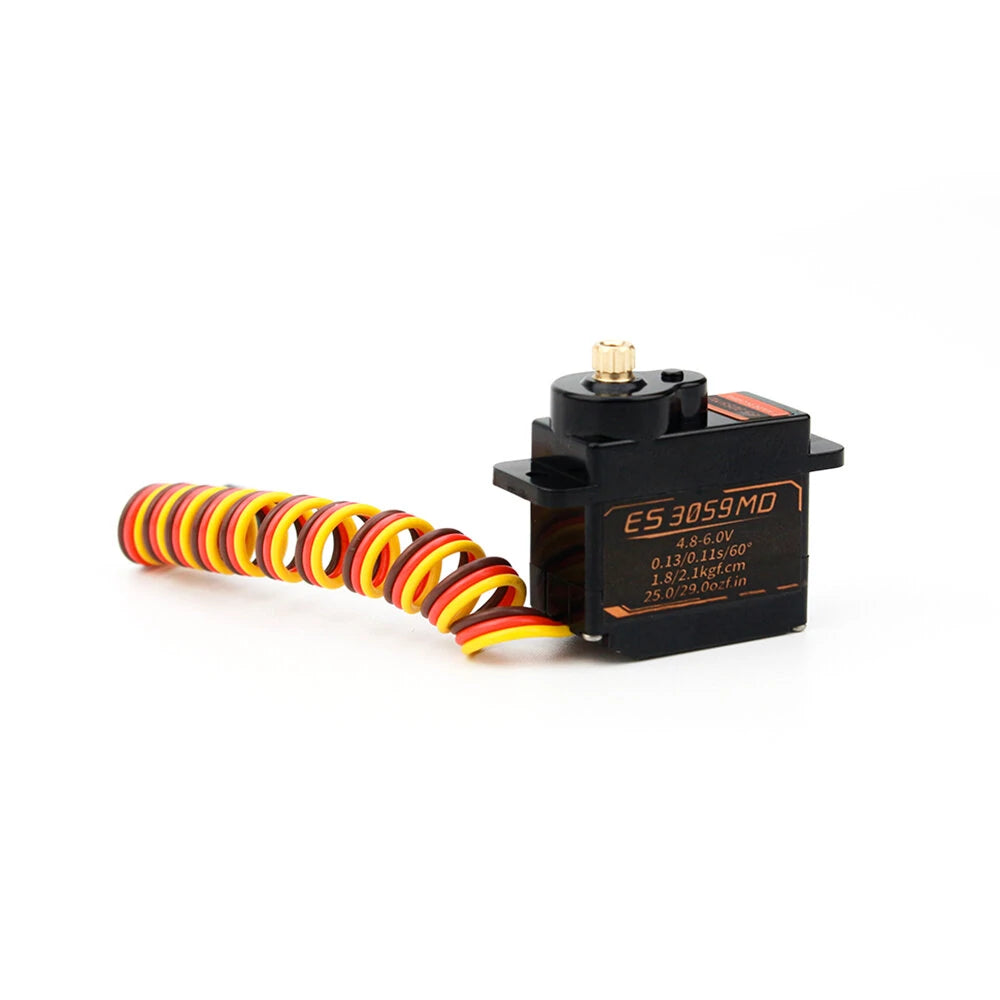

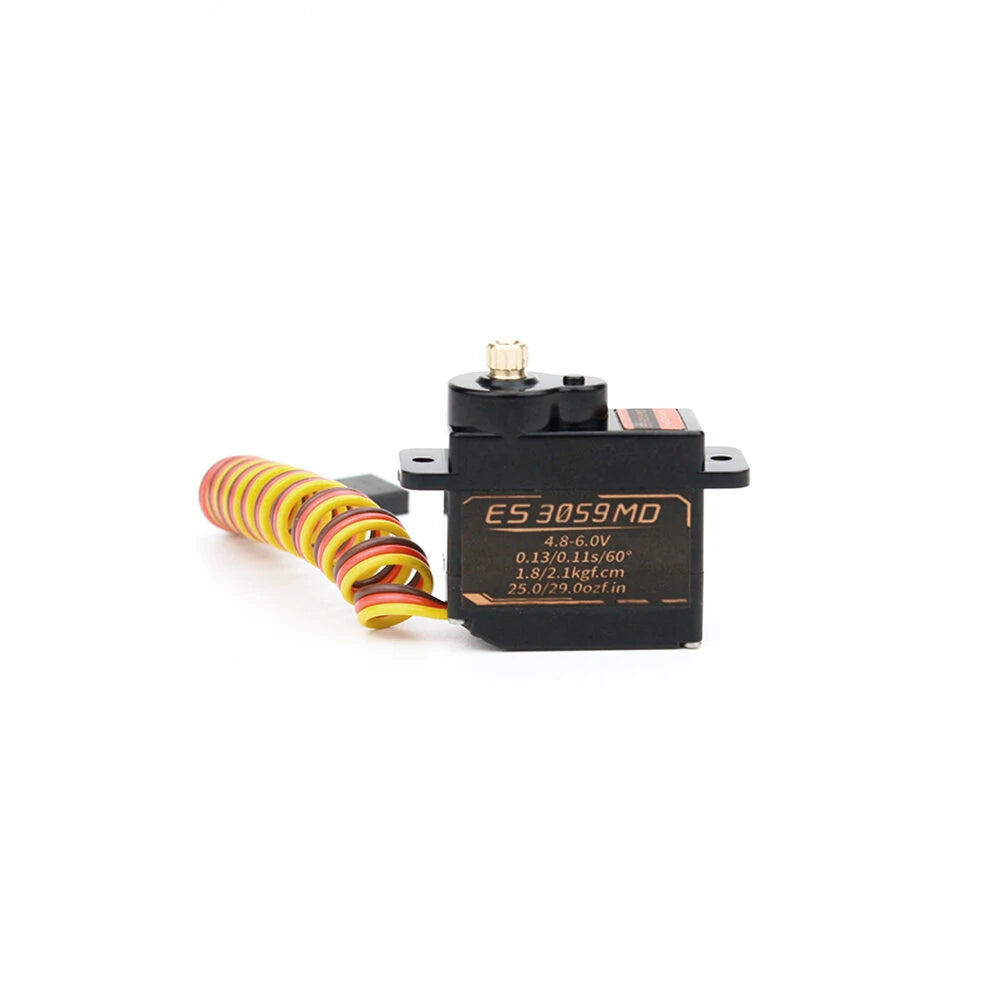

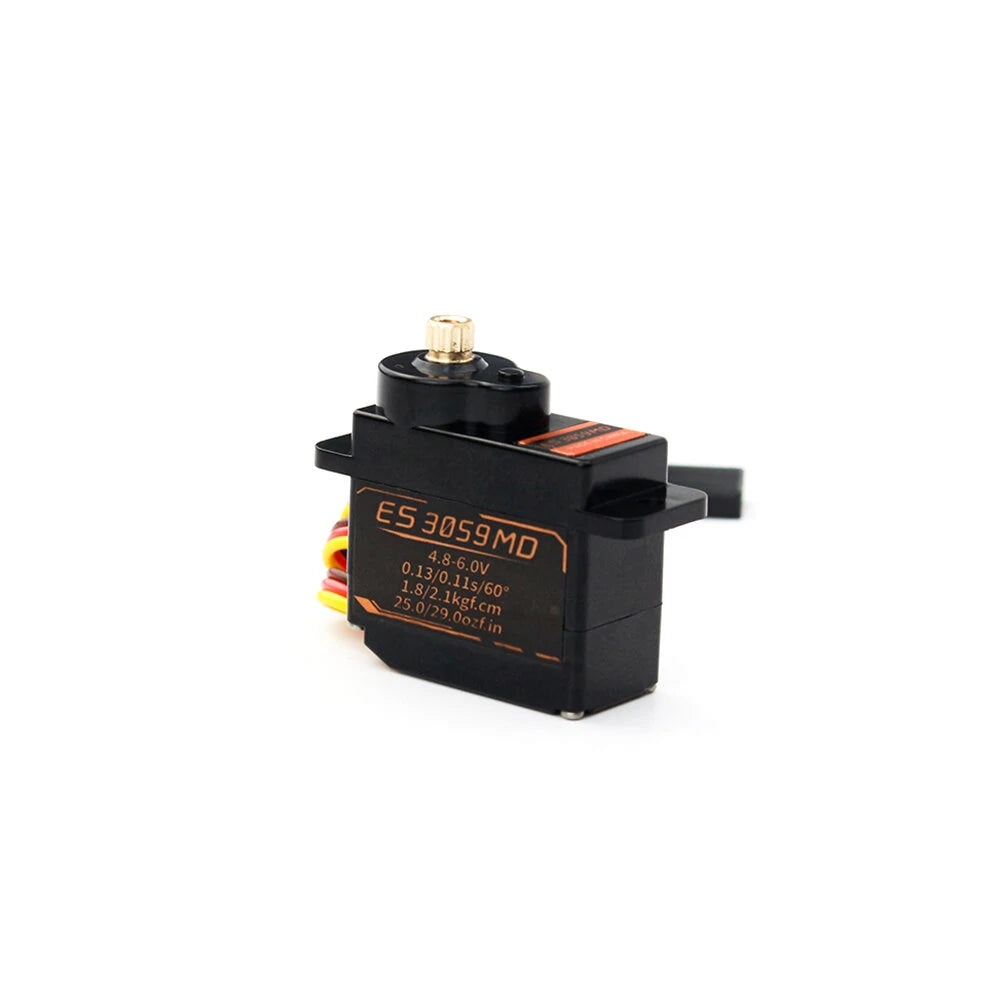

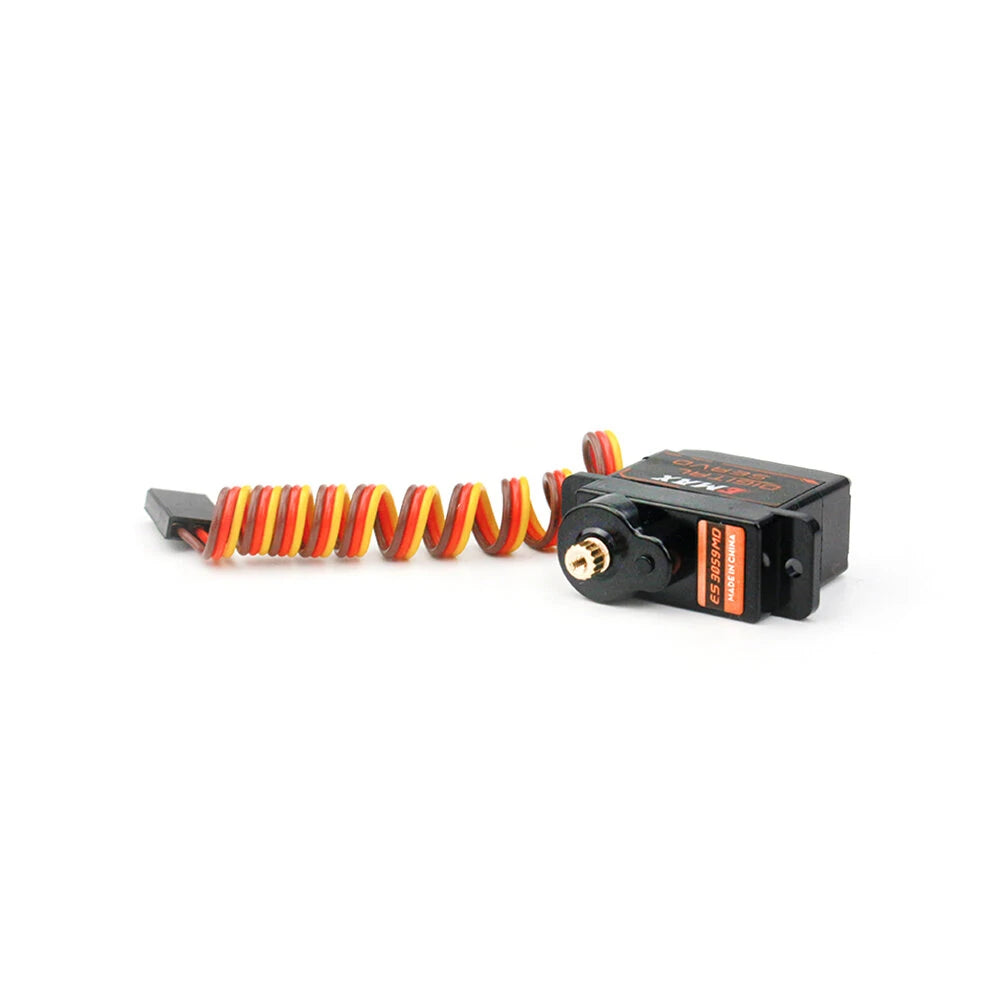

1x Emax ES3059MD 9g Metal Gear Mini Digital Servo
