Electrical Specification (Function of the Performance):

Operating Speed (at no load):
6.0V | 0.13 sec/60°
8.4V | 0.09 sec/60°
Running Current (at no load):
6.0V | 350mA Max
8.4V | 400mA Max
Stall Torque:
6.0V | 3.4kg.cm Max
8.4V | 4.7kg.cm Max
Maximum Current:
6.0V | 1.0A Max
8.4V | 1.3A Max
Idle Current:
6.0V | 9.5mA
8.4V | 9.5mA

Mechanical Specification:

Overall Dimensions: See Drawing Below
Weight: 20.5+0.5 g
Connector Wire Gauge: JR
Connector Wire Length: 240±8mm (W/O Connector)
Output Gear Spline: 23T
Bearing: 2BB
Gear Type: Metal
Extreme Angle: 360°

Control Specification:

Control System: PWM
Operating Travel: 90° ±8°( when 1000-2000 μ sec )
Neutral Position: 1500 u sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse Width Range: 500-2500 μ sec
Maximum Travel: 180° ±10( 500-2500μ sec )

Features:

1. High Voltage: Operates efficiently with a wide range of voltage inputs, providing consistent performance.
2. Fast and Precise: Delivers quick and precise responses, enhancing the control of your RC toy.
3. Compact Size: The servo's compact design allows for easy installation and integration into various models.
4. Durables Construction: Built with high-quality materials, ensuring long-lasting durability and reliability.
5. Versatile Application: Suitable for a wide range of RC models, including airplanes, helicopters, and cars.

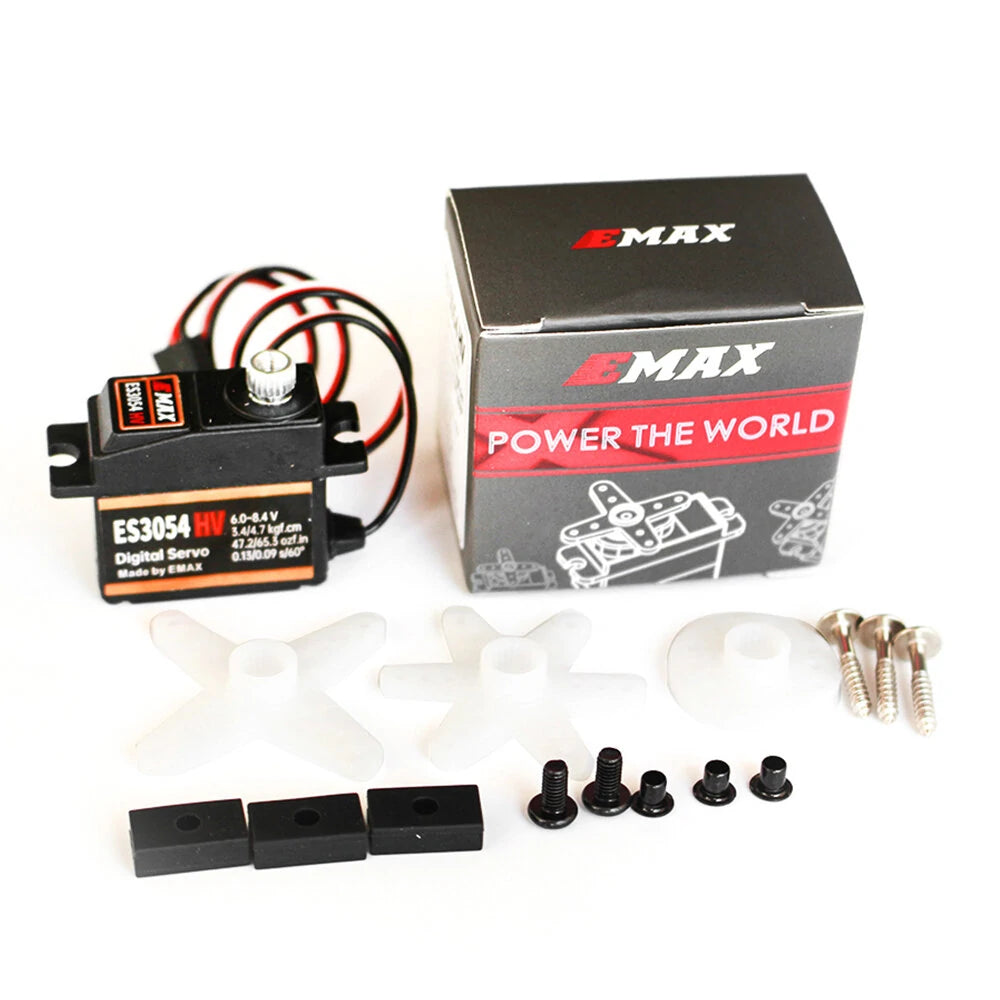

Package includes:

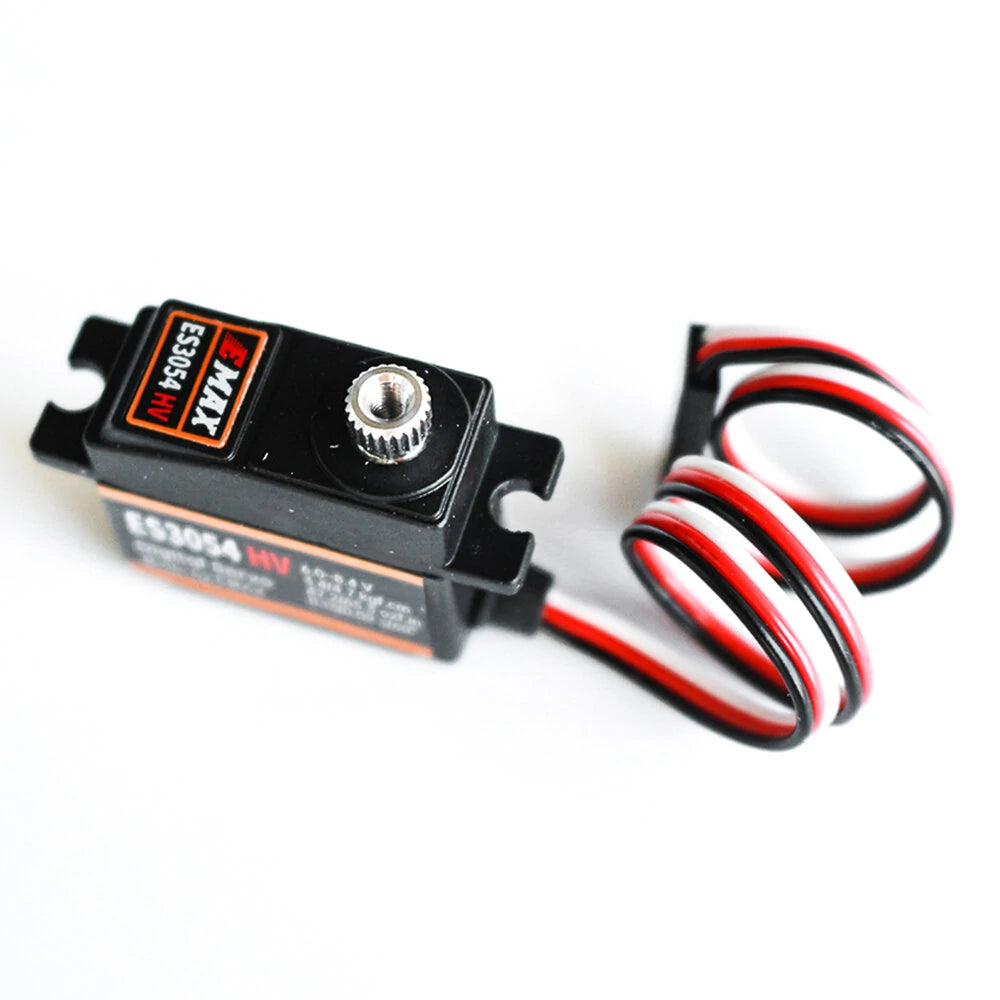

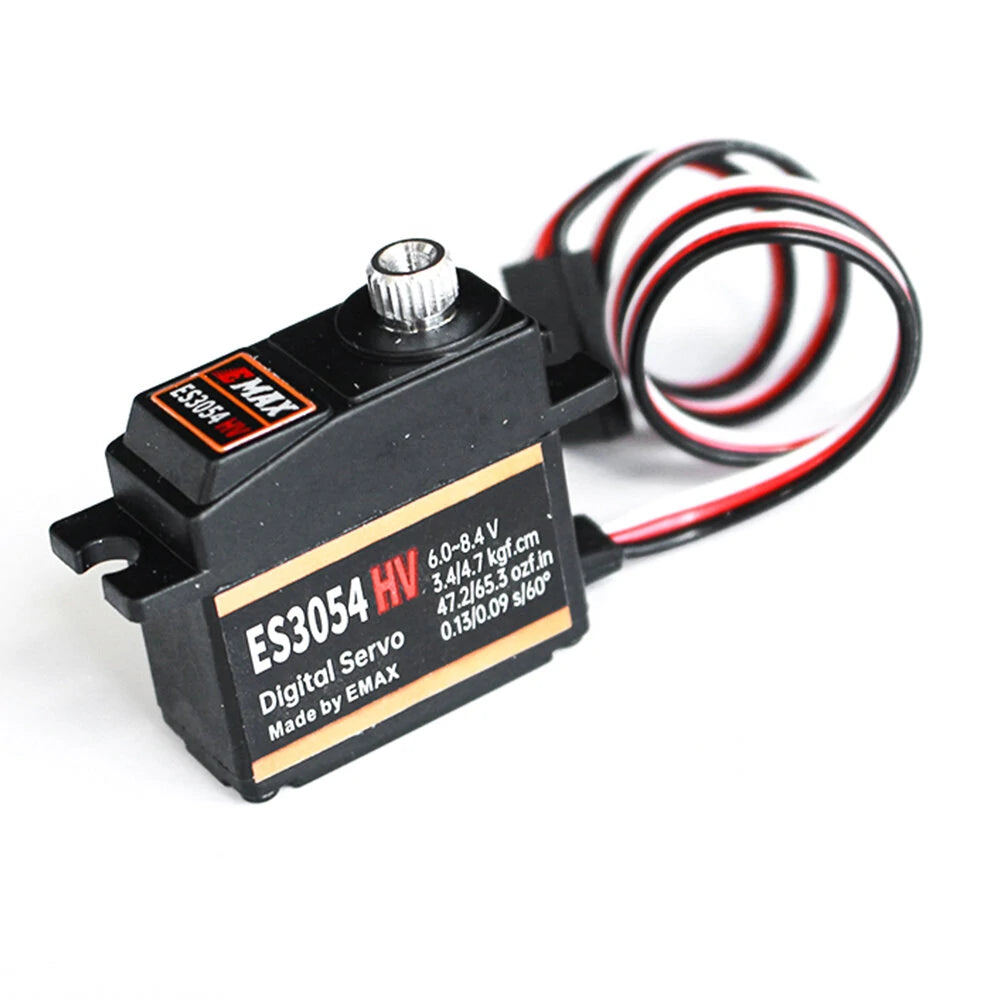

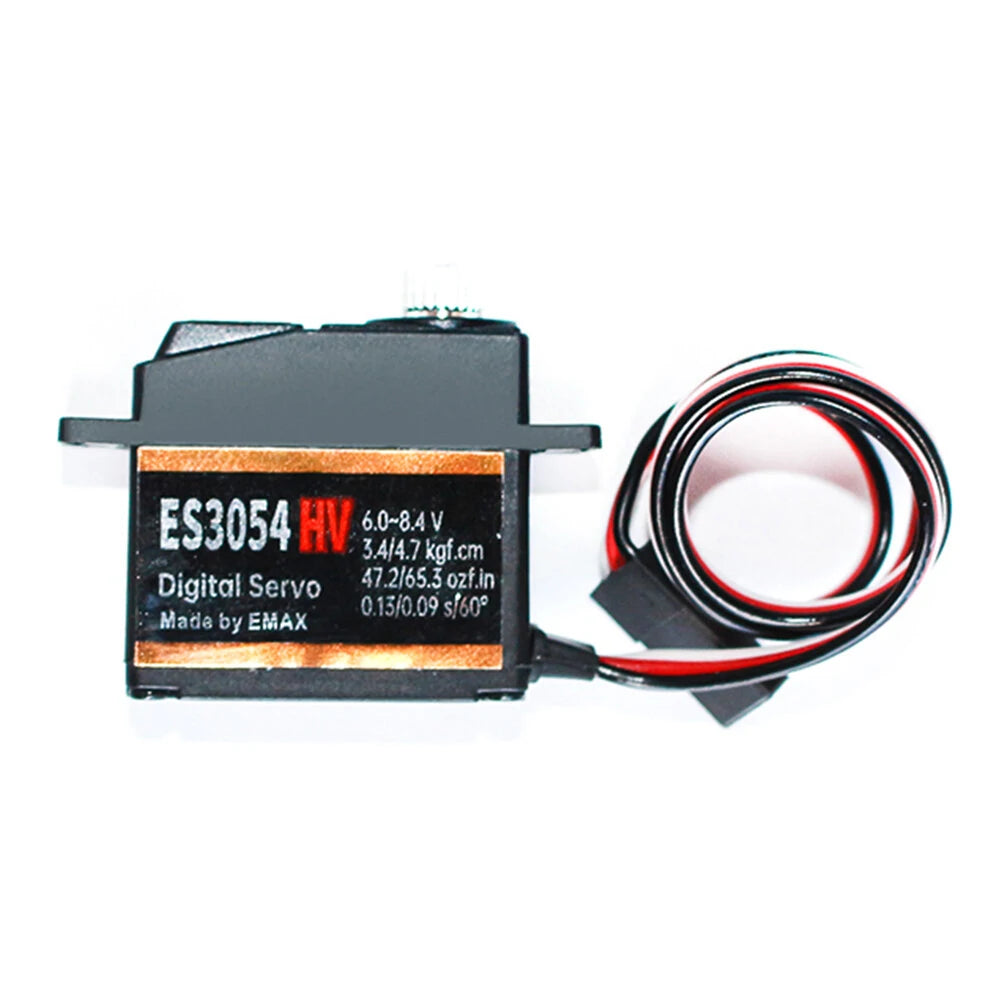

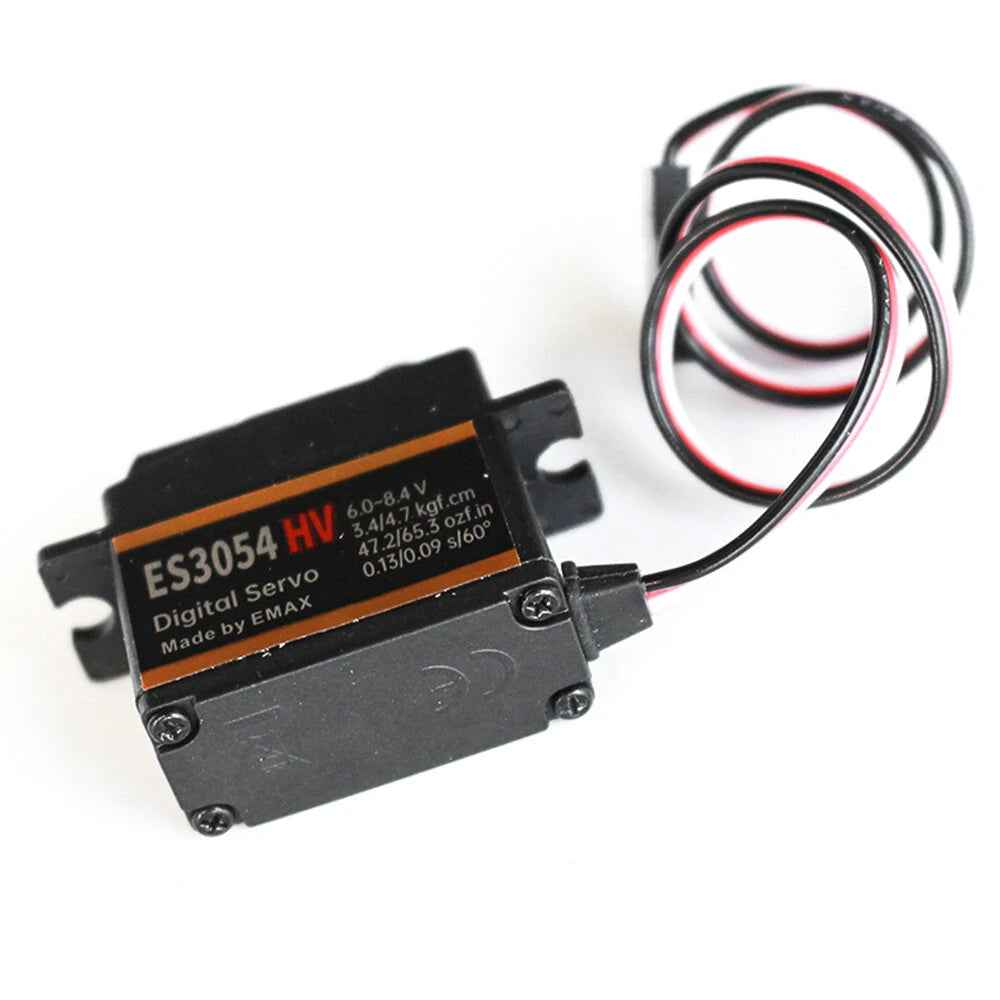

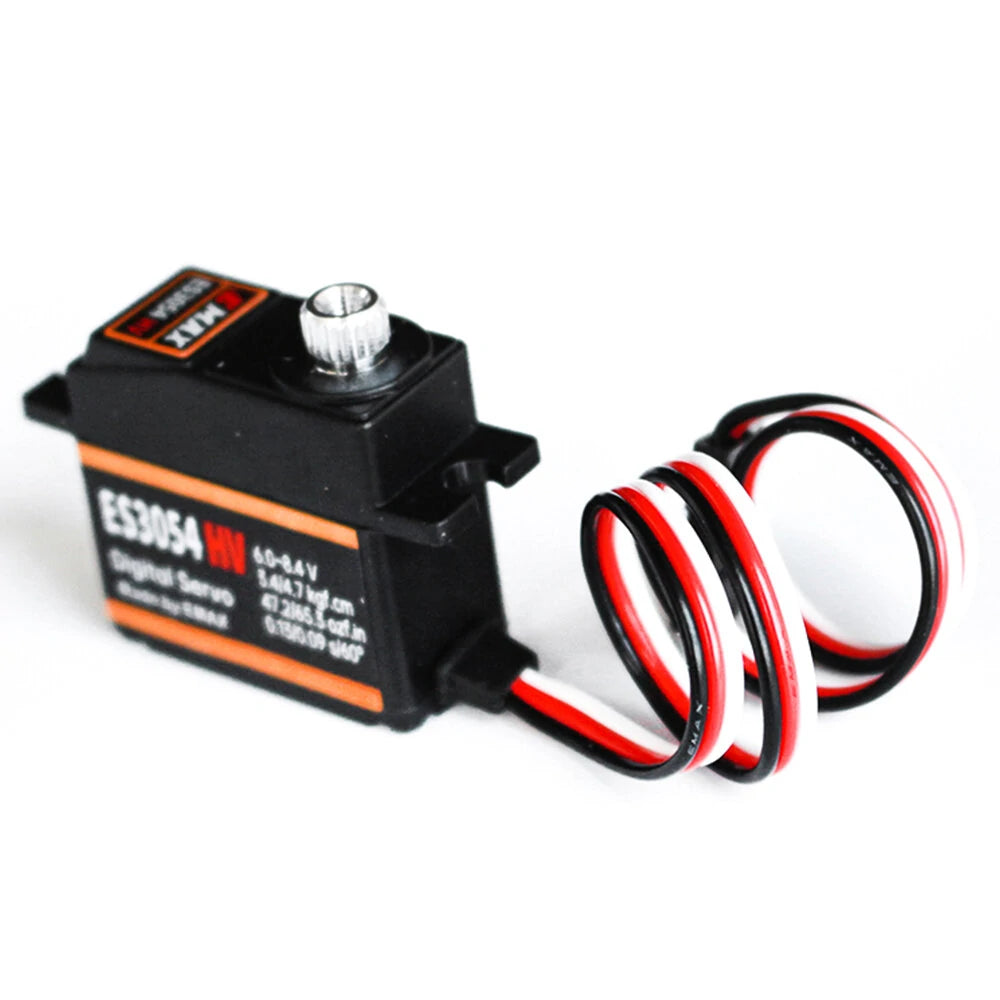

1 X EMAX ES3054 HV High-Voltage Servo
