Description
Click here to download the manual: tx805s.pdf
Features:
- Support Smart audio
- 25mW/500mW/1000mW/1600mW power switchable
- One button frequency and power setup
- OSD configuration using smart audio
- Wide input Voltag with 5V for camera
- 40 channels with MIC
- Solid MMCX Antenna connection and MMCX Brass Dipole Antenna
Specification:
| Input Voltag: | 7V to 24V |
| 5V Camera Supply: | 220mA(MAX)----25mW@12V(Type) 470mA(MAX)----500mW@12V(Type) 550mA(MAX)----1000mW@12V(Type) 830mA(MAX)----1600mW@12V(Type) |
| Extra Features: | Smart Audio |
Power Supply: |
5V output for Camera |
| Output Power: | 25mW/500mW/1000mW/1600mW switchable |
| Antenna Connector: | MMCX |
| Cable connector: | Solder pads |
| Dimensions: | 36mm*22mm*5mm,30.5 stackable hole |
| Weight: | 11.3g(excluding antenna) |
Button control Channel select mode
| Channel Select: |
1. Select channels by simple short presses.
2. Blue LED light on stands for CH1, short presses to change 8 channels sequentially.
3. For CH2/ 3/ 4/ 5/ 6/ 7/ 8, Blue LED flicker once, it won't light on.
4. Notice: Blue LED only light on for CH1
|
| Band Select: | 1. Press button for 2S, Red LED will flash, then short presses to select 5 bands. |
| Power Select: | 1. Press button for 4S, Red LED will flash, then select power by simple short presses to select 25mW/ 500mW/ 1000mW sequentially,2. For 500mW, Green LED flicker once, it won't light on; For 1000mW Blue LED flicker once, it won't light on. Press the button again,Red LED, Green LED and Blue LED lights together, Represents the highest power 1600mW. |
| Notice: | Red LED only light on for 25mW. |
| Pit Mode(0.01mW) | While in Pit Mode you can change channels and power levels, but none of these changes will take effect until you quit Pit Mode.By default, Pit Mode will send a very weak signal. |
| Two ways to exit pit mode: | Press button 12S until all 16 LED turned off and light on again to exit pit mode, or you can exit pit mode via Betaflight OSD. |
| Notice: | The VTX has memory for settings, To change the settings, please repeat steps as above. |

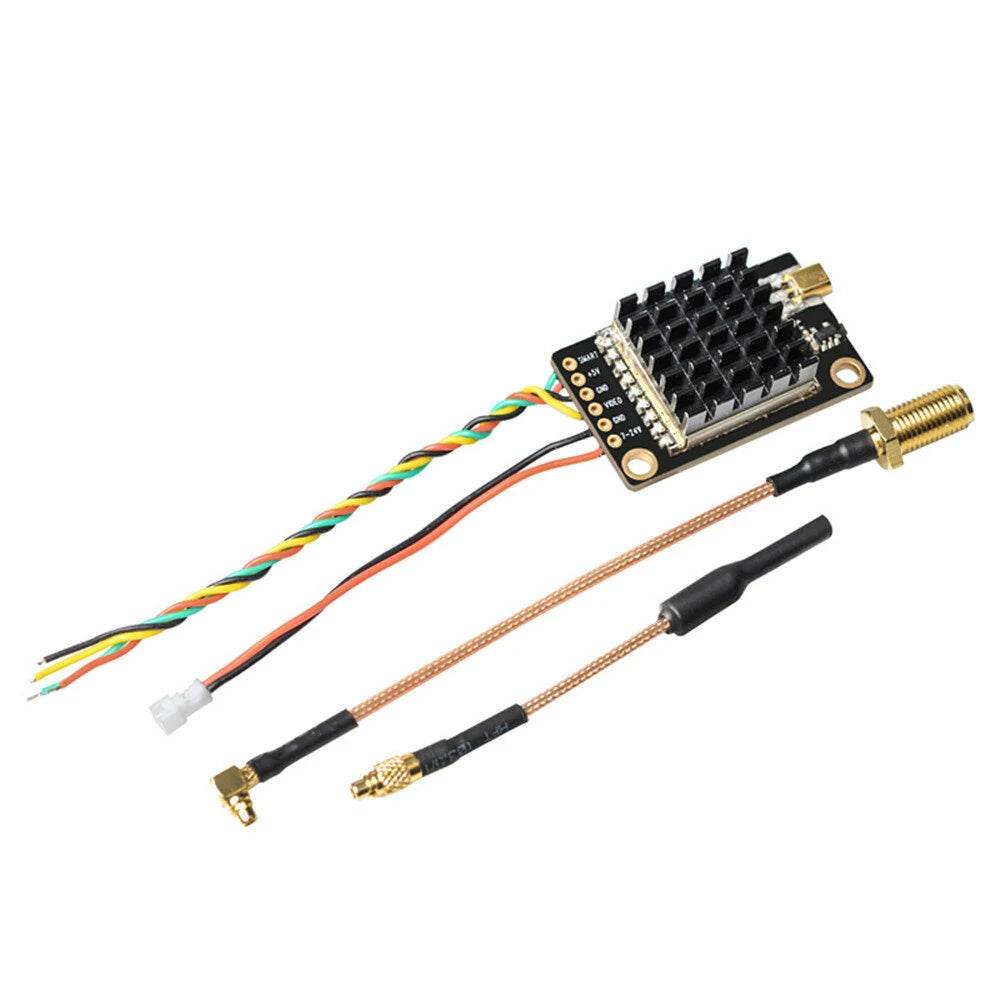

Package included:
1 x TX805S- 5.8GHz 40CH AV Transmitter VTX
1 x pigtail
1 x Antenna
1 x Instructions
