Description
Brand Story
Eachine has solidified its reputation as a leading contender in the FPV sector, celebrated for its innovative spirit and its track record of offering top-tier products at budget-friendly prices. The TX06 FPV camera, thoughtfully engineered with the user's experience at its core, promises superior performance across diverse flight scenarios, be it leisurely soaring or intense racing.
Feature
- OSD via FC Uart: Configure On-Screen Display (OSD) settings through FC Uart for customized flight data visualization.
- Compact & Lightweight: Ultra-small form factor and lightweight design minimize payload impact on FPV setups.
- 700TVL High-Res & Low Power: Delivers clear 700TVL video quality while maintaining low power consumption for extended flight durations.
- 48CH Channels Diversity: Offers 48 channels to optimize signal transmission and minimize interference.
- 1S LiPo Battery Powered: Operated by a single 1S LiPo battery for simplified power management and quick swaps.
- Plug-and-Play Design: User-friendly plug-and-play setup ideal for DIY integration and customization.
- All-in-One FPV Solution: Includes a 5.8GHz 48CH FPV transmitter, 700TVL camera, brass dipole antenna, and OSD functionality for a complete FPV experience.

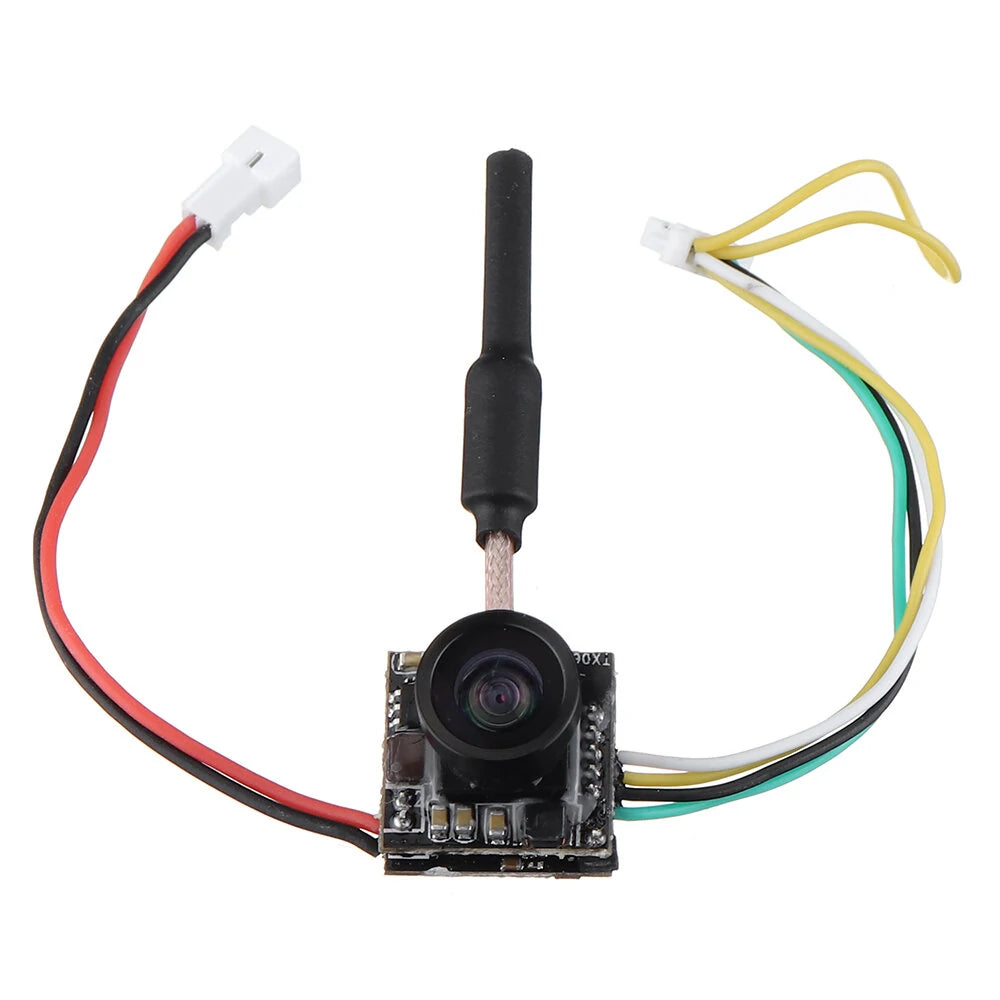

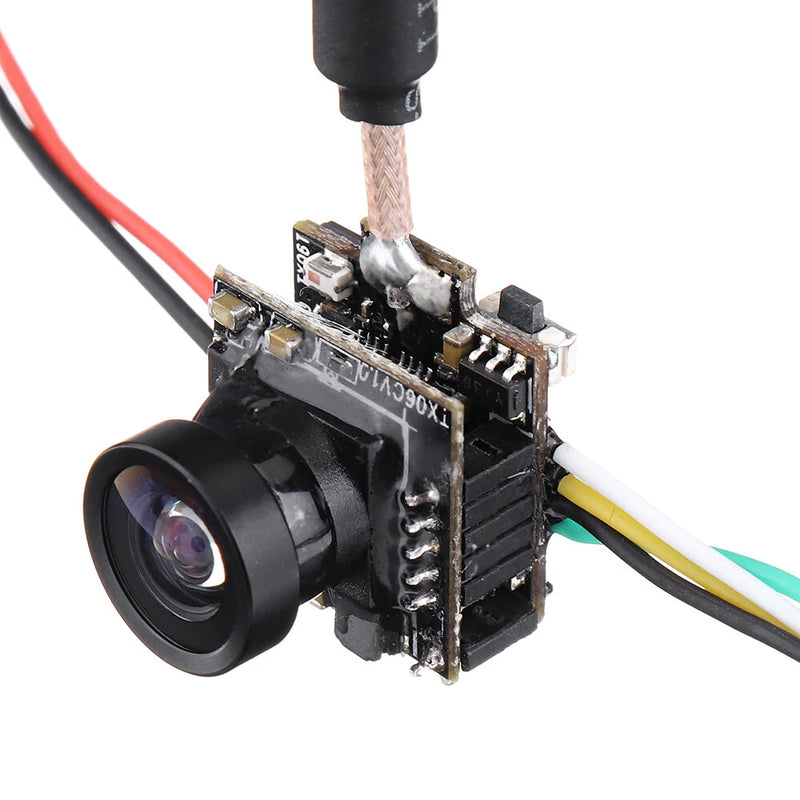

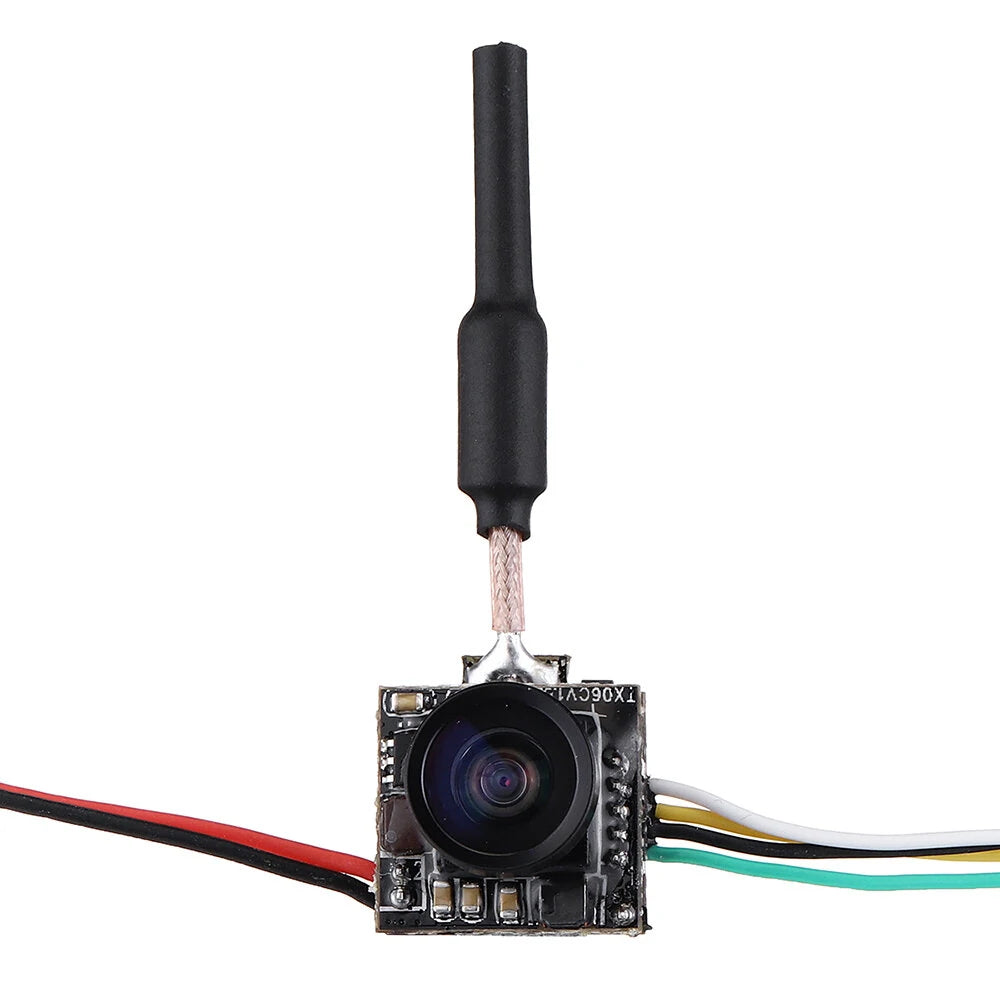

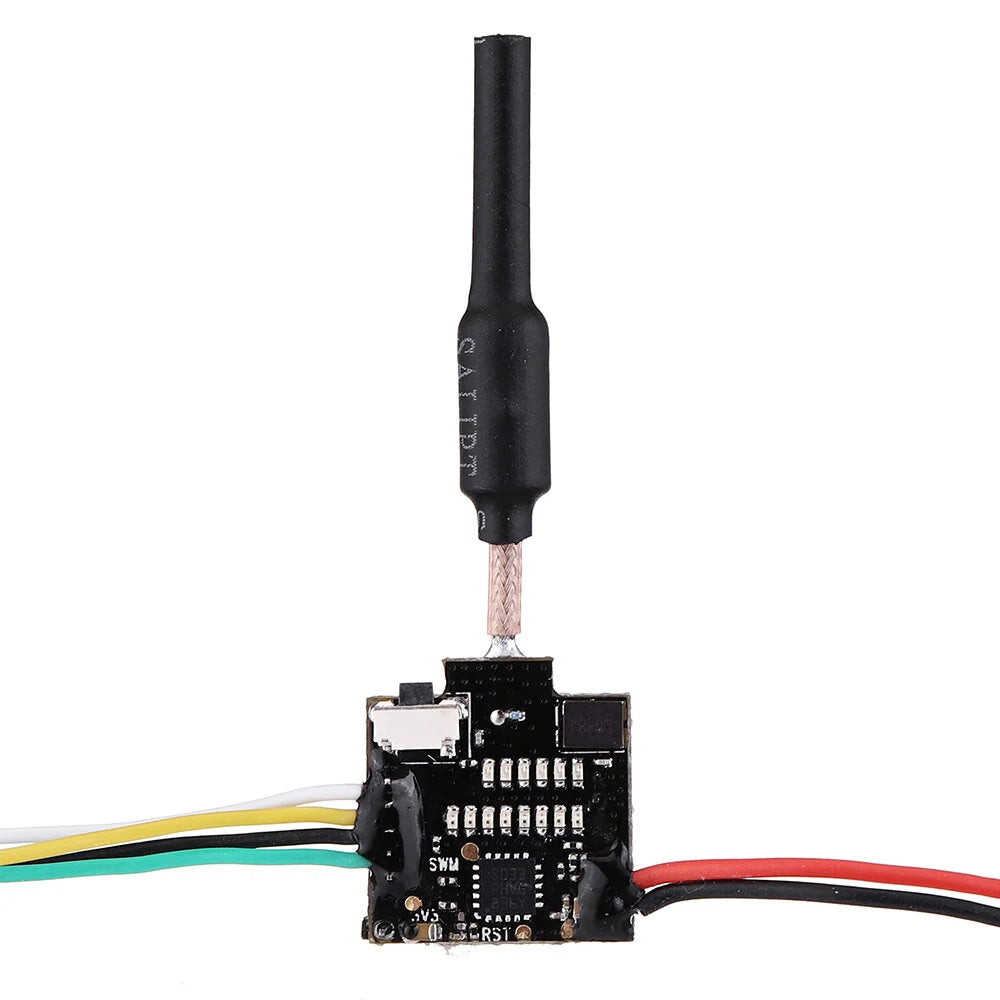

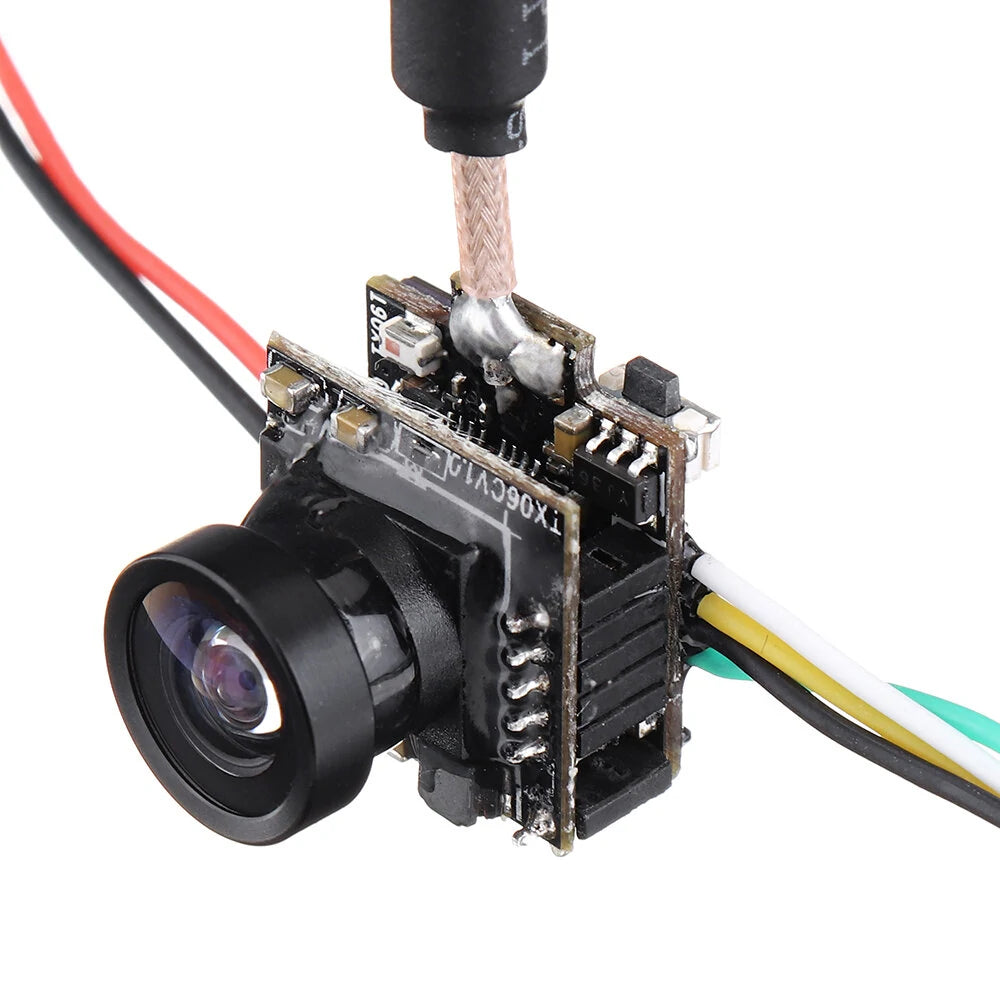

Specification of AIO
| Brand | Eachine |
| Model | TX06 |
| Name | Mini FPV Camera |
| Transmitting Power: | 25mW |
| Frequency: | 5.8G 48CH |

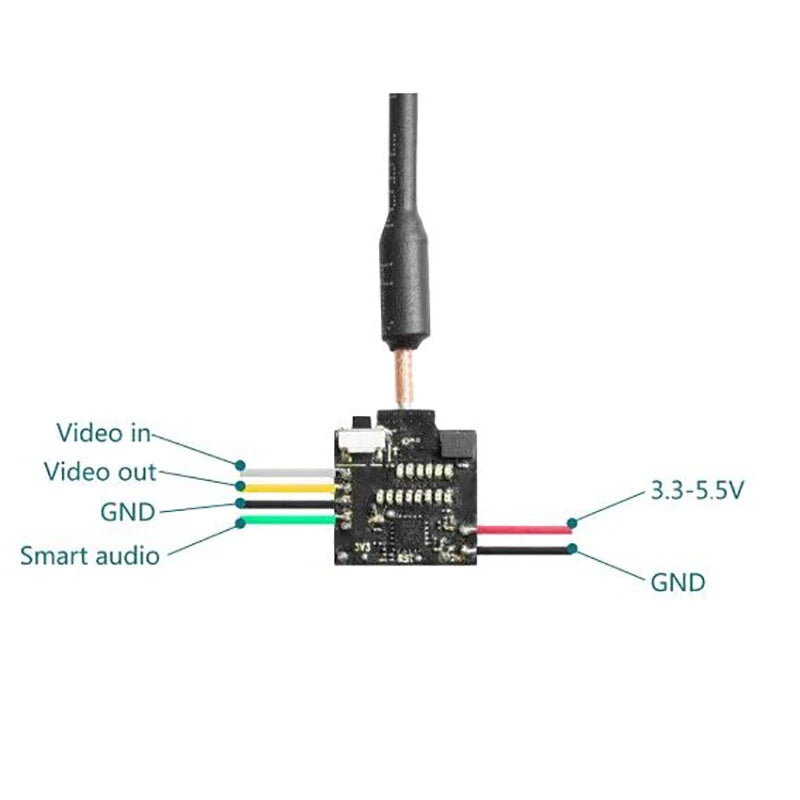

| Input Voltag: | 3.3-5.5V (recommanded battery click here) |
| Current Consumption: | 280mA(Typical) |
| Camera Resolution: | 700TVL |
| Video Format: | NTSC/PAL |
| Field of View : | 120° viewing angle |
| Antenna Dimensions: | 35mm*4.2mm diameter |
| Antenna: | Brass dipole Antenna |
| Frequency: | 5.8GHz 6 bands 48 channels, |
| With Band: | 5474-5945MHZ |
| Size: | 14*13.8mm(L*W) |
| Weight: | 2.8g |
Specification of camera 26mm mount
| Material: | PLA |
| Weight: | 2g |
| Mounting Hole: | 26*26mm |
| Size: | 21.5*41*22.5mm |
| Color: | Red |
| Suitable for: | most cameras of 75mm or so |
Specification of camera 19mm mount
| Material: | PLA |
| Mounting Hole: | 19*19mm |
| Color: | Red |
Specifications of FPV ROTG01 receiver: Click here

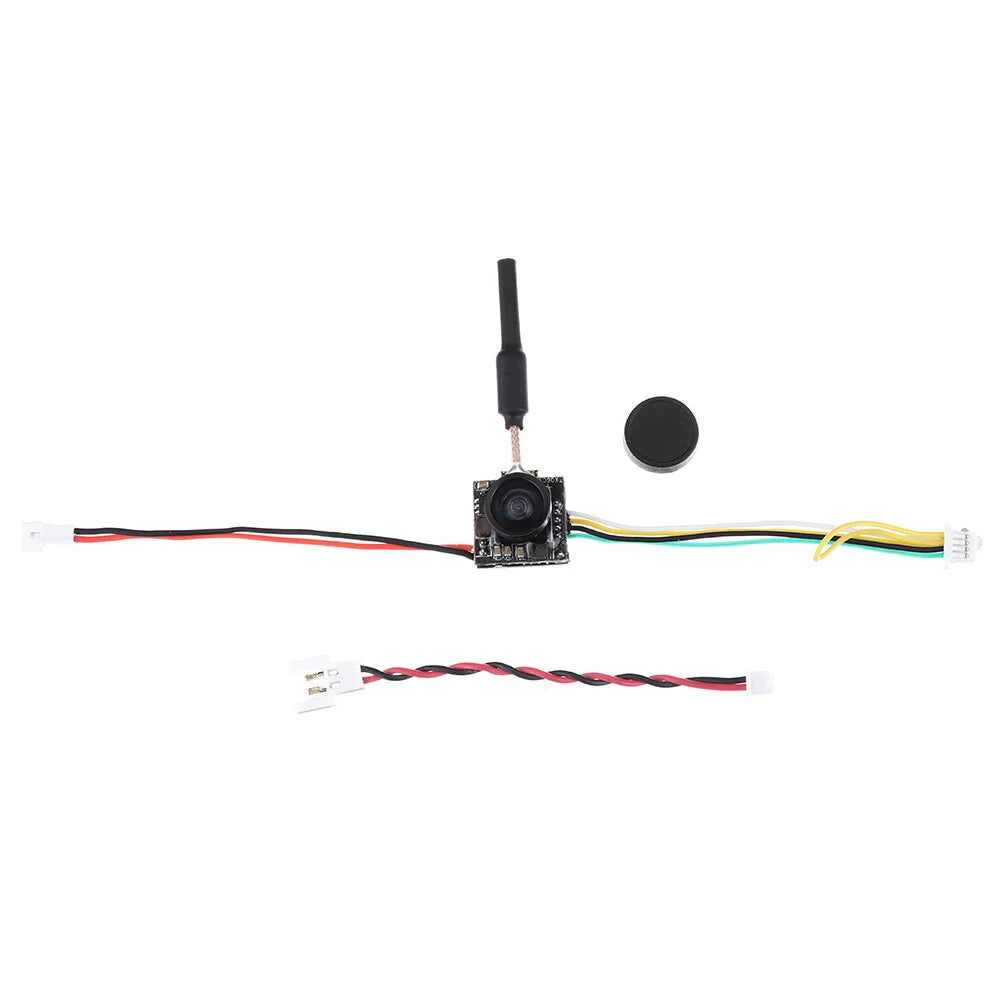

Package Included

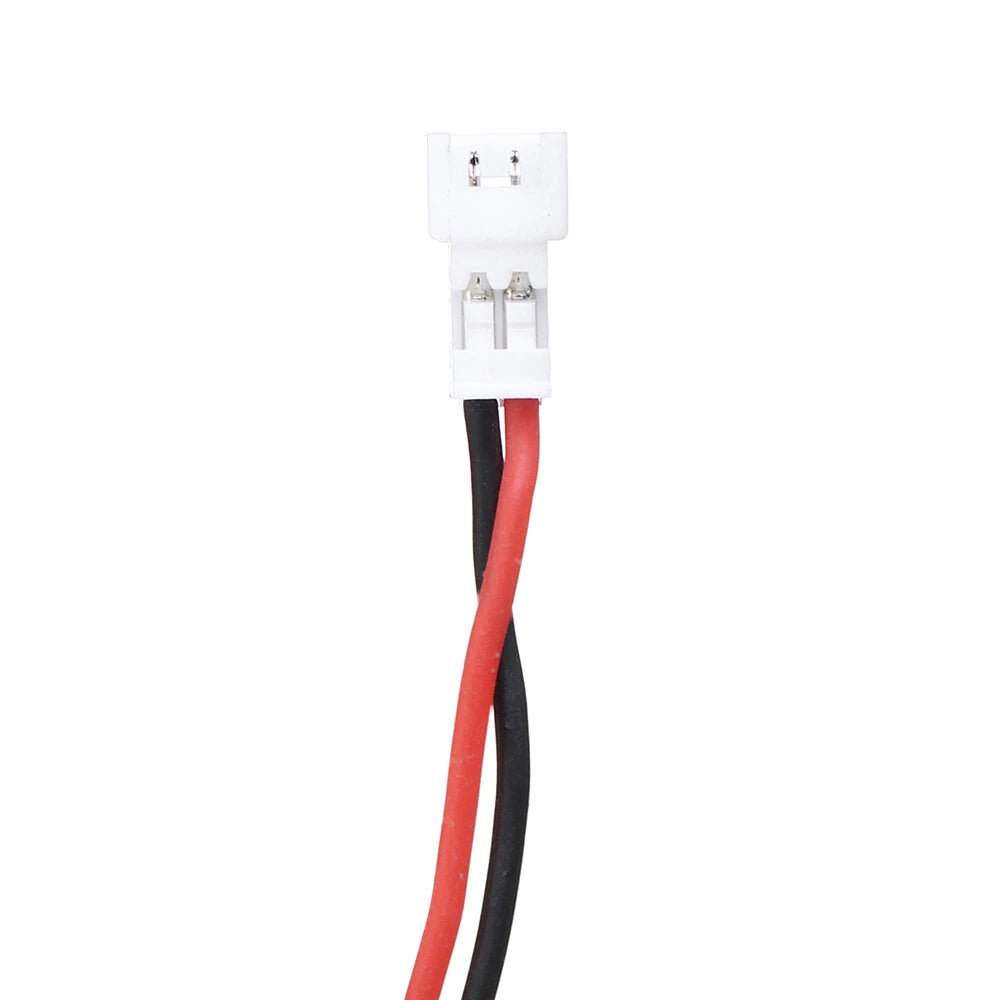

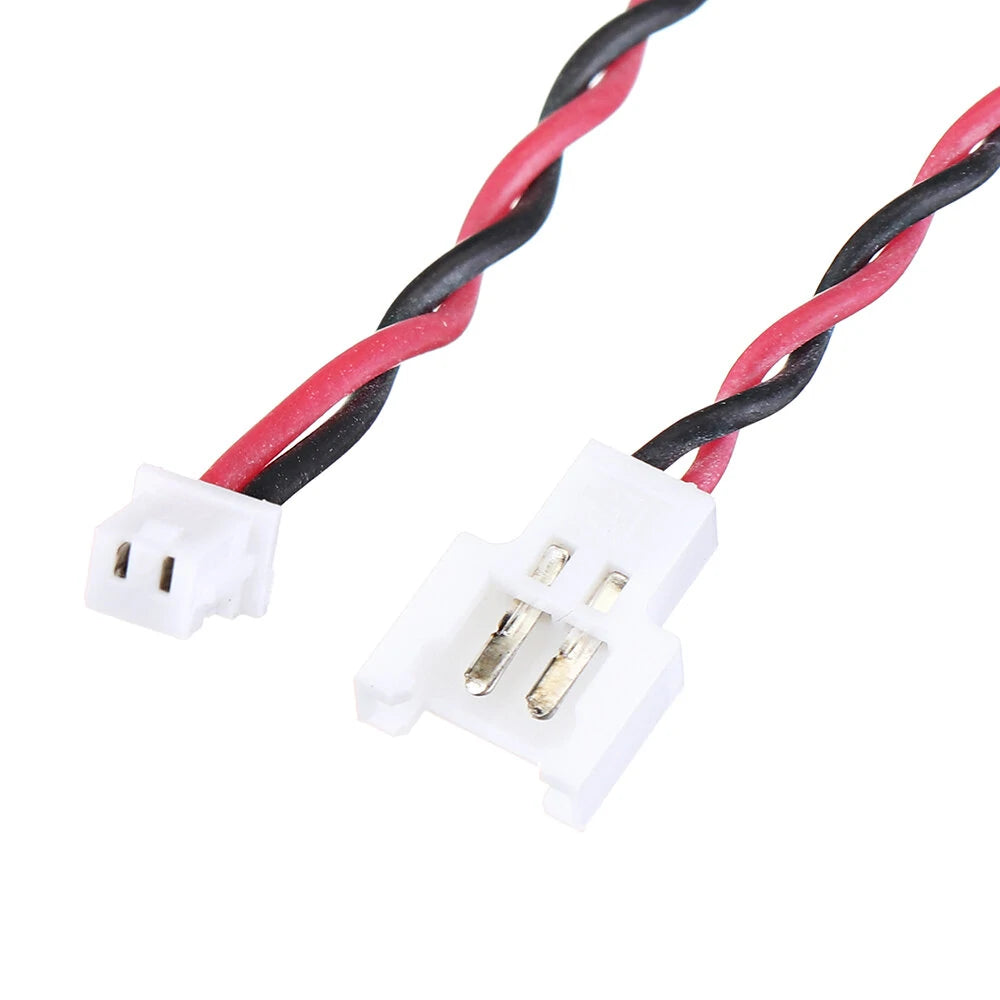

1 x Eachine TX06 700TVL FOV 120 Degree 5.8Ghz 48CH Mini FPV Camera AIO Transmitter For RC Drone1 x Molex 1.25mm to JST-DS 2.0mm 2P Power Cable
