Specification: User Manual

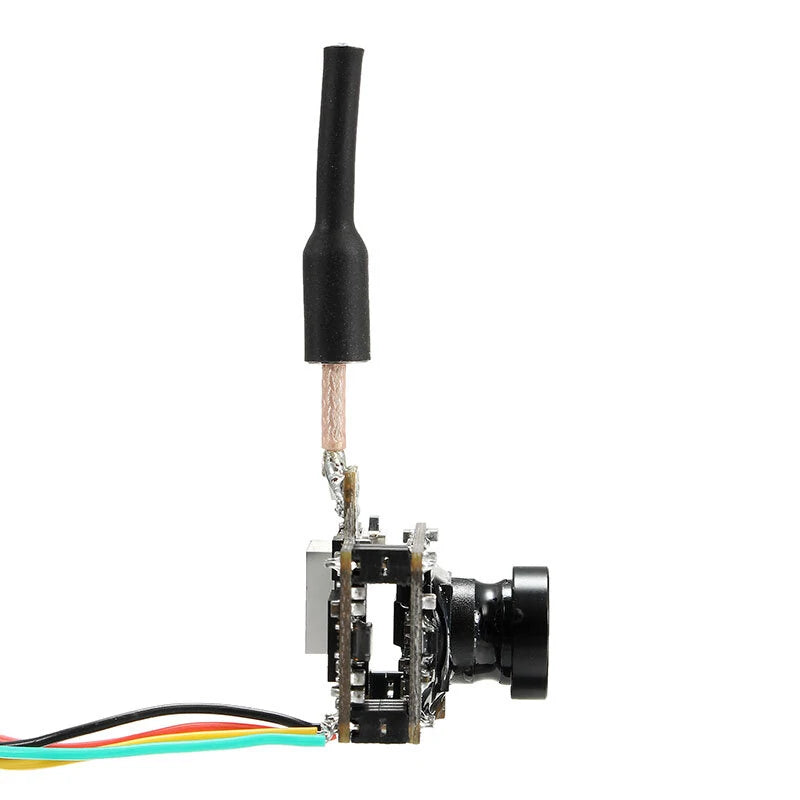

| Overall | Brand Name | Eachine |
| Item NO. | TX05 | |
| Item Name | AIO FPV VTX Camera | |

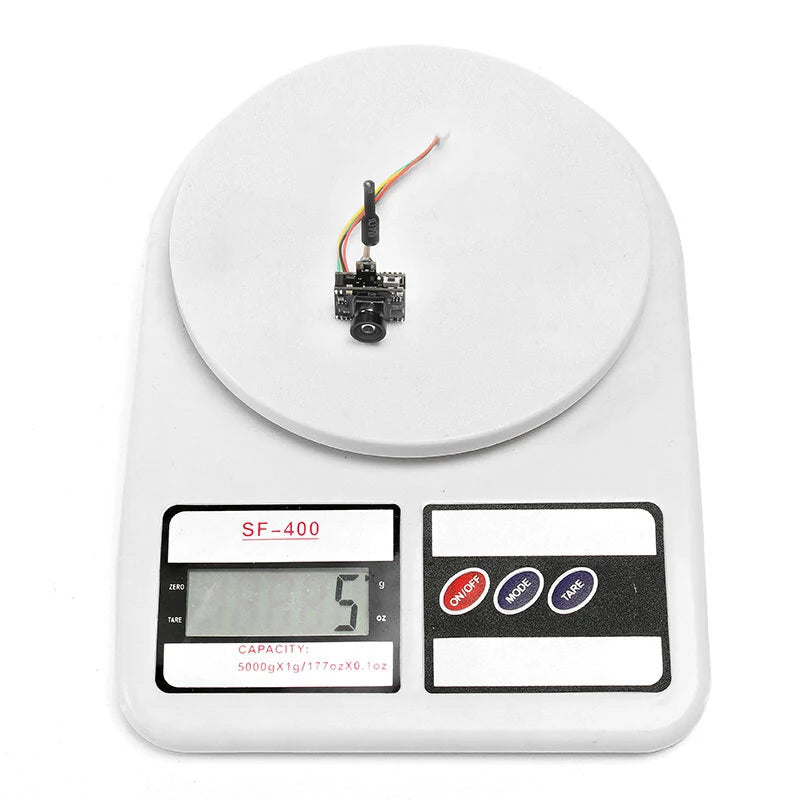

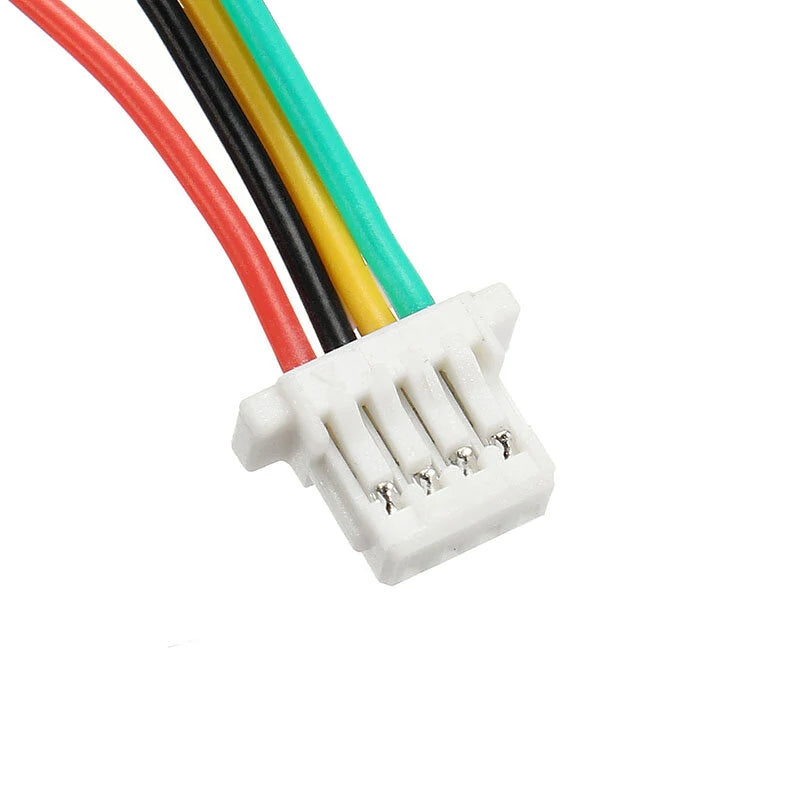

| Size | 19.6mm*14mm(L*W) | |
| Weight | 4.9g | |
| FPV Camera | Output power | 0.01/5mW/25mW/50mW/100mW/200mW (switchable) (Let output power on 0, to avoid frequency interference) |
| Input Power | 3.3-5.5V | |
| Power consumption | 540 mA | |
| Sensor | 1/3 'CMOS | |
| Camera Resolution | 600TVL | |
| Lens | M7 10mm Lens | |
| Angle | 120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective | |
| Mini illumination | 1 lux | |
| Format | NTSC/PAL | |
| Transmitter | Support video format | NTSC/PAL |
| Output Impedance | 50 Ohm | |
| Output signal strength | 13±1dbmdBm | |
| Output Power | 0.01mW: -20dBm5mW: 8dBm25mW: 15dBm50mW: 17.5dBm100mW: 21dBm200mW: 23dBm | |
| Wireless Channel | 72CH | |
| Extents | 400m | |
| Antenna | 5.8G Brass Antenna | |
| Working Voltag | 3.3-5.5 V | |
| Current | 0.01mW: 260-99mA5mW: 300-140mA25mW: 370-170mA50mW: 470-220mA100mW: 530-255mA200mW: 800-540mA | |
| Audio carrier | NO | |
| Battery | 1S Lipo Battery (3.7-4.2V) | |
| Frequency Table | 5.8GHz 9 bands 72 channels with Raceband: 5325-5945 MHZ |
|
1) 0.01Mw: LED display '1' and blink twice.
2) 5Mw: LED display '2' and blink twice.
3) 25Mw: LED display '3' and blink twice.
4) 50Mw: LED display '4' and blink twice.
5) 100Mw: LED display '5' and blink twice.
6) 250Mw: LED display '6' and blink twice.

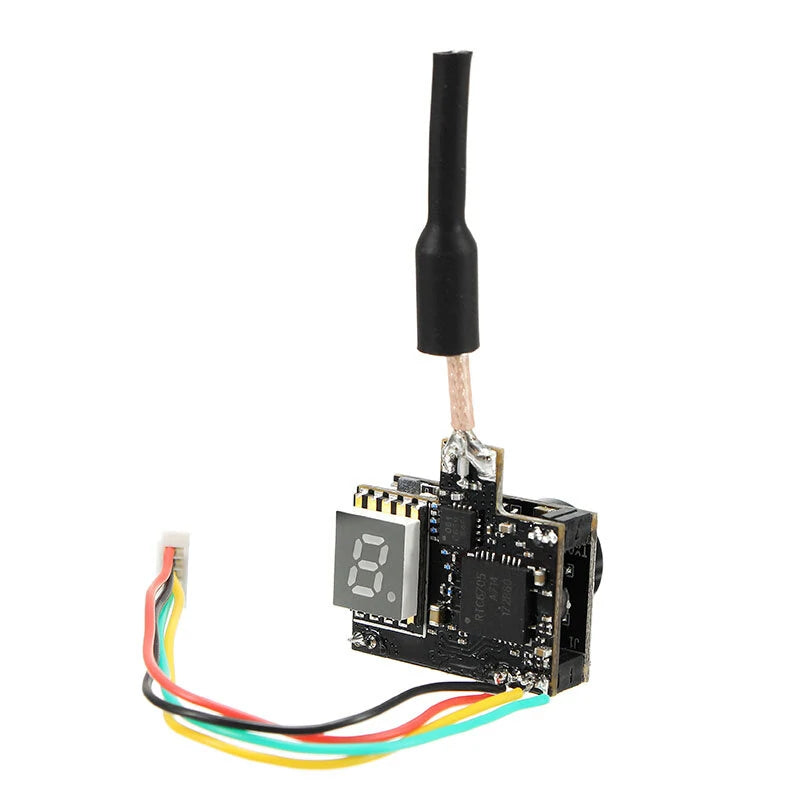

Opertio Instruction:1. On the LED display the Letter means BAND, digits means CHs. Digits blink twice quickly means POWER Level.2. The default power is 0.01Mw. Stting will restre the last band, channel and power level if no opretation act within 5 second.3. Short press the button to change CH from 1 to 8.4. Long press the button (about 2s) when letter blink, then short press to change BAND from A to H.5. Long press the button (about 4s) when digit blink twice quickly, then short press the button to change POWER Level from 1 to 6.

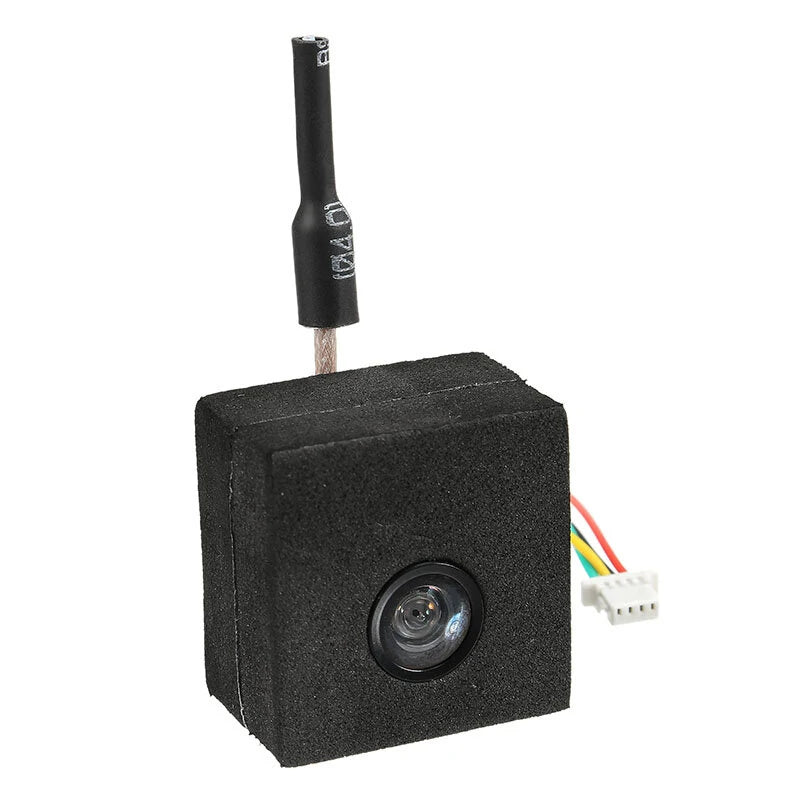

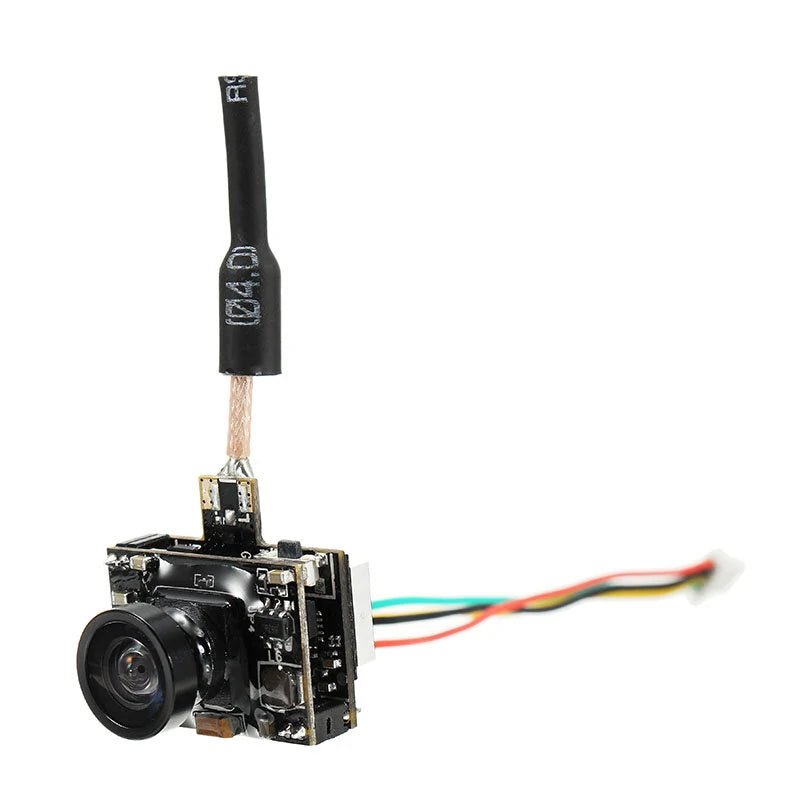

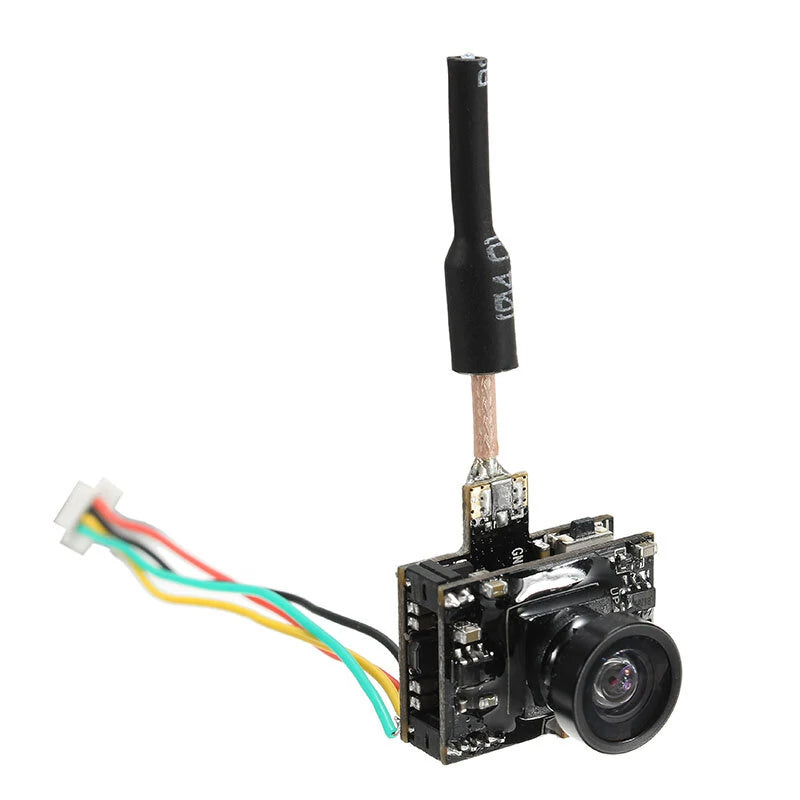

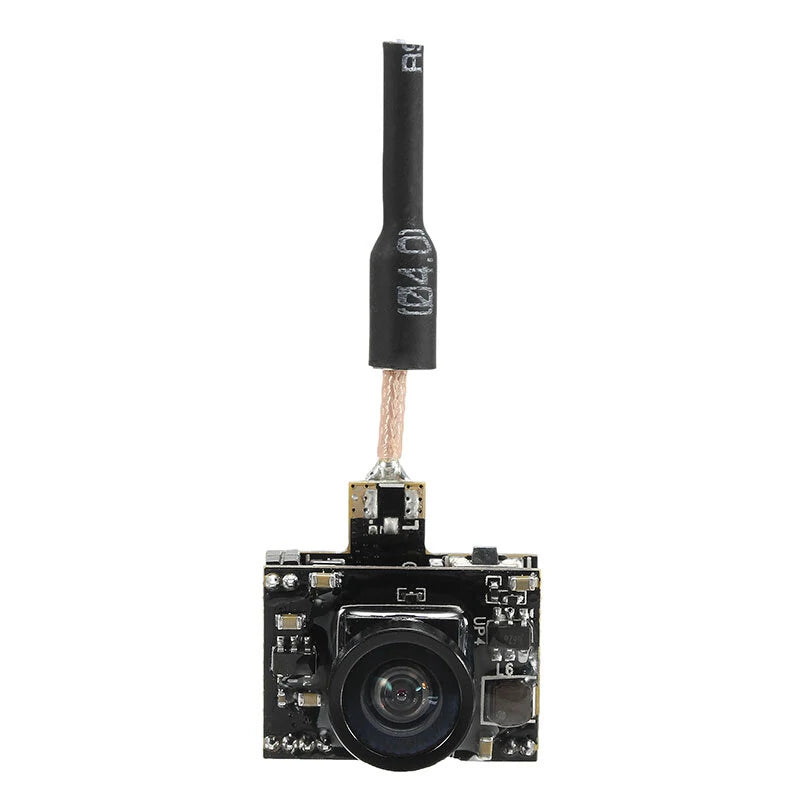

Features:- AIO FPV camera, transmitter , atnenna, OSD 4 in one function limit size and weight.- Output power 0.01mw/5mw/25mw/25mw/50mw/100mw/250mw, 6 level one key to Switchable.- OSD enabled,support video in / video out.- Anticollision EVA case.- 9 bands 72 channels with Raceband.- Power failure memory, remember the frequency channel after powering off.- 120 ° FOV horizontal viewing angle of 150 ° DFOV diagonal perspective.- 5.8G Brass antenna to Antirust and get strong signal.- Plug and play, designed for DIY.

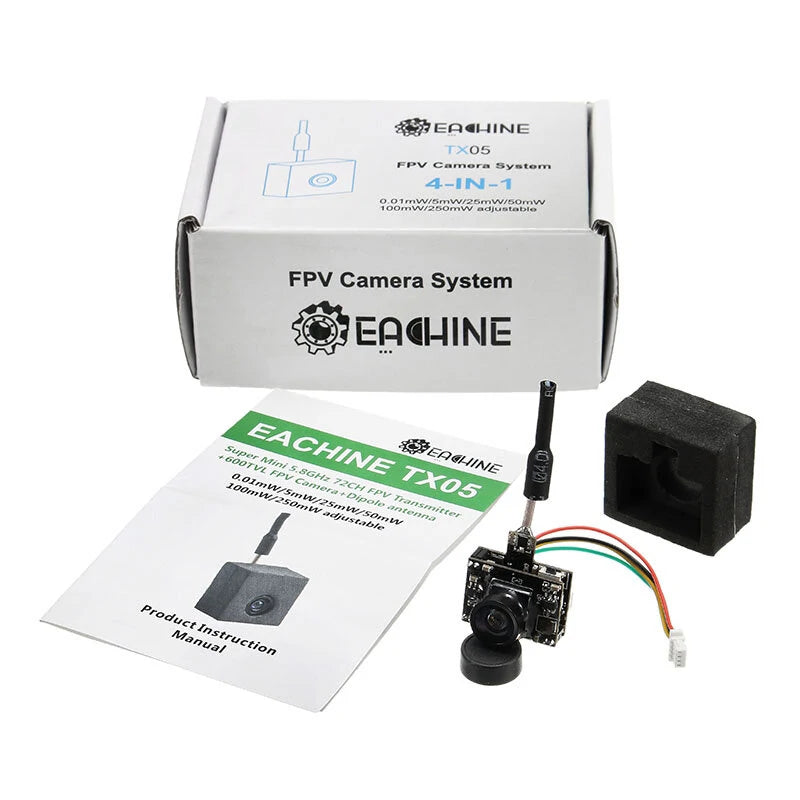

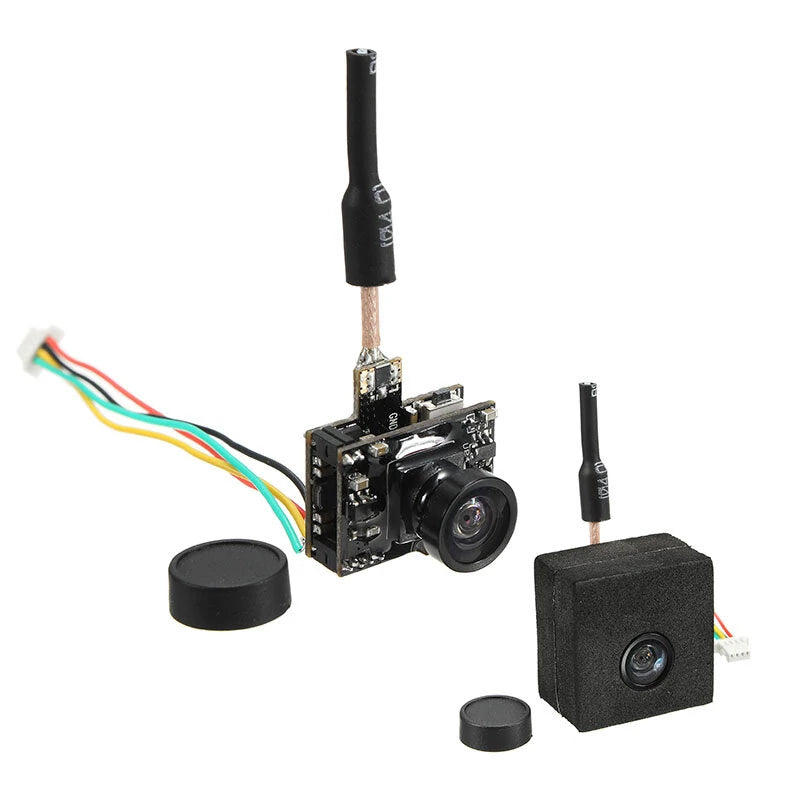

Package Included:1 x Eachine TX05 Camera1 x Foam Protection Cover1 x User Manual
