New version comes with 3.7V 2000mAh battery，send randomly

EV800D vs EV800DM

Features:

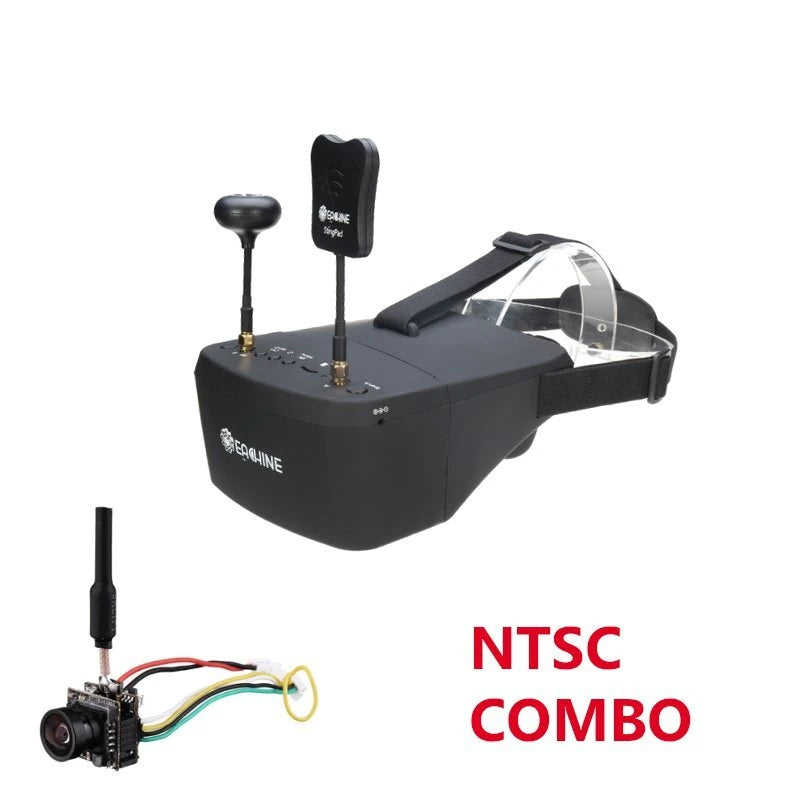

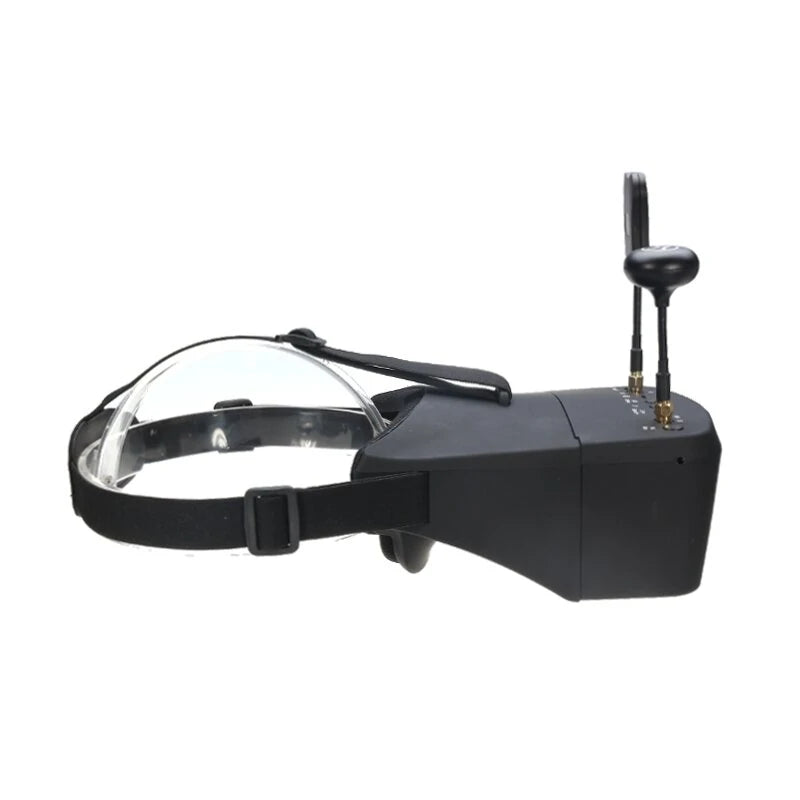

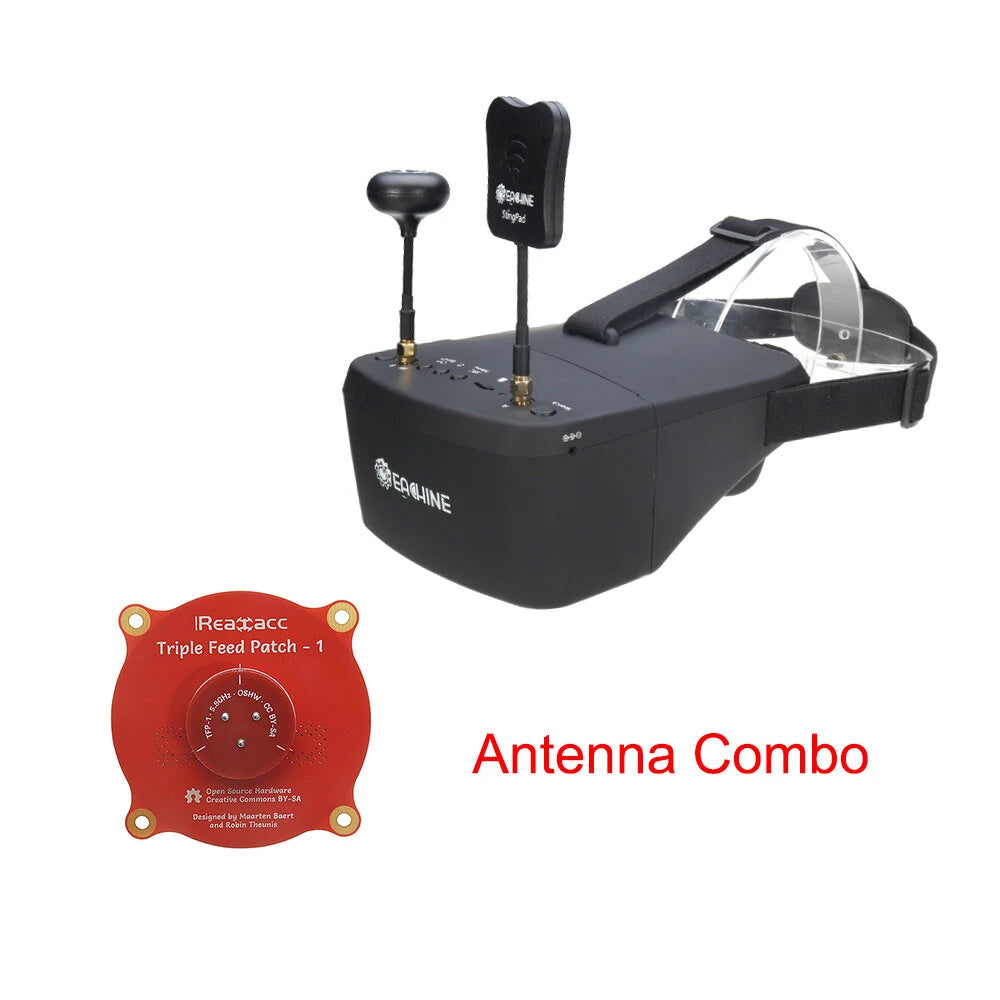

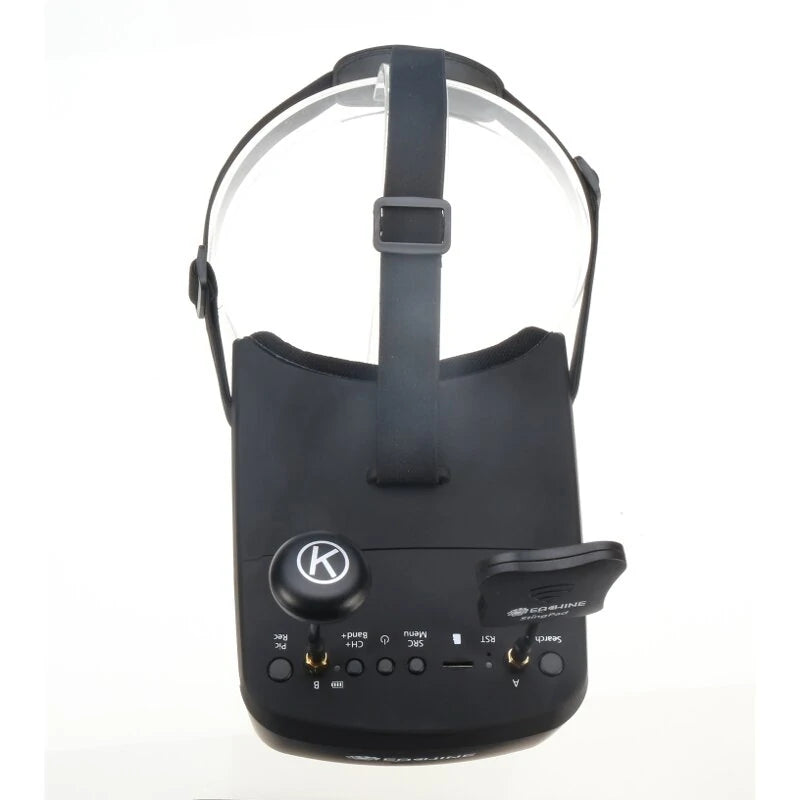

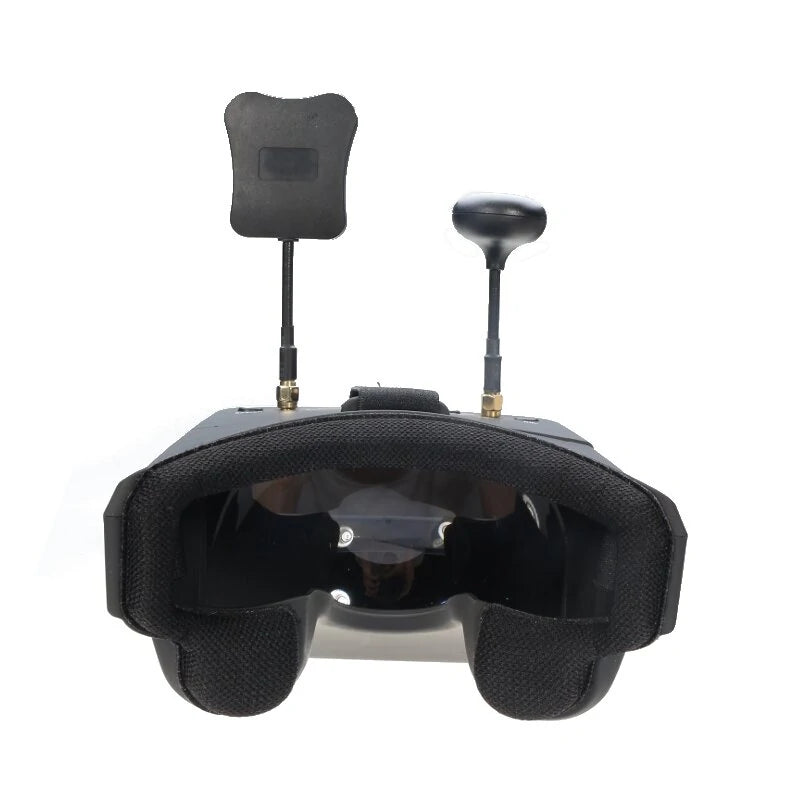

EV800D Goggles
- Built-in with super HD DVR up to 720*576px resolution;
- Diversity Goggles 40ch Auto-Searching;
- Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 card to ensure the full frame recording);
- Work friendly with p ilot-OSD, no block on the important flying OSD information;

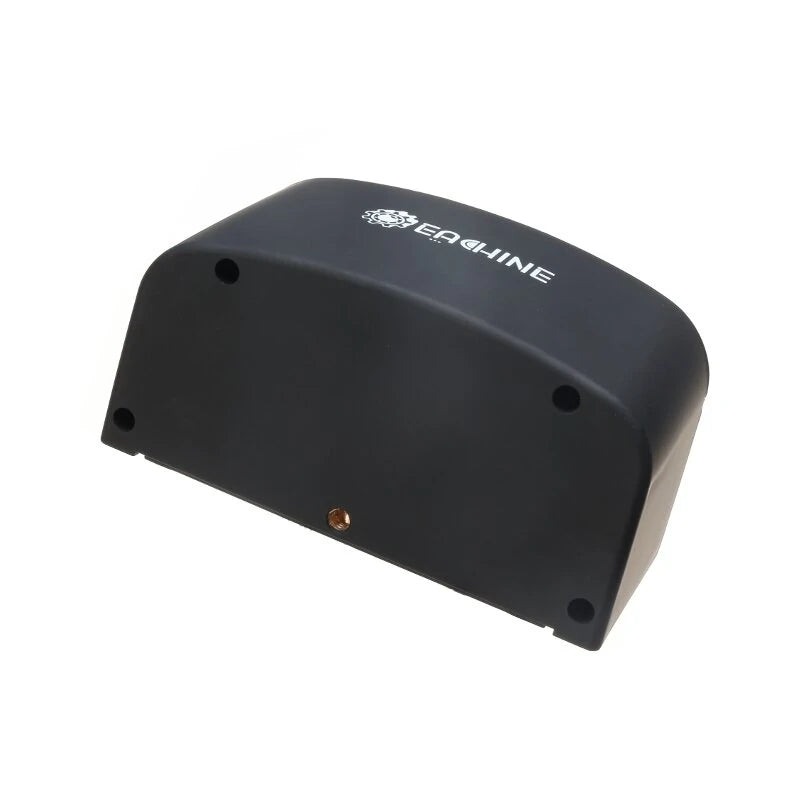

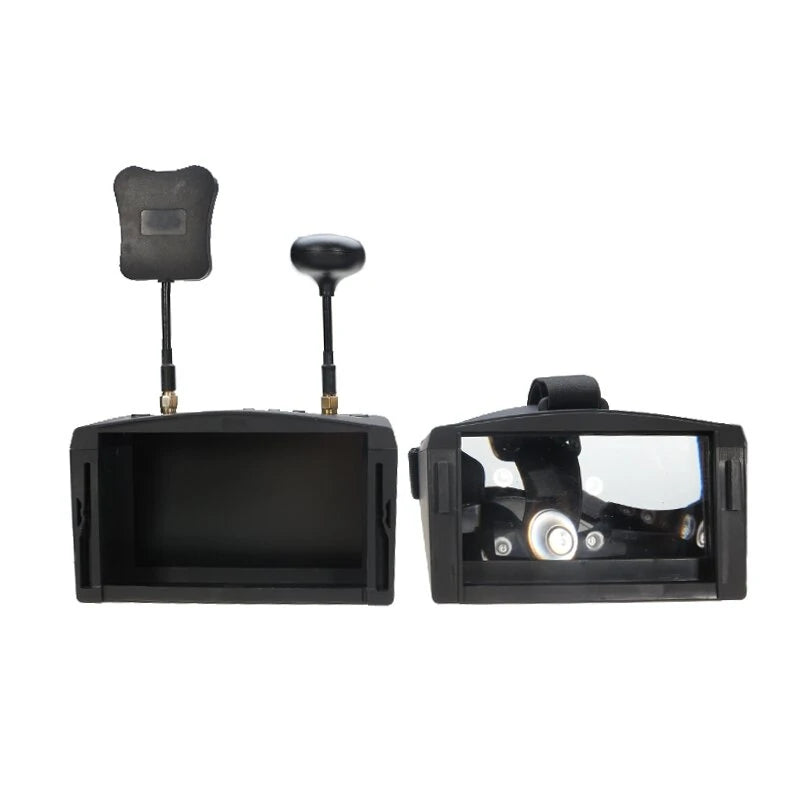

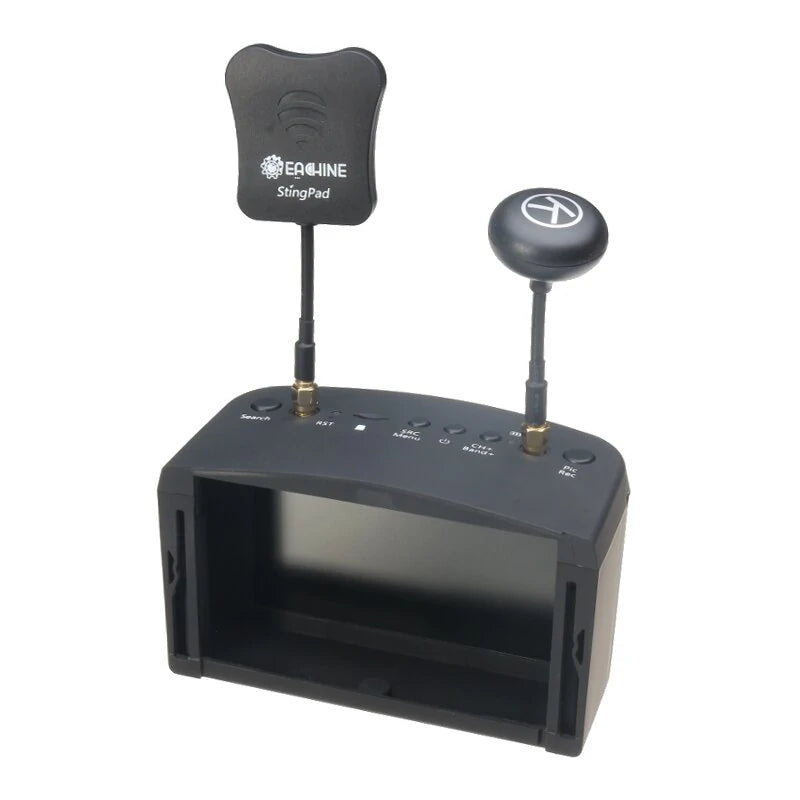

- Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
- HD high brightness 5 inch LCD specially tuned for FPV racing;
- Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module;
- Advanced auto-searching function and the working frequency show on screen;
- Built-in 7.4V 1200mAh/3.7V/2000mAh battery, each full charge offer 2 hours working time;

- Wide rang re-charge voltag 11-20V; US plug
- Accept 2S or 3S batteries as back-up power source, to prolong the working time;
- Nice ergonomic design and fit different faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the edge of screen;
- Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
- 5 Inch 800*480px HD high brightness LCD

TX06 AIO Camera

- OSD configuration using FC Uart
- Super small and lightweight
- 700TVL high picture quality,Low Power Consumption.
- 48CH channel
- Power by 1S lipo battery
- Plug and play,designed for DIY
- Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD

Model :	EV800D -- English manual
Appearance	Dimension: 180*145*82mm Weight: 362g without antenna Belt : three-way adjustable belt
Specification	Build in DVR Record up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 32G SD card to record full frame rate
Diversity	- 90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used
Display	Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/ m2 with special high brightness backlight LED for outdoor FPV Ratio : 16:9, 4:3 View Angle: 140/120 degree(Horizontal/Vertical)
Lens	3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light;
Battery	Built-in 7.4V/1200/ 3.7V/2000mAh battery; Each battery circle offer around 2hr working time; 10-22V wide rang recharging voltag rang, Typical recharging voltag is 12V Charger : 12V,2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

TX06 AIO Camera :

Transmitting Power:	25mW
Frequency:	5.8G 48CH
Input Voltag:	3.3-5.5V
Current Consumption:	280mA(Typical)
Camera Resolution:	700TVL
Video Format:	NTSC/PAL
Field of View :	120° Viewing Angle
Antenna Dimensions:	35mm*4.2mm diameter
Antenna:	Brass dipole Antenna
Frequency:	5.8GHz 6 bands 48 channels
With Goggles：	5474-5945MHZ
Size:	14*13.8mm(L*W)
Weight:	2.8g



Frequencies (5.8GHz)

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP
A or FR1	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
B or FR2	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ
