Note: The goggles upgraded version with the face sponge and AV IN function. The Headphone jack was changed to 3.5mm. The total weigh reduction of 26g.

Specification
Brand name	Eachine
Item No.	EV800
Screen	Size:  5.0 inch Resolution:  800*480 (No blur after enlarge by the lens) Brightness:   600cd/m2 with special high brightness backlight LED for outdoor FPV View Angle:  140/120 degree(Horizontal/Vertical)
Lens	3x boost of the video to acquire intense feel-in-there video;92% transparent rate no distort of light;
Battery and recharge	- Built-in 3.7V/2000mAh battery;- Each battery circle offer around 3.5hr working time;- 5-12V wide recharging voltag rang, typical recharging voltag is 5V- Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
Receiver	Build in 5.8G 40CH Raceband receive                                                           Frequency Table Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725 Frequency Band B 5733 5752 5771 5790 5809 5828 5847 5866 Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945 Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880 Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917
Body	Dimension:  180*145*82mm Weight:  349g with 3.5hr 2000mAh battery Belt:  three-ways adjustable belt

Feature:

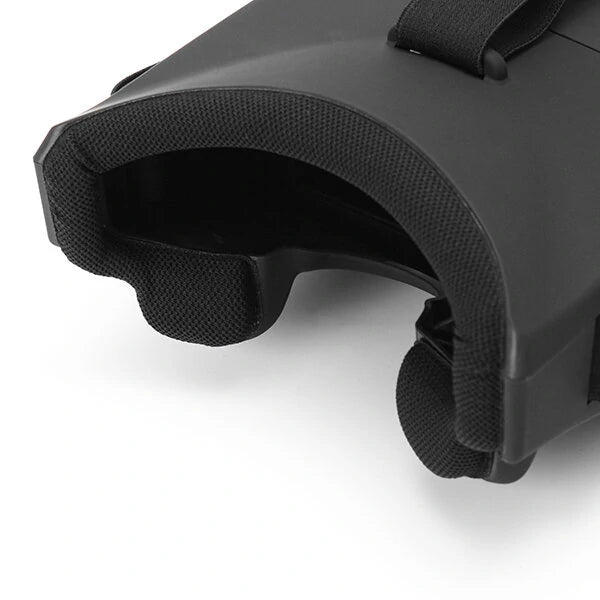

- With comfortable face sponge and AV IN function;
- Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
- HD high brightness 5 inch LCD specially tuned for FPV racing;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Come with advanced auto-searching function ad show you the working frequency on screen;
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time;
- Wide rang re-charge voltag 5-12V, power banks or 2S/3S batteries can be used as back up power sour, to prolong the working time;
- Ergonomic design fit your faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the adage of screen;
- Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD

Eachine EV800D vs EV800DM vs EV800 – FPV Goggles Comparison

Model EV800D EV800DM ✔EV800 Display Type 5.8' IPS LCD (1280×720 HD) 5.8' TN LCD (800×480 SD) 5.8' TN LCD (800*480px HD ) Resolution 720p @ 60Hz 480p @ 30Hz 480p DVR Recording H.264, 720p/60fps MJPEG, 480p/30fps Basic DVR (Low Quality) Receiver Dual-Diversity (RX5808 Module) Single Antenna Single Antenna Channels 48CH (Incl. RaceBand) 40CH (No RaceBand) 40CH (No RaceBand) Battery Built-in 1800mAh LiPo Built-in 1800mAh LiPo Built-in 1200mAh LiPo Head Strap Detachable (Modular Design) Detachable Fixed Weight 362g without antenna 320g without antenna 349g Best For Enthusiasts/Racing Beginners/Budget Users ✔ Entry-Level Option: Lightweight and affordable for beginners.

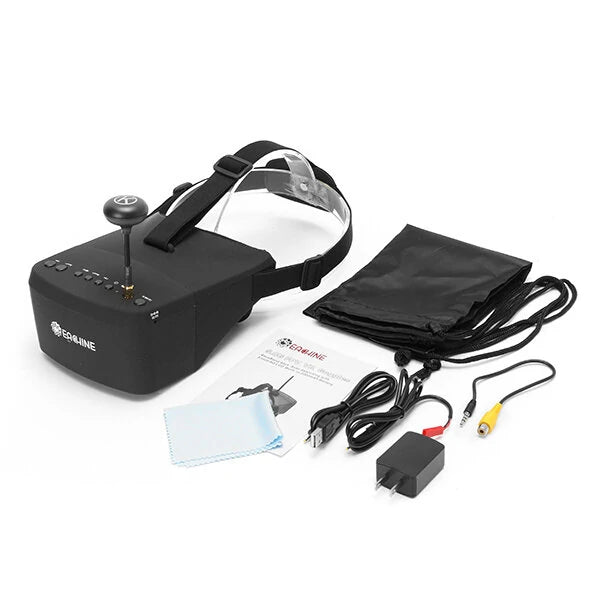

Package Included:
1 X EV800 FPV VR Goggles (Built-in 3.7V/2000mAh battery)
1 X Antenna
1 X USB charger cable
1 X Battery charger cable
1 X AV IN cable
1 X User Manual
1 X Clean cloth
1 X Bag

Links of spare parts:

EV800 3.7V/2000mAh Battery,click here

EV800 Sponge Foam Pads,click here

EV800 3.7V 2000mAh Battery, click here

EV800 URUAV PLA Spacer to Adjust Focus 15mm,click here

EV800 DC 12V 2A Charger AC Adatper US Plug,Click here.

EV800 URUAV PLA Spacer to Adjust Focus 27.5mm, click here

,,,,,,,
