Description
Features:

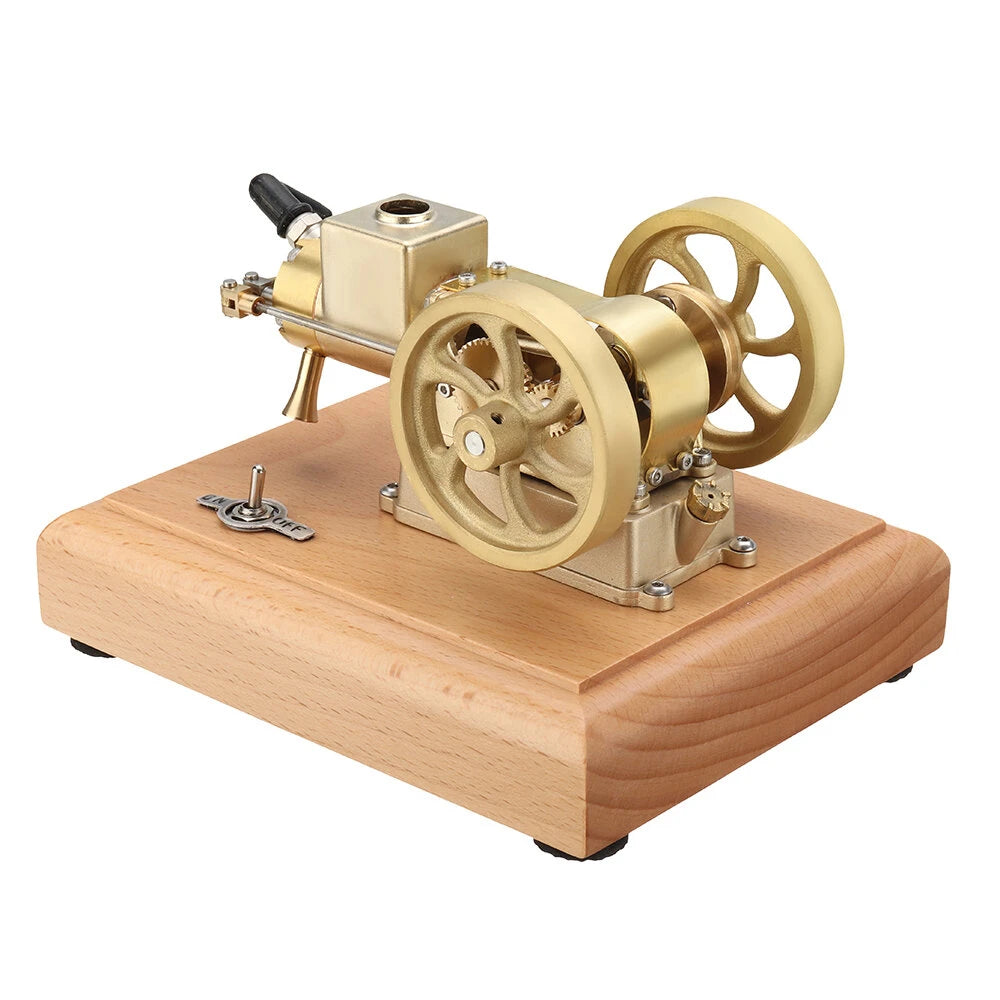

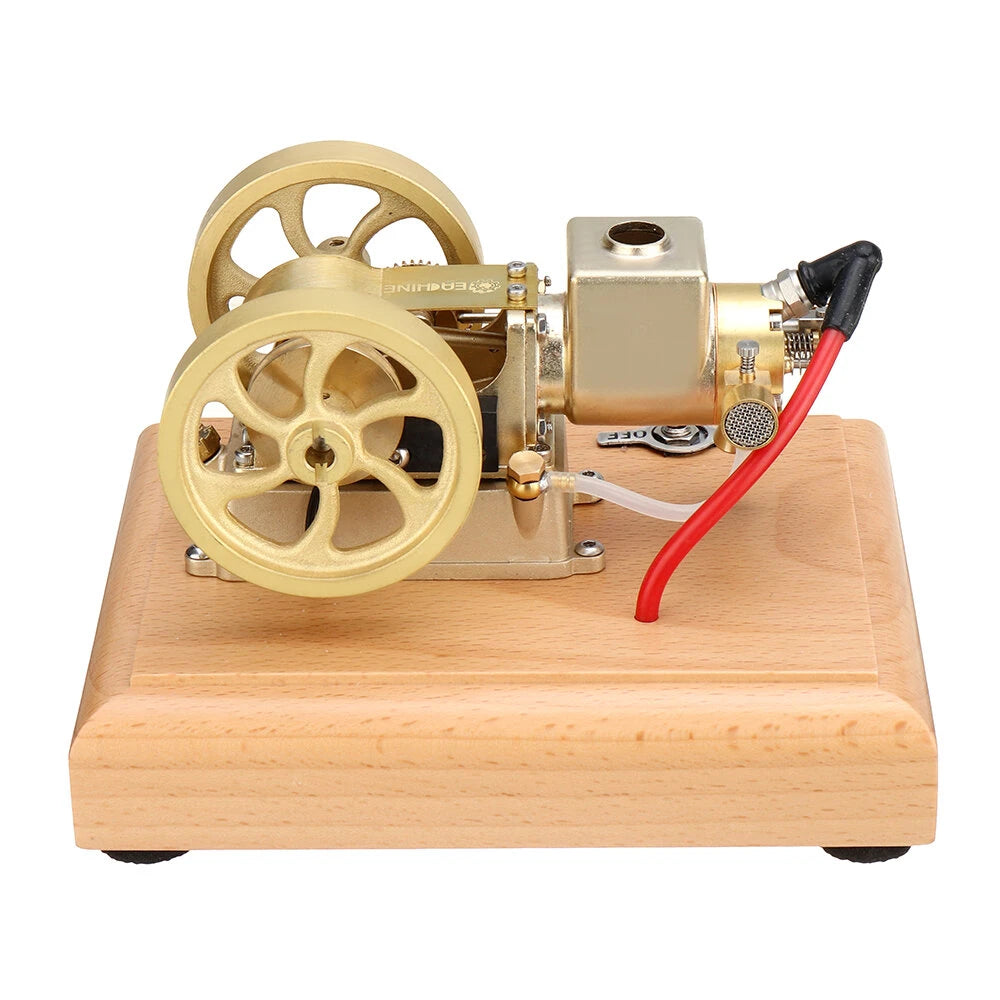

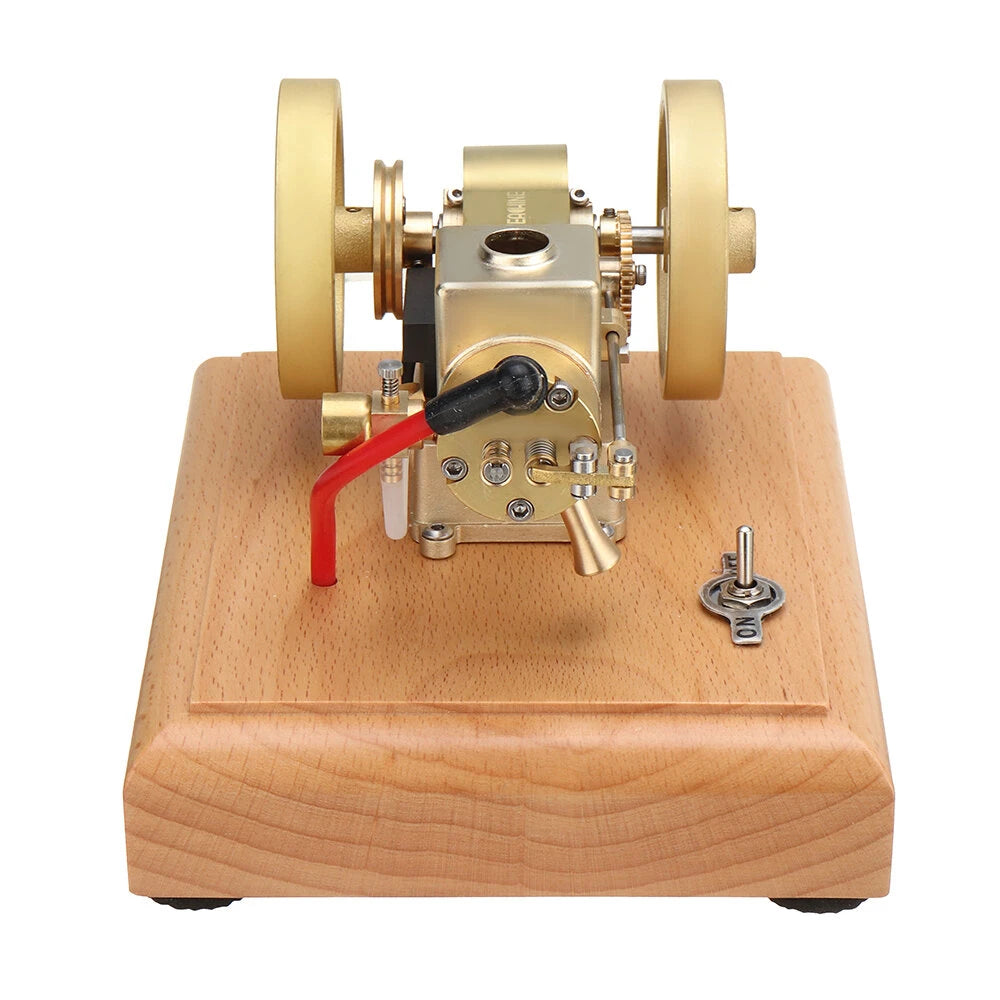

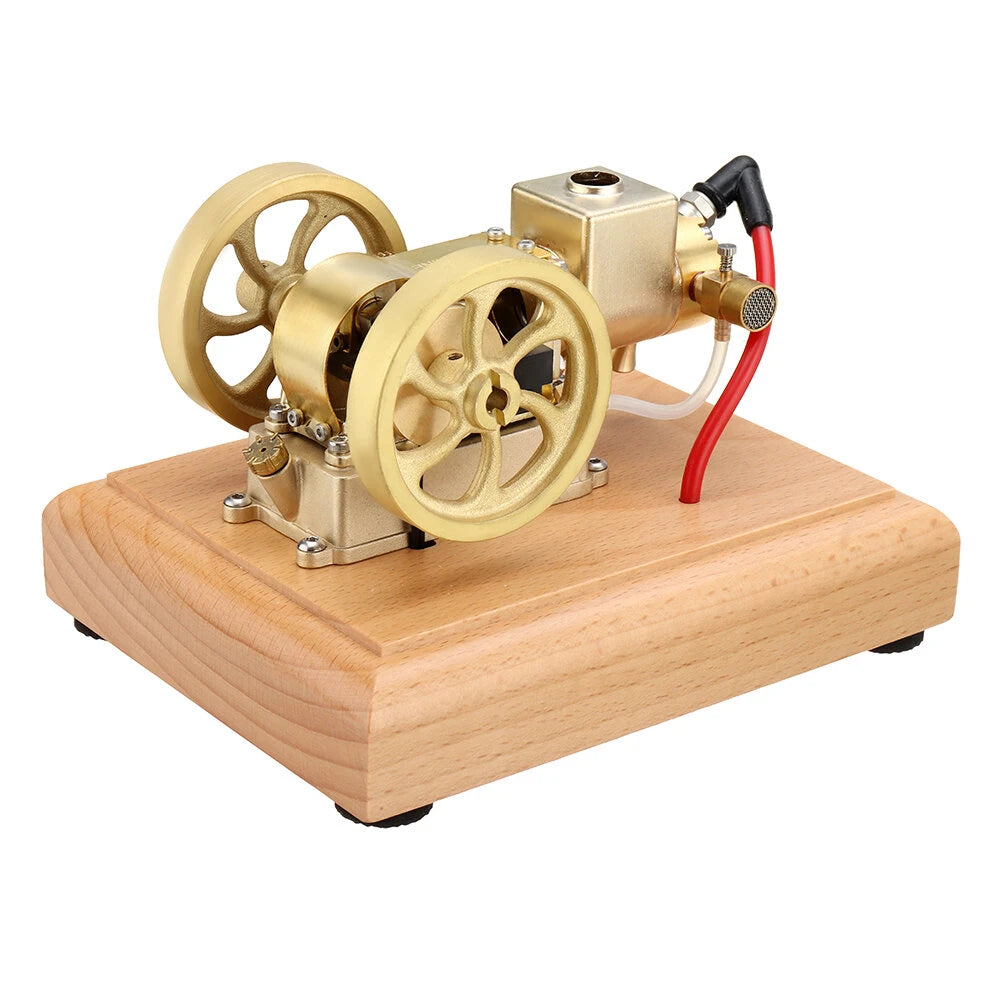

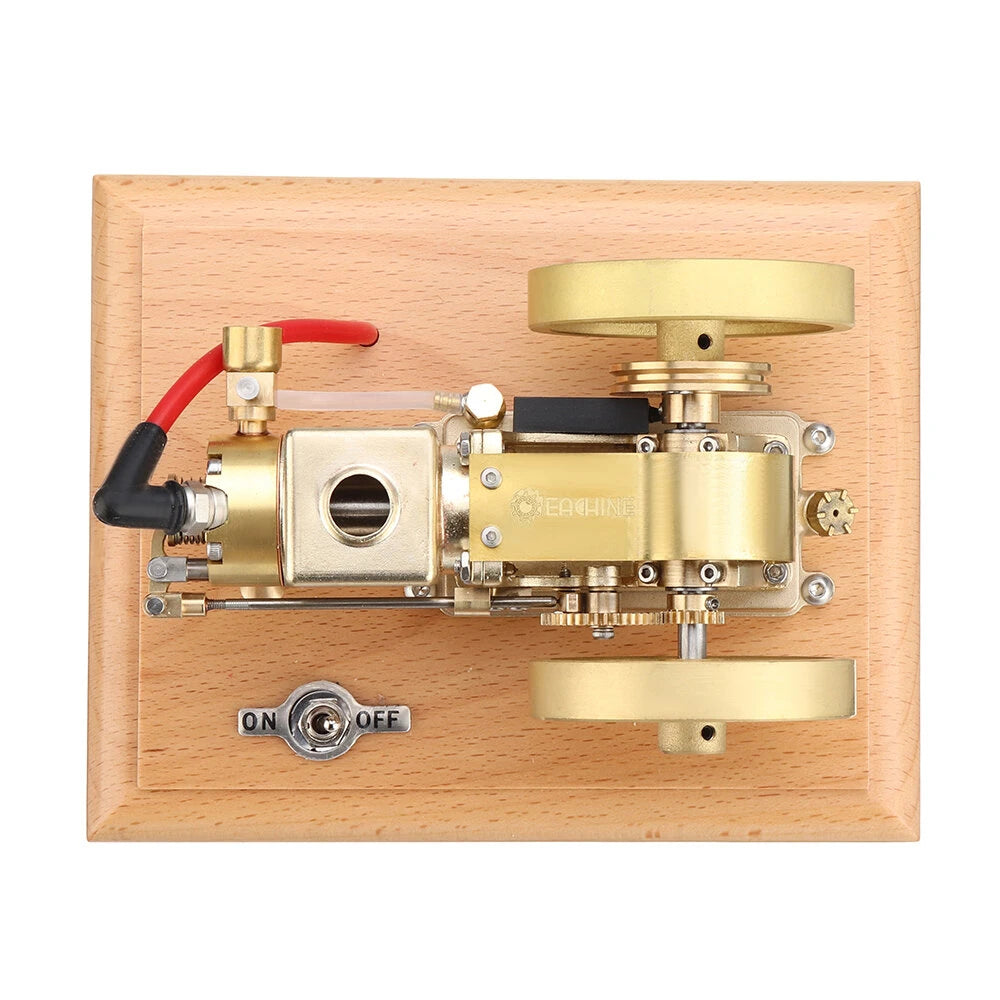

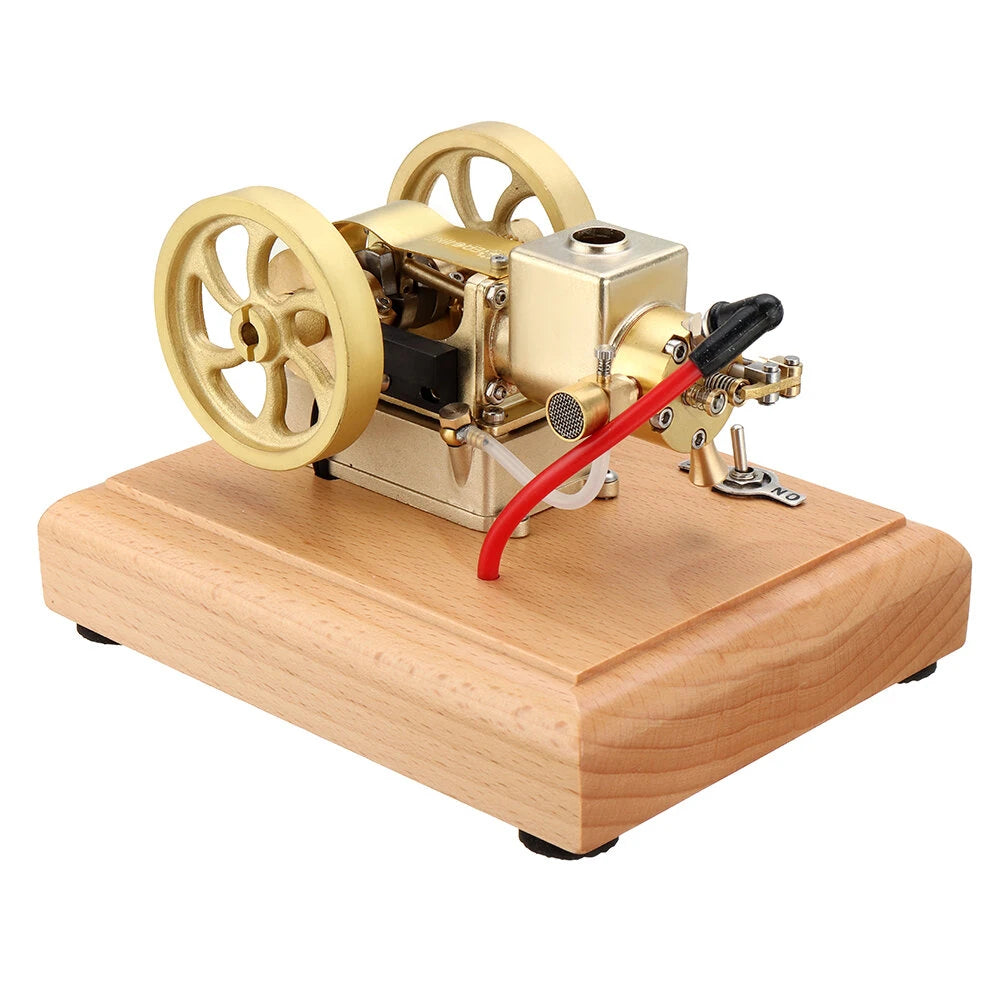

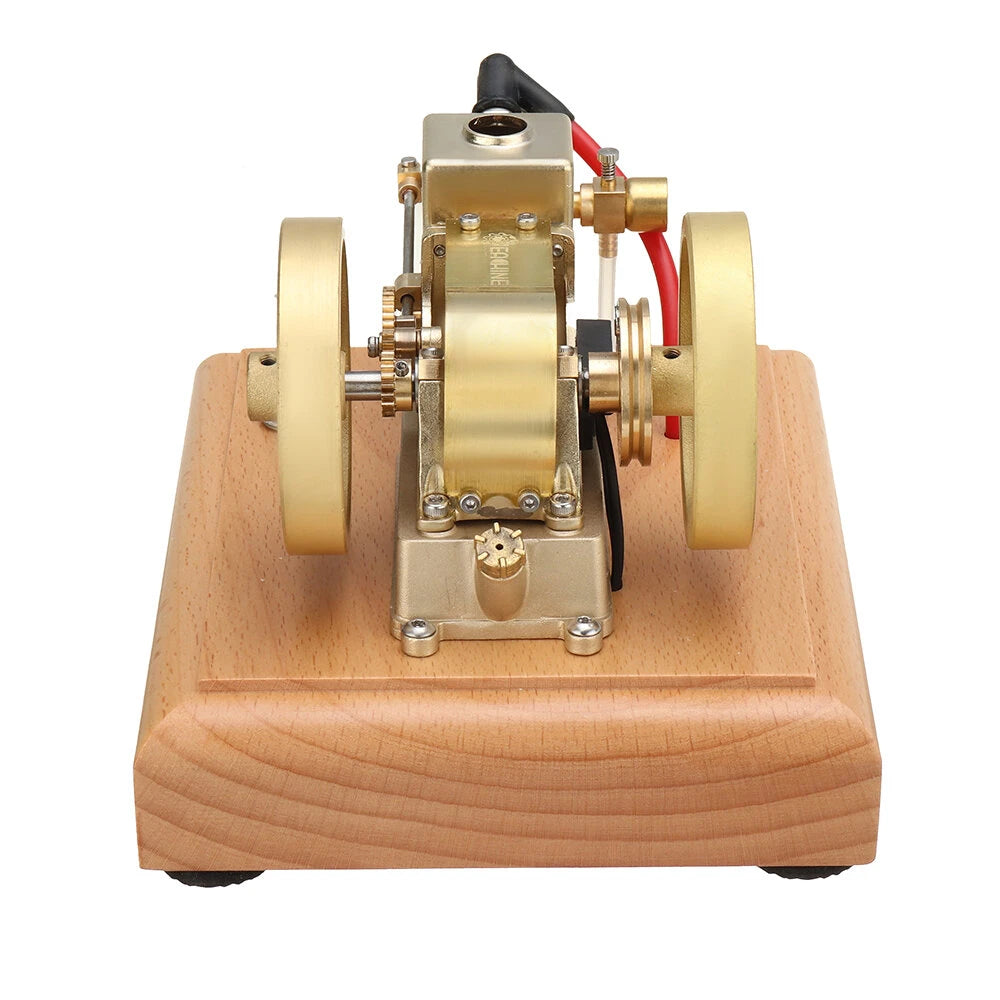

Mini Micro:This mini-micro Hit and Miss engine model is elaborately made of brass and stainless steel material, featuring flywheel speed-limiting device and a wooden base for convenient placement & operation. The vintage & exquisite internal combustion engine model is sure for your liking.Exquisite Workmanship:The characteristic desktop engine model comes with unique & delicate shape, firm & reliable structure design, premium quality, exquisite workmanship and stable performance for easy operation and immersive fun, bringing unique charm of the mechanical engine operation.
Specifications:
Brand: Eachine
Model: EM3
Name: 1.6cc 4 Stroke Horizontal Gasoline Internal Combustion Engine
Material: Brass/Stainless Steel/Bamboo
Product Dimensions: 15 x 12 x 9.5cm
Engine Dimensions: 12.7 x 7.8 x 6.5cm
Wooden Base Dimensions: 1.5 x 1.2 x 3cm
Product Weight: 1100g
Displacement: 1.6CC
Bore: 13mm
Stroke: 12mm
Ignition Power Supply Voltage: 4.5V (With 3 AA Batteries. Batteries are Not Included)
Starting Mode: External Force (Electric Drill) or Manual Start
Package Dimensions: 20 x 20 x 20cm
Package Weight: 1250g
Product Dimensions: 15 x 12 x 9.5cm
Engine Dimensions: 12.7 x 7.8 x 6.5cm
Wooden Base Dimensions: 1.5 x 1.2 x 3cm
Product Weight: 1100g
Displacement: 1.6CC
Bore: 13mm
Stroke: 12mm
Ignition Power Supply Voltage: 4.5V (With 3 AA Batteries. Batteries are Not Included)
Starting Mode: External Force (Electric Drill) or Manual Start
Package Dimensions: 20 x 20 x 20cm
Package Weight: 1250g
How to Start Engine:

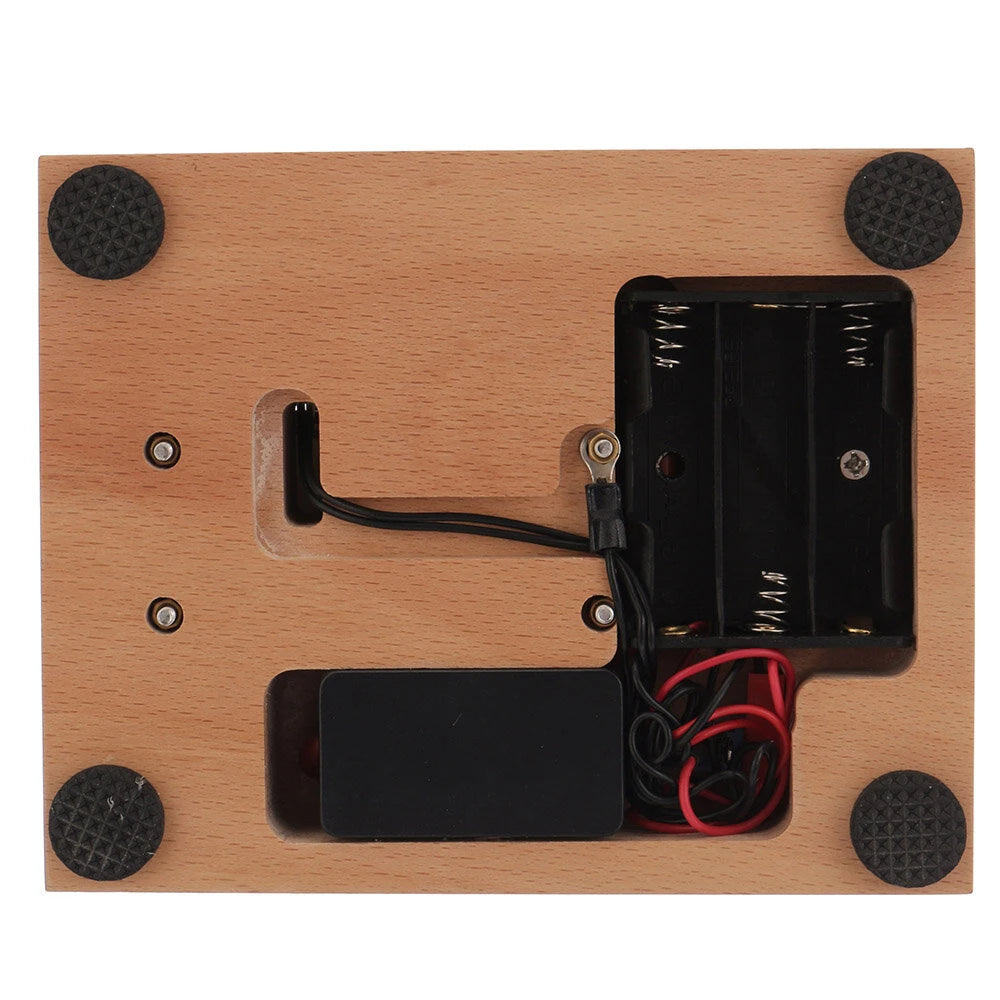

Step 1. Check the engine wiring from the wooden base, connect the fuel tank & fuel pipe and install 3 AA batteries (4.5V).
Step 2. Fill the fuel tank with 95# petrol and add 4% lubricant, then rotate the flywheel clockwise several times on the right side of the engine (power switch surface) to make sure the mixed fuel enter the cylinder completely and there is no air in the fuel pipe.Step 3. Turn on the power switch and quickly turn the flywheel clockwise to start the engine on the right side (power switch surface).
Precautions
1. When the ignition device is normal and the cylindercompression is normal, if the machine cannot start normally, it isvery likely that the carburetor oil needle needs to be adjusted1/4 turn and start the flywheel, so that the mixing ratio roosen.
2. After tightening the main oil needle on the carburetor, Igasoline and air can reach the normal working mixing ratio afterseveral times.
3. When the machine stops, the power switch should be turned off.
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
Package included:

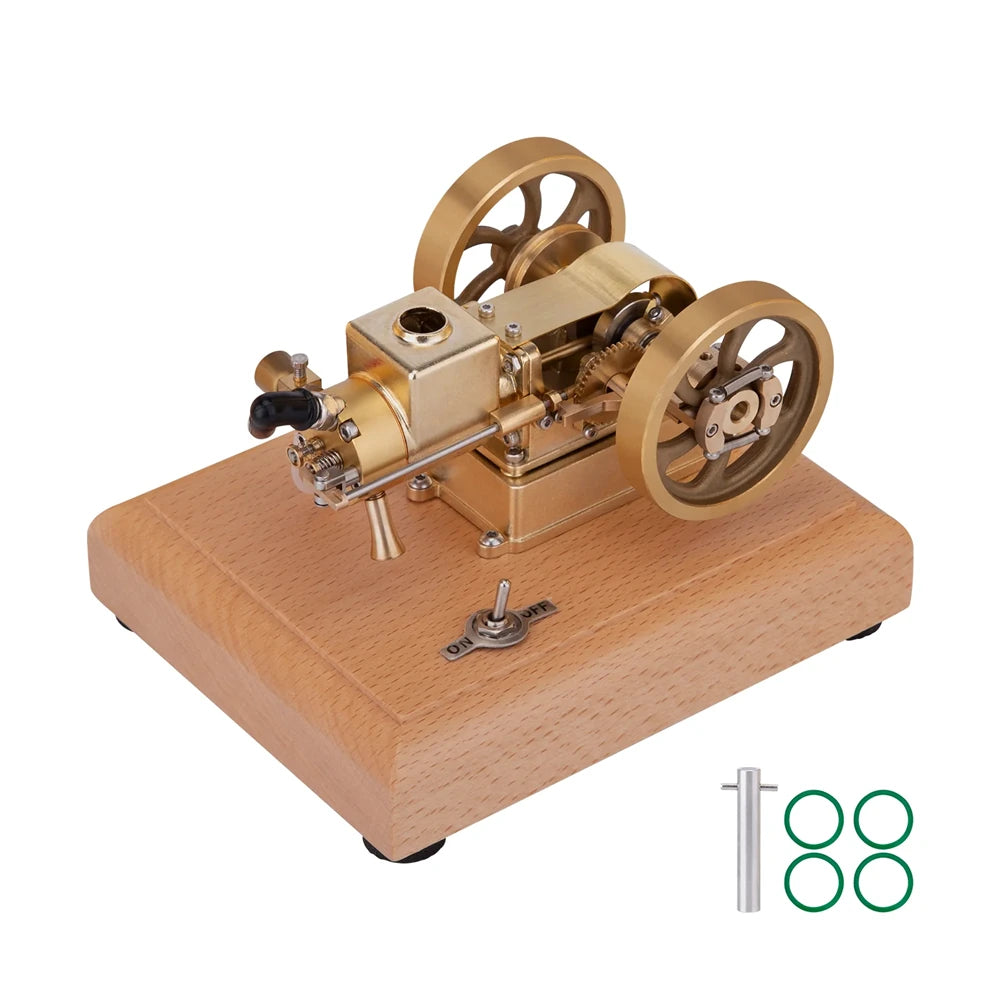

1x Eachine EM3 Horizontal Gasoline Engine Model
