Description

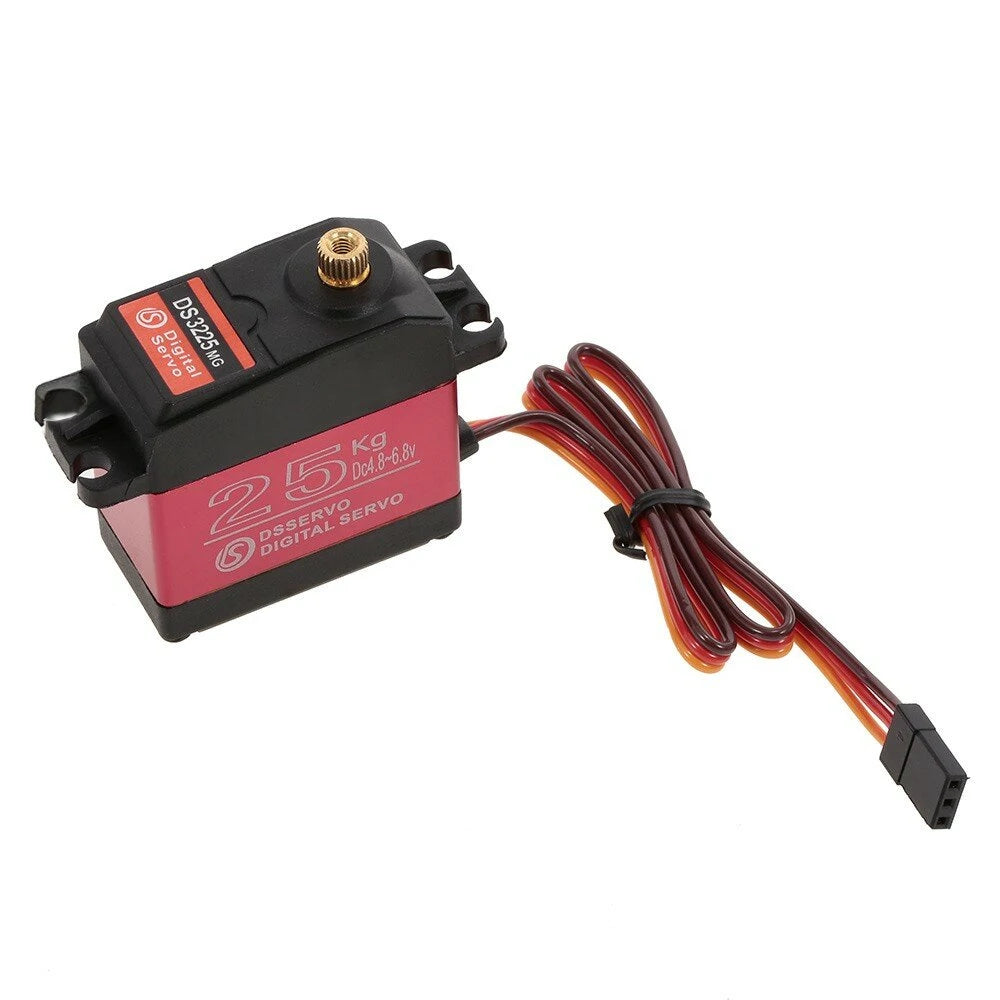

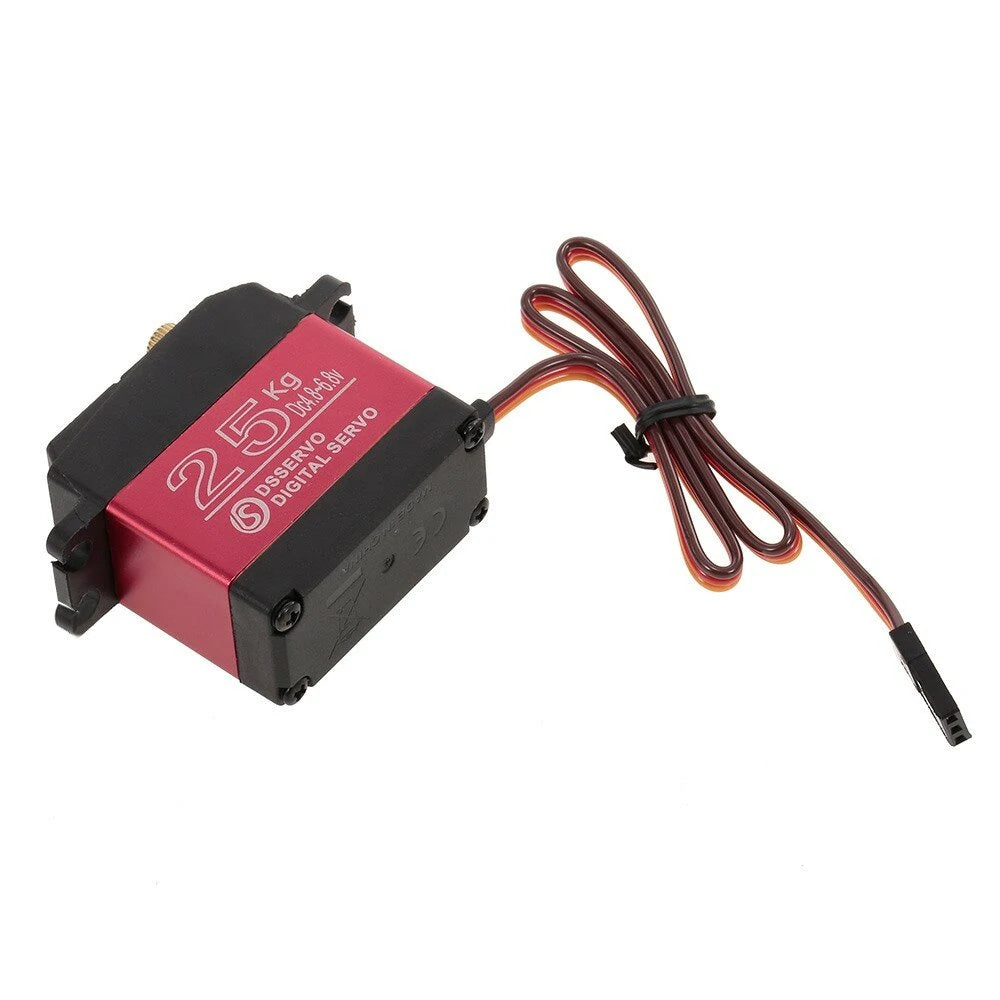

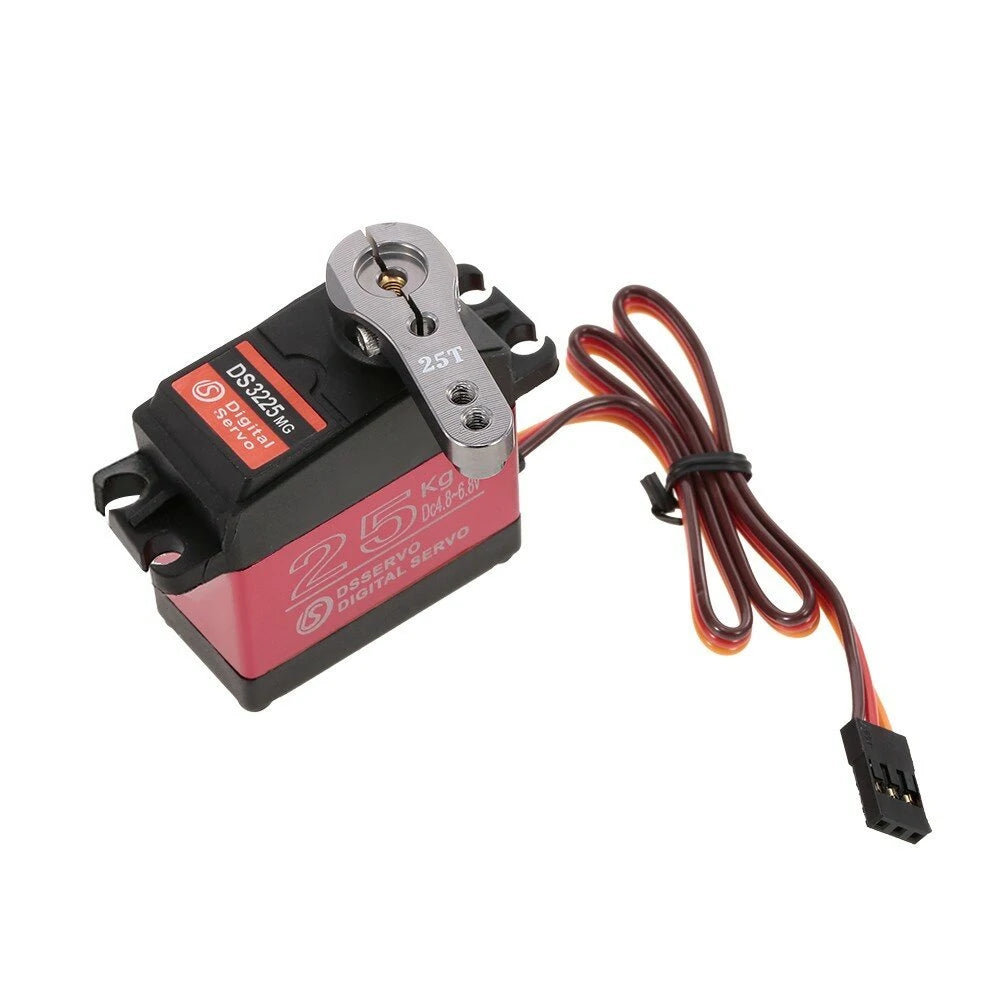

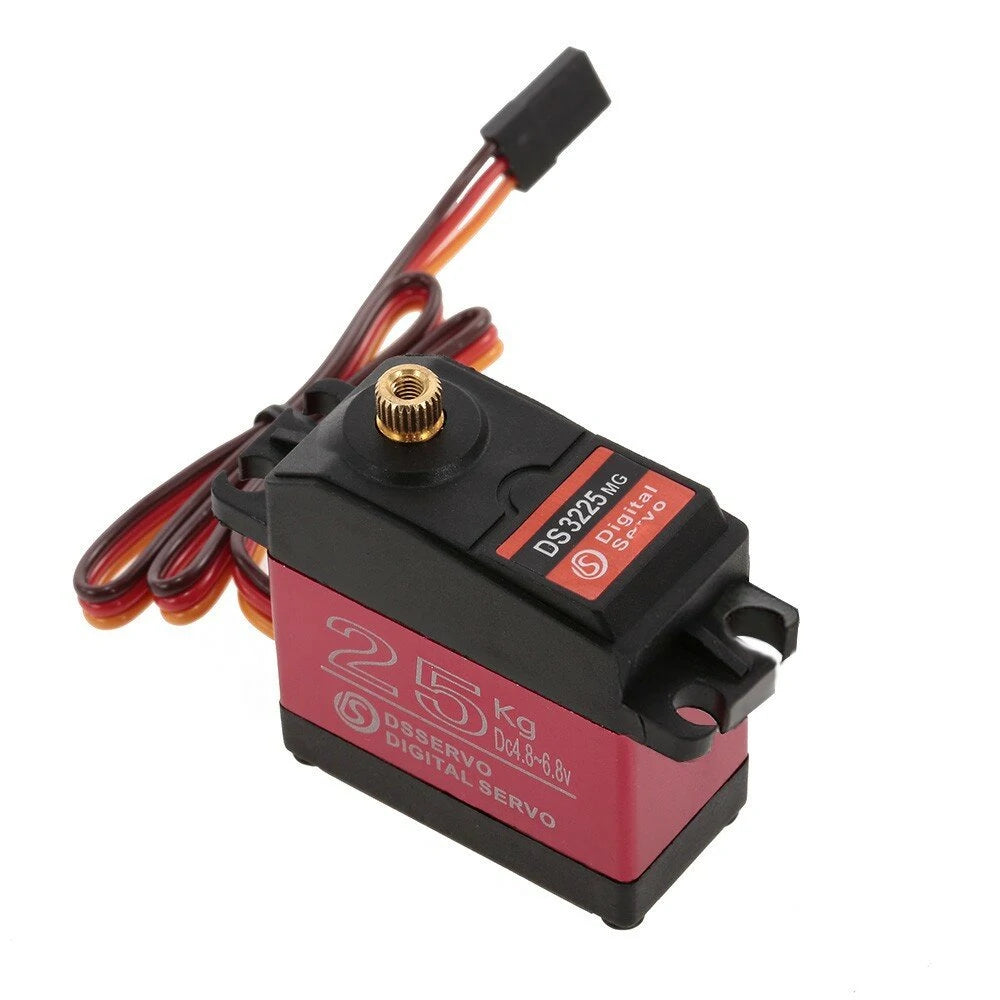

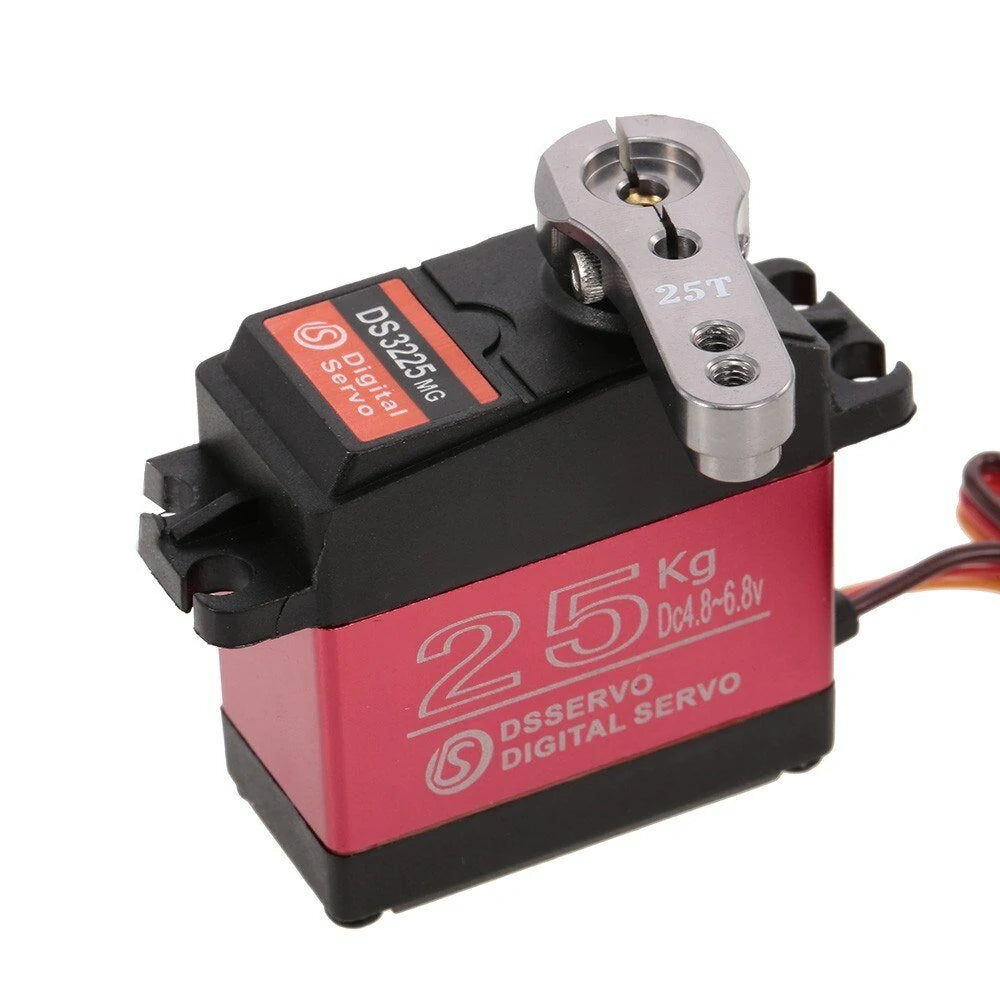

DSSERVO DS3225 25KG Metal Gear High Torque Waterproof Digital Servo For RC Airplane Robot
The DSSERVO DS3225 25KG digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyist to provide different experience and delight.
Features:
- Large torque - maximum torque can up to 25kg.cm (6.8V)
- High-precision metal gear with hard anodizing for better accuracy and longer service life
- CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well
- Water proof rubber seals screws, made of first-grade material ensure the longevity of the products
- Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys
- Great choice for university professors and students who are interested in developing software for robot parts
- Tailored for RC hobbyist to provide different experience and delight
Specifications:
Brand: DSSERVO
Item: DSSERVO DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3μs
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor
Size: 40 * 20 * 40.5mm

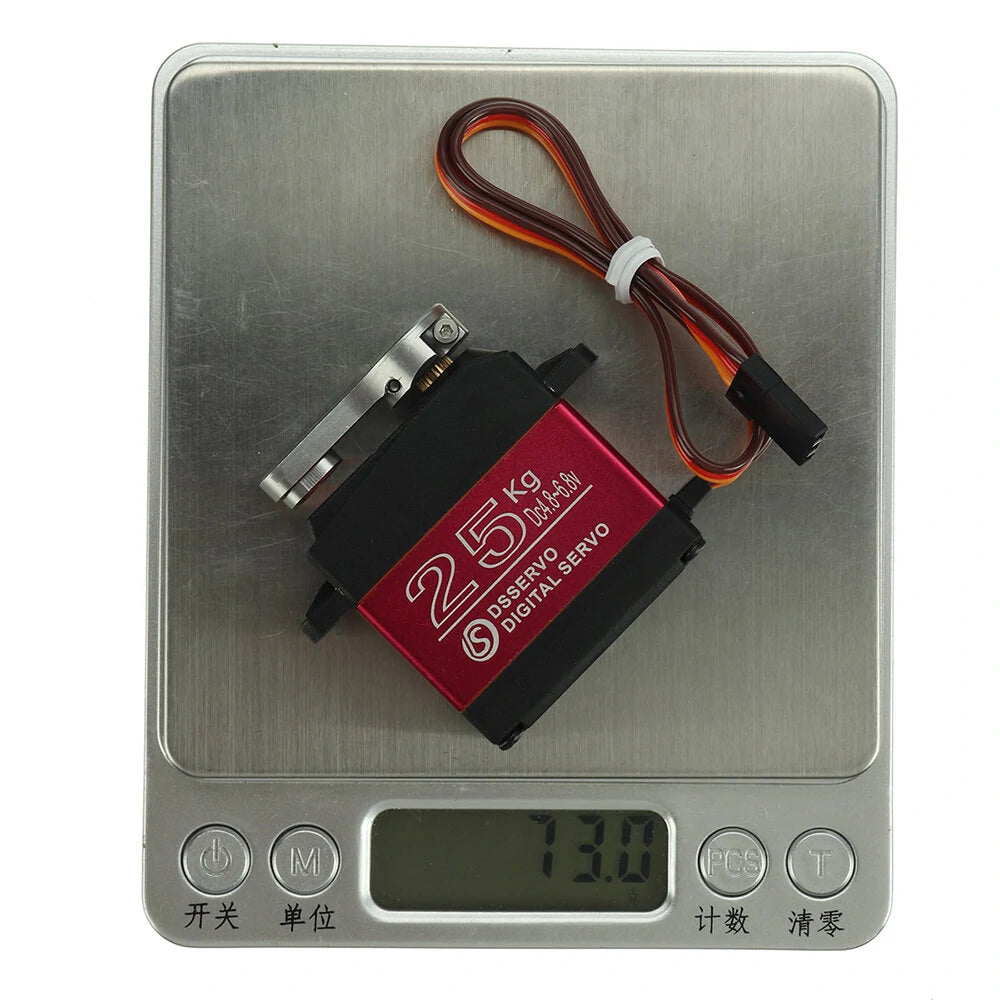

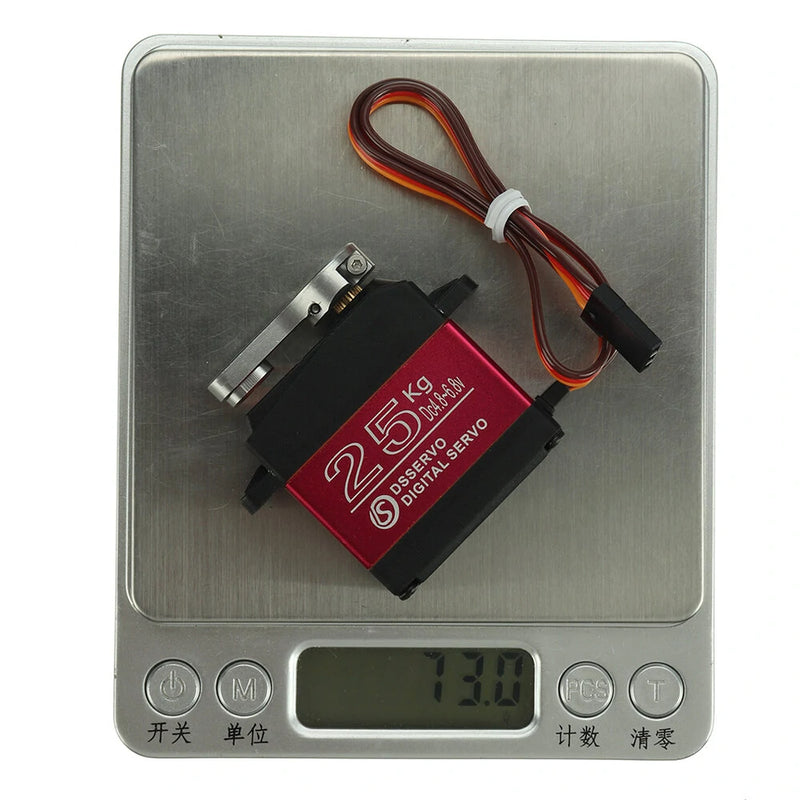

Weight: 67g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene
Datasheet, Click Here
Package Included
1 x DS3225 25kg Digital Servo

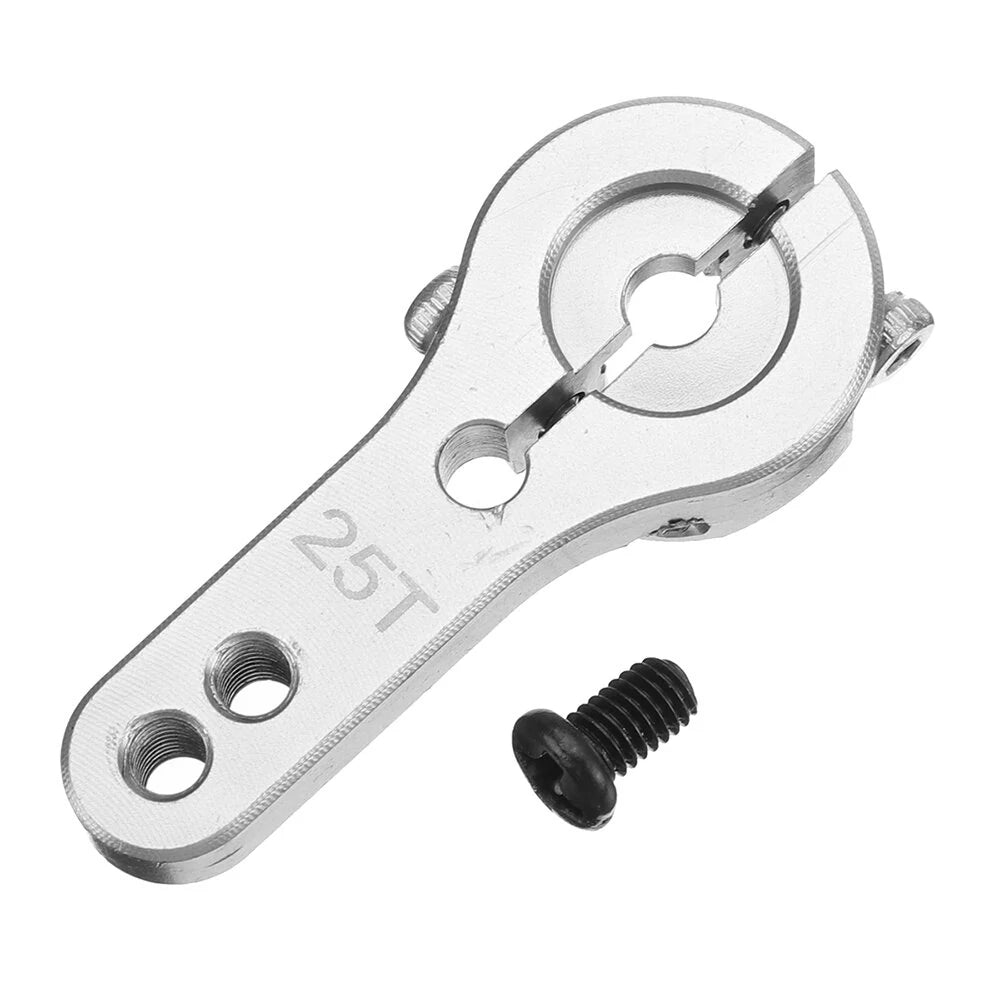

1 x 25T Adjustable Metal Servo Arm
