Description
Specification:

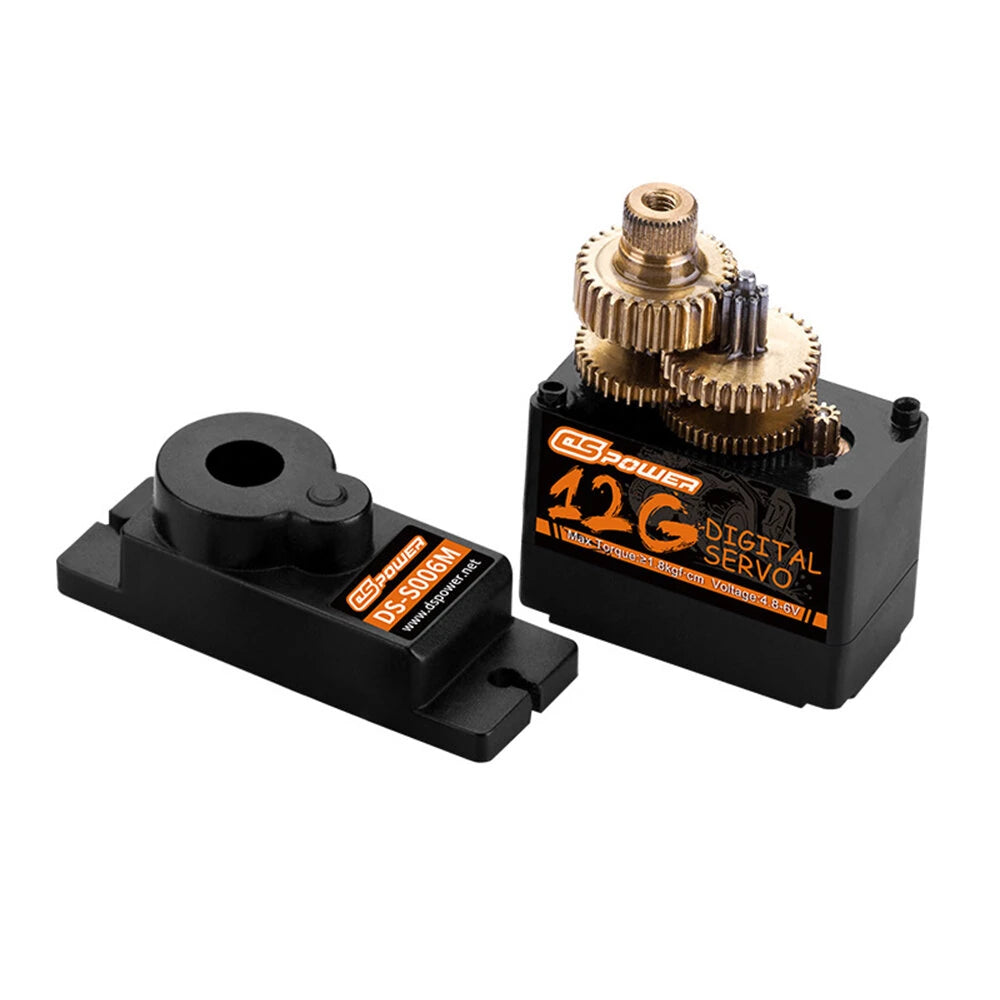

Model: DS-S006M
Operating Voltage: 4.8-6V DC
Static Current: ≤20mA
Stall Current: ≤1.1A
Stall Torque: ≥2.4kgf·cm
Rotating Direction: CCW (500→2500μs)
No-load Speed: 0.14 sec/60°
Pulse Width Range: 500~2500μs
Operating Travel Angle: 180°
Return Angle Deviation: ≤1°
Weight: 14g
Communication Interface: PWM
Wire Length: 250mm
Output Shaft: 40T/Φ4.85mm
Plug: JR2.54

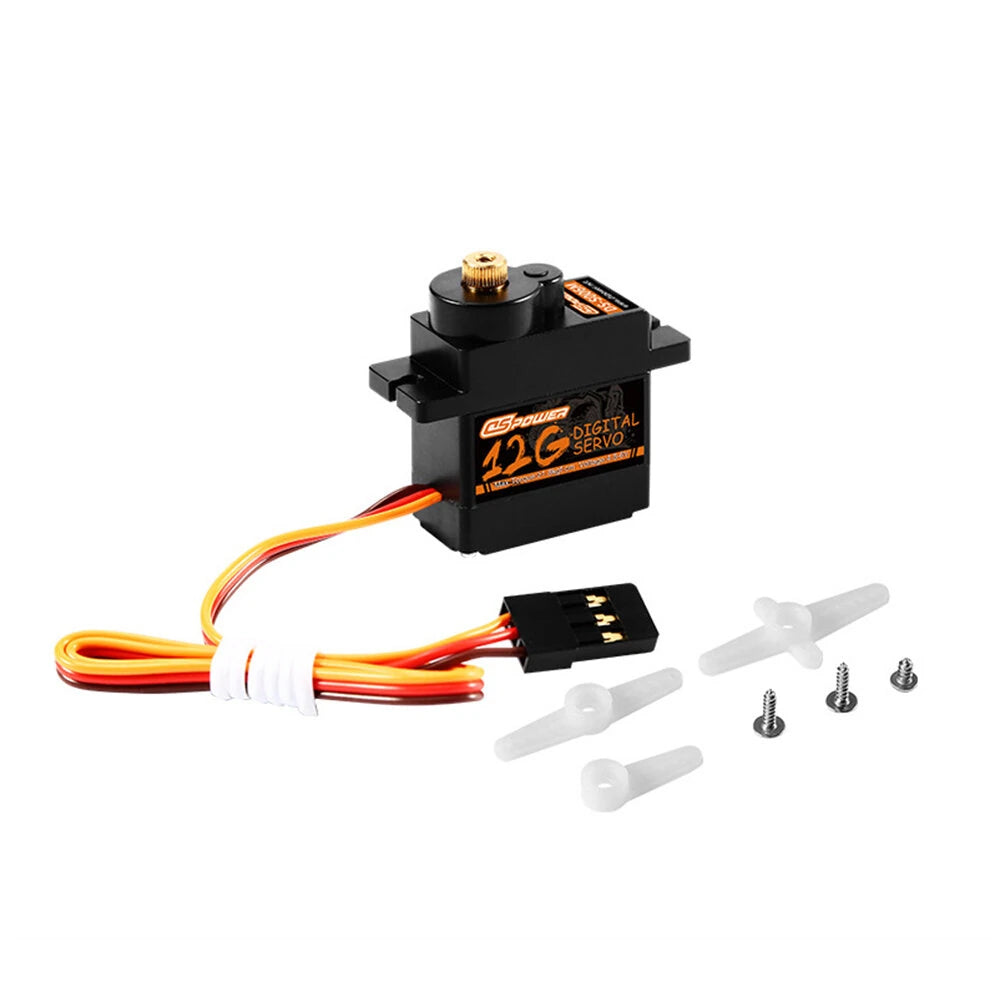

Package included:
1 x RC Servo
