Description
Specification：
Model: DS-S006L
Operating Voltage: 4.8-6V DC
Static Current: ≤20mA at 6.0V
Stall Current: ≤550mA at 4.8V / ≤650mA at 6.0V
Stall Torque: ≥1.0kgf·cm at 4.8V / ≥1.2kgf·cm at 6.0V
Rotating Direction: CCW (1000→2000μs)
No-load Speed: 0.09 sec/60°
Pulse Width Range: 500~2500μs (180°)
Operating Travel Angle: 180°
Return Angle Deviation: ≤1°
Weight: 9g
Communication Interface: PWM
Wire Length: 250mm
Output Shaft: 40T/Φ4.85mm
Plug: JR2.54

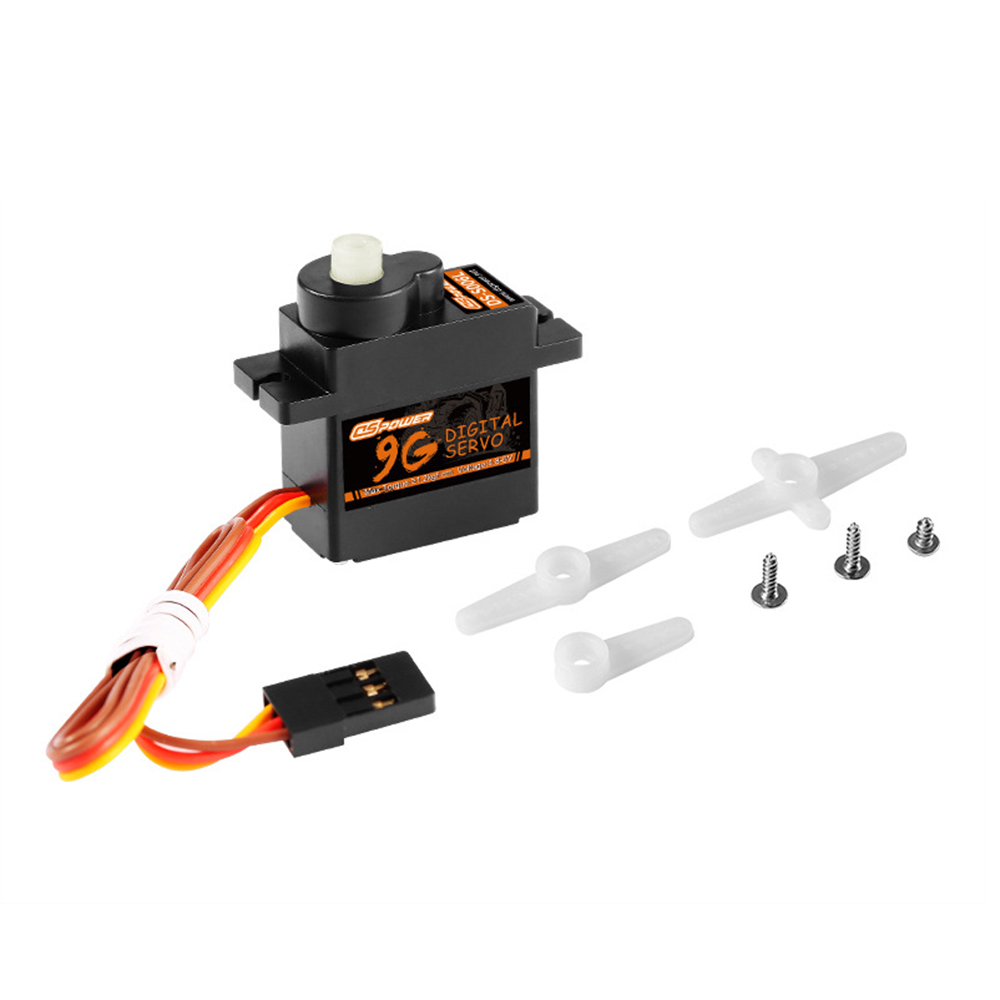

Package included:
1 x RC Servo
