Description

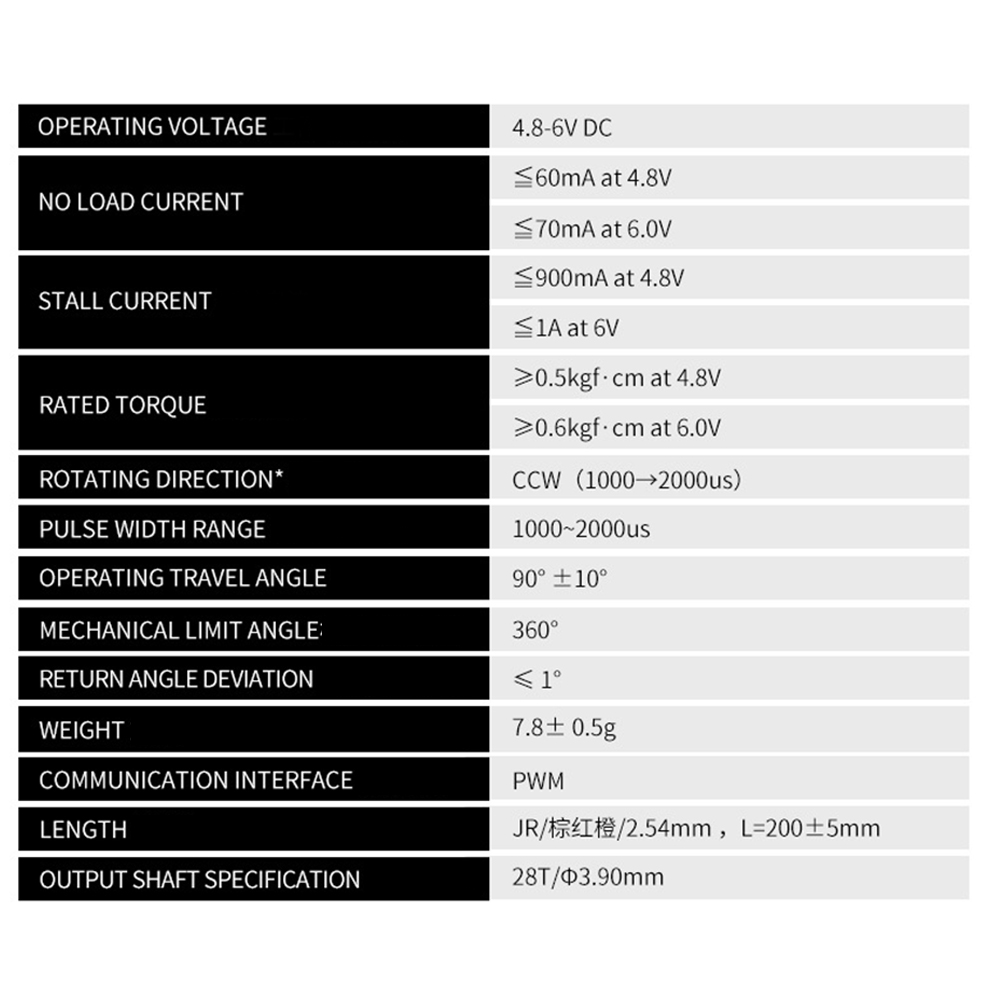

Specifications:
Brand: DS Power
Model: DS-S003M
Operating Voltage: 4.8V - 6.0V DC
No Load Current: ≤60mA (4.8V), ≤70mA (6.0V)
Stall Current: ≤900mA (4.8V), ≤1A (6V)
Rated Torque: ≥0.5kgf·cm (4.8V), ≥0.6kgf·cm (6.0V)
Rotating Direction: CCW, pulse width 1000~2000μs
Operating Travel Angle: 90°±10°
Mechanical Limit Angle: 360°
Return Angle Deviation: ≤1°
Weight: 7.8g ±0.5g
Communication Interface: PWM
Output Shaft Specification: 28T/Φ3.90mm
Cable Length: JR Connector/200±5mm

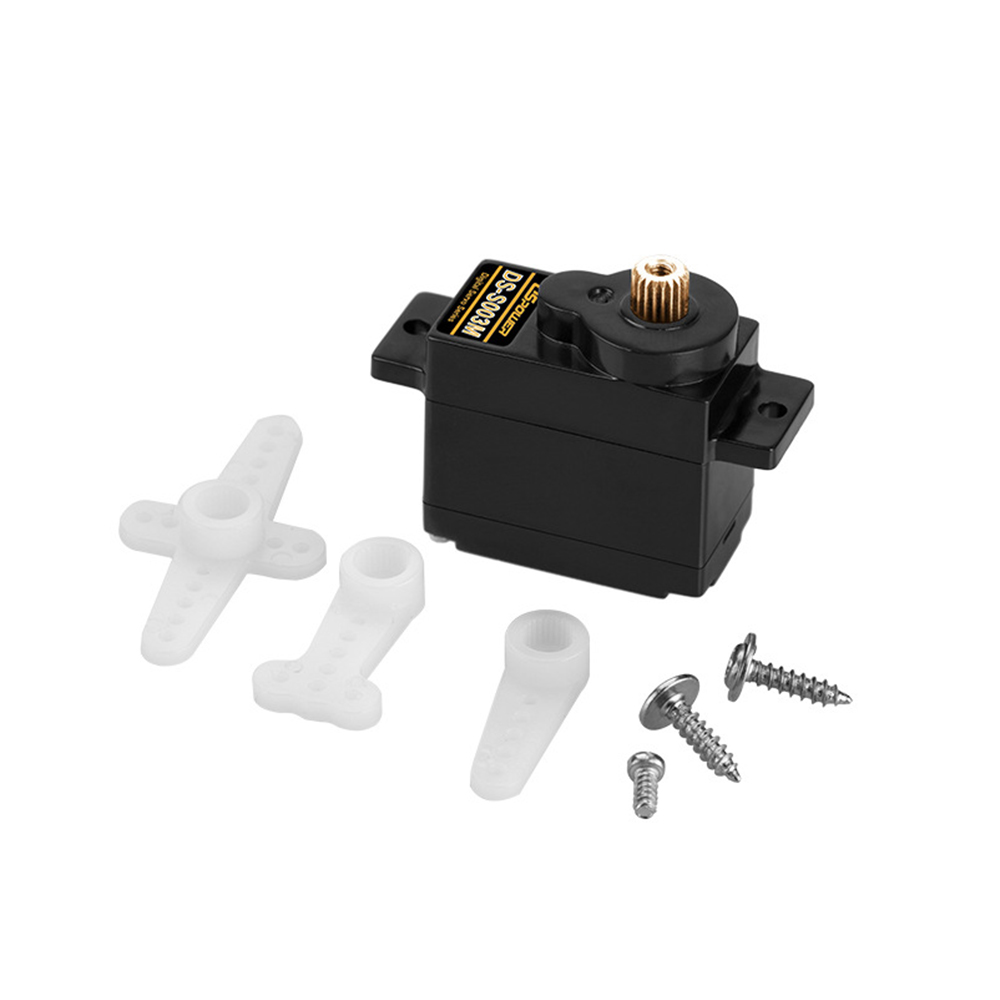

Package included:
1 x RC Servo
