Description
Features:
- Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3.
- Compatible with DJI FPV Remote Controller 2 or 3.
- Lightweight FHD FPV Digital Video Transmission.
- 20 ms Low Latency, 10 km Rangee.
- 1/2-inch CMOS Image Sensor.
- 4K/60fps Video Recording.
- 1080p/100fps Live View.
- 8.2g Lightweight Body.
- Elevate Signal, Unlock Flight
DJI O4 AirUnit Series: Ultra-low latency O4 transmission. O4 AirUnit Pro (dual antenna) achieves 15 km max range. Intelligent frequency hopping for rock-solid link indoors or out.
- Crisp 4K/60fps, Fluid 1080p/100fps HD
Record 4K/60fps. O4 transmission delivers 1080p/100fps real-time HD feed via H.265 encoding. View stays locked on fast maneuvers.
-Race Mode: 15ms Latency, 8-Aircraft Sync
New Race Mode: 15ms latency. Race up to 8 synchronized aircraft.
-Pro Imaging: Larger Sensors, Higher FPS
O4 AirUnit: 1/2-inch sensor, 4K/60fps.
O4 AirUnit Pro: 1/1.3-inch sensor, 4K/120fps. Ultra-wide cinematic footage—no extra cam needed.
- Harsh Light? ND Filters Supported (Pro)
O4 AirUnit Pro Camera works with DJI Avata 2 ND Filters (8/16/32). Perfect exposure & colors in bright light. Capture motion blur.
- Custom OSD: CanvasMode & Betaflight
Full screen control. Customize real-time data overlays via CanvasMode & Betaflight OSD.
- Lightweight, Wide Compatibility
Compact design fits diverse builds. Standard O4 AirUnit ideal for frames ≤2-inch.
Specification:
Brand: DJI

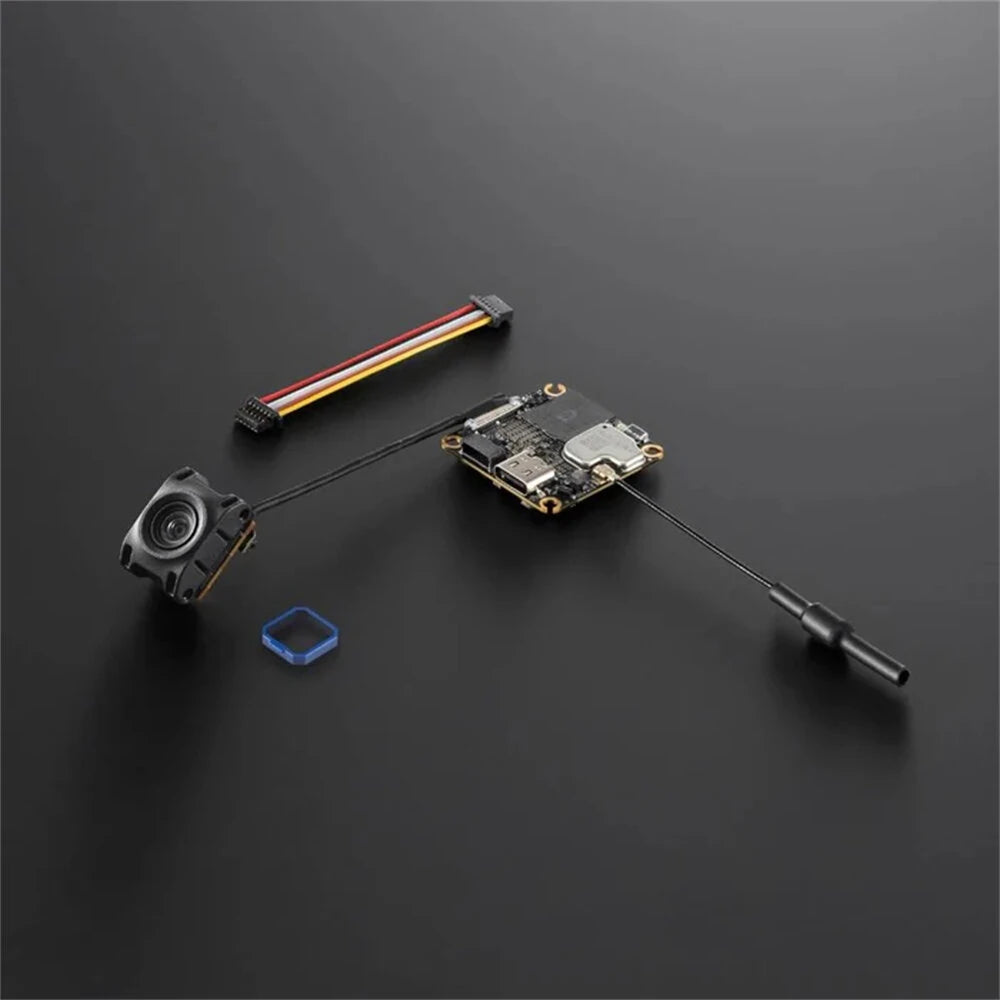

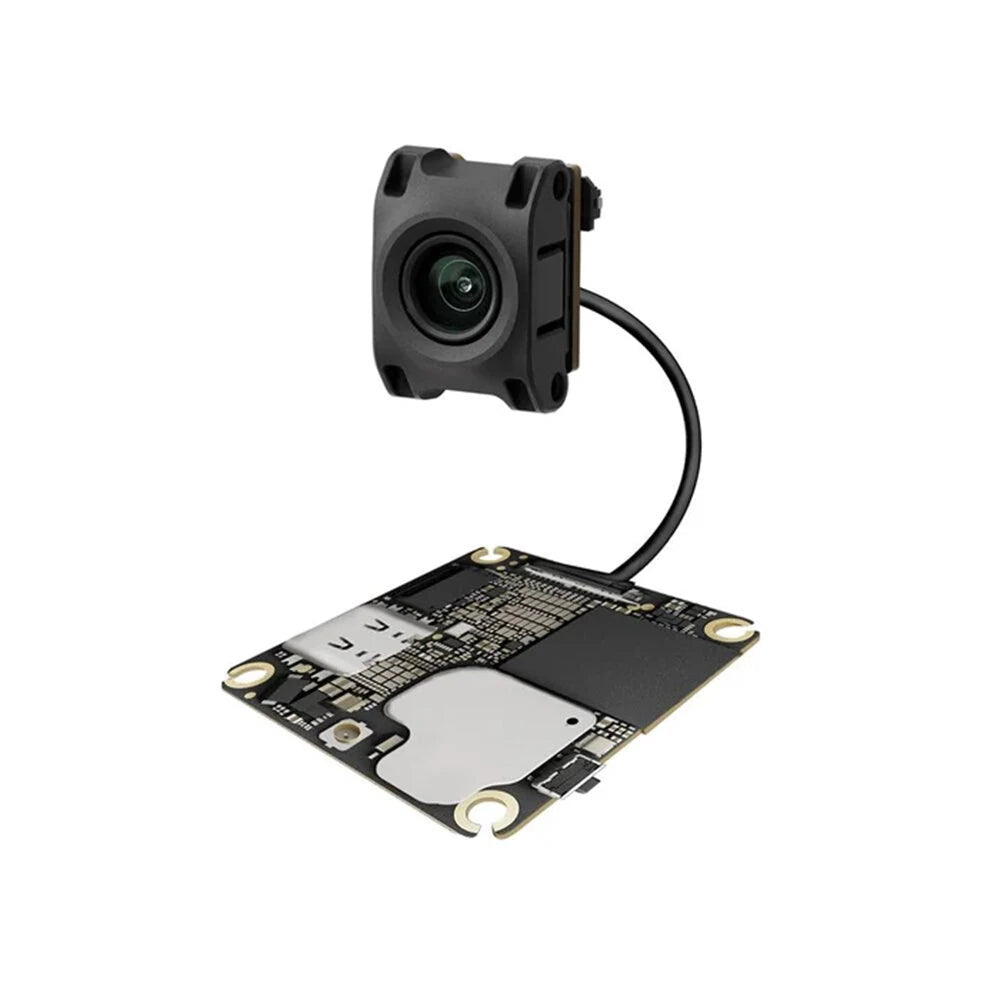

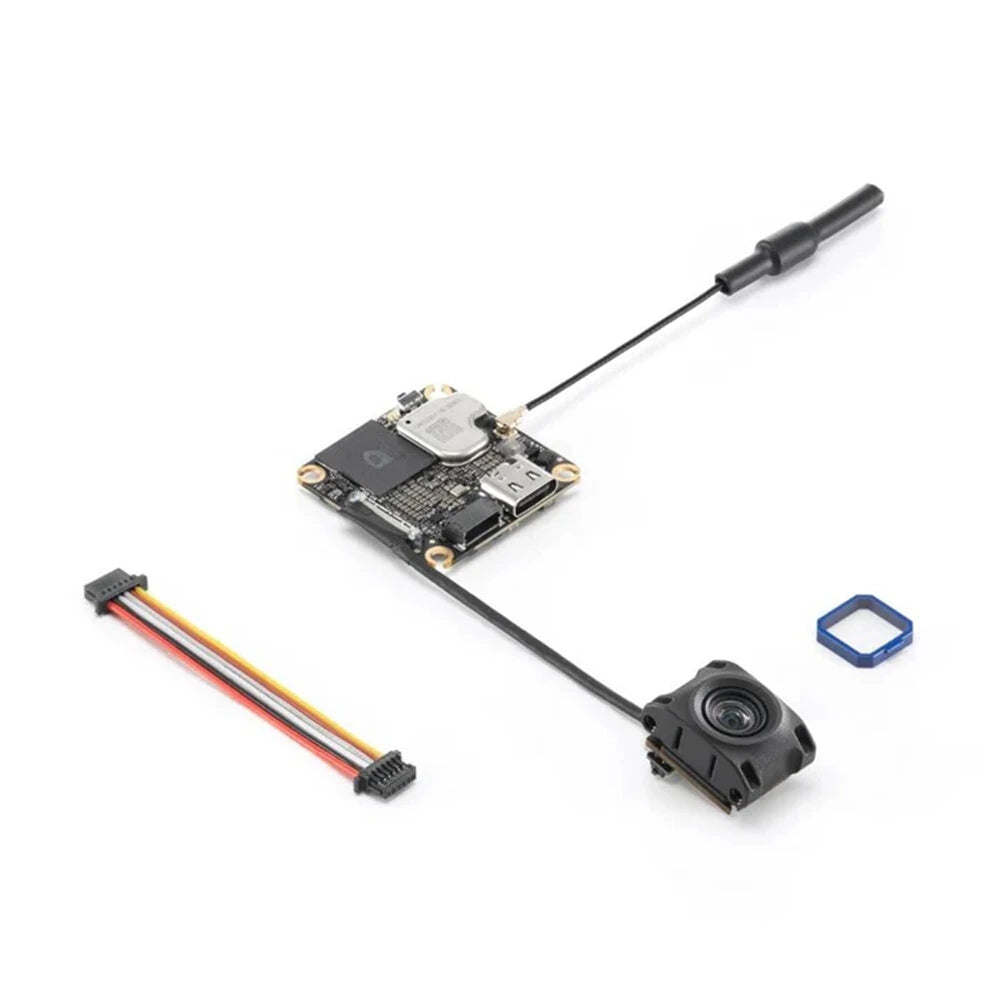

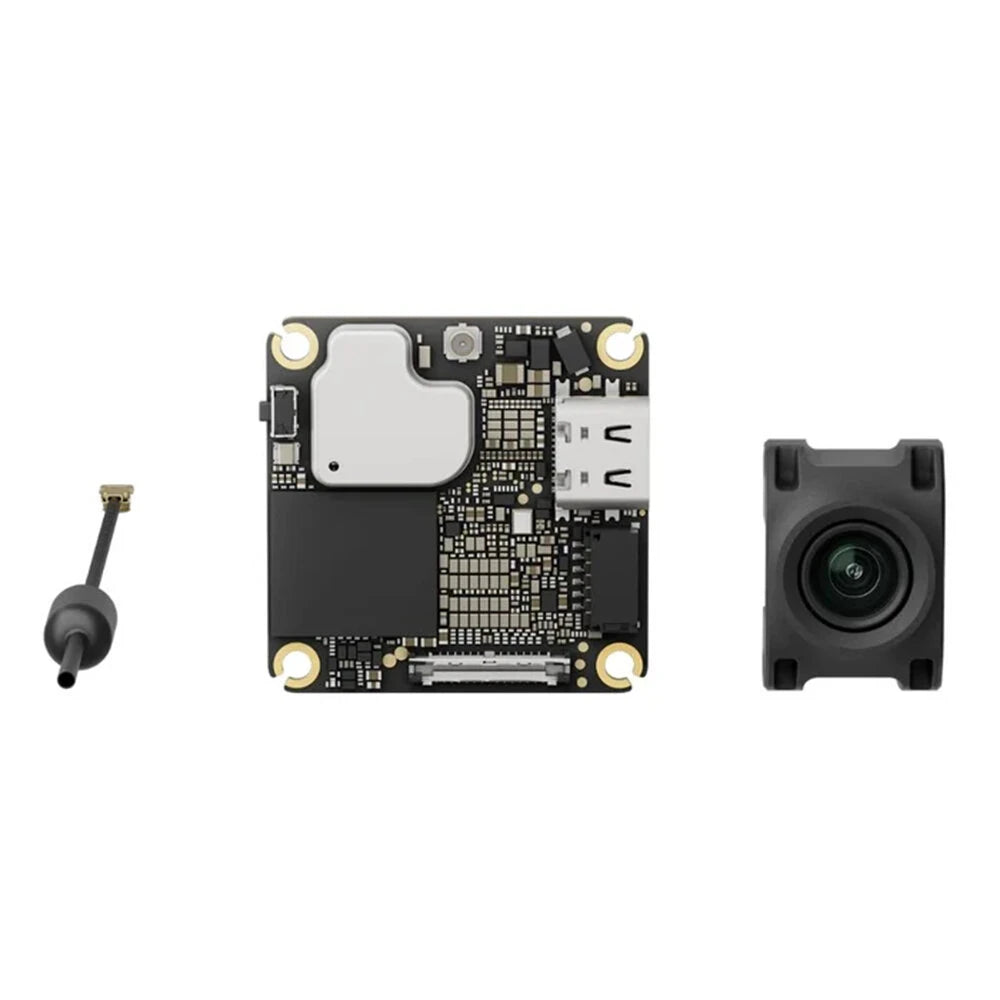

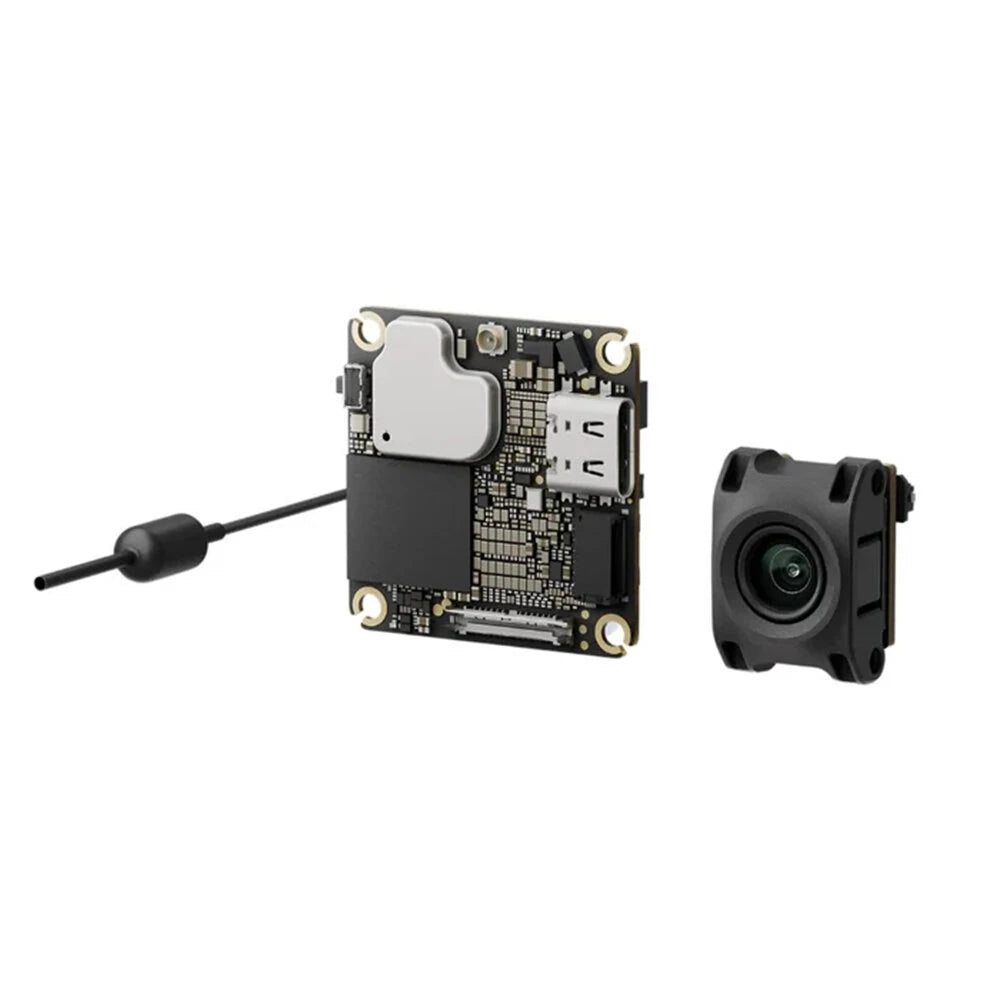

Model: DJI O4 AIRUNIT
DJI O4 AIRUNIT |
Weight: |
AirUnit (camera module excluded): Approx. 5.1 g AirUnit (camera module included): Approx. 8.2 g* Antenna: Approx. 0.75 g The lens mount is not included. With the lens mount, the weight is 9.2 grams. |
Dimensions: |

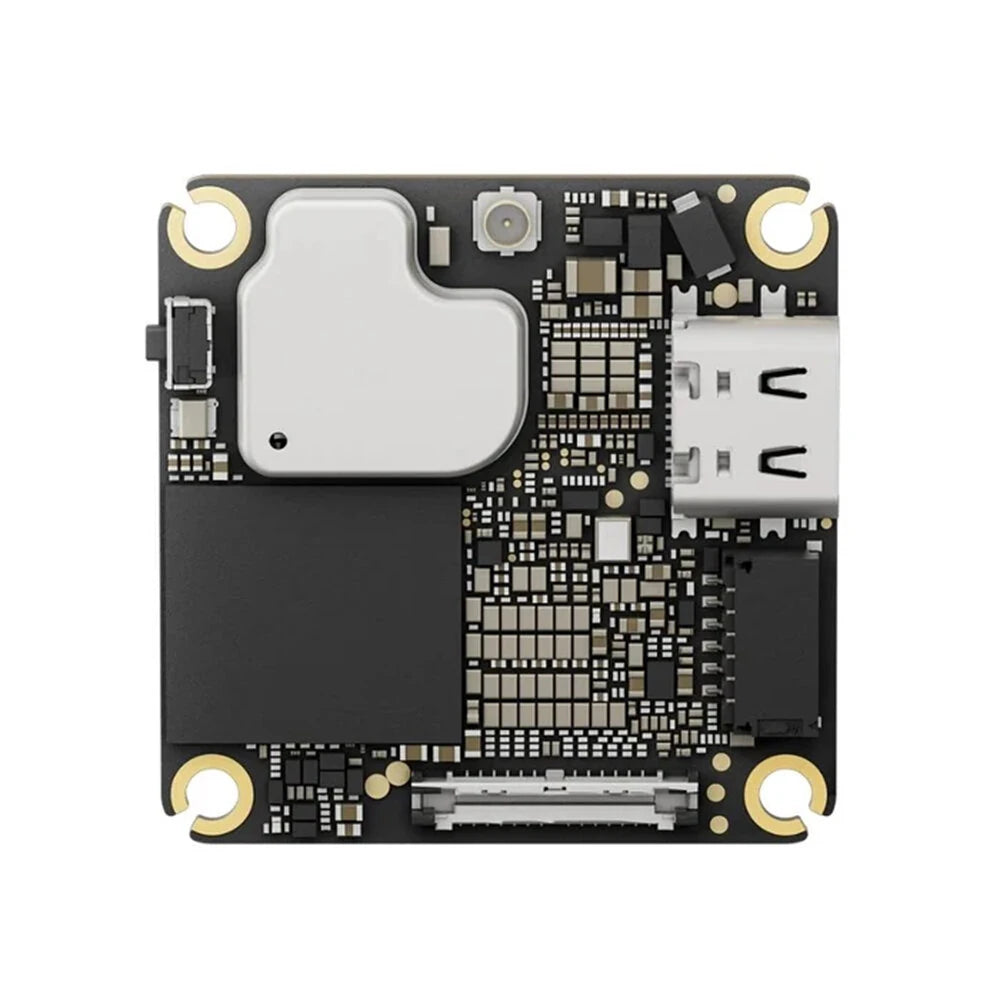

Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Antenna: 80 mm |
|
VTX Mounting Pattern: |
20x20mm |
|
VIDEO TRANSMISSION |
Operating Frequency: |
5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. |
Transmitter Power (EIRP): |
5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) |
|
Lowest Latency: |
DJI Goggles 3 (Racing Mode): 20 ms with 1080p/100fps DJI Goggles N3 (Racing Mode): 24 ms with 1080p/100fps DJI Goggles 2 / Goggles Integra: Less than 35 ms with 1080p/100fps Latency data represents the minimu latency tested in open environments. |
|
Max Video TransmissionRange: |
DJI Goggles 3 / DJI Goggles N3: FCC: 10 km CE: 6 km SRRC: 6 km Measured in unobstructed outdoor environments. Actual rangee varies based on flightendurance. |
|
Live View Quality: |
1080p at 30/50/60/100fps |
|
Communication Bandwidth: |
Max 60 MHz |
|
Antenna: |
1 antenna, 1T1R |
|
Channels: |
Auto Mode and Manual Mode Supported With DJI Goggles 3 or DJI Goggles N3: 60 MHz: 1 channel 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels With DJI Goggles 2 or Goggles Integra: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels |
|
|
Channel Info: |
FCC/SRRC/CE: 60 MHz / 40 MHz: Channel 1: 5794.5 MHz 20 MHz / 10 MHz: Channel 1: 5768.5 MHz Channel 2: 5789.5 MHz Channel 3: 5814.5 MHz |
CAMERA |

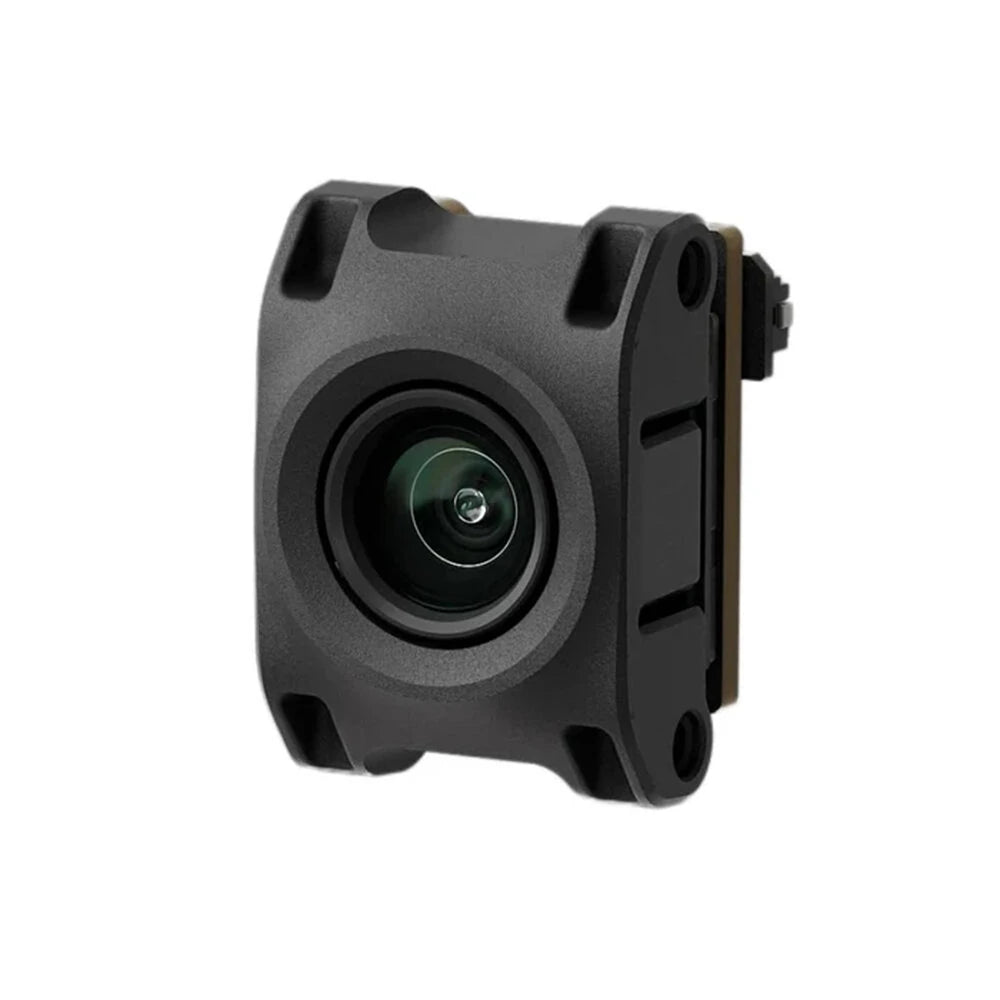

Image Sensor: |
1/2-inch CMOS Sensor |
Lens: |
FOV: 117.6° Equivalent Focal Length: 14 mm Aperture: f/2.8 Focus: 0.6 m to ∞ |
|
ISO Rangee: |
100-6400 (Auto) 100-12800 (Manual) |
|
Video Resolution: |
